Application:
This receiver is an electric device with 4 relay outputs, it and the
transmitter form a wireless remote-control system. This system may be used
in all types of industry automation, agriculture, business, home, factory,
house, farm, garage, vehicle, ship, aerial vehicle, etc. It can remote
control different DC or AC equipment on land, water, and air, such as
lights, doors, windows, lamps, sockets, locks, sirens, outlets, heaters,
motors, fans, winches, curtains, blinds, linear actuators, electric solenoid
valves, and security alarm systems. The applications are endless.
Feature:
Wireless control, easy to install.
Super long working range: With the transmitter forming a complete set, the
maximum working distance may reach 1000 meters in an open area.

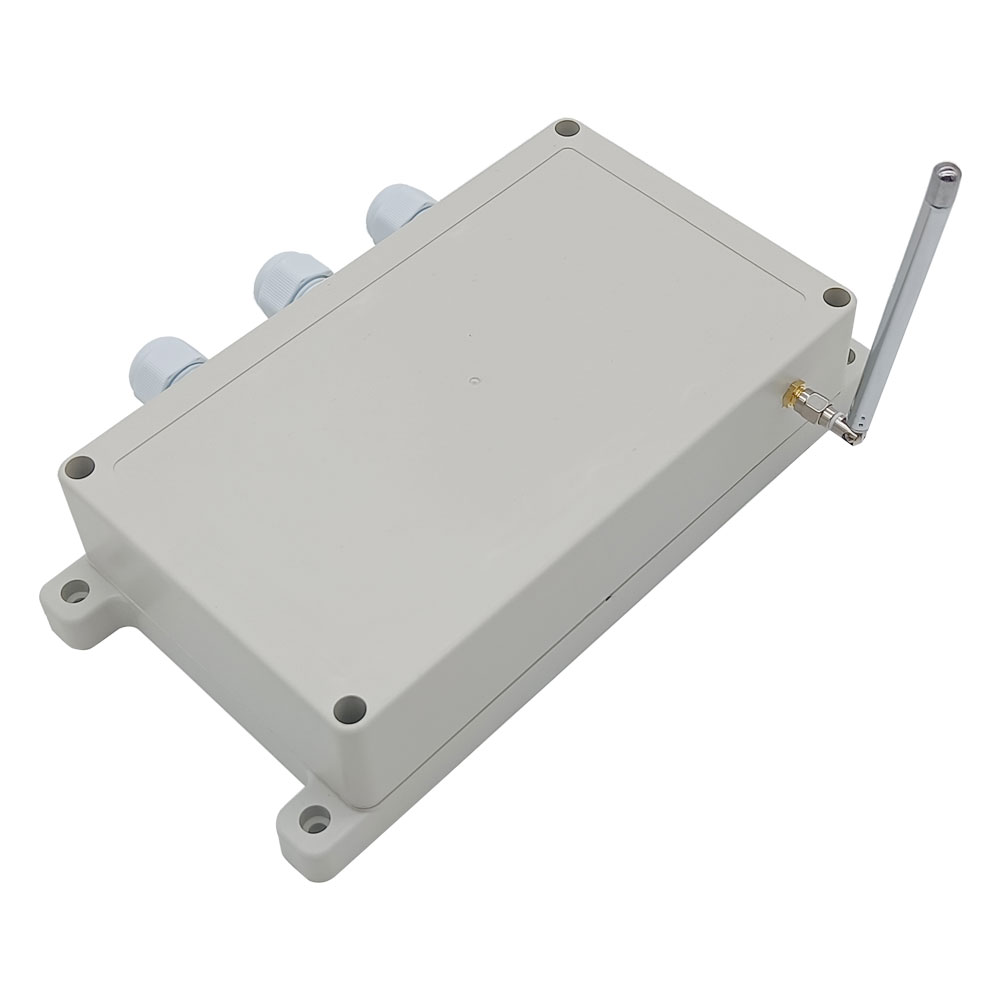

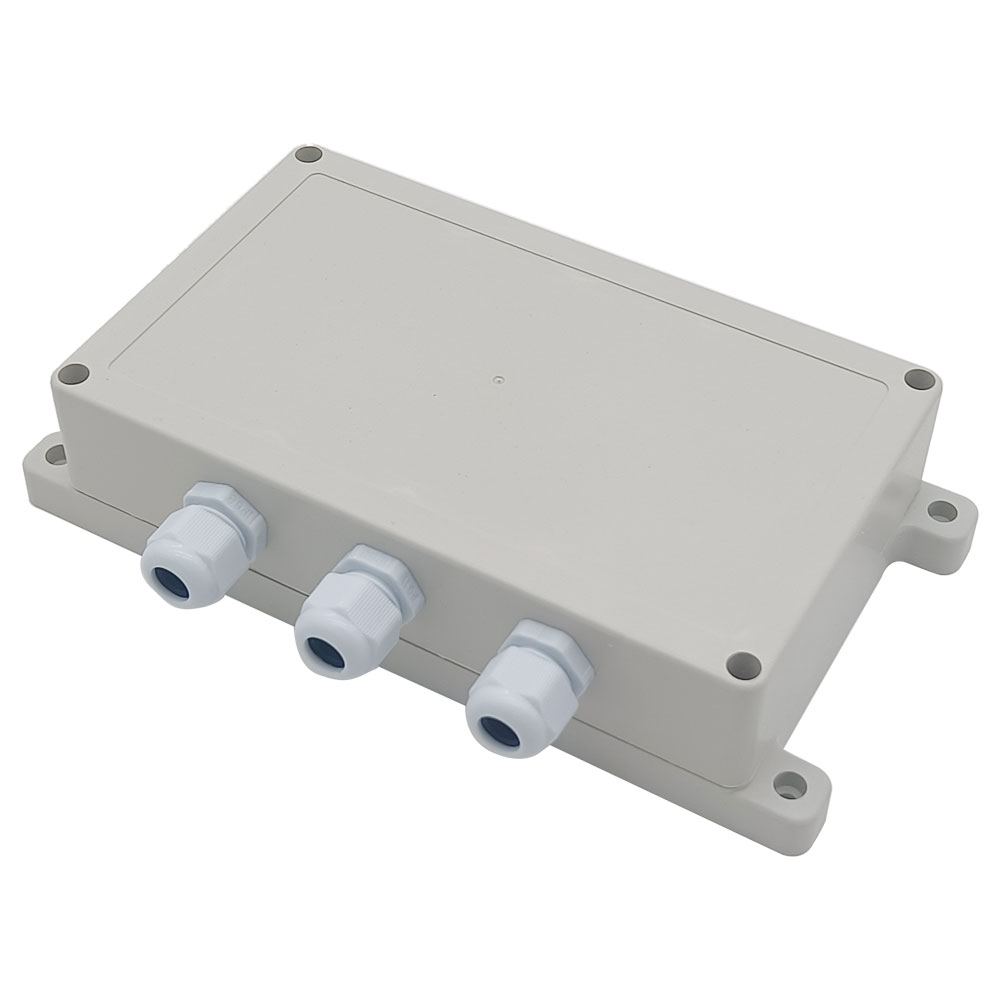

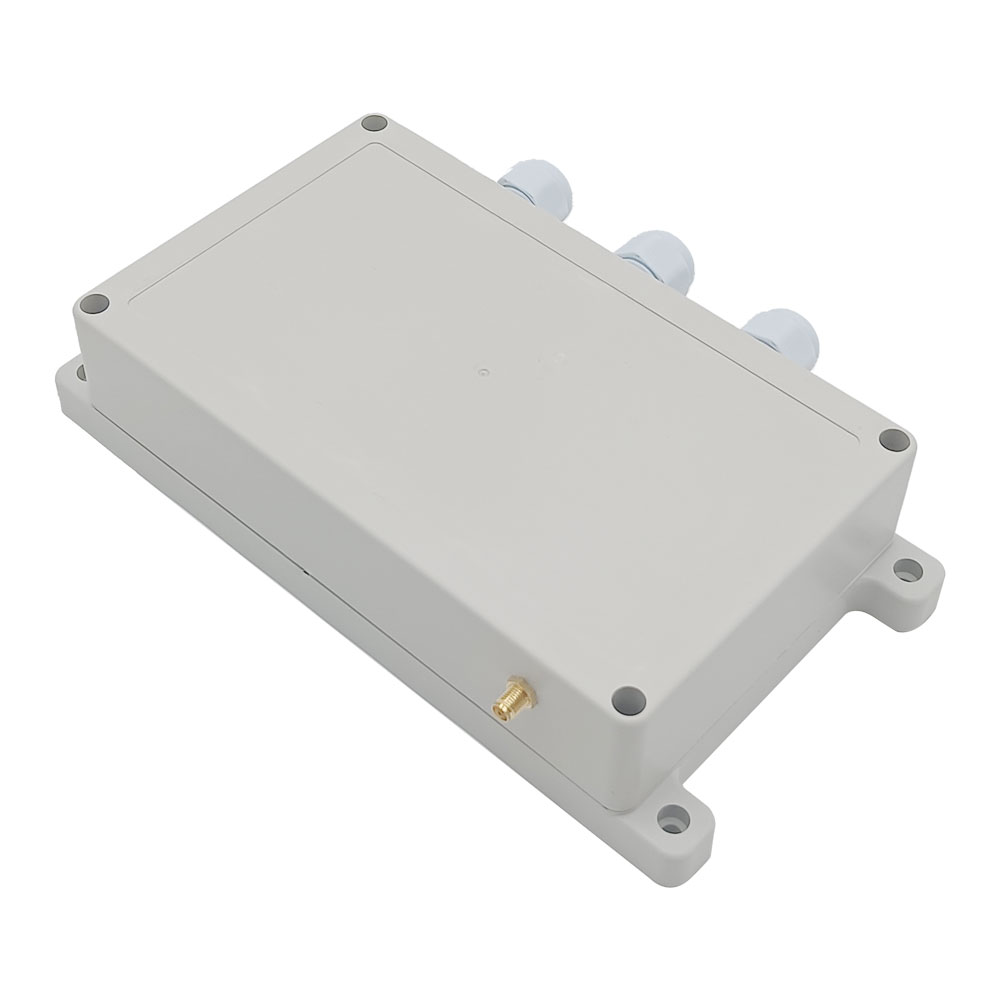

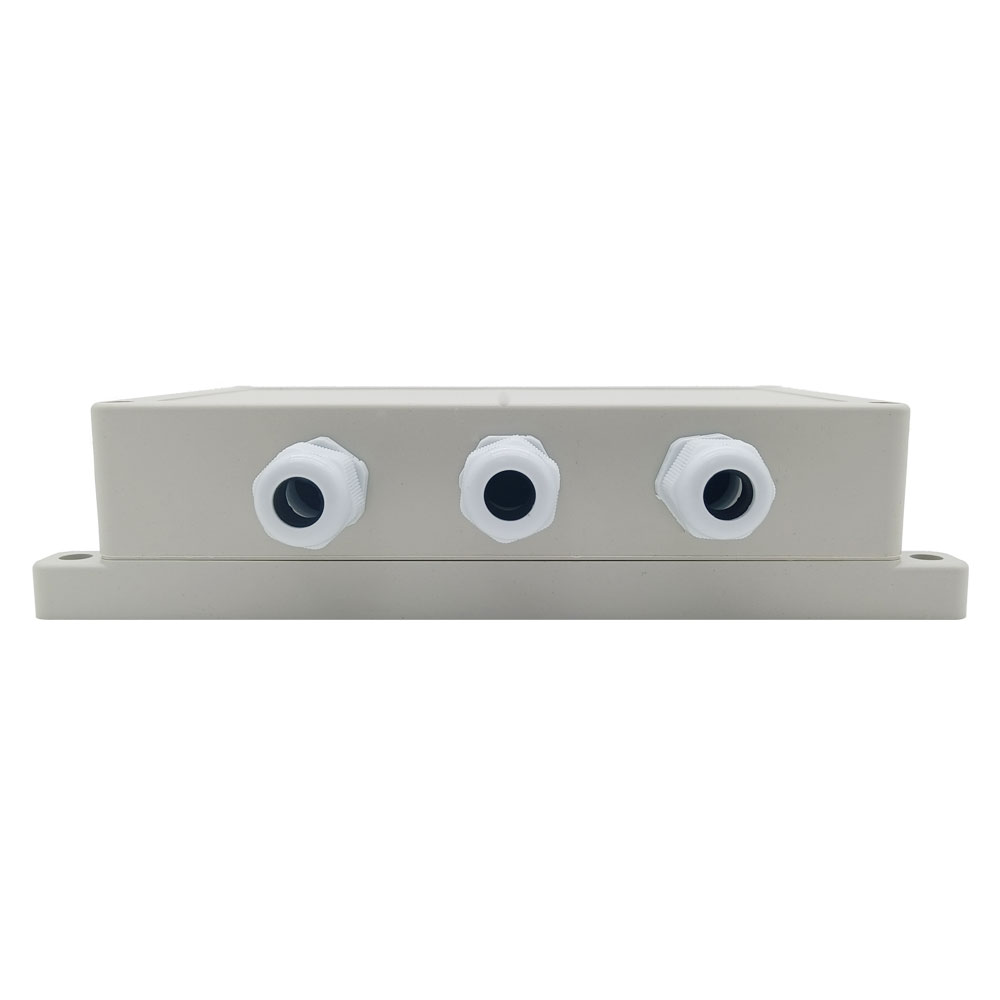

Waterproof: The receiver has waterproof case and waterproof connector, it
can be installed outdoors.
Universal input: Support 110V AC (110V~120V) used in US, Canada, etc, and
220V AC (220V~240V) used in Germany, UK, France, etc.
Relay Output: This receiver is dry relay output; it can be used to operate
both DC and AC equipment. The output terminals are NO / NC (normally open /
normally closed), serving as a switch. That means you should also connect a
separate power supply to equipment.
High Power: Each channel can work at maximum load current 30A.

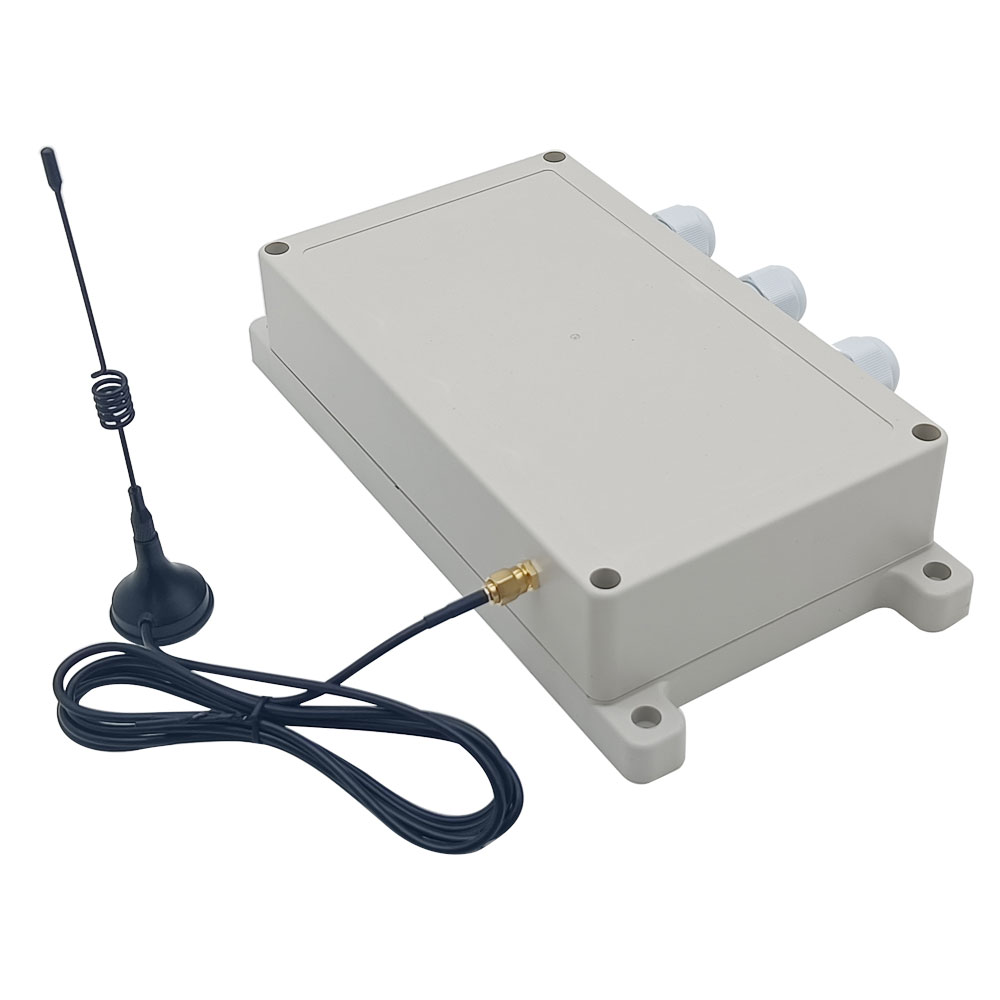

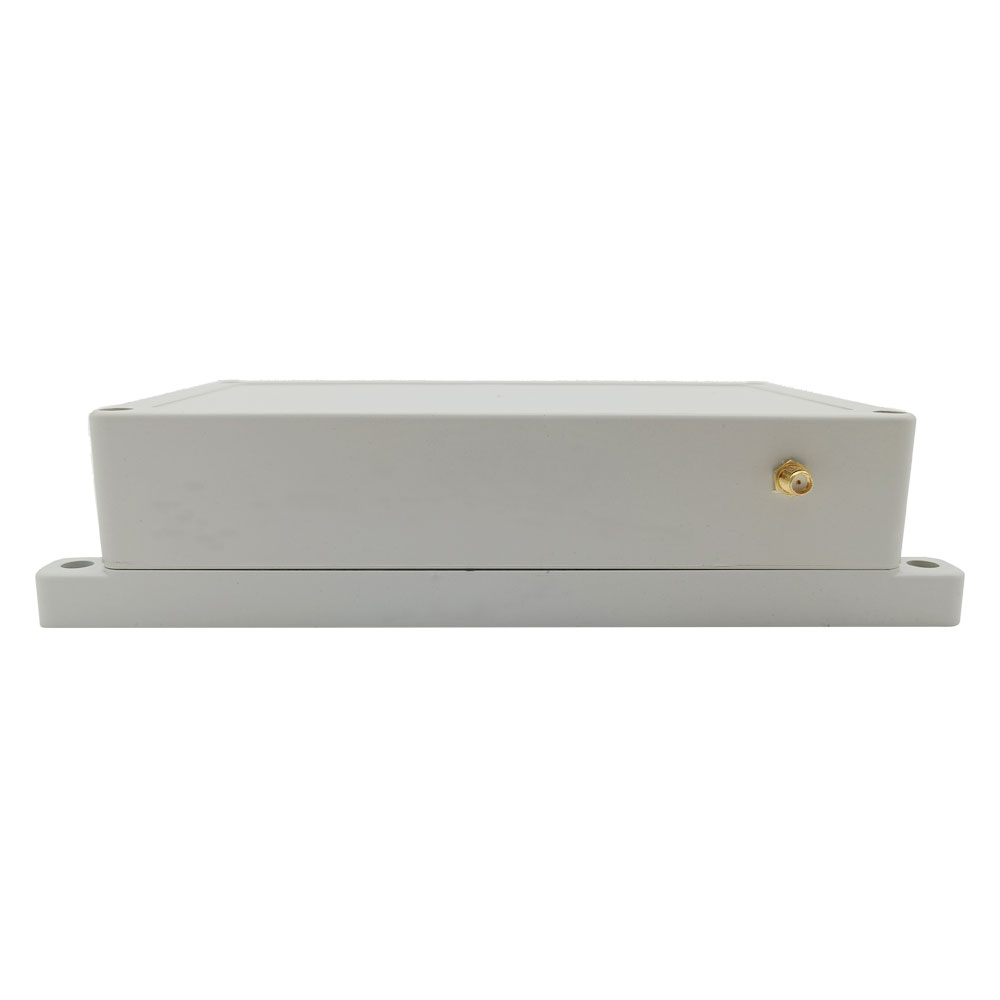

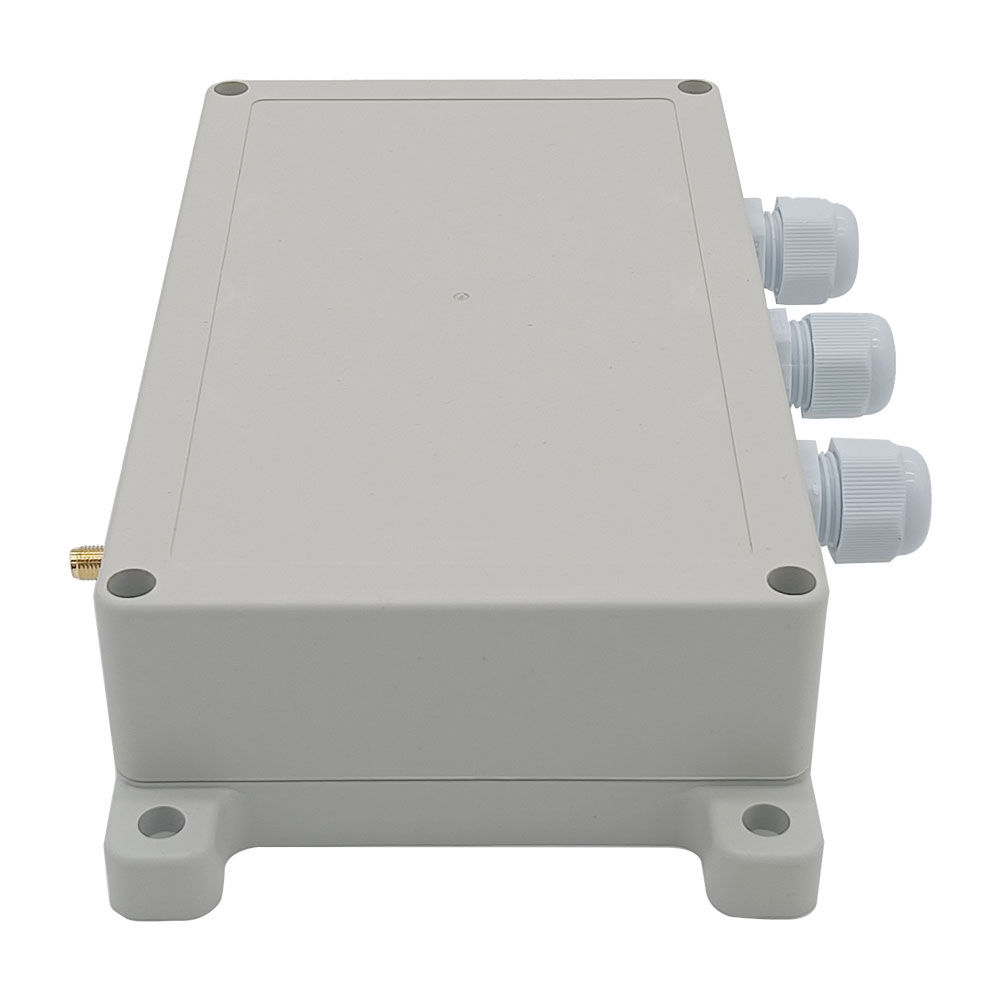

With external antenna, the receiver has a farther working range.
The transmitter / remote can control the receiver from any place within a
reliable working distance.
Wireless RF signal from the transmitter can pass through walls, floors,
doors, or windows, but it will lose some operating range.
The receiver has reverse voltage protection and overcurrent protection.
The receiver can only be triggered by paired transmitters.
One or more transmitters / remotes can control one or several receivers
simultaneously.
Two or more receivers may be used in the same area.
Receiver Parameters:
Model: S4PU-AC-ANT3
Operating Voltage: AC110~240V (110V/120V/220V/240V)
Working Frequency: 433.92 MHz
Quiescent Current: ≤6mA
Channel: 4 CH
Output Type: Relay Output (With Normally Open and Normally Closed Terminals)
Maximum Load Voltage of Relay: 240VAC or 28VDC
Maximum Load Current of Relay: 30A / channel
Suitable Wires for Connecting Terminals: 22-12 AWG
8 Different Control Modes: Self-locking, Momentary, Interlocking, and 5
Mixed modes
Operating Temperature: -20 °C ~ +70 °C

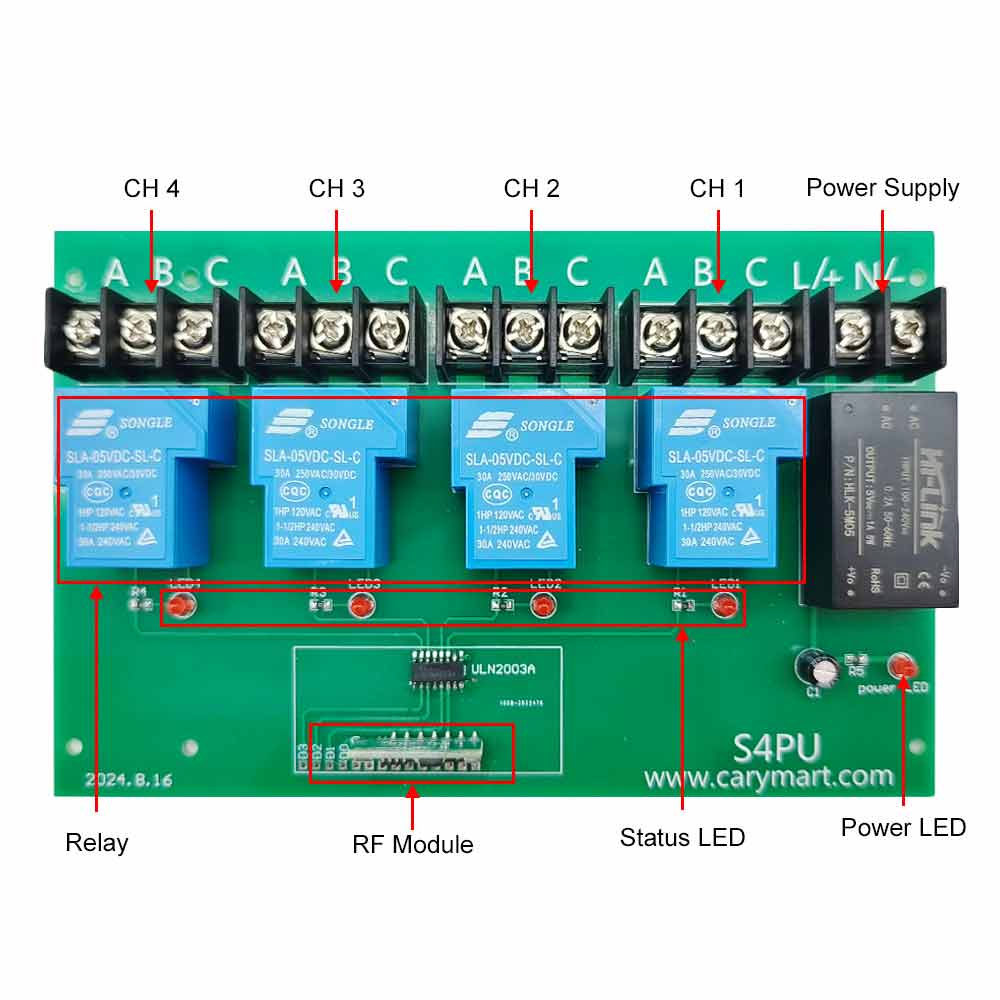

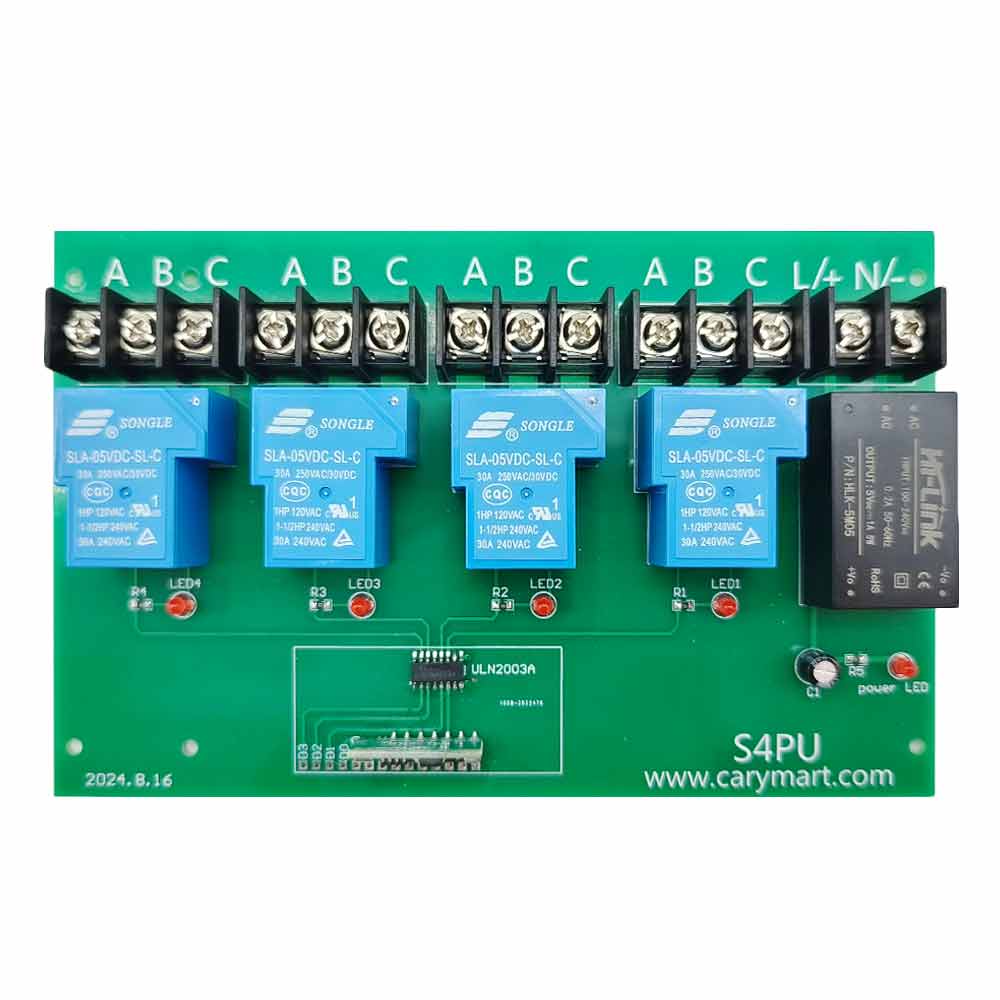

PCB size: 170 x 109 x 18 mm (6.7 x 4.3 x 0.7 inches)

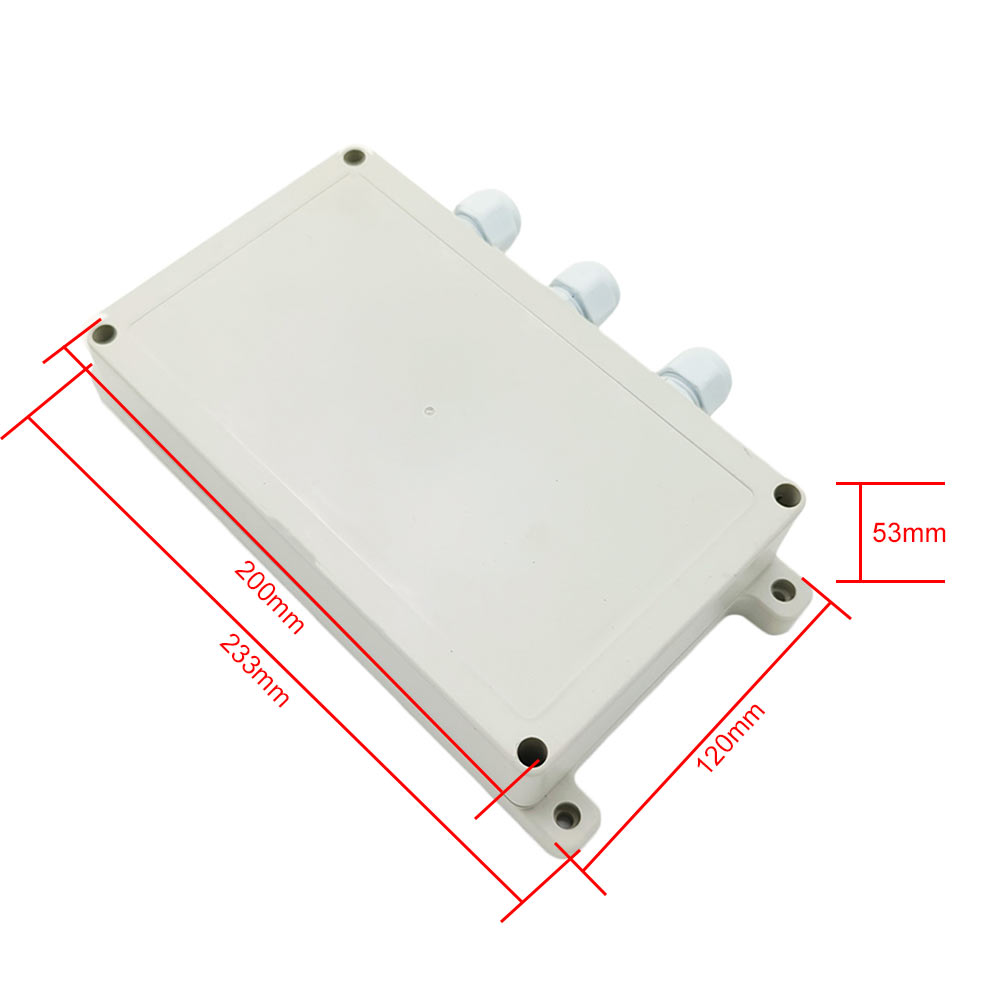

Case size: 200 x 120 x 53 mm (7.9 x 4.7 x 2.1 inches)
Transmitter Parameters:
Model: 0021026 (CB-4)
Channel/Button: 4
Button Symbol: A, B, C, D

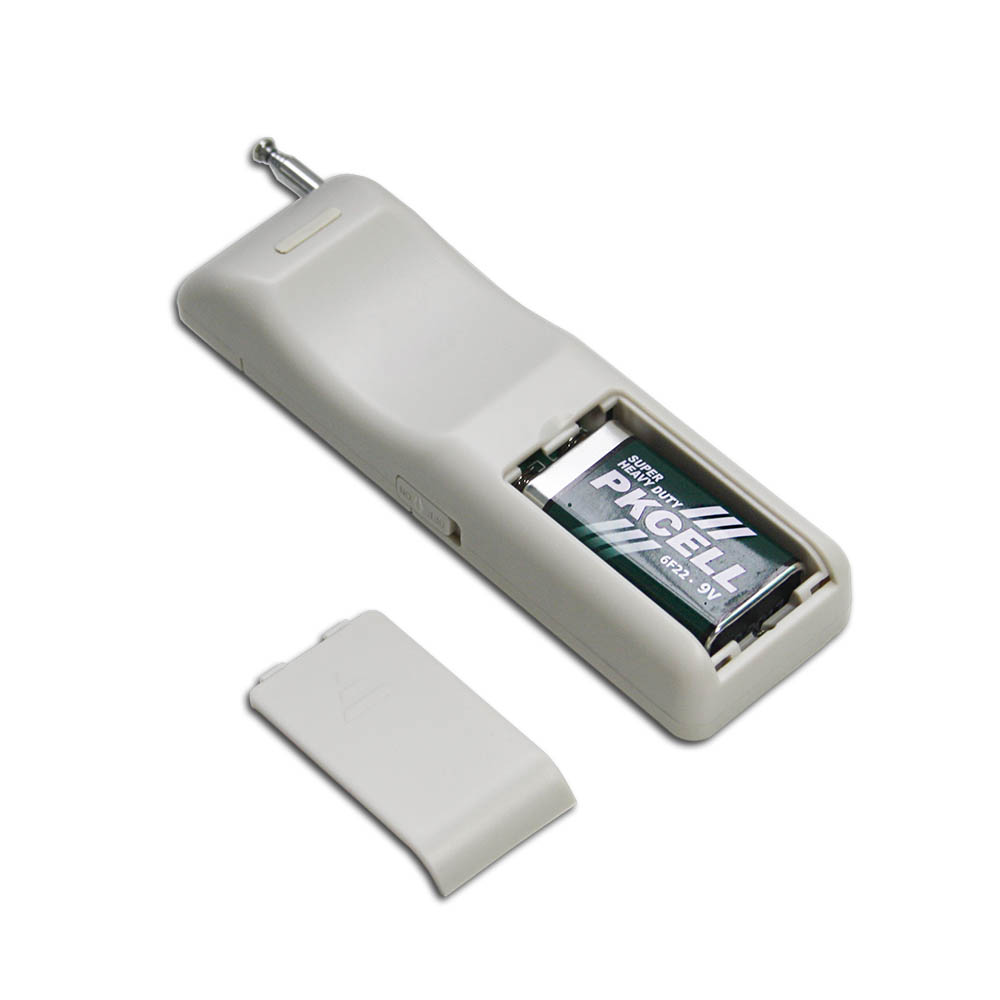

Operating Voltage: 9V (1 x 6F22 -9V battery, can be used for 12 months)
Operating Current: 30mA
Transmitting Distance: 1000m / 3000ft (theoretically)
It has an on / off button on the side.
Modulation Mode: ASK
Unit Size: 135 x 42 x 25 mm
Matching Transmitters:
The receiver can work with different transmitters, such as model
CWB-4
(50M, waterproof),
C-4
(100 meters / 300 feet range),
CV-4
/
CP-4
(500 meters / 1500 feet
range) and
CB-4
(1000 meters / 3000 feet range) etc
Working Range:
With a transmitter (such as CB-4) to form a complete set, the maximum working
distance can reach 3000 feet or 1000 meters in an open area.
The maximum working distance is a theoretical data, it shall be operated in
an open ground, no barriers, no interference. But in the practice, it will
be hindered by trees, walls, or other construction, and will be interfered
by other wireless signals. Therefore, the actual working distance may not
reach this maximum distance.
Usage:
The receiver can be used to control both DC 0~28V and AC 110~240V
equipments.
Notice: The receiver is dry relay output, not DC/AC power output. Initial
state of relay output terminals: Terminals A and B are Normally Open;
Terminals A and C are Normally Closed.
Wiring:

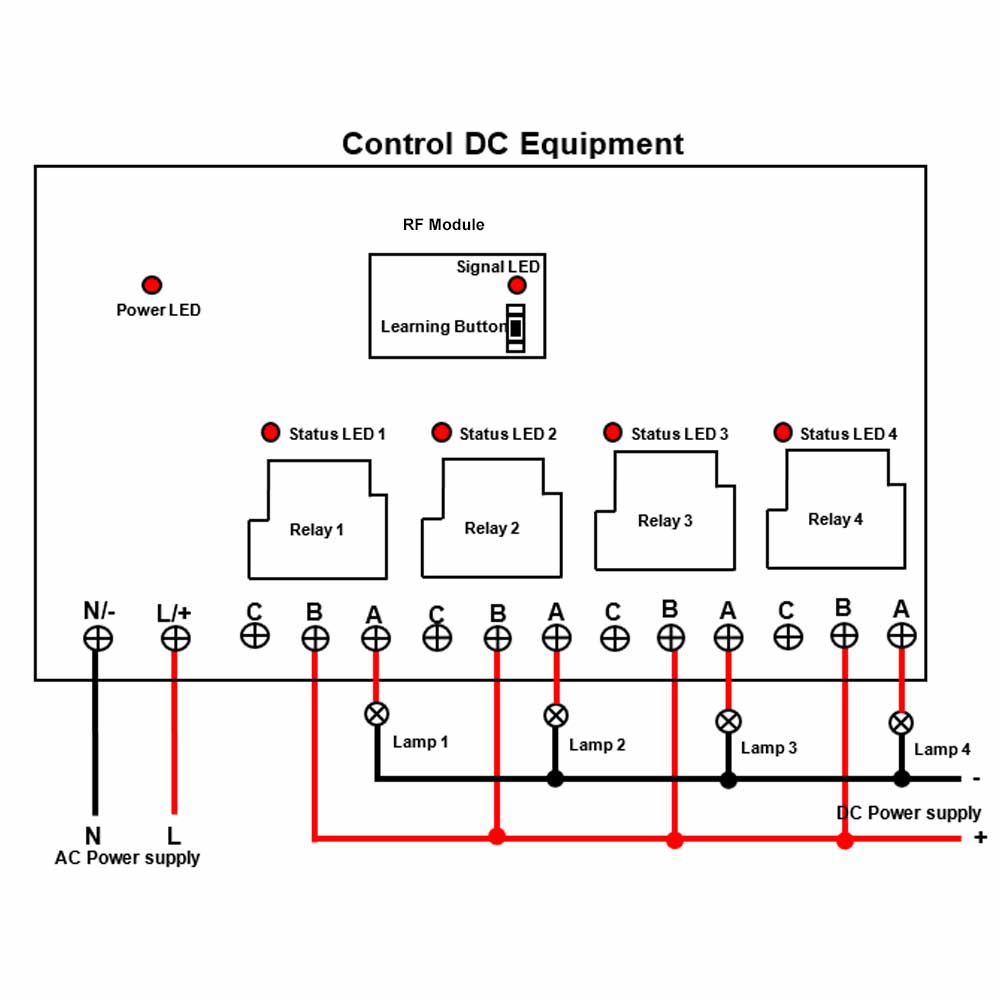

1) If you want to control a DC 12V lamp, do as following:
1.1 Connect the live wire of AC power supply to terminal L/+, and
connect the neutral wire of AC power supply to terminal N/-.
1.2 Connect terminal B to the positive pole of DC power supply, connect
terminal A to the positive pole of DC lamp, and connect the negative pole of
DC lamp to the negative pole of DC power supply.

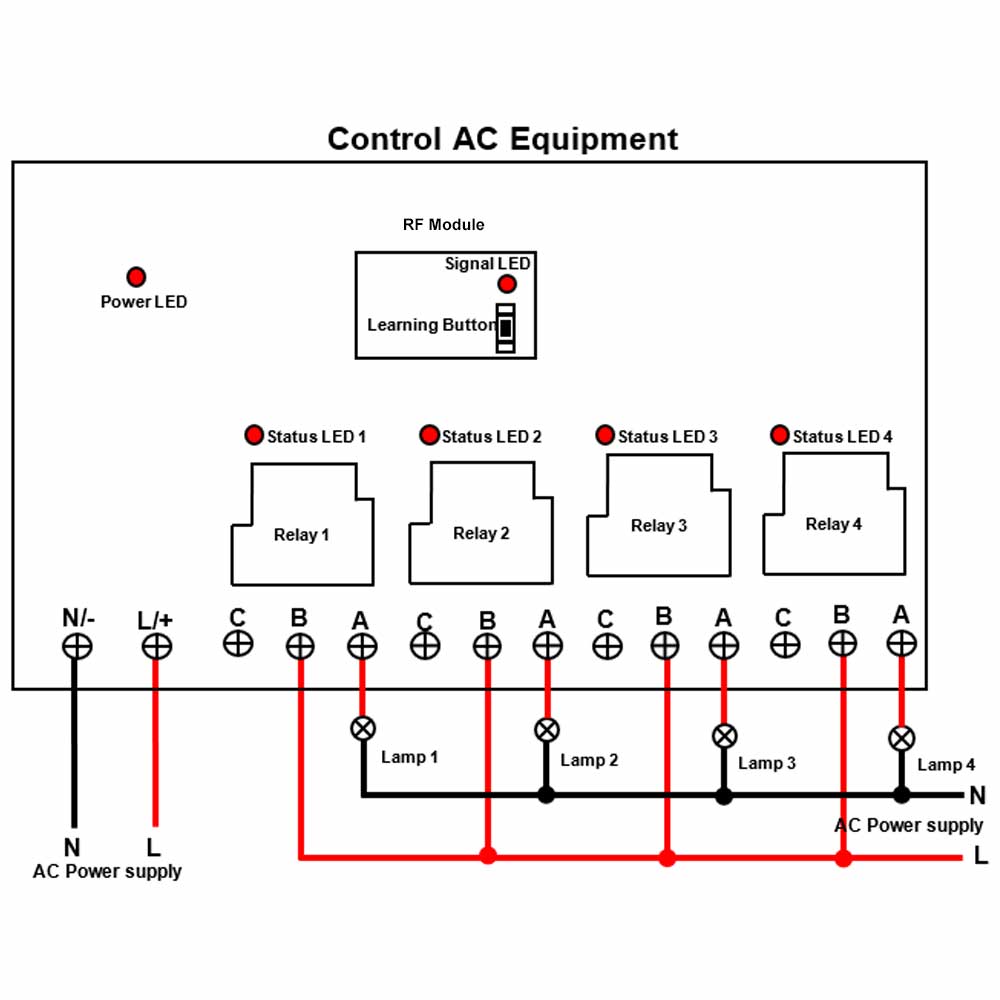

2) If you want to control an AC 220V lamp, do as following:
2.1 Connect the live wire of AC power supply to terminal L/+, and
connect the neutral wire of AC power supply to terminal N/-.
2.2 Connect terminal B to the live wire of AC power supply, connect terminal
A to one side of AC lamp, and connect another side of AC lamp to the neutral
wire of AC power supply.
Setting different control modes:
The receiver will be set in Self-locking mode before leaving the factory, if
you want to use another mode, please follow the following steps.
1) Setting Momentary mode: Press the learning button in the receiver 2
times, signal LED continuously flashes 2 times and then goes off.
The operation of Momentary mode with the transmitter CB-4:
Press and hold the button A on the transmitter: The relay 1 in the receiver
is activated, and the connected lamp 1 is turned on.
Release the button A: The relay 1 is deactivated, and the connected lamp 1
is turned off.
……
Press and hold the button D on the transmitter: The relay 4 in the receiver
is activated, and the connected lamp 4 is turned on.
Release the button D: The relay 4 is deactivated, and the connected lamp 4
is turned off.
2) Setting Self-locking mode: Press the learning button in the receiver 3
times, signal LED continuously flashes 3 times and then goes off.
The operation of Self-locking mode with the transmitter CB-4:
Press the button A on the transmitter: The relay 1 in the receiver is
activated, and the connected lamp 1 is turned on.
Press the button A again: The relay 1 is deactivated, and the connected lamp
1 is turned off.
……
Press the button D on the transmitter: The relay 4 in the receiver is
activated, and the connected lamp 4 is turned on.
Press the button D again: The relay 4 is deactivated, and the connected lamp
4 is turned off.
3) Setting Interlocking mode: Press the learning button in the receiver 4
times, signal LED continuously flashes 4 times and then goes off.
The operation of Interlocking mode with the transmitter CB-4:
Press the button A on the transmitter: The relay 1 in the receiver is
activated, and the connected lamp 1 is turned on. Other 3 relays are
deactivated, and other 3 connected lamps are turned off.
……
Press the button D on the transmitter: The relay 4 in the receiver is
activated, and the connected lamp 4 is turned on. Other 3 relays are
deactivated, and other 3 connected lamps are turned off.
4) Setting Momentary (Channel 1) + Self-locking (Channels 2~4) mode: Press
the learning button in the receiver module 5 times, signal LED continuously
flashes 5 times and then goes off.
5) Setting Momentary (Channels 1~3) + Self-locking (Channel 4) mode: Press
the learning button in the receiver module 6 times, signal LED continuously
flashes 6 times and then goes off.
6) Setting Momentary (Channels 1~2) + Self-locking (Channel 3~4) mode: Press
the learning button in the receiver module 7 times, signal LED continuously
flashes 7 times and then goes off.
7) Setting Momentary (Channels 1~2) + Interlocking (Channel 3~4) mode: Press
the learning button in the receiver module 8 times, signal LED continuously
flashes 8 times and then goes off.
8) Setting Self-locking (Channels 1~2) + Interlocking (Channel 3~4) mode:
Press the learning button in the receiver module 9 times, signal LED
continuously flashes 9 times and then goes off.
How to pair the transmitter to the receiver:
Notice: We have paired the transmitter to the receiver before leaving the
factory.
1) Press the learning button once in the receiver, signal LED on the
receiver flashes one time and then stays on, this indicates that the
receiver enters the learning status.
2) Press button A on transmitter, if the signal LED flashes one time, this
indicates that the pairing with button A is successful. Then press button B
on transmitter, if the signal LED flashes one time, this indicates that the
pairing with button B is successful. Then press button C on transmitter, if
the signal LED flashes one time, this indicates that the pairing with button
C is successful. Then press button D on transmitter, if the signal LED
flashes one time, this indicates that the pairing with button D is
successful.
3) Press the learning button in the receiver again for 1-2 seconds, signal
LED turns off, this indicates that the receiver exits the learning status.
4) The receiver can learn several transmitters with different codes.
How to delete all transmitters codes stored in the receiver:
Notice: We have paired the transmitter to the receiver, if you don’t want
the receiver to work with the transmitter, you can delete all transmitters
codes stored in the receiver.
Operation: Press the learning button in the receiver 10 times and then
release the learning button, signal LED flashes 10 times quickly and then
goes off, this indicates that all stored codes have been deleted
successfully.

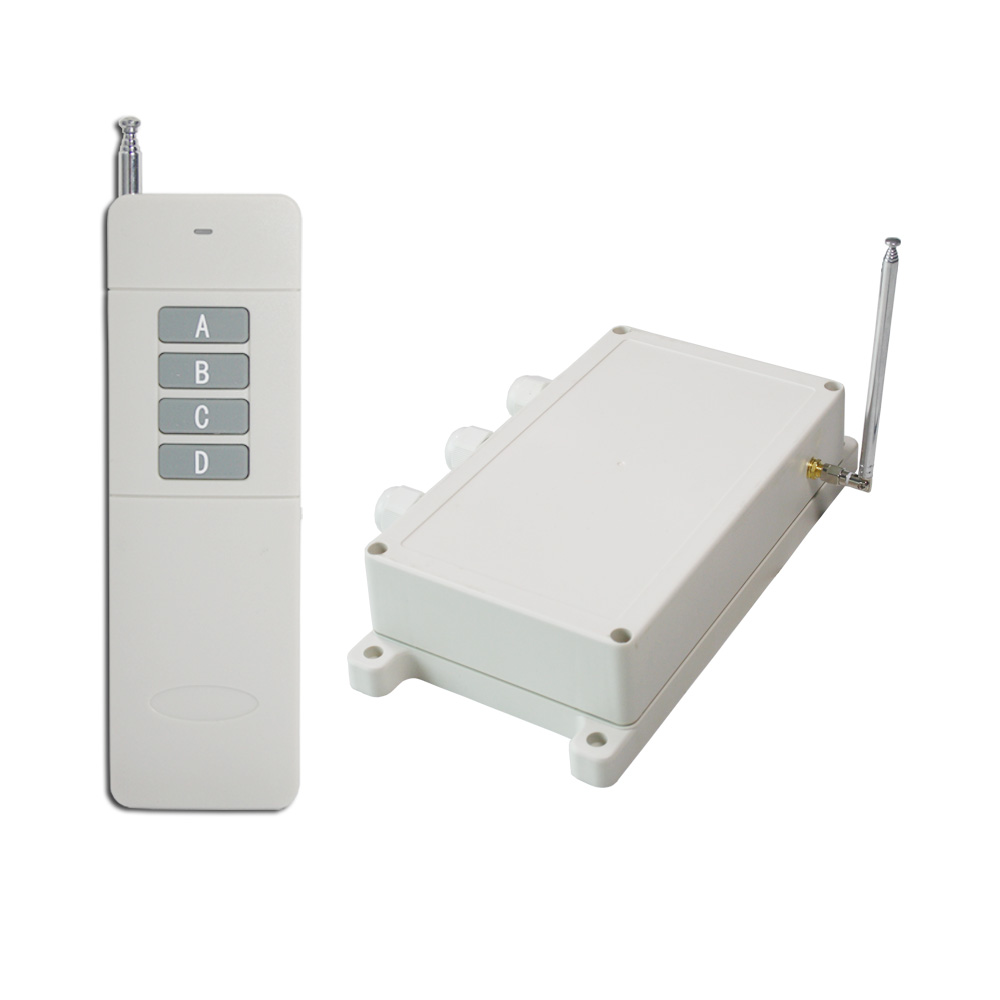

Package Include:
1 x Receiver: S4PU-AC-ANT3
1×Transmitter: CB-4
1 x User manual
