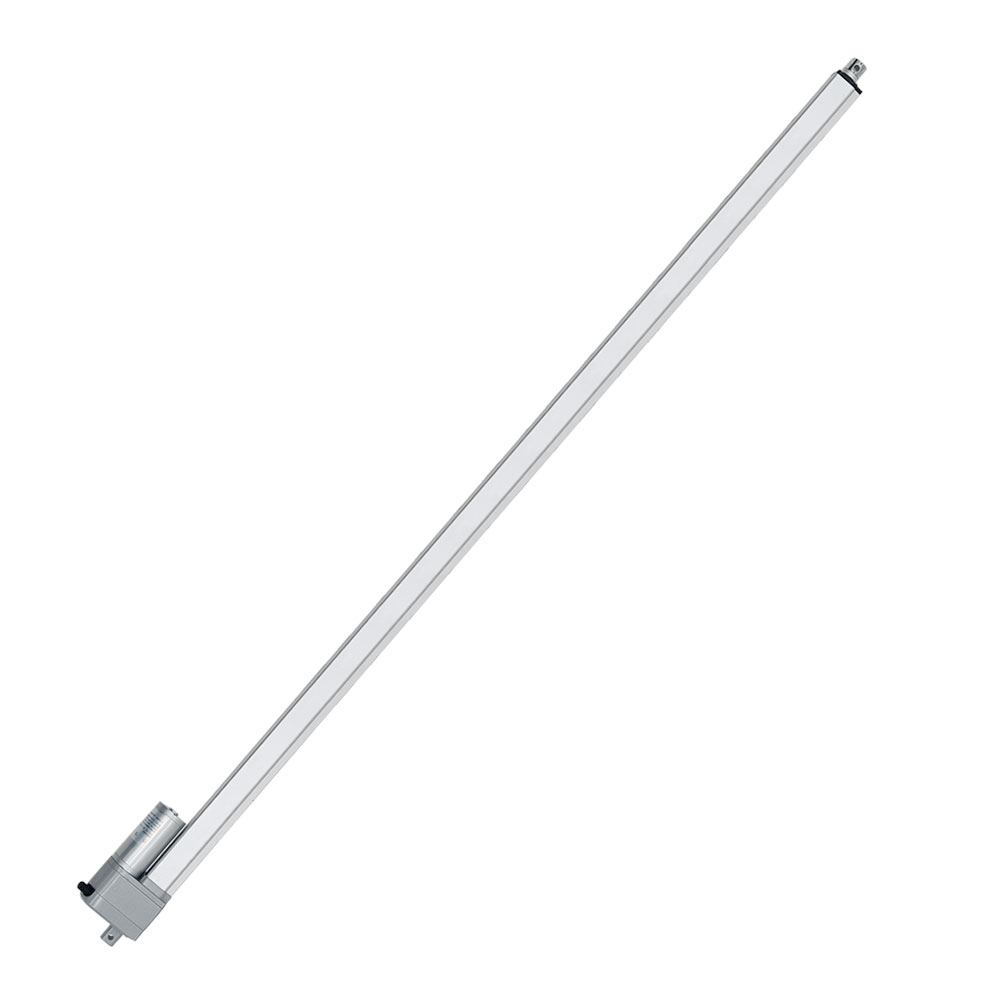

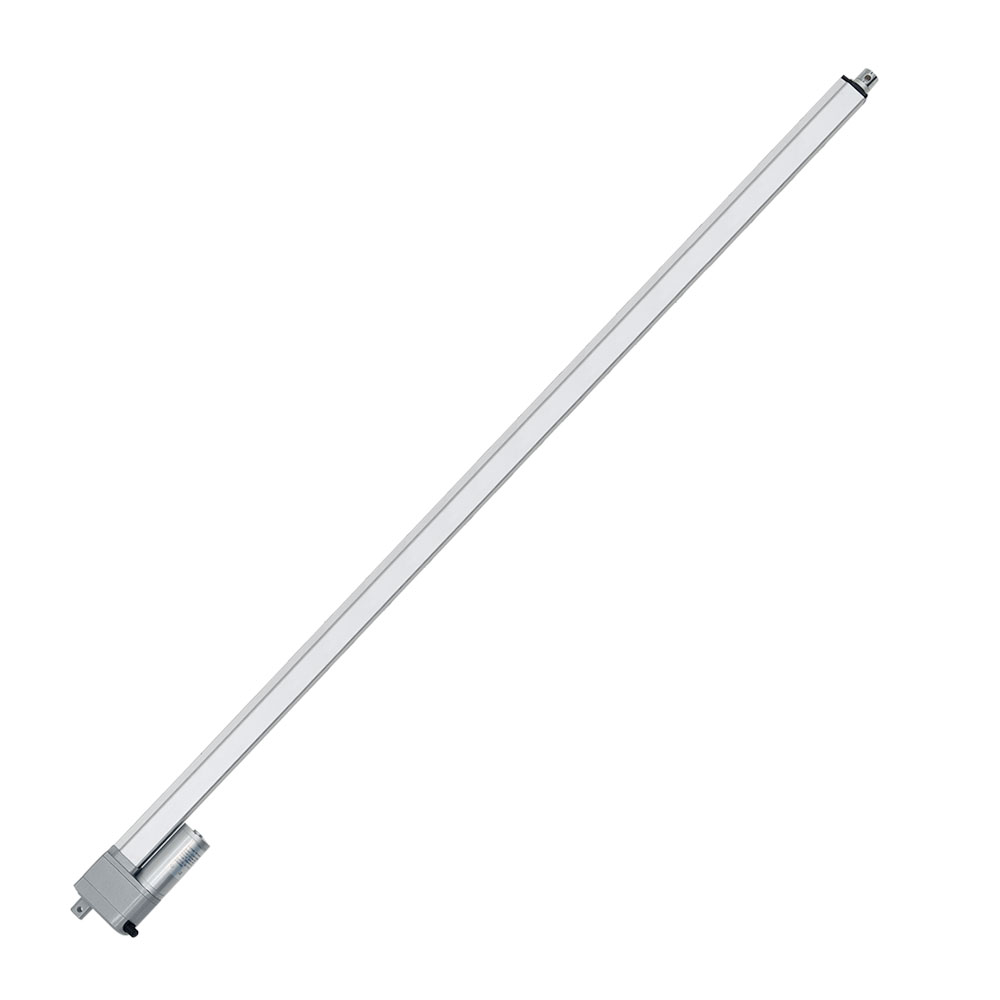

Application:
Mainly used for doors, windows, cellars, trapdoors, hatchways, solar
tracking system, medical devices, agricultural machinery, vehicles, ships,
elevator platforms, lifting tables, TV lifts, robots, cabinetries, massage
sofas, electric beds, medical chairs, and other electrical equipment. It can
open, close, push, pull, lift, and descend these devices.
It can replace hydraulic and pneumatic products to save power consumption.
Introduction:
This linear actuator has a built-in potentiometer with three output wires
connected. When the linear actuator moves, the resistance value between the
output lines changes accordingly. In this way, we can obtain the
corresponding movement position of the linear actuator by measuring the
resistance value.
Feature:
High-quality products and high-quality services
New housing design, high working stability
Metal housing, able to work in very harsh environments

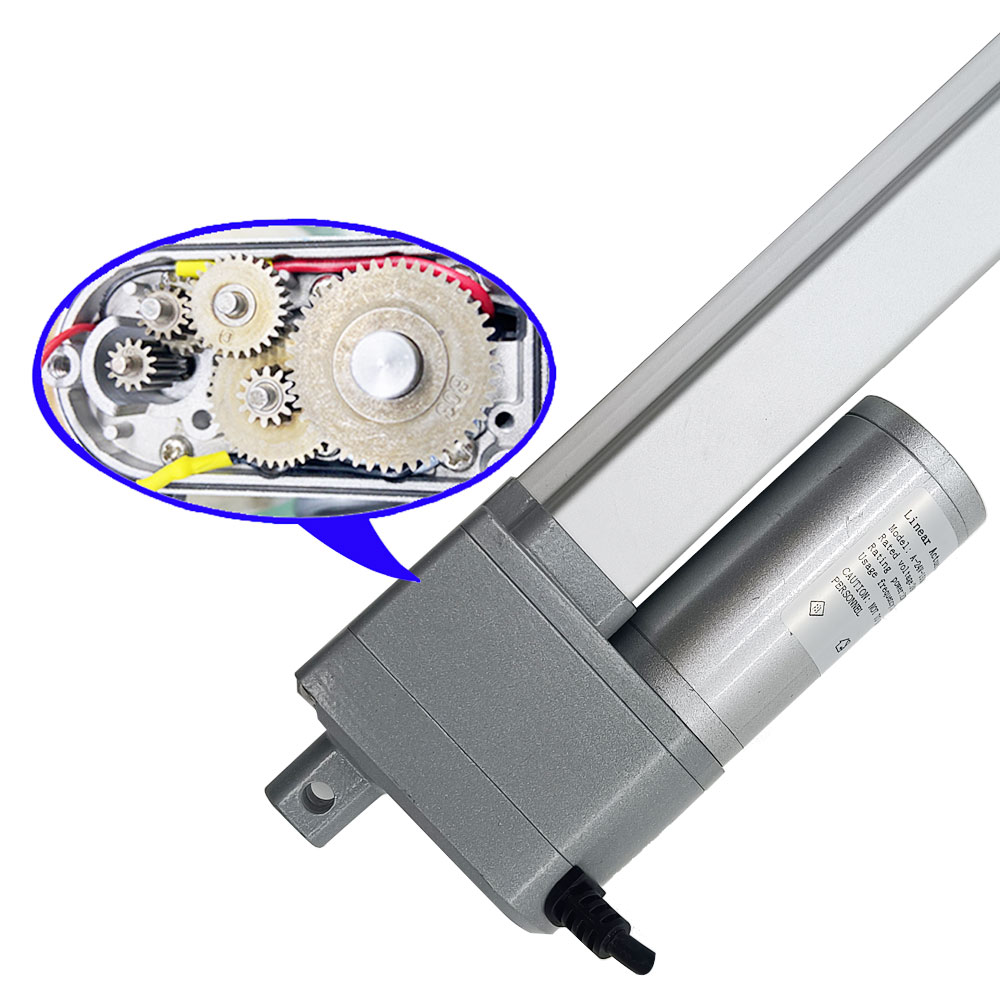

Metal gearbox, high strength wear-resistant gear

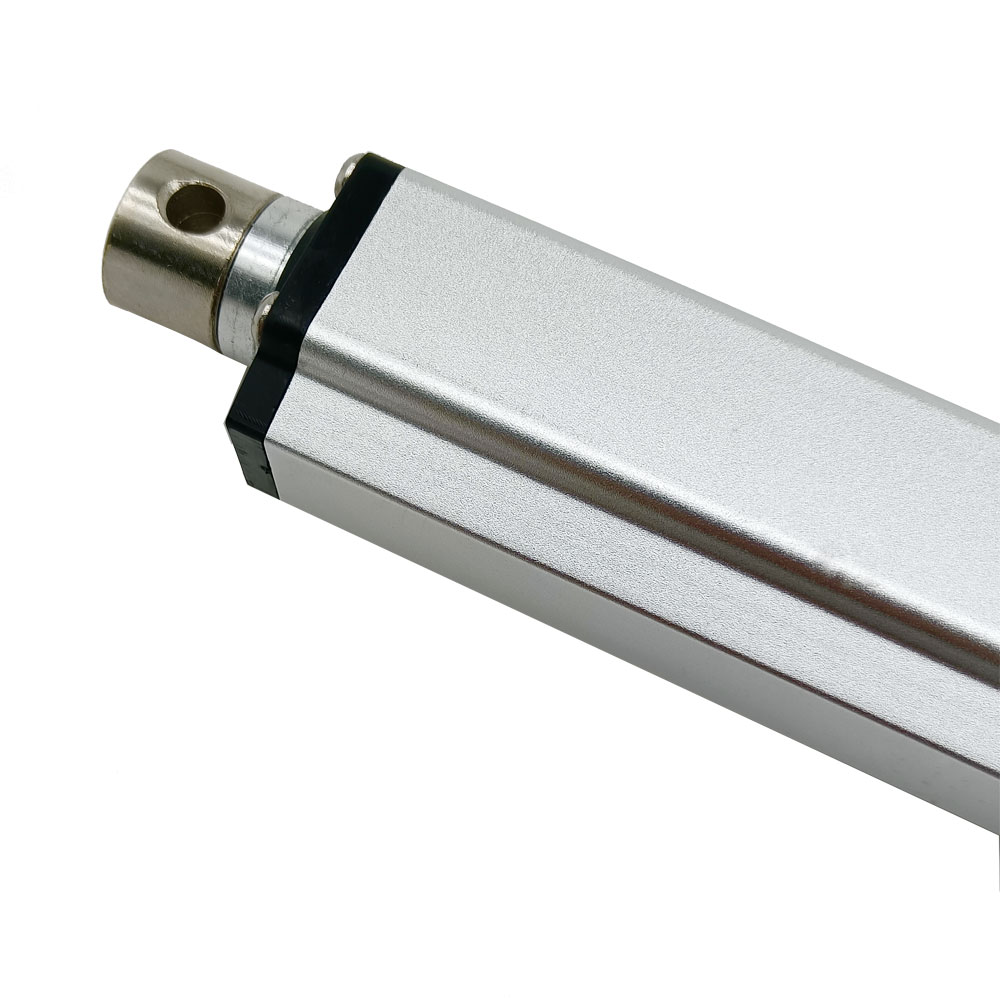

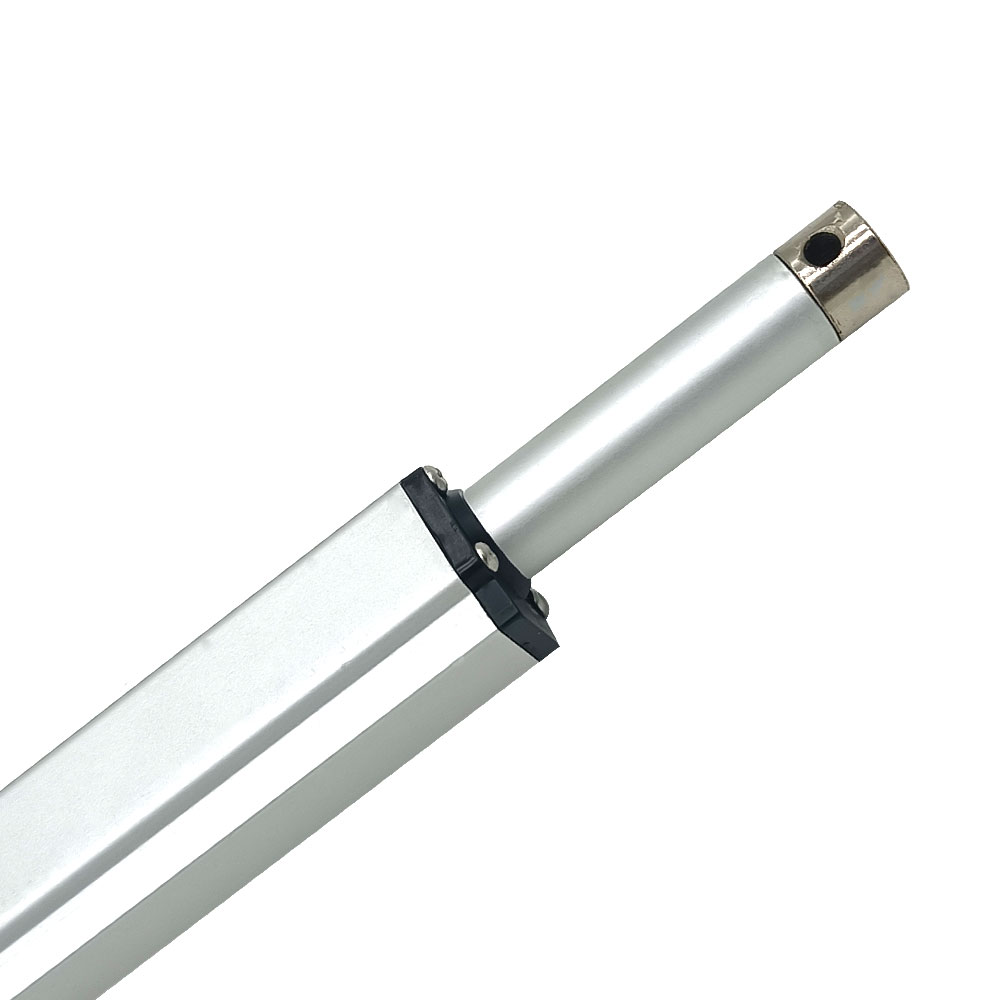

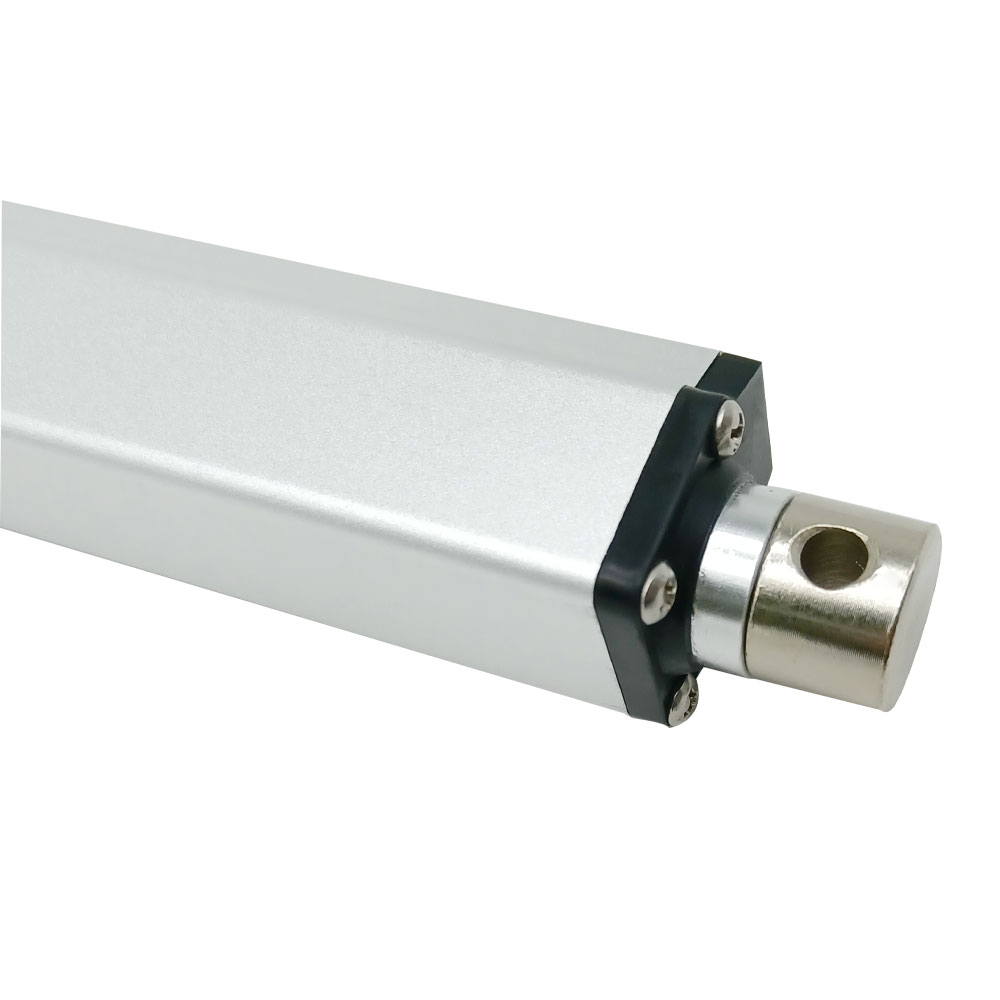

Aluminum alloy telescopic tube and outer tube, good corrosion resistant

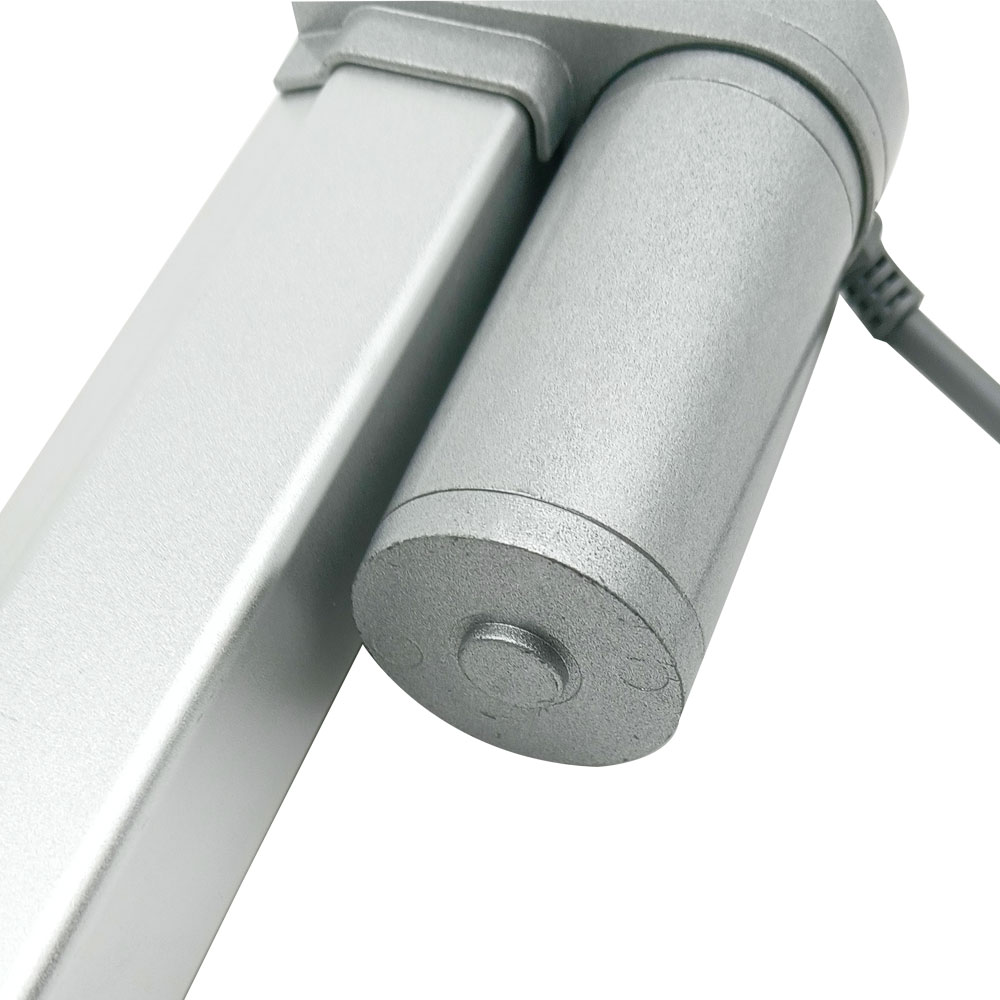

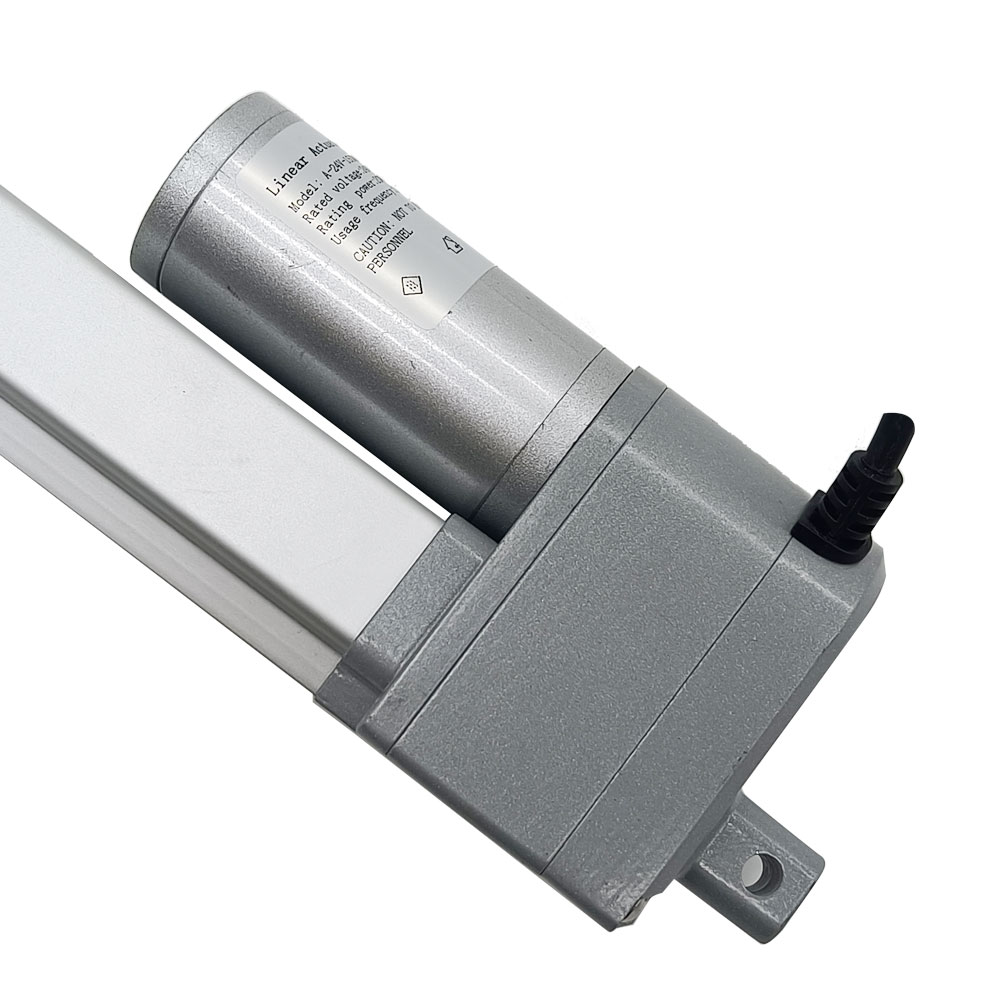

Heavy duty design, high-power DC motor
Strong thrust, up to 500N / 50 Kgs / 110 lbs
Multiple speed options, from 5 mm/second to 160 mm/second
Multiple stroke options, from 10 mm to 1000 mm
We can customize any stroke length from 10mm to 1000mm, such as 225mm,
660mm, 950mm and so on.
With a built-in potentiometer
Advanced waterproof and dustproof technology
Low power consumption and low noise
Built-in two limit switches, linear actuator will automatically stop when
stroke rod reaches the limit position.
Built-in Hall sensor is optional, so you can use the synchronous controller
to operate 2 or 4 linear actuators fully synchronously.
Automatically lock after stopping, and no power supply is required.
Maintenance-free
Specifications:
Optional working voltage: DC 12V or DC 24V. Unless you only have 12V power
supply available, we recommend you choose the linear actuator with 24V
working voltage.

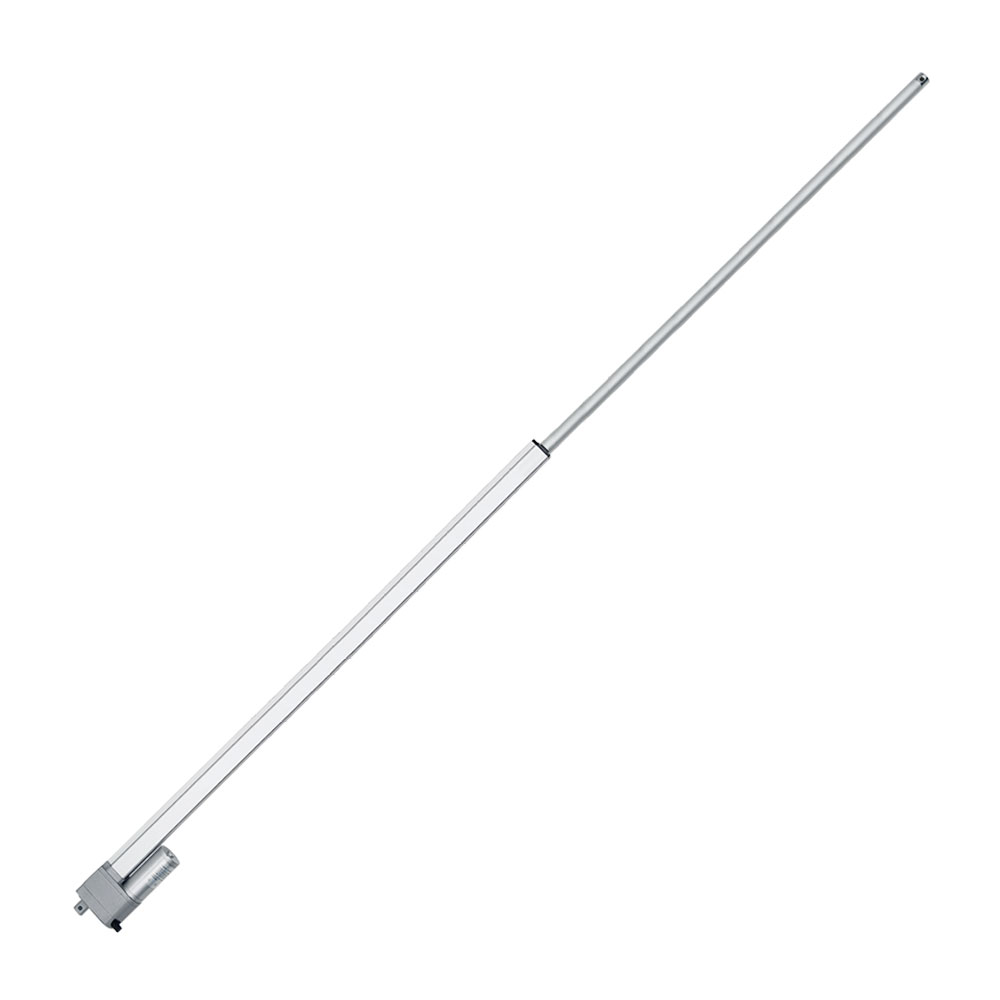

Stroke range: 40 inches or 1000 mm
Optional speed: 30±5mm/s, 50±10mm/s,
100±15mm/s, 160±20mm/s
The above is the speed at no load, and the actual working speed will
gradually slow down as the load increases.
Max Load capacity: 500N / 50 Kgs / 110 lbs at 30mm/s
Linear actuator can get maximum load capacity when it operates in the
vertical direction, and the pulling force is less than pushing force.
No-load current: 0.5~1A at 12V or 0.3~0.5A at 24V
Full load current: 3~6A at 12V or 1.5~3A at 24V
Please use a 12V/6A or 24V/3A power supply to power a linear actuator or use
a 12V/10A or 24V/5A power supply to power two linear actuators, or use a
12V/20A or 24V/10A power supply to power four linear actuators.

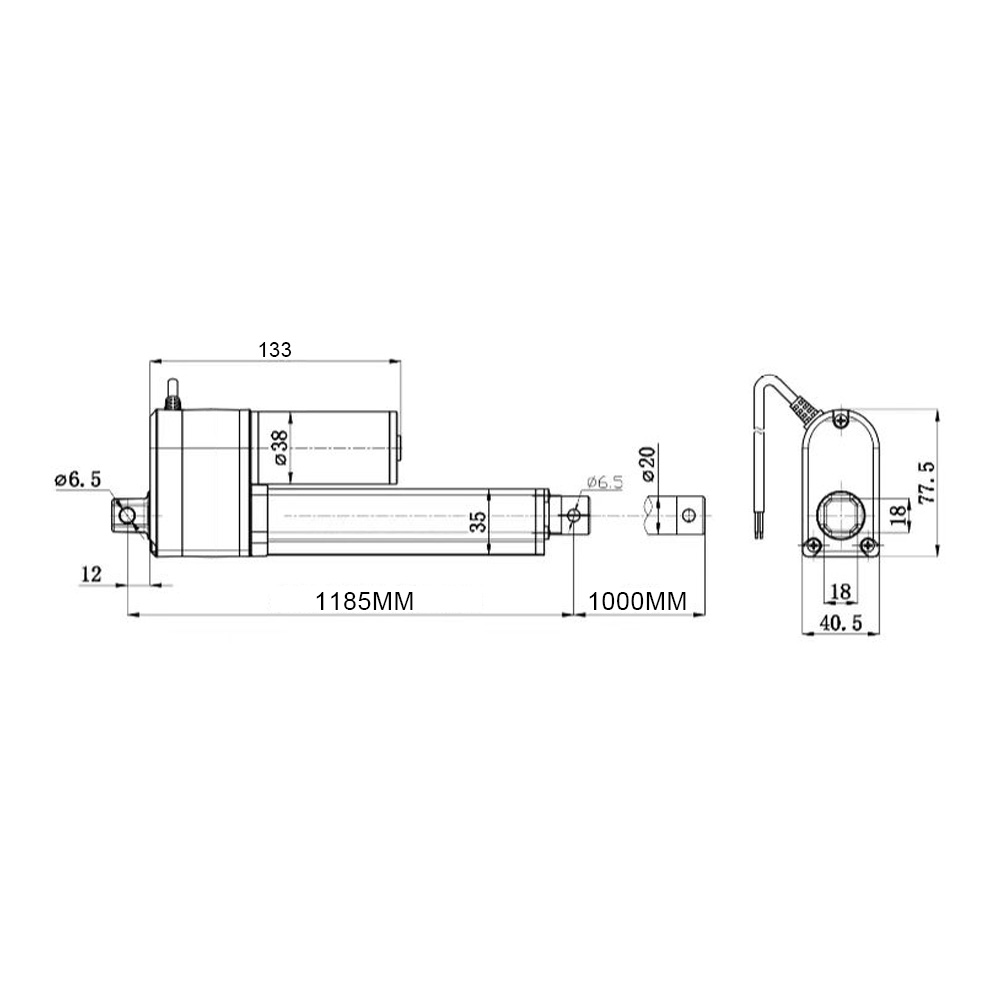

Shaft diameter: 20mm
Mounting holes diameter: 6mm
Housing material: Aluminum Alloy
Stroke rod material: Aluminum Alloy
Gear material: Steel Alloy
Motor type: Brushed DC Motor
Built-in potentiometer: 10K ohms (You can specify other resistance values)
Duty Cycle: 20%, max 5mins continuous use
Cable: Five-core Cable (Two power wires and three potentiometer output
wires)
Certifications: CE
Environment temperature: -26℃ to 85℃
Operating noise: about 46dB~56dB (Linear actuators with different parameters
will have different noise levels.)
IP rating: IP65
Fixed Bracket:
1. This linear actuator does not contain fixed mounting brackets, please
click
here
to purchase.

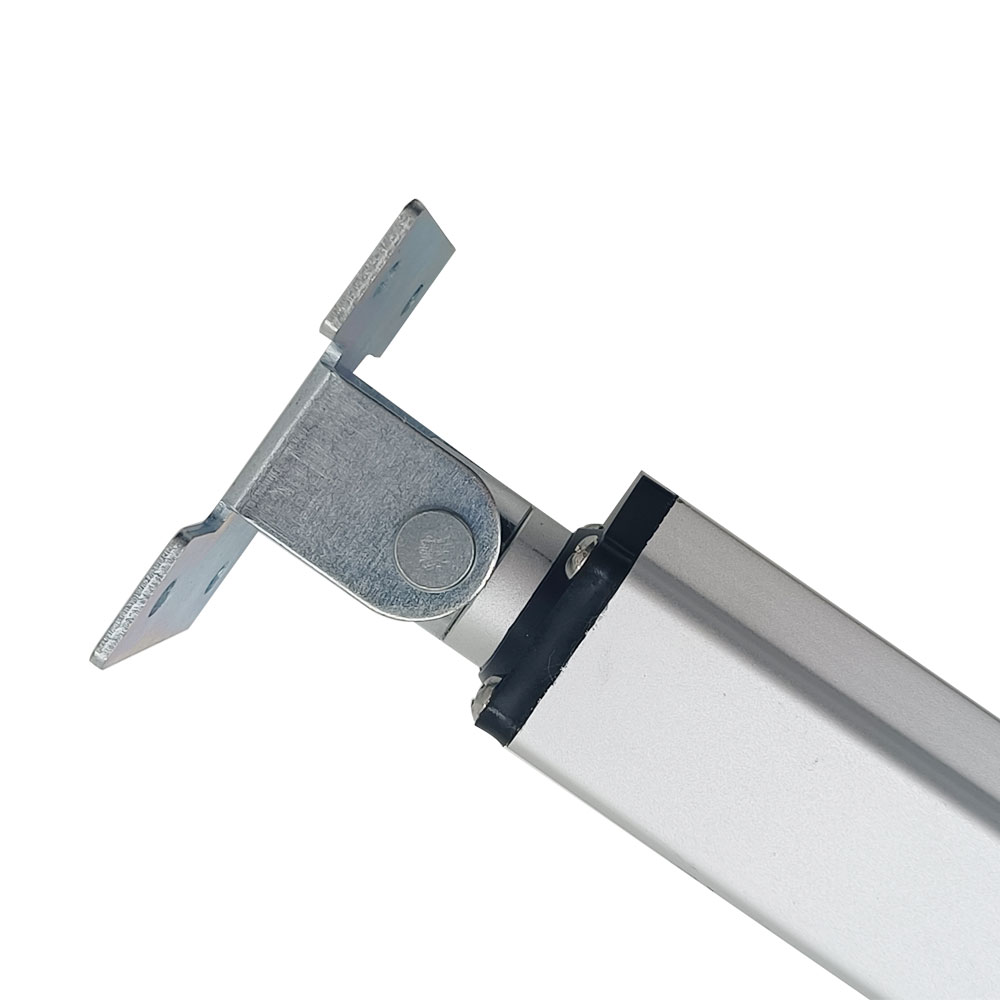

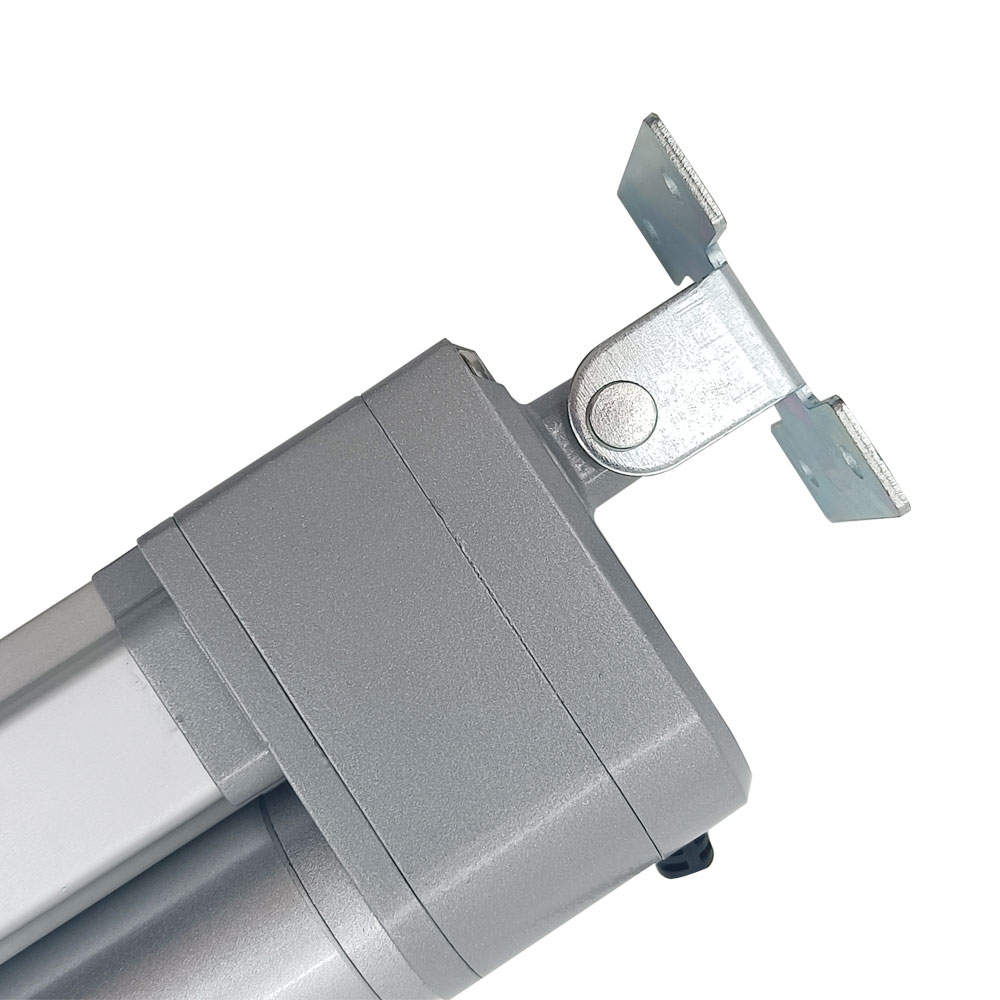

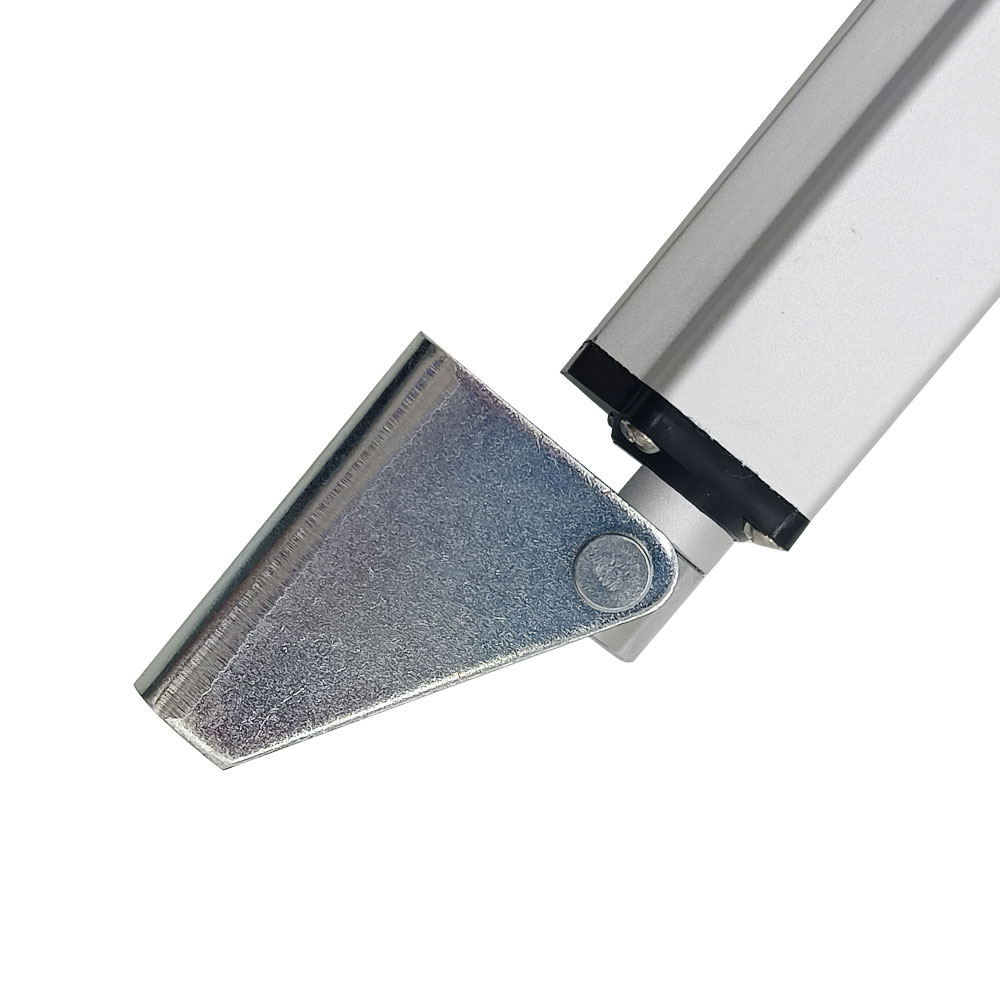

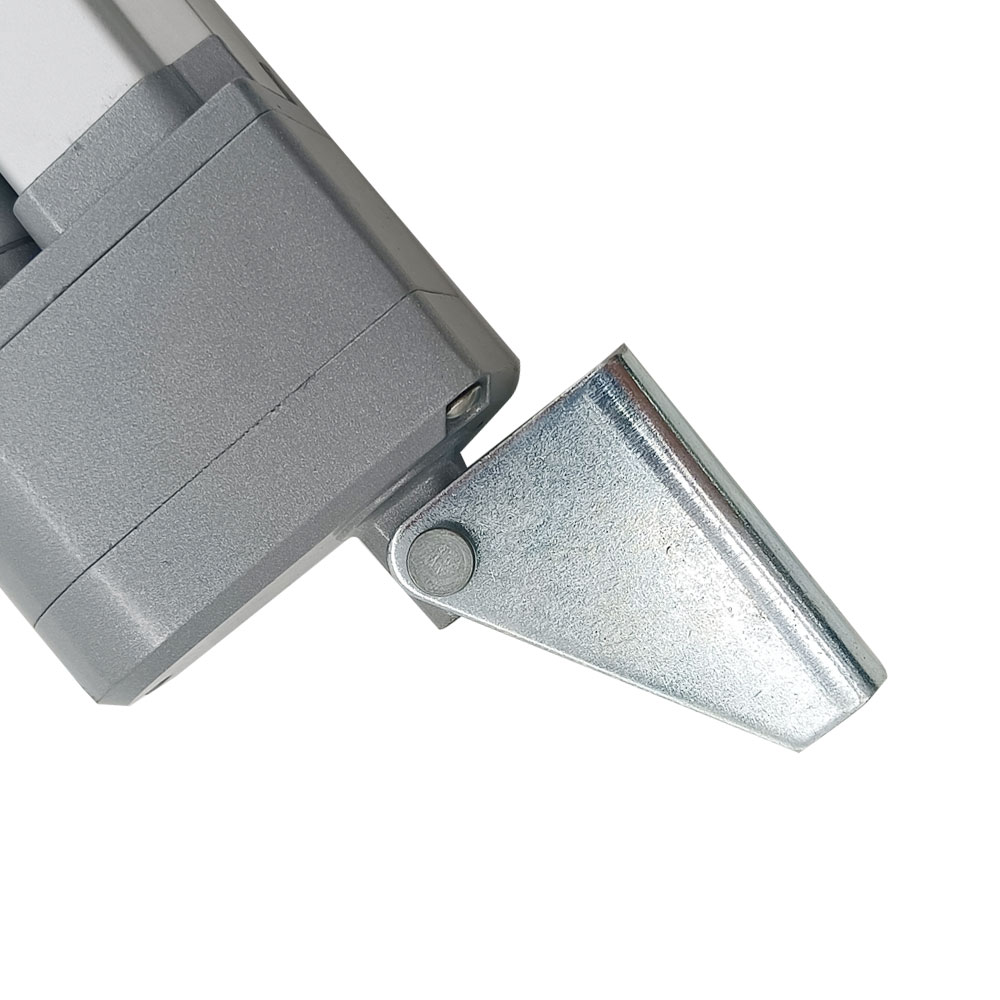

2. Each linear actuator would require two mounting brackets, one to fix the
head of linear actuator and another to fix the bottom of linear actuator.

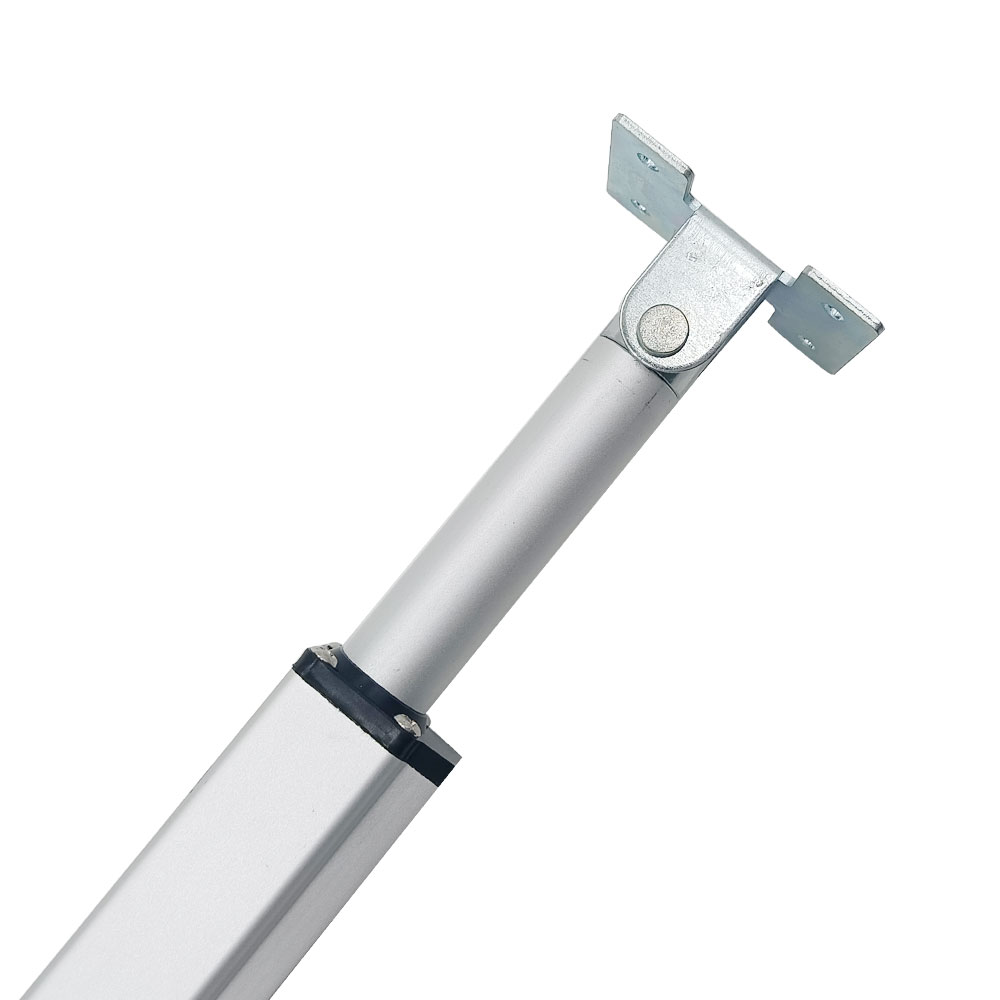

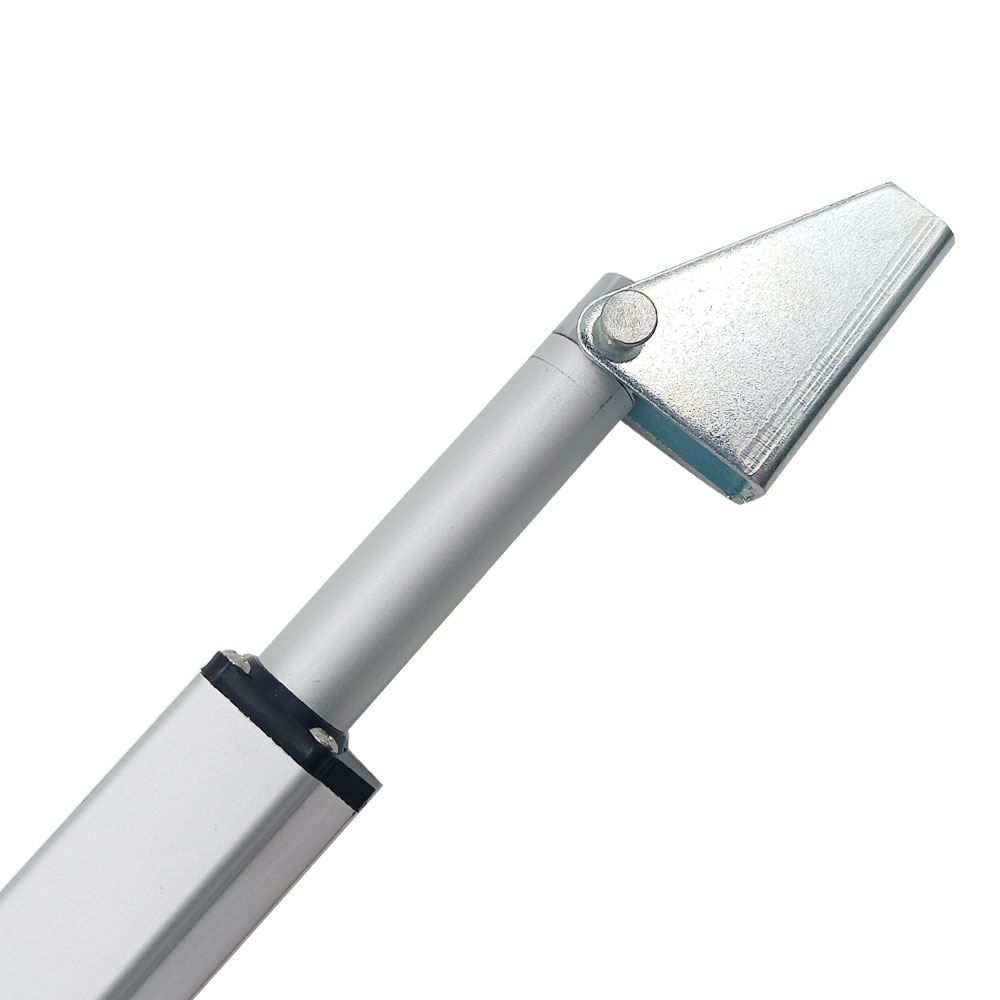

3. Compatible Mounting Brackets:

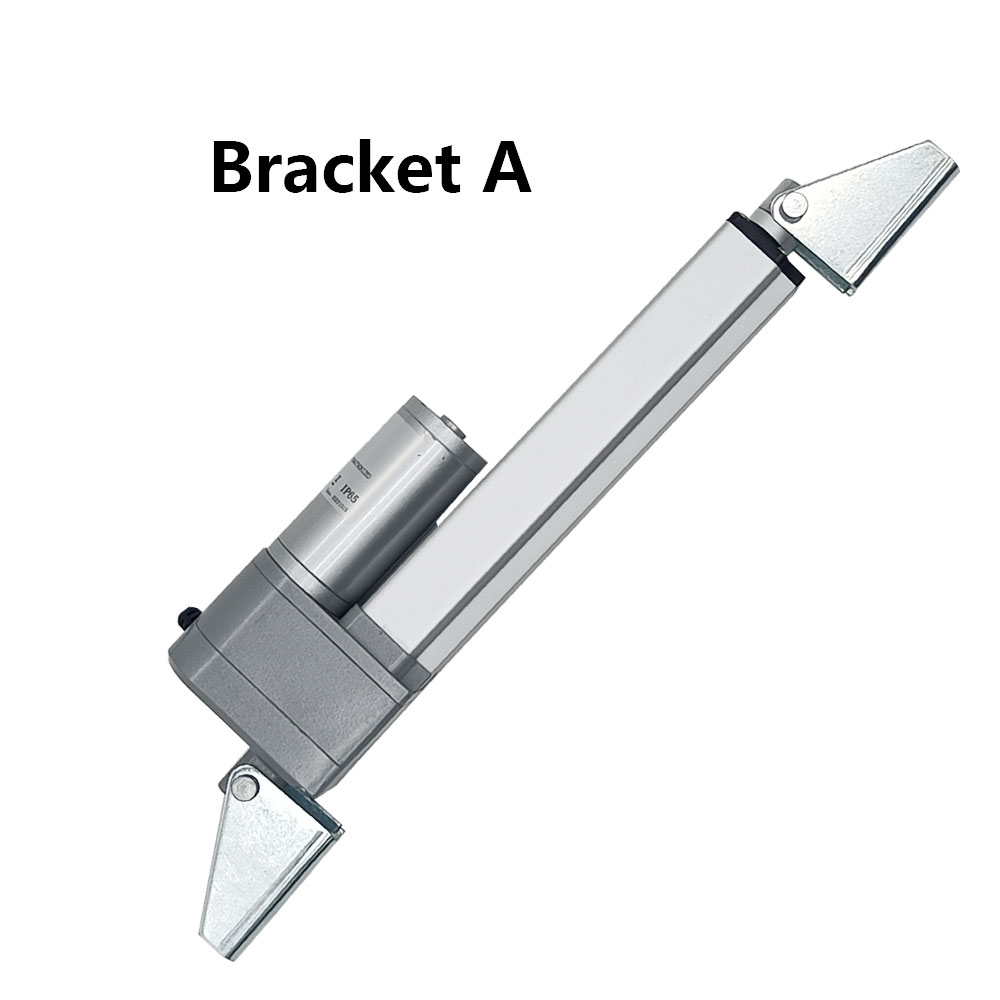

Bracket A
and

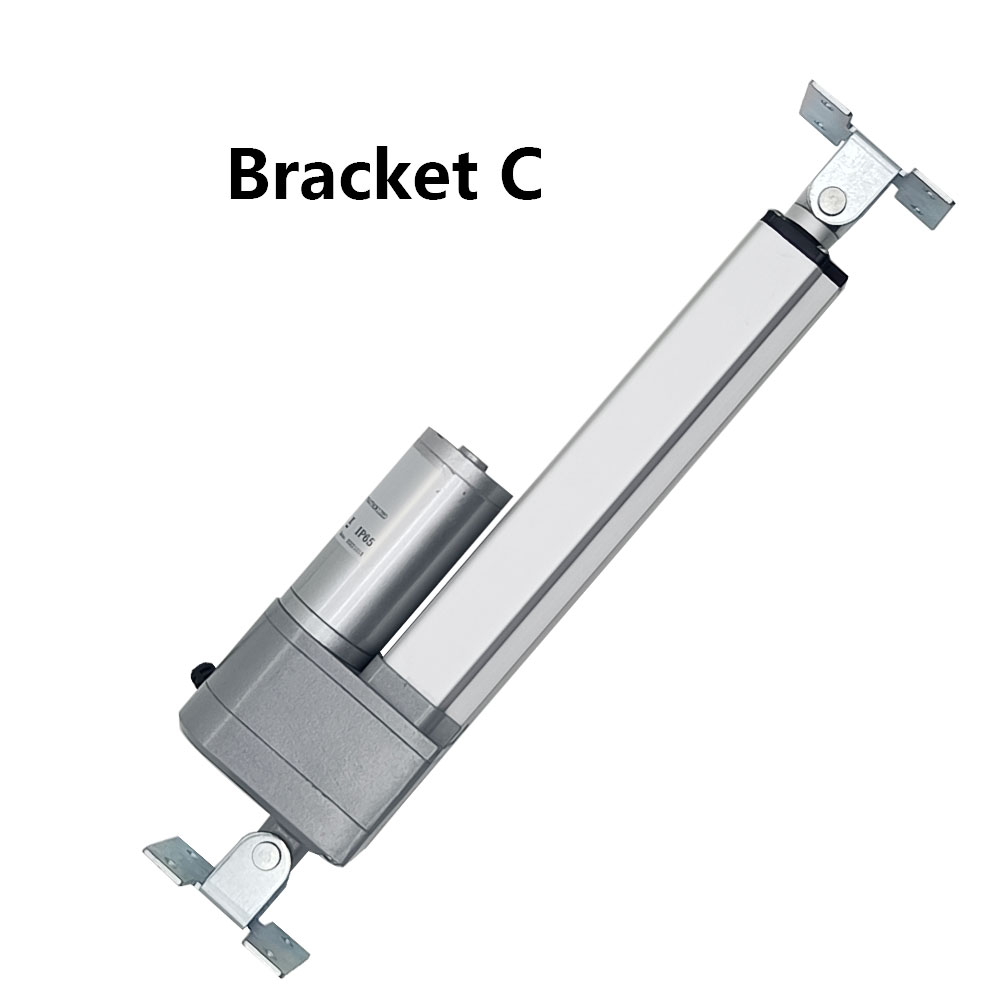

Bracket C
.
Operation:

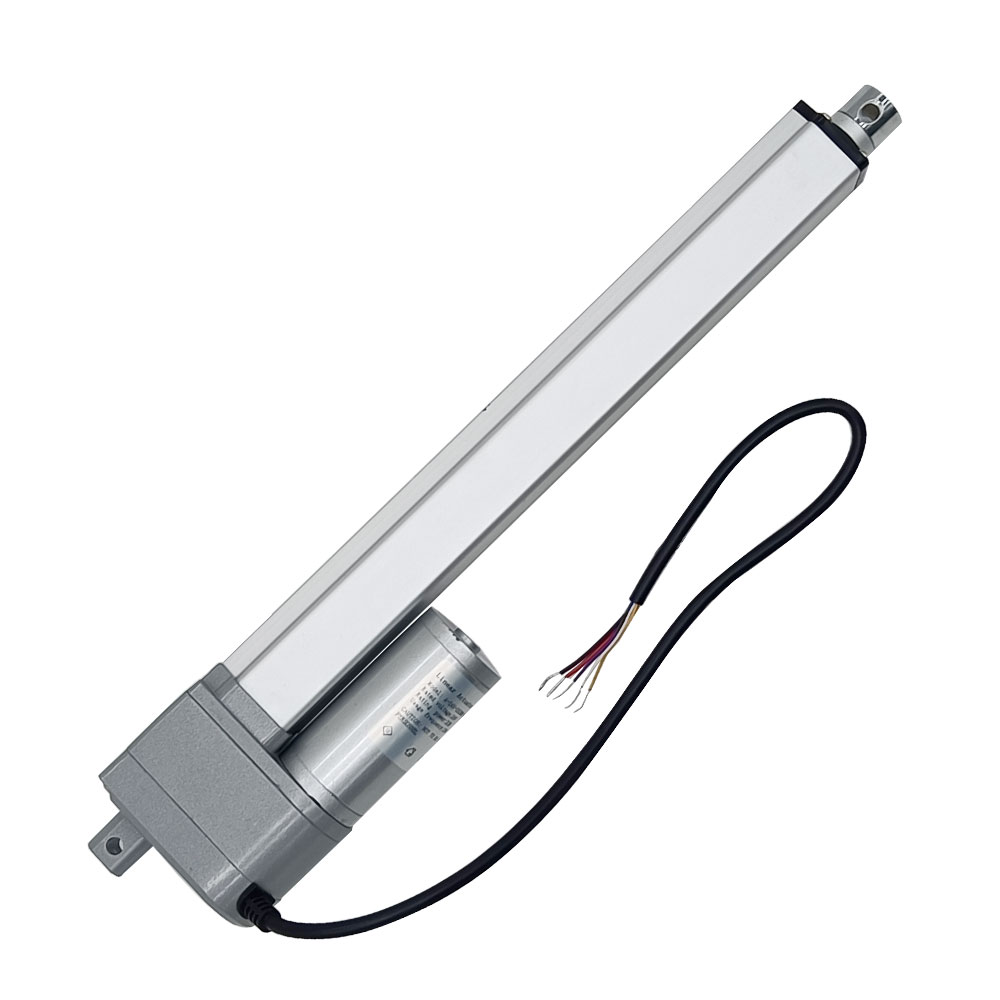

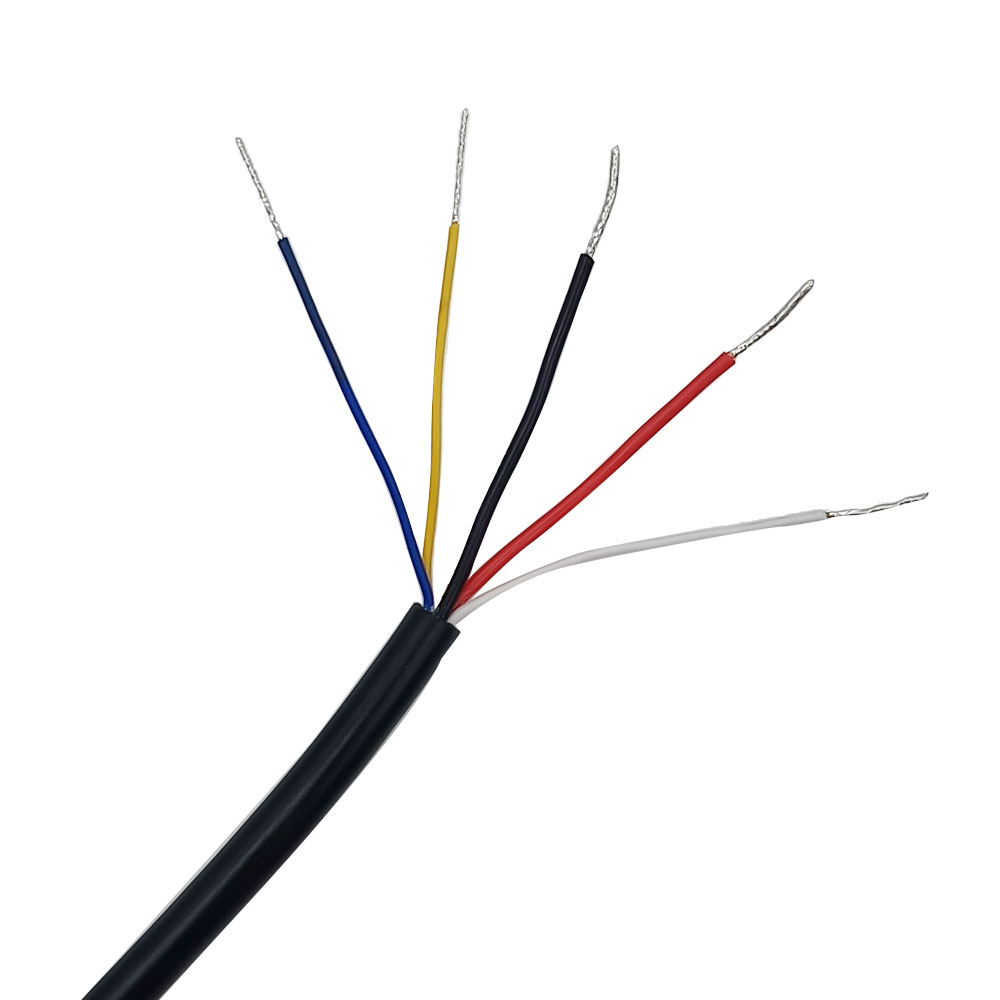

The electric linear actuator has a five-core cable.
1. The red and black lines are two power lines of the electric linear
actuator.
Connect the DC power supply to two power wires of the electric linear
actuator. When linear actuator is connected to DC power supply, the stroke
rod will extend outward; after switching the power in the reverse direction,
the stroke rod will retract inward.
The direction of movement of the stroke rod can be changed by switching the
polarity of DC power supply.
2. The white, blue and yellow wires are three output wires of the
potentiometer.
The blue and yellow wires are connected to two terminals of the
potentiometer, it is a fixed resistance value.
When the linear actuator moves, the resistance value between white wire and
yellow wire or white wire and blue wire changes accordingly. In this way, we
can obtain the corresponding movement position of the linear actuator by
measuring the resistance value. When the linear actuator is extended
outwards, the resistance value between white and blue wires will decrease
accordingly, and the resistance value between white and yellow wires will
increase accordingly. When the linear actuator is retracted inward, the
resistance value between white and blue wires will increase accordingly, and
the resistance value between white and yellow wires will decrease
accordingly.
For example, a linear actuator with a stroke of 200mm and a built-in
potentiometer of 10K ohms.
When the linear actuator is fully retracted, the resistance value between
white wire and yellow wire is 0.8K ohms, and the resistance value between
white wire and blue wire is 9.2K ohms.
When the linear actuator is extended to the 100mm position, the resistance
value between white wire and yellow wire is 4.5K ohms, and the resistance
value between white wire and blue wire is 5.5K ohms.
When the linear actuator is fully extended, the resistance value between
white wire and yellow wire is 9.1K ohms, and the resistance value between
white wire and blue wire is 0.8K ohms.
Note:
1. If you want to control 2 or 4 linear actuators fully synchronously, you
need to add built-in hall effect sensor to each linear actuator, and buy a
synchronization controller, please click
here
to purchase.
2. If you need a power supply to power linear actuator, please click
here
to purchase.
3. If you want to use external limit switches to stop linear actuator at any
position, please click here to purchase. How to connect two external limit
switches to electric linear actuator, please click
here
to watch the
connection video.
4. If you want to use a remote control switch to operate linear actuator
wirelessly, please click
here
to purchase.
Different no-load speeds and corresponding maximum thrust:
No-load Speed
Maximum Thrust
5mm/s
2000N / 200 kg / 450 lbs
10mm/s
1000N / 100 kg / 200 lbs
15mm/s
800N / 80 kg / 180 lbs
20mm/s
700N / 70 kg / 160 lbs
30mm/s
500N / 50 kg / 110 lbs
50mm/s
300N / 30 kg / 60 lbs
100mm/s
150N / 15 kg / 30 lbs
160mm/s
100N / 10 kg / 20 lbs
Note:
1. The above data is the maximum load capacity that can be obtained when the
linear actuator runs in the vertical direction. If the weight of your equipment
(such as a cellar door) is 100kg, and you want to use a linear actuator to open
this door, you need to calculate the actual force acting on the linear actuator
according to your installation method. This force is usually 2-5 times the
weight of the cellar door. If you don't know how to calculate it, please contact
us for help.
2. The above is the speed at no load, and the actual working speed will
gradually slow down as the load increases. Full load speed is approximately
60-70% of No-load speed.
3. Different speeds correspond to different maximum loads. Please select the
right speed according to the speed and maximum load you need.
4. Linear actuators are not recommended for continuous operation under maximum
load, we recommend letting it work at about half of the maximum load to get a
longer working life.
5. For linear actuators with a stroke greater than 500MM, you should not
normally allow them to operate at their maximum stroke under heavy loads. If the
actual stroke you want is 600MM, we recommend that you choose a linear actuator
with a stroke of 700-800MM.
6. When the speed of the linear actuator is 100mm/s or 160mm/s, the self-locking
force is much smaller than the thrust. At other speeds the self-locking force is
greater than the thrust.
7. The maximum pull force of the linear actuator is slightly less than its
maximum thrust force.
Production time:
The linear actuators are the customized products, and these products are not in
stock, we need to spend 3~7 working days to produce them according to the
specified parameters in your order.
Return or Exchange:
The Linear Actuators are the customized products, we need to produce them
according to the specified parameters in your order, so that we do not
accept returns or cancel orders. If customers order unsuitable linear
actuators themselves, we also do not accept exchanges, please understand.
We can provide 3D CAD model files in STEP format for linear actuators.
Please contact us by e-mail if you need them.
