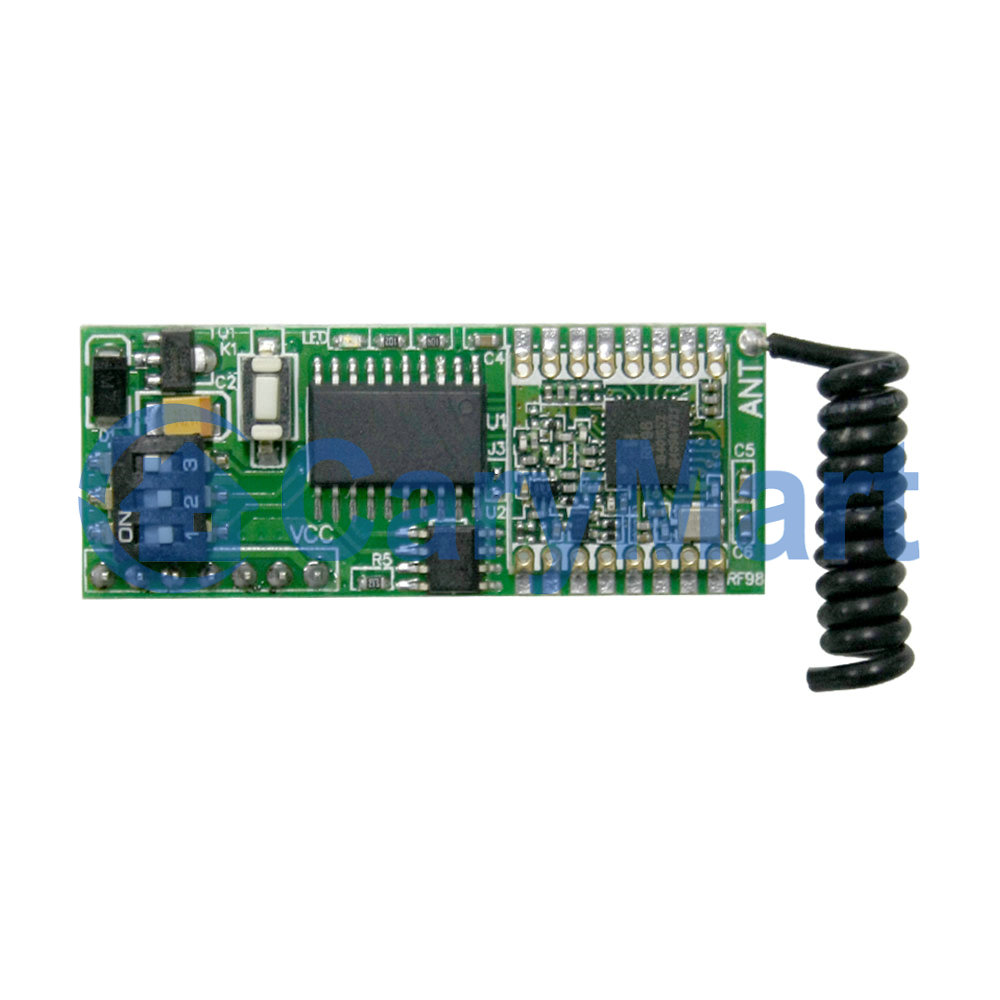

Include: 1 x Receiver Module (Model 0020241) 1 x User manual Features: Application: It can be
widely used in long distance remote control system, such as factory, farm,
pasture, vehicle, ship, offshore operation, aerial vehicle, wilderness call and
long range security alarm, etc. It can remote control
equipments on land, water and air, such as remote control lights, sirens,
locks, motors, fans, winches, blinds, linear actuators, doors, windows,
electric solenoid valves, security alarm, business signs and various devices. It uses spread
spectrum communication technology to enhance anti-interference. Ultra high receiving
sensitivity, ultra long reception distance, strong anti-interference capability. Suitable for long distance
remote control and long distance communication Feedback function: Can let
the user know whether he/she had already connect the transmitter and receiver
successfully in such a long distance. Two-way
working mode: When you press the remote control to send RF signal to the
receiver, if the receiver has been successfully triggered or operated, the
receiver will immediately transmit a RF feedback signal to the remote control.
Then the remote control will send out a buzzing sound to inform you that the
receiver has been successfully operated. Receiver Module
Parameters: Model
No.: 0020241 Working
Voltage: DC 3V~12V (5V is recommended) Working
Current: 16mA Static
Current: 5.5uA Transmitting
Current: 65mA Working
Frequency: 433.92MHZ Modulation
Method: FSK + LORA Receiving
Sensitivity: -148dBm Working
Distance: 5000M Working
Temperature: -10℃~+70℃ Size:
50mm x 20mm x 10mm Matching Transmitters: This
receiver module only works with 5000m transmitters, such as model CC-1 / CC-2 /
CC-4, or CCW-1 / CCW-2 / CCW-4 (waterproof). Working Range: Super long range, with
a transmitter (such as CC-4) to form a complete set, the maximum working
distance can reach 5000M on an open ground. The maximum working
distance is a theoretical data; it shall be operated in an open ground, no
barriers, no any interference. But in the practice, it will be hindered by
trees, walls or other constructions, and will be interfered by other wireless
signals. Therefore, the actual distance may not reach this maximum working
distance. Usage: The receiver module can be used to control DC 3~12V circuits or equipments. Setting
Different Control Modes: We have set the
receiver module as Self-locking control mode before delivery. If you want to use
other control modes, do as following operation: Setting control mode
Self-locking: Turn on the first bit of the dip switch. Control mode Self-locking (with transmitter CC-4): Press -> On, Press again-> Off. Press button A of the
transmitter: The pin “D3” outputs DC power; Press button A again: The pin “D3”
stops outputting. Press button B of the
transmitter: The pin “D2” outputs DC power; Press button B again: The pin “D2”
stops outputting. Press button C of the
transmitter: The pin “D1” outputs DC power; Press button C again: The pin “D1”
stops outputting. Press button D of the
transmitter: The pin “D0” outputs DC power; Press button D again: The pin “D0”
stops outputting. Setting control mode
Momentary: Turn on the first and the second bits of the dip switch. Control mode Momentary
(with transmitter CC-4): Press and hold -> On, Release -> Off. Press and hold button
A of the transmitter: The pin “D3” outputs DC power; Release button A: The pin
“D3” stops outputting. Press and hold button B
of the transmitter: The pin “D2” outputs DC power; Release button B: The pin “D2”
stops outputting. Press and hold button C
of the transmitter: The pin “D1” outputs DC power; Release button C: The pin “D1”
stops outputting. Press and hold button
D of the transmitter: The pin “D0” outputs DC power; Release button D: The pin
“D0” stops outputting. Setting control mode
Interlocking: Turn on the second bit of the dip switch. Control mode Interlocking (with transmitter CC-4): Press -> On,Press
another button -> Off. Press button A of the
transmitter: The pin “D3” outputs DC power, and other 3 pins
stop outputting. Press button B of the
transmitter: The pin “D2” outputs DC power, and other 3 pins
stop outputting. Press button C of the
transmitter: The pin “D1” outputs DC power, and other 3 pins
stop outputting. Press button D of the
transmitter: The pin “D0” outputs DC power, and other 3 pins
stop outputting.

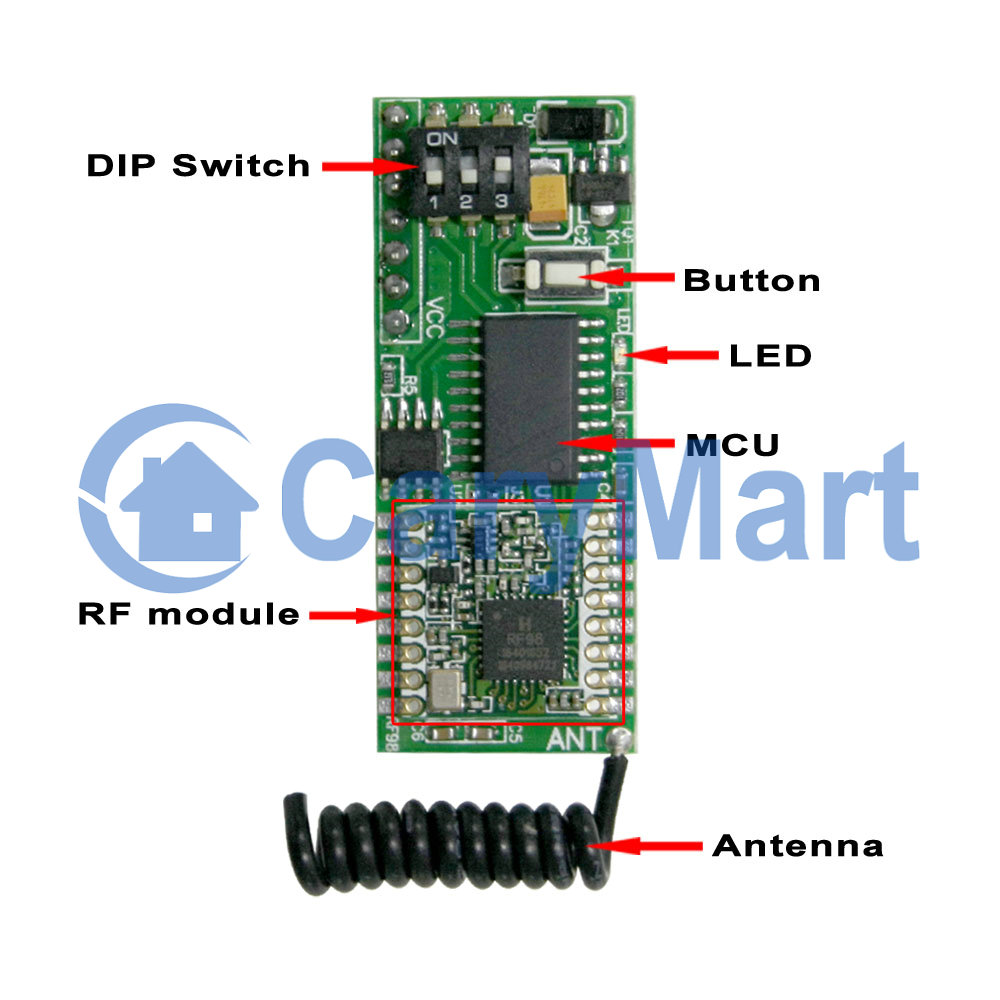

Setting feedback function: If you want
to have a feedback function: Turn on the third bit of the dip switch. When the
receiver gets the signal of transmitter, it will immediately send a return
signal to the transmitter. When the transmitter receive the feedback signal of
the receiver, the transmitter will exude a buzzing sound like “D~” which means

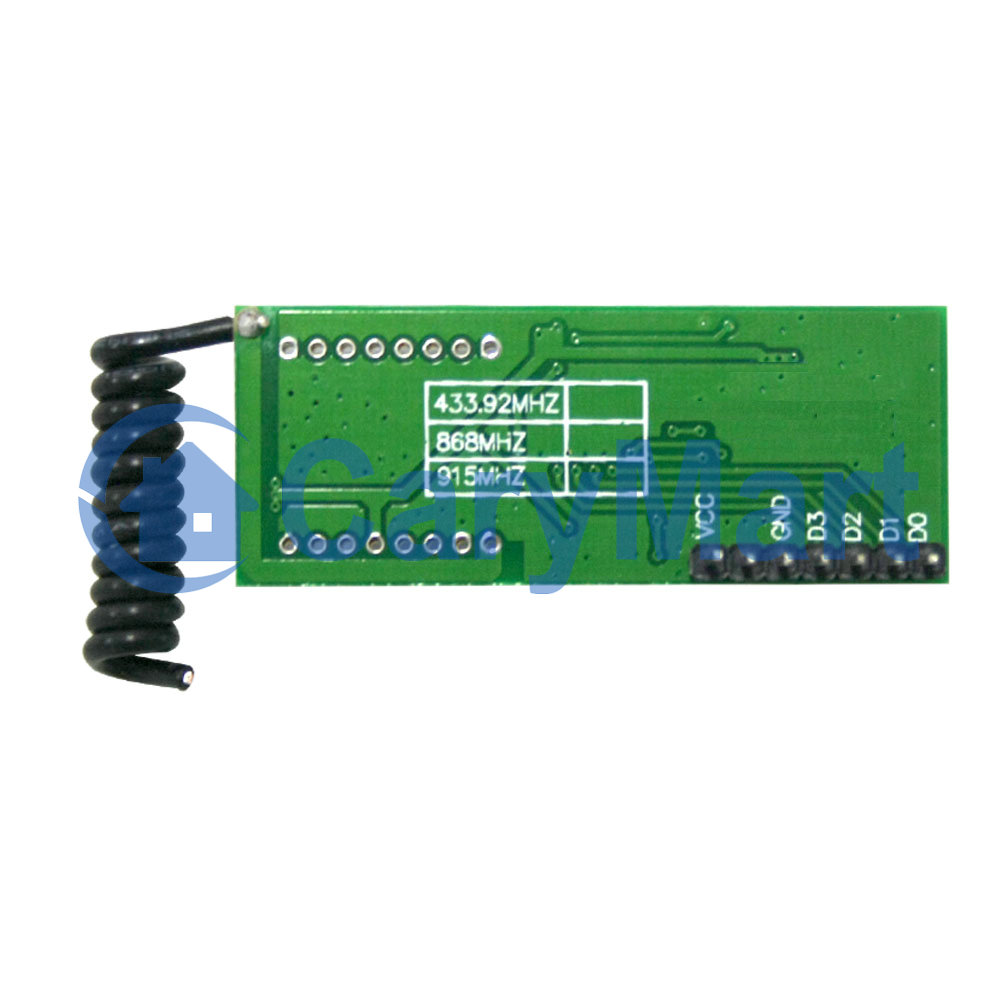

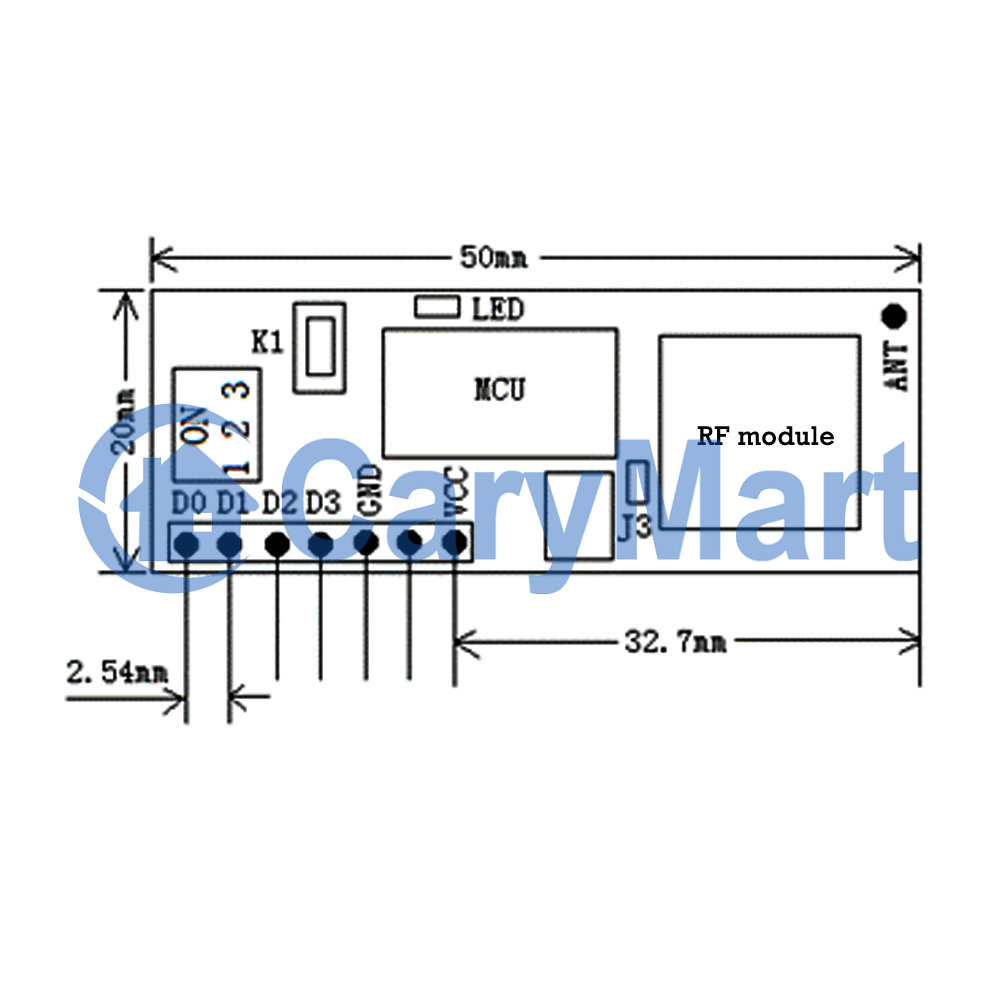

it receive the feedback signal successfully. Instruction of pins:
