Manuel Package Include:

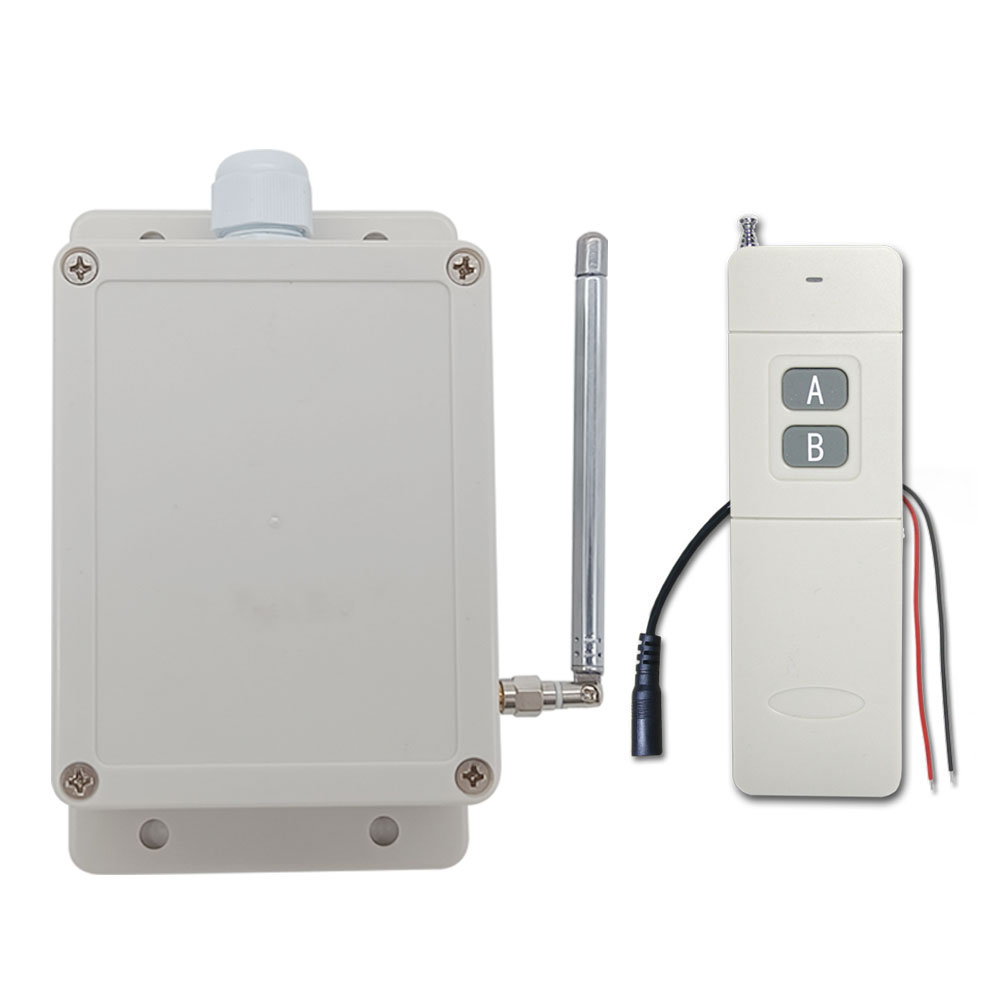

1 x Receiver: S1X-DC-ANT3
1 x Transmitter: CB-2V
1 x User manual
Application:
This type of wireless remote control device can use a DC voltage signal or a
DC device to wirelessly control another DC device, and it can be used for
synchronous wireless control of various home, industrial or agricultural
equipments, such as wireless control of the warning host and the warning
horn, wireless control of the lights, wireless synchronization control of
the equipments and so on.
Feature:
Wireless control, easy to install.
Waterproof: The receiver has waterproof case and waterproof connector, it
can be installed outdoors.
Four operating voltage versions: DC 6V, 9V, 12V, 24V optional.
DC Power Output: It can control DC equipment with voltage DC 6V / 9V / 12V /
24V.
With external antenna, the receiver has a farther working range.
The transmitter / remote can control the receiver from any place within a
reliable working distance.
Wireless RF signal from the transmitter can pass through walls, floors,
doors, or windows, but it will lose some operating range.
The receiver has reverse voltage protection and overcurrent protection.
The receiver can only be triggered by paired transmitters.
One or more transmitters / remotes can control one or several receivers
simultaneously.
Two or more receivers may be used in the same area.
Receiver Parameters:

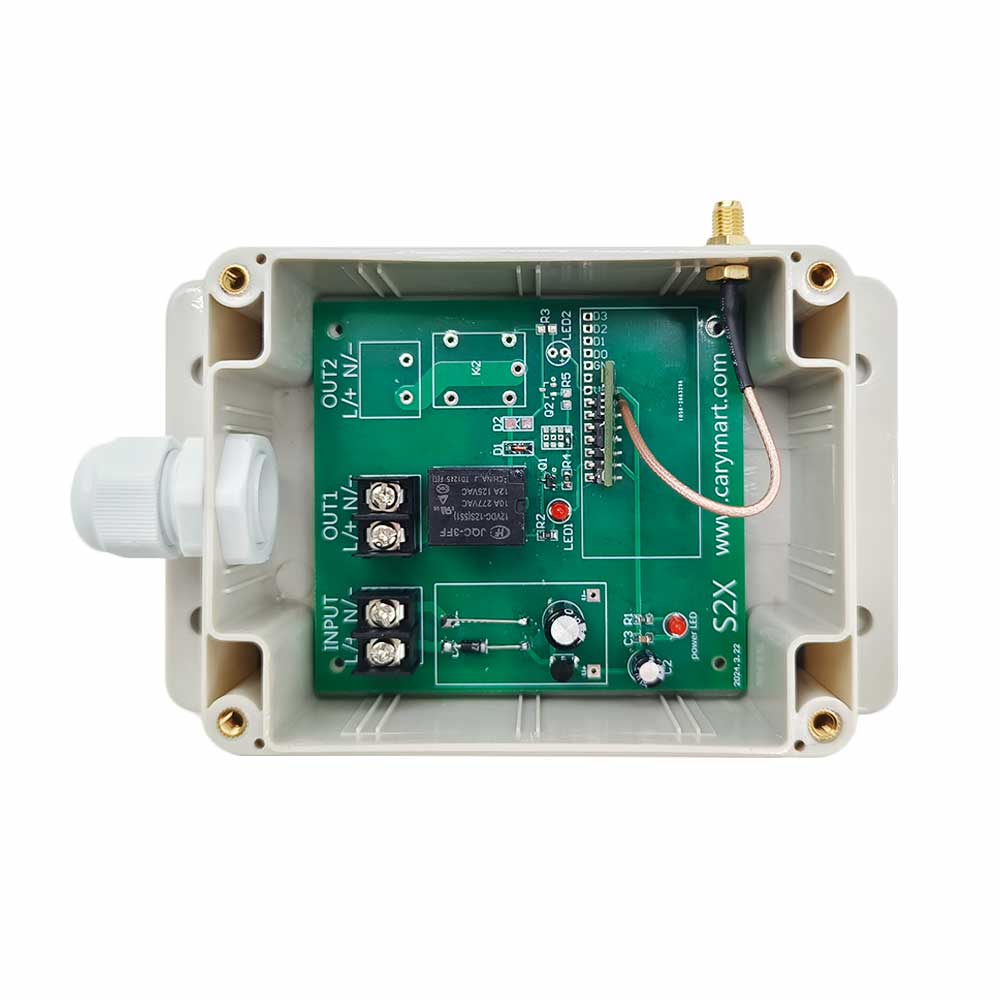

Model: S1X-DC-ANT3
Operating Voltage: 6VDC (model S1X-DC06), or 9±1VDC (model S1X-DC09), or
12±1VDC (model S1X-DC12), or 24±2VDC (model S1X-DC24), the operating voltage
must be specified when ordering.
Working Frequency: 315 MHz
Quiescent Current: ≤6mA
Channel: 1 CH
Output Type: DC power output
Maximum Load Current of Relay: 10A / channel
Suitable Wires for Connecting Terminals: 22-12 AWG
Working Modes: Interlocking
Operating Temperature: -20 °C ~ +70 °C

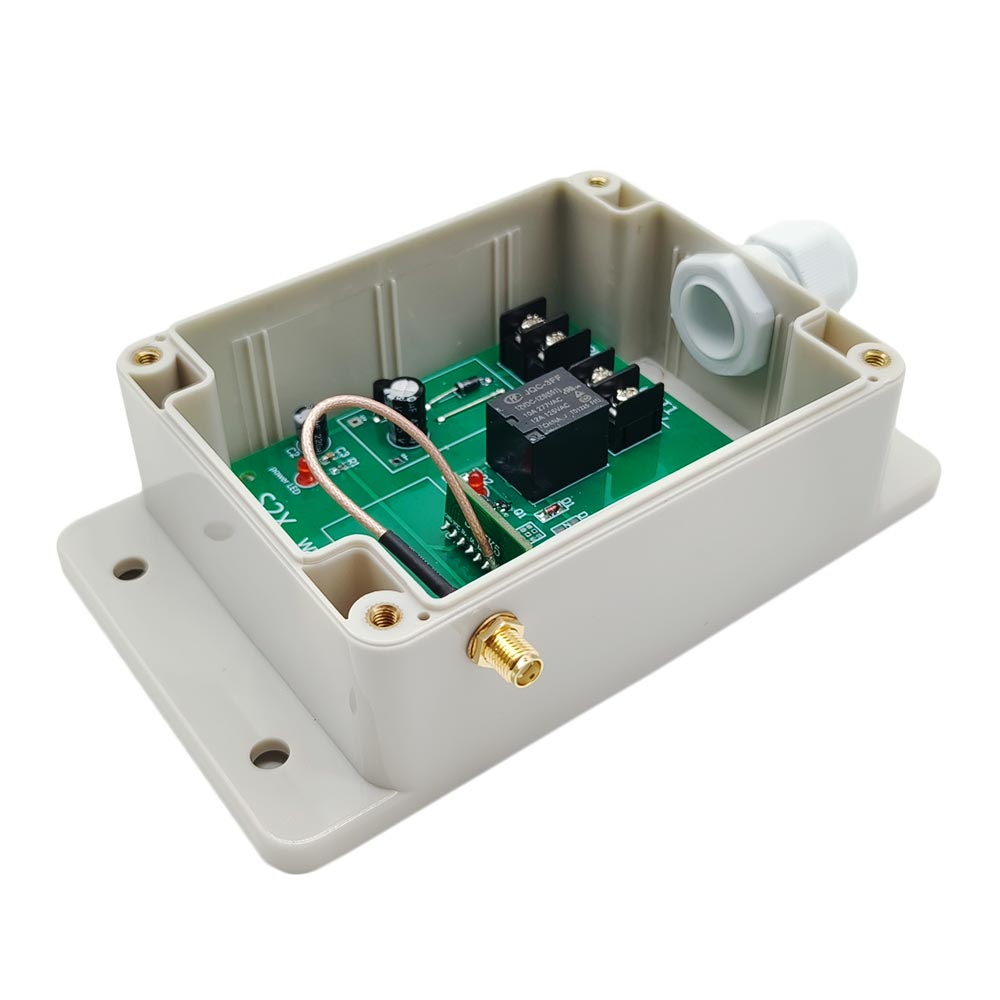

PCB size: 88 x 80 x 18 mm (3.5 x 3.1 x 0.7 inches)
Case size: 115 x 90 x 55 mm (4.5 x 3.6 x 2.2 inches)
External Telescopic Antenna ANT3 For Receiver:
Length of external telescopic antenna: 108mm / 445mm (stretch)
With SMA connector.
If you stretches the external telescopic antenna, it can have a further
working range.
Transmitter Parameters:

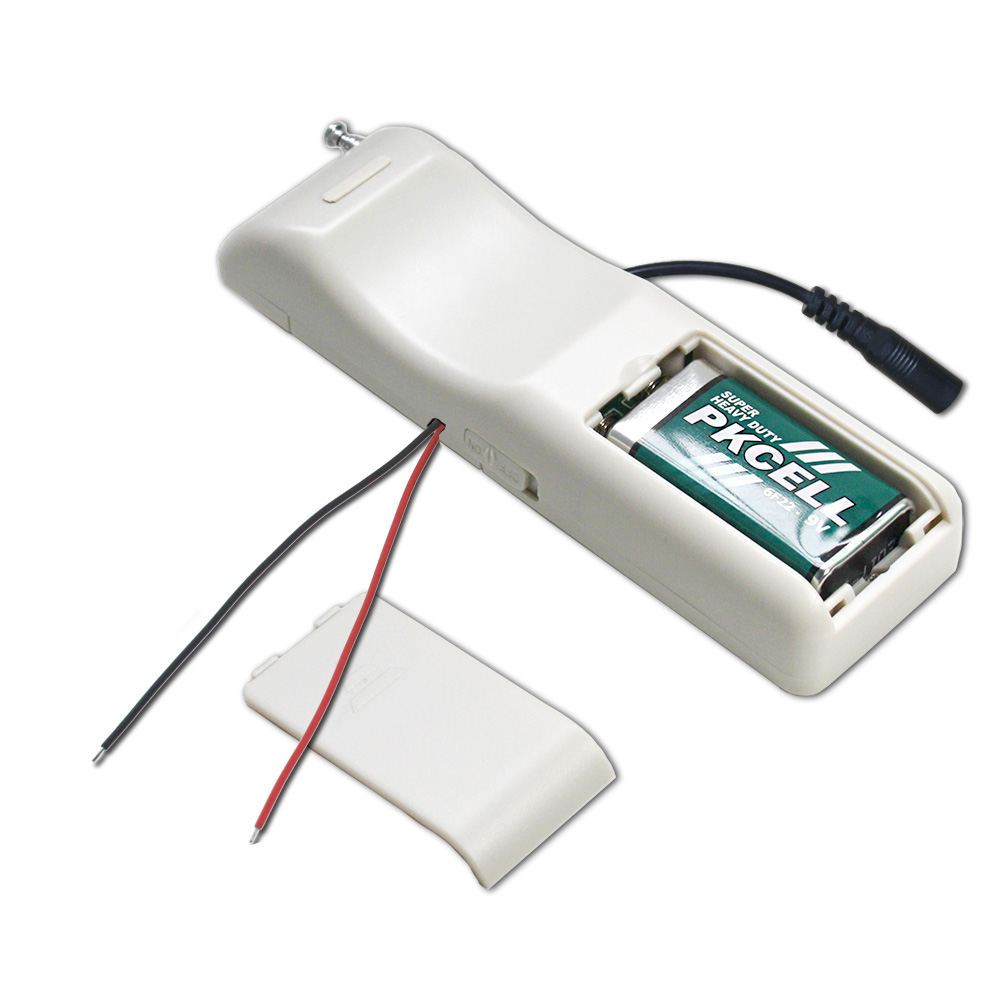

Model: CB-2V
With Two Input Wires: Trigger by 5~28V DC Signal
Channel/Button: 2
Operating Voltage: 9V (1 x 6F22 -9V battery, can be used for a week, if you
want a longer working time, please use a 9V power adapter.)
Operating Current: 30mA
Operating Frequency: 315 MHz
Transmitting Distance: 1000m / 3000ft (theoretically)
Modulation Mode: ASK
Operating Temperature: -20 ° C to +70 ° C
Unit Size: 135 x 42 x 25 mm
The working principle:
Transmitter CB-2V is a special remote control with DC voltage signal
trigger. It has 2 input lines for connecting an DC power or DC device, such
as DC lamps, DC motors; or connecting a device with DC voltage output, such
as warning host, cable detectors, various sensors, Programmable Logic
Controllers and so on. The transmitter can be combined with different types
of receivers to form a wireless control system that can be used to
wirelessly control another DC device through a DC signal or a DC device.
Working process:
1. Connect a DC device A to the two input lines of the transmitter; connect
the other device B to the receiver.
2. When the device A outputs the DC voltage to the transmitter, the
transmitter automatically emits an "ON" wireless signal, which is equivalent
to the function of the button "ON" on the transmitter. When the receiver
receives the wireless signal, it will activate its relay to turn on the
connected device B.
3. When the device A stops outputting the DC voltage to the transmitter, the
transmitter automatically emits an "OFF" wireless signal, which is
equivalent to the function of the button "OFF" on the transmitter. When the
receiver receives the wireless signal, it will deactivate its relay to turn
off the connected device B.
Working Range:
Super long range, with a transmitter (such as CB-2V) to form a complete set,
the maximum working distance can reach 1000M in an open ground.
The maximum working distance is a theoretical data, it shall be operated in
an open ground, no barriers, no any interference. But in the practice, it
will be hindered by trees, walls or other constructions, and will be
interfered by other wireless signals. Therefore, the actual distance may not
reach this maximum working distance.
Usage:
The receiver can be used to control DC 6V / 9V / 12V / 24V devices.If the
power supply of those equipments is DC 12V, you should choose the receiver
with same DC 12V version; and if the power supply of those equipments is DC
24V, you should choose the receiver with same DC 24V version.

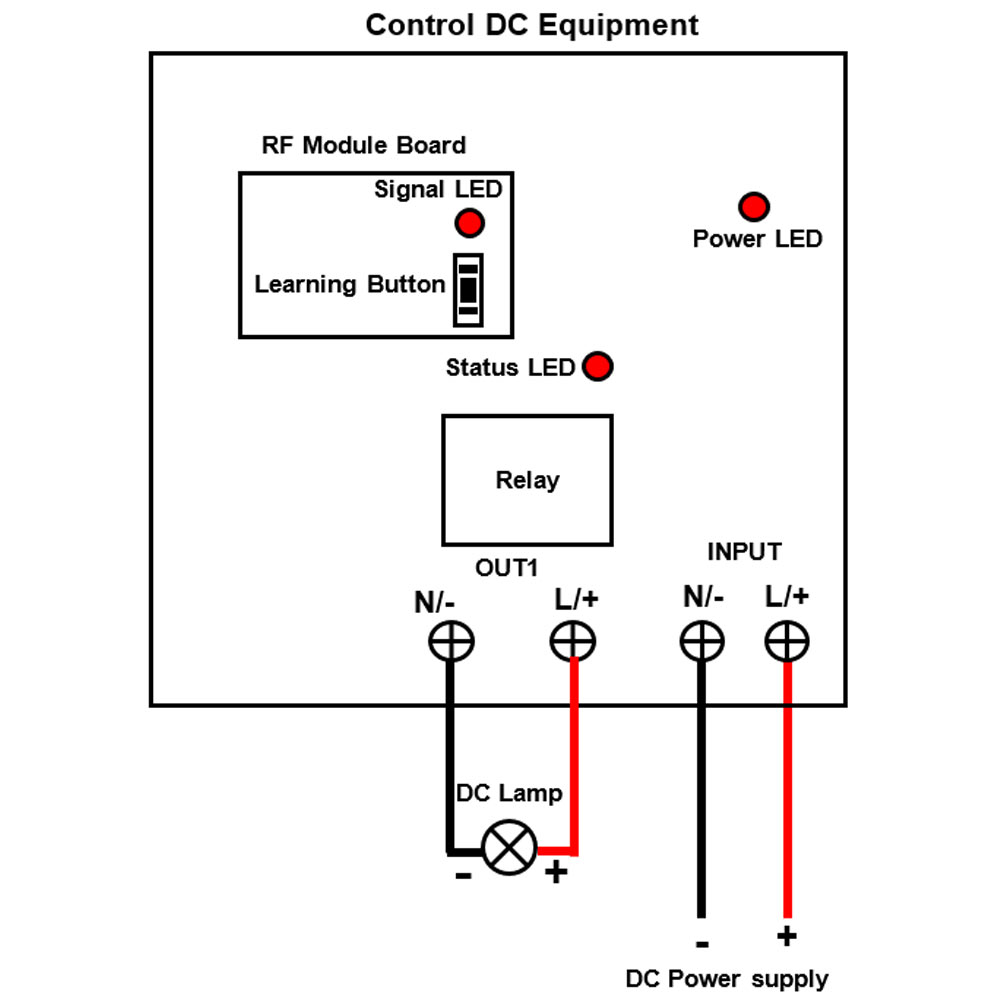

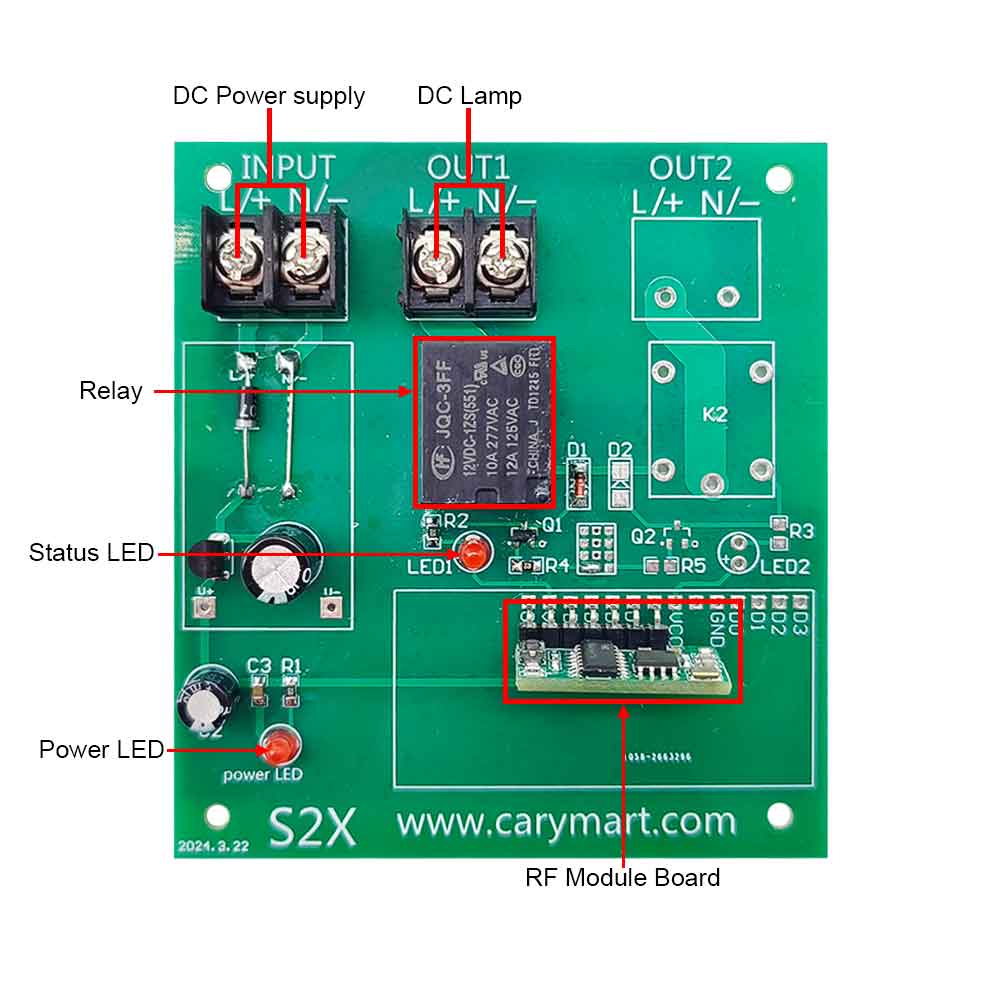

Wiring:
If you want to control a DC 12V lamp, do as following:
1) Connect the positive pole of DC power supply to terminal <L/+> of INPUT,
and connect the negative pole of DC power supply to terminal <N/-> of INPUT.
2) Connect terminal <L+> of OUT1 to the positive pole of DC lamp, and
connect terminal <L-> of OUT1 to the negative pole of DC lamp.
Operation: 1) Controlling the device by the buttons on the transmitter (CB-2V):
Press button A of the transmitter: Terminals <OUT1> of the receiver outputs
DC power, the device is turned on.
Press button B of the transmitter: Terminals <OUT1> of the receiver stops
outputting, the device is turned off.
2) Controlling the device by the input wires of the transmitter:
When connect 5~28V DC signal to the input wire (the red wire and black wire)
of the transmitter, the transmitter sends an RF signal "ON" to trigger the
receiver, the output terminals <OUT1> outputs DC power, and the device is
turned on.
When disconnect 5~28V DC signal to the input wire, the transmitter sends
another RF signal "OFF" to trigger the receiver, the output terminals <OUT1>
stops outputting, and the device is turned off.
