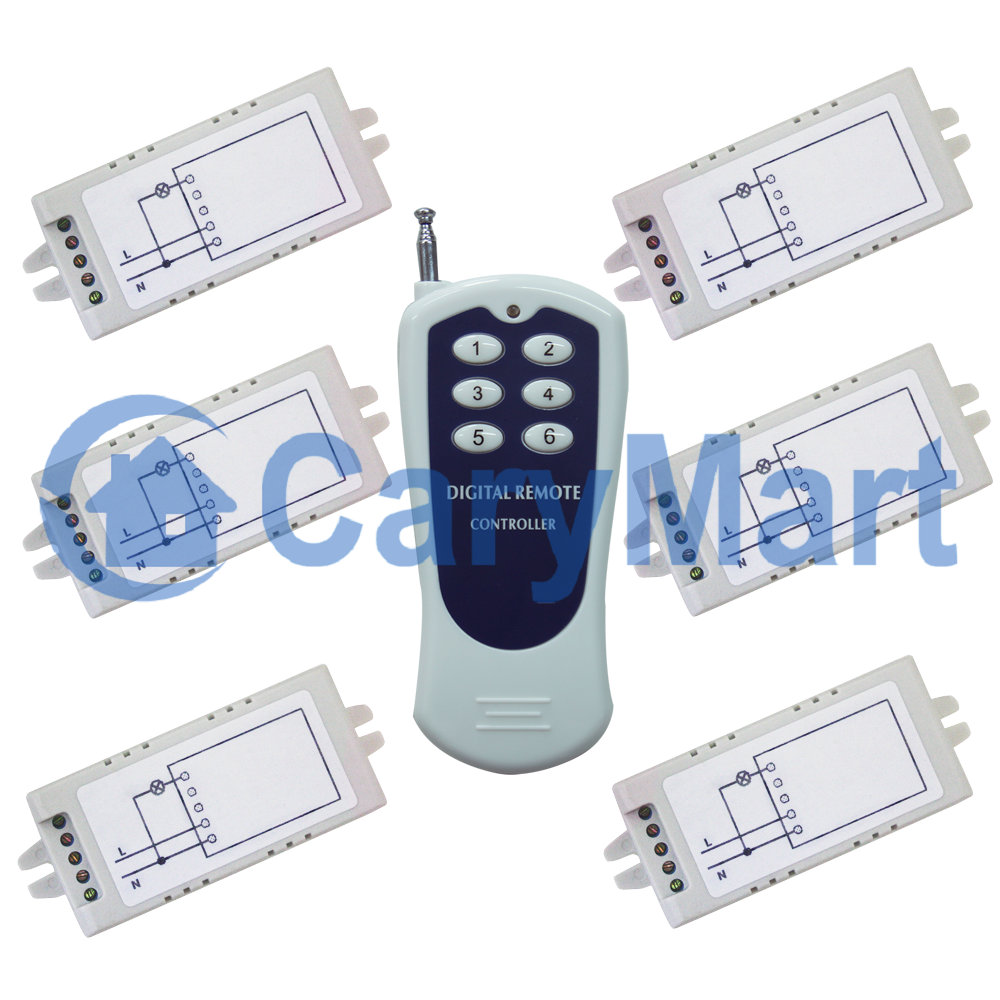

6 CH AC110/220V Wireless Remote Control Kit---One Transmitter Controls 6 Receivers

Manual

Feature:

• Wireless control, easy to install
• Control Lights, Motors, Fans, electrically operated Doors/Locks/Windows/Blinds/Cars or Other Appliances with AC 100~240V.
• You can turn on/off the receiver with transmitter (remote control) from any place within a reliable distance; the wireless RF signal can pass through walls, floors and doors.
• Use an 8-bit microprocessor designed and developed with low-power and high-speed CMOS technology.
• Reliable control: The transmitter (Encoding) and the receiver (Decoding) use an 8-bit code.
• One/several transmitters can control one/several receivers simultaneously.
• If you use two or more receivers in the same place, you can set them with different codes.
• Transmitting Frequency: 433MHz

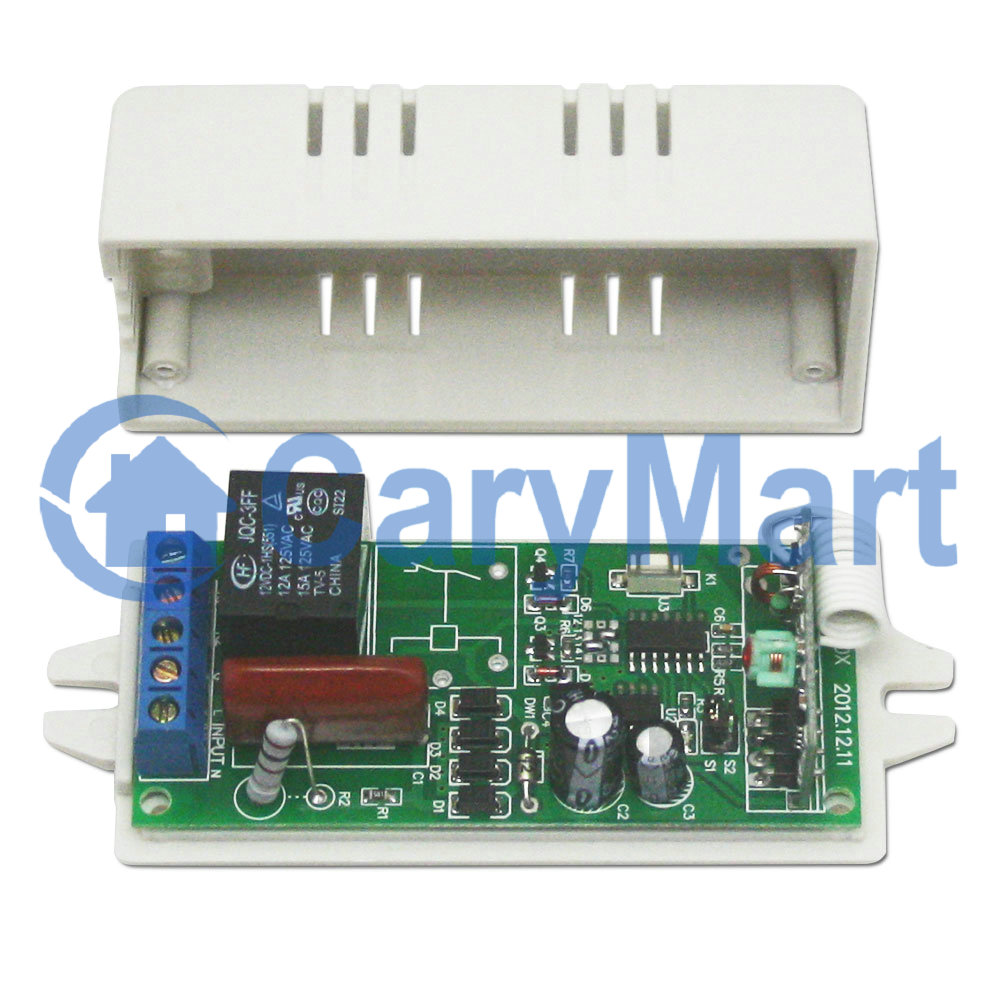

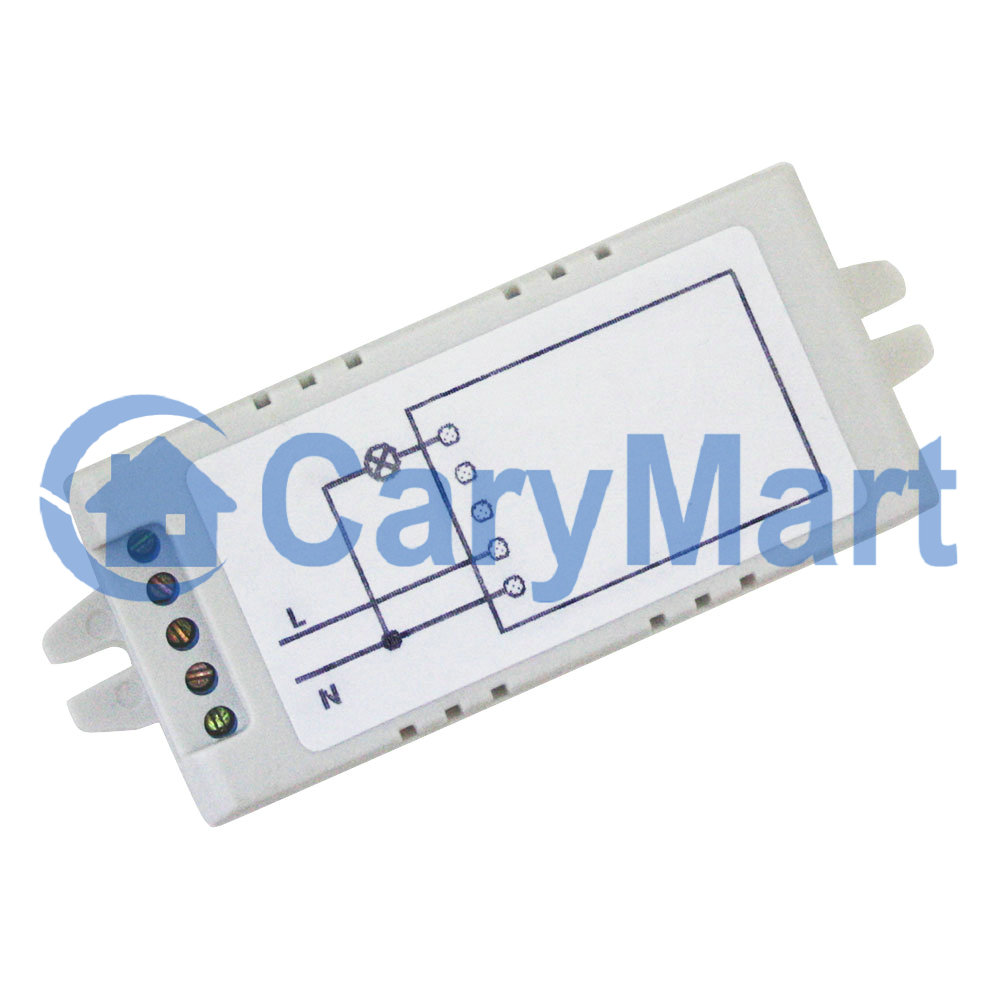

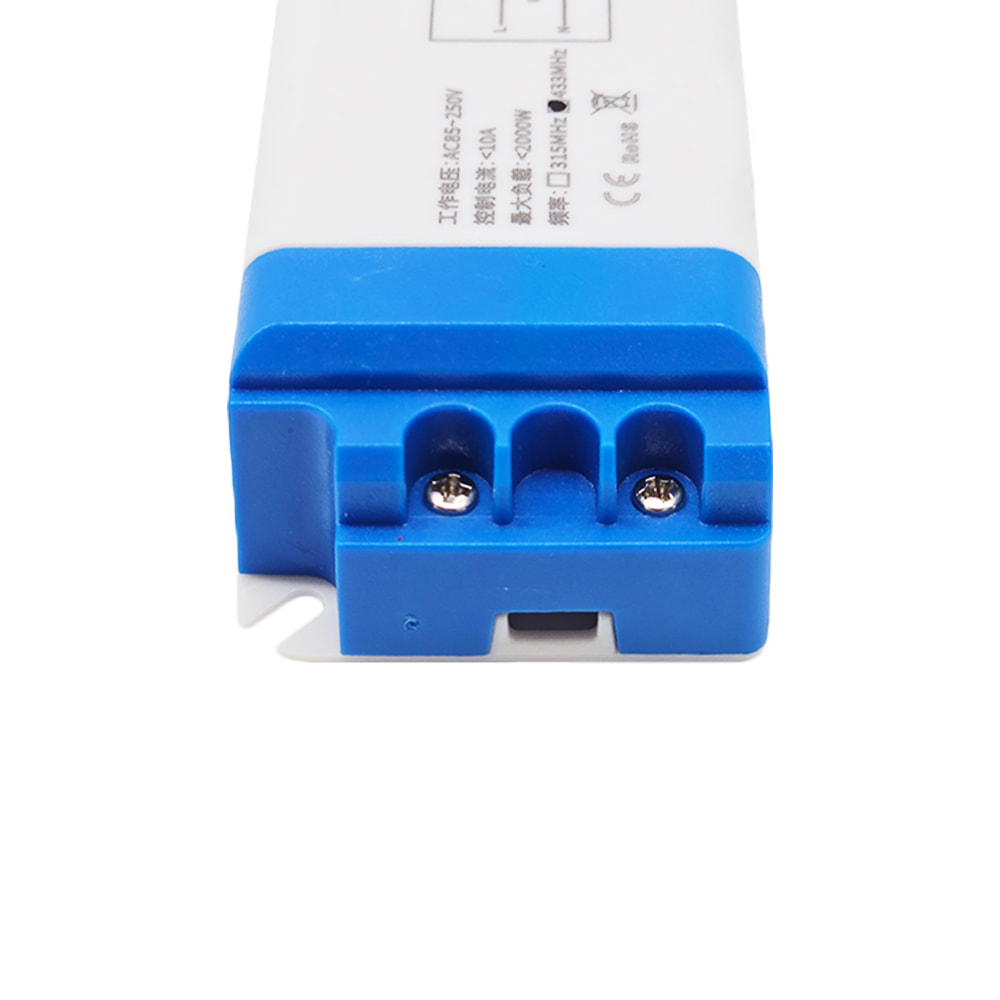

Receiver:

• Model No.: S1XC-AC110 / S1XC-AC220
• Channel: 1 CH
• Control Modes: Self-locking, Momentary, Interlocking
• Coding Type: Fixed code or learning code
• Coding Setting: By learning
• Power Supply (Operating Voltage): AC100~120V (S1XC-AC110), AC200~240V (S1XC-AC220)
• PCB size: 80mm x 35mm x 14mm
• Case size: 100mm x 40mm x 24mm
• Maximum Working Current: 3A/each channel

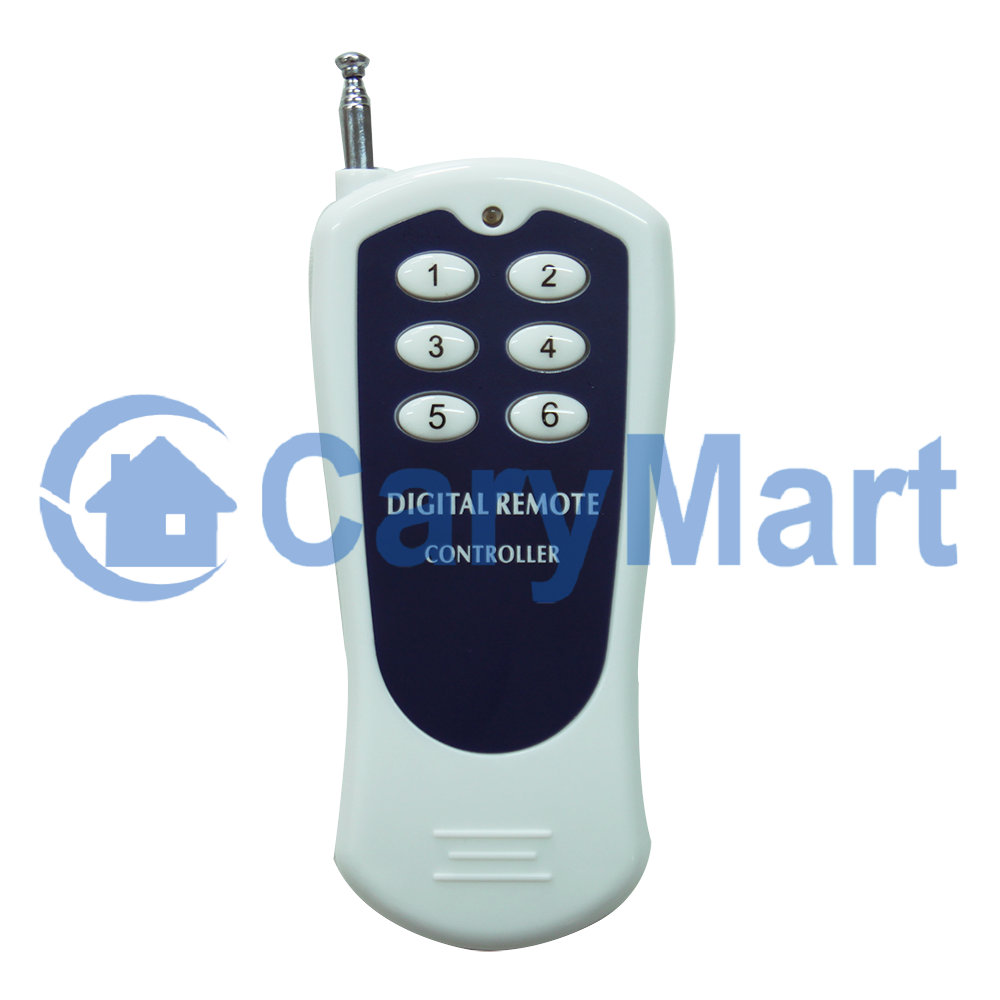

Transmitter:

• Model No.: CV-6
• Channel: 6 CH
• Remote Control Distance: 500m / 1500ft (theoretically)
• Encode: Fixed code by Soldering
• Unit size: 110mm x 50mm x 18mm

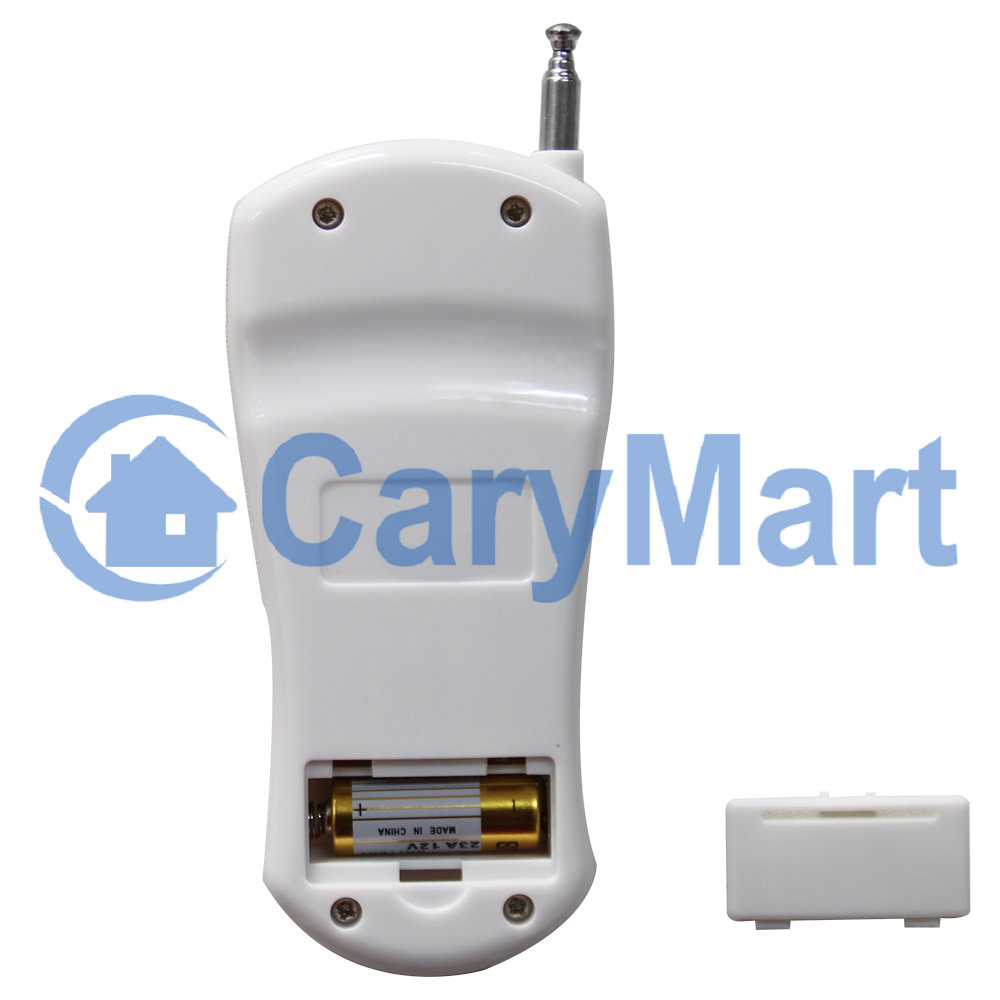

• Power Supply: 1 x 23A -12V battery (Included, can be used for 12 months)

Usage:

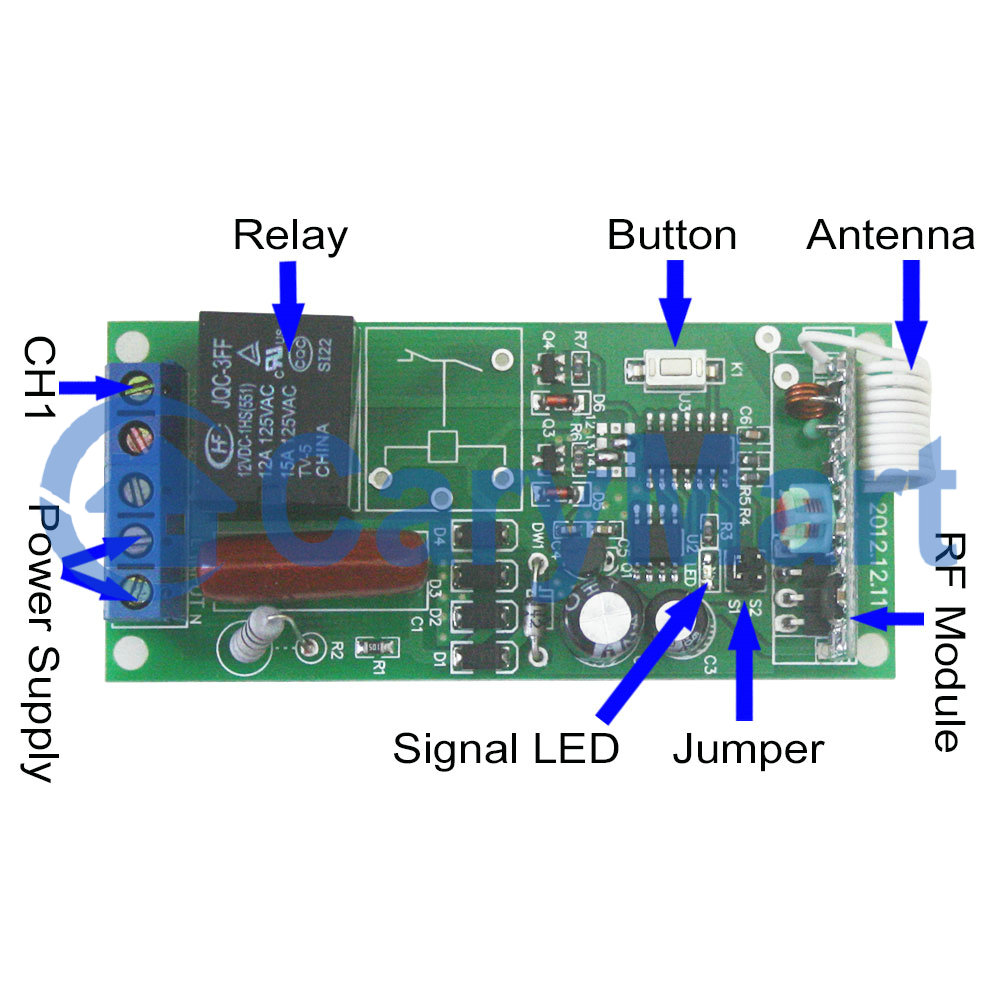

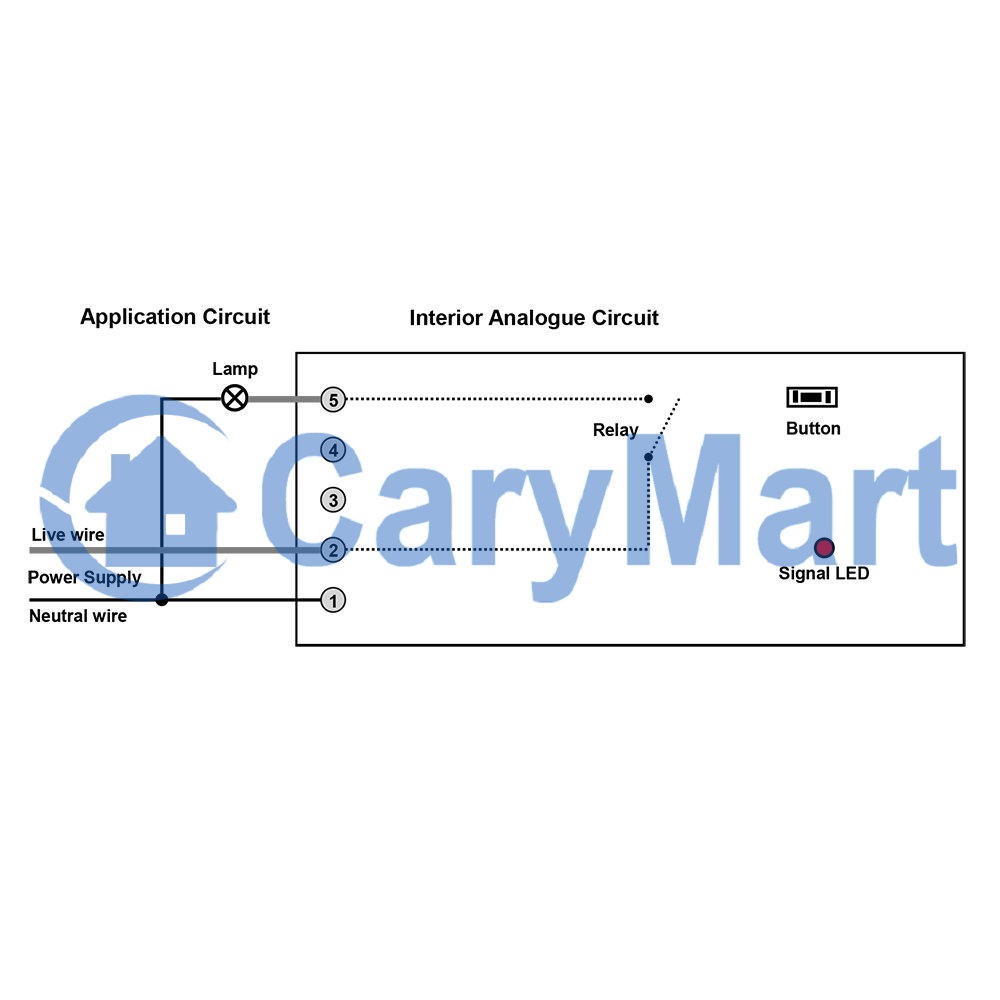

• Connect the neutral wire to the terminal “1”, and the live wire to the terminal “2”. Connect the lamp to the terminal “5” and the neutral wire.
• Setting different control modes (We have set the receiver as Self-locking mode before delivery. If you want to use other modes, do as following):

Setting control mode Self-locking: Only connect Jumper-1.

• Press button 1, turn on the lamp of receiver 1. Press button 1 again, turn off the lamp of receiver 1.
• Press button 2, turn on the lamp of receiver 2. Press button 2 again, turn off the lamp of receiver 2.
  ……
• Press button 5, turn on the lamp of receiver 5. Press button 5 again, turn off the lamp of receiver 5.
• Press button 6, turn on the lamp of receiver 6. Press button 6 again, turn off the lamp of receiver 6.

Setting control mode Momentary: Do not connect Jumper-1 and Jumper-2.

• Press and hold button 1, turn on the lamp of receiver 1; Release button 1, turn off the lamp of receiver 1.
• Press and hold button 2, turn on the lamp of receiver 2; Release button 2, turn off the lamp of receiver 2.
  ……
• Press and hold button 5, turn on the lamp of receiver 5; Release button 5, turn off the lamp of receiver 5.
• Press and hold button 6, turn on the lamp of receiver 6; Release button 6, turn off the lamp of receiver 6

Setting control mode Interlocking: Only connect Jumper-2.

• Press button 1, turn on the lamp of receiver 1, turn off the lamp of receiver 2,3,4,5,6.
• Press button 2, turn on the lamp of receiver 2, turn off the lamp of receiver 1,3,4,5,6.
  ……
• Press button 5, turn on the lamp of receiver 5, turn off the lamp of receiver 1,2,3,4,6.
• Press button 6, turn on the lamp of receiver 6, turn off the lamp of receiver 1,2,3,4,5.

Package Include:

• 6 x Receiver: S1XC-AC110 / S1XC-AC220
• 1 x Transmitter: CV-6
• 1 x User manual
