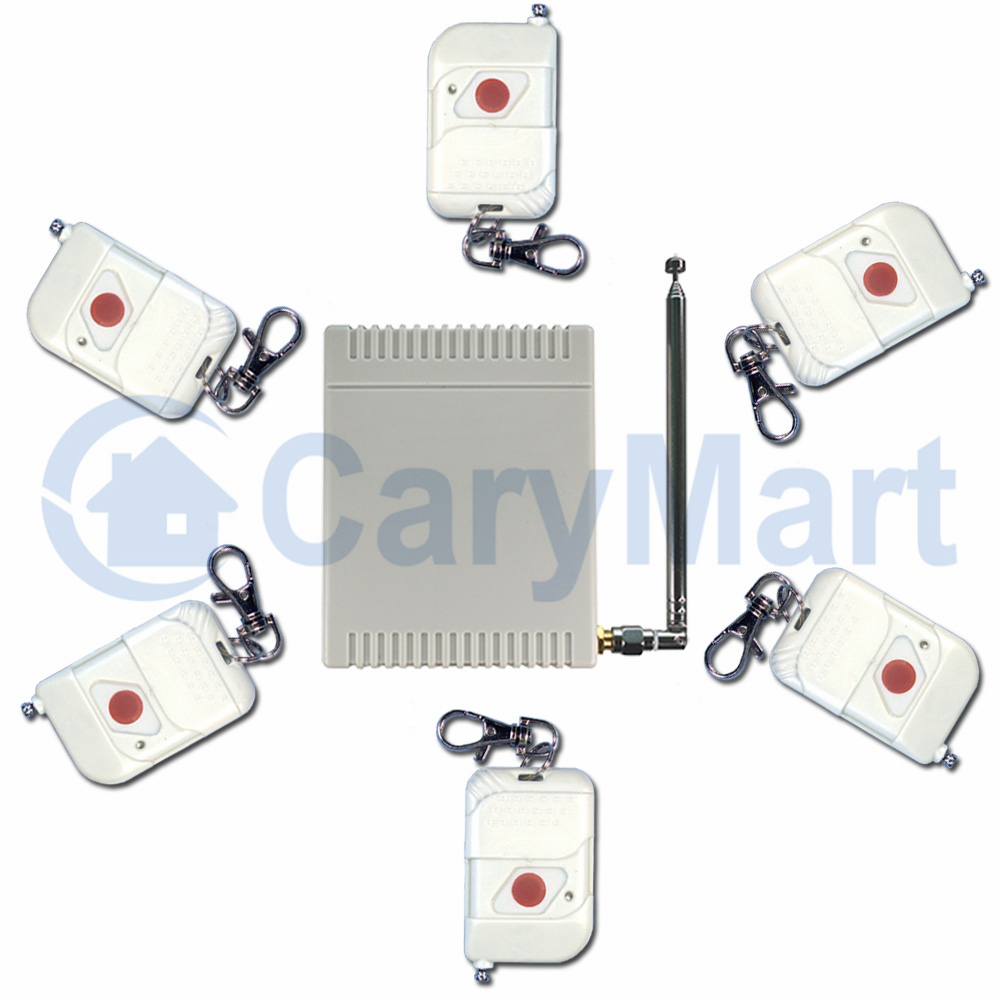

Package Include:
1 x Receiver: S6C-DC06-ANT3 / S6C-DC09-ANT3 / S6C-DC12-ANT3 / S6C-DC24-ANT3 (6 Channel / 6
Control Modes)
6 x Transmitter: C-1
1 x User manual
Feature:
Application: It can be used in industry automation, agriculture automation
and home automation, such as factory, house, farm, pasture, vehicle, ship,
offshore operation, aerial vehicle, field call, etc. It can remote control
equipments on land, water and air, such as remote control lights, sirens,
locks, motors, fans, winches, blinds, linear actuators, doors, windows,
electric solenoid valves, security alarm, business signs and various
devices.
Wireless control, easy to install.
Relay Output: This receiver is relay output, it can be used to operate both
DC and AC equipments. The terminals are NO / NC (normally open / normally
closed), which serves as a switch. That means you should also connect a
separate power supply to equipments.
You can turn on/ off the receiver with transmitter (remote control) from any
place within a reliable distance.
Wireless RF signal can pass through walls, floors, doors or windows.
With reverse power protection and over current protection.
Reliable control: The receiver only works with the transmitter which use
same code.
One/several transmitters can control one/several receivers simultaneously.
You can use two or more units in the same place.

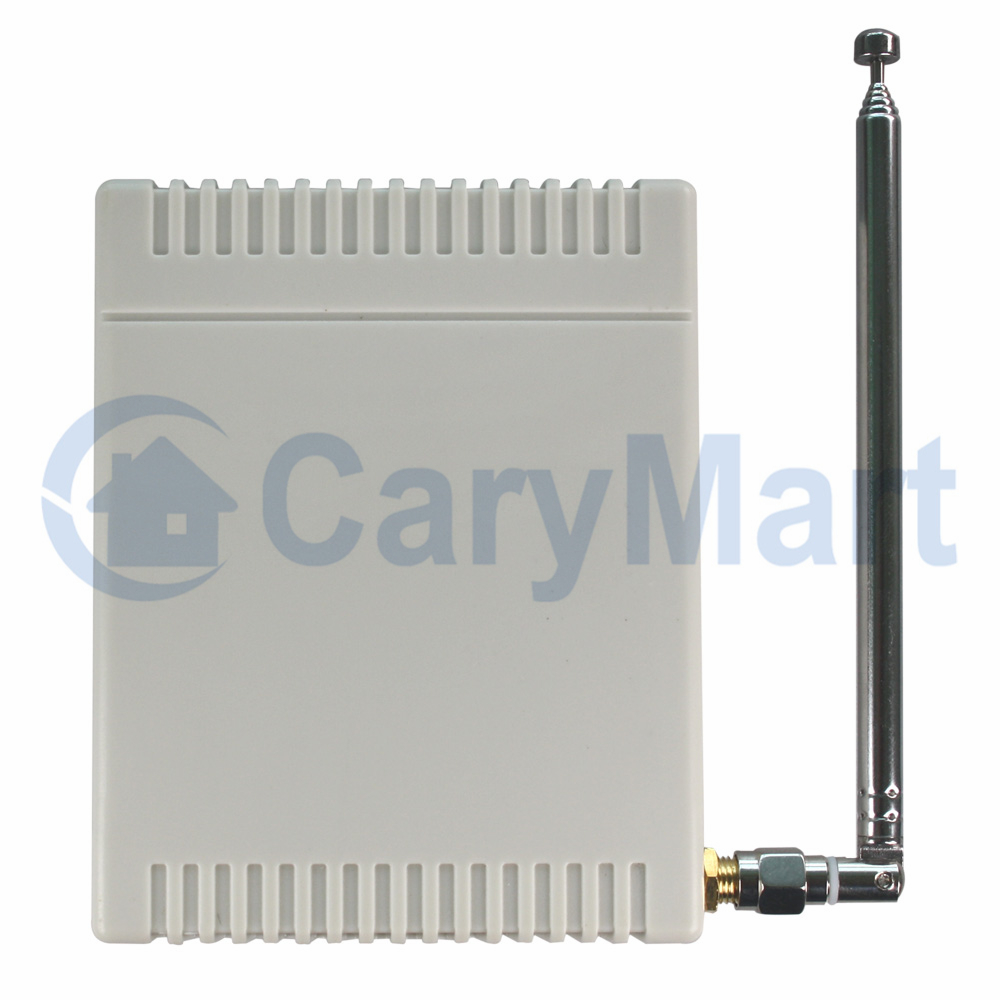

Receiver Parameters:
Model No.: S6C-DC06-ANT3 / S6C-DC09-ANT3 / S6C-DC12-ANT3 / S6C-DC24-ANT3
Channel: 6 CH
Control Modes: Self-locking, Momentary, Interlocking and mixed modes
Power Supply (Operating Voltage): DC6V (S6C-DC06), DC12V±1V (S6C-DC12),
DC9V±1V (S6C-DC09), DC24V±1V (S6C-DC24)
Output: Relay output (Normally open and normally closed)
Working Voltage Range of Relay: AC110~240V or DC0~28V
PCB Size: 94mm x 73mm x 20mm
Case Size: 100mm x 80mm x 30mm
Static Current: ≤6mA
Maximum Working Current: 10A / each channel
Working Frequency: 433MHz
Work with Fixed code transmitters.

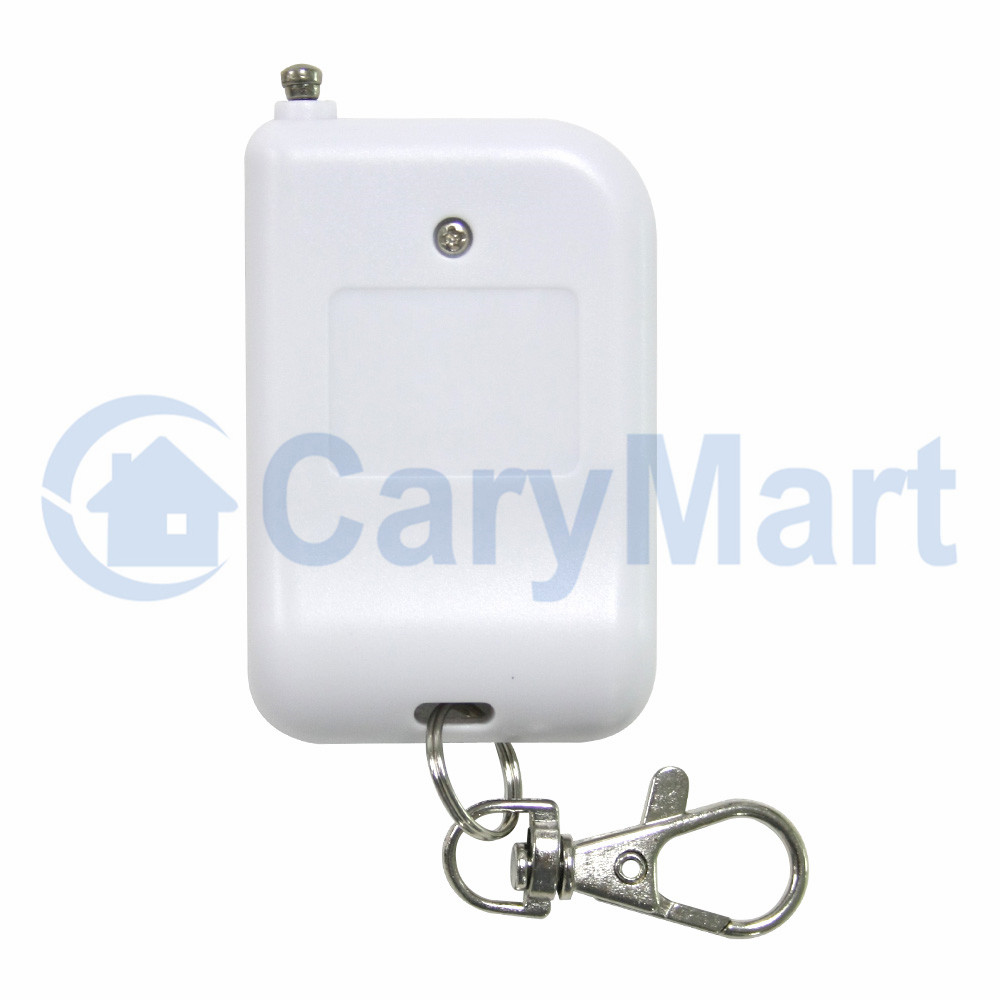

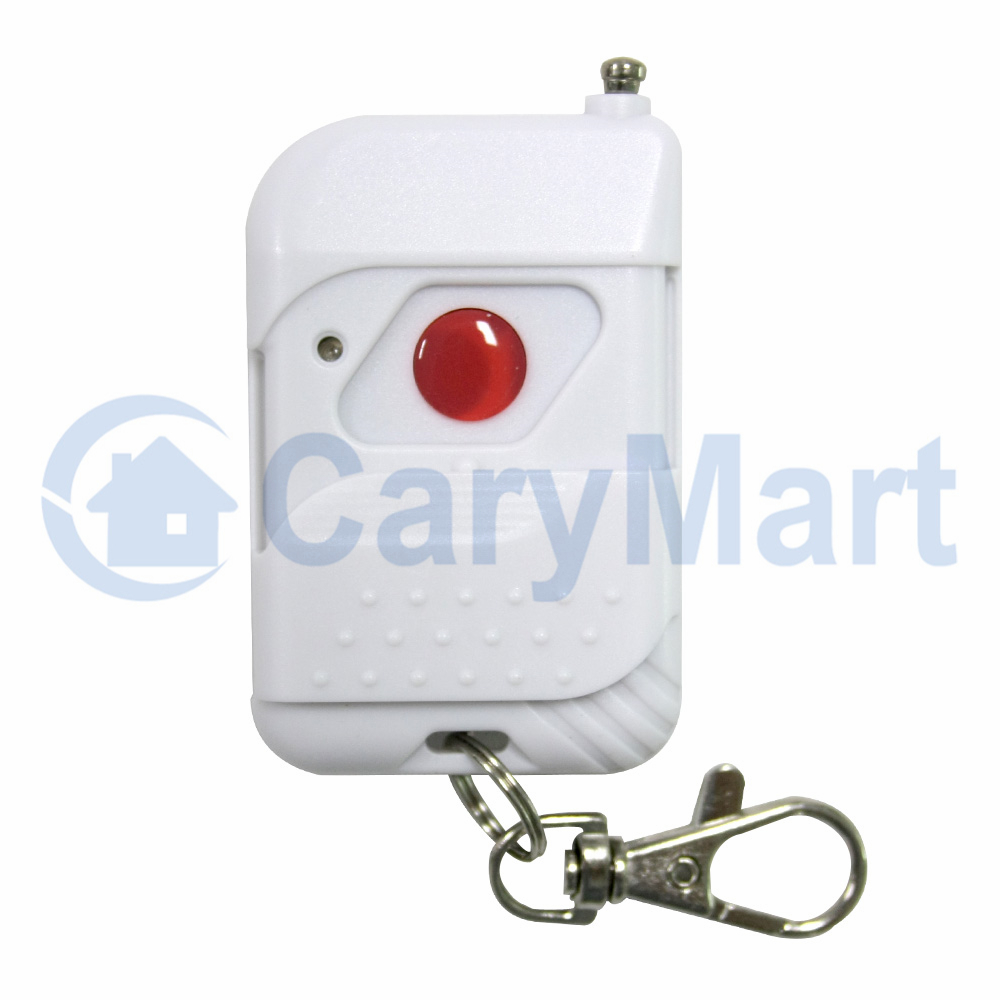

Transmitter:
Model No.: C-1
Channel: 1 CH
Remote Control Distance: 100m / 300ft (theoretically)
Encode: Fixed code by soldering
Unit size: 58mm x 39mm x 16mm
Power Supply: 1 x 23A -12V battery (included, can be used for 12 months)
Working Range:
With a transmitter (such as C-1) to form a complete set, the maximum working
distance can reach 100M in an open ground.
The maximum working distance is a theoretical data, it shall be operated in
an open ground, no barriers, no any interference. But in the practice, it
will be hindered by trees, walls or other constructions, and will be
interfered by other wireless signals. Therefore, the actual distance may not
reach this maximum working distance.

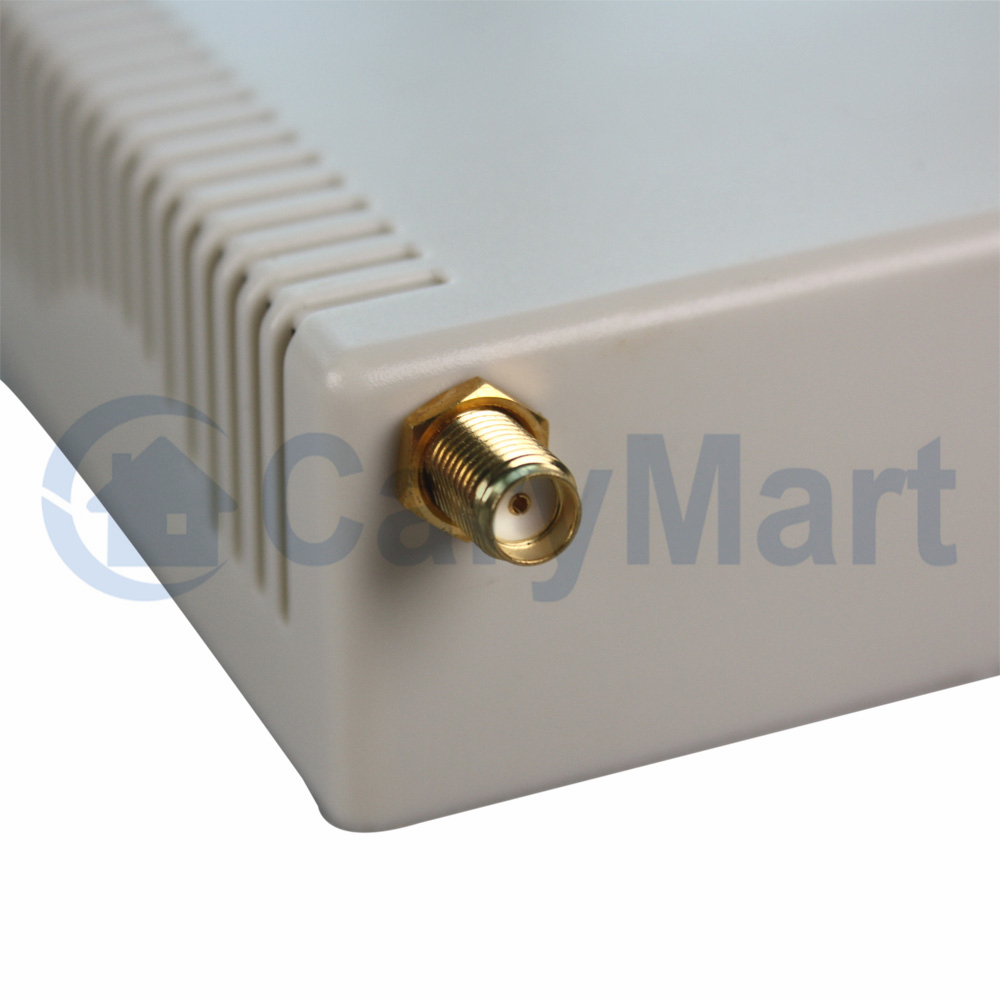

If you want to have a further working range, you can install an external
antenna to the receiver, and you also can use a powerful transmitter, such
as CB series transmitters.
Usage:
The receiver can be used to control both DC 0~28V and AC 110~240V
equipments.

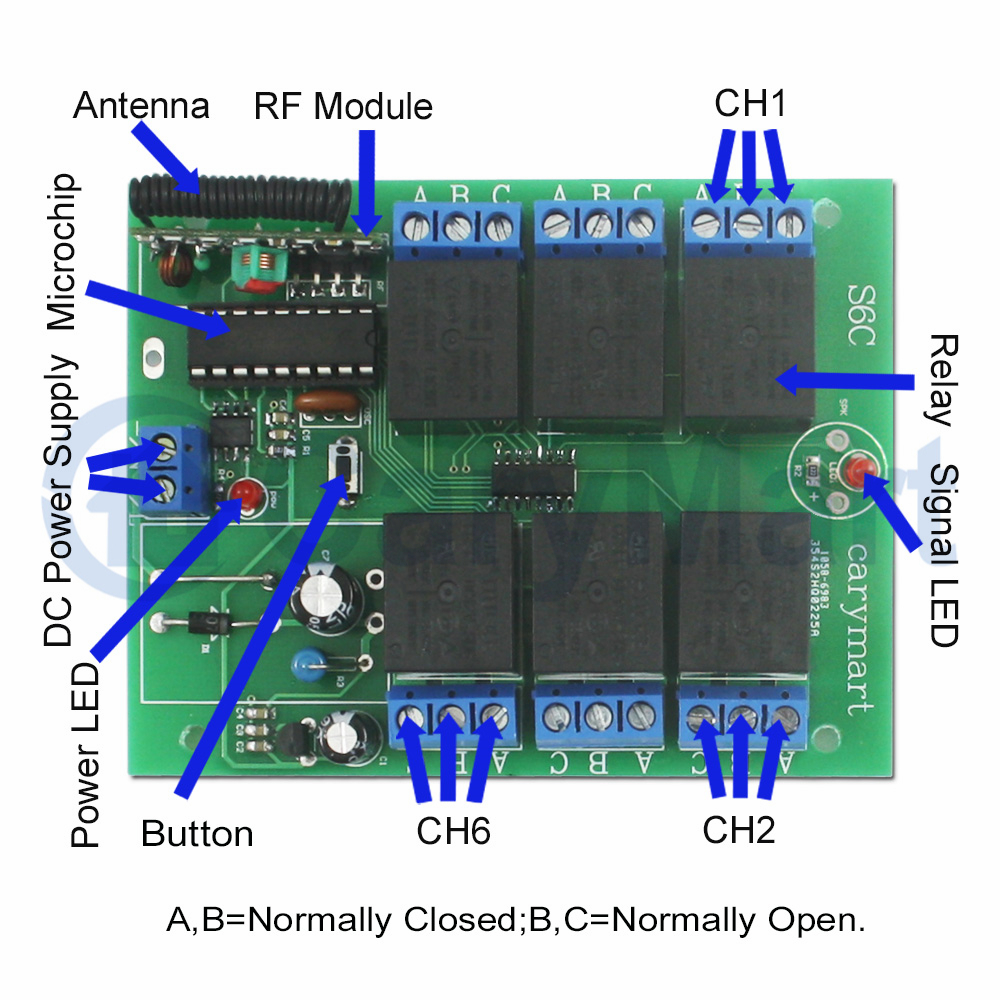

Notice: The receiver is relay output, not DC/AC power output. Initial state
of relay output terminals: Terminals B and C are Normally Open; Terminals A
and B are Normally Closed.
Wiring:
If you want to control a DC 12V lamp, do as following:
1) Connect the positive pole of DC power supply to terminal “L / +” of
INPUT, and connect the negative pole of DC power supply to terminal “N / -”
of INPUT.
2) Connect terminal C to the positive pole of DC power supply, connect
terminal B to the positive pole of DC lamp, and connect the negative pole of
DC lamp to the negative pole of DC power supply.
If you want to control an AC 220V lamp, do as following:
1) Connect the positive pole of DC power supply to terminal “L / +” of
INPUT, and connect the negative pole of DC power supply to terminal “N / -”
of INPUT.
2) Connect terminal C to the live wire of AC power supply, connect terminal
B to one side of AC lamp, and connect another side of AC lamp to the neutral
wire of AC power supply.
Setting different control modes:
Setting different control modes: (We have set the receiver in Self-locking
mode before delivery, if you want to use other modes, do as following
operation.)
1) Learning Self-locking control mode: When the receiver is in the status of
LEARNING, press button of the remote control 1.
Control mode Self-locking (Channel 1~6): Press -> On; Press again -> Off.
Press button of remote control 1: Turn on relay 1 (connect B and C,
disconnect A and B), the lamp 1 is on.
Press button of remote control 1 again: Turn off relay 1 (disconnect B and
C, connect A and B), the lamp 1 is off.
…
Press button of remote control 6: Turn on relay 6 (connect B and C,
disconnect A and B), the lamp 6 is on.
Press button of remote control 6 again: Turn off relay 6 (disconnect B and
C, connect A and B), the lamp 6 is off.
2) Learning Momentary control mode: When the receiver is in the status of
LEARNING, press button of the remote control 2.
Control mode Momentary (Channel 1~6): Press and hold -> On; Release -> Off.
Press and hold button of remote control 1: Turn on relay 1 (connect B and C,
disconnect A and B), the lamp 1 is on.
Release button of remote control 1: Turn off relay 1 (disconnect B and C,
connect A and B), the lamp 1 is off.
…
Press and hold button of remote control 6: Turn on relay 6 (connect B and C,
disconnect A and B), the lamp 6 is on.
Release button of remote control 6: Turn off relay 6 (disconnect B and C,
connect A and B), the lamp 6 is off.
3) Learning Interlocking control mode: When the receiver is in the status of
LEARNING, press button of the remote control 3.
Control mode Interlocking (Channel 1~8): Press -> On, other relays Off;
Press other button -> Off.
Press button of remote control 1: Turn on relay 1 (connect B and C,
disconnect A and B), the lamp 1 is on.
Turn off other relay (disconnect B and C, connect A and B), other lamps are
off.
…
Press button of remote control 6: Turn on relay 6 (connect B and C,
disconnect A and B), the lamp 6 is on.
Turn off other relay (disconnect B and C, connect A and B), other lamps are
off.
4) Learning Momentary (Channel 1~3) + Self-locking (Channel 4~6) control
mode: When the receiver is in the status of LEARNING, press button of the
remote control 4.
5) Learning Momentary (Channel 1~3) + Interlocking (Channel 4~6) control
mode: When the receiver is in the status of LEARNING, press button of the
remote control 5.
6) Learning Self-locking control mode (Channel 1~4) + All On / Off (Channel
5/6): When the receiver is in the status of LEARNING, press button of the
remote control 6.
Press button 5: Turn on all 6 relays
Press button 6: Turn off all 6 relays
