6V~90V 8A DC Motor Speed Adjustment Switch Governor

Price: US $18.00

Model: 0044002 (DC 6V-90V 8A)

Please Choose:

Qty:

Details
Reviews

Manual

Feature:

Model: 0044002
Voltage: DC 6V~90V
Rated current: 8A
The maximum operating current: 15A
Unit Size: 64mm x 59mm x 28mm
Speed Adjustment Range: 0%~100%.
Adjustable potentiometer: 10K
The speed of motor rotation can be adjusted according to 0~100% through twisting the “Adjustable potentiometer”.
With 15A fuse

Usage:

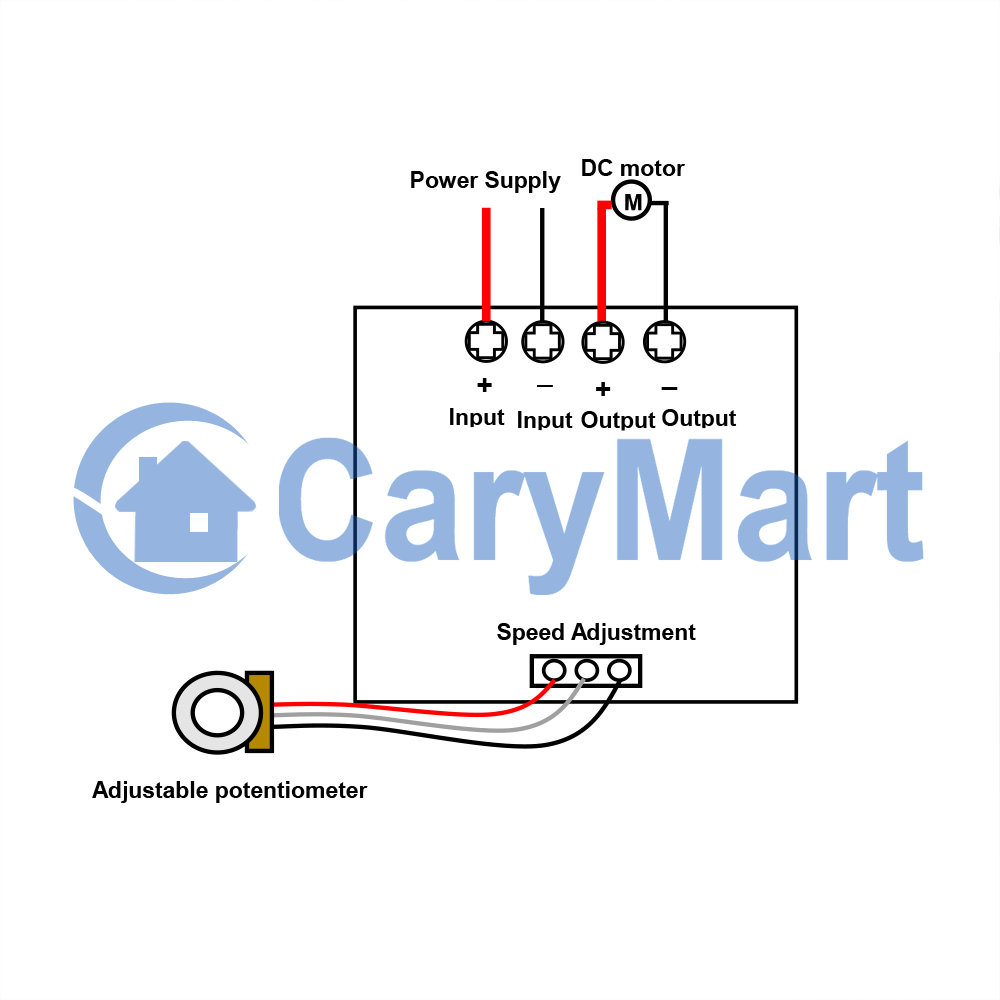

Connect DC power wire to the terminals “Input”. Connect the DC motor to the terminals “Output”.
Twist the “Adjustable potentiometer” to adjust the speed of motor rotation. Twist clockwise, motor rotation will speed up; Twist anti-clockwise, motor rotation will slow down.
