8 CH AC110/220V Wireless Remote Controller---One Transmitter Controls 8 Receivers

 Manual

Feature:

• Wireless control, easy to install
• Control Lights, Motors, Fans, electrically operated Doors/Locks/Windows/Blinds/Cars or Other Appliances with AC 100~240V.
• You can turn on/off the receiver with transmitter (remote control) from any place within a reliable distance; the wireless RF signal can pass through walls, floors and doors.
• Use an 8-bit microprocessor designed and developed with low-power and high-speed CMOS technology.
• Reliable control: The transmitter (Encoding) and the receiver (Decoding) use an 8-bit code.
• One/several transmitters can control one/several receivers simultaneously.
• If you use two or more receivers in the same place, you can set them with different codes.
• Transmitting Frequency: 433MHz

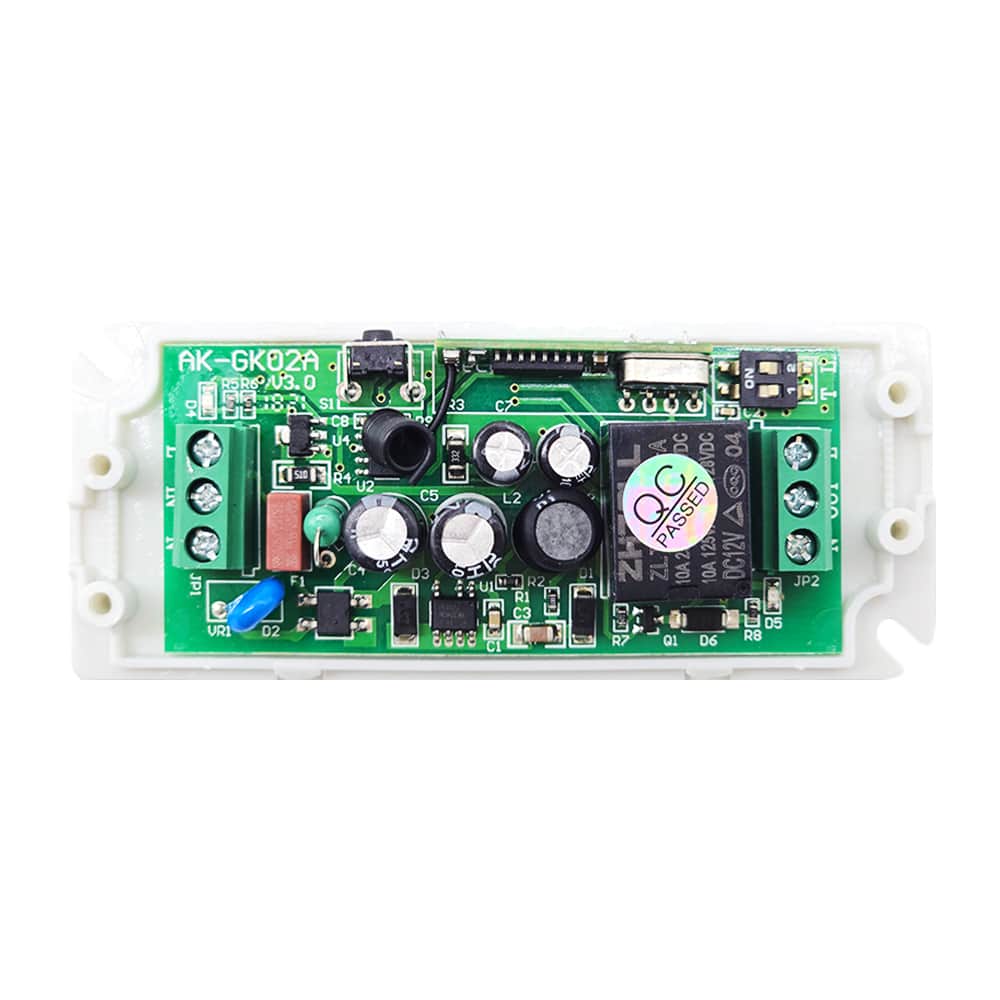

Receiver:

• Model No.: S1XC-AC110 / S1XC-AC220
• Channel: 1 CH
• Control Modes: Self-locking, Momentary, Interlocking
• Coding Type: Fixed code or learning code
• Coding Setting: By learning
• Power Supply (Operating Voltage): AC100~120V (S1XC-AC110), AC200~240V (S1XC-AC220)

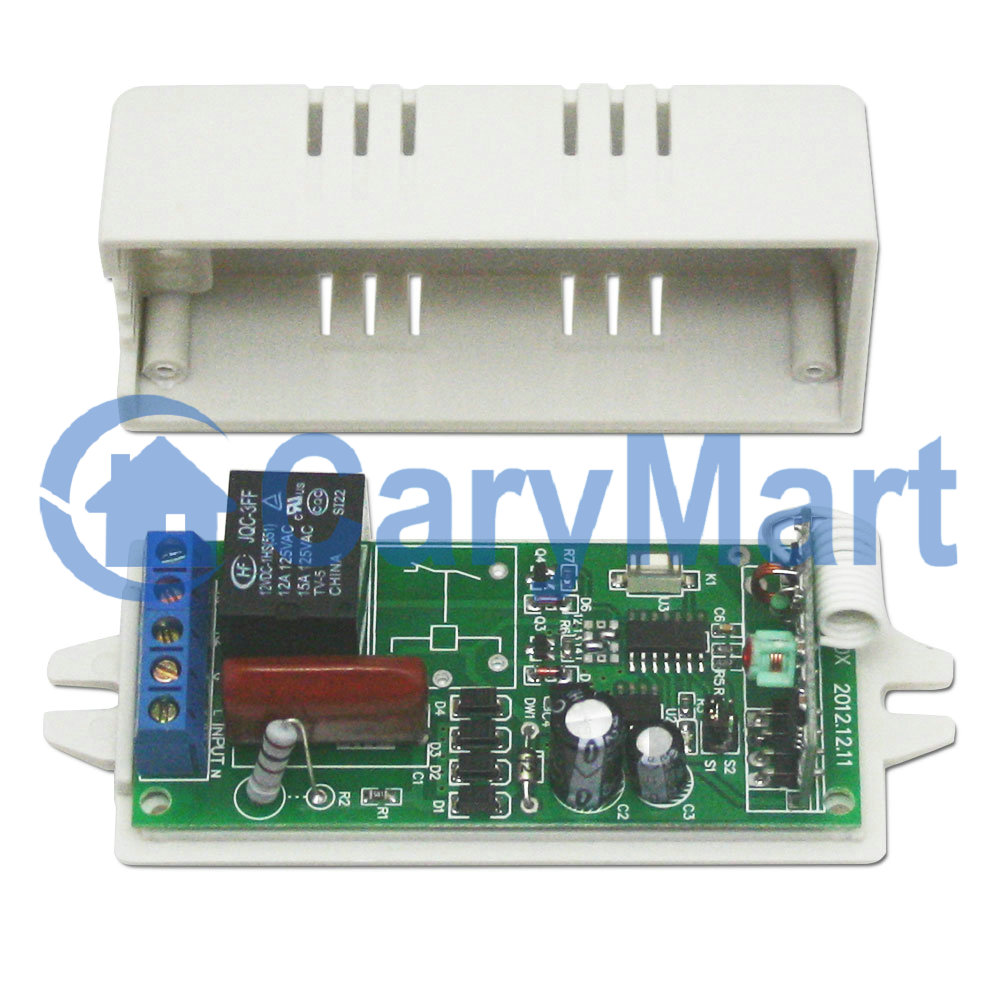

• PCB size: 80mm x 35mm x 14mm
• Case size: 100mm x 40mm x 24mm
• Maximum Working Current: 3A/each channel

Transmitter:

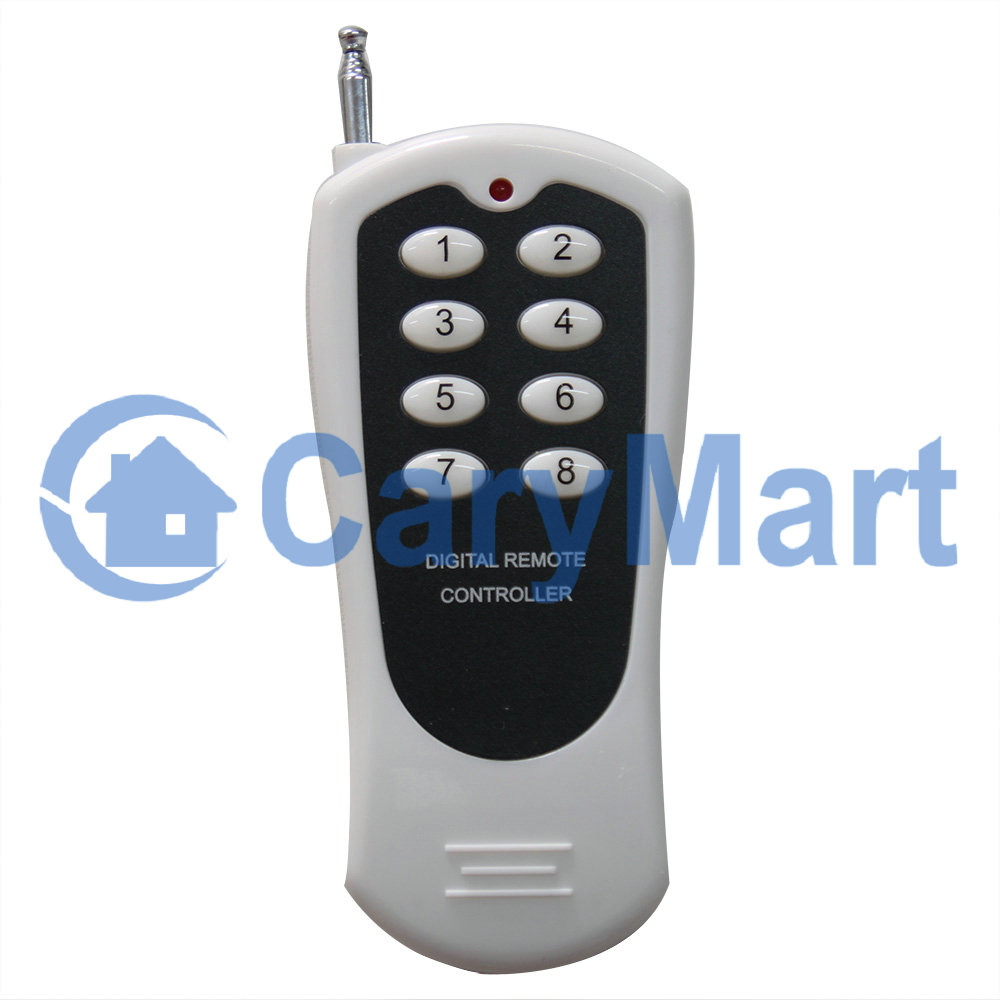

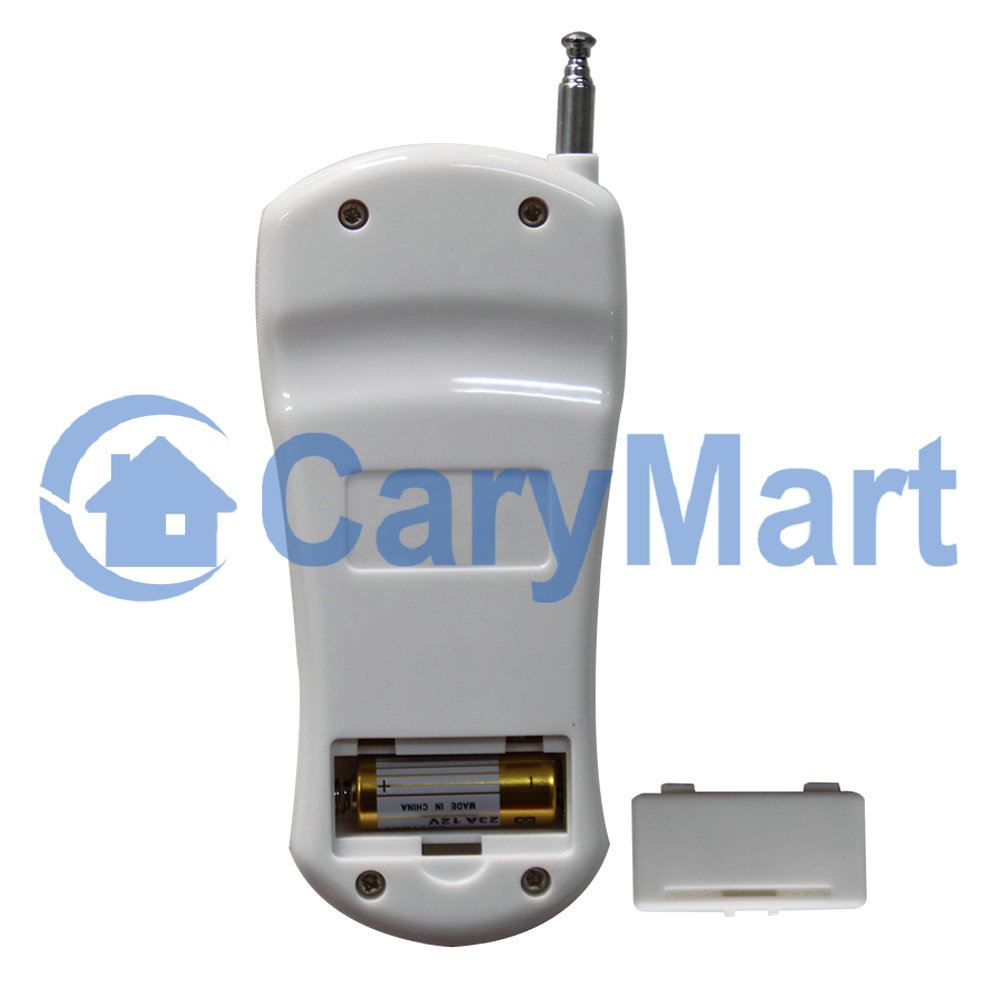

• Model No.: CV-8
• Channel: 8 CH
• Remote Control Distance: 500m / 1500ft (theoretically)
• Encode: Fixed code by Soldering
• Unit size: 110mm x 50mm x 18mm

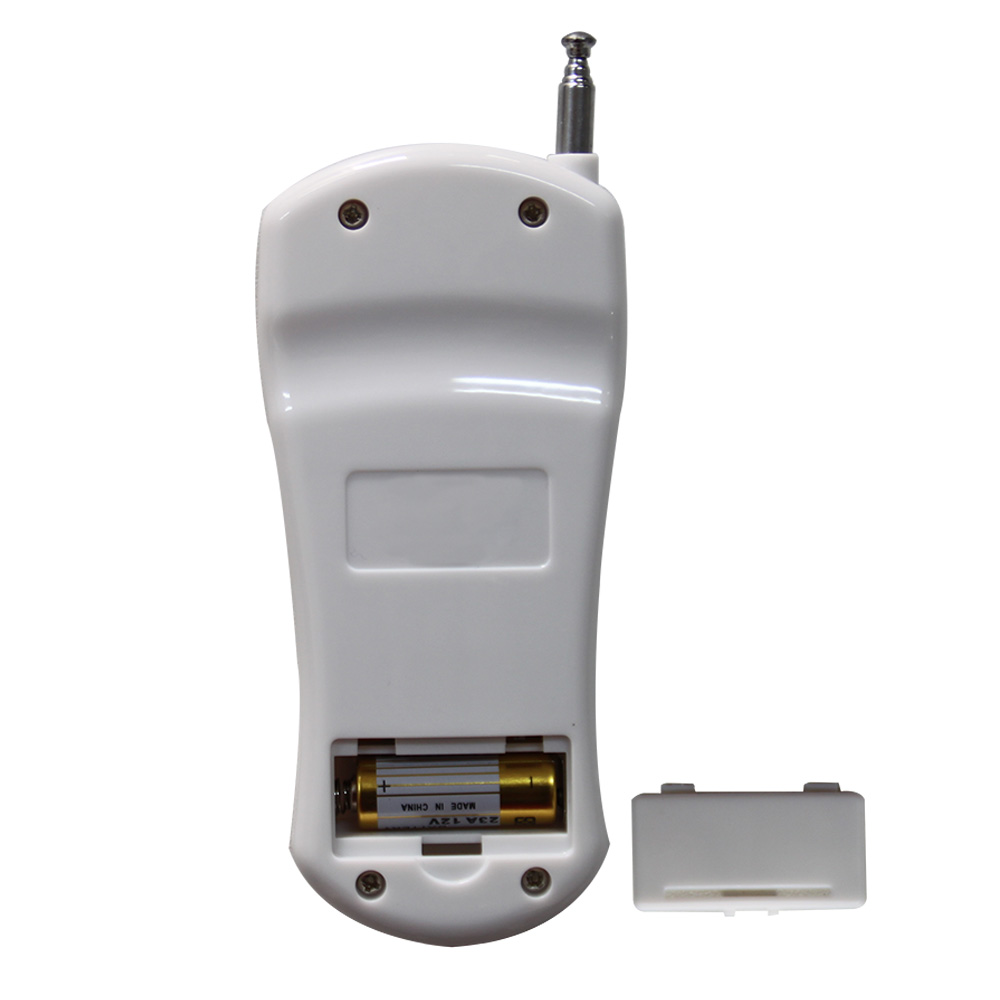

• Power Supply: 1 x 23A -12V battery (Included, can be used for 12 months)

Usage:

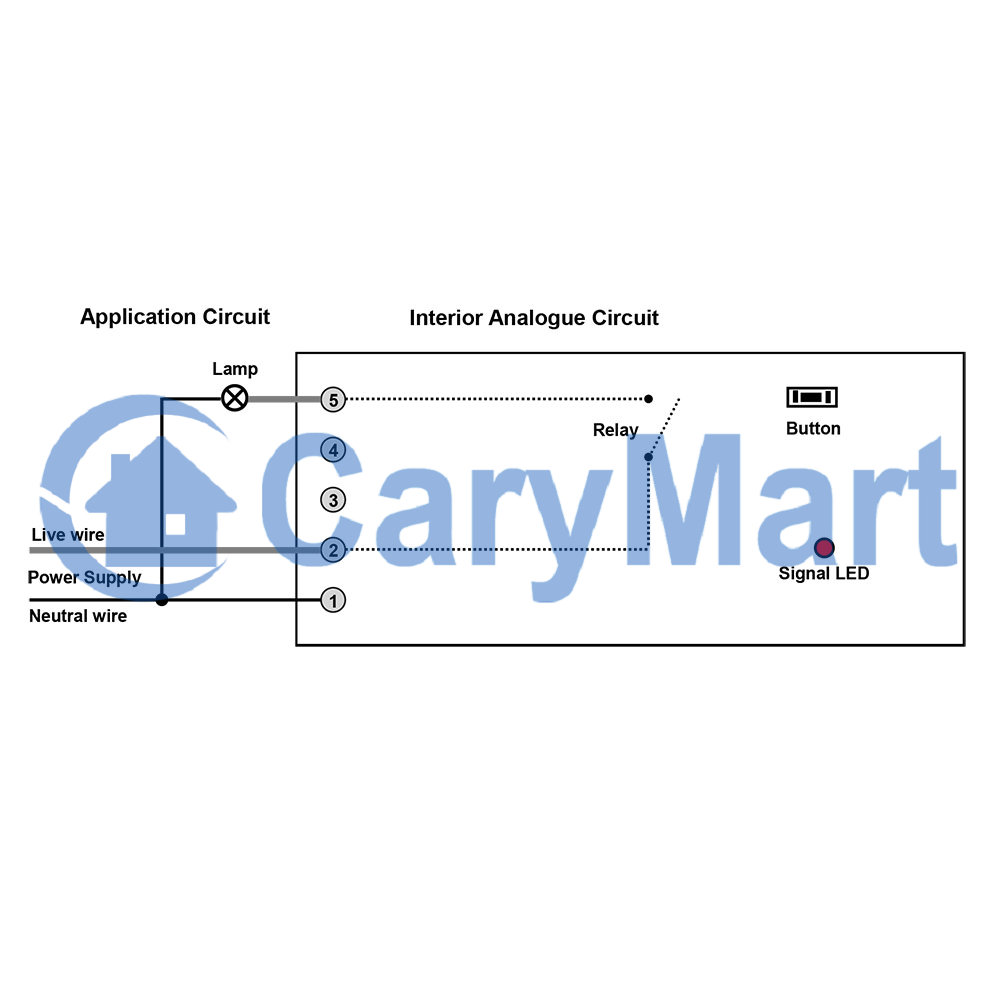

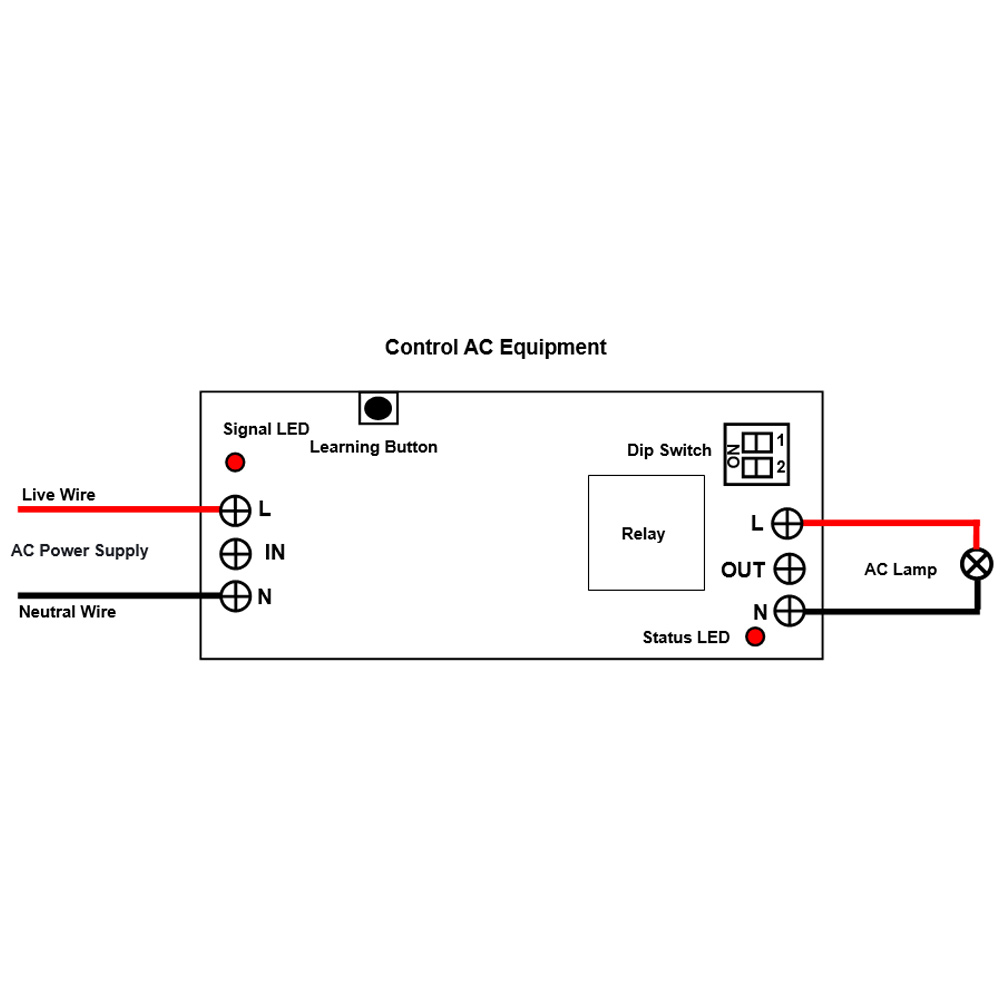

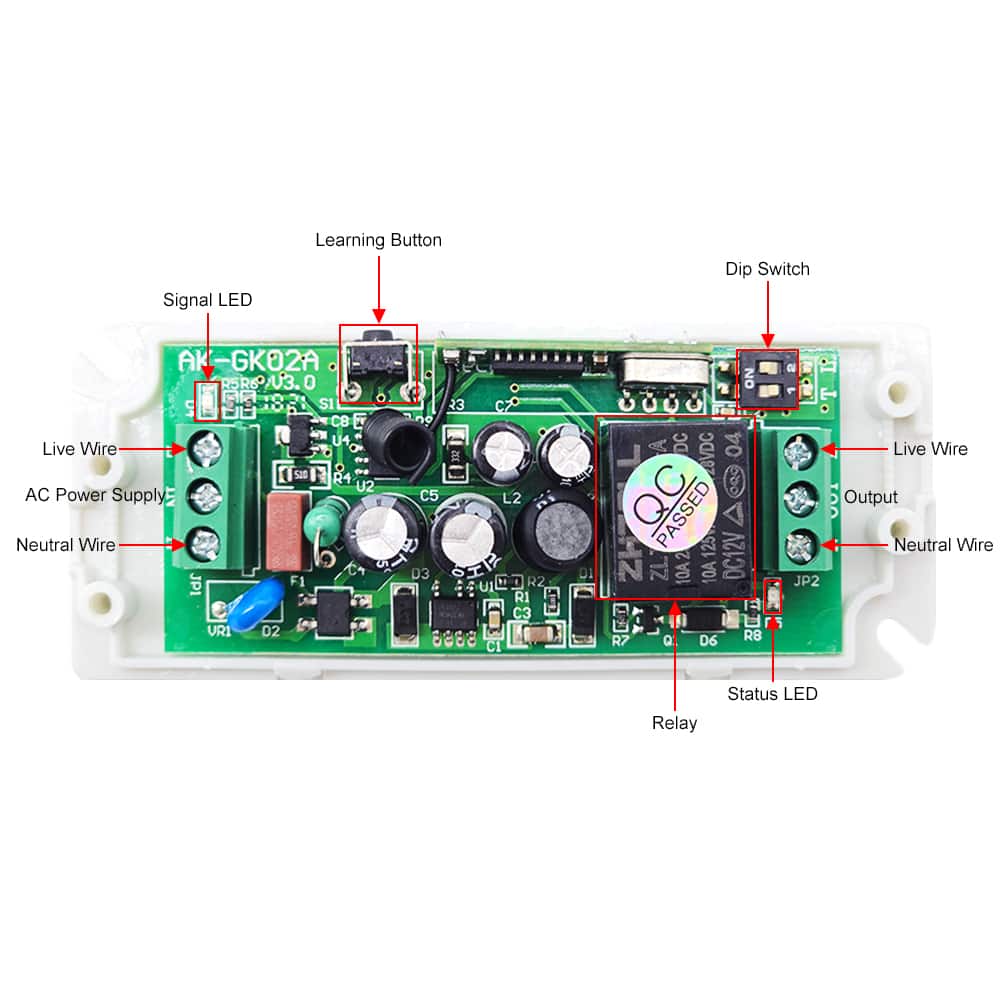

• Connect the neutral wire to the terminal “1”, and the live wire to the terminal “2”. Connect the lamp to the terminal “5” and the neutral wire.
• Setting different control modes (We have set the receiver as Self-locking mode before delivery. If you want to use other modes, do as following):

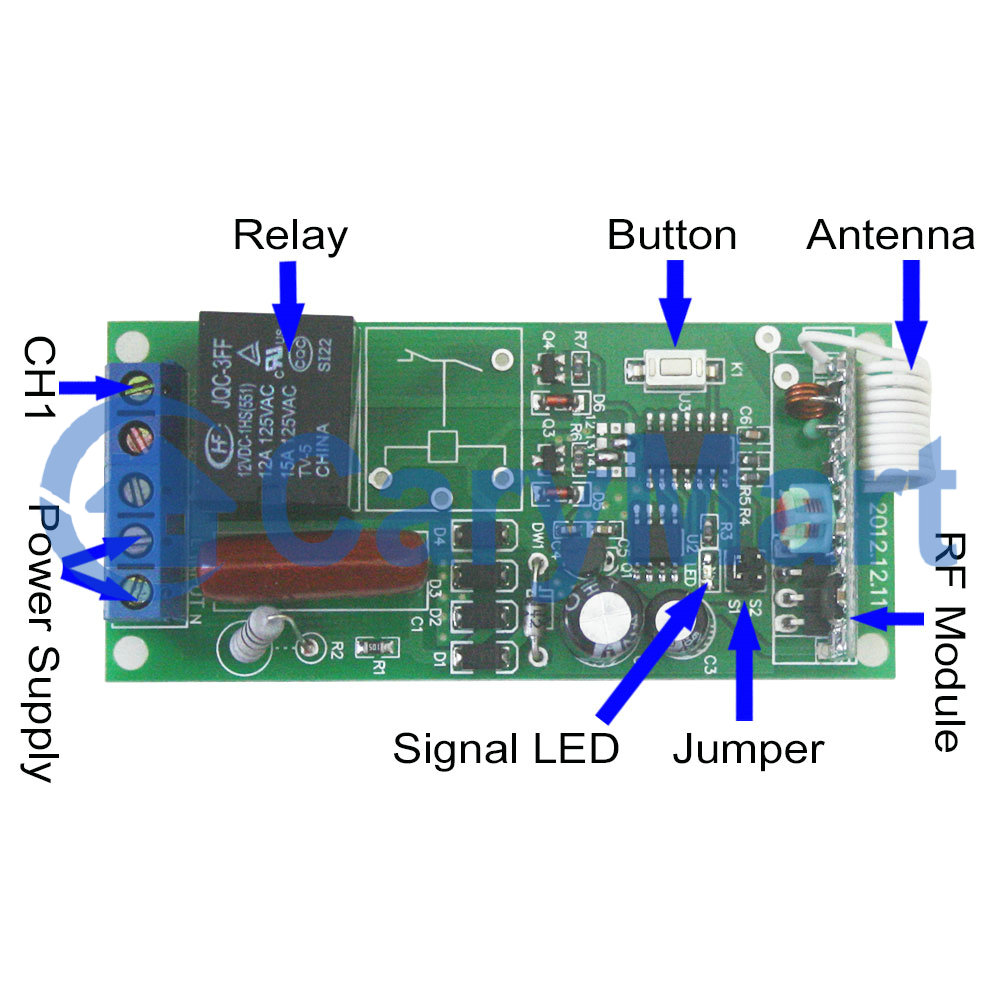

Setting control mode Self-locking: Only connect Jumper-1.

• Press button 1, turn on the lamp of receiver 1. Press button 1 again, turn off the lamp of receiver 1.
• Press button 2, turn on the lamp of receiver 2. Press button 2 again, turn off the lamp of receiver 2.
  ……
• Press button 7, turn on the lamp of receiver 7. Press button 7 again, turn off the lamp of receiver 7.
• Press button 8, turn on the lamp of receiver 8. Press button 8 again, turn off the lamp of receiver 8.

Setting control mode Momentary: Do not connect Jumper-1 and Jumper-2.

• Press and hold button 1, turn on the lamp of receiver 1; Release button 1, turn off the lamp of receiver 1.
• Press and hold button 2, turn on the lamp of receiver 2; Release button 2, turn off the lamp of receiver 2.
  ……
• Press and hold button 7, turn on the lamp of receiver 7; Release button 7, turn off the lamp of receiver 7.
• Press and hold button 8, turn on the lamp of receiver 8; Release button 8, turn off the lamp of receiver 8.

Setting control mode Interlocking: Only connect Jumper-2.

• Press button 1, turn on the lamp of receiver 1, turn off the lamp of receiver 2,3,4,5,6,7,8.
• Press button 2, turn on the lamp of receiver 2, turn off the lamp of receiver 1,3,4,5,6,7,8.
  ……
• Press button 7, turn on the lamp of receiver 7, turn off the lamp of receiver 1,2,3,4,5,6,8.
• Press button 8, turn on the lamp of receiver 8, turn off the lamp of receiver 1,2,3,4,5,6,7.

Package Include:

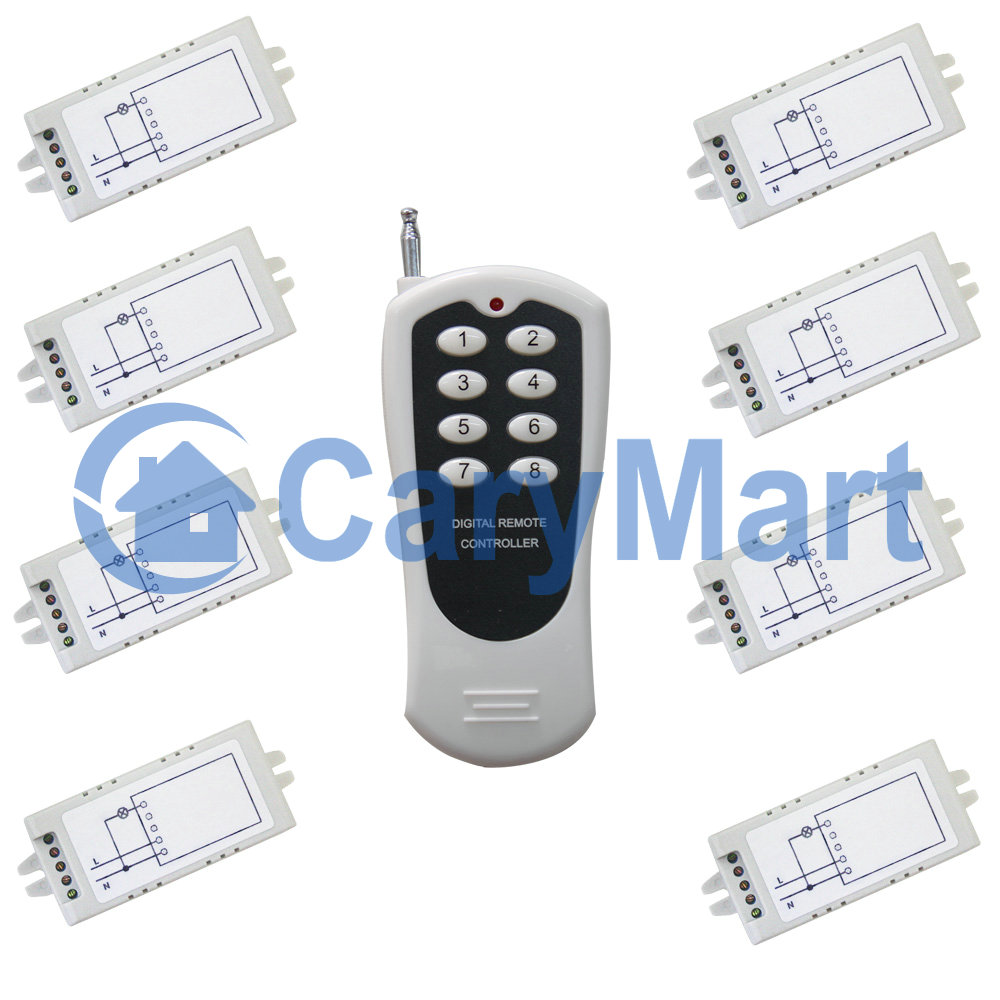

• 8 x Receiver: S1XC-AC110 / S1XC-AC220 (1 Channel / Three Control Modes)
• 1 x Transmitter: CV-8
• 1 x User manual
