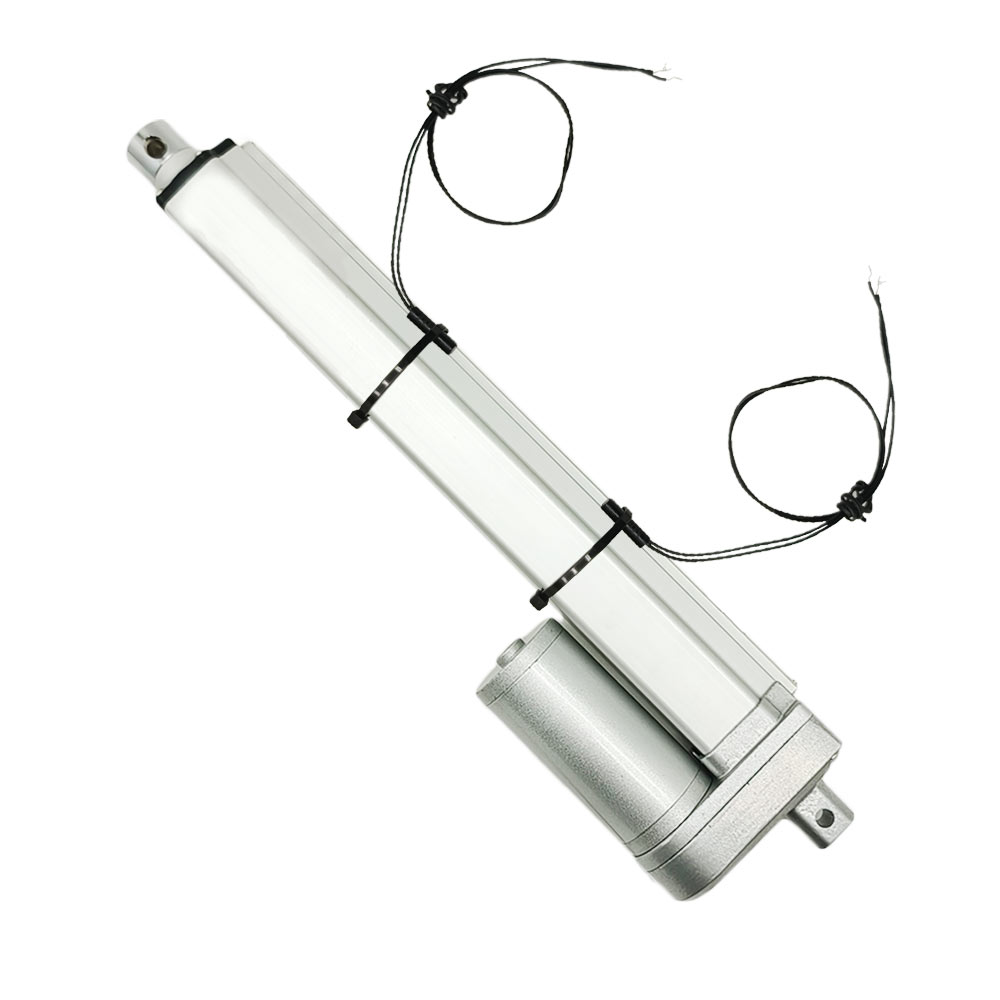

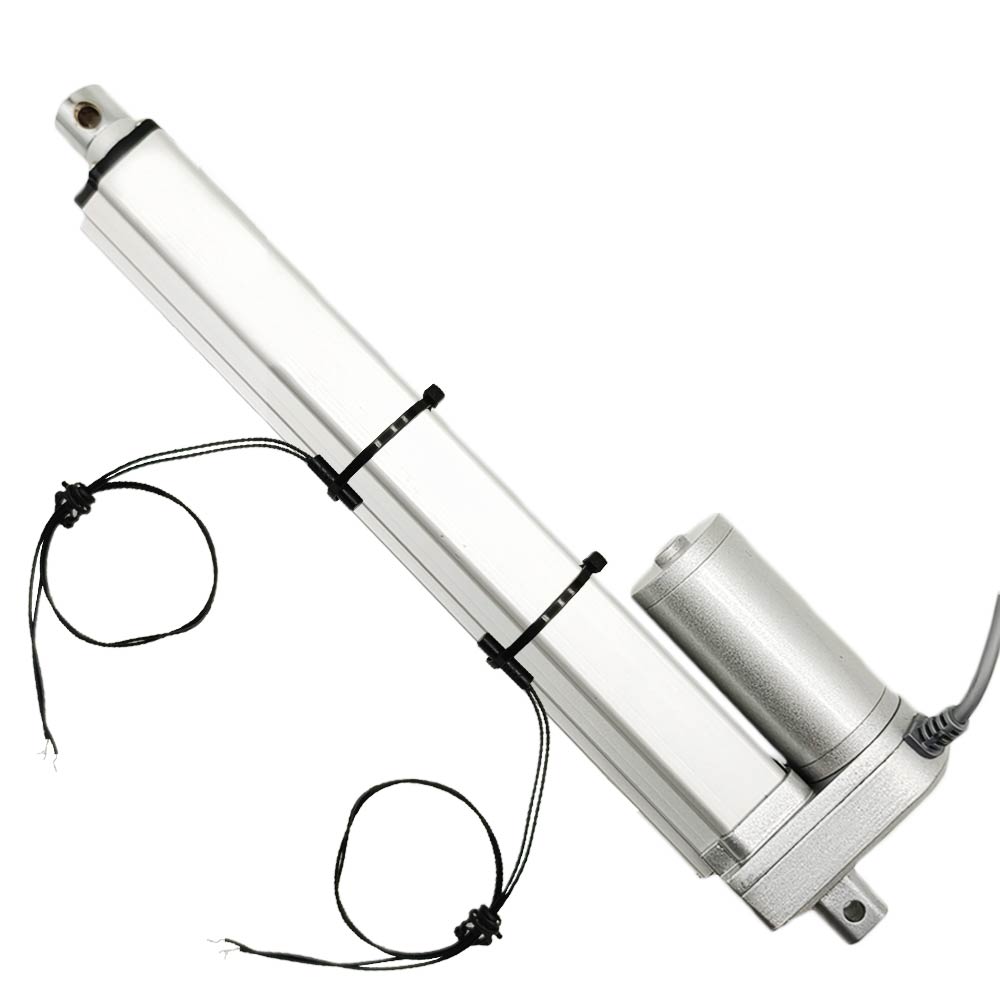

1 x Linear actuator A4

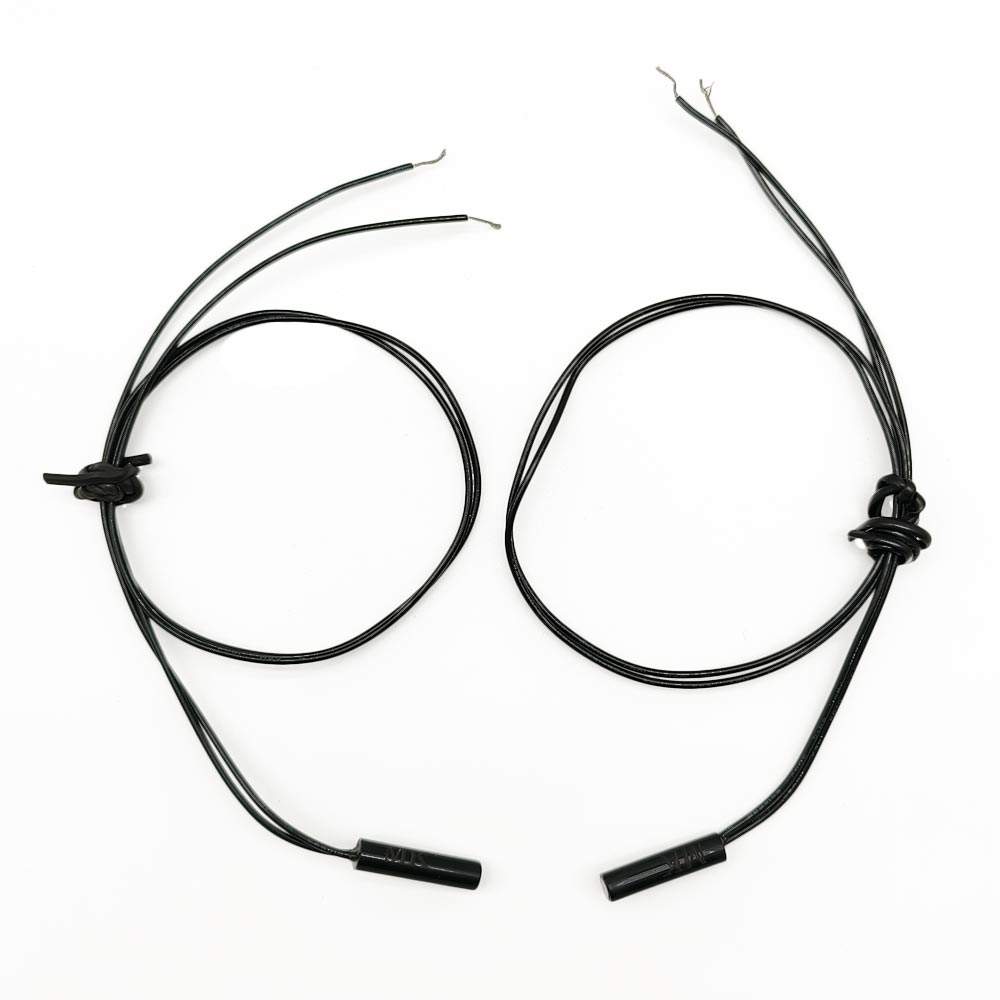

2 x Normally closed magnetic reed switch
1 x User manual
Introduction:

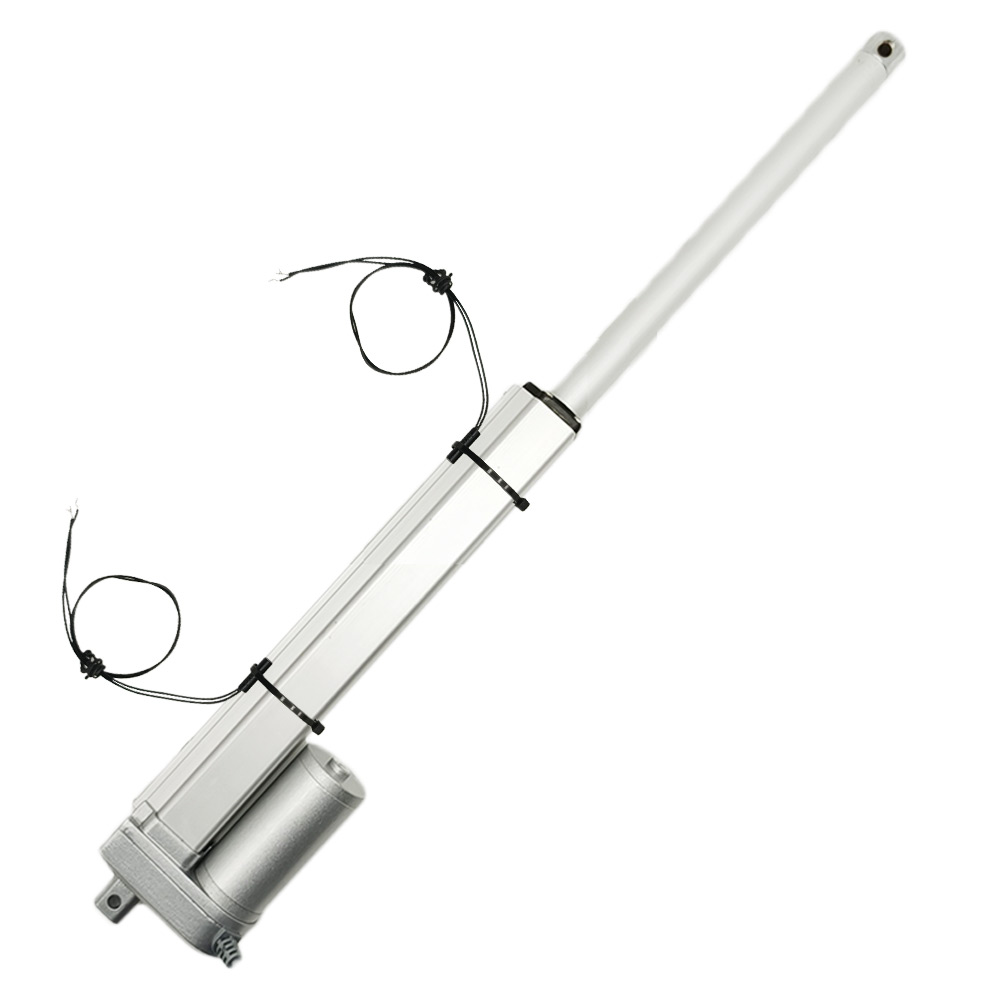

This is a linear actuator with adjustable stroke. It is equipped with two
external normally closed magnetic switches that can slide freely, and by
adjusting the position of these two normally closed magnetic switches, the
linear actuator can be controlled to work within the set stroke length. For
example, for a linear actuator with a stroke of 500MM, you can set it to
move within a stroke range of 150MM to 400MM.
Application:
Mainly used for doors, windows, cellars, trapdoors, hatchways, solar
tracking system, medical devices, agricultural machinery, vehicles, ships,
elevator platforms, lifting tables, TV lifts, robots, cabinetries, massage
sofas, electric beds, medical chairs, and other electrical equipment. It can
open, close, push, pull, lift, and descend these devices.
It can replace hydraulic and pneumatic products to save power consumption.
Feature:
High-quality products and high-quality services
New housing design, high working stability

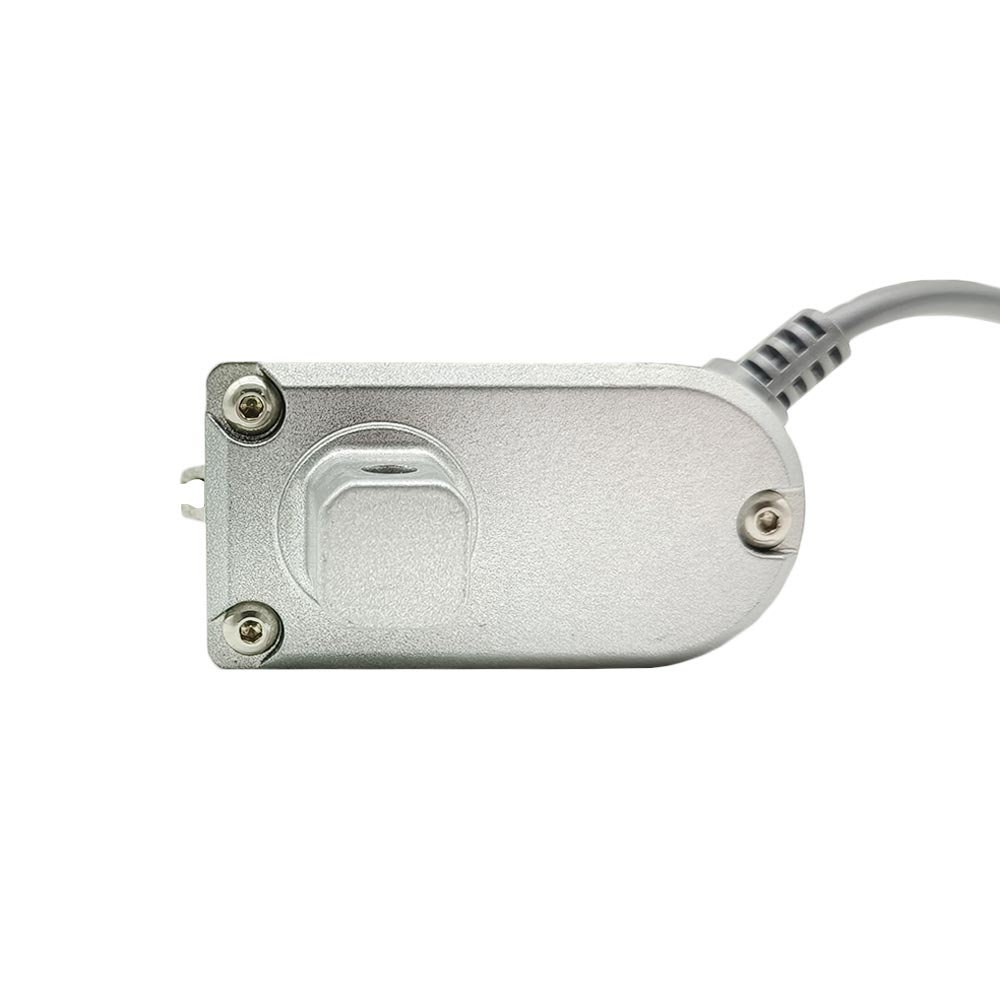

Metal housing, able to work in very harsh environments.

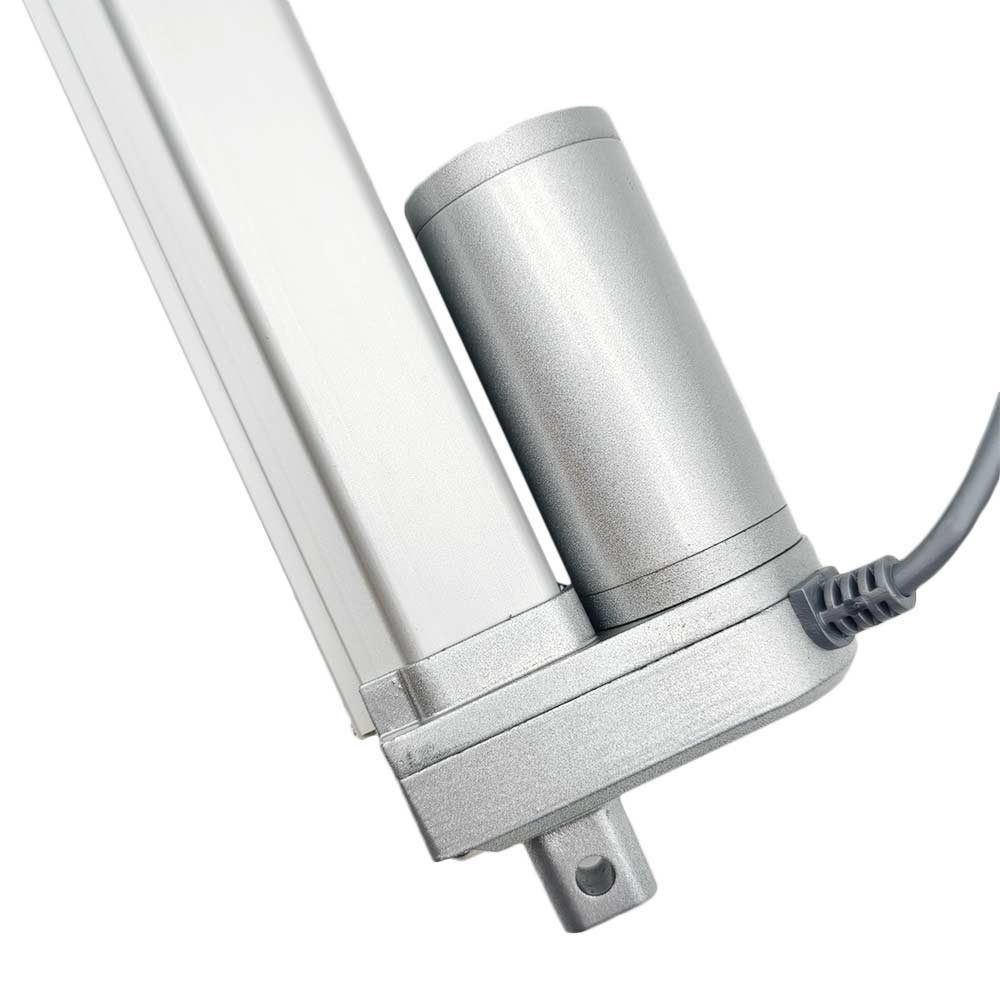

Metal gearbox, high strength wear-resistant gear

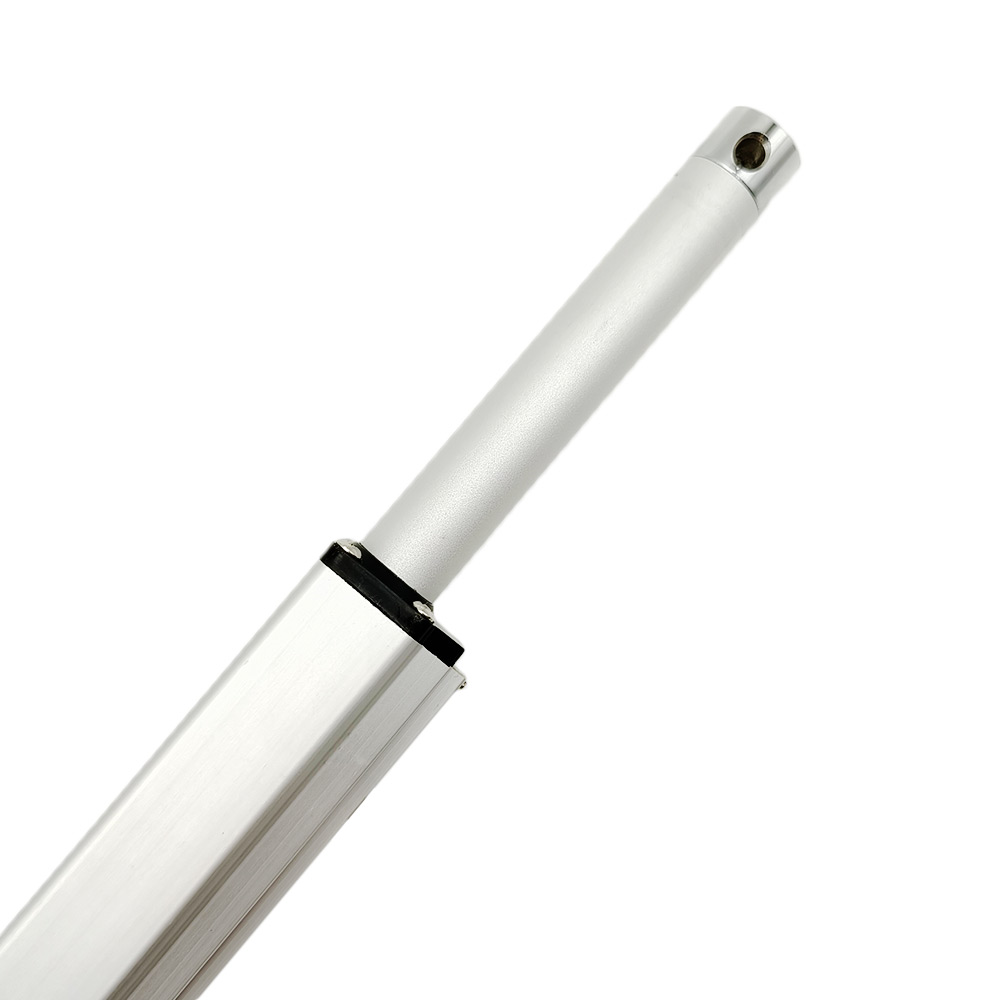

Aluminum alloy telescopic tube and outer tube, good corrosion resistant

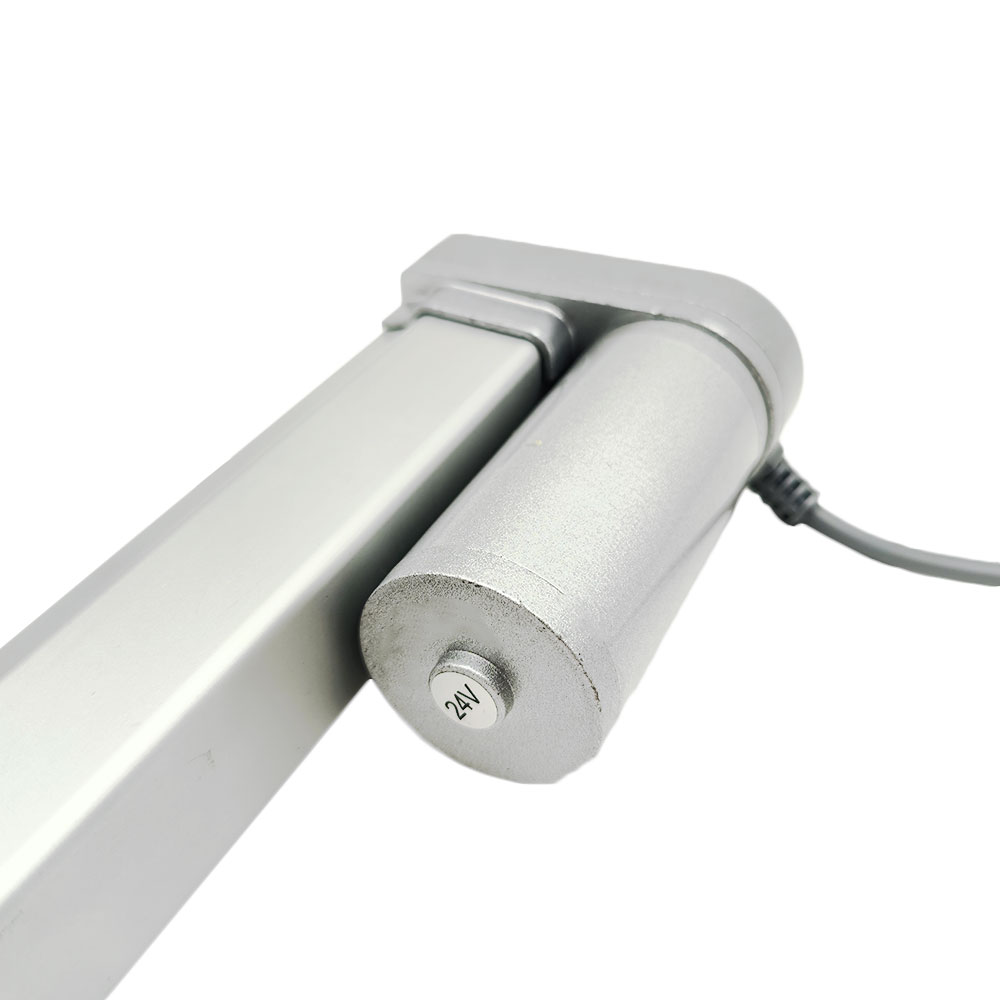

Heavy duty design, high-power DC motor
Strong thrust, up to 2000N / 200 Kgs / 450 lbs.
Multiple speed options, from 5 mm/second to 160 mm/second
Multiple stroke options, from 10 mm to 1000 mm
We can customize any stroke length from 10mm to 1000mm, such as 225mm,
660mm, 950mm and so on.
Advanced waterproof and dustproof technology
Low power consumption and low noise

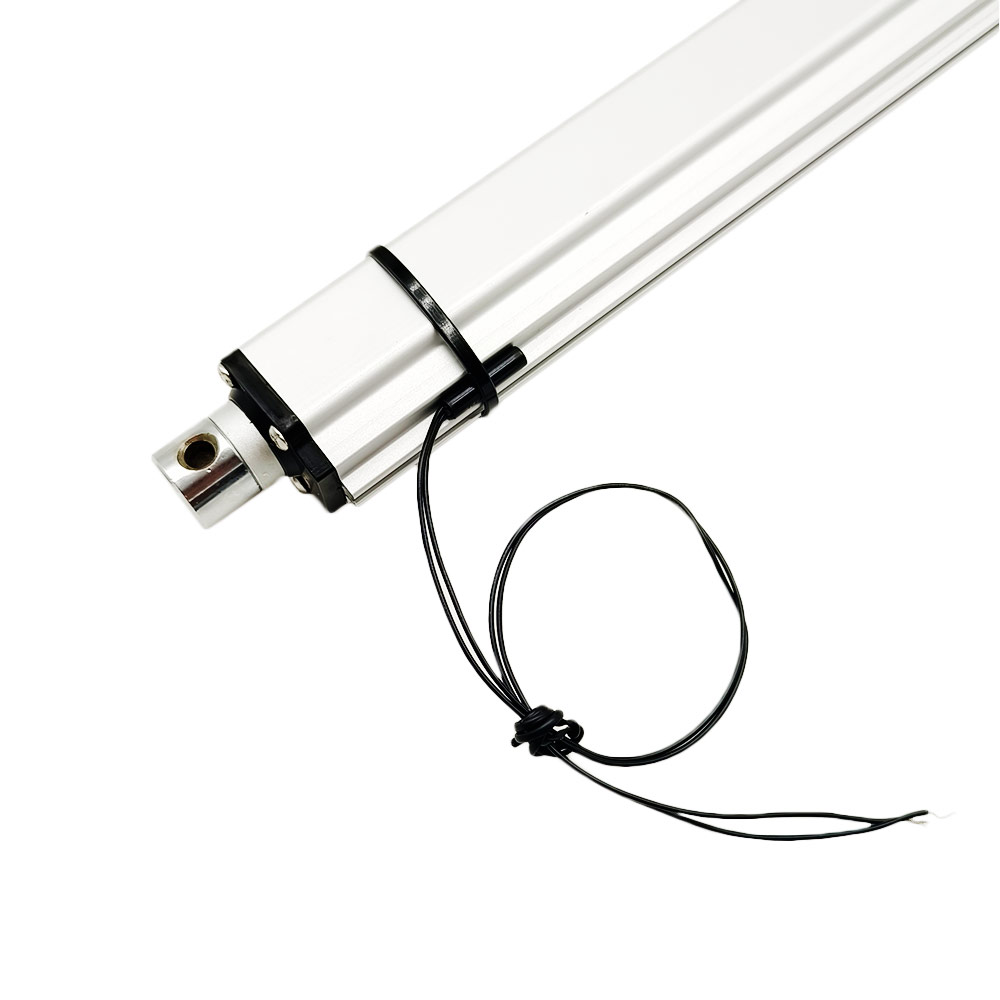

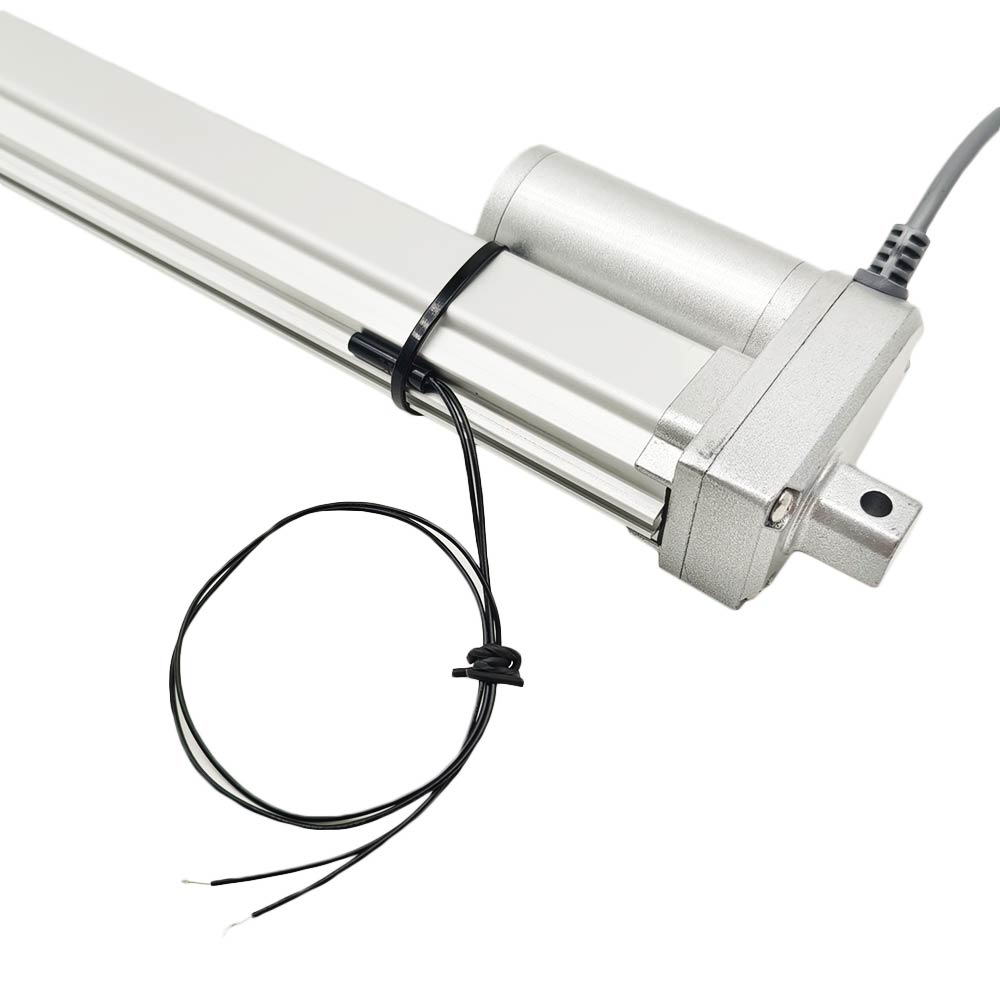

Equipped with two external normally closed magnetic switches that can slide
freely, by adjusting the position of these two normally closed magnetic
switches, the linear actuator can be controlled to work within the set
stroke length.
You can control this linear actuator by a manual switch or a remote switch.
Built-in two limit switches, linear actuator will automatically stop when
stroke rod reaches the limit position.
Automatically lock after stopping, and no power supply is required.
Maintenance-free
Specifications:
Optional working voltage: DC 12V or DC 24V. Unless you only have 12V power
supply available, we recommend you choose the linear actuator with 24V
working voltage.
Stroke range: 8 inches or 200 mm
Optional speed: 5±1mm/s, 10±2mm/s, 15±3mm/s, 20±4mm/s, 30±5mm/s, 50±10mm/s,
100±15mm/s, 160±20mm/s
The above is the speed at no load, and the actual working speed will
gradually slow down as the load increases.
Max load capacity: 2000N / 200 Kgs / 450 lbs at 5mm/s
Linear actuator can get maximum load capacity when it operates in the
vertical direction, and the pulling force is less than pushing force.
No-load current: 0.5~1A at 12V or 0.3~0.5A at 24V
Full load current: 3~6A at 12V or 1.5~3A at 24V
Please use a 12V/6A or 24V/3A power supply to power a linear actuator or use
a 12V/10A or 24V/5A power supply to power two linear actuators, or use a
12V/20A or 24V/10A power supply to power four linear actuators.

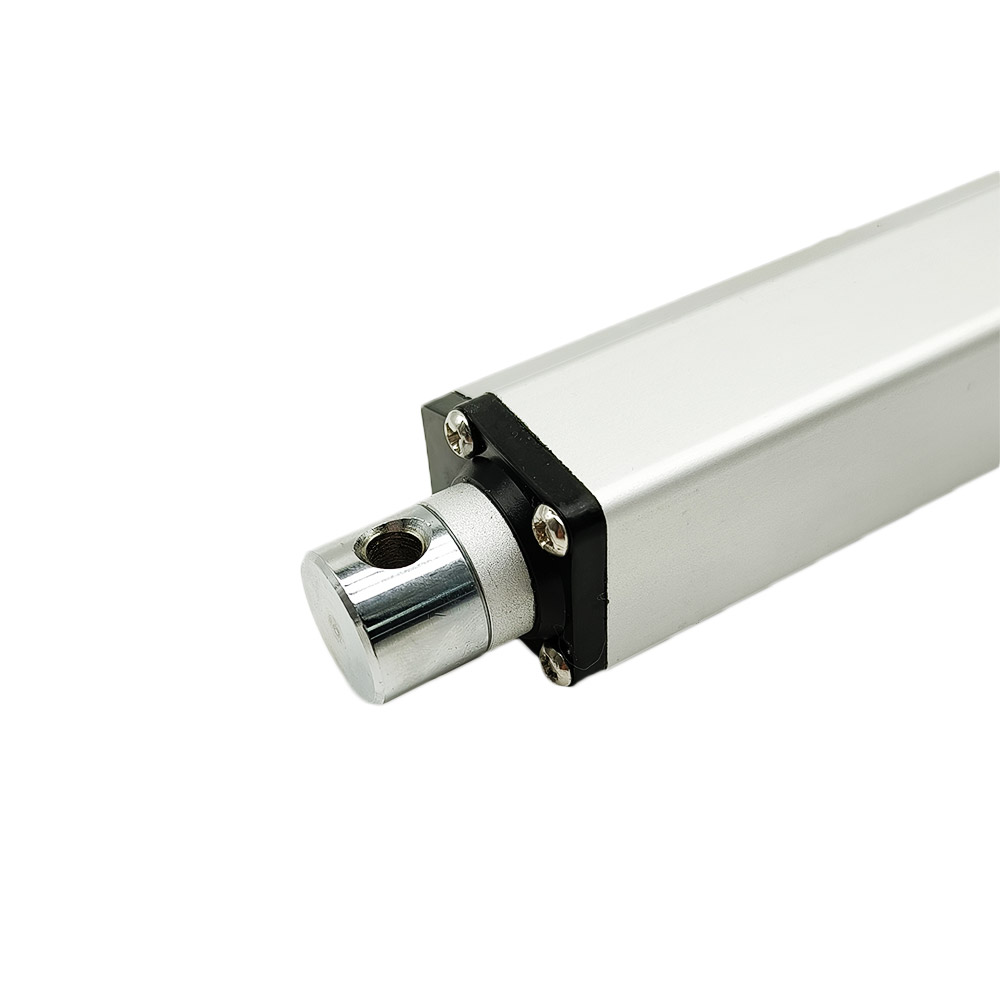

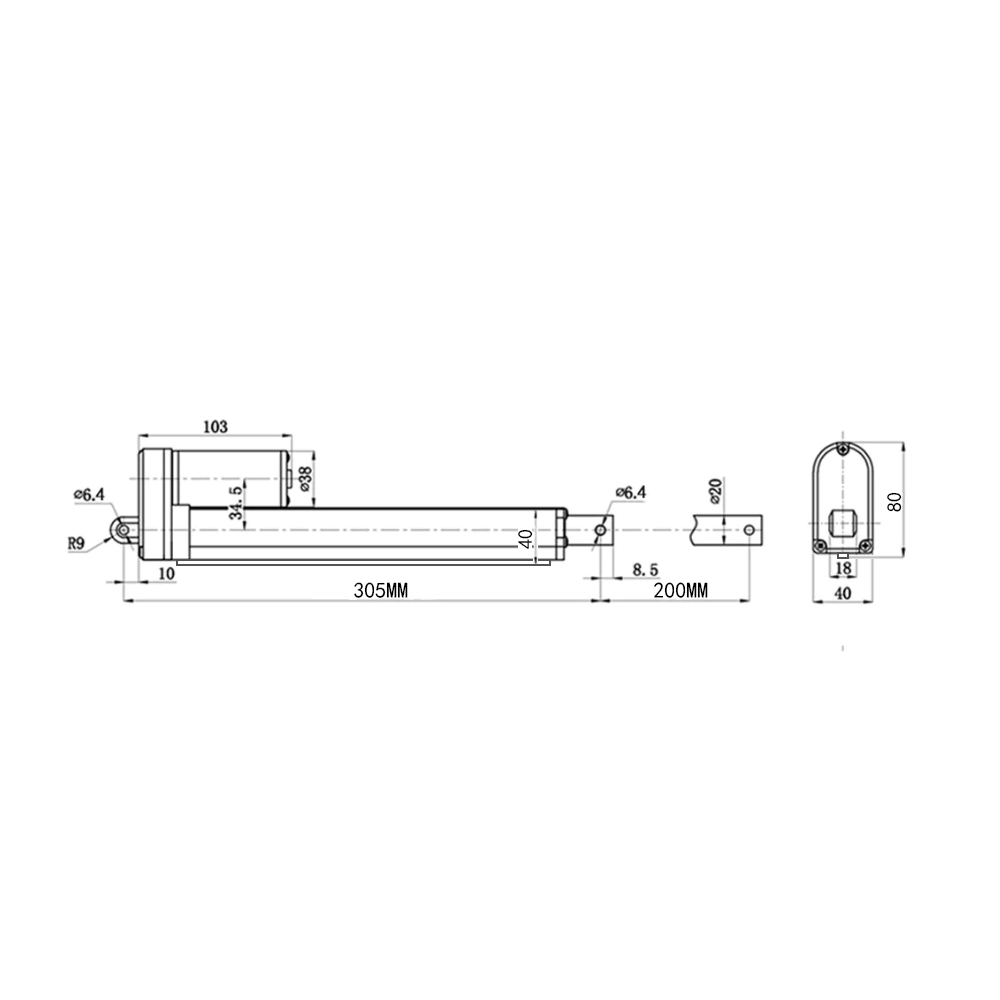

Shaft diameter: 20mm
Mounting holes diameter: 6mm
Housing material: Aluminum Alloy
Stroke rod material: Aluminum Alloy
Gear material: Steel Alloy
Motor type: Brushed DC Motor
Duty cycle: 20%, max 5mins continuous use
Power cable: Ordinary Two-core Wire
Certifications: CE
Environment temperature: -26℃ to 85℃
Operating noise: about 46dB~56dB (Linear actuators with different parameters
will have different noise levels.)
IP rating: IP65

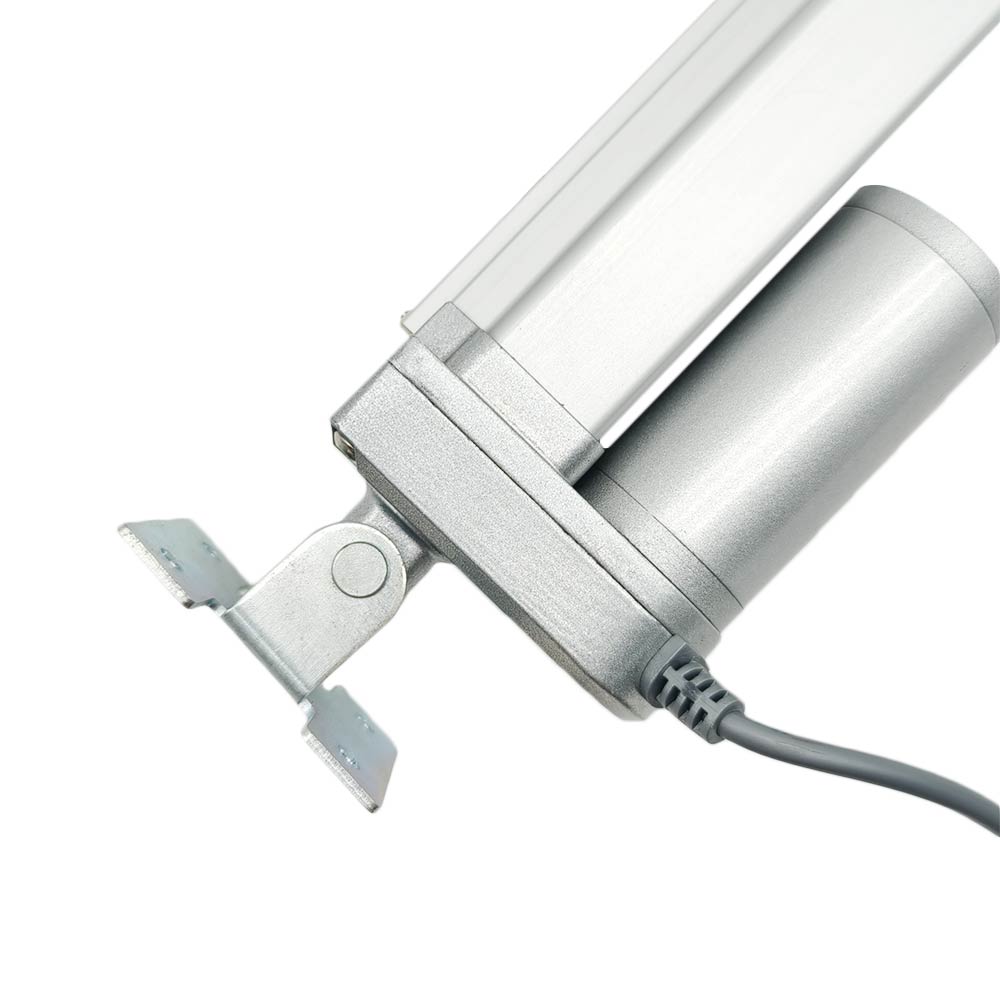

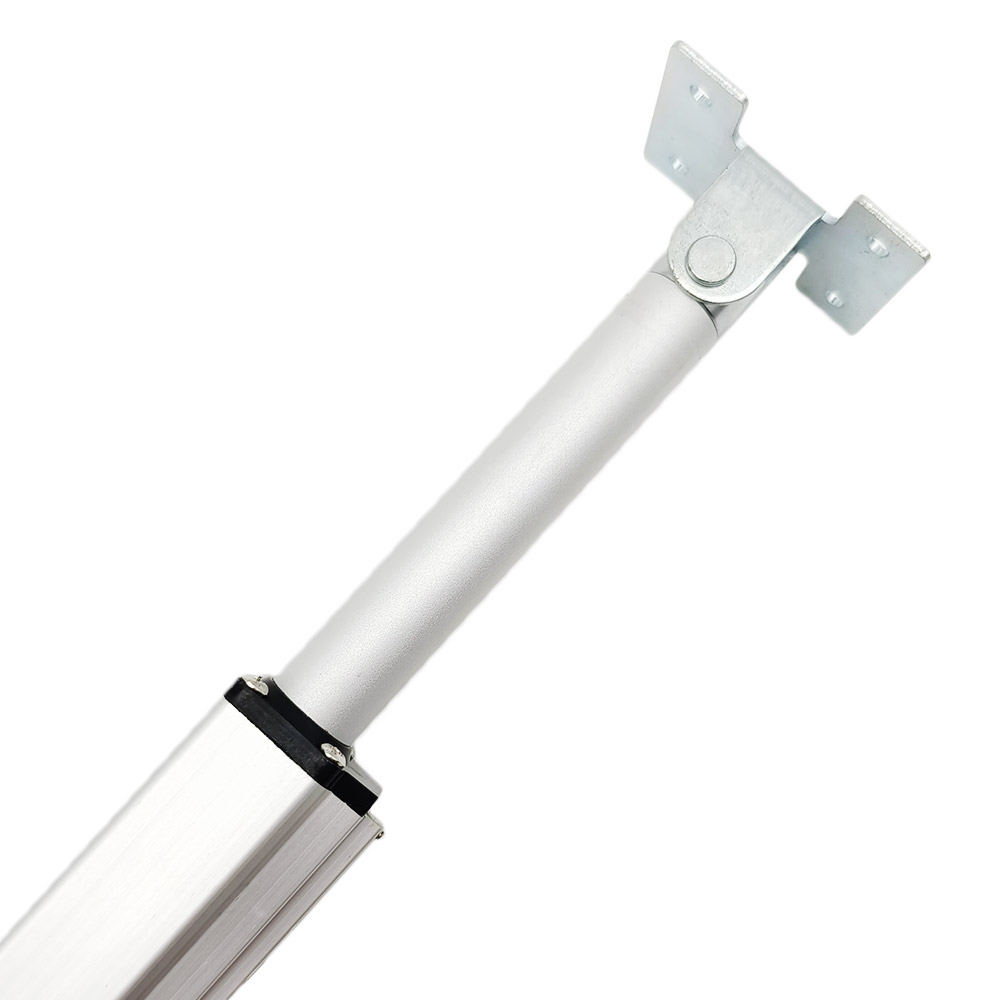

Fixed Bracket:
1. This linear actuator does not contain fixed mounting brackets, please
click
here
to purchase.
2. Each linear actuator would require two mounting brackets, one to fix the
head of linear actuator and another to fix the bottom of linear actuator.

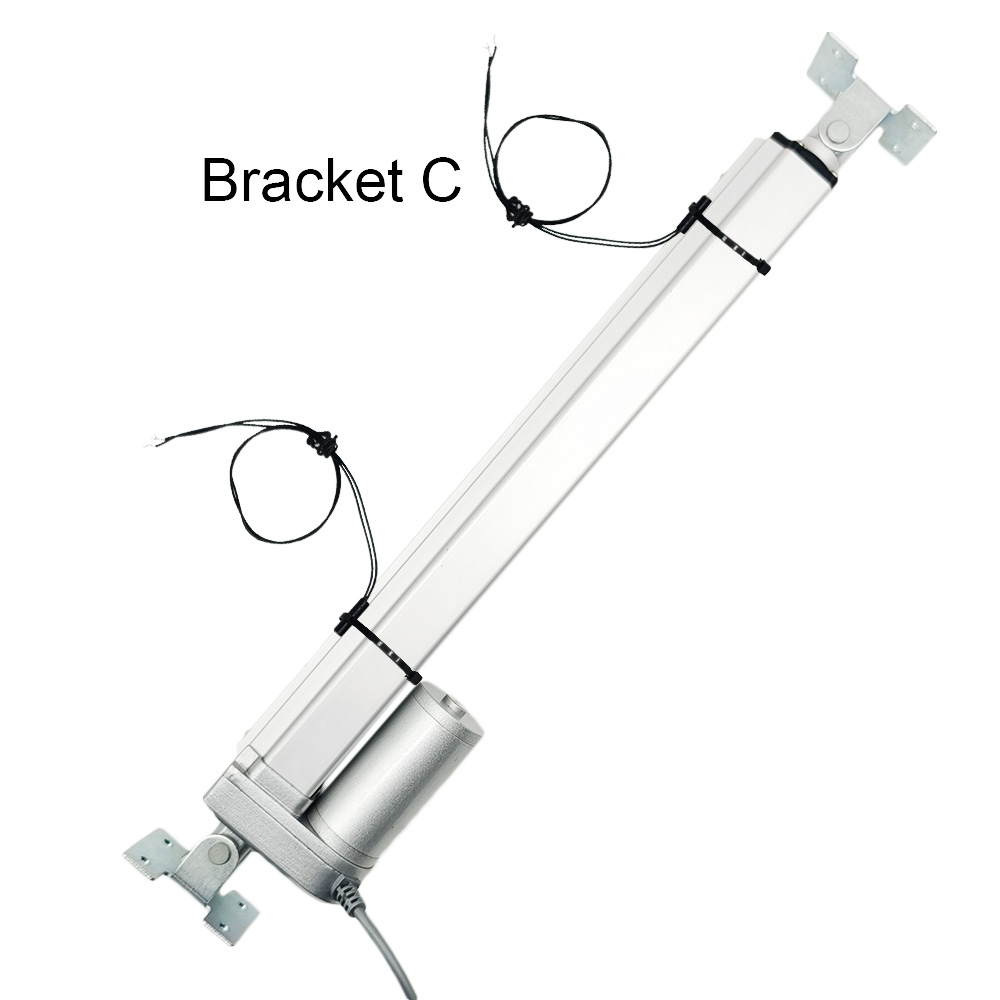

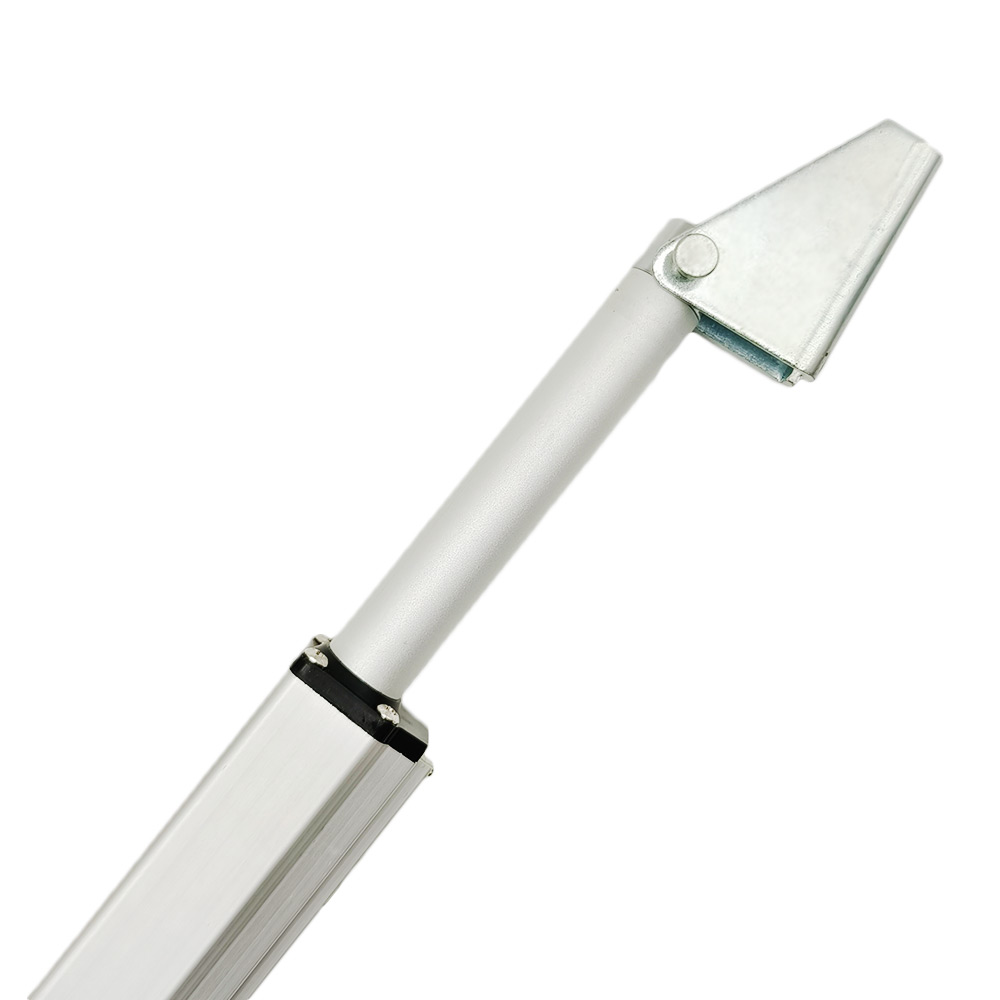

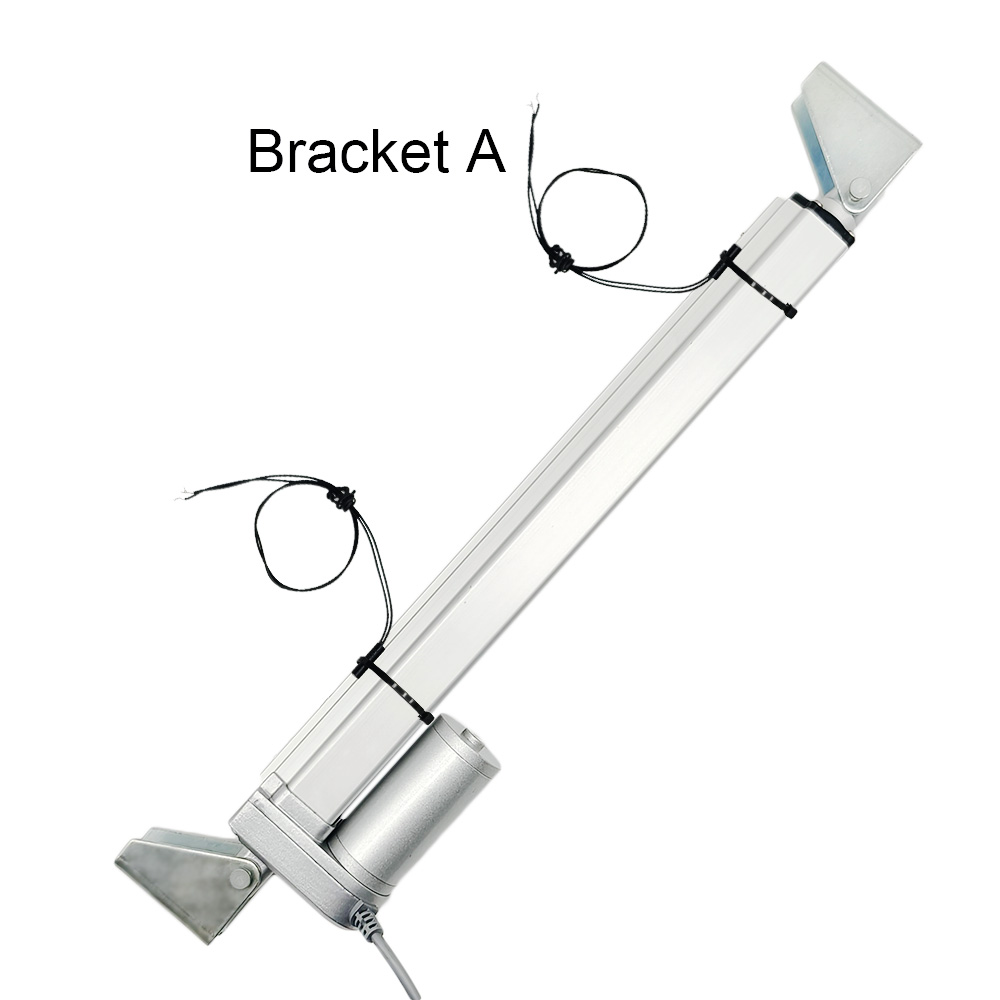

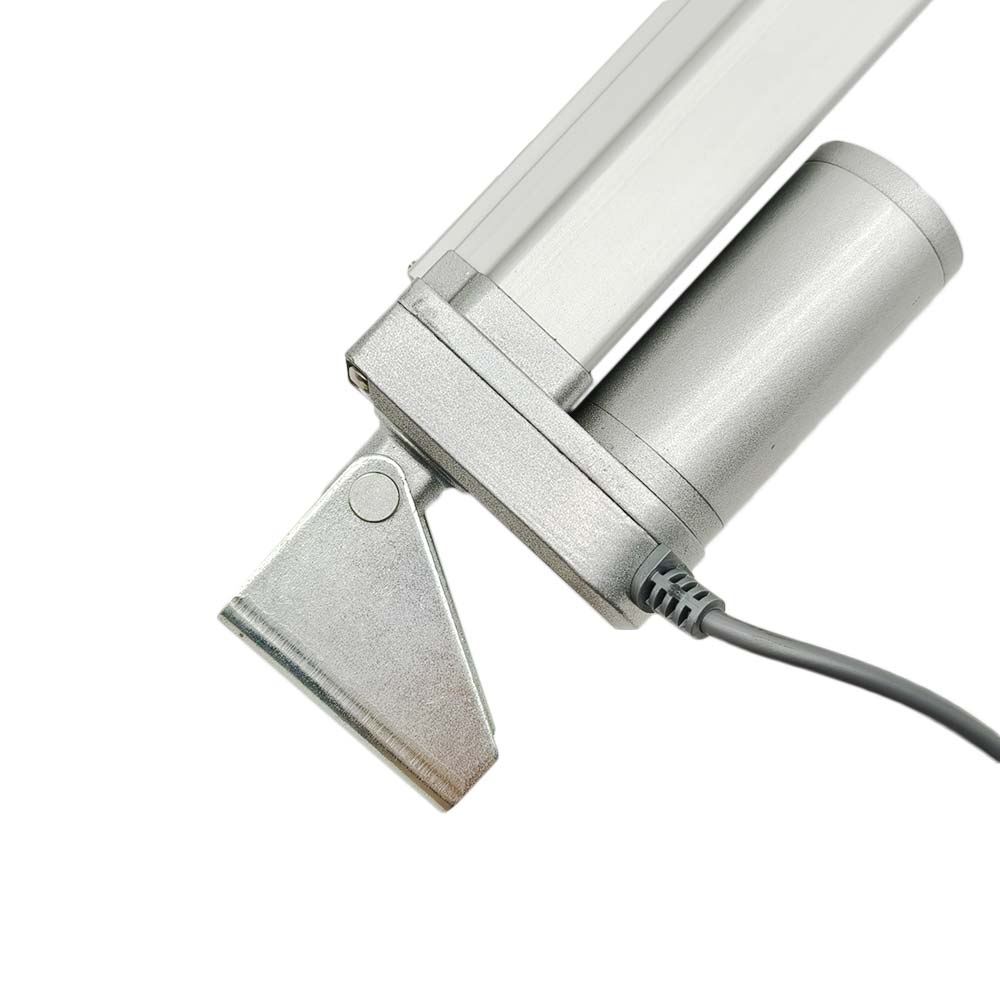

3. Compatible Mounting Brackets:
Bracket A
and
Bracket C
.
Note:
1. If you want to control 2 or 4 linear actuators fully synchronously, you
need to add built-in hall effect sensor to each linear actuator, and buy a
synchronization controller, please click
here
to purchase.
2. If you need a power supply to power linear actuator, please click
here
to purchase.
3. If you want to use a remote control switch to operate linear actuator
wirelessly, please click
here
to purchase.
Different no-load speeds and corresponding maximum thrust:
No-load Speed
Maximum Thrust
5mm/s
2000N / 200 kg / 450 lbs
10mm/s
1000N / 100 kg / 200 lbs
15mm/s
800N / 80 kg / 180 lbs
20mm/s
700N / 70 kg / 160 lbs
30mm/s
500N / 50 kg / 110 lbs
50mm/s
300N / 30 kg / 60 lbs
100mm/s
150N / 15 kg / 30 lbs
160mm/s
100N / 10 kg / 20 lbs
Note:
1. The above data is the maximum load capacity that can be obtained when the
linear actuator runs in the vertical direction. If the weight of your
equipment (such as a cellar door) is 100kg, and you want to use a linear
actuator to open this door, you need to calculate the actual force acting on
the linear actuator according to your installation method. This force is
usually 2-5 times the weight of the cellar door. If you don't know how to
calculate it, please contact us for help.
2. The above is the speed at no load, and the actual working speed will
gradually slow down as the load increases. Full load speed is approximately
60-70% of No-load speed.
3. Different speeds correspond to different maximum loads. Please select the
right speed according to the speed and maximum load you need.
4. Linear actuators are not recommended for continuous operation under maximum load, we recommend letting it work at about half of the maximum load to get a longer working life.
5. For linear actuators with a stroke greater than 500MM, you should not
normally allow them to operate at their maximum stroke under heavy loads. If
the actual stroke you want is 600MM, we recommend that you choose a linear
actuator with a stroke of 700-800MM.
6. When the speed of the linear actuator is 100mm/s or 160mm/s, the
self-locking force is much smaller than the thrust. At other speeds the
self-locking force is greater than the thrust.
7. The maximum pull force of the linear actuator is slightly less than its
maximum thrust force.
Wiring:
If use a manual switch to control the linear actuator, do as following:
1. Connect two wires of DC power supply to two power terminals of the manual
switch, and you can exchange these two wires to change the moving direction
of linear actuator.

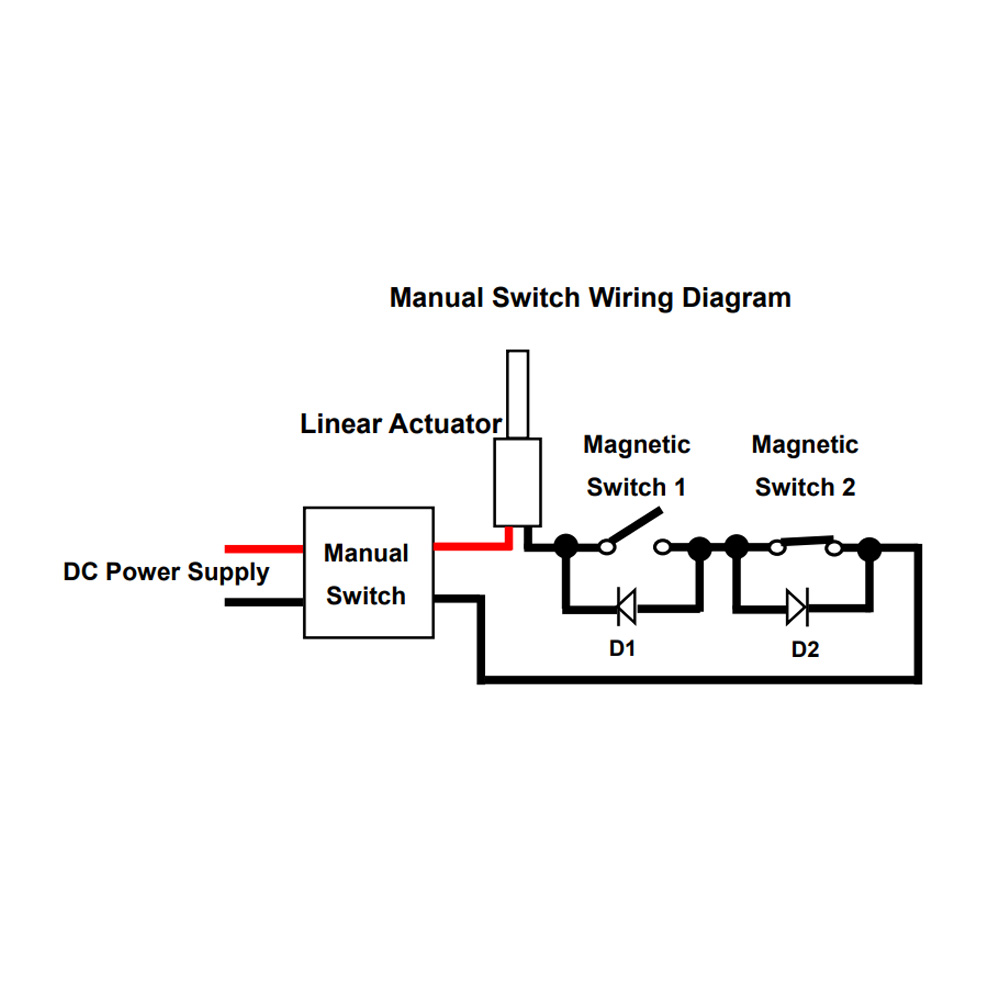

2. Connect the linear actuator, two magnetic reed switches and the two
diodes to the manual switch, please follow the connection diagram below for
specific wiring.
Operation by manual switch:
1. Press and hold the button on the manual switch: linear actuator
extends outward, when it moves to the position of a magnetic switch, the
linear actuator will automatically stop.
2. Press and hold the button on the manual switch: linear actuator
inward retracts, when it moves to the position of another magnetic switch,
the linear actuator will automatically stop.
Wiring for remote switch:
If use a remote switch to control the linear actuator, do as following:
1. Connect two wires of DC power supply to two terminals of the remote
switch input.
2. Connect two wires of linear actuator to two terminals of the
controller, and you can exchange these two wires to change the moving
direction of linear actuator.

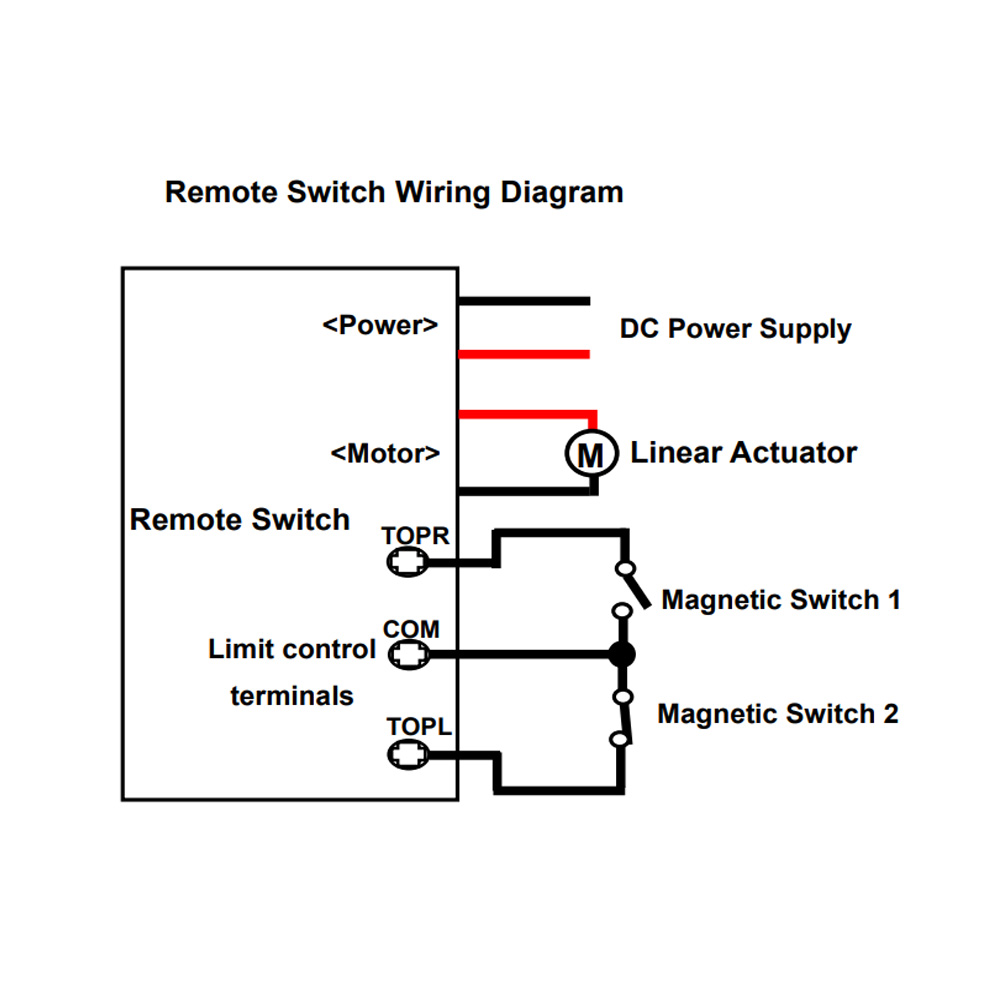

3. Connect two magnetic reed switches to the limit control terminals of the
remote switch, please follow the connection diagram below for specific
wiring.
Operation by remote switch:
1. Press and hold the button ▲ on the remote: linear actuator extends
outward, when it moves to the position of a magnetic switch, the linear
actuator will automatically stop.
2. Press and hold the button ▼ on the remote: linear actuator inward
retracts, when it moves to the position of another magnetic switch, the
linear actuator will automatically stop.
How to adjust the position of the magnetic switch:
You can use a small screwdriver to loosen the fixing screw of the magnetic
switch, then move the magnetic switch to a suitable position and tighten the
fixing screw again.
Note: If the positions of the two magnetic switches are reversed, please swap
their positions.
Production time:
The linear actuators are the customized products, and these products are not in stock, we need to spend 3~7 working days to produce them according to the specified parameters in your order.
Return or Exchange:
The Linear Actuators are the customized products, we need to produce them
according to the specified parameters in your order, so that we do not
accept returns or cancel orders. If customers order unsuitable linear
actuators themselves, we also do not accept exchanges, please understand.
We can provide 3D CAD model files in STEP format for linear actuators.
Please contact us by e-mail if you need them.
