Package Include:

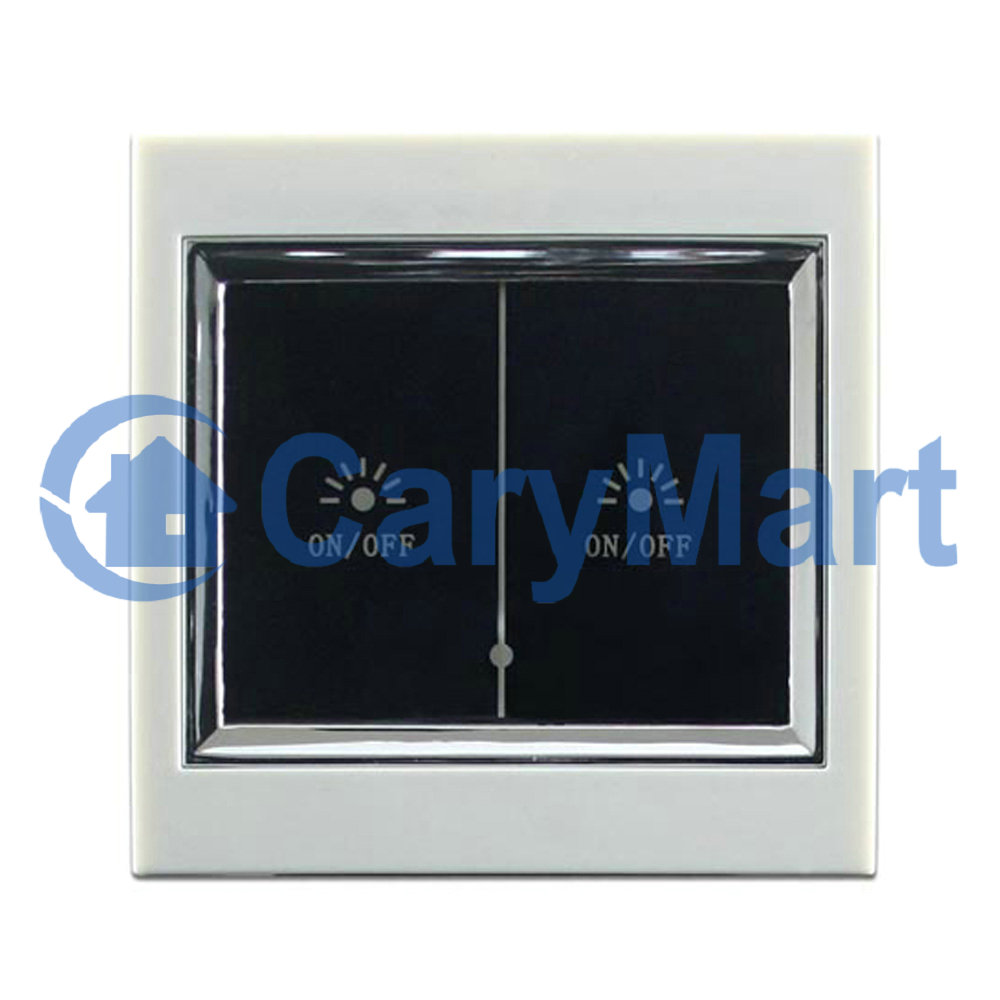

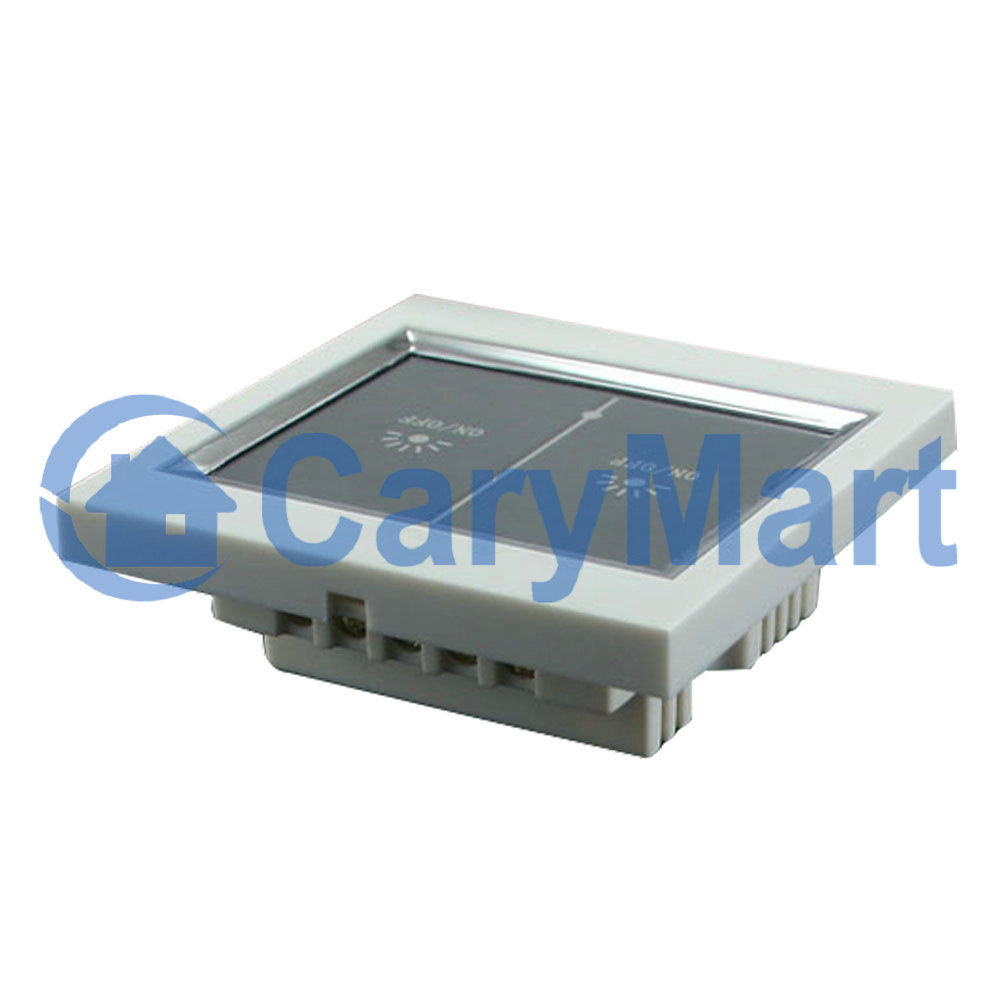

1 x Wall switch: HCS-MT
1 x User manual Application:
Control ac motor of winches,
rolling doors / shutters, or electric windows, blinds, skylights or Other
Appliances.
Specification:
Model
No.: HCS-MT Working Voltage:
AC 100~250V (50/60Hz)
Size: 86mm x
86mm x
35mm
Static
Current: <40uA (<0.008W)
Maximum
Power: 150W/110V; 300W/220V Wiring:

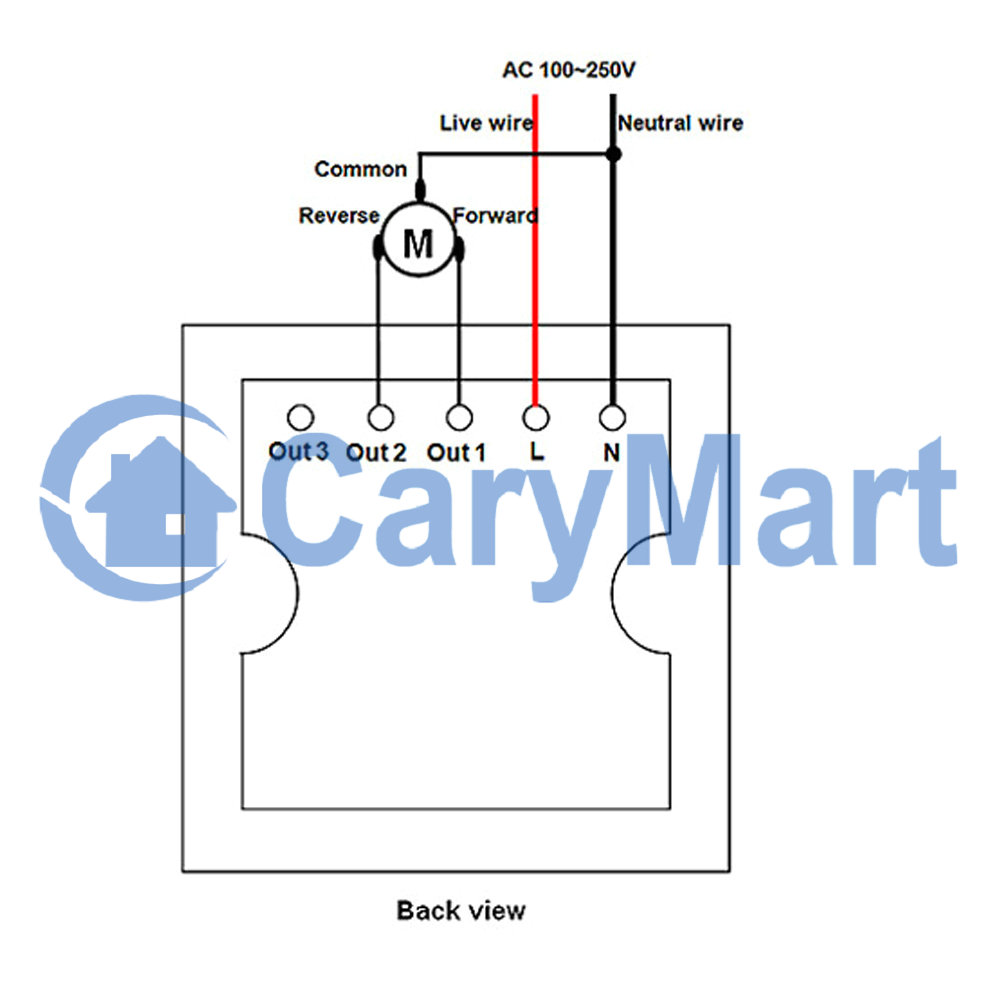

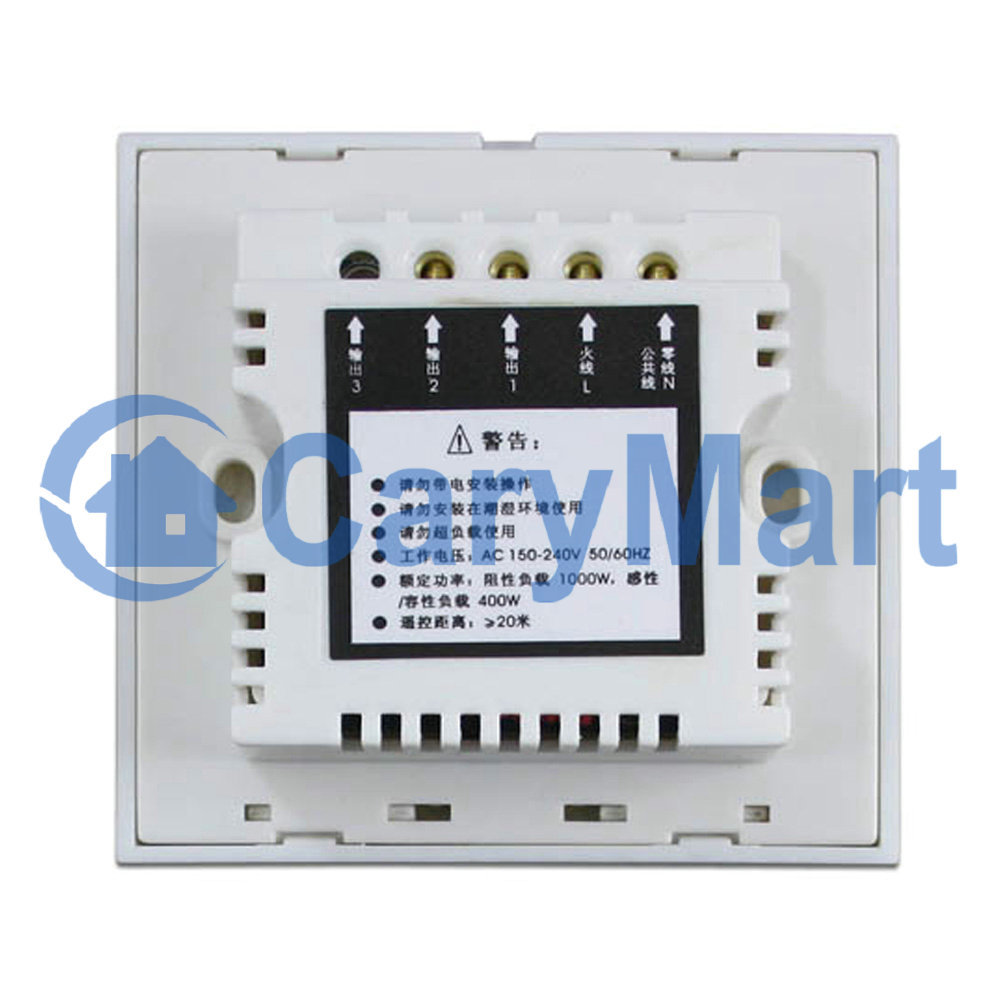

Connect the live wire
of AC power supply to the “L”, and connect the neutral wire of AC power supply
to the “N”. Connect the “Common”
wire of the motor to the “N”, connect the “Forward” wire of the motor to the
“Out 1” and connect the “Reverse” wire of the motor to the “Out 2”.
You can exchange the
“Forward” and the “Reverse” wires of the motor to change the rotating direction
of motor. Operation:

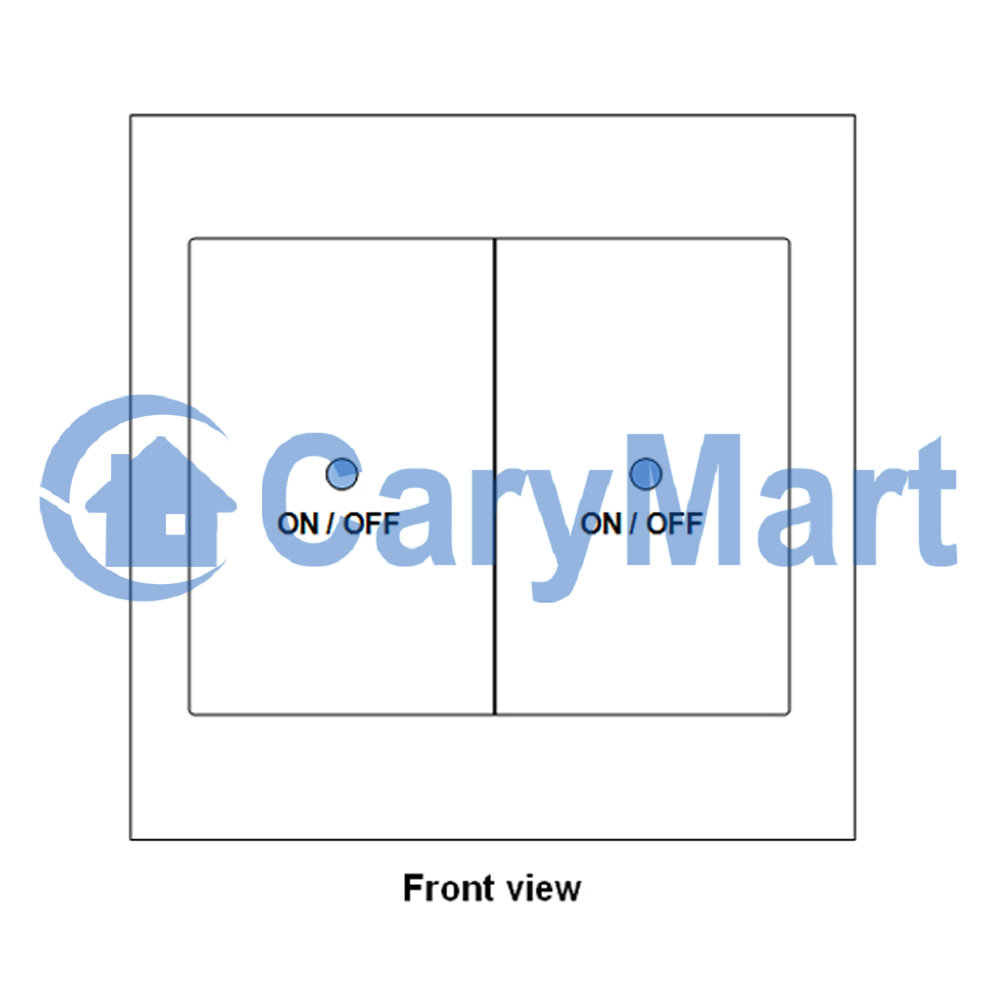

Press the switch icon on the
left: Output of “Out 1” and “Common” directly power AC220V, motor rotates
continuously in the positive direction.
Press any switch icon again
to stop the motor.
Press the switch icon on the
right: Output of “Out 2” and “Common” directly power AC220V, motor rotates
continuously in the reversal direction.
