The receiver is designed for one-transmitter-many-receivers system. Use
an 8 buttons transmitter to control 2 receivers.

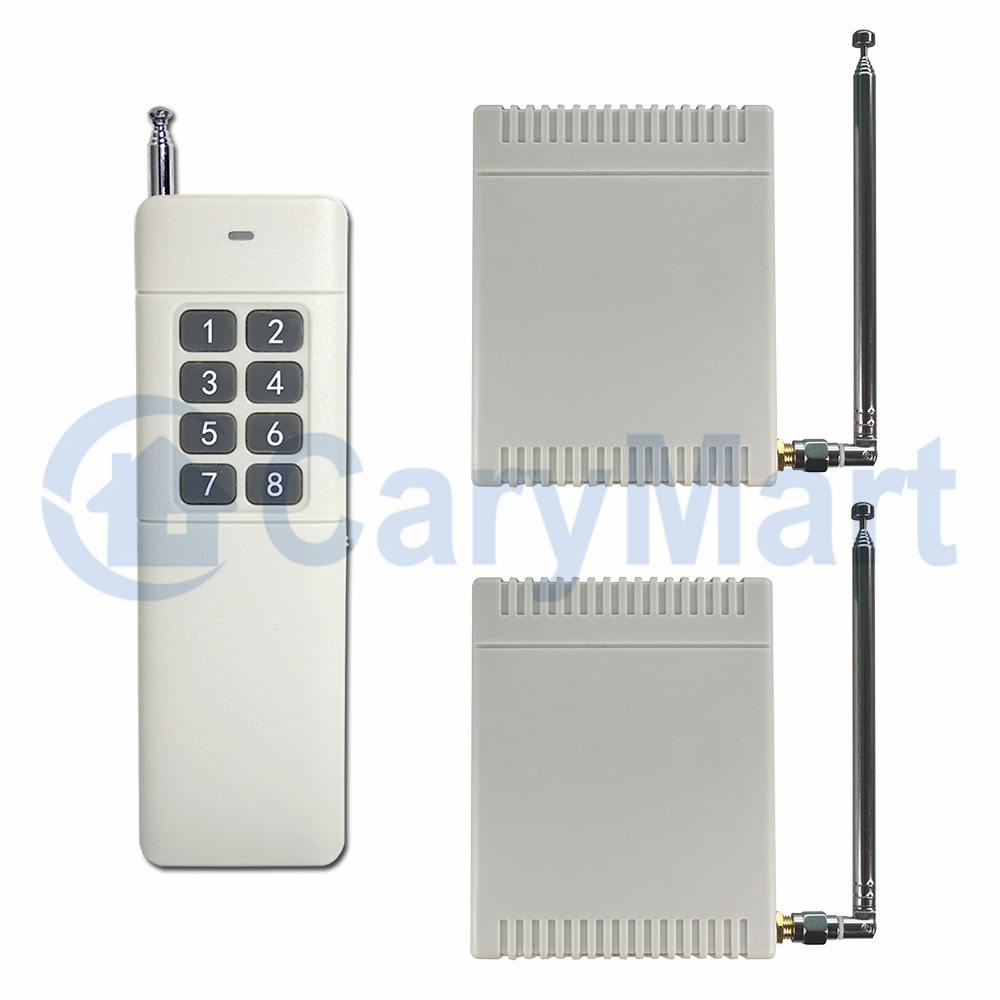

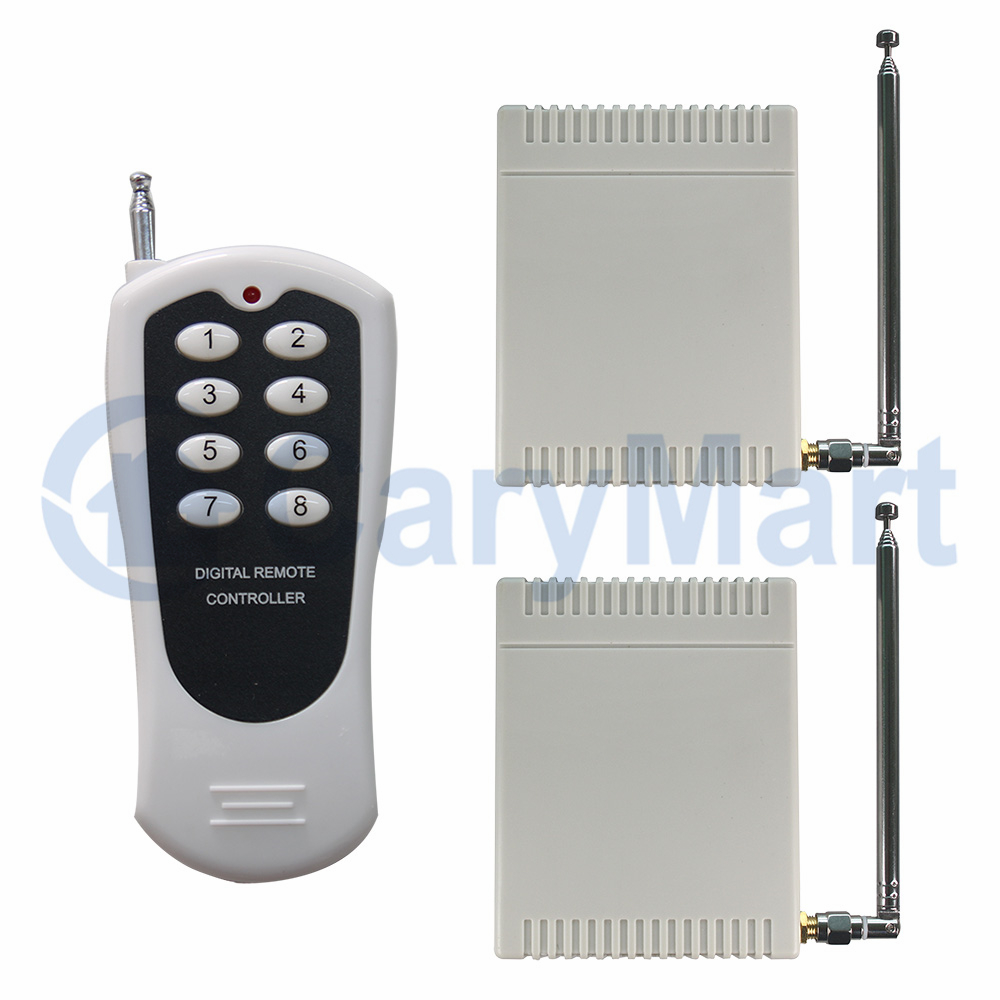

Package Include:
2 x Receiver: S4UB-DC-ANT3
1 x Transmitter: CV-8/CB-8
1 x User manual
Feature:
Application: It can be used in industry automation, agriculture automation
and home automation, such as factory, house, farm, pasture, vehicle, ship,
offshore operation, aerial vehicle, field call, etc. It can remote control
equipments on land, water and air, such as remote control lights, sirens,
locks, motors, fans, winches, blinds, linear actuators, doors, windows,
electric solenoid valves, security alarm, business signs and various
devices.
Wireless control, easy to install.
Relay Output: This receiver is relay output, it can be used to operate both
DC and AC equipments. The terminals are NO / NC (normally open / normally
closed), which serves as a switch. That means you should also connect a
separate power supply to equipments.
With the magnetic sucker antenna, it can have a further working range.
You can turn on/ off the receiver with transmitter (remote control) from any
place within a reliable distance.
Wireless RF signal can pass through walls, floors, doors or windows.
With reverse power protection and over current protection.
One/several transmitters can control one/several receivers simultaneously.
You can use two or more units in the same place.
Receiver Parameters:
Model No.: S4UB-DC09-ANT3 / S4UB-DC12-ANT3 / S4UB-DC24-ANT3
Power Supply (Operating Voltage): DC12V±1V (S4UB-DC12-ANT3), DC9V±1V
(S4UB-DC09-ANT3), DC24V±1V (S4UB-DC24-ANT3)
Output: Relay output (Normally open and normally closed)
Working Voltage Range of Relay: AC110~240V or DC0~28V
Working Frequency: 433MHz
Channel: 4 CH
Control Modes: Self-locking, Momentary, Interlocking
Static Current: ≤6mA
Maximum Working Current: 10A / each channel
PCB size: 94mm x 76mm x 21mm
Case size: 100mm x 80mm x 28mm

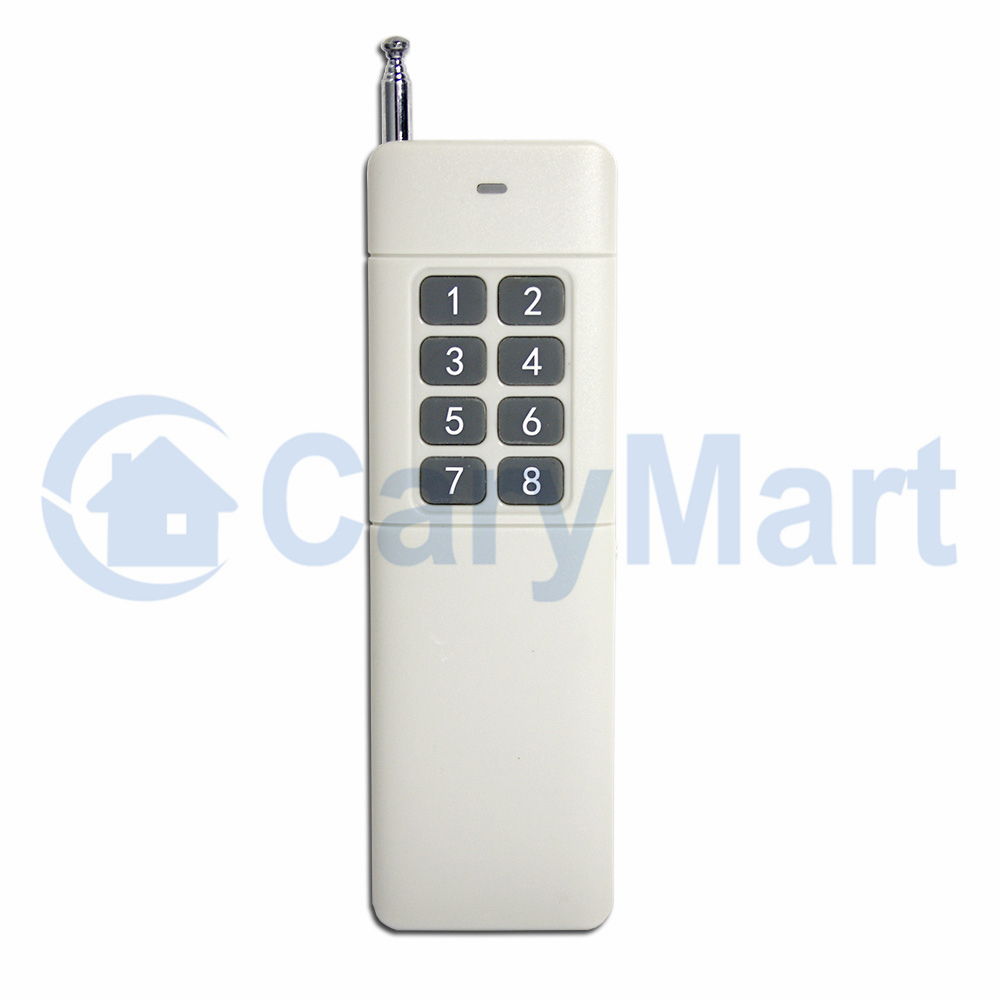

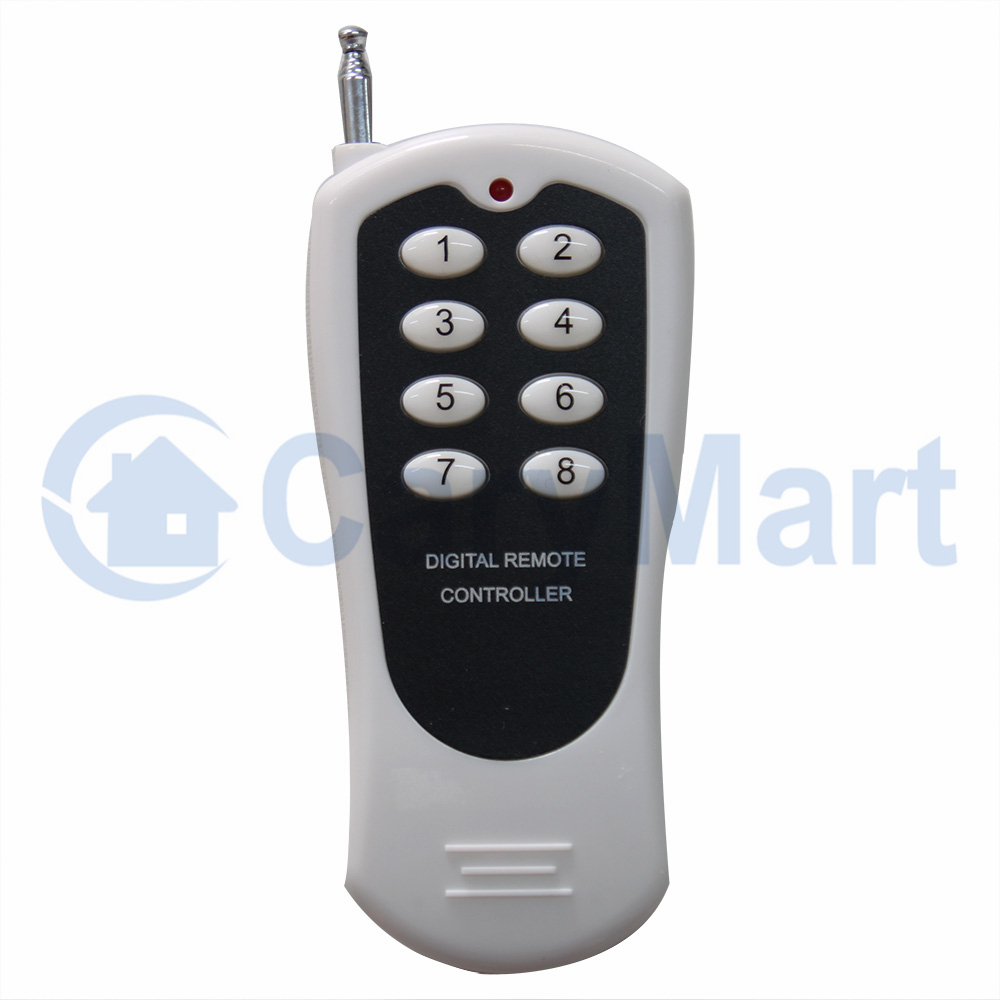

Transmitter:
Model No.: CV-8
Channel: 8 CH
Remote Control Distance: 500m / 1500ft (theoretically)
Encode: Fixed code by bonding pad encoded
Unit size: Unit Size: 135mm x 42mm x 25mm
Power Supply: 12V (1 x 12V-23A battery, can be used for 12 months)
Working Range:
Super long range, with a transmitter (such as CB-8) to form a complete set,
the maximum working distance can reach 2000M in an open ground.
The maximum working distance is a theoretical data, it shall be operated in
an open ground, no barriers, no any interference. But in the practice, it
will be hindered by trees, walls or other constructions, and will be
interfered by other wireless signals. Therefore, the actual distance may not
reach this maximum working distance.
Usage:
The receiver can be used to control both DC 0~28V and AC 110~240V
equipments.

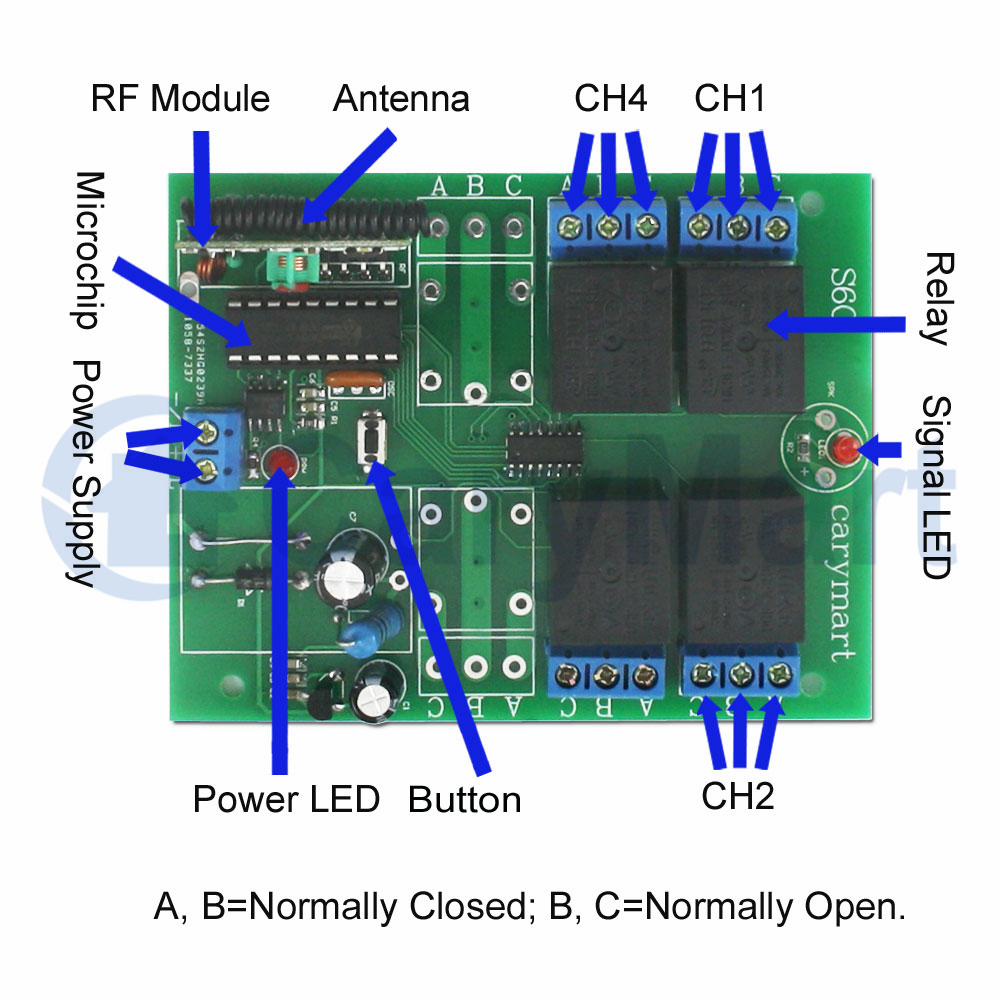

Notice: The receiver is relay output, not DC/AC power output. Initial state
of relay output terminals: Terminals B and C are Normally Open; Terminals A
and B are Normally Closed.
Wiring:

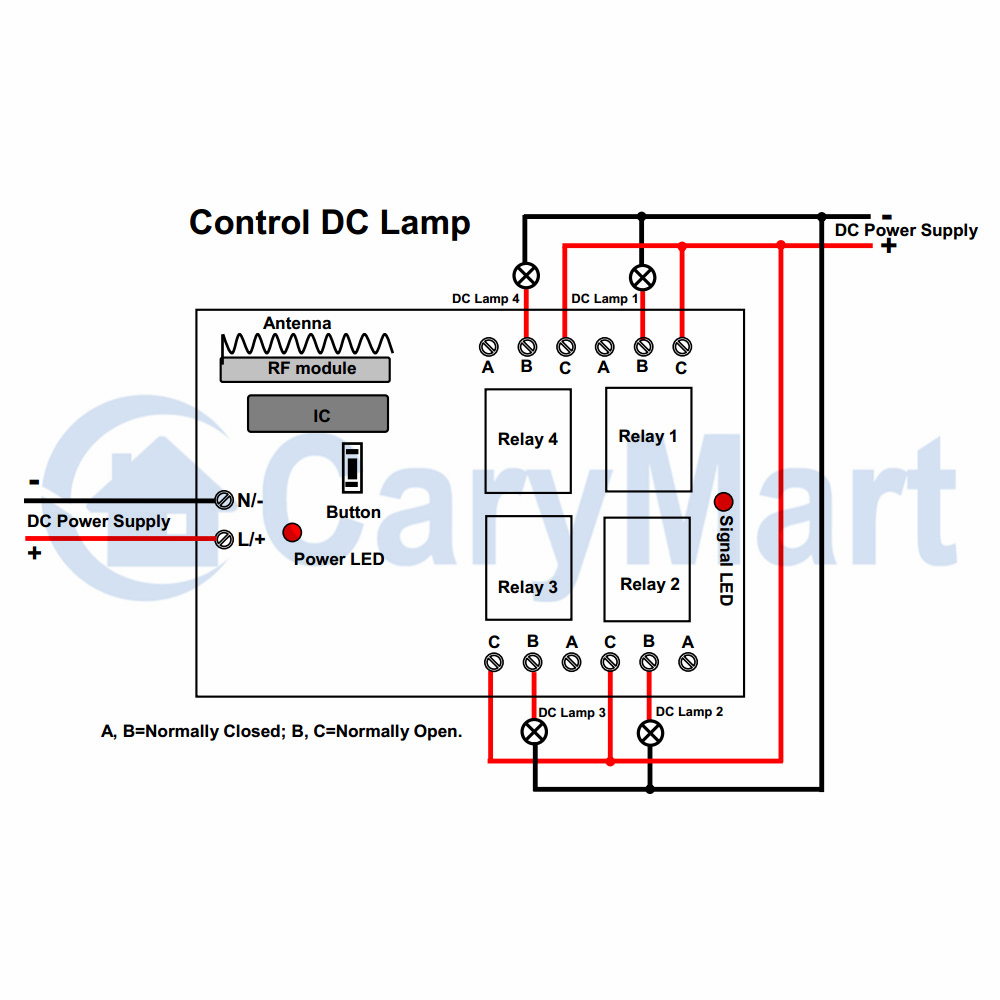

If you want to control a DC 12V lamp, do as following:
1) Connect the positive pole of DC power supply to terminal “L / +” of
INPUT, and connect the negative pole of DC power supply to terminal “N / -”
of INPUT.
2) Connect terminal C to the positive pole of DC power supply, connect
terminal B to the positive pole of DC lamp, and connect the negative pole of
DC lamp to the negative pole of DC power supply.

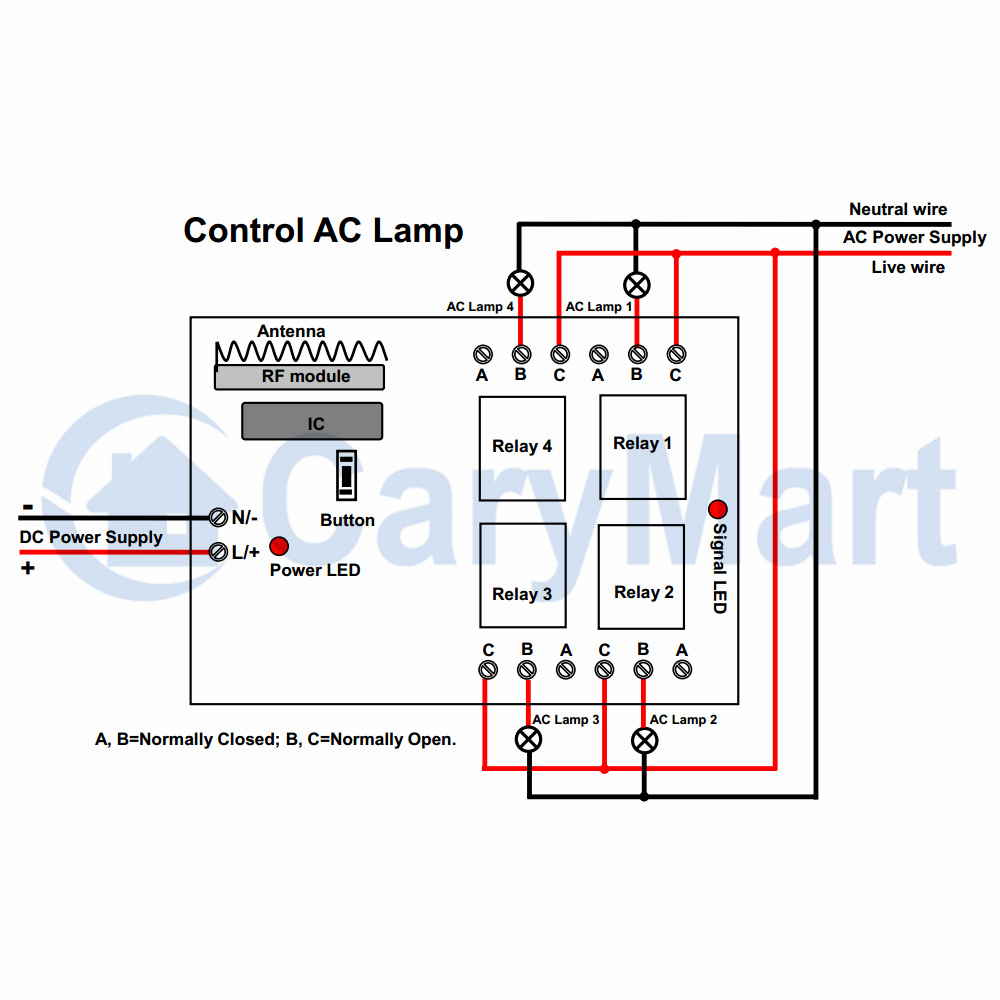

If you want to control an AC 220V lamp, do as following:
1) Connect the positive pole of DC power supply to terminal “L / +” of
INPUT, and connect the negative pole of DC power supply to terminal “N / -”
of INPUT.
2) Connect terminal C to the live wire of AC power supply, connect terminal
B to one side of AC lamp, and connect another side of AC lamp to the neutral
wire of AC power supply.
Different control modes:
1) Self-locking control mode: Press -> On; Press again -> Off.
Press button 1: Turn on relay 1 of receiver 1 (connect B and C, disconnect A
and B), the lamp 1 is on.
Press button 1 again: Turn off relay 1 of receiver 1 (disconnect B and C,
connect A and B), the lamp 1 is off.
Press button 4: Turn on relay 4 of receiver 1 (connect B and C, disconnect A
and B), the lamp 4 is on.
Press button 4 again: Turn off relay 4 of receiver 1 (disconnect B and C,
connect A and B), the lamp 4 is off.
Press button 5: Turn on relay 1 of receiver 2 (connect B and C, disconnect A
and B), the lamp 5 is on.
Press button 5 again: Turn off relay 1 of receiver 2 (disconnect B and C,
connect A and B), the lamp 5 is off.
Press button 8: Turn on relay 4 of receiver 2 (connect B and C, disconnect A
and B), the lamp 8 is on.
Press button 8 again: Turn off relay 4 of receiver 2 (disconnect B and C,
connect A and B), the lamp 8 is off.
2) Momentary control mode: Press and hold -> On; Release -> Off.
Press and hold button 1: Turn on relay 1 of receiver 1 (connect B and C,
disconnect A and B), the lamp 1 is on.
Release button 1: Turn off relay 1 of receiver 1 (disconnect B and C,
connect A and B), the lamp 1 is off.
Press and hold button 4: Turn on relay 4 of receiver 1 (connect B and C,
disconnect A and B) the lamp 4 is on.
Release button 4: Turn off relay 4 of receiver 1 (disconnect B and C,
connect A and B), the lamp 4 is off.
Press and hold button 5: Turn on relay 1 of receiver 2 (connect B and C,
disconnect A and B), the lamp 5 is on.
Release button 5: Turn off relay 1 of receiver 2 (disconnect B and C,
connect A and B), the lamp 5 is off.
Press and hold button 8: Turn on relay 4 of receiver 2 (connect B and C,
disconnect A and B), the lamp 8 is on.
Release button 8: Turn off relay 4 of receiver 2 (disconnect B and C,
connect A and B), the lamp 8 is off.
3) Interlocking control mode: Press -> On, other relays Off; Press other
button -> Off.
Press button 1: Turn on relay 1 of receiver 1 (connect B and C, disconnect A
and B), the lamp 1 is on.
Turn off other relay (disconnect B and C, connect A and B), the lamp 2, 3
and 4 are off.
Press button 4: Turn on relay 4 of receiver 1 (connect B and C, disconnect A
and B), the lamp 4 is on.
Turn off other relay (disconnect B and C, connect A and B), the lamp 1, 2
and 3 are off.
Press button 5: Turn on relay 1 of receiver 2 (connect B and C, disconnect A
and B), the lamp 5 is on.
Turn off other relay (disconnect B and C, connect A and B), the lamp 6, 7
and 8 are off.
Press button 8: Turn on relay 4 of receiver 2 (connect B and C, disconnect A
and B), the lamp 8 is on.
Turn off other relay (disconnect B and C, connect A and B), the lamp 5, 6
and 7 are off.
