This 1CH rf remote control switch operates in the 433MHz frequency. Just press slightly the button on the remote, you can control on/off, open/close of universal electrical devices. Applications include gate remote control, motor remote control, garage door remote control, light remote control, etc. Application video please visithttp://www.youtube.com/watch?v=7Uqw2I7I1ao
Control Lights, Motors, Fans, electrically operated Doors/ Locks/ Windows/ Blinds/ Cars or Other Appliances.
You can turn on/off the receiver with transmitter (remote control) from any place within a reliable distance; the wireless signal can pass through walls, floors and doors.
Reliable control: The transmitter (Encoding) and the receiver (Decoding) use an 8-bit code.
One/several transmitters can control one/several receivers simultaneously.
If you use two or more receivers in the same place, you can set them with different codes.
Transmitting Frequency: 433MHz.

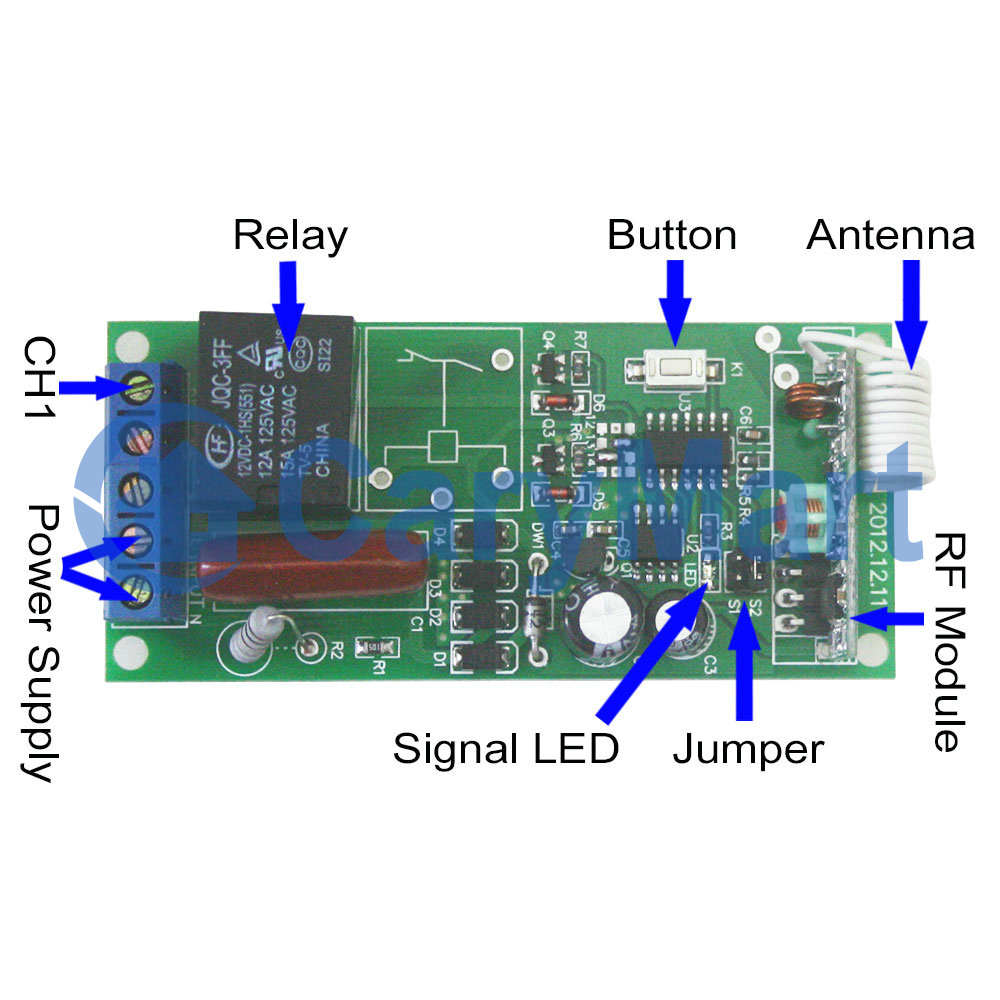

Receiver:
Model No.: S1T-AC110 / S1T-AC220
Channel: 1 CH
Control Modes: Self-locking
Coding Type: Fixed code
Coding Setting: By learning
Power Supply (Operating Voltage): AC100~120V (S1T-AC110), AC200~240V (S1T-AC220)
PCB size: 80mm x 35mm x 14mm
Case size: 100mm x 40mm x 24mm
Maximum Working Current: 3A / each channel
Transmitter:
Model No.: C-1
Channel: 1 CH
Remote Control Distance: 100m / 300ft (theoretically)
Encode: Fixed code by soldering
Unit size: 58mm x 39mm x 16mm
Power Supply: 1 x 23A -12V battery (Included, can be used for 12 months)
Usage:

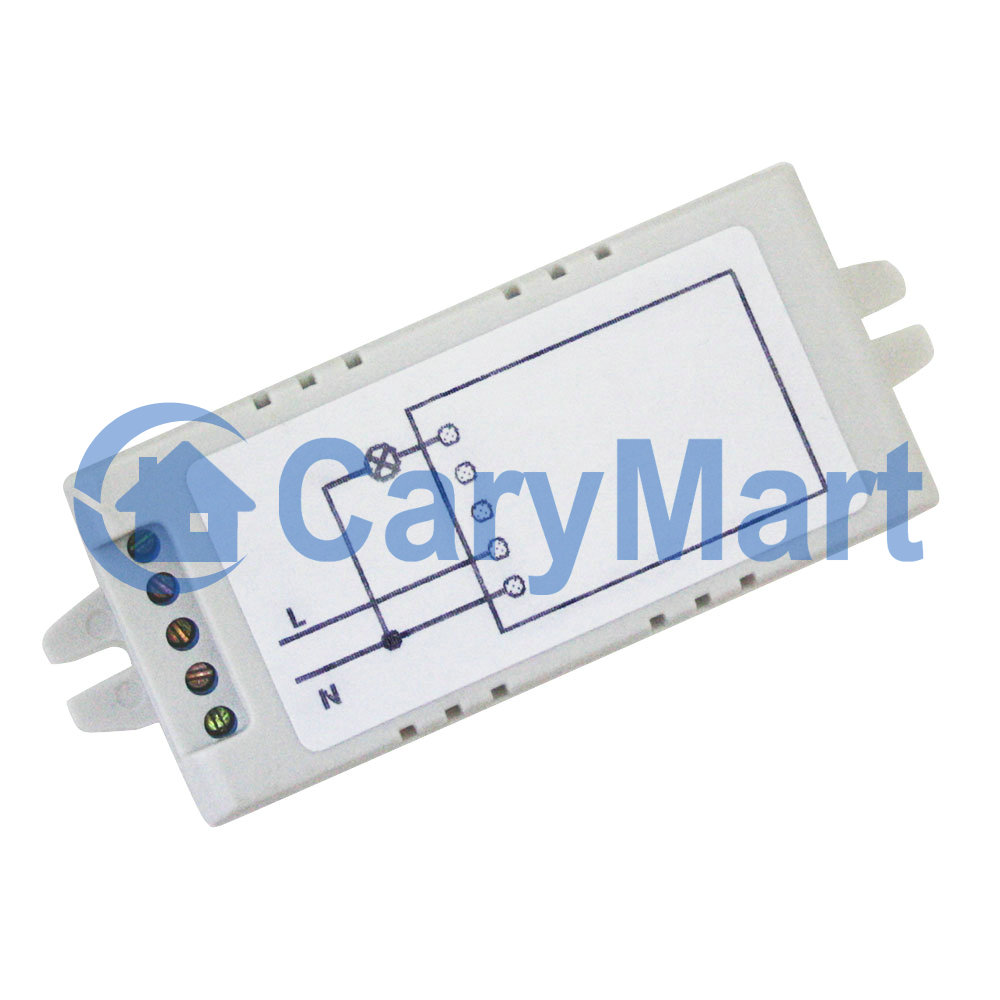

Connect the neutral wire to the terminal “1”, and the live wire to the terminal “2”. Connect the lamp to the terminal “5” and the neutral wire.
Press button, turn on the lamp; Press button again, turn off the lamp.

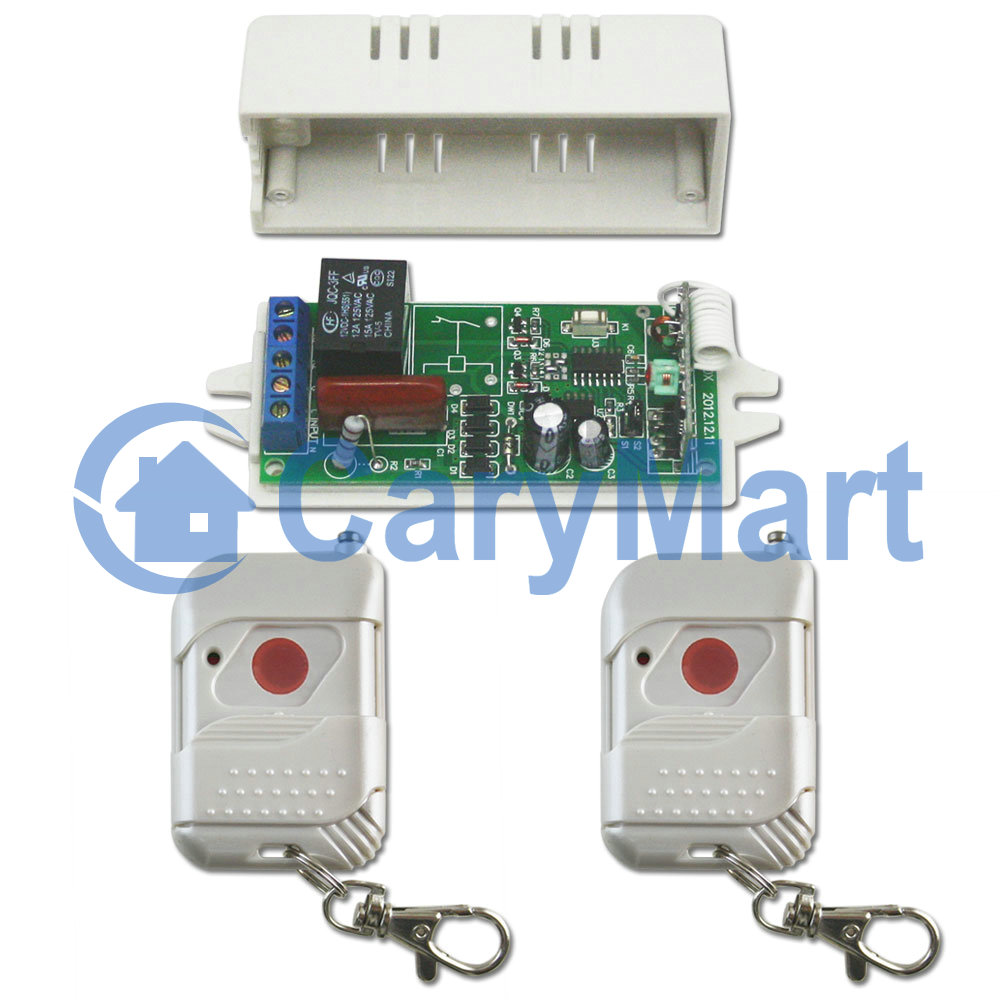

Package Include:
1 x Receiver: S1T-AC110 / S1T-AC220 (1 Channel / Self-locking Control Mode)
2 x Transmitter: C-1
1 x User manual
Note:
The distance of 100m is a theoretical data, it shall be operated in an open ground, no barriers, no any interference. But in the practice, it will be hindered by trees, walls or other constructions, and will be exposed to some interference by other signals. Therefore, the actual distance could not reach 100m. If you need longer range, you can choose other series of remote control, such as CB Serie (1000m/3000ft) - Click here to link to; Or you can add the External Extend Antenna (model:0020909 ) on the receiver for improve the range - Click here to link to.
