Package Include:

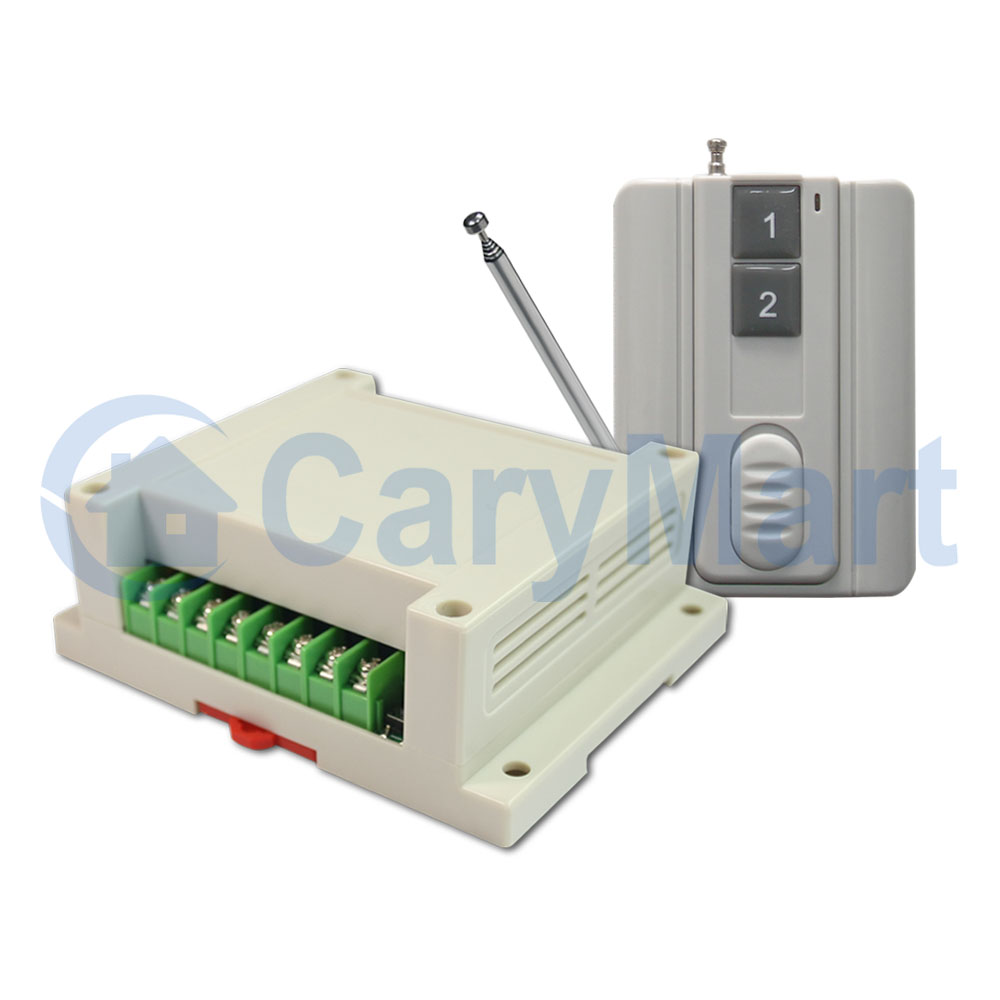

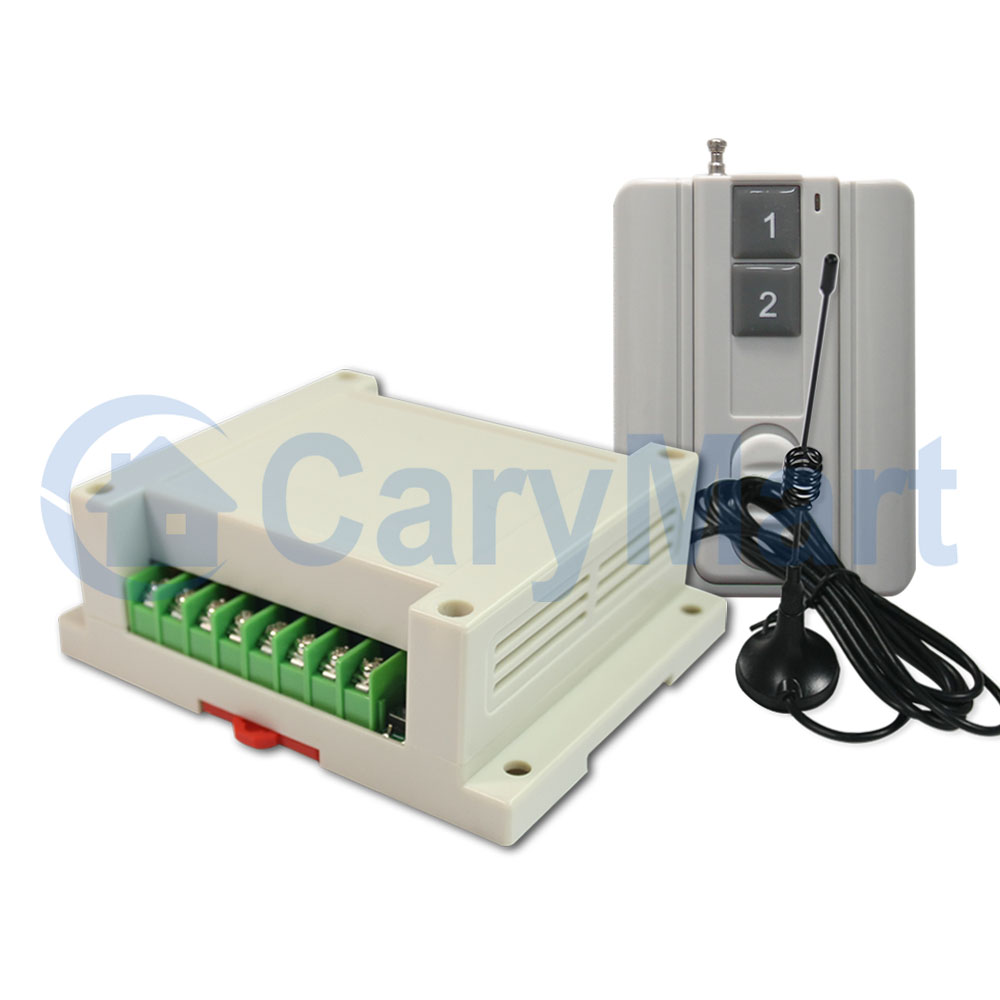

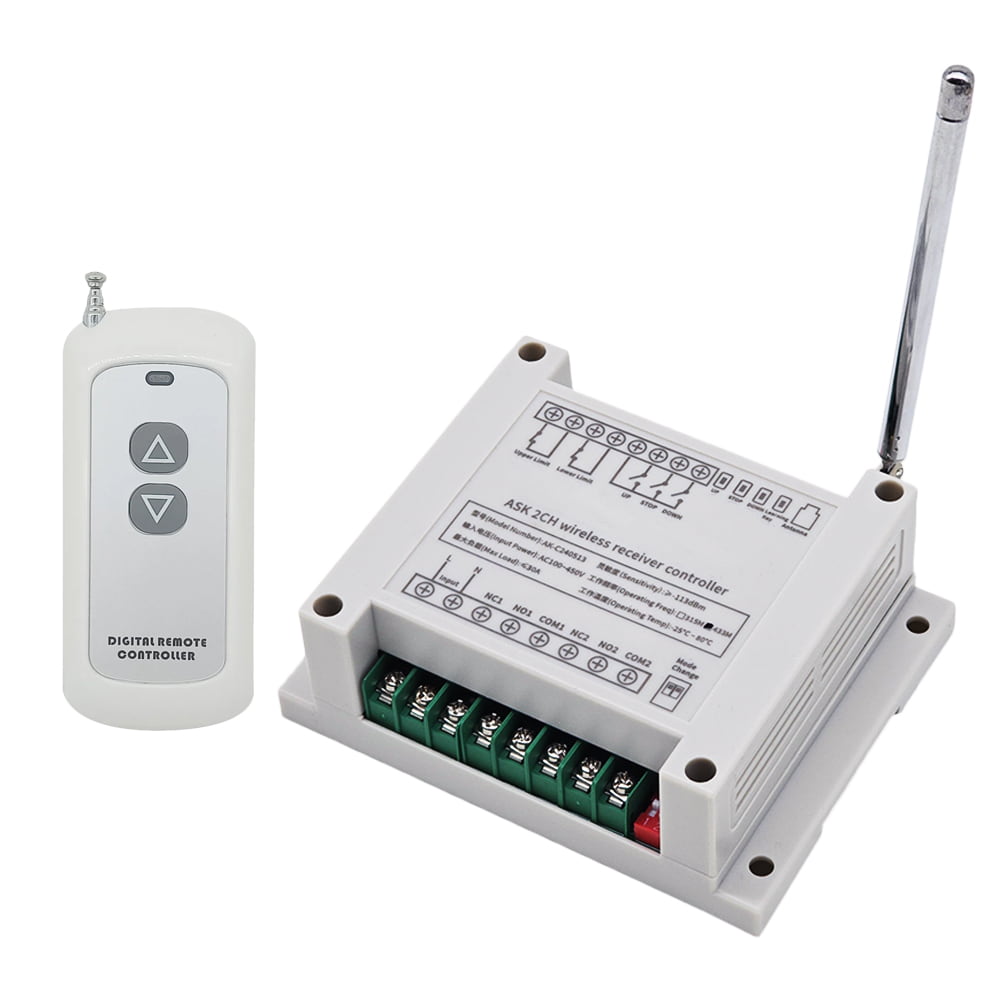

1 x Receiver: S2PU-AC380-ANT3
1 x Transmitter: CG-2
1 x User manual
Feature:
Application: It can be used in industry automation, agriculture automation and
home automation, such as factory, house, farm, pasture, vehicle, ship, offshore
operation, aerial vehicle, field call, etc. It can remote control equipments on
land, water and air, such as remote control lights, sirens, locks, motors, fans,
winches, blinds, linear actuators, doors, windows, electric solenoid valves,
security alarm, business signs and various devices.
Wireless control, easy to install.
Universal Power Supply: AC 220~380V, support AC 220V, AC 240V, AC 380V.

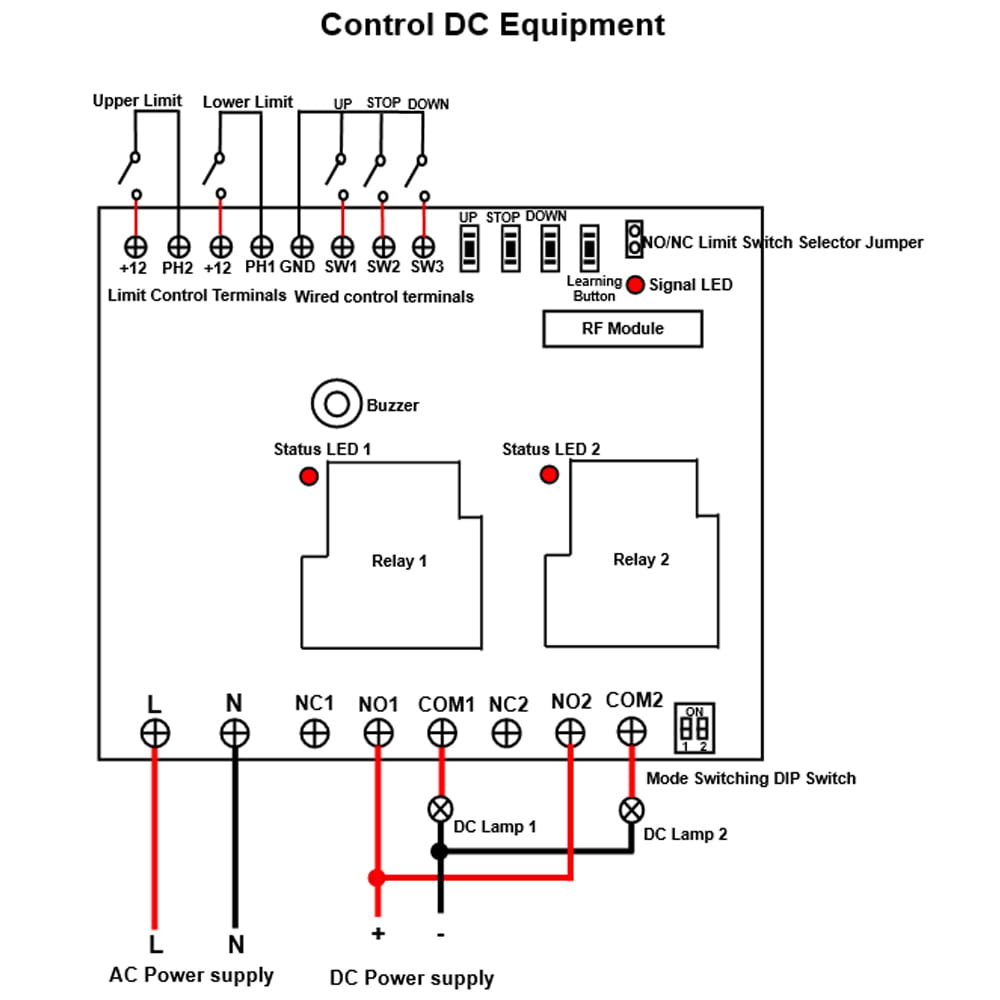

Relay Output: This receiver is relay output, it can be used to operate both DC
and AC equipments. The terminals are NO / NC (normally open / normally closed),
which serves as a switch. That means you should also connect a separate power
supply to equipments.
High Power: Each channel can work at maximum current 30A.

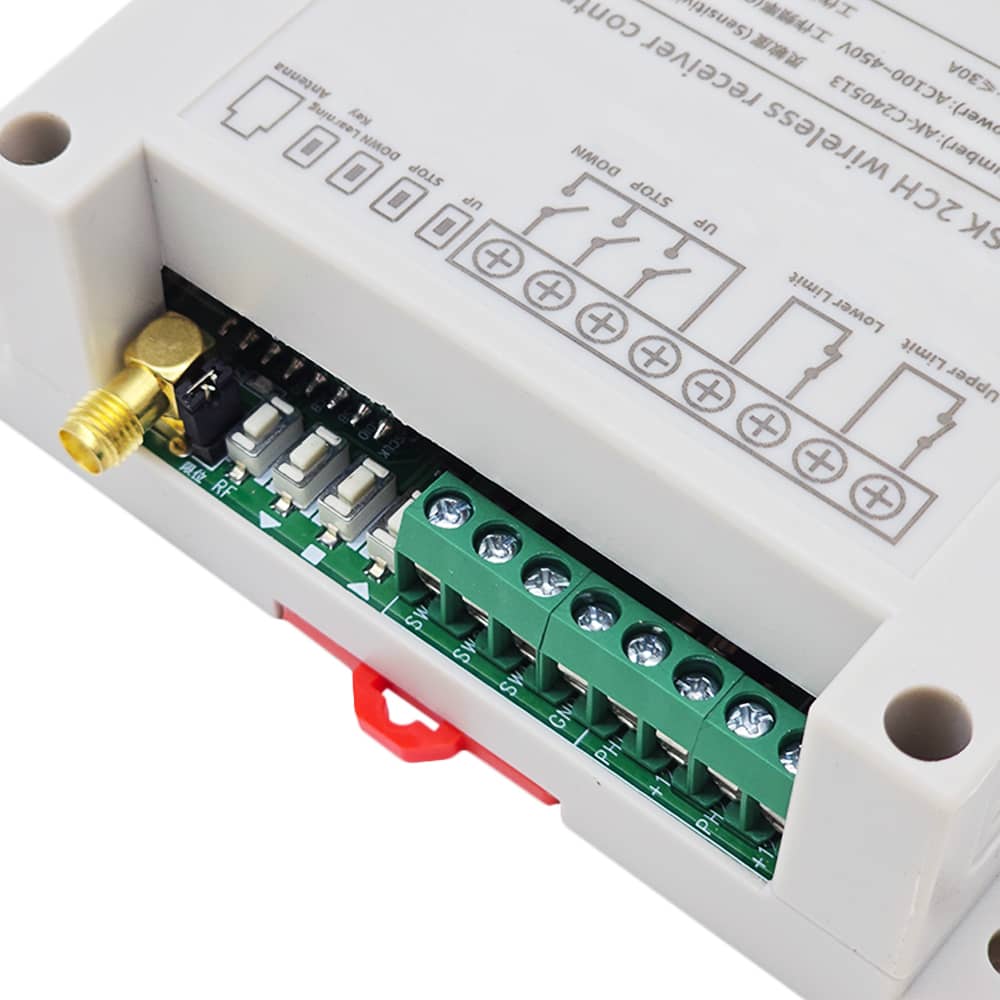

With 3 manual buttons: You can press the manual buttons to control the
equipments.

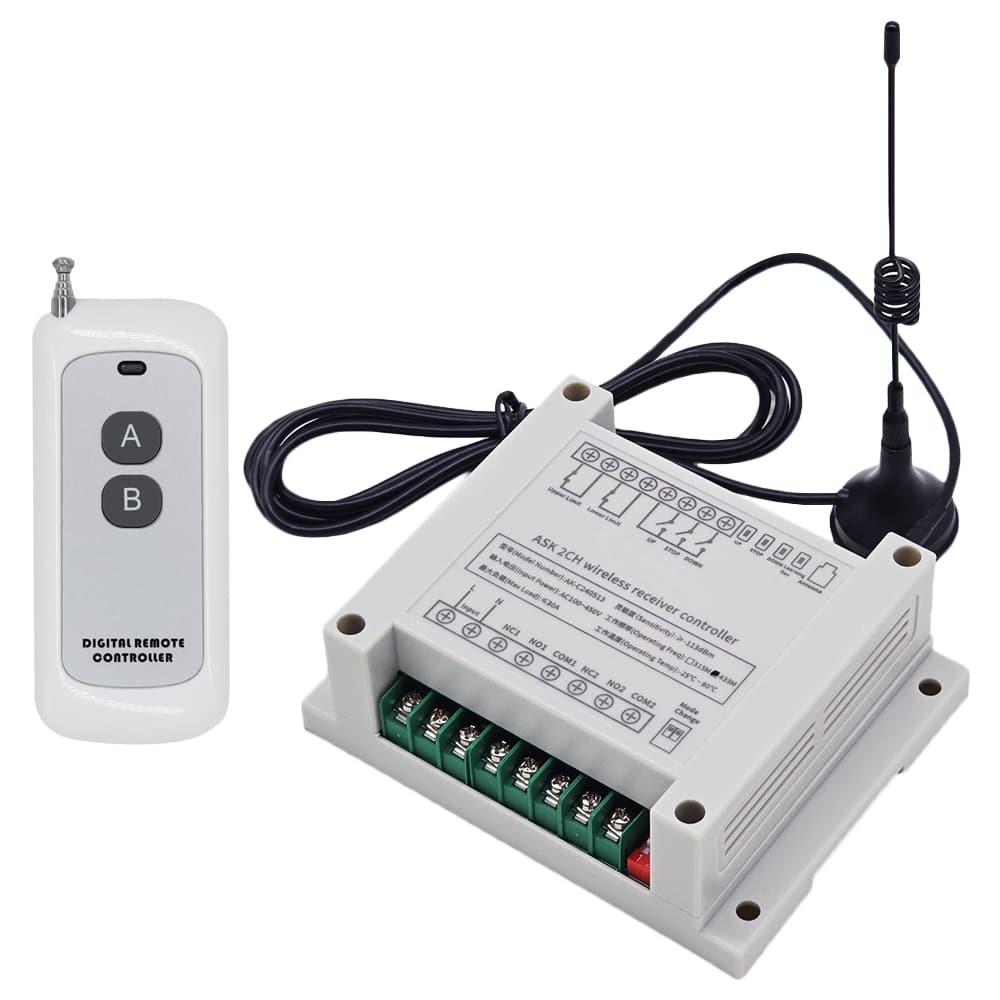

With external telescopic antenna, the receiver have a farther working range.
You can control the equipments by using the receiver with transmitter (remote
control) from any place within a reliable distance.
Wireless RF signal can pass through walls, floors, doors or windows.
With characteristics of reverse power protection and over current protection.
Reliable control: The code has thousands of different combinations, and the
receiver only works with the transmitter which use the same code.
One/several transmitters can control one/several receivers simultaneously.
You can use two or more units in the same place.

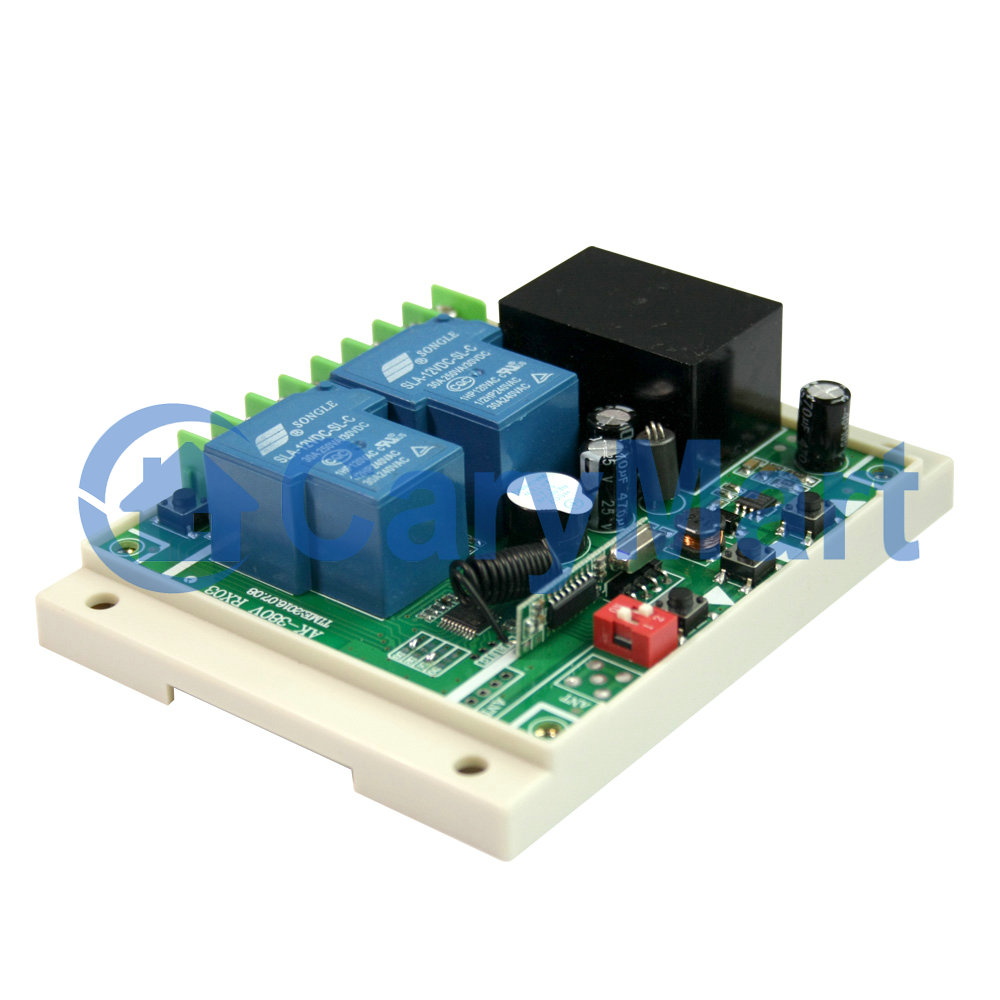

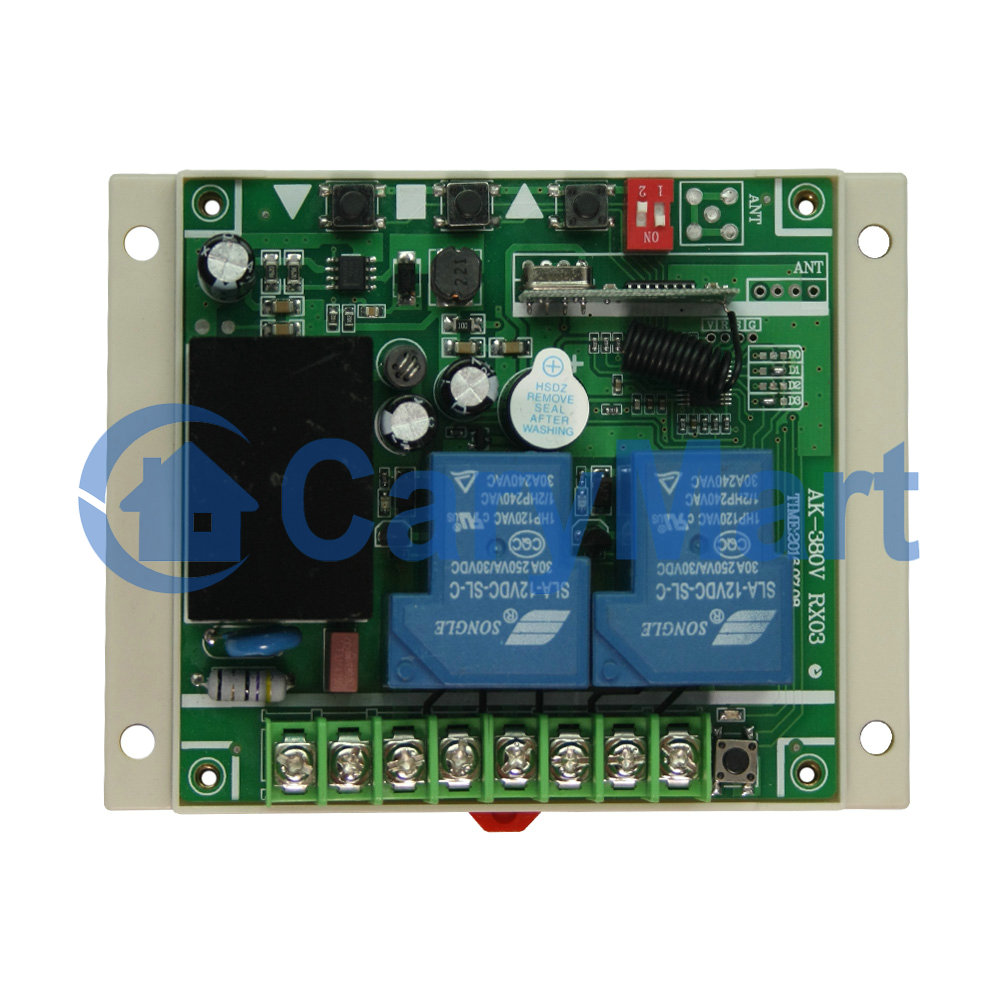

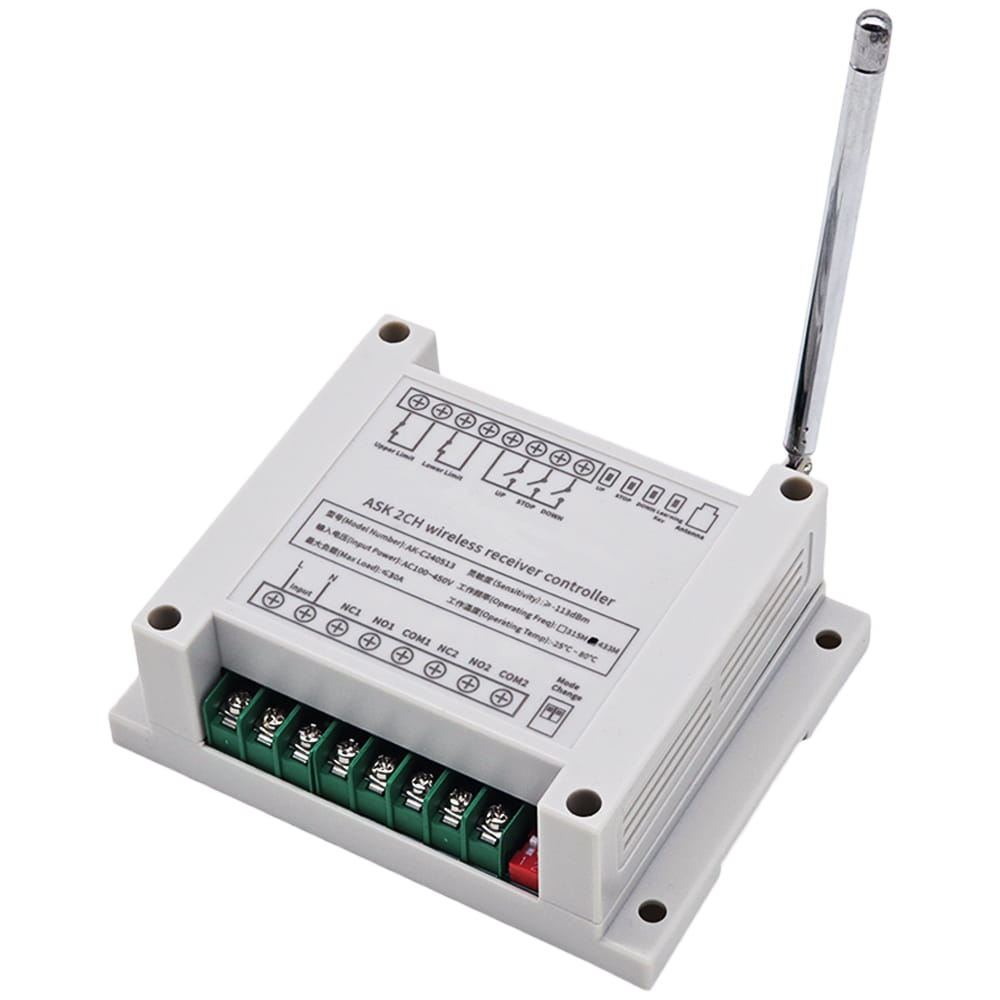

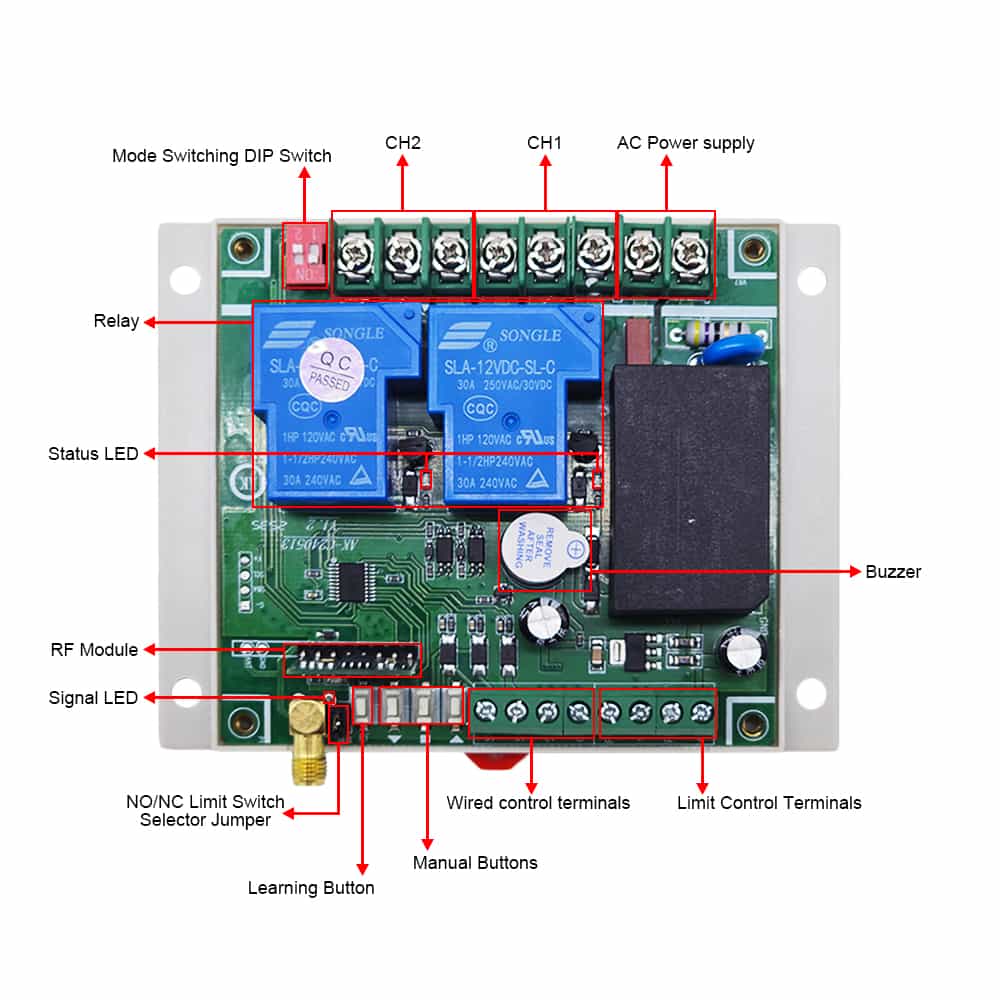

Receiver Parameters:
Model No.: S2PU-AC380-ANT3
Power Supply (Operating Voltage): AC 220V~380V (220V/240V/380V)
Output: Relay output (Normally open and normally closed)
Wire range for the terminals: 22-12 AWG
Working Frequency: 433.92MHz
Channel: 2 CH
Control Modes: Self-locking, Momentary, Interlocking, Momentary + Self-locking
Static Current: ≤6mA
Maximum Load Current: 30 A / each channel
Operating Temperature: -20 ° C to +70 ° C
PCB size: 92mm x 86mm x 24mm

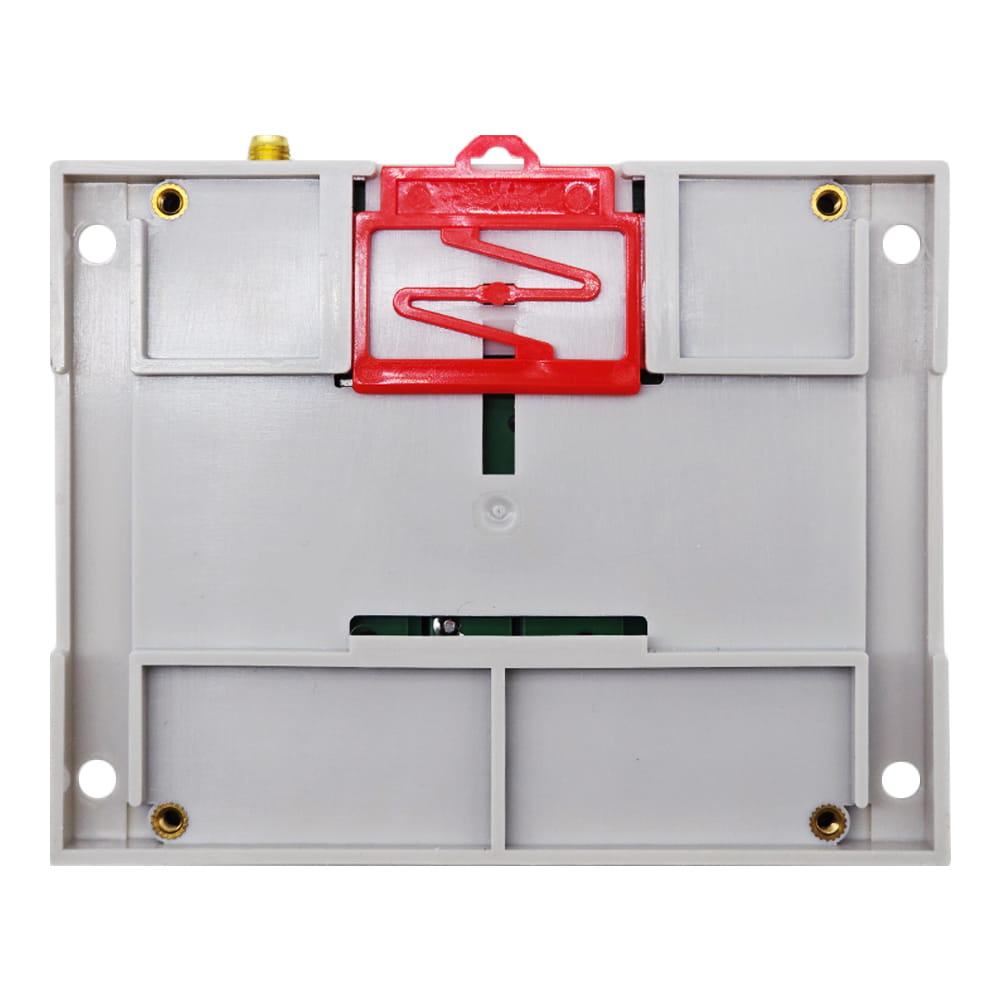

Case size: 115mm x 90mm x 40mm

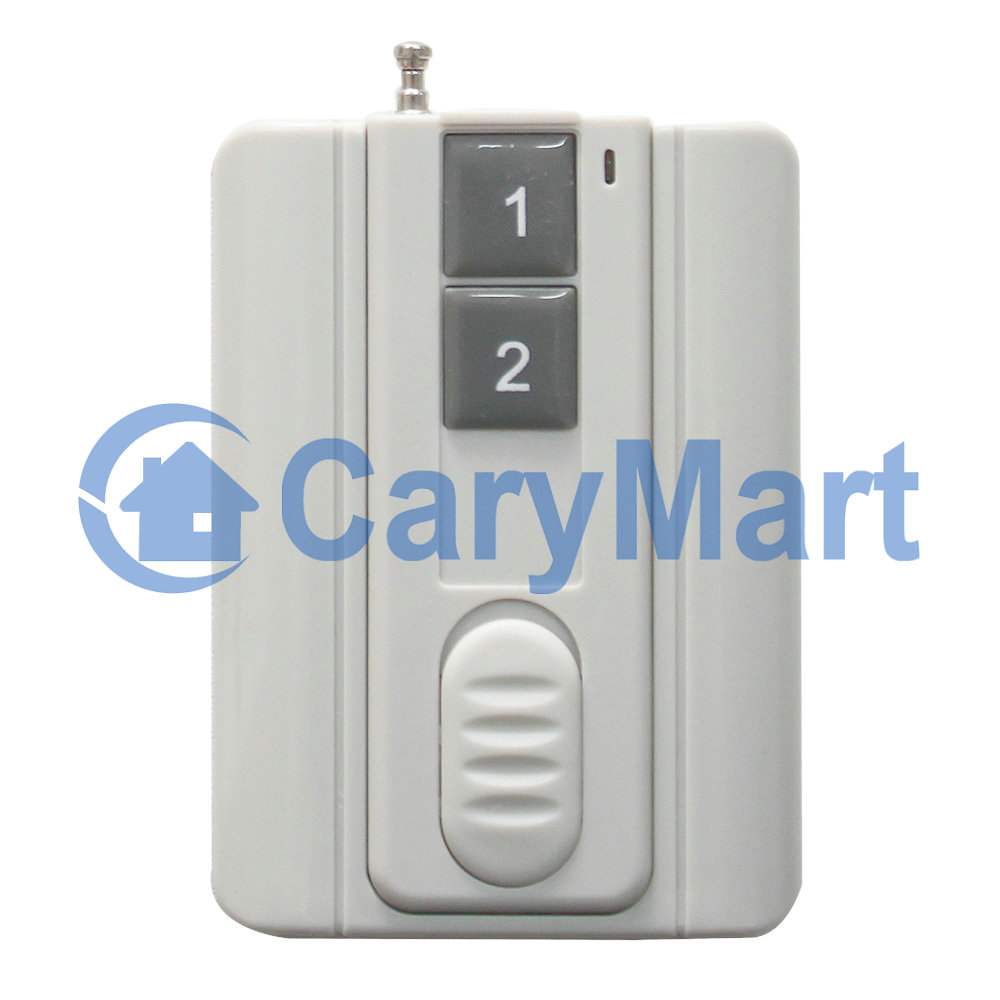

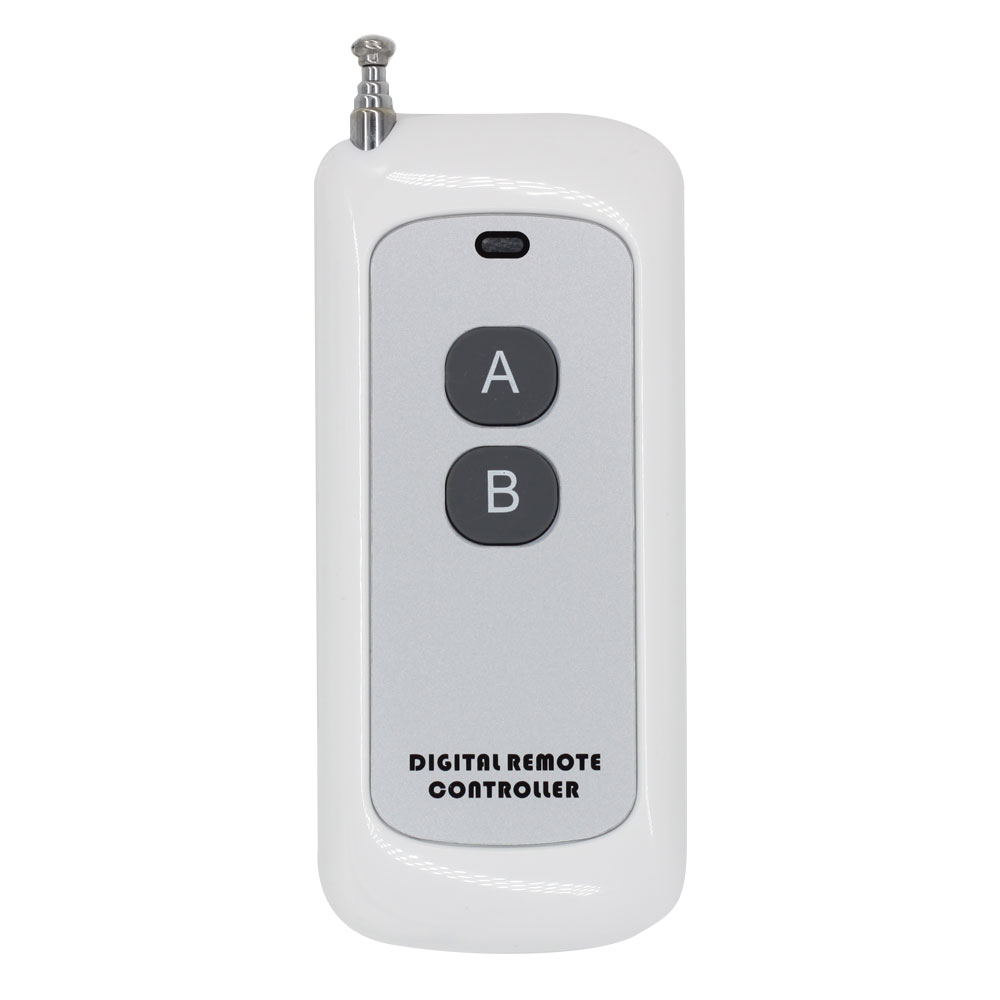

Transmitter Parameters:
Model No.: 0021056 (CG-2)

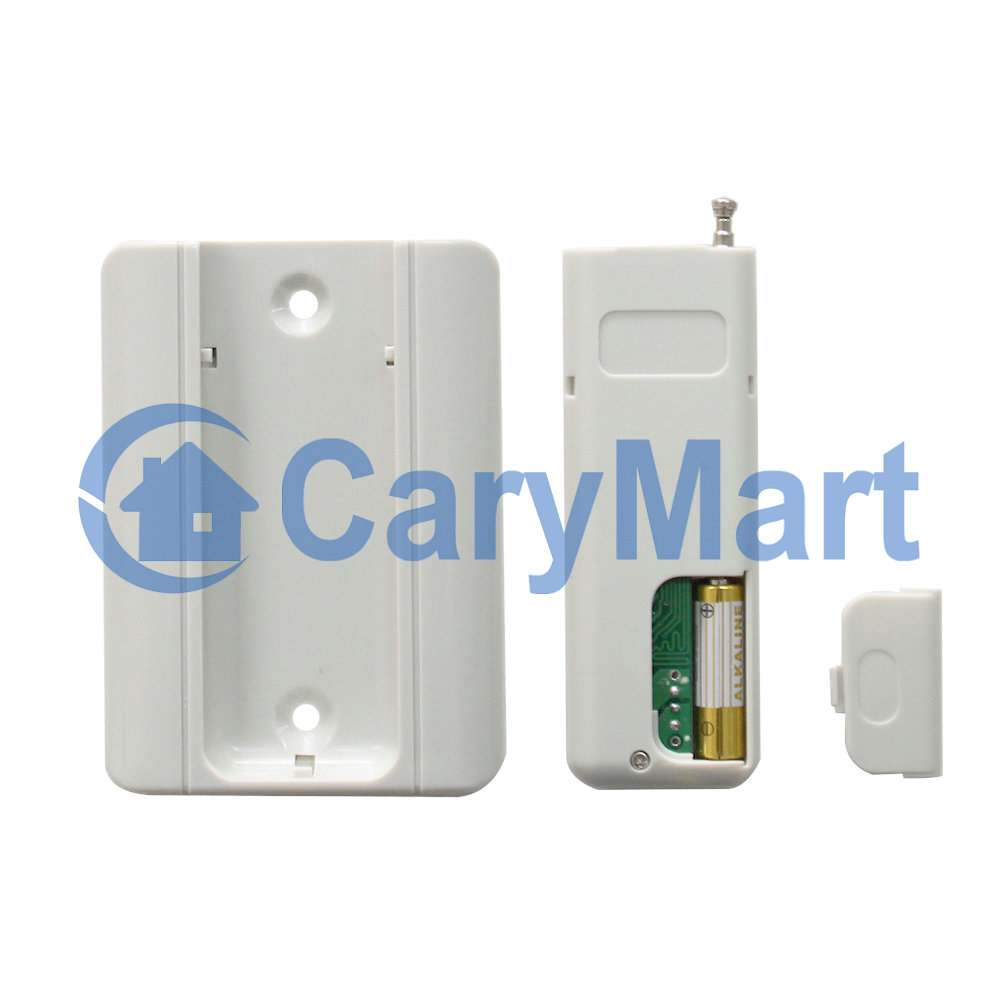

With Wall Mounted Support
Channel/Button: 2
Button Symbol: 1, 2

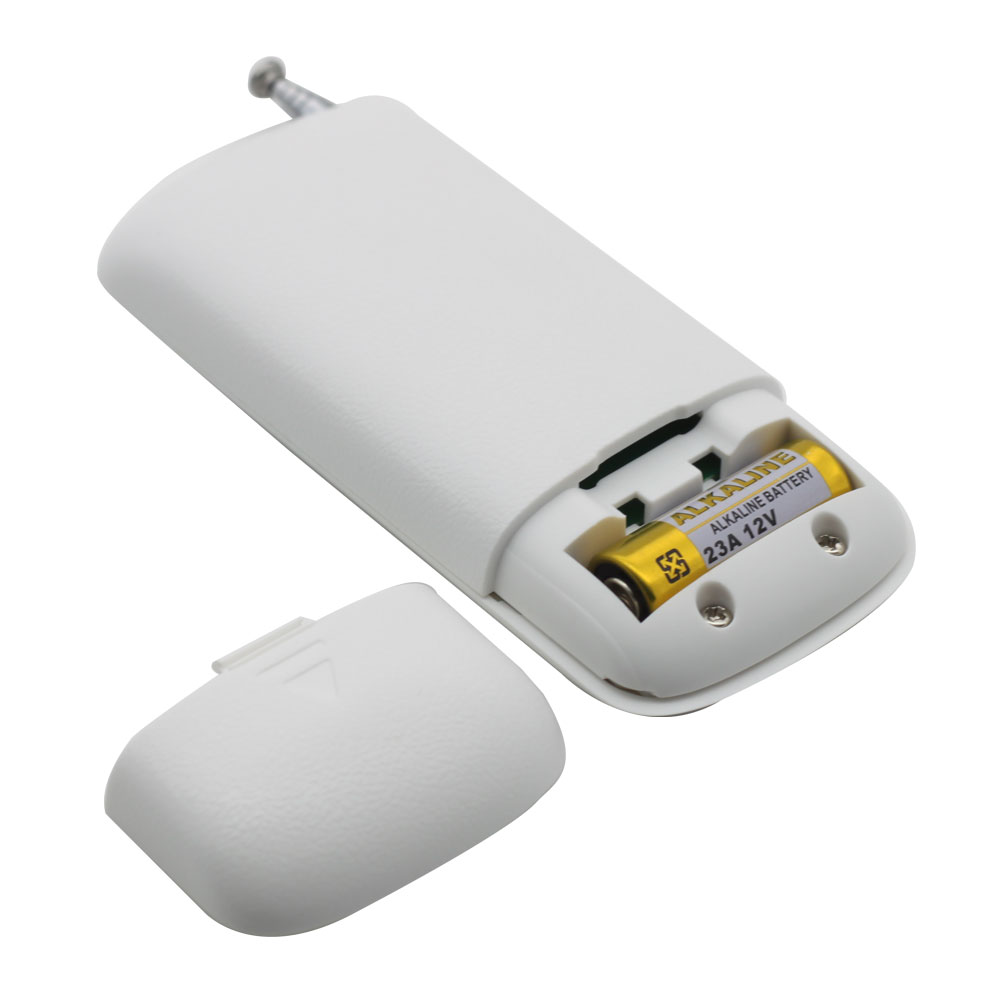

Operating Voltage: 12V (1 x 27A -12V battery, can be used for 12 months)
Operating Current: 8mA
Operating Frequency: 433Mhz
Encoding Chip: SC2262
Encoding Type: Fixed code by soldering, up to 6561 codes
Transmitting Distance: 500m / 1500ft (theoretically)
Modulation Mode: ASK
Unit Size: 84mm x 30mm x 10mm
Fixing Bracket size: 87mm x 63mm x 10mm

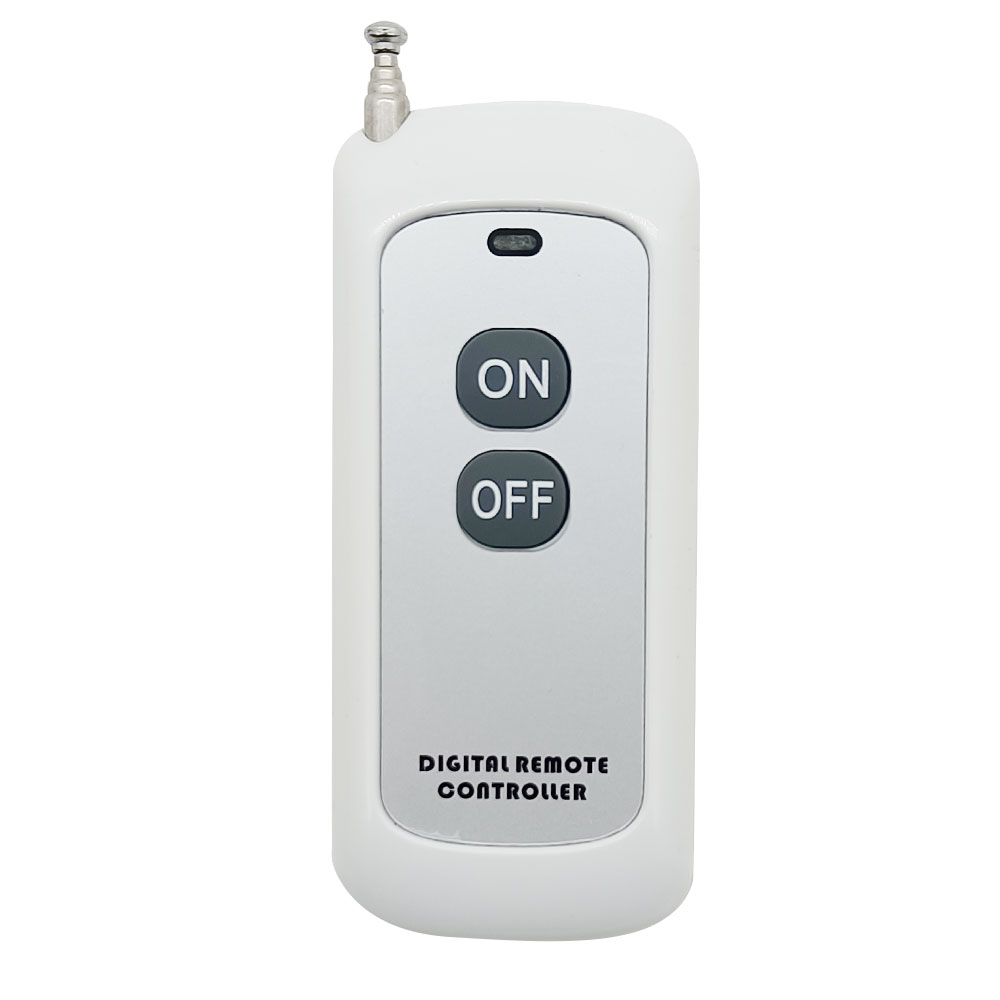

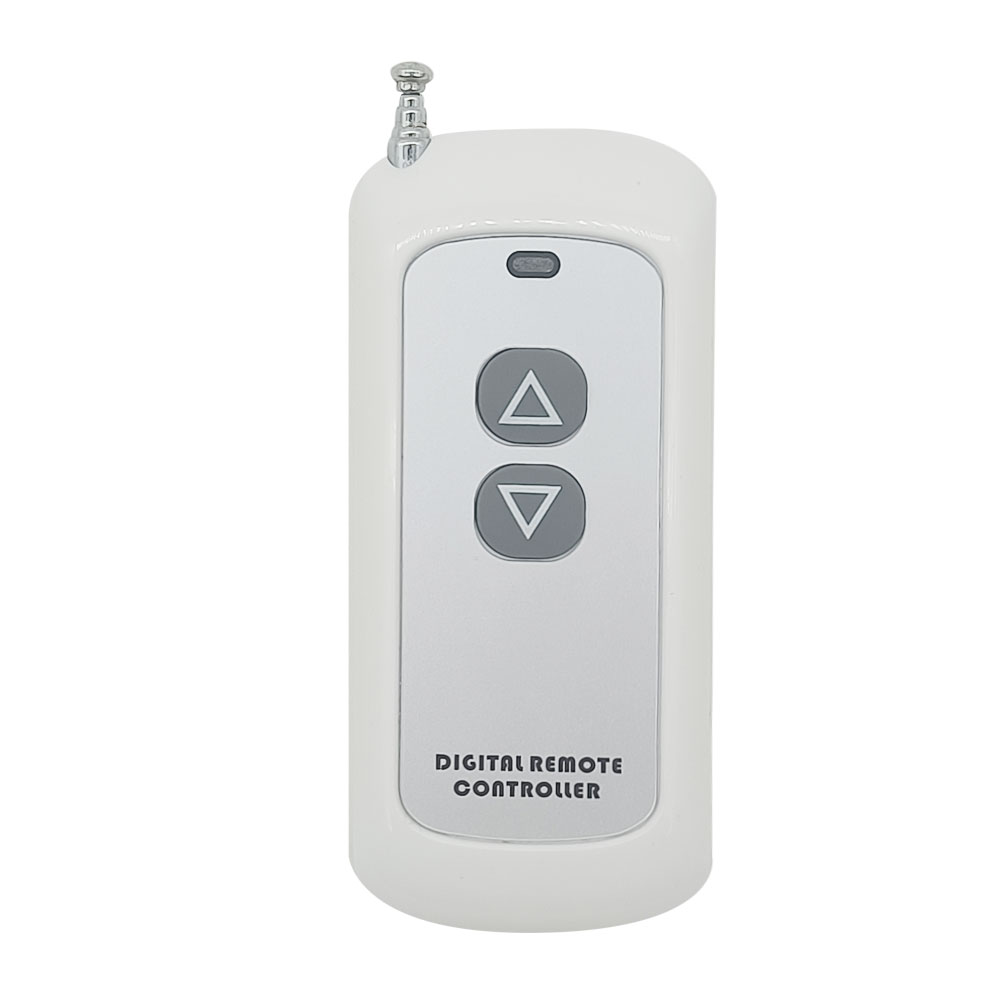

Matching Transmitters:
The receiver can work with different transmitters, such as model CG-2 (500M),
CG-3 (500M), C-2-2 (100M), CB-2 (1000M) or CB-3-2 (1000M) etc.
Working Range:
With a transmitter (such as CG-2) to form a complete set, the maximum working
distance can reach 500M in an open ground.
The maximum working distance is a theoretical data, it shall be operated in an
open ground, no barriers, no any interference. But in the practice, it will be
hindered by trees, walls or other constructions, and will be interfered by other
wireless signals. Therefore, the actual distance may not reach this maximum
working distance.
If you want to have a further working range, you can use a powerful transmitter,
such as CB-2 transmitter.
Usage (with the transmitter CG-2/CG-3):
The receiver can be used to control AC 220V pumps, motors and other equipments,
or AC 380V equipments by the 380V contactors, and it can’t directly connected to
the 380V equipments.
Notice: The receiver is relay output, not DC/AC power output. Initial state of
relay output terminals: Terminals NO and COM are Normally Open; Terminals NC and
COM are Normally Closed.
Wiring:

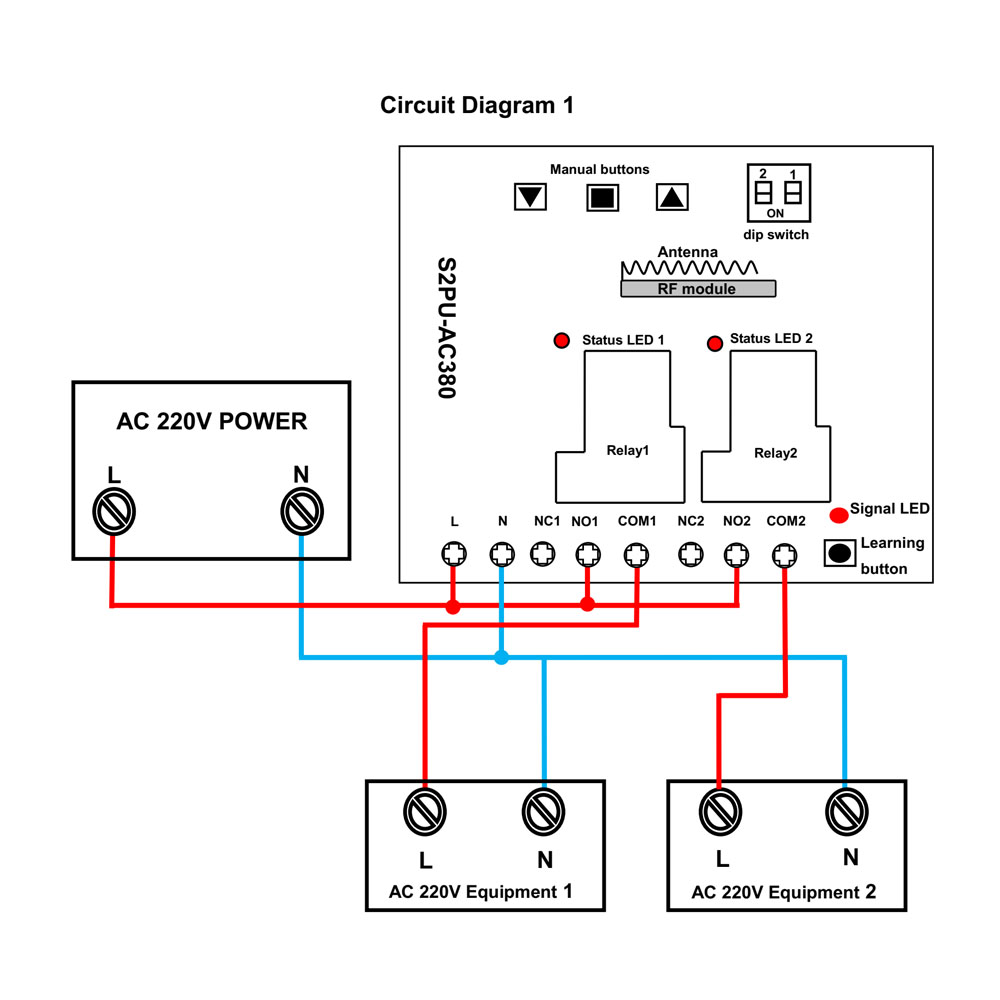

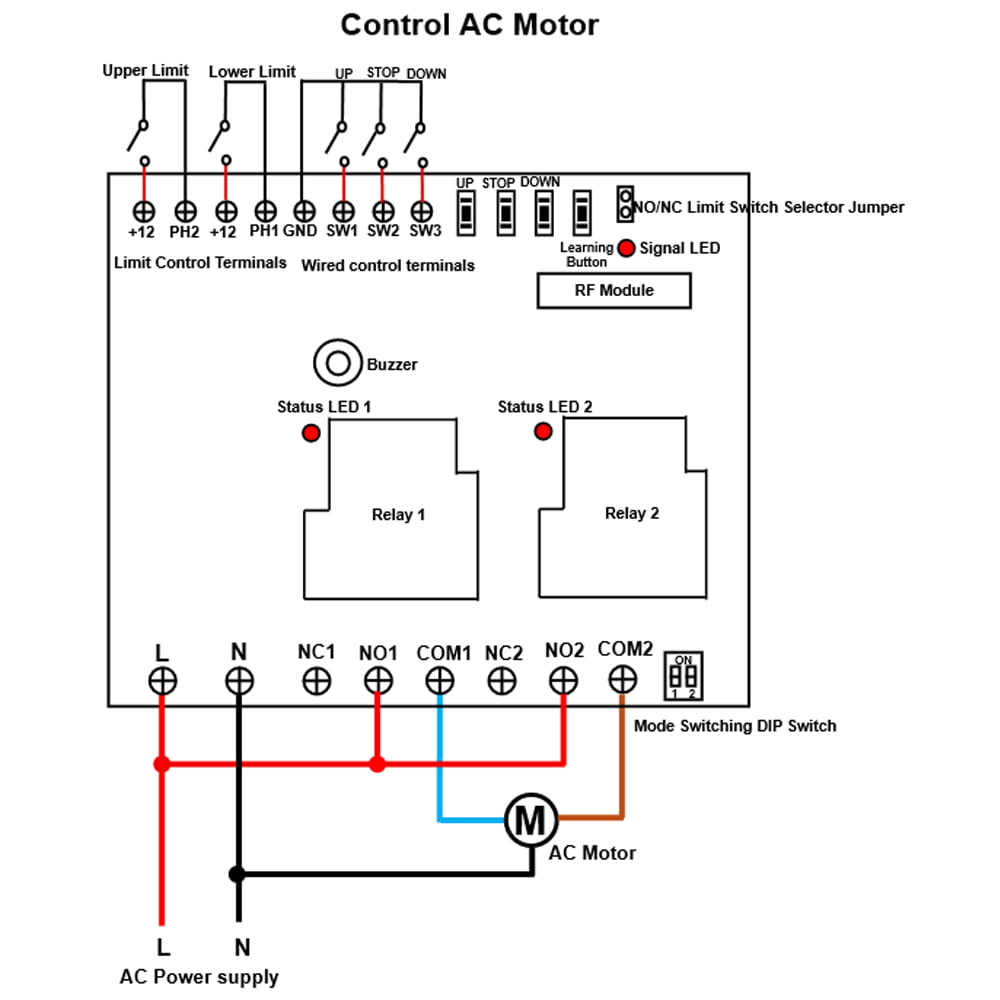

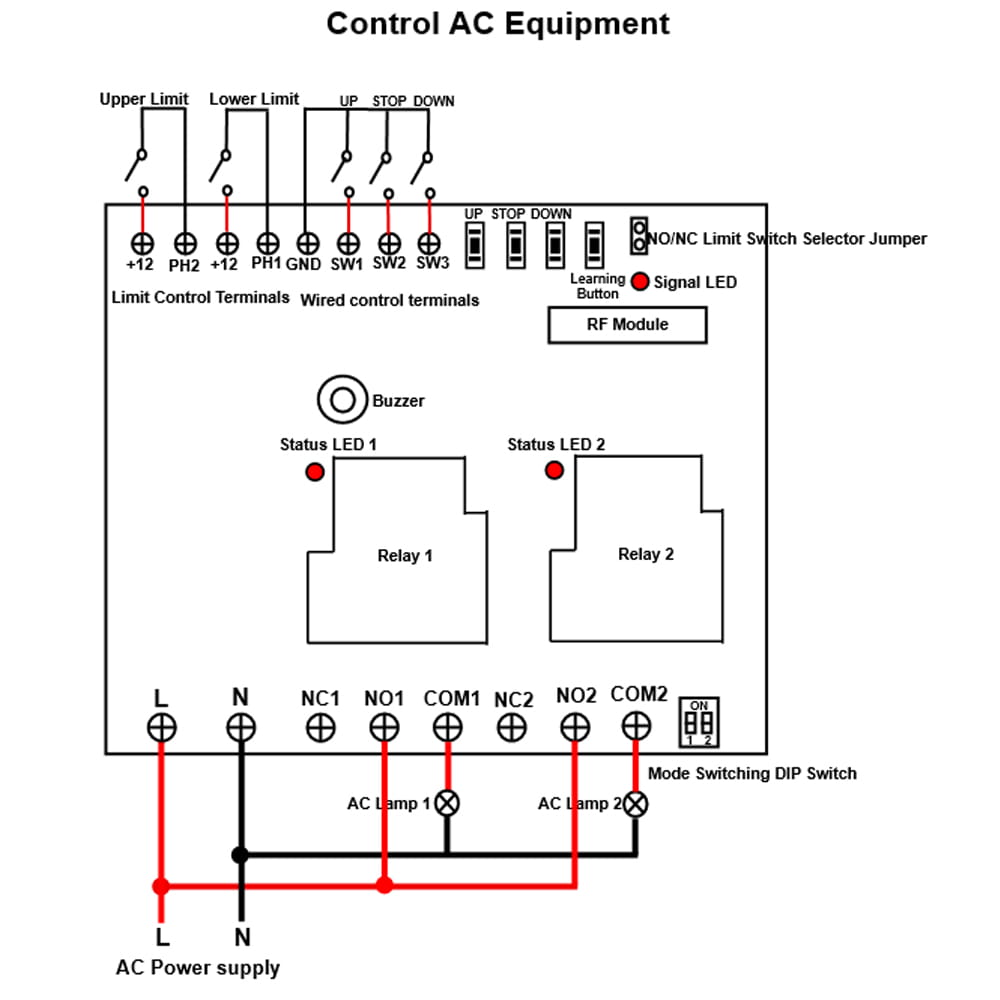

1) If you want to control the AC 220V equipment, you can connect the receiver,
the equipment and the AC power according following circuit diagram 1, then you
use the transmitter to control the equipment.

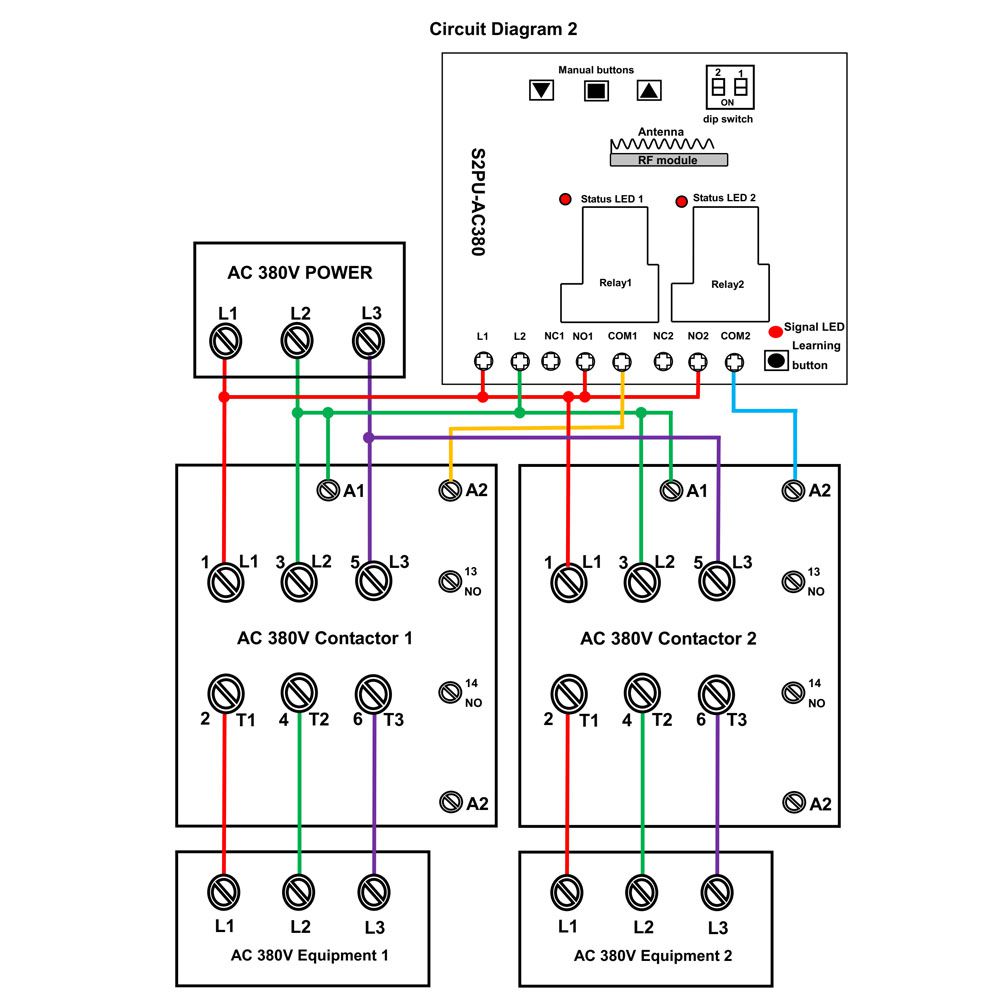

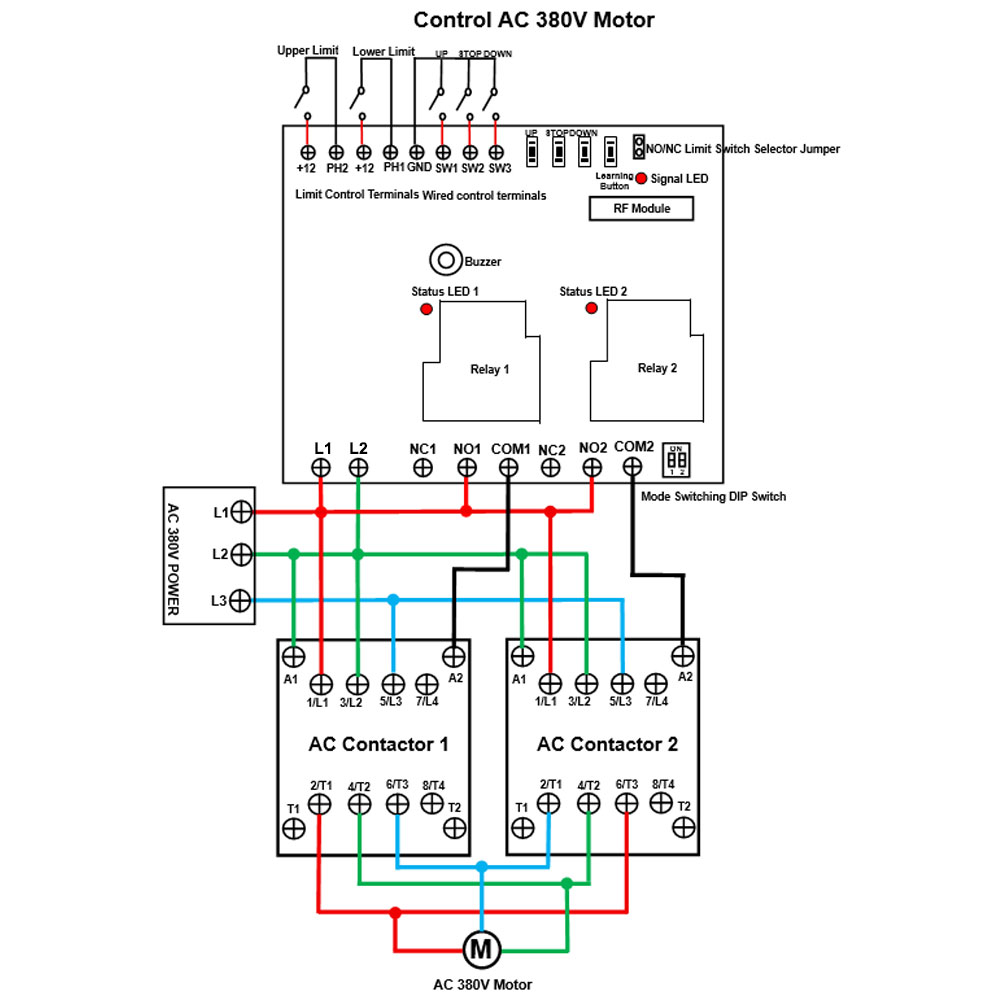

2) If you want to control the AC 380V equipment, you can connect the receiver,
the 380V contactor, the 380V equipment and the 380V power according following
circuit diagram 2, then you use the transmitter to control the AC 380V
equipment.
Setting different control modes:
We have set the receiver as Self-locking control mode before delivery. If you
want to use other control modes, do as following operation:
1) Setting Self-locking mode: Turn on the dip switch 2, and turn off the dip
switch 1.
Mode Self-locking (working with transmitter CG-2): Press -> On; Press again ->
Off.
Press button 1 of the transmitter: The relay 1 is activated, and the contactor 1
is connected, the equipment 1 works.
Press button 1 again: The relay 1 is deactivated, and the contactor 1 is
disconnected, the equipment 1 stops working.
Press button 2 of the transmitter: The relay 2 is activated, and the contactor 2
is connected, the equipment 2 works.
Press button 2 again: The relay 2 is deactivated, and the contactor 2 is
disconnected, the equipment 2 stops working.
2) Setting Momentary mode: Turn off the dip switch 1 and 2.
Mode Momentary (working with transmitter CG-2): Press and hold -> On; Release ->
Off.
Press and hold button 1 of the transmitter: The relay 1 is deactivated, and the
contactor 1 is connected, the equipment 1 works.
Release button 1: The relay 1 is deactivated, and the contactor 1 is
disconnected, the equipment 1 stops working.
Press and hold button 2 of the transmitter: The relay 2 is activated, and the
contactor 2 is connected, the equipment 2 works.
Release button 2: The relay 2 is deactivated, and the contactor 2 is
disconnected, the equipment 2 stops working.
3) Setting Interlocking mode: Turn on the dip switch 1, and turn off the dip
switch 2.
Mode Interlocking (working with transmitter CG-3 or CB-3-2): Press -> On; Press
another button -> Off.
Press button
▼ of the transmitter: The relay 1 is deactivated, and the contactor
1 is connected, the equipment 1 works.
Press button
■ of the transmitter: The relay 1 is deactivated, and the contactor
1 is disconnected, the equipment 1 stops working.
Press button
▲ of the transmitter: The relay 2 is activated, and the contactor 2
is connected, the equipment 2 works.
Press button
■ of the transmitter: The relay 2 is deactivated, and the contactor
2 is disconnected, the equipment 2 stops working.
4) Setting Mixed mode (Momentary + Self-locking): Turn on the dip switch 1 and
2.
Mode Momentary for channel 1 (working with transmitter CG-2): Press and hold ->
On; Release -> Off.
Press and hold button 1 of the transmitter: The relay 1 is deactivated, and the
contactor 1 is connected, the equipment 1 works.
Release button 1: The relay 1 is deactivated, and the contactor 1 is
disconnected, the equipment 1 stops working.
Mode Self-locking for channel 2 (working with transmitter CG-2): Press -> On;
Press again -> Off.
Press button 2 of the transmitter: The relay 2 is activated, and the contactor 2
is connected, the equipment 2 works.
Press button 2 again: The relay 2 is deactivated, and the contactor 2 is
disconnected, the equipment 2 stops working.

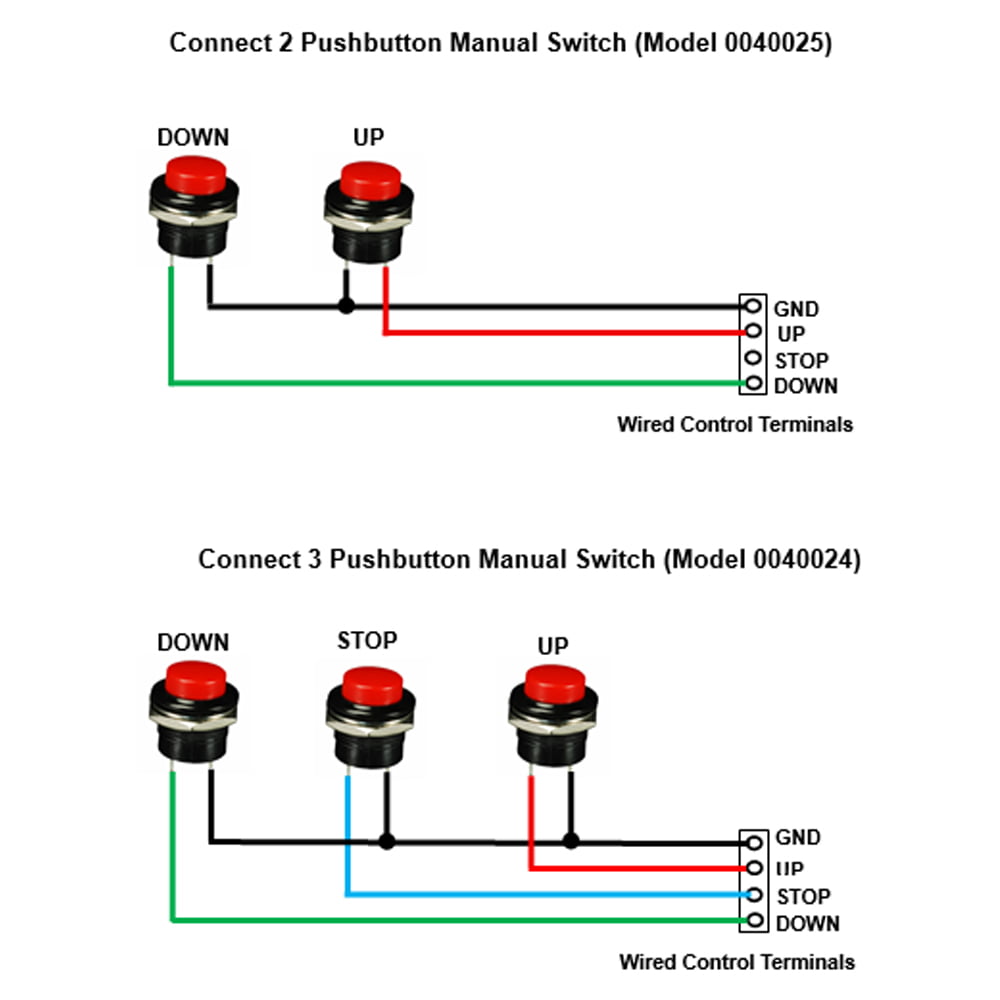

Manual buttons:
Press manual button
▼ of the receiver: The relay 1 is deactivated, and the
contactor 1 is connected, the equipment 1 works.
Press manual button
■ of the receiver: The relay 1 is deactivated, and the
contactor 1 is disconnected, the equipment 1 stops working.
Press manual button
▲ of the receiver: The relay 2 is activated, and the
contactor 2 is connected, the equipment 2 works.
Press manual button
■ of the receiver:
The relay 2 is deactivated, and the contactor 2 is disconnected, the equipment 2
stops working.
