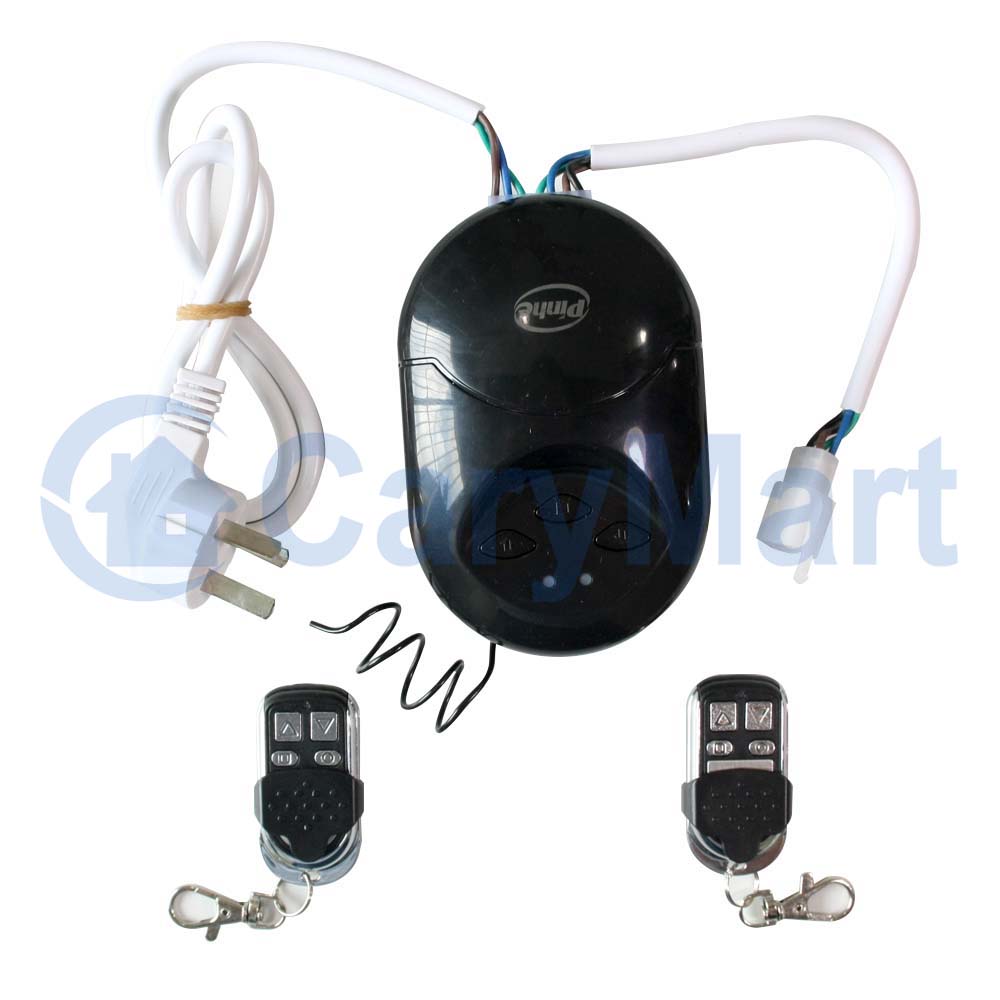

Package Include:
1 X

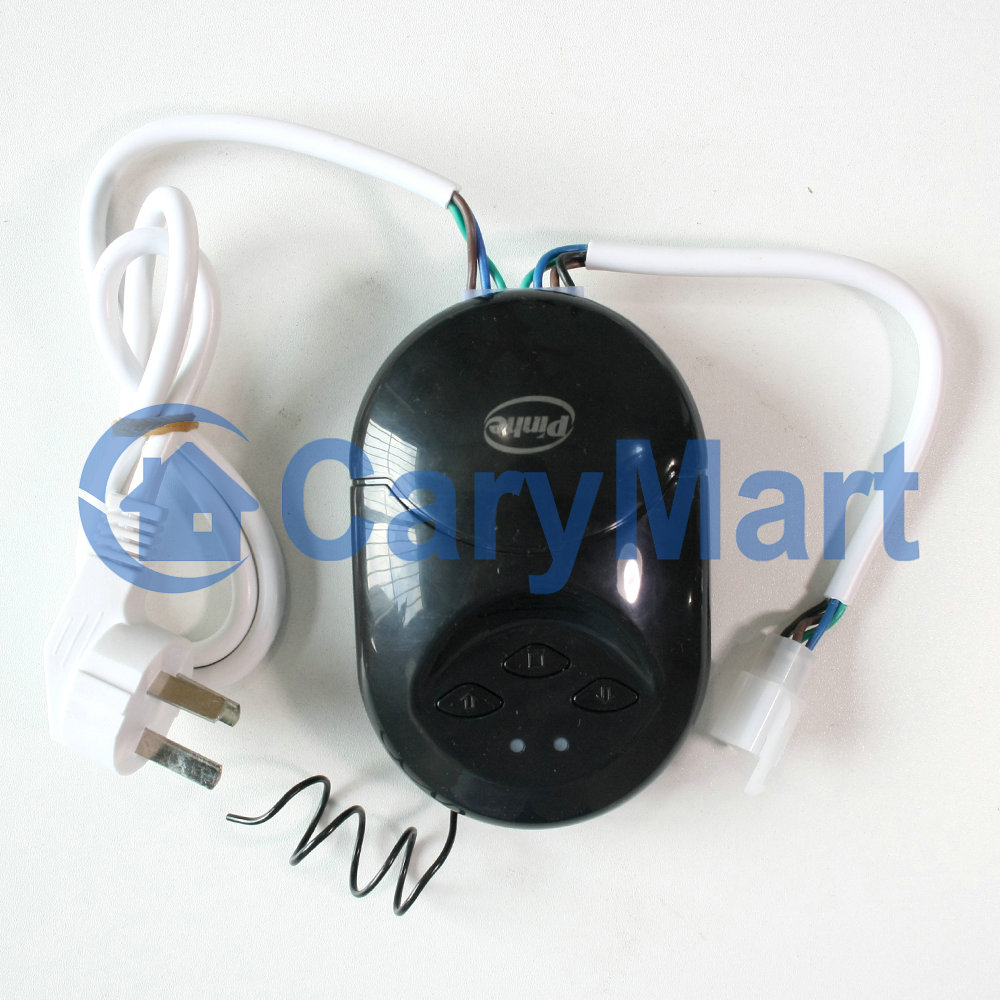

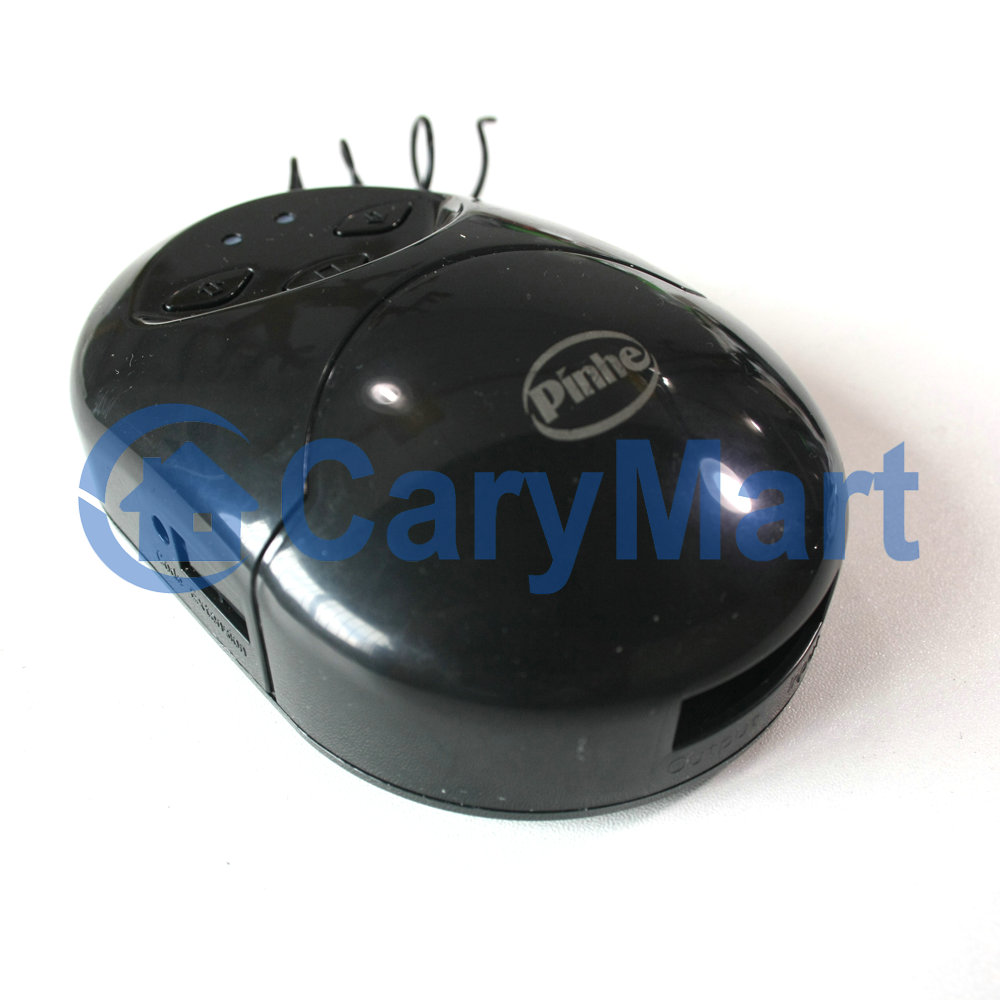

Receiver: S1FG-AC220
2 X

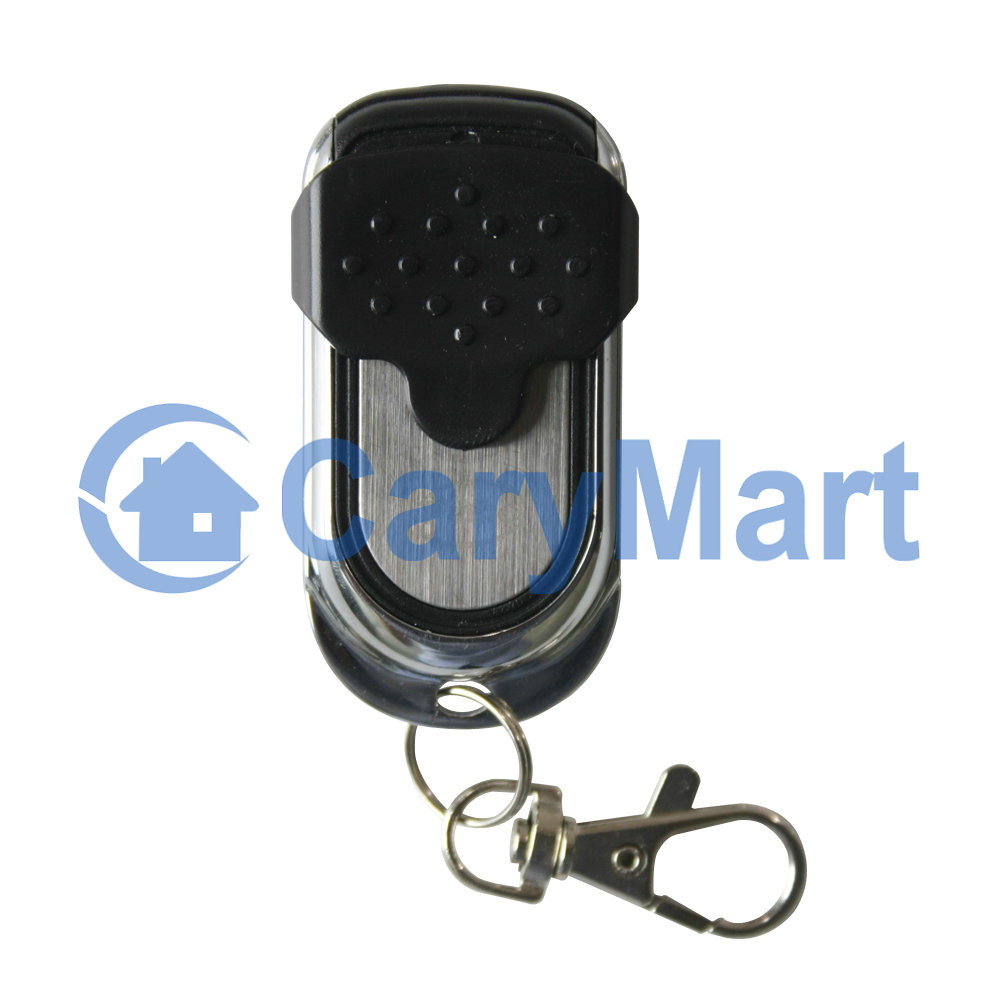

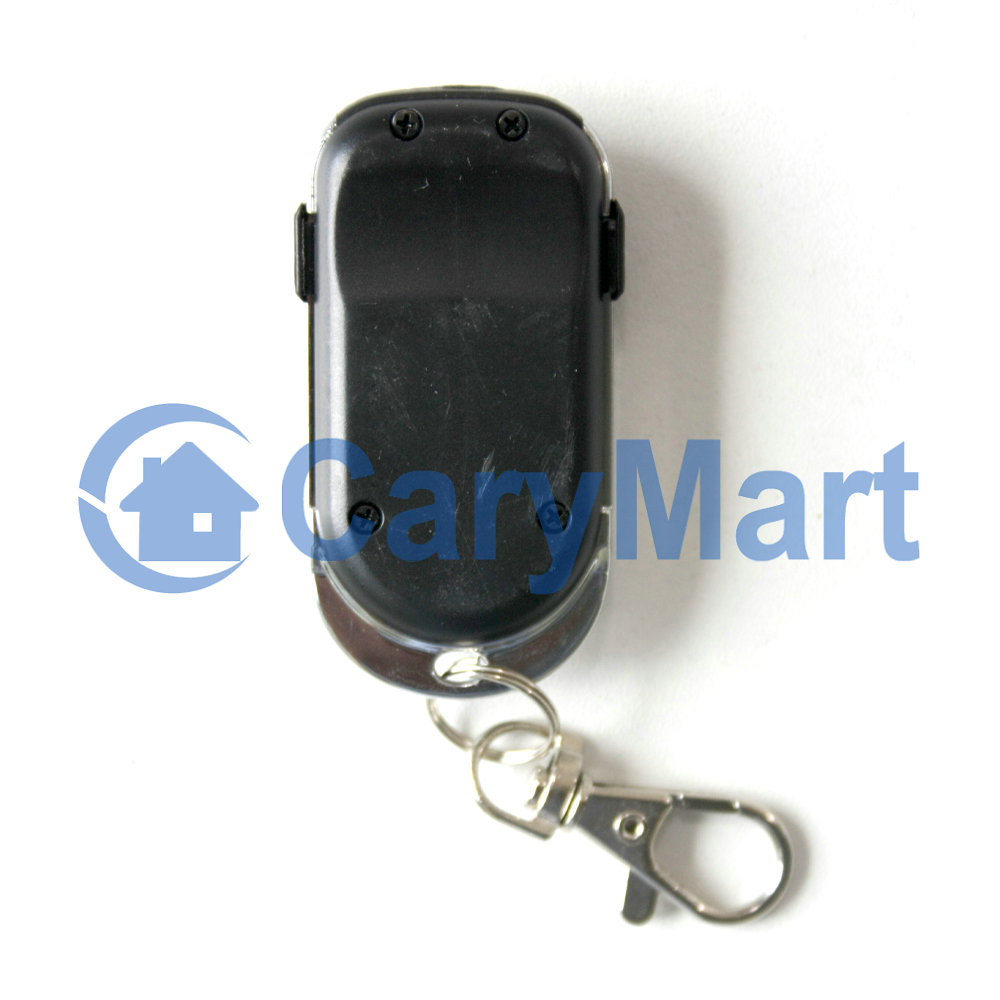

Transmitter: XB-4L
1 X User
manual Features:
Application: It can be used in rolling blinds, rolling doors,
projection screens, awnings, pumps, winches, conveyors or other appliances and
equipments with AC tubular motors, it can remote
control AC tubular motor to rotate in the positive or reversal direction.
Wireless control, easy
to install.
You can rotate a tubular
motor in the positive or reversal direction with the transmitter (remote
control) from any place within a reliable distance.
The RF wireless signal
can pass through walls, floors and doors.
With
reverse power protection and over current protection.
One/several
transmitters can control one/several receivers simultaneously.
You can use
two or more units in the same place.
Receiver Parameters:
Model No.: S1FG-AC220
Power Supply
(Operating Voltage): AC 220~240V
Output: AC 220V / 2A
Working
Frequency: 433MHz
Automatic
stop time: 120 seconds, motor will
stop automatically after
120 seconds
of rotation.
Channel: 1CH,
can work with a AC tubular motor
Static Current: ≤6mA
Maximum
Working Current: 2A
Case
size: 130mm x 85mm x 40mm
Work with learning code transmitters. Transmitter:
Model
No.: 0021113 (XB-4L)
With
Sliding Cover: Slide up when it doesn’t work (to protect the button). Slide
down the button will appear.
Channel/Button:
4
Button
Symbol:
▲,
▼,
■,
●
Operating
Voltage: 12V (1
x 23A -12V battery, can be used
for 12 months)
Operating
Frequency: 433Mhz
Encoding
Chip: EV1527
Encoding
Type: Learning code (up to 1 million codes, reducing code collision and
unauthorized code scanning possibilities.)
Transmitting
Distance: 50m / 150ft (theoretically)
Operating
Temperature: -20 ° C to +70 ° C
Unit
Size: 60mm x 32mm x 15mm Note:
If you
want more transmitters, you can choose the cloner transmitters, such as model
0021112 (XB-4C). If you use the transmitter XB-4C to copy your transmitter XB-4L, then the transmitter XB-4C also can work with your
receiver. Working Range:
With a transmitter (such as XB-4L) to form a complete set,
the maximum working distance can reach 50Min an
open ground.
The maximum working
distance is a theoretical data, it shall be operated in an open ground, no
barriers, no any interference. But in the practice, it will be hindered by
trees, walls or other constructions, and will be interfered by other wireless
signals. Therefore, the actual distance may not reach this
maximum working distance.
If you
want to have a further working range, you can install an external antenna to
the receiver, and you also can use a powerful
transmitter, such as CP-4L or CB-4L transmitters. Usage (with transmitter XB-4L): Wiring:
If you want to control a AC 220V tubular motor, do as following:

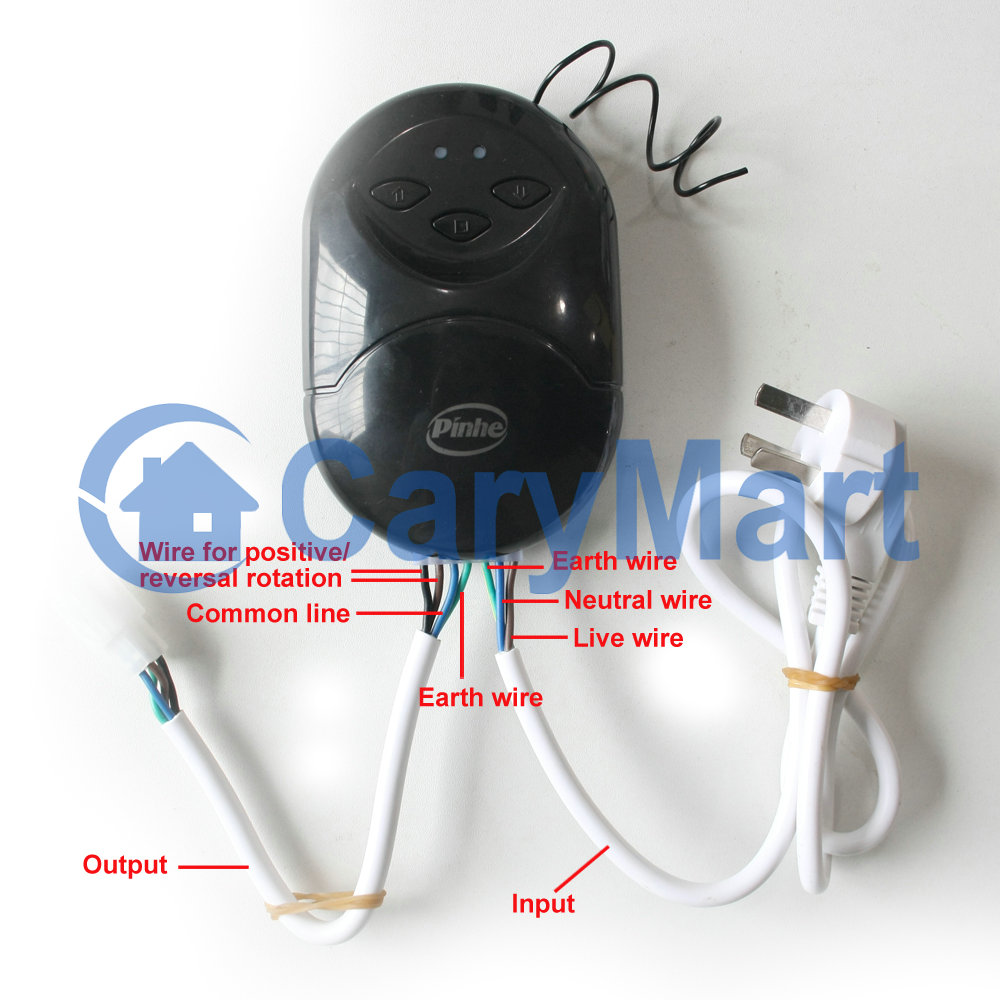

1) Connect the
plug of tubular motor to the socket of receiver.
2) Connect
the plug of tubular motor to AC power

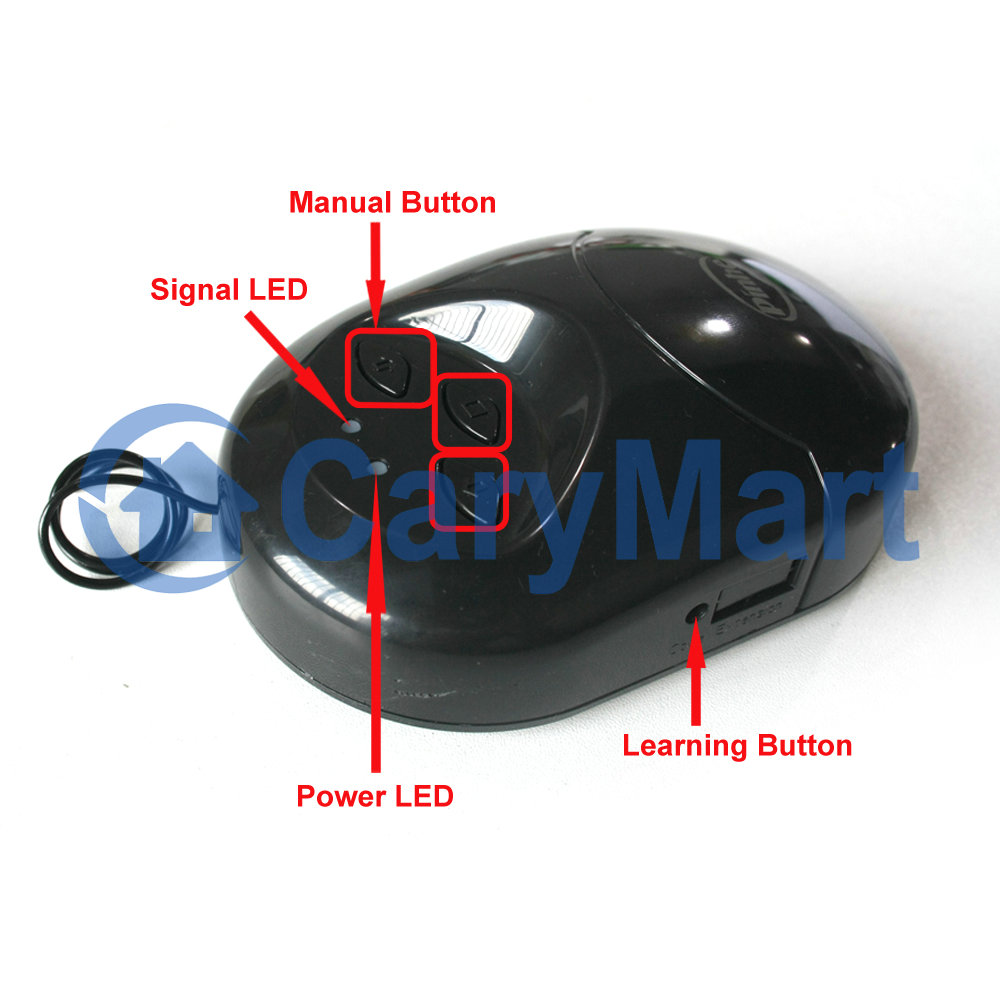

supply. Button of receiver:
Press
button
▲ of
receiver: Motor rotates in positive direction.
Press
button
▼ of
receiver: Motor rotates in reversal direction.
Press
button

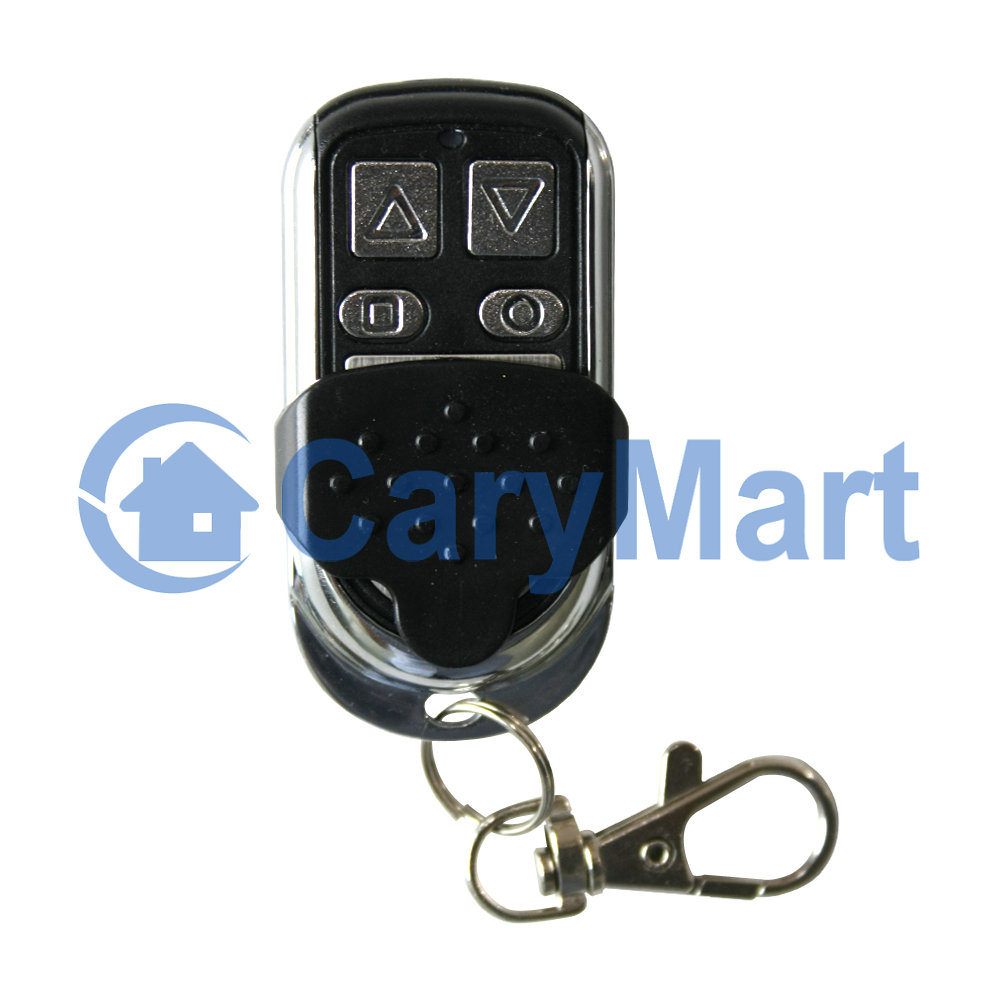

■ of receiver: Motor stops & Unlock function. Button of transmitter:
Press button
▲ of
transmitter: Motor rotates in positive direction.
Press
button
▼ of
transmitter: Motor rotates in reversal direction.
Press
button
■ of transmitter: Motor stops & Unlock function.
Press
button
● of transmitter: Lock the system. Lock the system:
Press the buttons
●
of
transmitter to lock
the system.
At this time, buttons
▲
or
▼ can
not operate the motor.
Press the
button
■
of
receiver or transmitter to unlock the system. Chang motor rotation direction:
When the motor is stopping, press and hold button
●
of
transmitter for 8 seconds, red signal LED flashes 3 times then turns off, it
means the setting is successful. Automatic stop function:
Automatic
stop time is 120 seconds. When you operate the motor to rotate, motor will
stop automatically after
120 seconds
of rotation.
