Application:

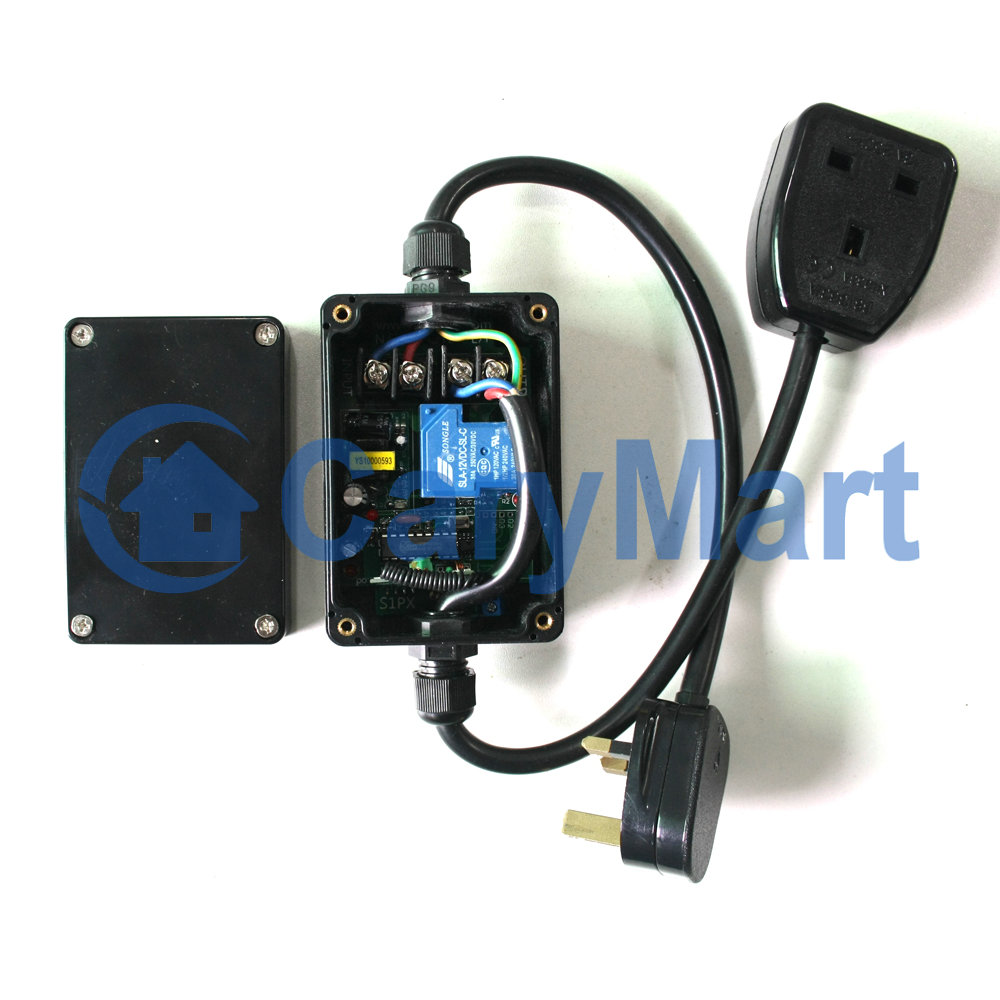

This is a wireless remote switch with IP44 rated British standards plug and
socket. You can use it to easily convert an ordinary AC power outlet into a
wireless remote control switch. It can be used for remote control of lights,
pumps, fans, motors, heaters, electric solenoid valves, alarms, and other AC
equipment.
Feature:
Wireless control, easy to install.
Universal input: Support 230V AC (220V~240V) used in Germany, UK, France,
etc.
AC Power Output: It can control AC equipment with voltage AC 220V, 230V.
High Power: It can work at maximum current 13A.
The transmitter / remote can control the receiver from any place within a
reliable working distance.
The wireless RF signal from the transmitter can pass through walls, floors,
doors, or windows, but it will lose some operating range.
The wireless switch has reverse voltage protection and overcurrent
protection.
The wireless switch can only be triggered by paired transmitters.
One or more transmitters / remotes can control one or several wireless
switches simultaneously.
Two or more wireless switches may be used in the same area.
Wireless Switch Parameters:
Model: S1PX-UK-C230

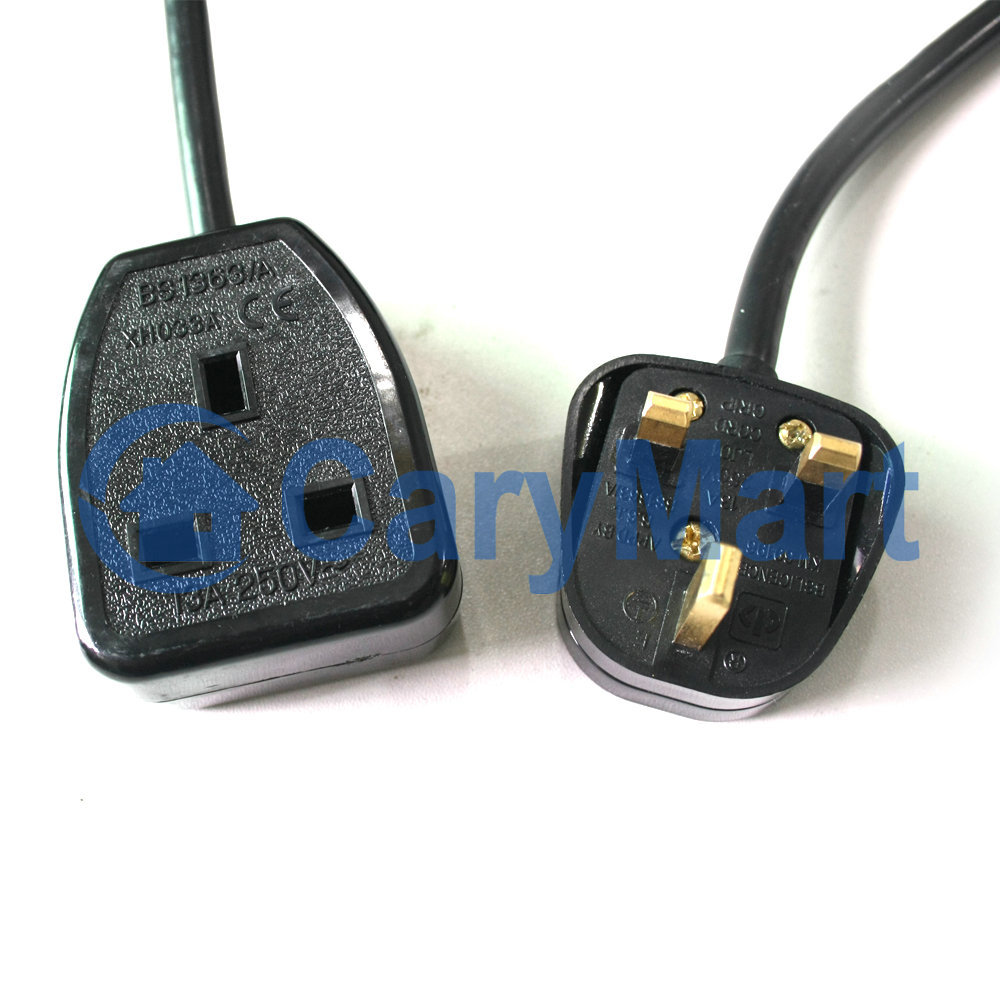

With British Standards Plug and Socket.
IP rating of plug and socket: IP44
Cable standard: three cores, 1.5 square millimeters
Input / Output: AC100~120V (110V/120V)
Working Frequency: 433.92MHz
Static Current: ≤6mA
Maximum Load Current of Relay: 13A / channel
Suitable Wires for Connecting Terminals: 22-12 AWG
3 Selectable Working Modes: Self-locking, Momentary, Interlocking
Operating Temperature: -20 °C ~ +70 °C
PCB size: 90 x 59 x 18 mm (3.5 x 2.3 x 0.7 inches)

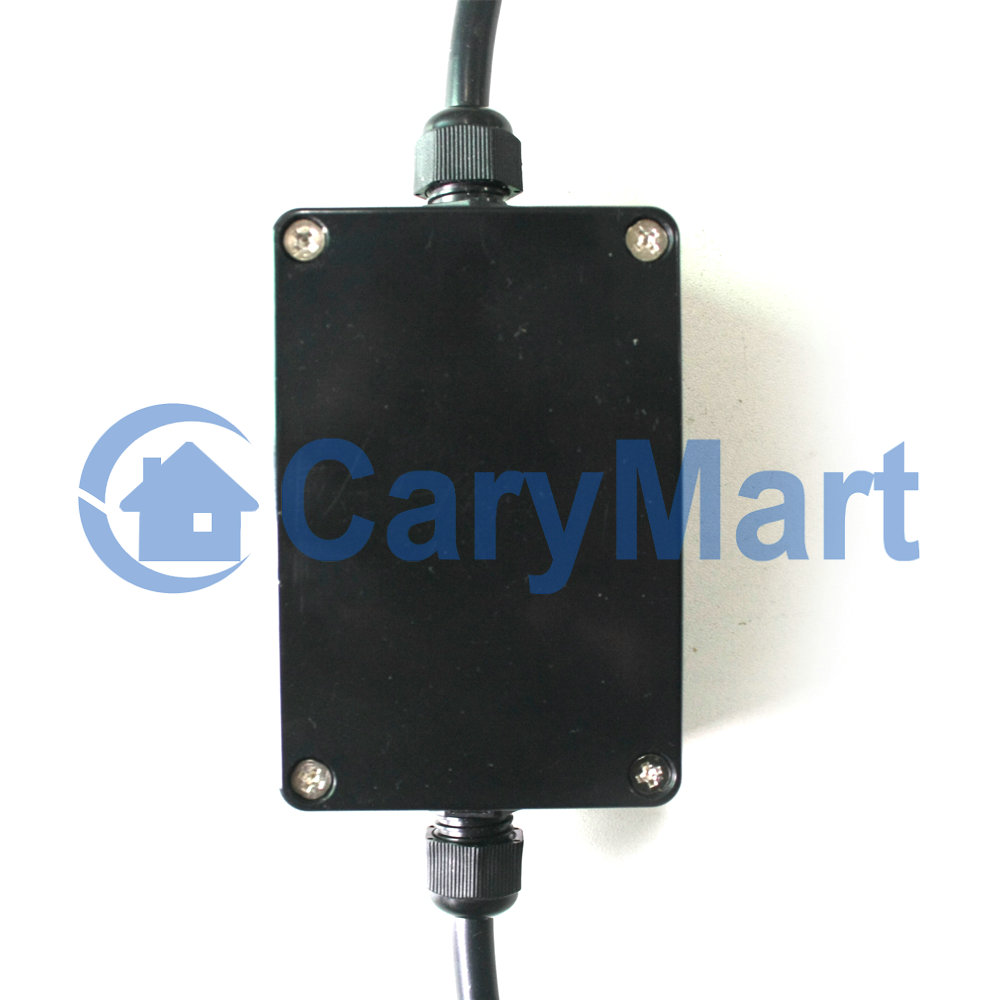

Case size: 138 x 68 x 50 mm (5.4 x 2.7 x 2.0 inches)
IP rating of waterproof case: IP65
Matching Transmitters:
This wireless switch can work with different transmitters, such as model
C-1
/
C-2
(100M),
CWB-1
/
CWB-2
(50M, waterproof),
CP-1
/
CP-2
(500M), or
CB-1
/
CB-2
(1000M) etc.
1) When you set wireless switch in self-locking or momentary mode, it should
work with single button transmitter, such as model C-1 (100M), CWB-1 (50M,
waterproof), CP-1 (500M), or CB-1 (1000M) etc.
2) When you set wireless switch in interlocking mode, it should work with
two buttons transmitter, such as model C-2 (100M), CWB-2 (50M, waterproof),
CP-2 (500M), or CB-2 (1000M) etc.
Working Range:
With a transmitter (such as CWB-1/CWB-2) to form a complete set, the maximum
working distance may reach 150 feet or 50 meters in an open area.
The maximum working distance is a theoretical data, it shall be operated in
an open ground, no barriers, no interference. But in the practice, it will
be hindered by trees, walls, or other construction, and will be interfered
by other wireless signals. Therefore, the actual working distance may not
reach this maximum distance.
If you want to have a further working range, you can install an external
antenna to wireless switch, and you also can use a powerful transmitter,
such as CB series transmitters.
Usage:
Wireless switch can be used to control AC 220~240V (220V/230V) equipment.
Wiring:

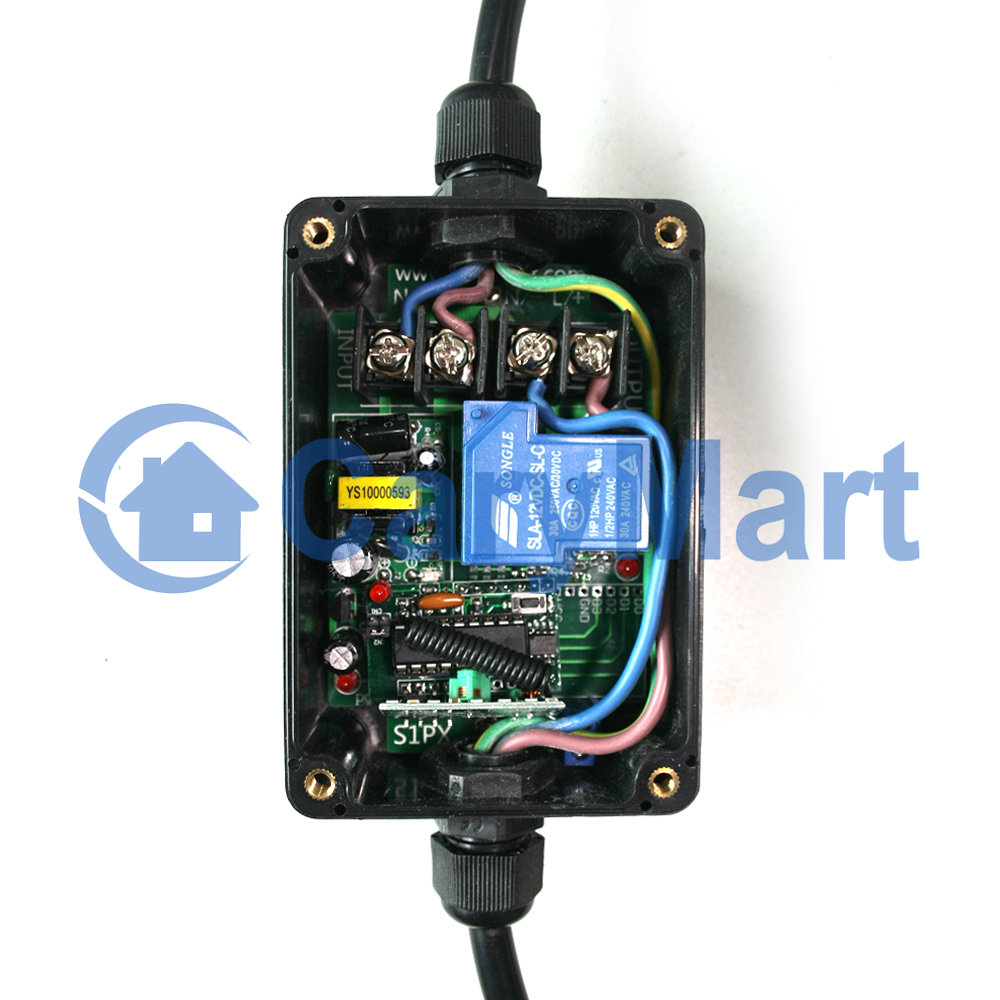

If you want to control an AC 230V exhaust fan, do as following:
Plug the exhaust fan into the socket of this switch, and connect the plug of
this switch to the AC 230V power supply.
Setting different working modes:
The wireless switch will be set in Interlocking mode before leaving the
factory, if you want to use another mode, please follow the following steps.
1) Setting Momentary mode: Press the learning button on the RF module of the
wireless switch 2 times, signal LED continuously flashes 2 times and then
goes off.
The operation of Momentary mode with the transmitter CWB-1:
Press and hold the button on the transmitter: The wireless switch output AC
power, and the exhaust fan works.
Release the button: The wireless switch stop outputting, and the exhaust fan
stops.
2) Setting Self-locking mode: Press the learning button on the RF module of
the wireless switch 3 times, signal LED continuously flashes 3 times and
then goes off.
The operation of Self-locking mode with the transmitter CWB-1:
Press the button on the transmitter: The wireless switch output AC power,
and the exhaust fan works.
Press the button again: The wireless switch stop outputting, and the exhaust
fan stops.
3) Setting Interlocking mode: Press the learning button on the RF module of
the wireless switch 4 times, signal LED continuously flashes 4 times and
then goes off.
The operation of Interlocking mode with the transmitter CWB-2:
Press the button A on the transmitter: The wireless switch output AC power,
and the exhaust fan works.
Press the button B on the transmitter: The wireless switch stop outputting,
and the exhaust fan stops.
How to pair the transmitter to the wireless switch:
Notice: We have paired the transmitter to the wireless switch before leaving
the factory.

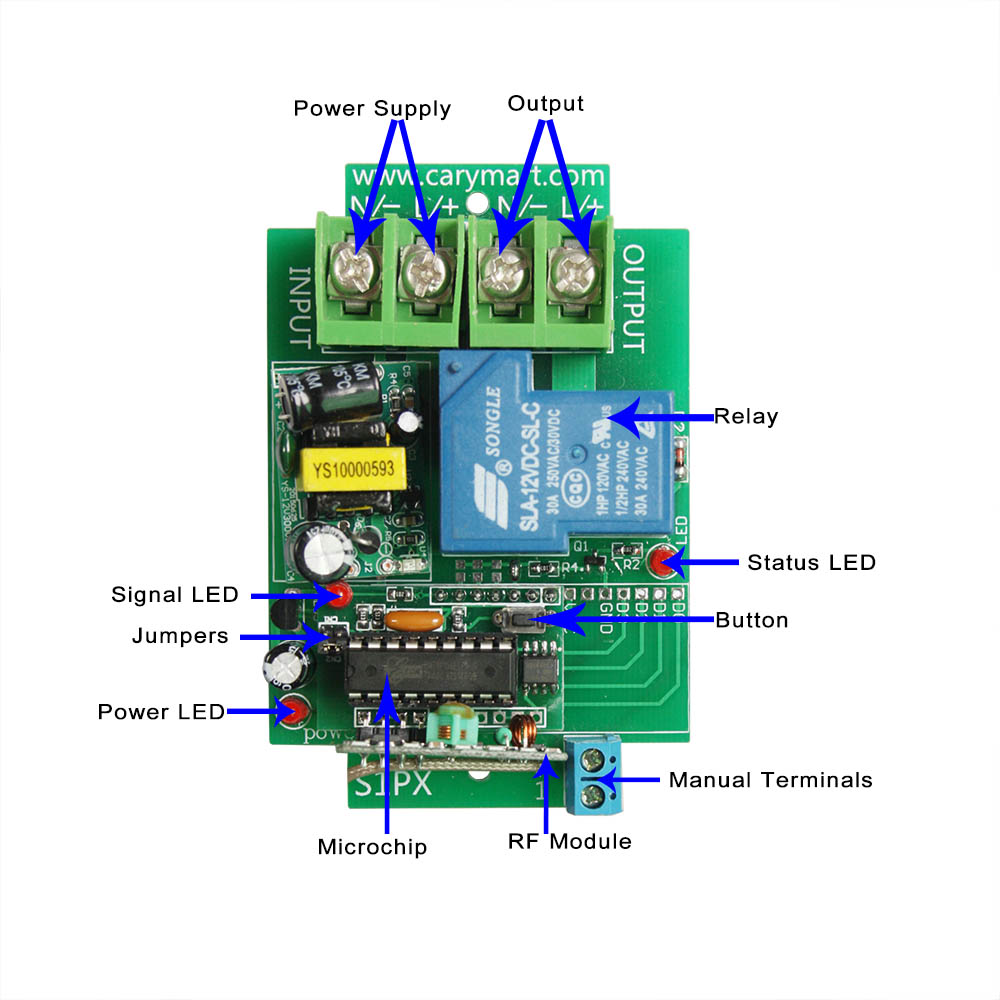

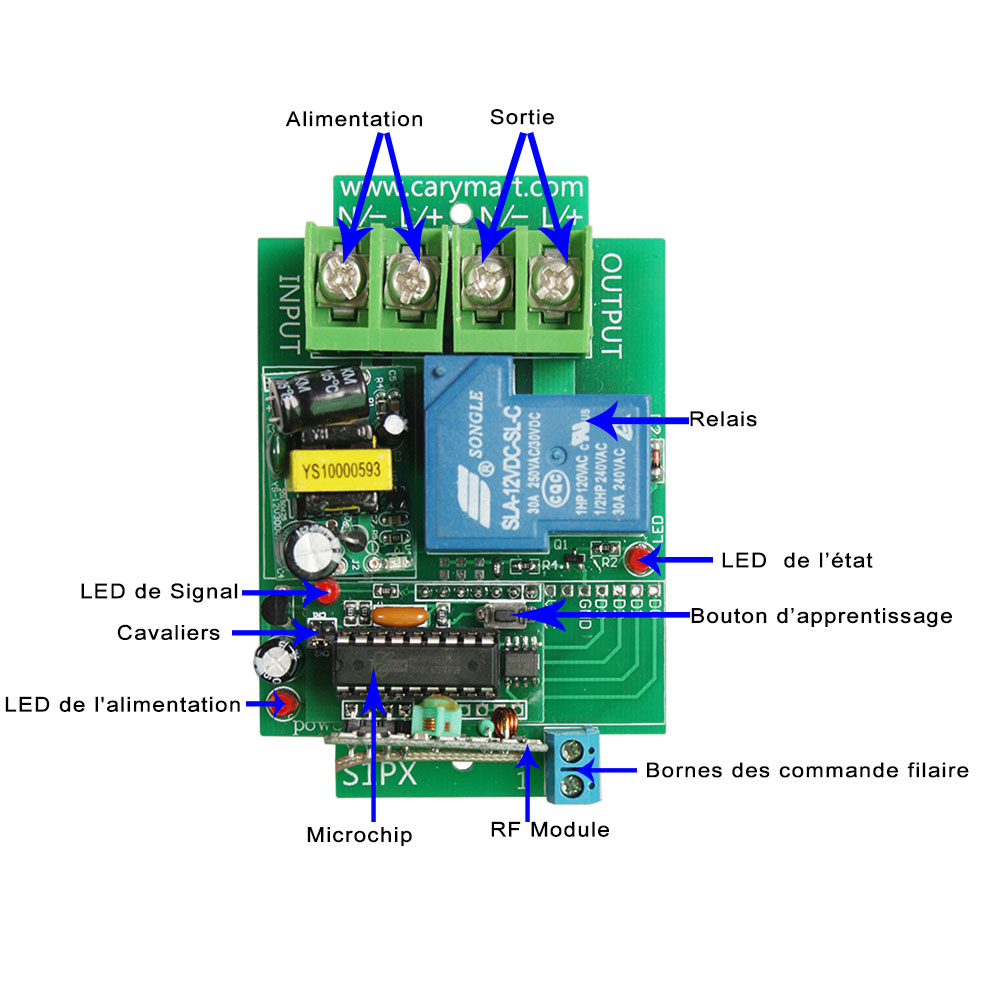

1) Press the learning button once on the RF module of the wireless switch,
signal LED on the RF module of the wireless switch flashes one time and then
stays on, this indicates that the wireless switch enters the learning
status.
2) Pair the CWB-1 transmitter: Press the button on transmitter, if the
signal LED flashes one time, this indicates that the pairing is successful.
Pair the CWB-2 transmitter: Press button A on transmitter, if the signal LED
flashes one time, this indicates that the pairing with button A is
successful. Then press button B on transmitter, if the signal LED flashes
one time, this indicates that the pairing with button B is successful.
3) Press the learning button on the RF module of the wireless switch again
for 1-2 seconds, signal LED turns off, this indicates that the wireless
switch exits the learning status.
4) The wireless switch can learn several transmitters with different codes.
How to delete all transmitters codes stored in the wireless switch:
Notice: We have paired the transmitter to the wireless switch, if you don’t
want the wireless switch to work with the transmitter, you can delete all
transmitters codes stored in the wireless switch.
Operation: Press the learning button on the RF module of the wireless switch
10 times and then release the learning button, signal LED flashes 10 times
quickly and then goes off, this indicates that all stored codes have been
deleted successfully.
Package Include:
1 x Receiver with British Standards Plug & Socket: S1PX-UK-AC230
1 x User manual
