Package Include:

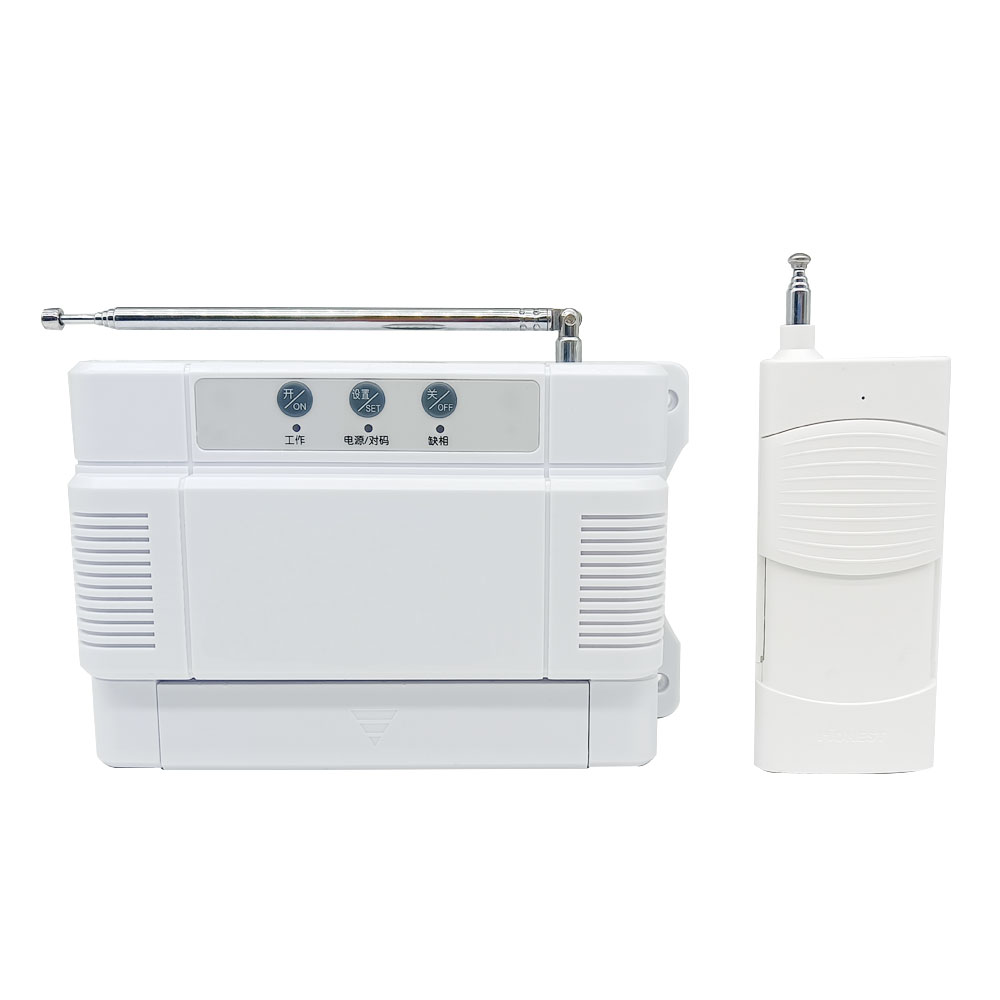

1 x Receiver: S1X1-AC380-ANT3
1 x Transmitter: CP-2-2
1 x User manual
Application:
This receiver is a wireless controller for three-phase 380V equipment, it
and the transmitter form a wireless transmitter receiver system. Suitable
for high-power equipment using three-phase 380V power supply, such as
agricultural irrigation, greenhouse planting, industrial control equipment,
animal husbandry, construction sites, fishpond oxygenation, water pumps, air
blowers, air compressors, motors, car washing machines, industrial lighting,
etc.
Feature:
Wireless control, easy to install.
Work on 380V AC power supply, it can be used to directly control AC 380V
equipment without going through additional contactor.
Built-in 100A high power relay.
It can directly work with maximum 15KW high power load.
With external telescopic antenna, the receiver have a farther working range.
With three manual buttons, you can control the equipment by manual buttons.
The transmitter / remote can control the receiver from any place within a
reliable working distance.
Wireless RF signal from the transmitter can pass through walls, floors,
doors, or windows, but it will lose some operating range.
With lack-phase protection, the power supply of the equipment will be cut
off quickly when the phase is lost.
The receiver can only be triggered by paired transmitters.
One or more transmitters / remotes can control one or several receivers
simultaneously.
Two or more receivers may be used in the same area.

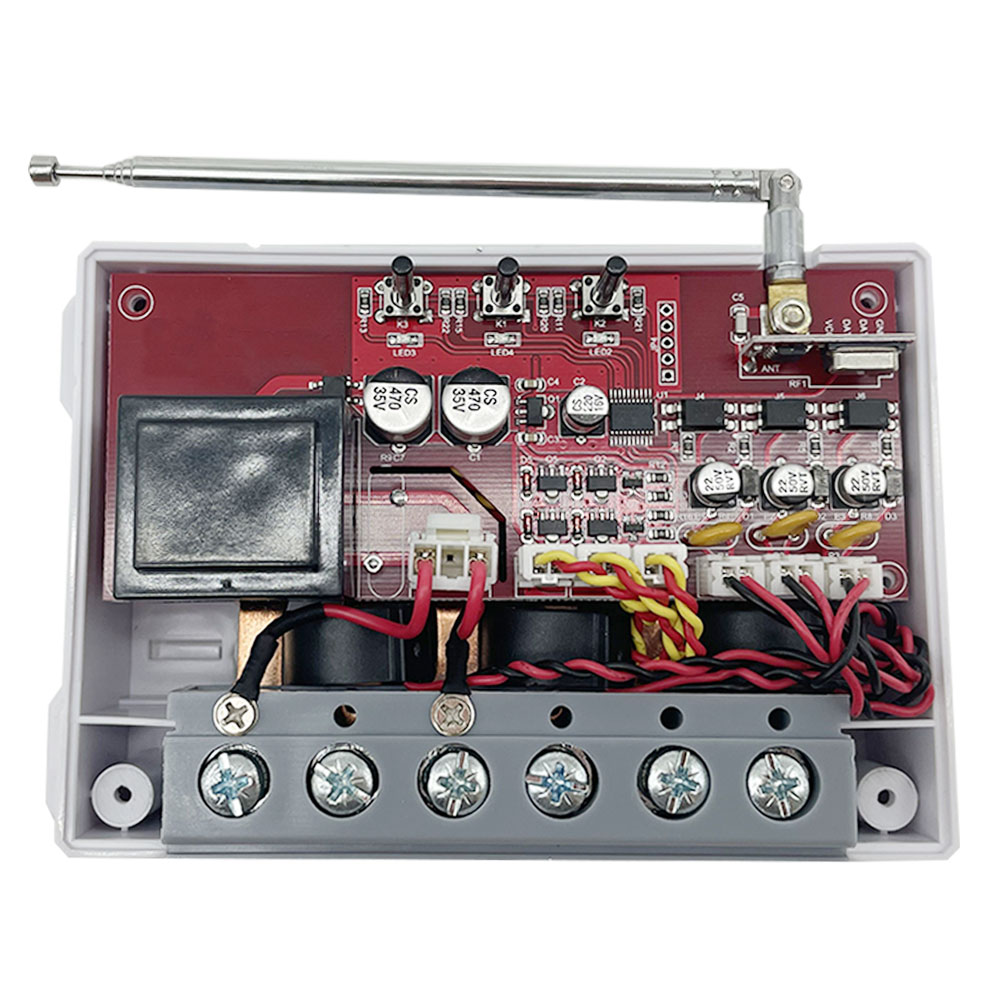

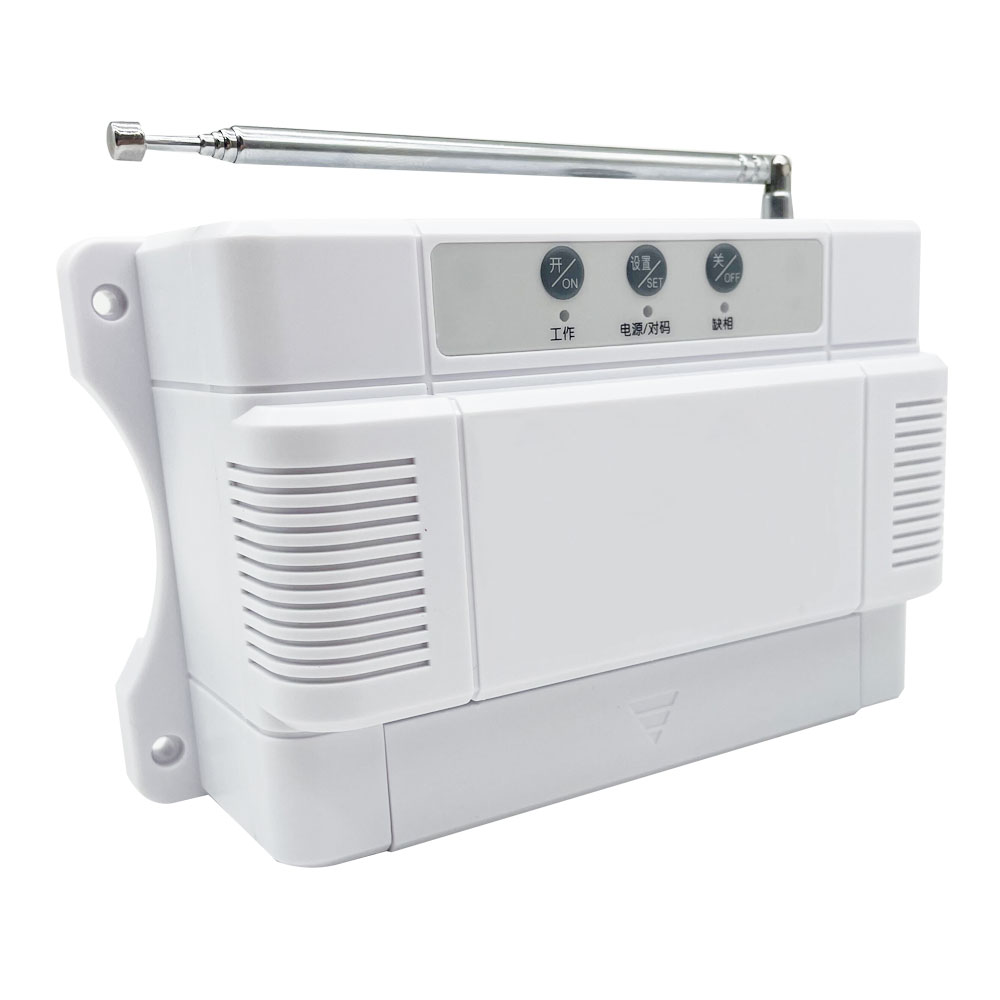

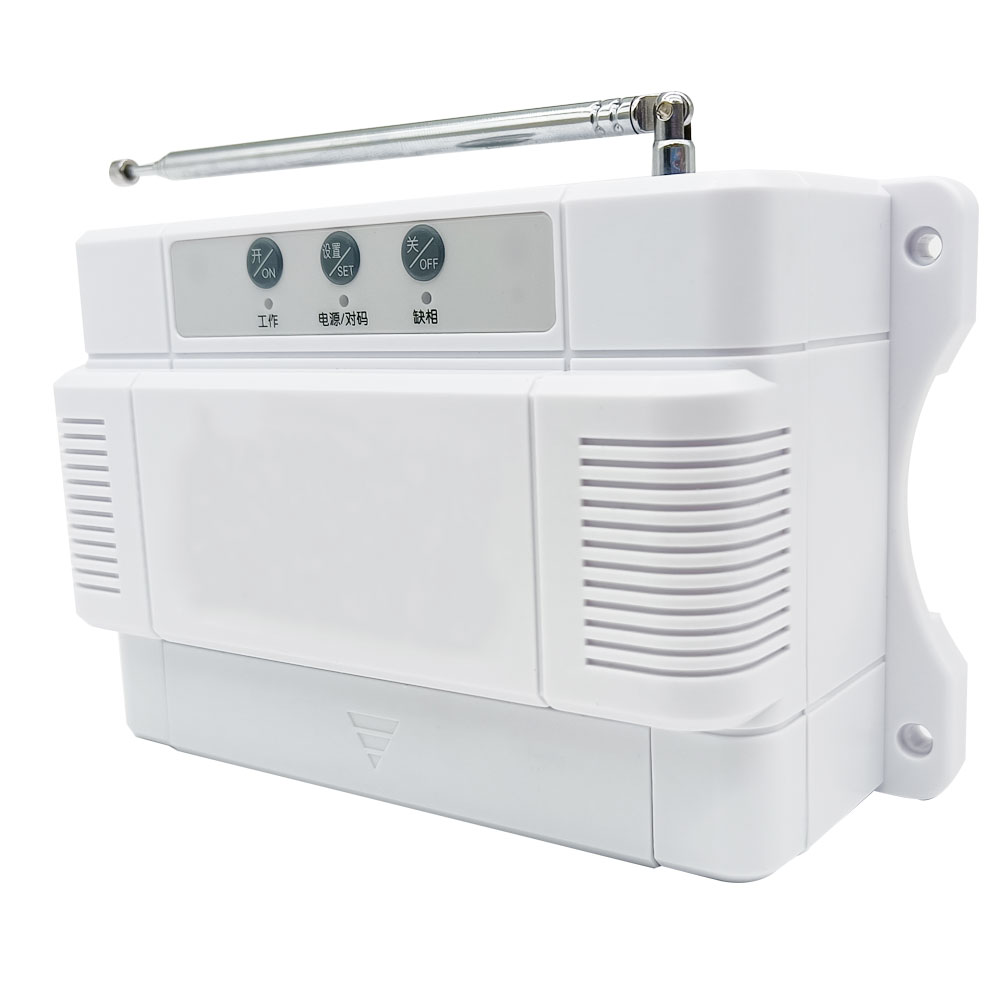

Receiver Parameters:
Model: S1X1-AC380-ANT3
Power Supply (Operating Voltage): AC 380V
Output Voltage: AC 380V
Wire range for the terminals: 14-6 AWG
Working Frequency: 433.92MHz / 315MHz
Control Modes: ON/OFF
Static Current: ≤6mA
Maximum Continuous Load Current: 40 A
Maximum Instantaneous Load Current: 100 A
Maximum Load Power: 15 KW
Operating Temperature: -20 ° C to +70 ° C
Case size: 150 x 95 x 60 mm (5.9 x 3.7 x 2.4 inches)
Matching Transmitters:
The receiver can work with different transmitters, such as model
C-2
(100M),
CWB-2
(50M, waterproof),
CP-2
/
CP-2-2 (500M), or
CB-2
(1000M) etc.
Working Range:
This receiver and different transmitters form a complete set, which can
achieve different working distances. For example, when it and the
transmitter CP-2-2 form a complete set, the maximum working distance may
reach 500 meters in an open area. When it and the transmitter CB-2 form a
complete set, the maximum working distance may reach 1000 meters in an open
area.
The maximum working distance is a theoretical data, it shall be operated in
an open ground, no barriers, no interference. But in the practice, it will
be hindered by trees, walls, or other construction, and will be interfered
by other wireless signals. Therefore, the actual working distance may not
reach this maximum distance.

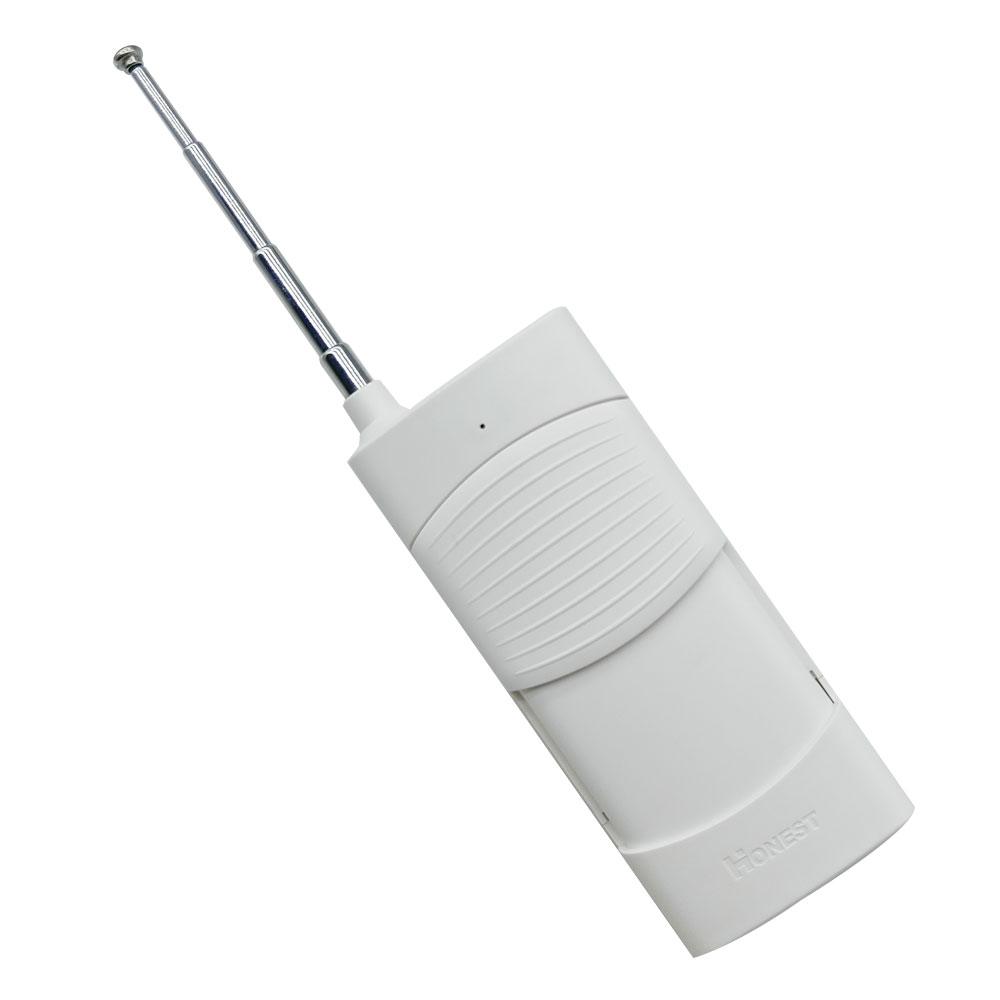

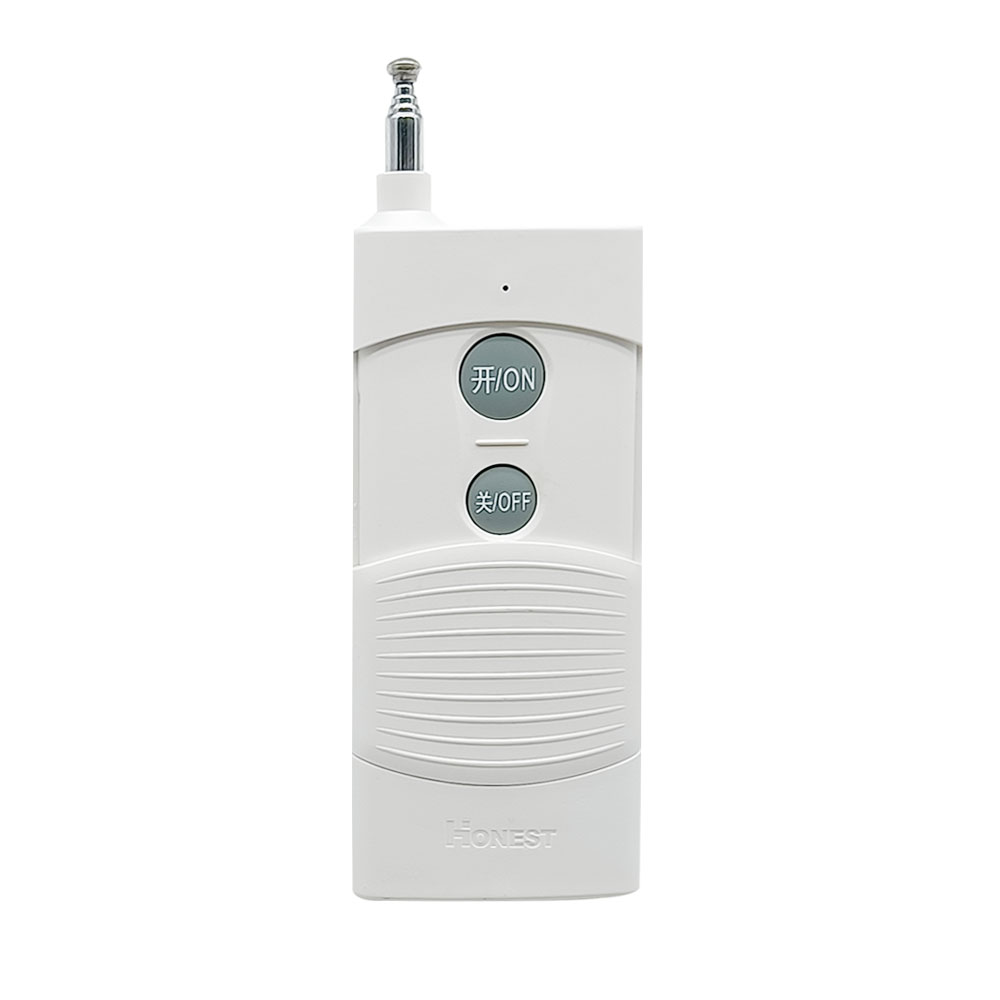

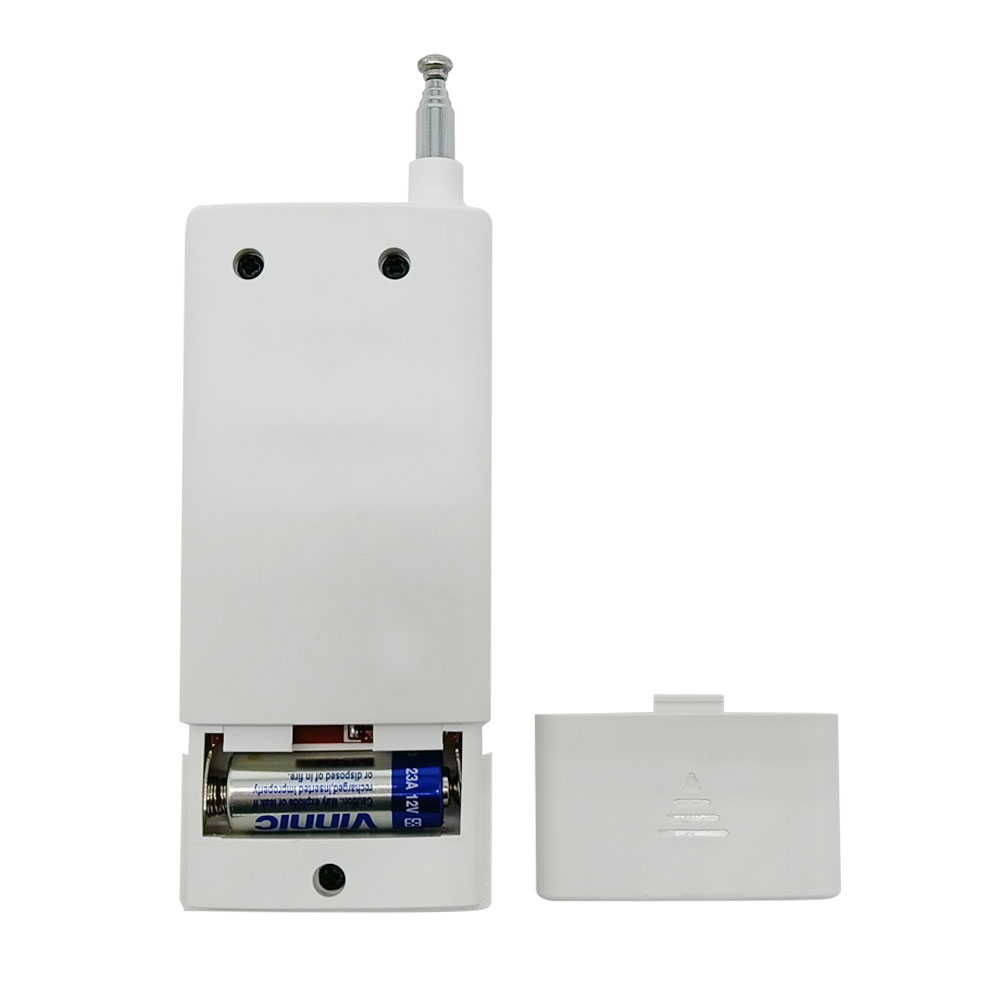

Transmitter Parameters:
Model: CP-2-2
Channel/Button: 2
Button Symbol: ON, OFF
With Sliding Cover: Slide up to protect the buttons when not working. Slide
down and the buttons will appear.
Operating Voltage: 12V (1 x 23A -12V battery, can be used for 12 months)
Operating Current: 8mA
Encoding Chip: EV1527
Encoding Type: Learning code, up to 1 million codes, reducing code collision
and unauthorized code scanning possibilities.
Transmitting Distance: 500m / 1500ft (theoretically)
Modulation Mode: ASK
Unit Size: 110 x 40 x 16mm (4.4 x 1.6 x 0.63 inches)
Usage:
The receiver can be used to directly connect AC 380V pump, motor, and other
equipment within 15KW, and you don't need to connect additional contactor.
If the equipment exceeds 15KW, this product is not suitable.

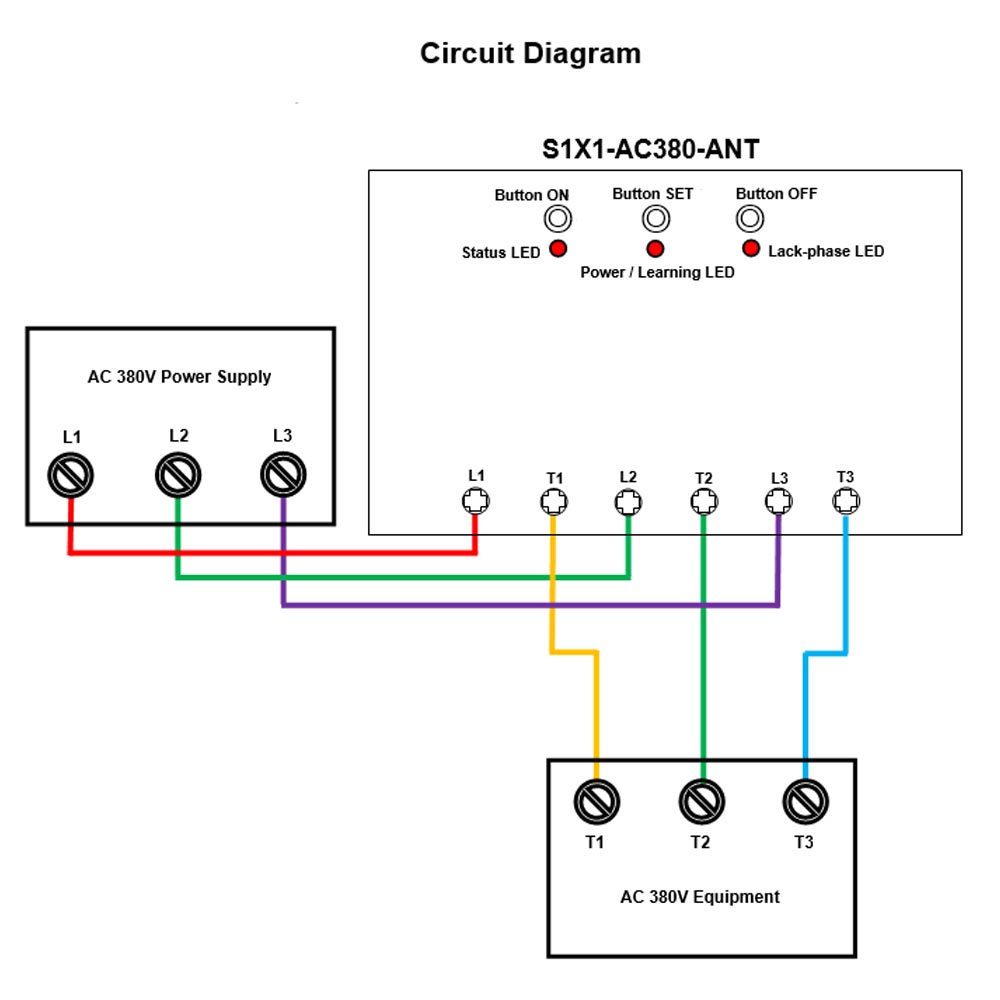

Wiring:

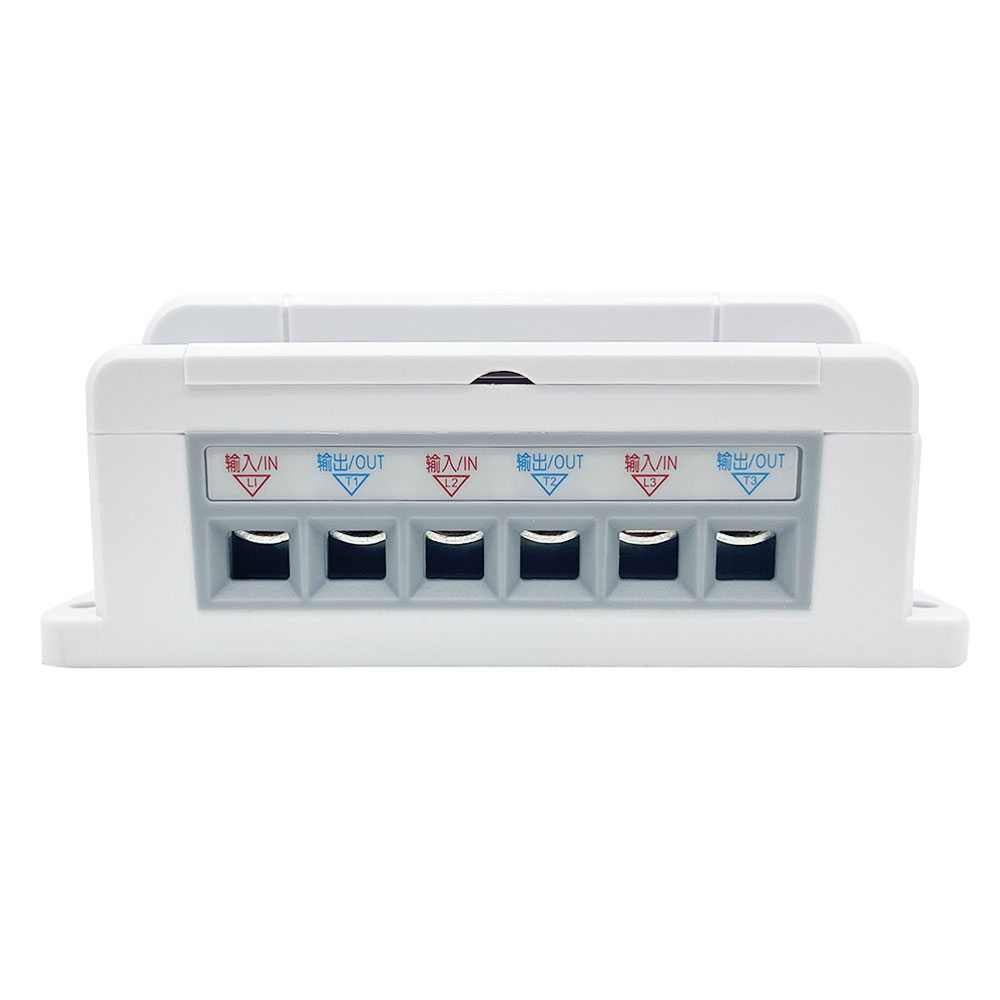

1) Connect AC 380V power supply to three terminals , , and of
the receiver.
2) Connect AC 380V equipment to three terminals , , and of the
receiver.
Operation by remote control:
Press the button of the transmitter: The receiver outputs 380V power,
and turns on the connected equipment.
Press the button of the transmitter: The receiver stops to output 380V
power, and turns off the connected equipment.

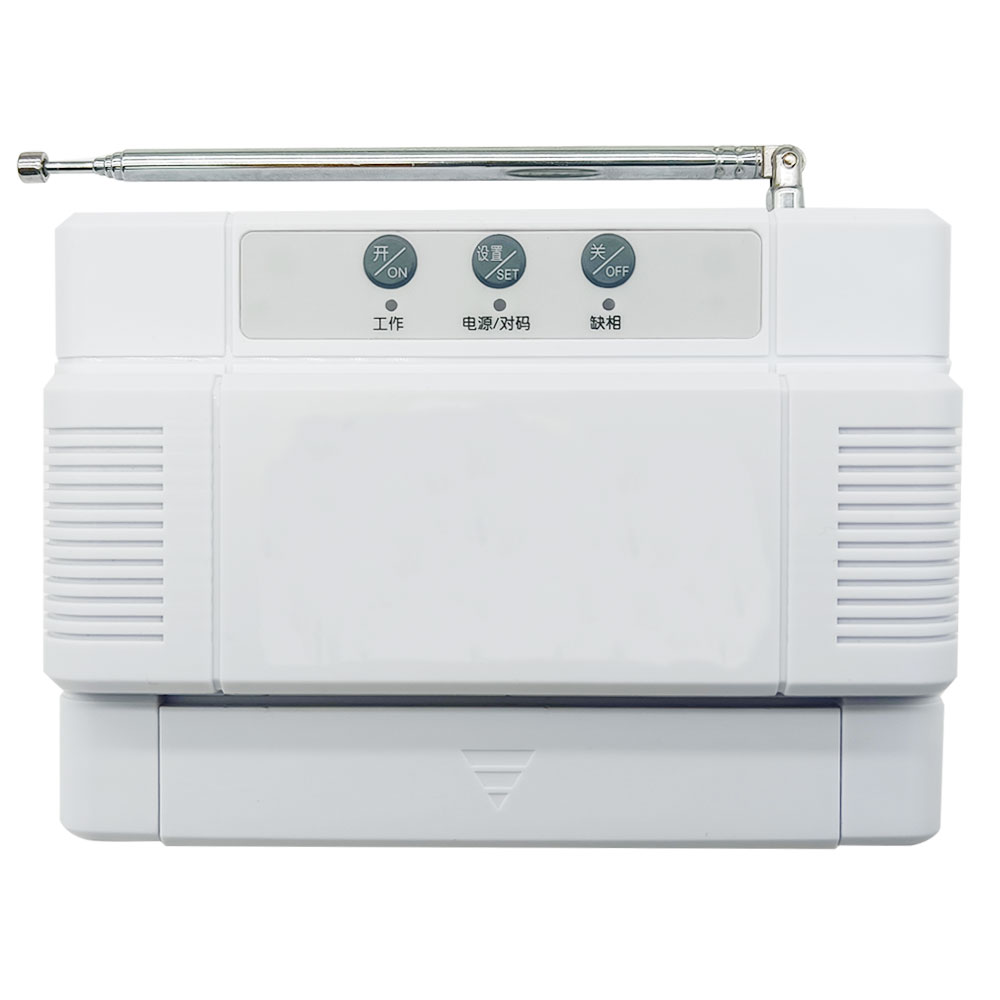

Operation by manual buttons on the receiver:
Press the button on the receiver: The receiver outputs 380V power, and
turns on the connected equipment.
Press the button on the receiver: The receiver stops to output 380V
power, and turns off the connected equipment.
Lack-phase protection:
When the power supply lacks a phase, the receiver will cut off the power
supply of the device within 0.1 to 3 seconds to prevent failures.
How to pair the transmitter to the receiver:
Notice: We have paired the transmitter to the receiver before leaving the
factory.
1) Press and hold the button on the receiver for 3-4 seconds until the
LED on the receiver flashes 3 times, this indicates that the receiver enters
the learning status.
2) If you press the button on the transmitter, the LED on the receiver
flashes 5 times, this indicates that the pairing is successful, and the
receiver has the phase loss protection function. Or if you press the
button on the transmitter, the LED on the receiver flashes 5 times, this
indicates that the pairing is successful, and the receiver does not have the
phase loss protection function.
3) The receiver can learn several transmitters with different codes.
Attention: When the receiver has phase loss protection function, the
receiver must be connected to the device, otherwise the receiver will stop
working automatically.
How to delete all transmitters codes stored in the receiver:
We have paired the transmitter to the receiver, if you don’t want the
receiver to work with the transmitter, you can delete all transmitters codes
stored in the receiver.
Operation: Press and hold the button in the receiver for 20 seconds
until the LED on the receiver flashes 5 times, this indicates all stored
codes have been deleted successfully.
