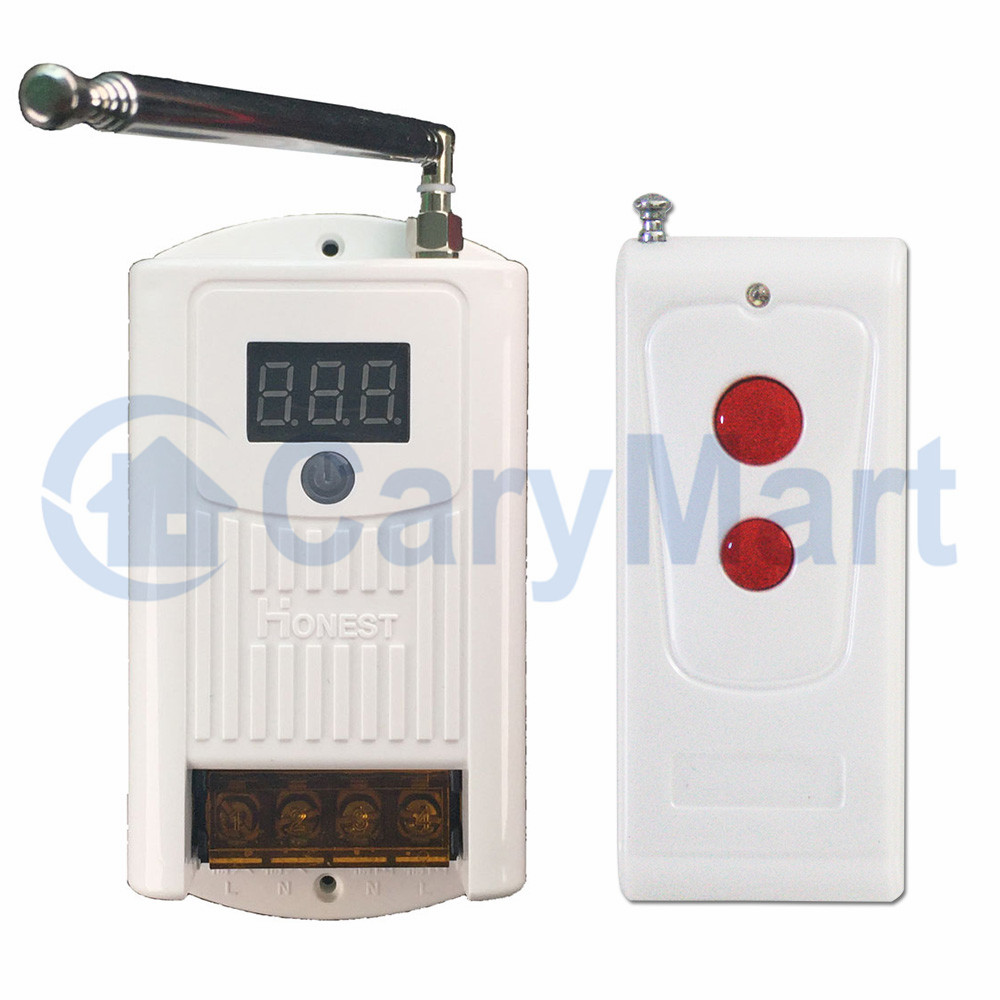

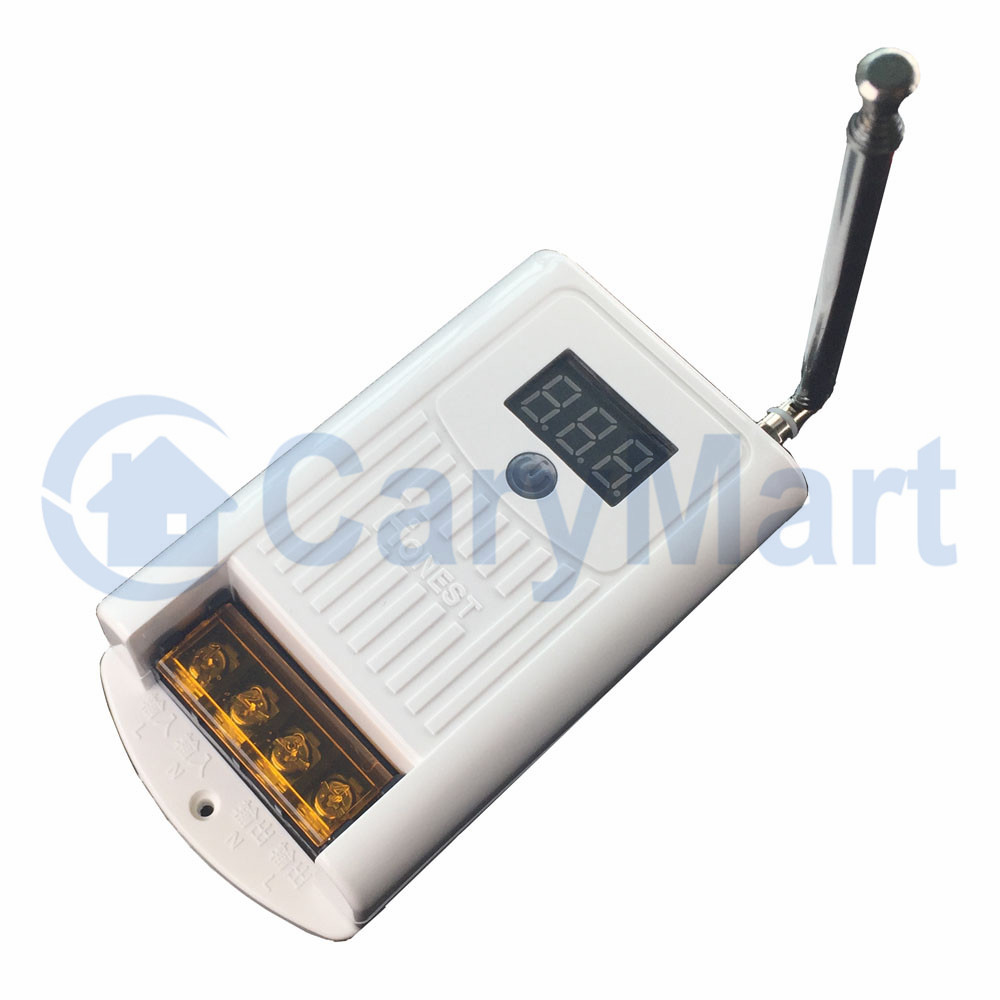

AC 75~400V Wireless Transmitter Receiver Kit Control AC 220V 380V Equipment

Feature:
Application: It can be used in industry automation, agriculture automation and home automation, such as factory, house, farm, pasture, vehicle, ship, offshore operation, aerial vehicle, field call, etc. It can remote control equipments on land, water and air, such as remote control lights, sirens, locks, motors, fans, winches, blinds, linear actuators, doors, windows, electric solenoid valves, security alarm, business signs and various devices.
Wireless control, easy to install.
Universal Power Supply: AC 75~400V, support AC 110V, AC 120V, AC 220V, AC 240V, AC 380V.
AC Power Output: It can directly control AC 110V or 220V equipments, or control 380V AC equipment by the contactor.
Each channel can work at maximum current 10A.

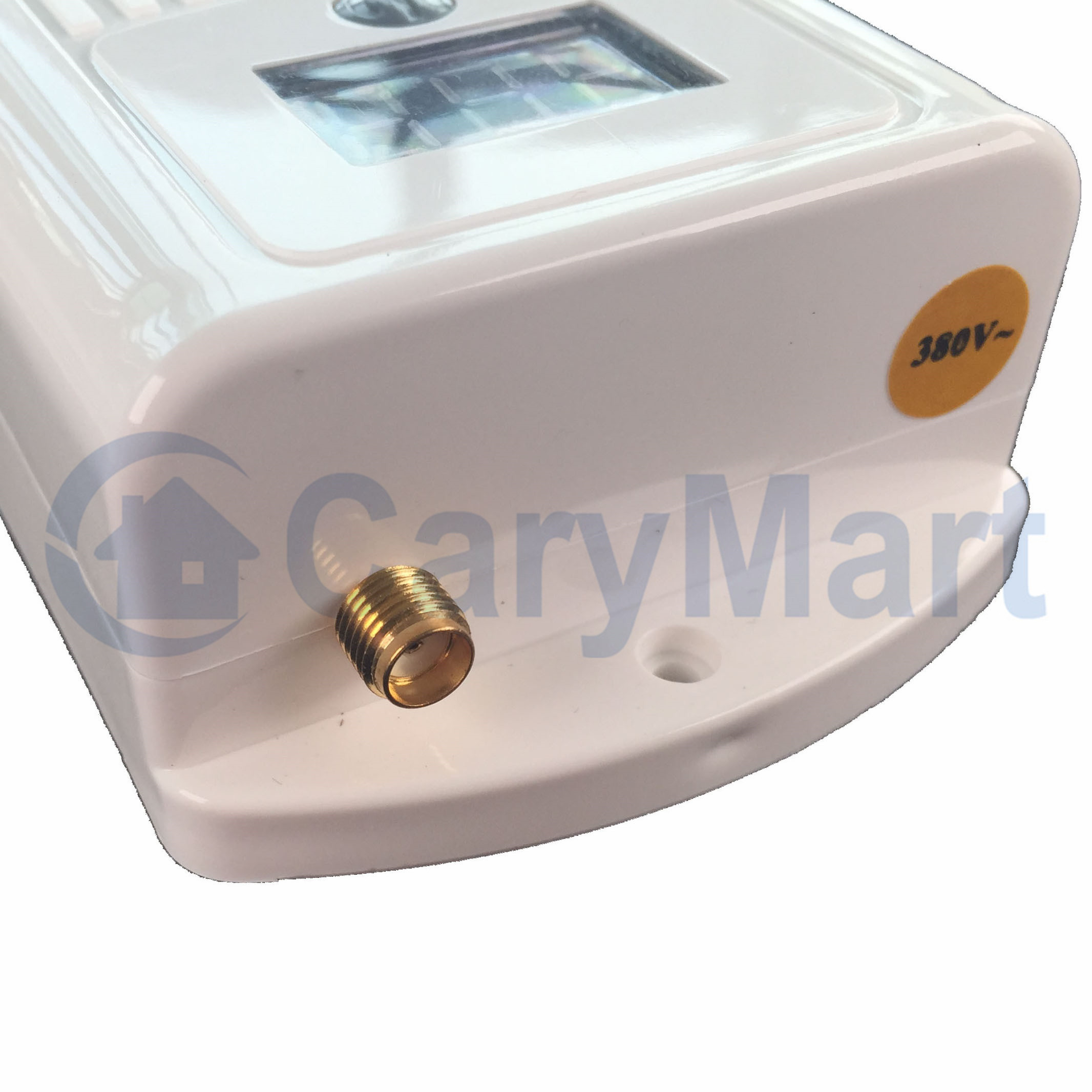

With external telescopic antenna, the receiver have a farther working range.
You can control the equipments by using the receiver with transmitter (remote control) from any place within a reliable distance.
Wireless RF signal can pass through walls, floors, doors or windows.
With characteristics of reverse power protection and over current protection.
Reliable control: The code has thousands of different combinations, and the receiver only works with the transmitter which use the same code.
One/several transmitters can control one/several receivers simultaneously.
You can use two or more units in the same place.

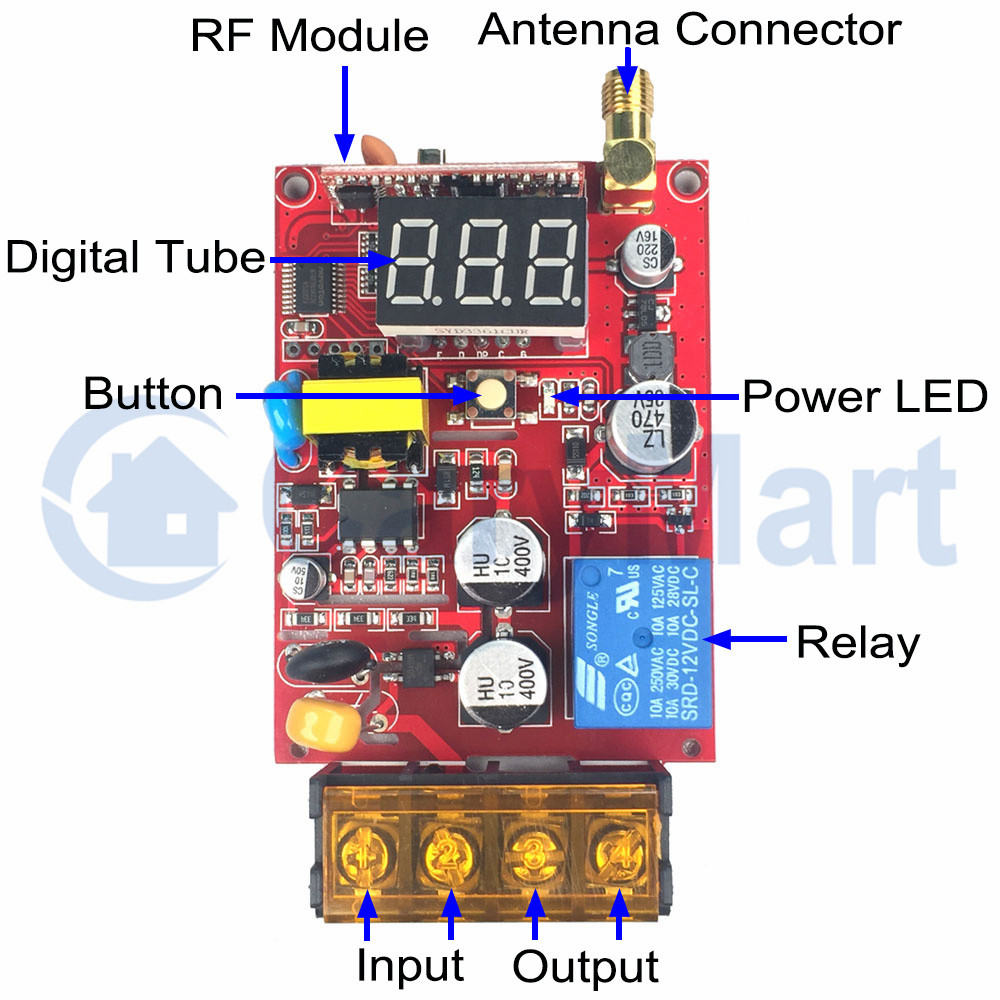

Receiver Parameters:
Model No.: S1X-AC380-ANT3
Power Supply (Operating Voltage): AC 75~400V (110V/120V/220V/240V/380V)
Output: AC 75~400V (110V/120V/220V/240V/380V)
Wire range for the terminals: 22-12 AWG
Working Frequency: 433.92MHz
Channel: 1 CH
Control Modes: Interlocking
Static Current: ≤6mA
Maximum Load Current: 10 A / each channel
Operating Temperature: -20 ° C to +70 ° C
Case size: 105mm x 55mm x 29mm

Transmitter Parameters:
Model No.: 0021011 (CP-2)
Channel/Button: 2
Button Symbol: big button, small button
Operating Voltage: 12V (1 x 23A -12V battery, can be used for 12 months)
Operating Current: 8mA
Encoding Chip: PT2262/ PT2264
Transmitting Distance: 500m / 1500ft (theoretically)
Modulation Mode: ASK
Unit Size: 85mm x 36mm x 16mm

Matching Transmitters:
The receiver can work with different transmitters, such as model C-2 (100M), CWB-2 (50M, waterproof), CP-2 (500M) or CB-2 (1000M) etc.

Working Range:
With a transmitter (such as CP-2) to form a complete set, the maximum working distance can reach 500M in an open ground.
The maximum working distance is a theoretical data, it shall be operated in an open ground, no barriers, no any interference. But in the practice, it will be hindered by trees, walls or other constructions, and will be interfered by other wireless signals. Therefore, the actual distance may not reach this maximum working distance.
If you want to have a further working range, you can use a powerful transmitter, such as CB-2 transmitter.

Usage (with the transmitter CP-2):
The receiver can be used to control AC 110V or 220V pumps, motors and other equipments, or AC 380V equipments by the 380V contactors, and it can’t directly connected to the 380V equipments.

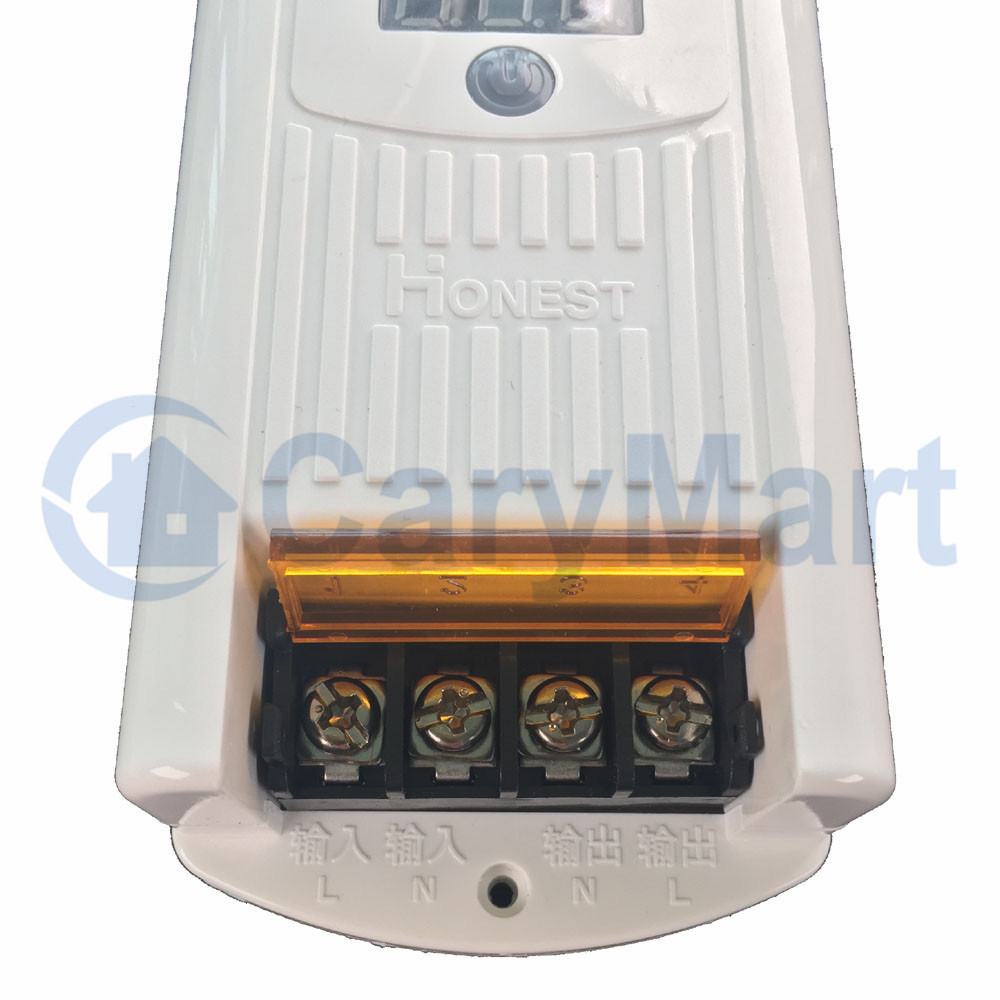

Wiring:

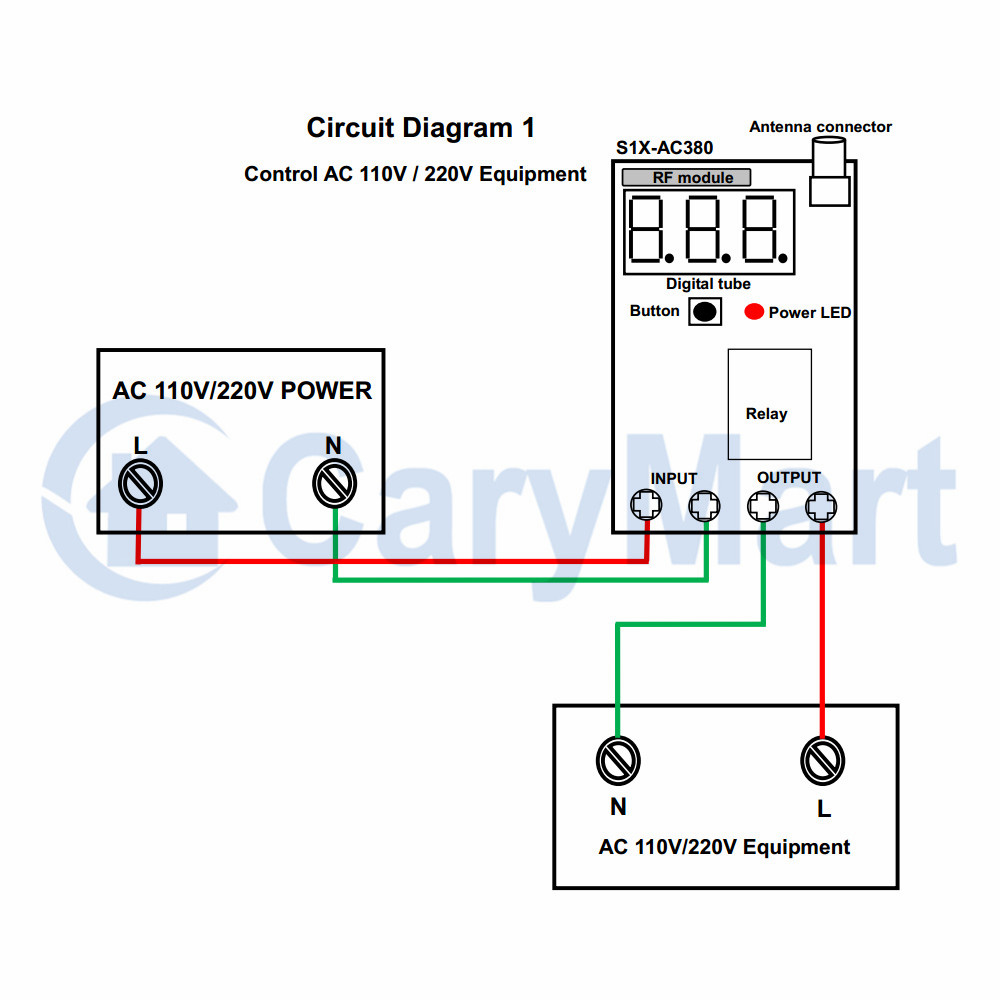

1) If you want to control the AC 110V or 220V equipment, you can connect the receiver, the equipment and the AC power according following circuit diagram 1, then you use the transmitter to control the equipment.

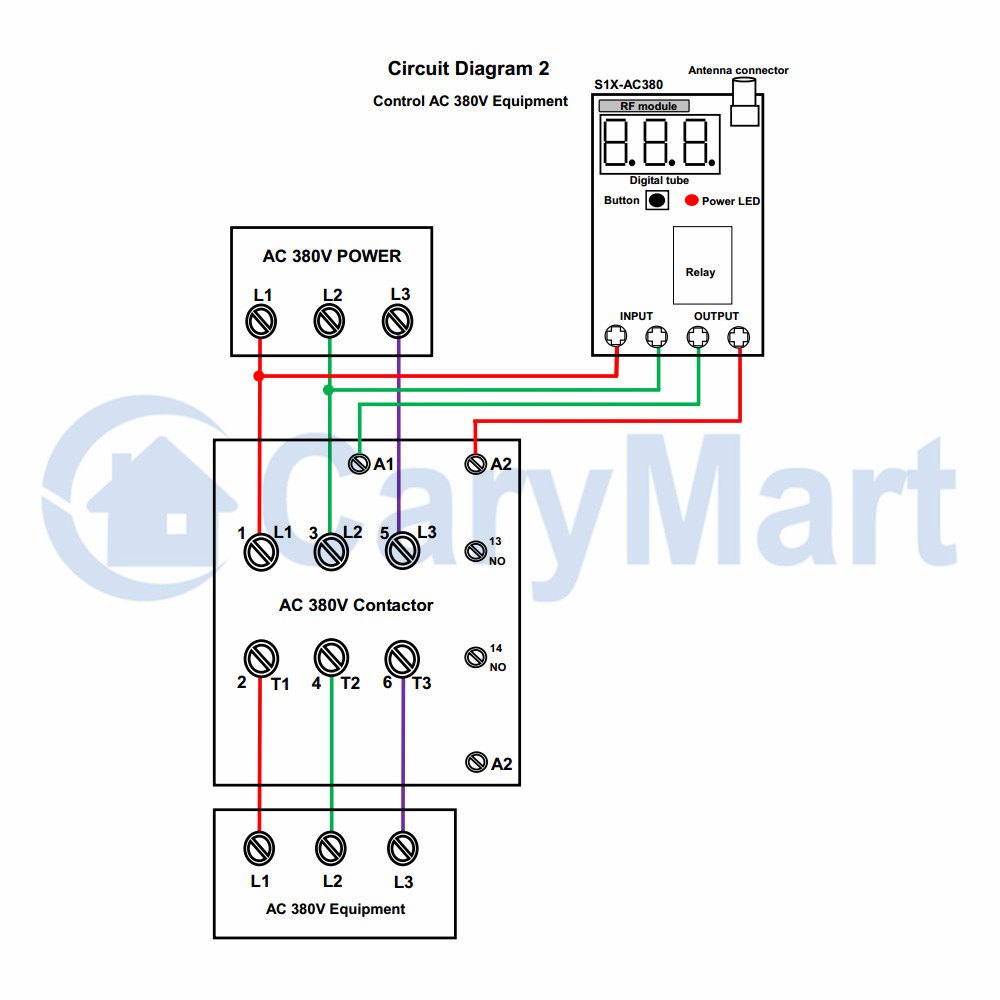

2) If you want to control the AC 380V equipment, you can connect the receiver, the 380V contactor, the 380V equipment and the 380V power according following circuit diagram 2, then you use the transmitter to control the AC 380V equipment.

Working mode:
Mode Interlocking (working with transmitter CP-2): Press -> On; Press another button -> Off.
Press big button of the transmitter: The receiver outputs AC power (the digital tube displays "On"), and turns on the equipment.
Press small button of the transmitter: The receiver stops to output AC power (the digital tube displays "OFF"), and turns off the equipment.

Working with manual button on the receiver:
Press the button on the receiver: The receiver outputs AC power (the digital tube displays "On"), and turns on the equipment.
Press the button again: The receiver stops to output AC power (the digital tube displays "OFF"), and turns off the equipment.
