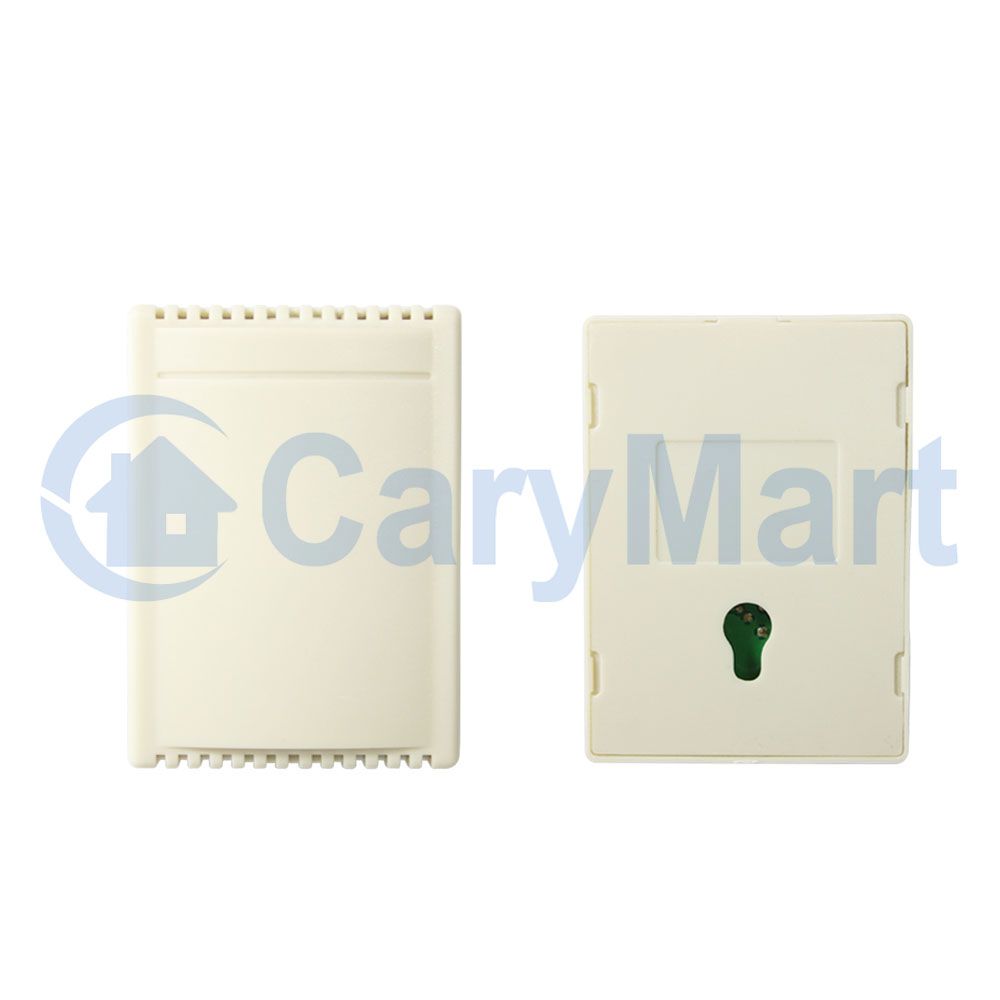

AC Motor Positive Reverse Rotation Receiver For Max 99 Electric Curtains / Roller Blinds


Price: US $20.00

  • Model: 0020761 (S1F3-AC)

Please Choose:



Qty:




Manual


Package Include:
1×Reciver S1F3-AC
1×User Manual

Features:
Application: This receiver can be used to control the positive or reversal direction of AC motors, such as control of curtains, screens, roller shutters and sunshades. It has a one-to-many multifunction, it must be matched with the transmitter CM-99 which can independently operate several devices, up to 99. There are 5 buttons on the CM-99 operation panel. The user can press button3or4to select the channel/receiver. It has 99 selectable channels/receivers that can separately control positive or reversal direction of AC motors by pressing the button ▲, ▼, and ■. For example, receiver 1 controls NO.1 curtain / motor 1, receiver 2 controls NO.2 curtain / motor 2, etc.; receiver 99 controls NO.99 curtains / motors 99. All receivers are independently controlled, and different operations will not affect each other.
You can rotate a motor in the positive or reversal direction with the transmitter (remote control) from any place within a reliable distance.
The RF wireless signal can pass through walls, floors and doors.
You can turn on/ off the receiver with transmitter (remote control) from any place within a reliable distance.
With reverse power protection and over current protection.
Reliable control: The receiver only works with the transmitter which use same code.
One/several transmitters can control one/several receivers simultaneously.
You can use two or more units in the same place.

Receiver Parameters:
Model No.: 0020761 (S1F3-AC)
Power Supply (Operating Voltage): AC220~240V (220V/240V)
Output: AC220~240V (220V/240V)
Wire range for the terminals: 22-12 AWG
Working Frequency: 433MHz
Channel: 1 CH, can work with a AC motor
Control Modes: Momentary, Interlocking
Maximum Working Current: 1500W

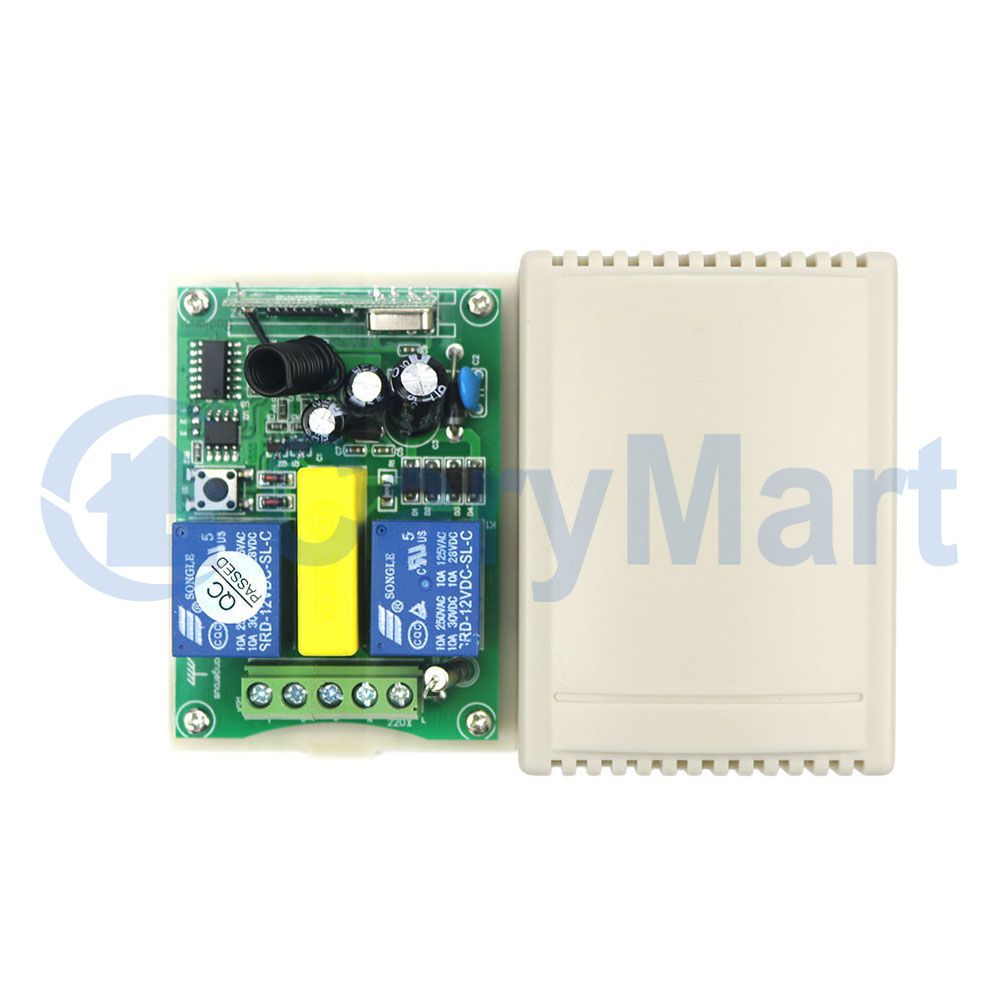

PCB size: 67mm x 50mm x 18mm
Case size: 75mm x 54mm x 27mm
It only works with the remote control (CM-99)
Note: Don’t touch the receiver's circuit board after the receiver is electrified.

Working Range:
With a transmitter (such as CM-99) to form a complete set, the working distance can reach 50M in an open ground. The maximum working distance 50M is a theoretical data, it shall be operated in an open ground, no barriers, no any interference. But in the practice, it will be hindered by trees, walls or other constructions, and will be interfered by other wireless signals. Therefore, the actual distance may or may not reach 50M.

Usage (with transmitter (CM-99):

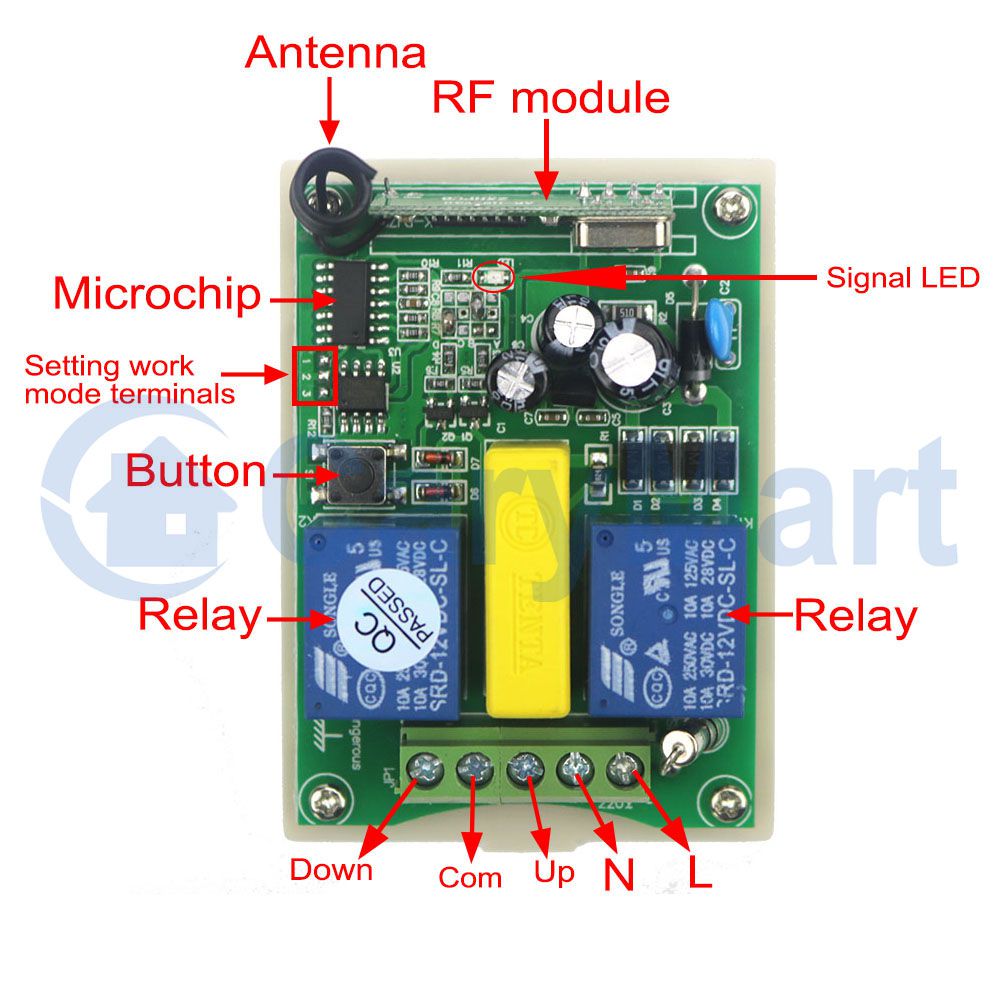

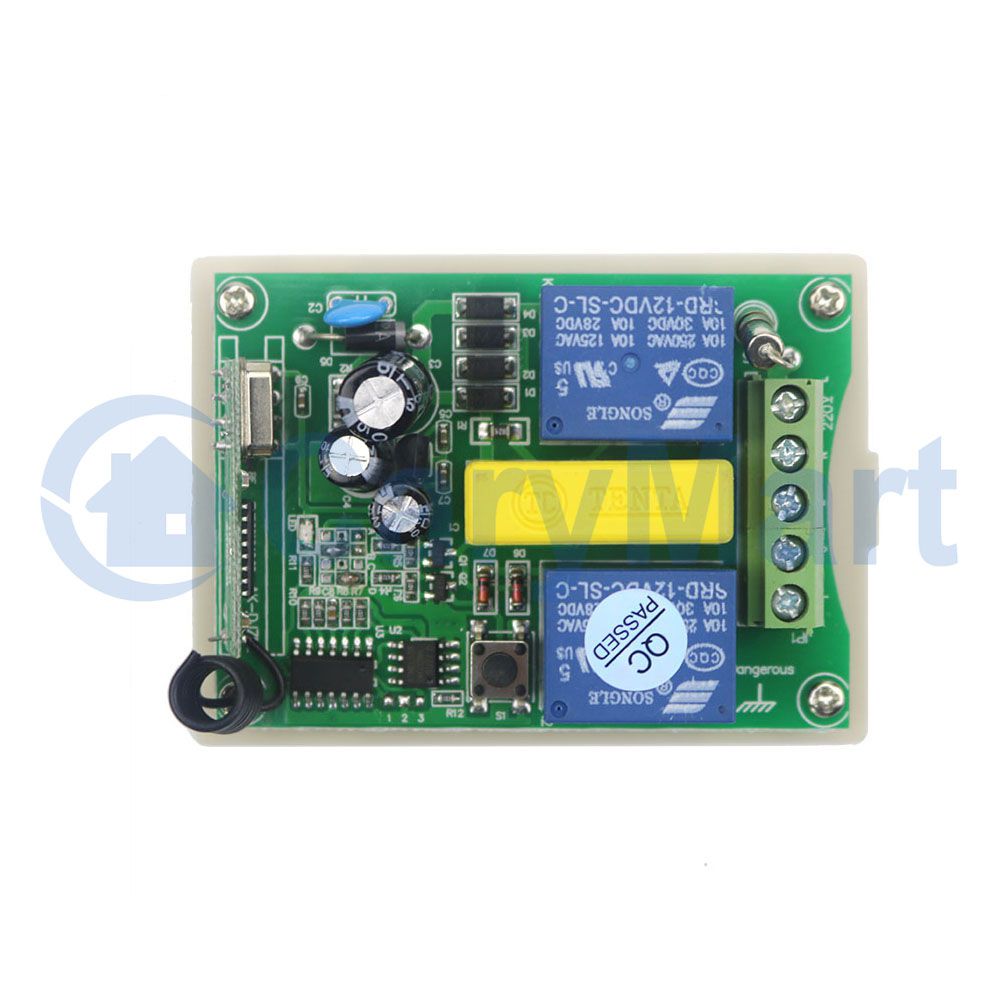

Wiring:

1) Connect live wire of AC power supply to terminal “L” of INPUT, connect the neutral wire of AC power supply terminal “N” of INPUT.
2) Connect terminal “COM” to the common line of the AC motor, connect terminals “UP” and “DOWN” to the wire for positive/reversal rotation of AC motor(You can exchange motor’s two wire to change the rotating direction of motor).

Setting different control mode:

There are three pads on the receiver; you can change the control mode by soldering or not soldering two of them. We have set the receiver as Interlocking control mode before delivery. If you want to use other control modes, do as following operation:
1. Setting control mode Interlocking: Solder pads 2 & 3.
Press button ▲ on the transmitter: AC motor rotates in positive direction.
Press button ■ on the transmitter: AC motor stops.
Press button ▼ on the transmitter: AC motor rotates in reversal direction.
Press button ■ on the transmitter: AC motor stops.
2. Setting control mode Momentary: Do not solder any pad 1,2,3.
Press and hold button ▲ on the transmitter: AC motor rotates in positive direction.
Release button ▲ on the transmitter: AC motor stops.
Press and hold button ▼ on the transmitter: AC motor rotates in reversal direction.
Release button ▼ on the transmitter: AC motor stops.
