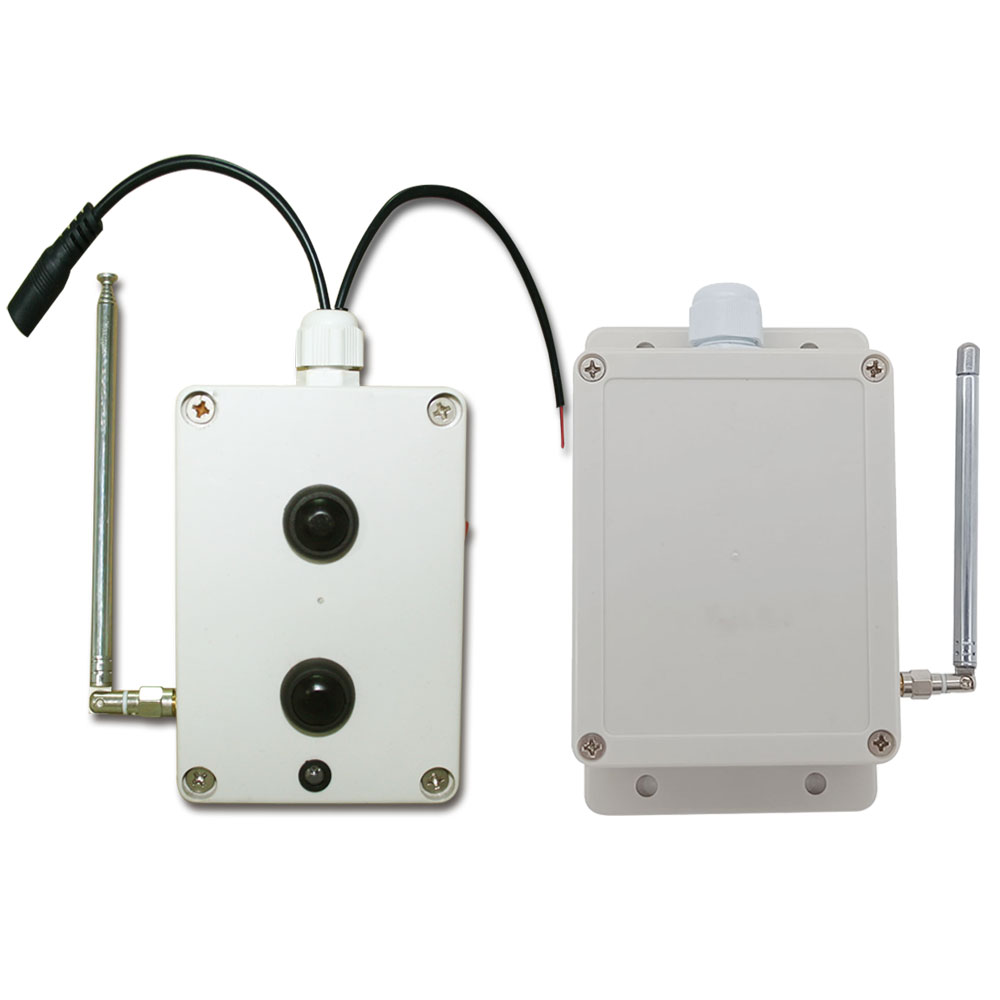

Package Include:
1 x Receiver: S1UA-DC-ANT3
1 x Transmitter: CB-2V-AC
1 x User manual
Application:
This type of wireless remote control device can use an AC voltage signal or
an AC device to wirelessly control another AC or DC device, and it can be
used for synchronous wireless control of various home, industrial or
agricultural equipments, such as wireless control of the warning host and
the warning horn, wireless control of the lights, wireless synchronization
control of the equipments and so on.
Feature:
Wireless control, easy to install.
Waterproof: The receiver has waterproof case and waterproof connector, it
can be installed outdoors.
Four operating voltage versions: DC 6V, 9V, 12V, 24V optional.
Relay Output: This receiver is dry relay output; it can be used to operate
both DC and AC equipment. The output terminals are NO / NC (normally open /
normally closed), serving as a switch. That means you should also connect a
separate power supply to equipment.
Each channel can work at maximum current 10A, such as 120W/12V, 60W/6V,
90W/9V, 240W/24V, 1100W/110V, 2200W/220V.
With external antenna, the receiver has a farther working range.
Design with low-power and high-speed CMOS technology.
The transmitter / remote can control the receiver from any place within a
reliable working distance.
Wireless RF signal from the transmitter can pass through walls, floors,
doors, or windows, but it will lose some operating range.
The receiver has reverse voltage protection and overcurrent protection.
The receiver can only be triggered by paired transmitters.
One or more transmitters / remotes can control one or several receivers
simultaneously.
Two or more receivers may be used in the same area.

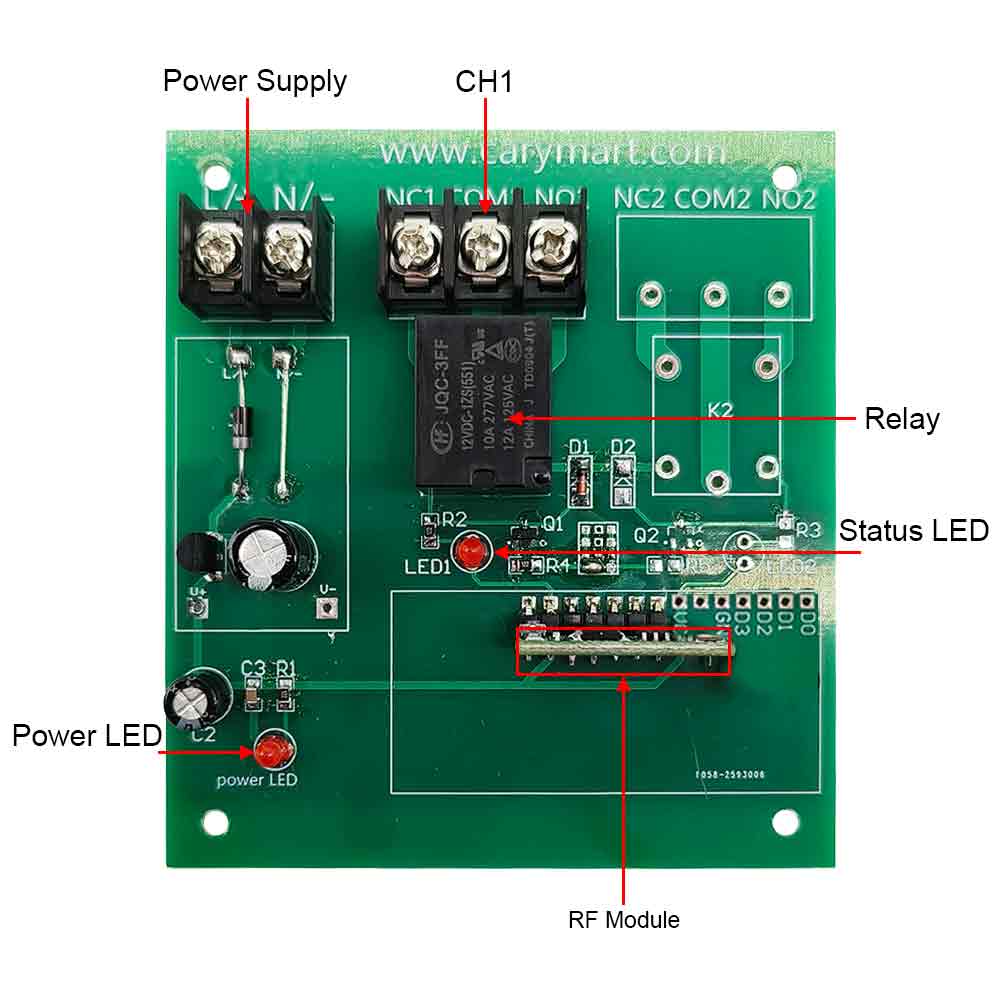

Receiver Parameters:

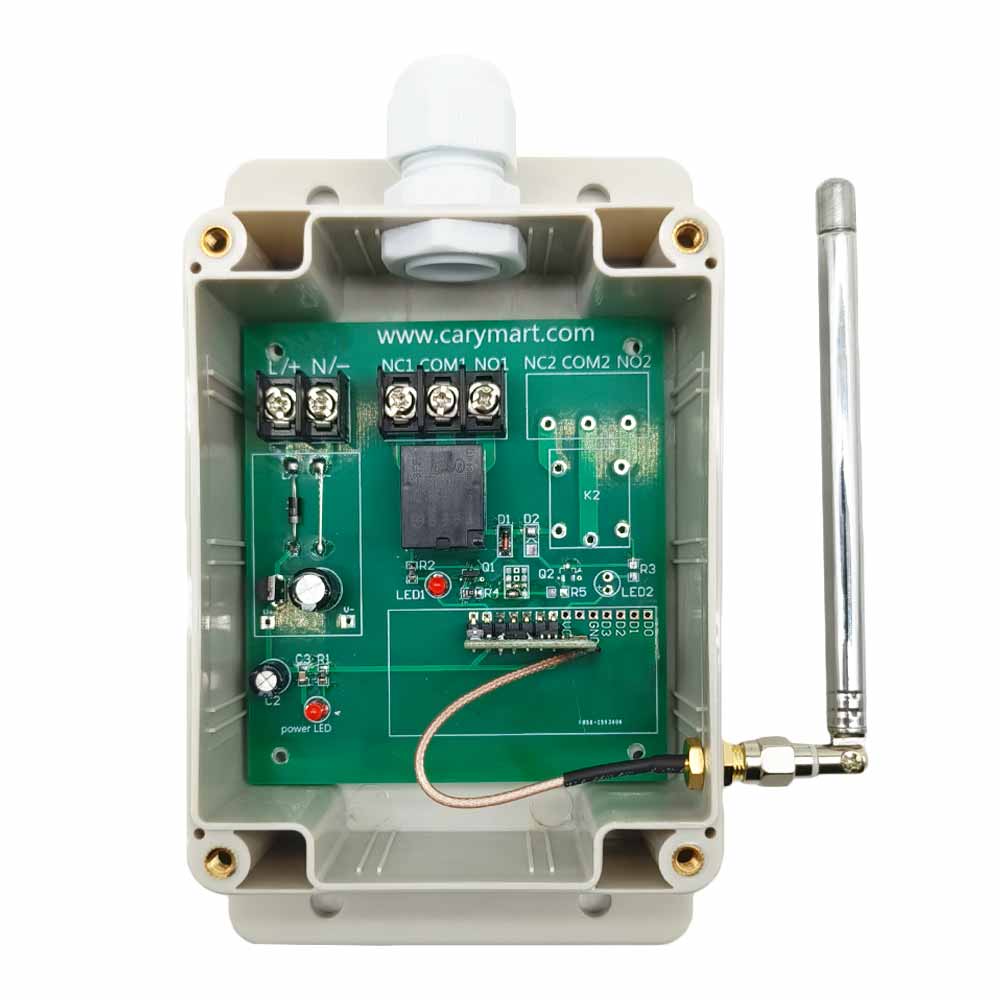

Model: S1UA-DC-ANT3
Operating Voltage: 6VDC (model S1UA-DC06), or 9±1VDC (model S1UA-DC09), or
12±1VDC (model S1UA-DC12), or 24±2VDC (model S1UA-DC24), the operating voltage
must be specified when ordering.
Working Frequency: 315 MHz
Quiescent Current: ≤6mA
Channel: 1 CH
Output Type: Relay Output (With Normally Open and Normally Closed Terminals)
Maximum Load Voltage of Relay: 240VAC or 28VDC
Maximum Load Current of Relay: 10A / channel
Suitable Wires for Connecting Terminals: 22-12 AWG
Working Modes: Interlocking
Operating Temperature: -20 °C ~ +70 °C

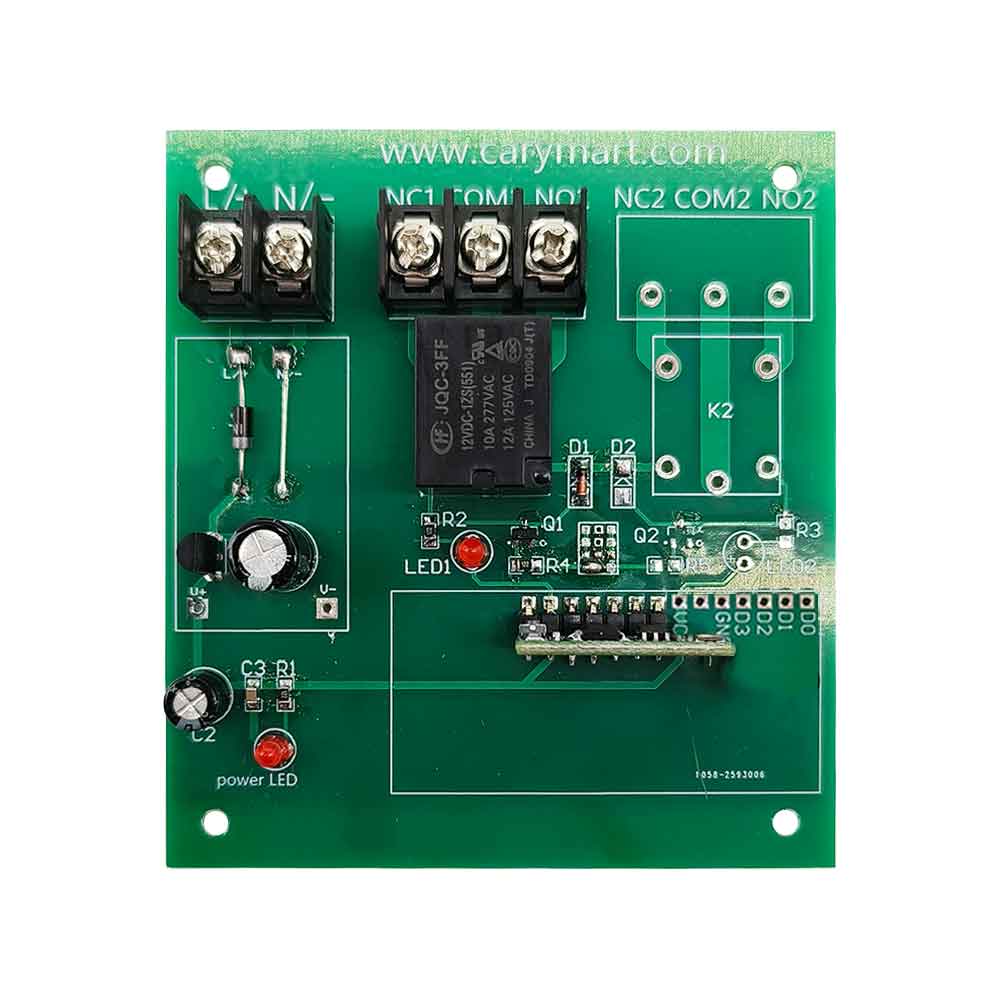

PCB size: 88 x 80 x 18 mm (3.5 x 3.1 x 0.7 inches)
Case size: 115 x 90 x 55 mm (4.5 x 3.6 x 2.2 inches)
External Telescopic Antenna:
Length of external telescopic antenna: 108mm / 445mm (stretch)
With SMA connector.
If you stretches the external telescopic antenna, it can have a further
working range.
Transmitter Parameters:

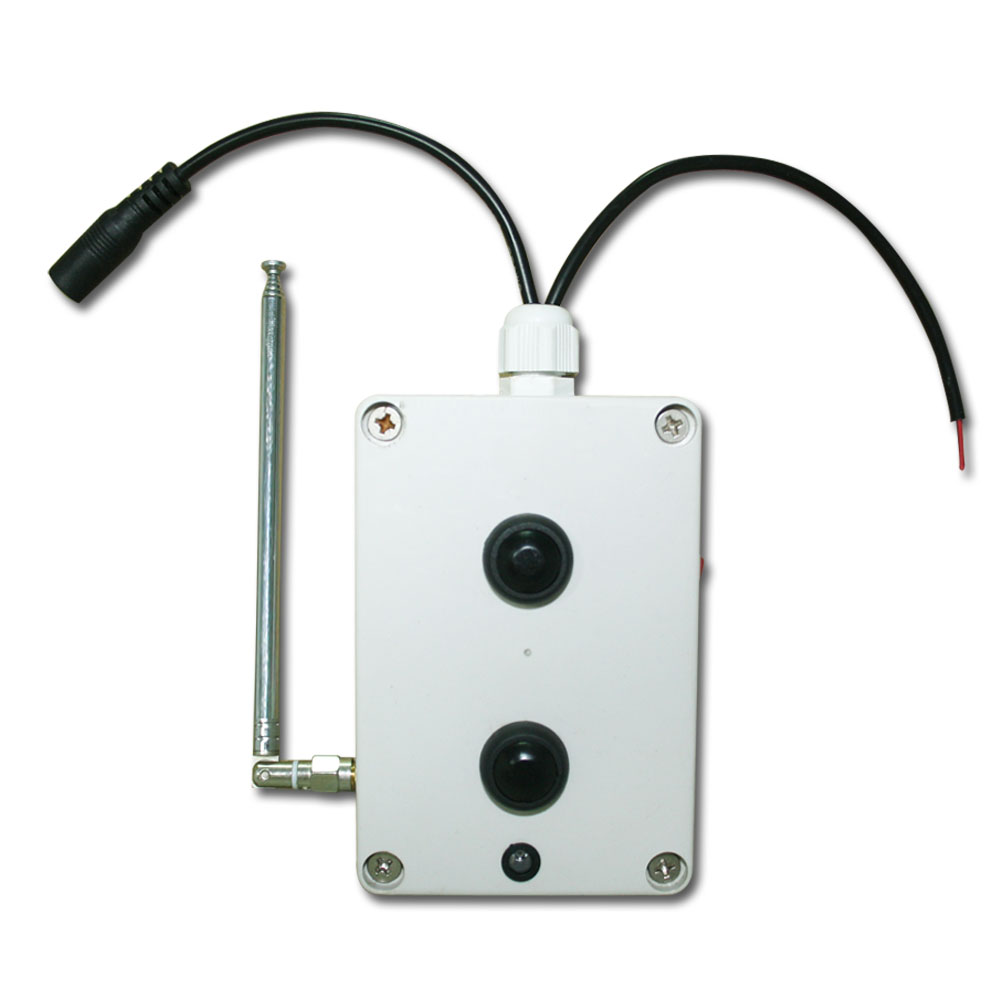

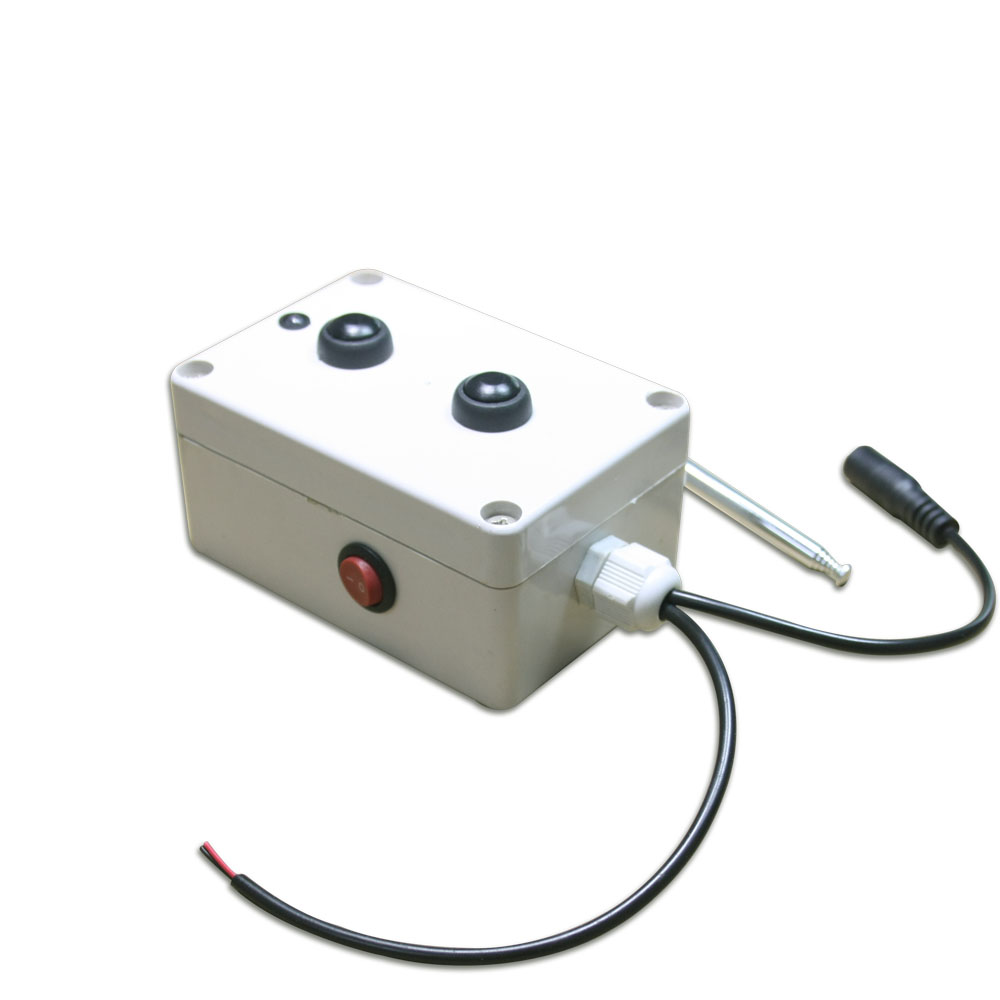

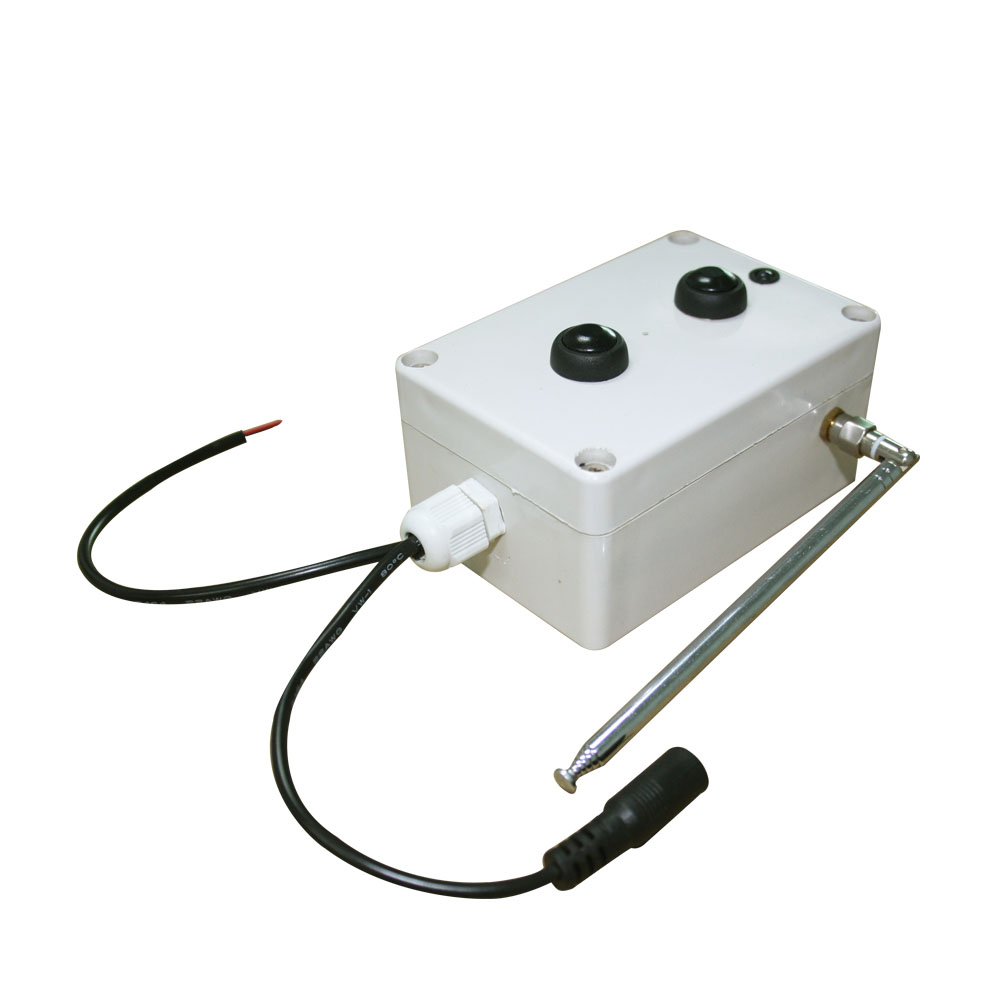

Model: CB-2V-AC
With Two Input Wires: Trigger by 100~240V AC Signal
Channel/Button: 2
Operating Voltage: 9V (1 x 6F22 -9V battery, can be used for a week, if you
want a longer working time, please use a 9V power adapter.)
Operating Current: 30mA
Operating Frequency: 315 MHz
Transmitting Distance: 1000m / 3000ft (theoretically)
Modulation Mode: ASK
Unit Size: 100 x 68 x 50 mm
The working principle:
Transmitter CB-2V-AC is a special remote control with AC voltage signal
trigger. It has 2 input lines for connecting an AC power or AC device, such
as AC lamps, AC motors; or connecting a device with AC voltage output, such
as warning host. The transmitter can be combined with different types of
receivers to form a wireless control system that can be used to wirelessly
control another AC or DC device through an AC signal or an AC device.
Working process:
1. Connect an AC device A to the two input lines of the transmitter; connect
the other device B to the receiver.
2. When the device A outputs the AC voltage to the transmitter, the
transmitter automatically emits an "ON" wireless signal, which is equivalent
to the function of the button "ON" on the transmitter. When the receiver
receives the wireless signal, it will activate its relay to turn on the
connected device B.
3. When the device A stops outputting the AC voltage to the transmitter, the
transmitter automatically emits an "OFF" wireless signal, which is
equivalent to the function of the button "OFF" on the transmitter. When the
receiver receives the wireless signal, it will deactivate its relay to turn
off the connected device B.
Working Range:
Super long range, with a transmitter (such as CB-2V-AC) to form a complete
set, the maximum working distance can reach 1000M in an open ground.
The maximum working distance is a theoretical data, it shall be operated in
an open ground, no barriers, no any interference. But in the practice, it
will be hindered by trees, walls or other constructions, and will be
interfered by other wireless signals. Therefore, the actual distance may not
reach this maximum working distance.
Usage:
The receiver can be used to control both 0~28VDC and 110~240VAC devices.
Notice: The receiver is relay output, not DC/AC power output. Initial state
of relay output terminals: Terminals <COM> and <NO> are Normally Open;
Terminals <COM> and <NC> are Normally Closed.
Wiring:

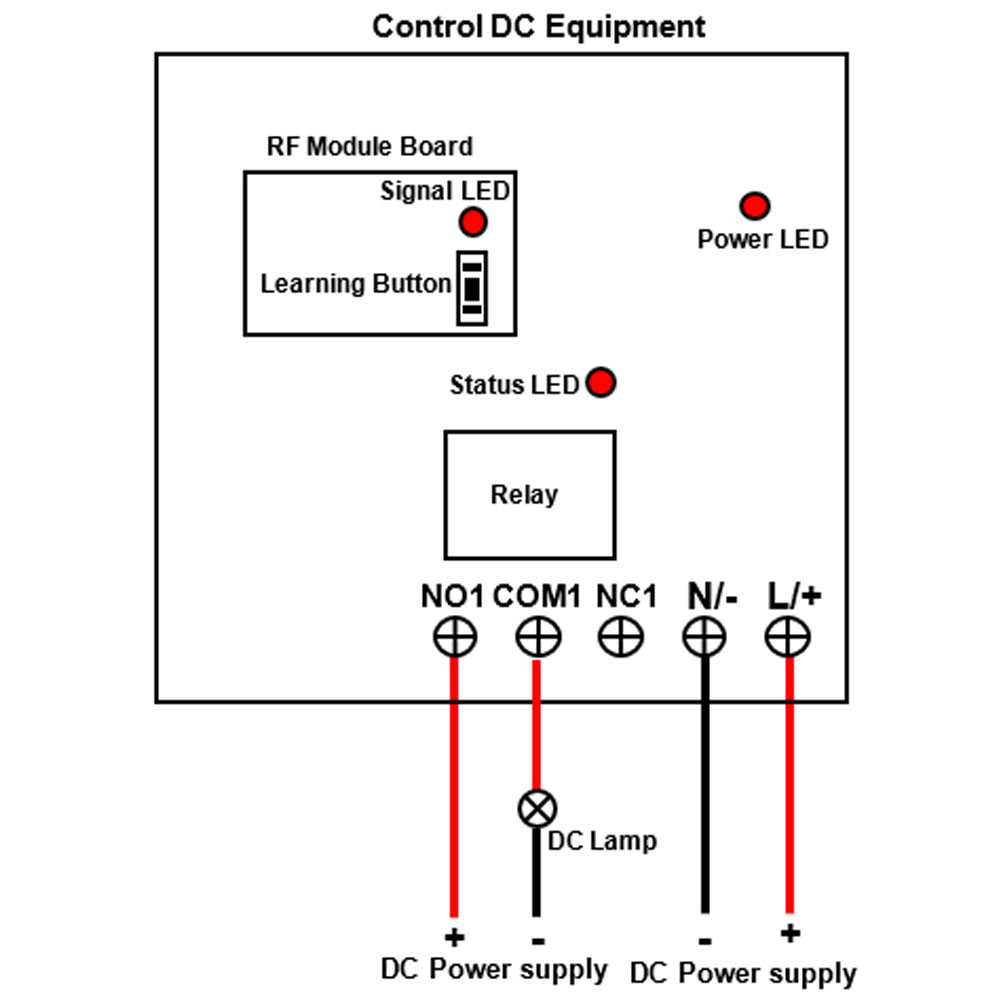

1) If you want to control a DC 12V lamp, do as following:
1.1 Connect the positive pole of DC power supply to terminal <L/+>, and
connect the negative pole of DC power supply to terminal <N/->.
1.2 Connect terminal <NO> to the positive pole of DC power supply, connect
terminal <COM> to the positive pole of DC lamp, and connect the negative
pole of DC lamp to the negative pole of DC power supply.

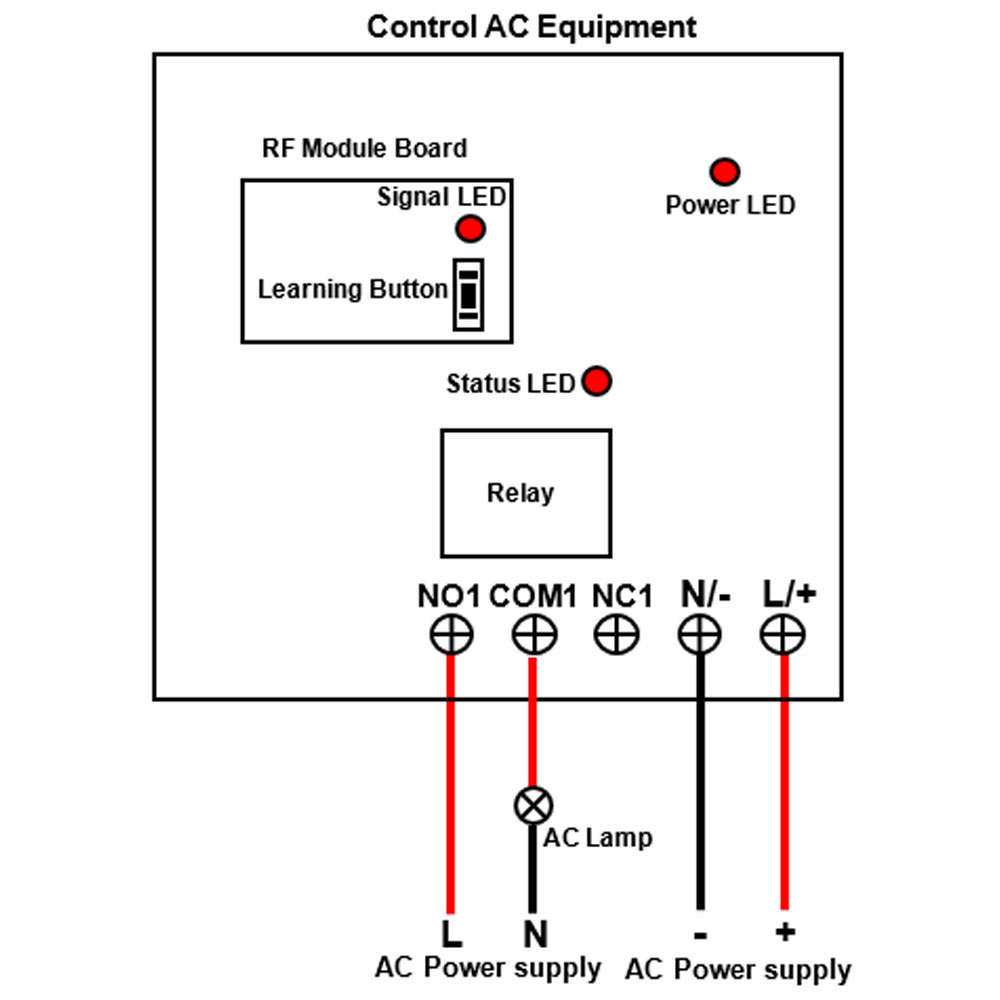

2) If you want to control an AC 220V lamp, do as following:
2.1 Connect the positive pole of DC power supply to terminal <L/+>, and
connect the negative pole of DC power supply to terminal <N/->.
2.2 Connect terminal <NO> to the live wire of AC power supply, connect
terminal <COM> to one side of AC lamp, and connect another side of AC lamp
to the neutral wire of AC power supply.
Operation:
1. Controlling the device by pressing buttons on the transmitter (CB-2V-AC):
Press button A of the transmitter: the relay is activated (connect <COM> and
<NO>, disconnect <NC> and <COM>), and the device is turned on.
Press button B of the transmitter: the relay is deactivated (disconnect
<COM> and <NO>, connect <NC> and <COM>), and the device is turned off.
2. Controlling the device by inputting AC100~240V power to the input wire of
the transmitter:
When connect AC100~240V power to the input wire (the red wire and black
wire) of the transmitter, the transmitter sends an RF signal "ON" to trigger
the receiver, the relay is activated (connect <COM> and <NO>, disconnect
<NC> and <COM>), and the device is turned on.
When disconnect AC100~240V power to the input wire, the transmitter sends
another RF signal "OFF" to trigger the receiver, the relay is deactivated
(disconnect <COM> and <NO>, connect <NC> and <COM>), and the device is
turned off.
How to pair the transmitter to the receiver:
Notice: We have paired the transmitter to the receiver before leaving the
factory.
1) Press the learning button once in the receiver, signal LED on the
receiver flashes one time and then stays on, this indicates that the
receiver enters the learning status.
2) Press button A on transmitter, if the signal LED flashes one time, this
indicates that the pairing with button A is successful. Then press button B
on transmitter, if the signal LED flashes one time, this indicates that the
pairing with button B is successful.
3) Press the learning button in the receiver again for 1-2 seconds, signal
LED turns off, this indicates that the receiver exits the learning status.
4) The receiver can learn several transmitters with different codes.
How to delete all transmitters codes stored in the receiver:
Notice: We have paired the transmitter to the receiver, if you don’t want
the receiver to work with the transmitter, you can delete all transmitters
codes stored in the receiver.
Operation: Press the learning button in the receiver 10 times and then
release the learning button, signal LED flashes 10 times quickly and then
goes off, this indicates that all stored codes have been deleted
successfully.
