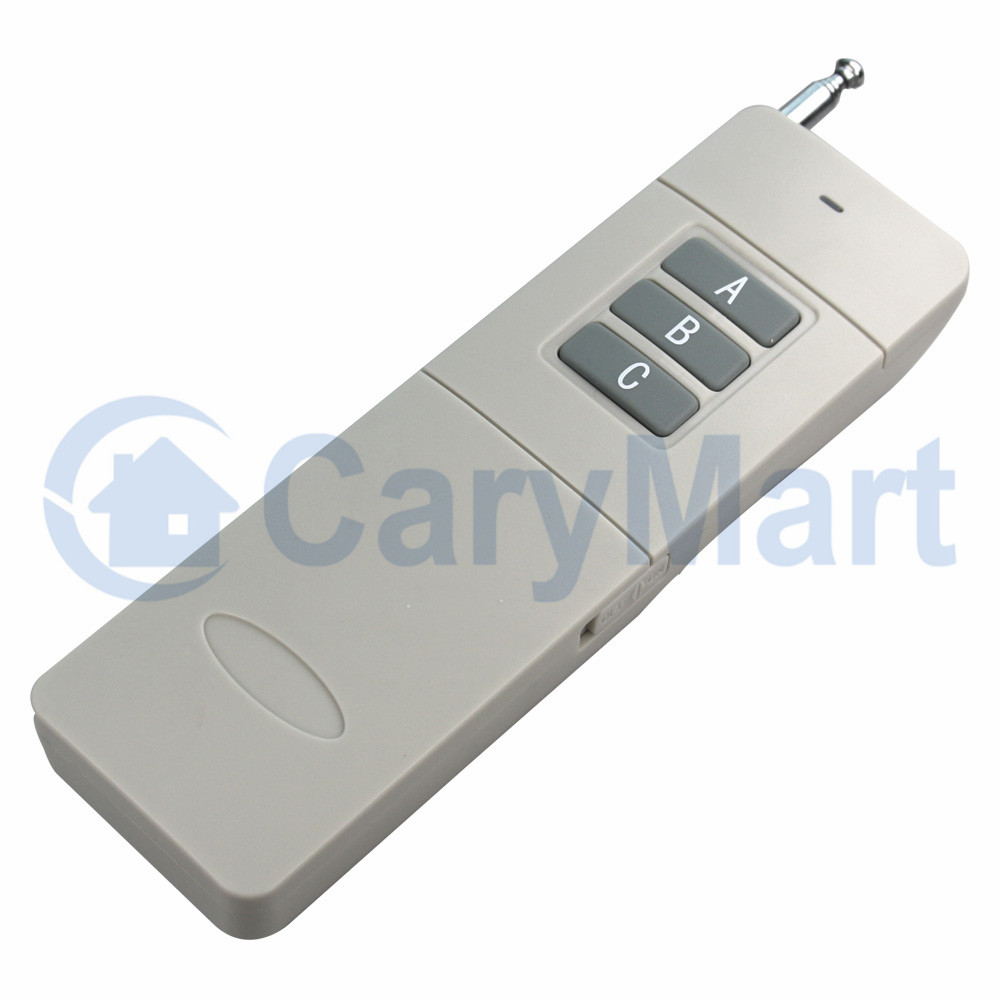

Feature: This transmitter is a super long range remote control. It is developed
by LORA (Long Range) wireless communication technology, so it has ultra-long
working distance, ultra-high receiving sensitivity, superior
anti-interference ability, and smaller power consumption. It uses a
transceiver chip to implement bidirectional communication. Its ideal working
distance is up to 5 kilometers, which is an excellent device for remote
control and long distance communication.
Application:
The transmitter and the receiver form a wireless remote control system. This
system may be used in all types of industry automation, agriculture,
business, home, factory, house, farm, garage, vehicle, ship, aerial vehicle,
etc. It can remote control different AC or DC equipment on land, water and
air, such as lights, doors, windows, lamps, sockets, locks, sirens, outlets,
heaters, motors, fans, winches, curtains, blinds, linear actuators ,
electric solenoid valves , and security alarm systems. The applications are
endless.
Super Long Working Range:
The transmitter and the receiver form a wireless remote control switch, the
maximum working distance may reach 15000 feet or 5000 meters in an open
area.
The maximum working distance is a theoretical data, it shall be operated in
an open ground, no barriers, no interference. But in the practice, it will
be hindered by trees, walls or other construction, and will be interfered by
other wireless signals. Therefore, the actual working distance may not reach
this maximum distance.
Two-Way Working Mode with Feedback Function:
The transmitter and the receiver have a Two-way working mode, so the user
can know the working status of the receiver by the transmitter.
Two-way working mode: When the receiver is successfully triggered by the
signal from the transmitter, it will immediately transmit a feedback signal
to the transmitter. When the transmitter receives this signal, it will send
out a buzzing sound to inform you that the receiver has been successfully
triggered.
Matching Receivers:
This transmitter only works with
5000 meters receivers
, and it does not
work with other ordinary receivers.
Parameters:
Model: 0021096 (CC-3)
Channel / Button: 3

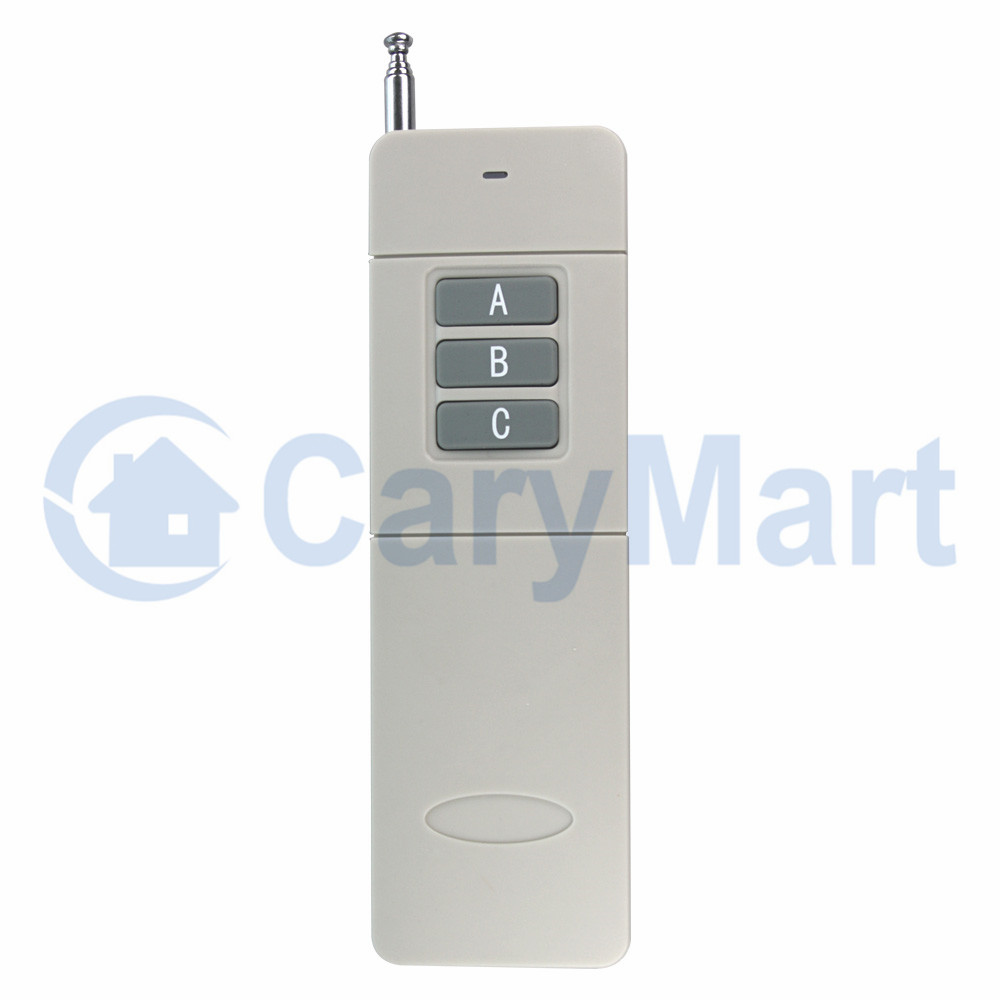

Button Symbol: A, B, C
Operating Voltage: 9V (1 x 6F22-9V battery, can be used for 12 months)
Quiescent Current: 5μA
Working Current: 65mA (when the transmitter is transmitting the signal),
16mA( when the transmitter is receiving the signal).
Operating Frequency: 433.92 MHz

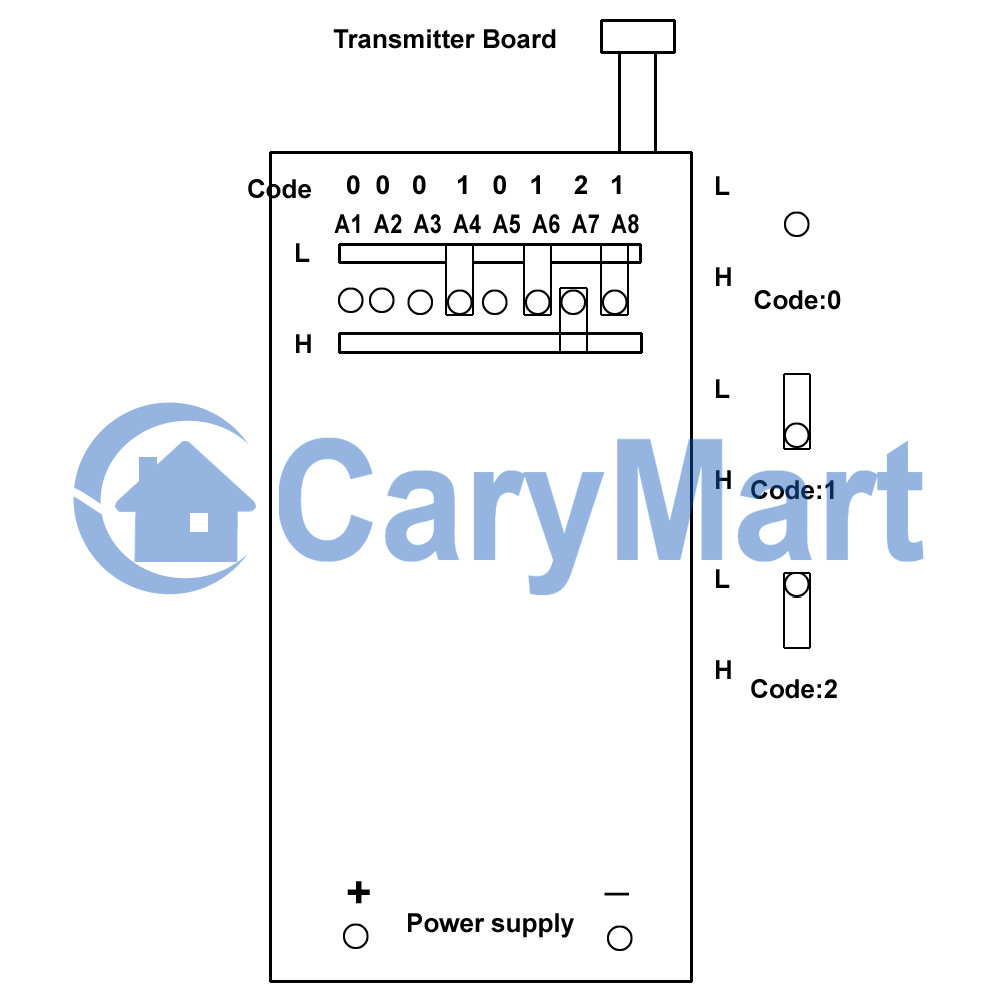

Encoding Type: Each transmitter has a unique built-in code, with millions of
different combinations to avoid interference.
Modulation Mode: FSK + LORA
Feedback indication: buzzing sound
Maximum Transmitting Distance: 5000 meters / 15000 feet (theoretically)

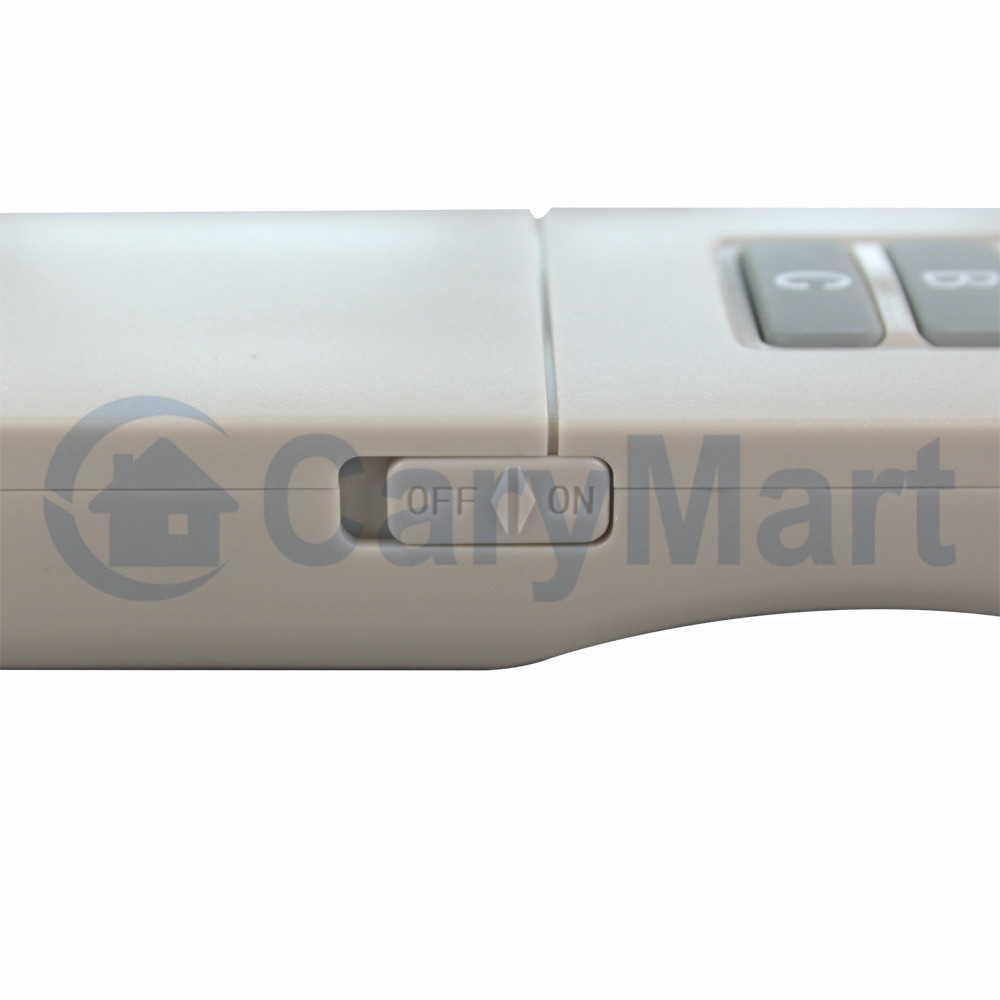

With power switch on the side.
Operating Temperature: -20°C ~ +70°C
Unit Size: 135 x 42 x 25 mm (5.3 x 1.7 x 1.0 inches)
Uses: garage doors, motorcycles, car alarm products, home security products,
wireless remote control products, industrial control products.
How to set the feedback function:
You first open the case of the transmitter, then you will see a jumper J1 on
the circuit board.
You can retain the jumper J1 to activate the feedback function; or remove
the jumper J1 to deactivate the feedback function.
Notice:

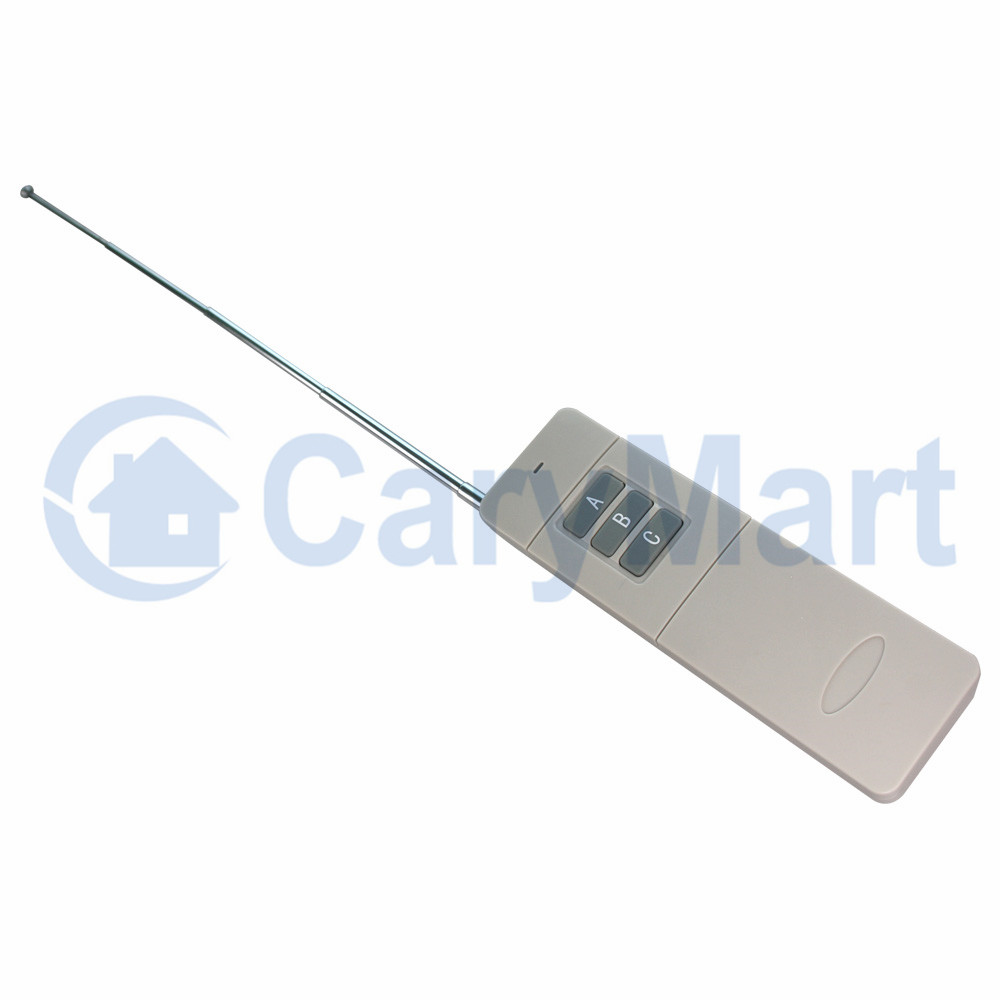

1. Please fully extend the telescopic antenna to get the best working range.
2. Please turn off the power switch if you don’t use the transmitter for a
long time.
3. Replace the transmitter's battery if the transmitter's signal LED is weak
or the working distance is shorter.
