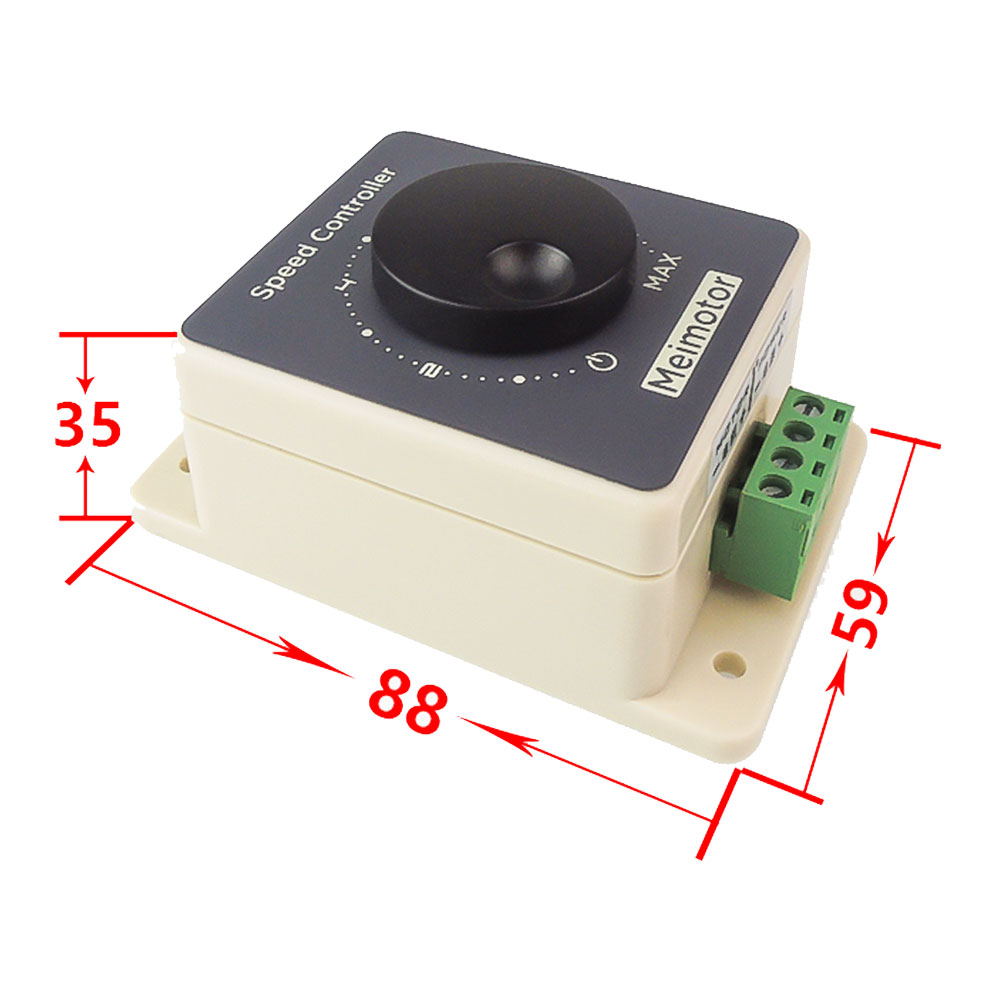

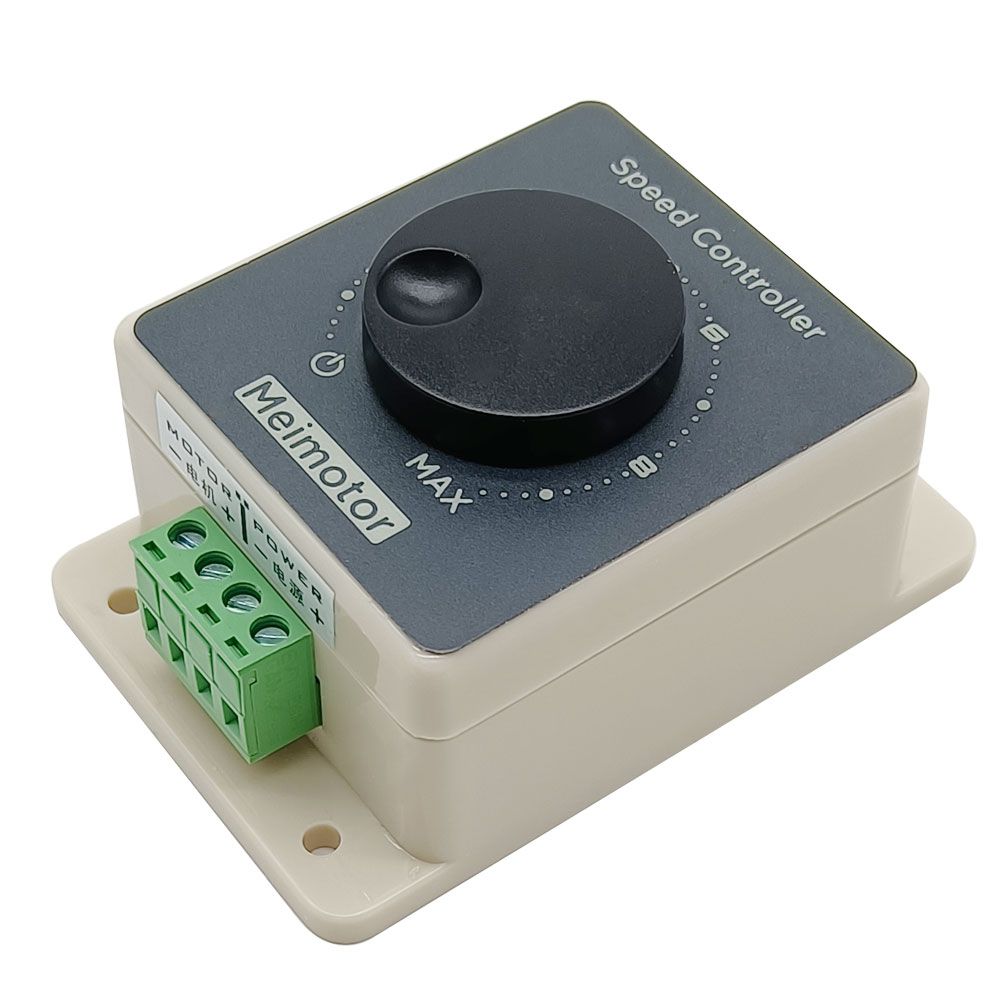

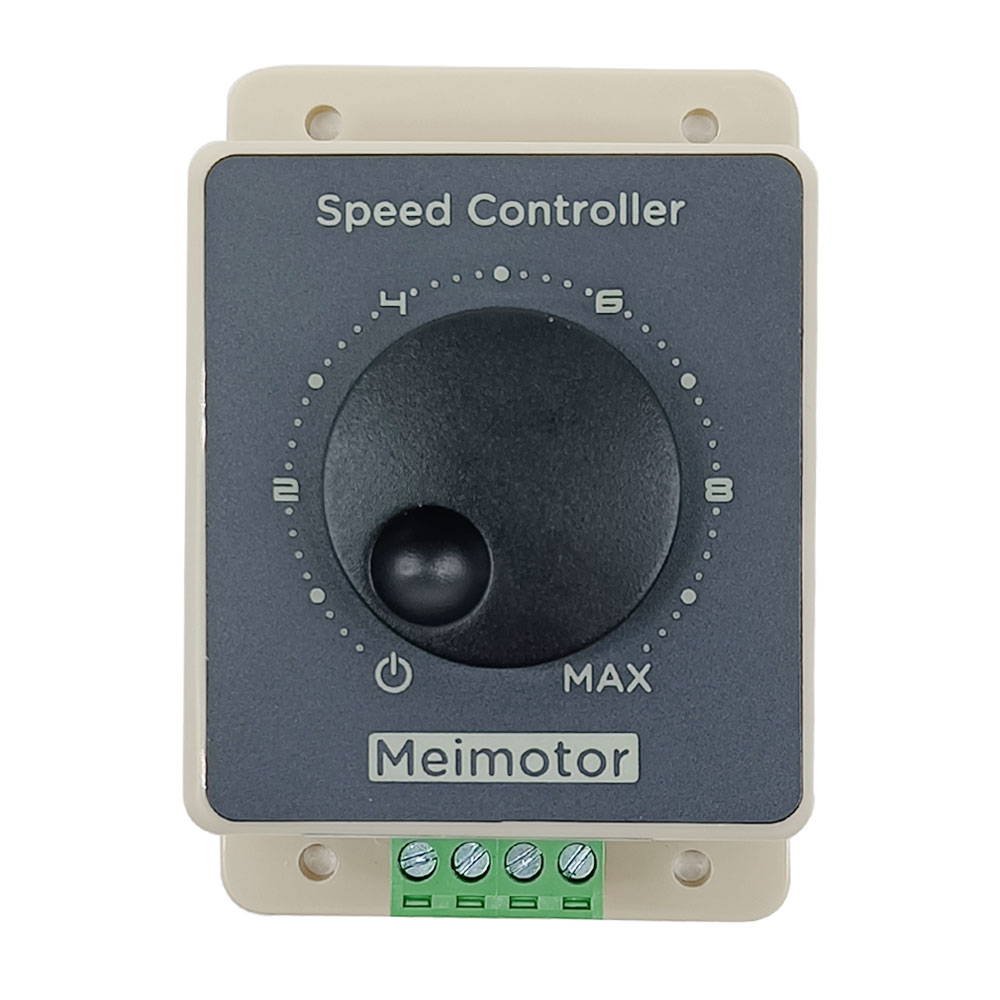

Feature: Model: 0044006 Working Voltage: DC 10V~60V Rated current: 10A The maximum operating current: 20A Unit Size: 88mm x 59mm x 35mm Speed Adjustment Range: 5%~100%. Adjustable potentiometer: 100K The speed of linear actuator or motor can be adjusted through twisting the knob.

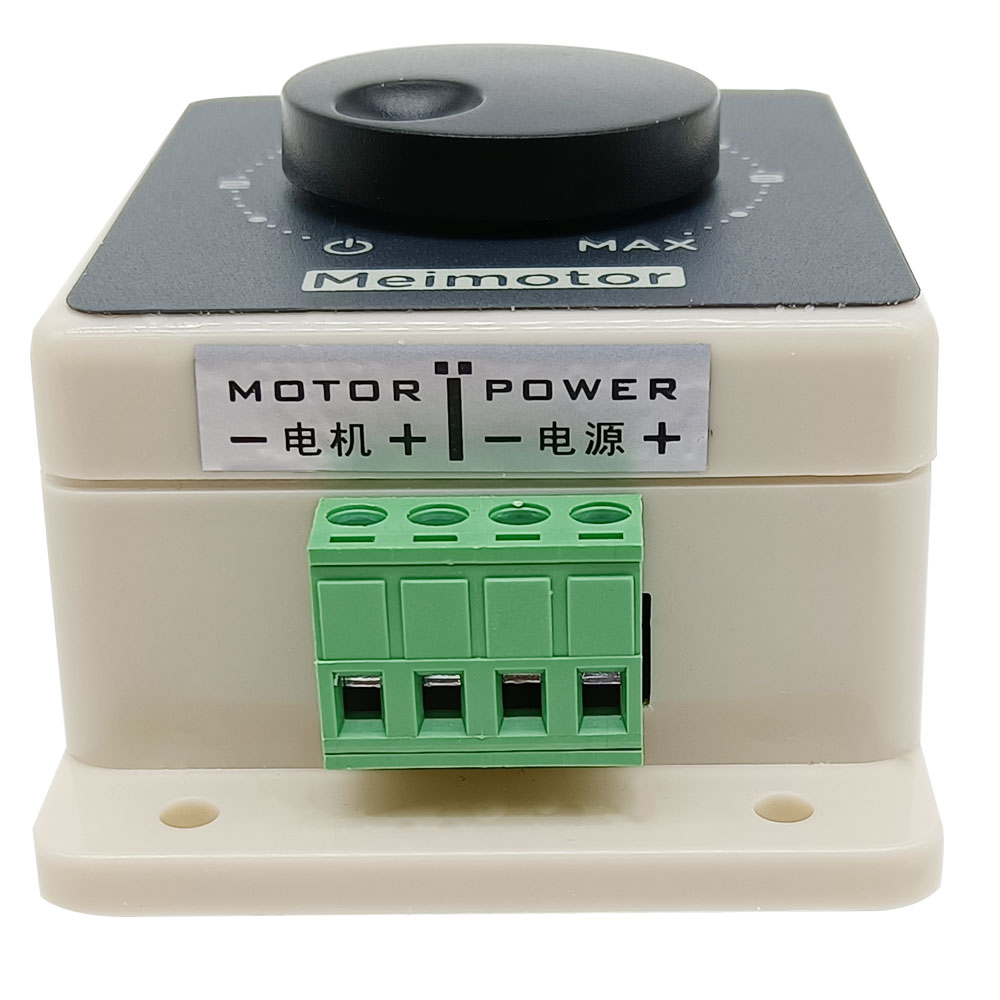

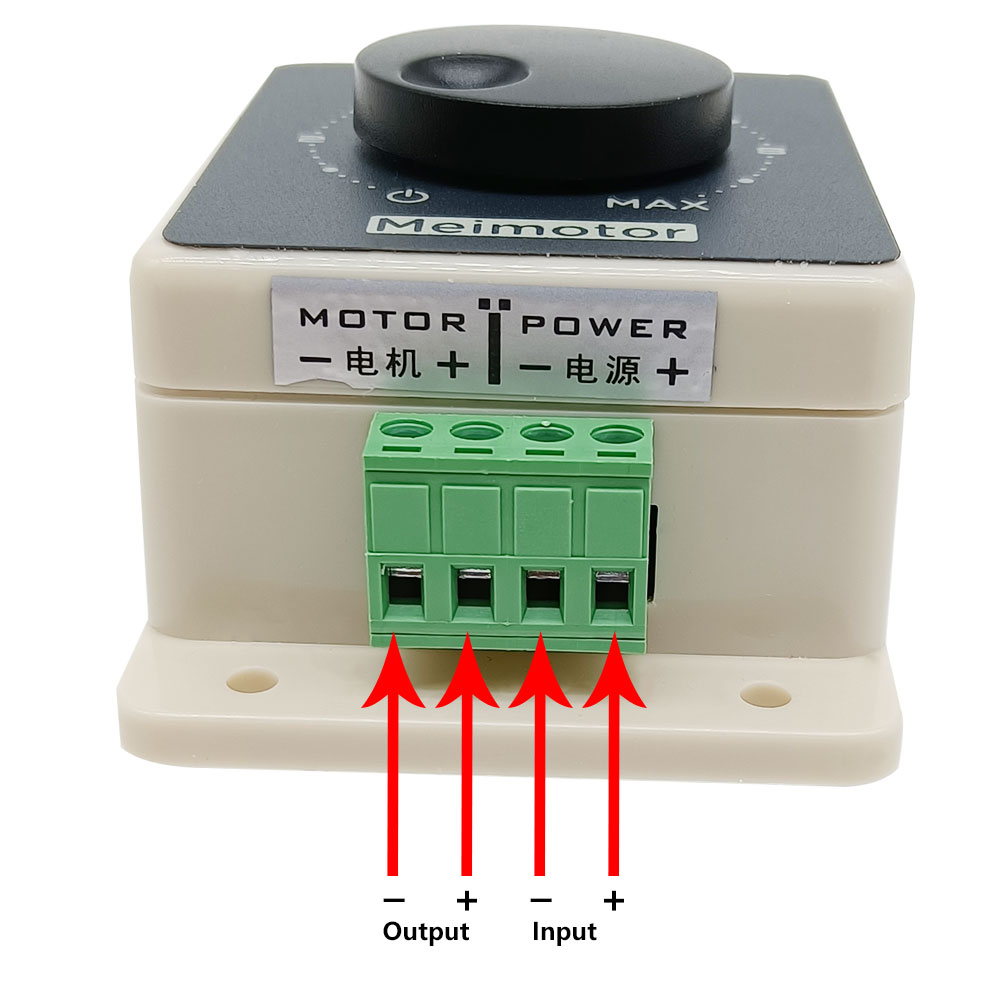

Connect: 1) Connect DC power supply to the input terminals. 2) Connect linear actuator or motor to the output terminals.
Operation with linear actuator: Twist the knob to adjust the movement speed of linear actuator. Twist clockwise, the moving speed of linear actuator will speed up. Twist anti-clockwise, the moving speed of linear actuator will slow down.
Operation with motor: Twist the knob to adjust the rotation speed of motor. Twist clockwise, the rotation speed of motor will speed up. Twist anti-clockwise, the rotation speed of motor will slow down.
