Feature:
Model:
0044007
Working
Voltage: DC 12V~30V
Rated
current: 3A
The maximum
operating current: 6A
Speed
Adjustment Range: 0%~100%

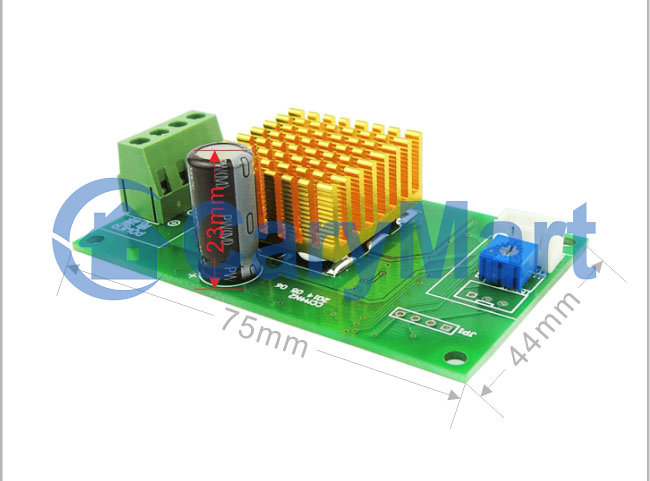

Unit Size:
75mm x 44mm x 23mm

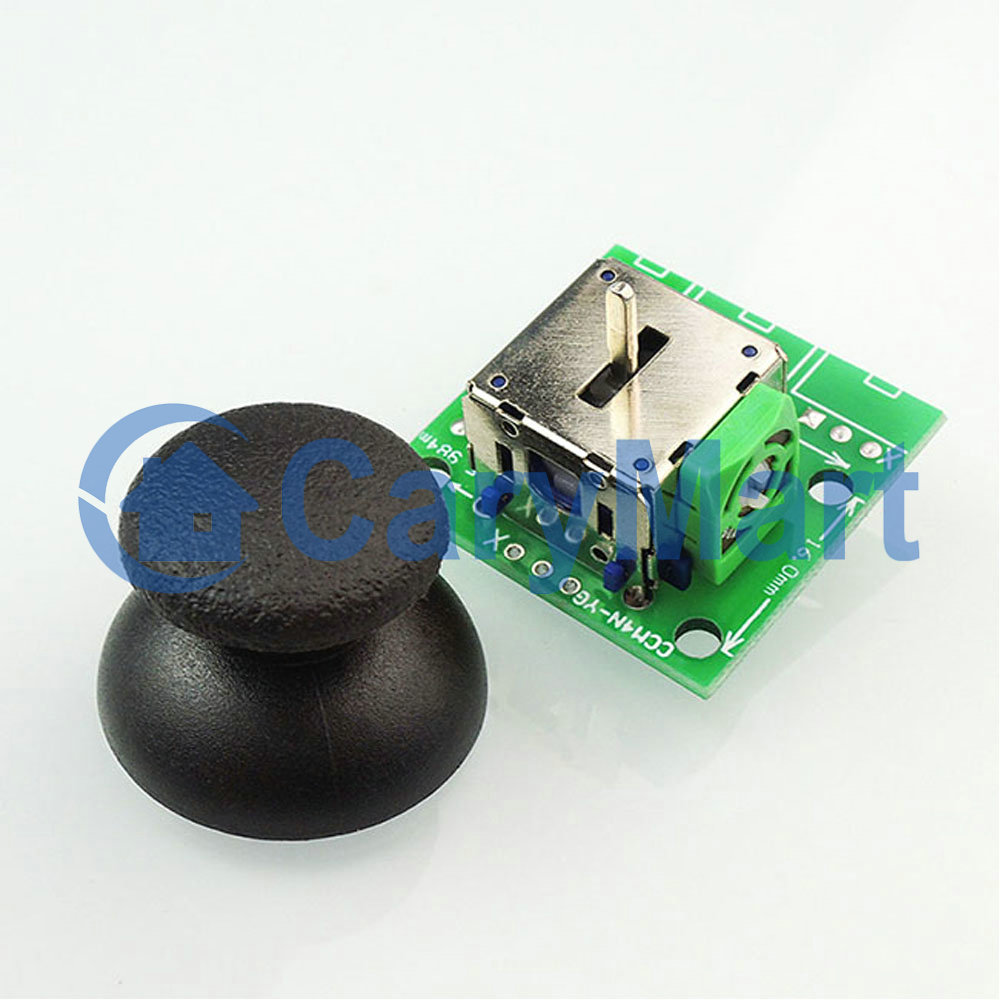

Rocker
Governor:

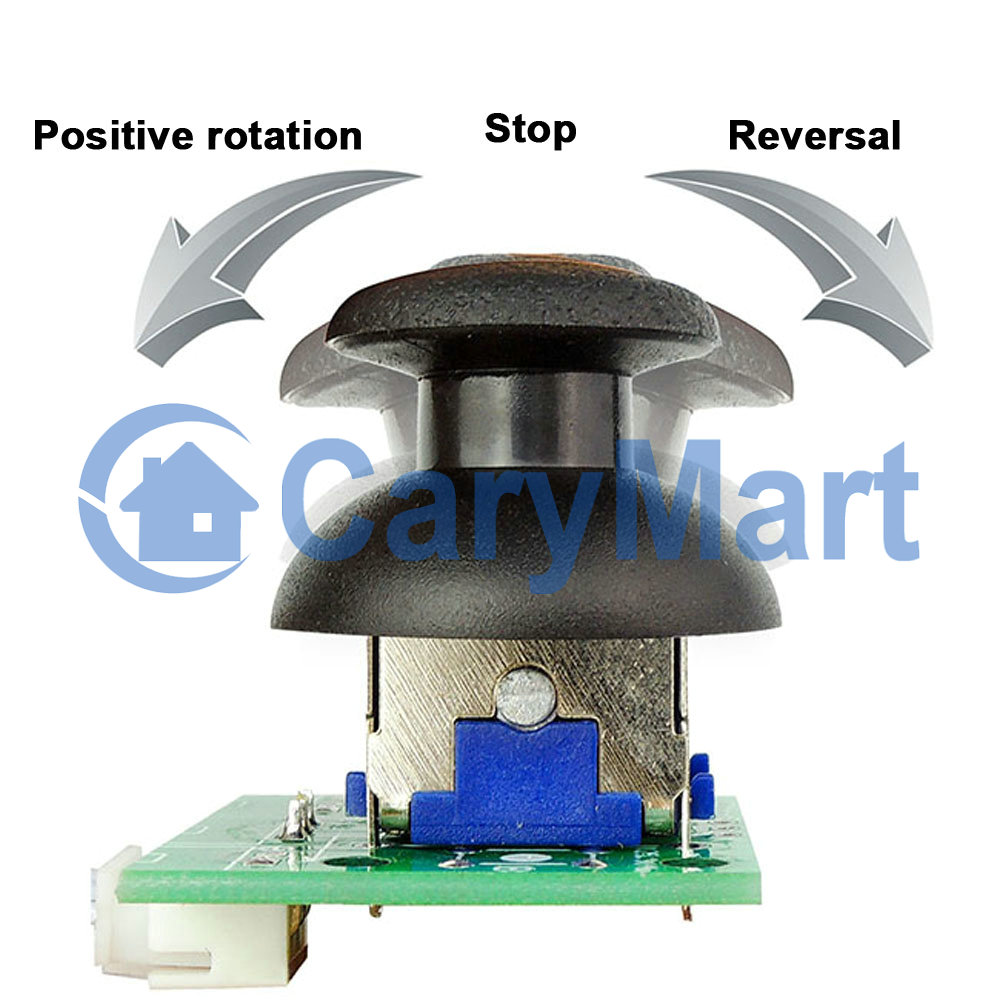

When the
joystick is in the middle position, the motor stops.
When the
joystick is moved to two different directions, the motor rotates in two
different directions.
The
deviation of the joystick is greater, the speed of the motor will be faster.
When the joystick is moved to the end, the motor speed is the fastest.

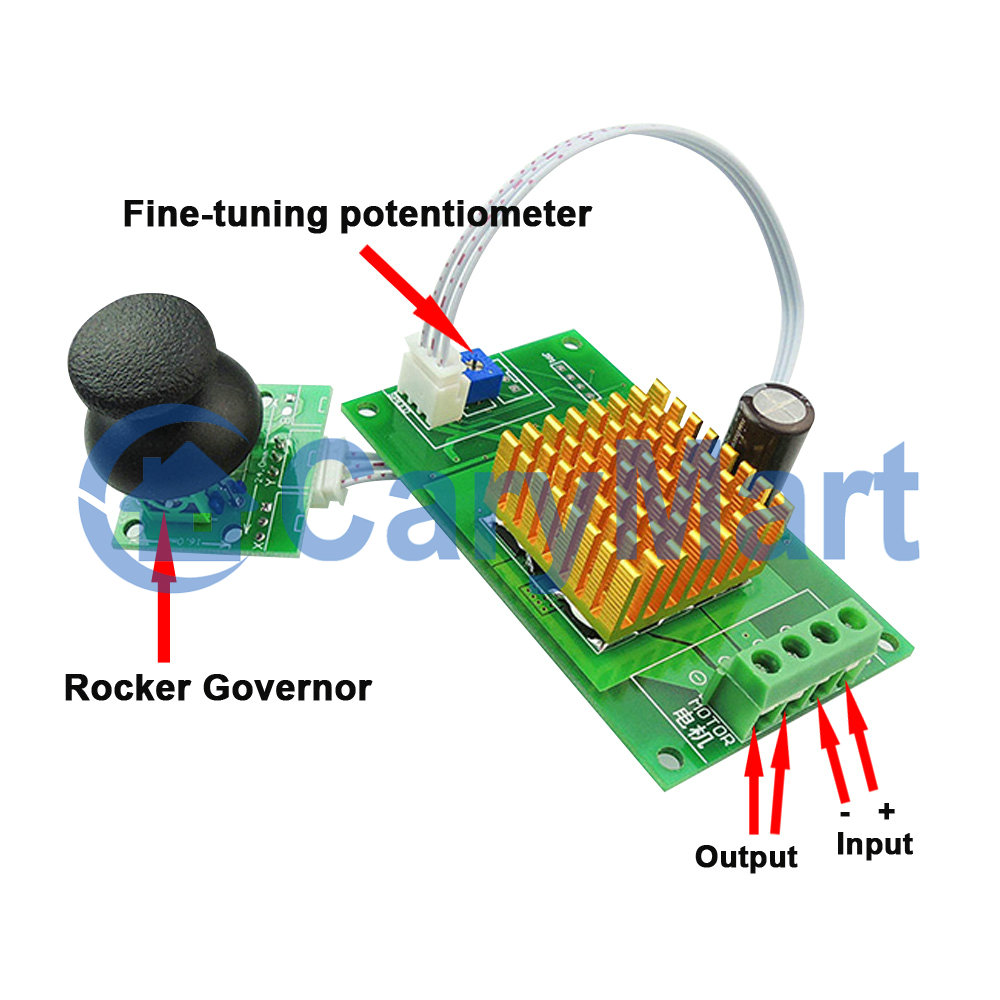

Fine-tuning Potentiometer:
Adjust the
midpoint offset of the joystick.
Connection:
Connect the
positive pole of DC power supply to terminal “+” of INPUT, and connect the
negative pole of DC power supply to terminal “-” of INPUT.
Connect DC
motor to the terminals "OUTPUT". You can exchange motor's two wires to
change the rotating direction of motor.
