DC 6~36V Power Output Mini Size Wireless Remote Control Kit With 4 Control Modes

Video: Single channel DC 6-36V mini wireless equipment remote control DC lamp

Manual

Feature:
Wireless control, easy to install
Direct power output; control Lights, Motors, Fans, electrically operated Doors/Locks/Windows/Blinds/Cars or Other Appliances.
You can turn on/off the receiver with transmitter (remote control) from any place within a reliable distance; the wireless RF signal can pass through walls, floors and doors.
With characteristics of reverse power protection and over current protection
Audible / visual indication.
Use an 8-bit microcontroller with low-power and high-speed CMOS technology.
Reliable control: The transmitter (Encoding) and the receiver (Decoding) use an 8-bit code.
One/ several transmitters can control one/ several receivers simultaneously.
If you use two or more receivers in the same place, you can set them with different codes.
It is recommended to use the load within 3A or 50W.

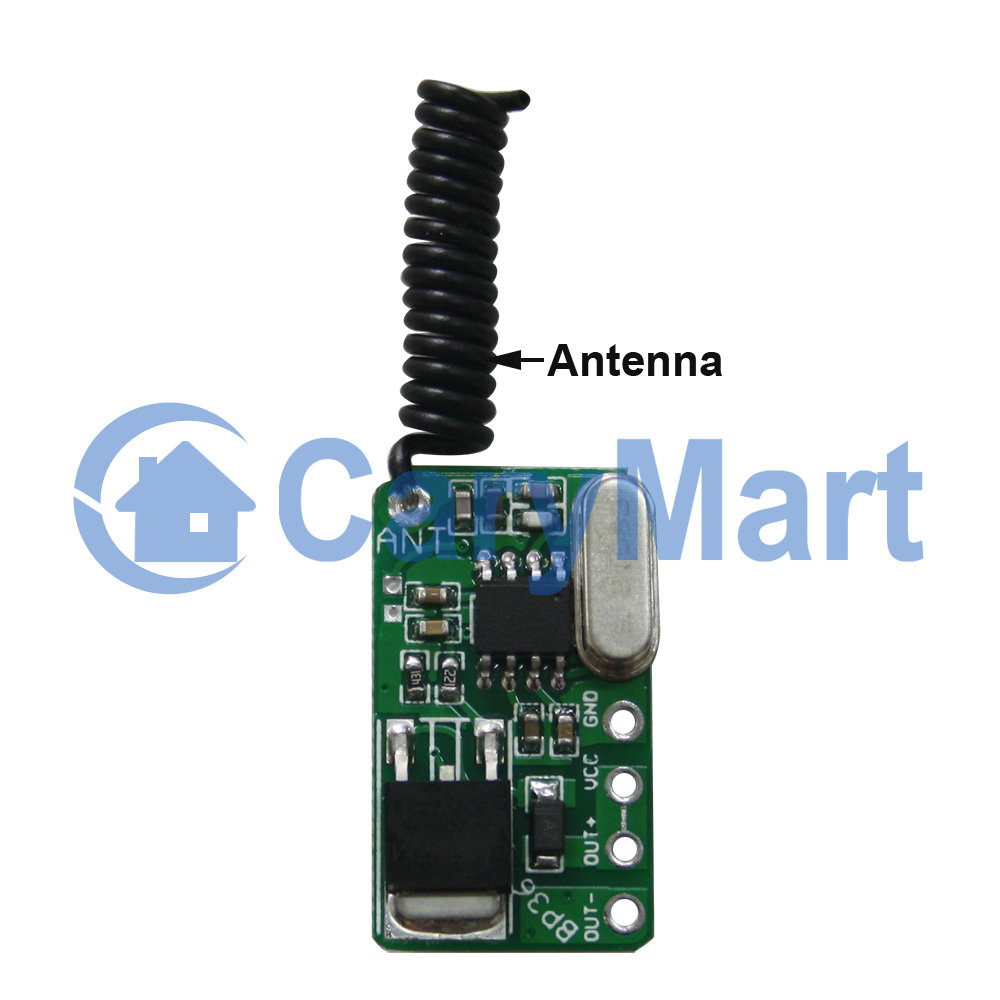

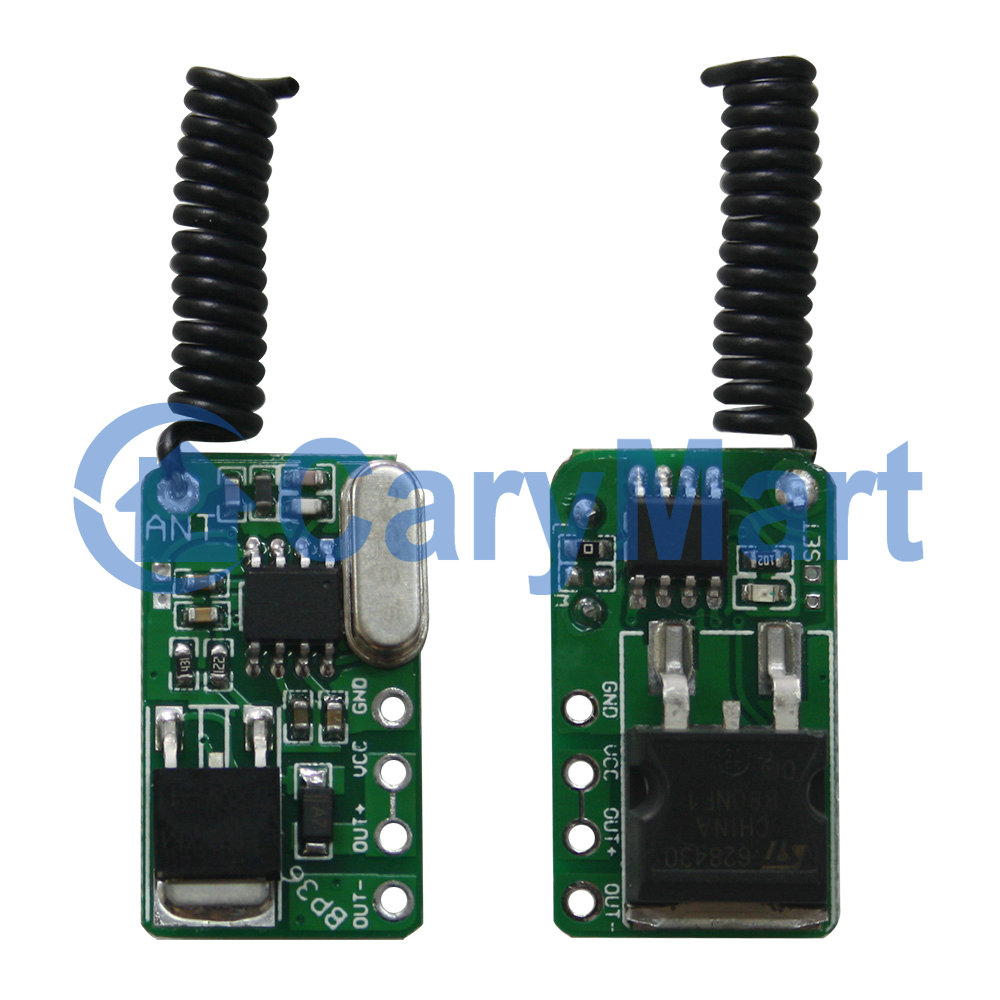

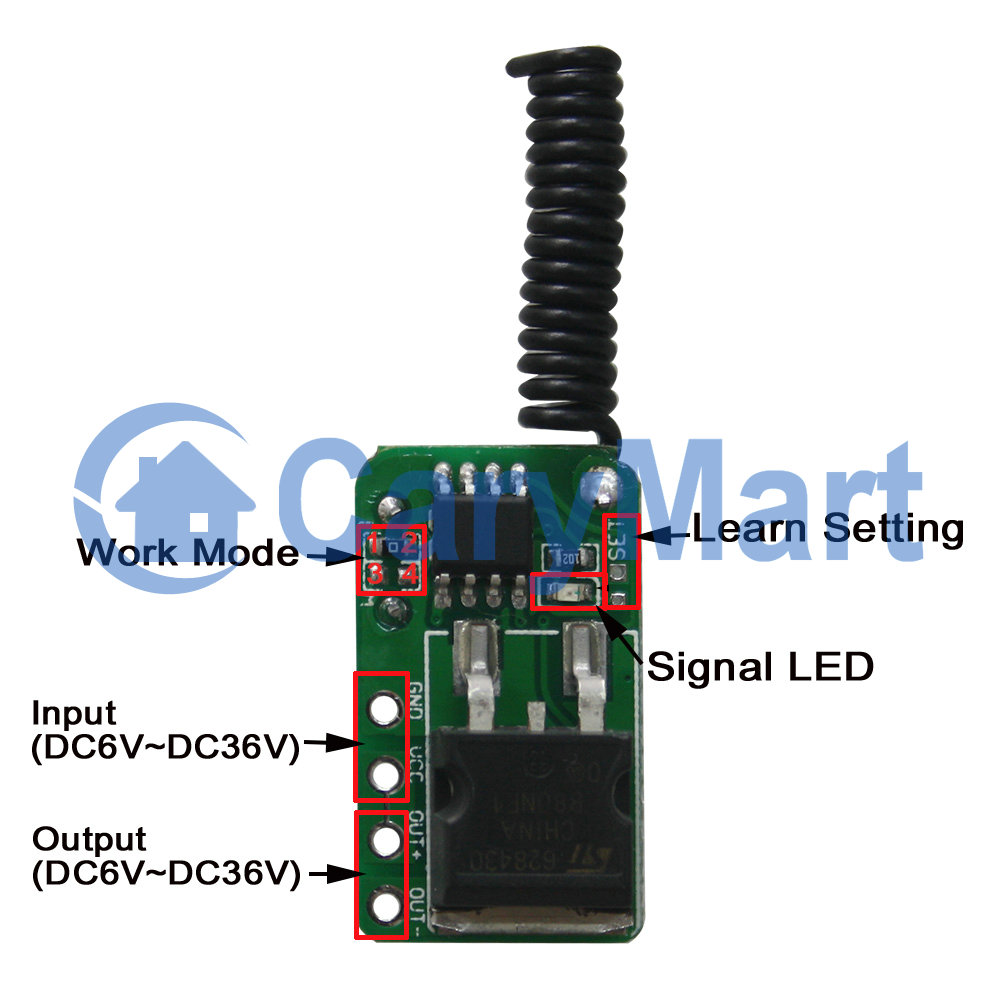

Receiver:
Model No.: S1X2-DC
Channel: 1 CH
Power Supply (Operating Voltage): DC 6~36V
Output: DC 6~36V
Working Frequency: 433MHz
Control Modes: Momentary, Interlocking, Self-locking, 10 seconds delay
Coding Type: Fixed code or learning code
Coding Setting: By learning
PCB Size: 27mm x 16mm x 7mm
Static Current: ≤6mA
Maximum Working Current: 3A or 50W
Work with Fixed code transmitters or Learning code transmitters.

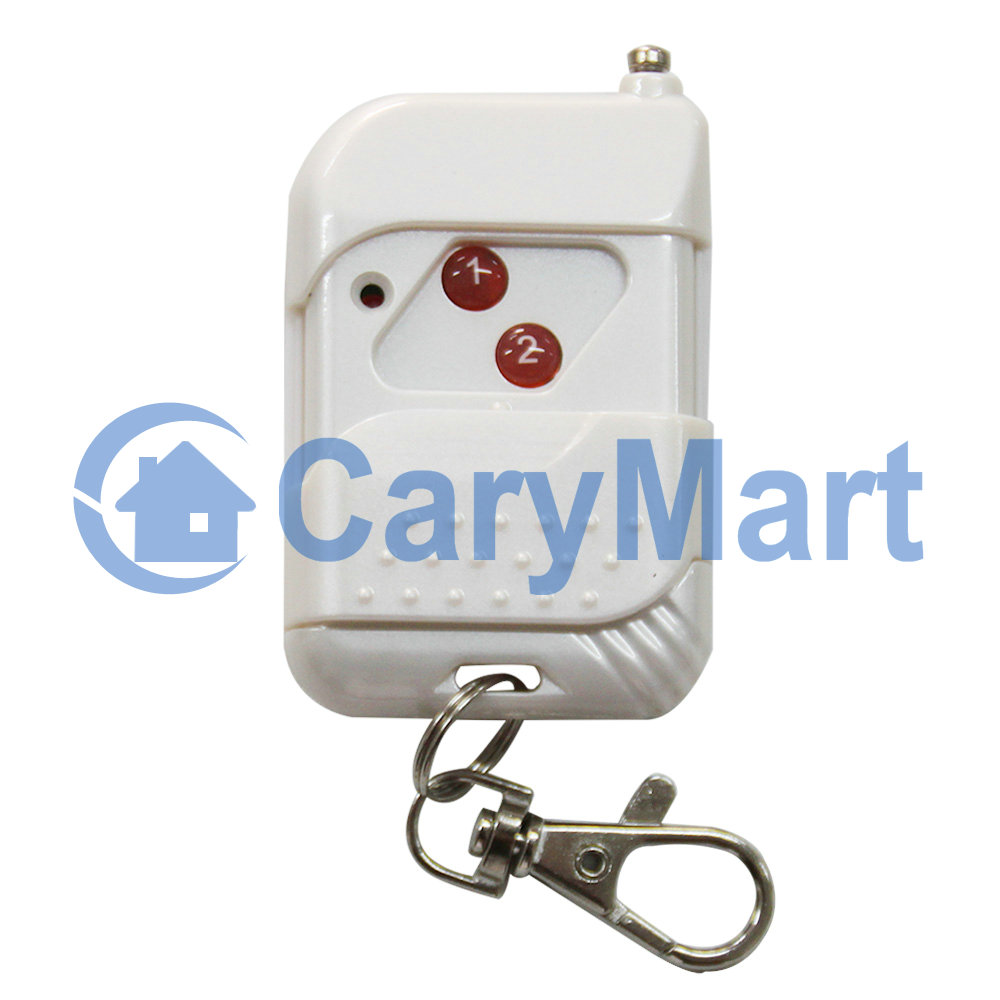

Transmitter:
Model No.: C-2
Channel: 2 CH
Remote Control Distance: 50m / 150ft (theoretically)
Encode: Fixed code by Soldering
Unit size: 58mm x 39mm x 16mm
Power Supply: 1 x 23A -12V battery (included, can be used for 12 months)

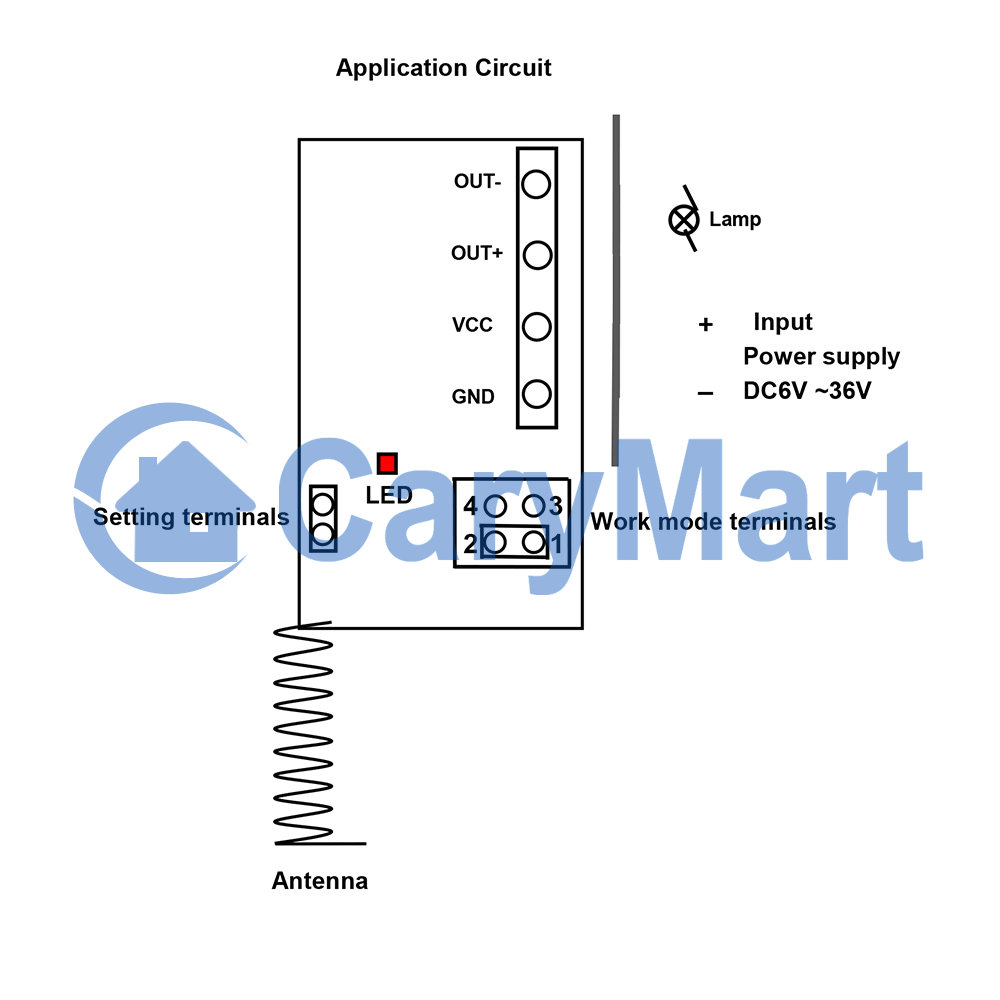

Usage:

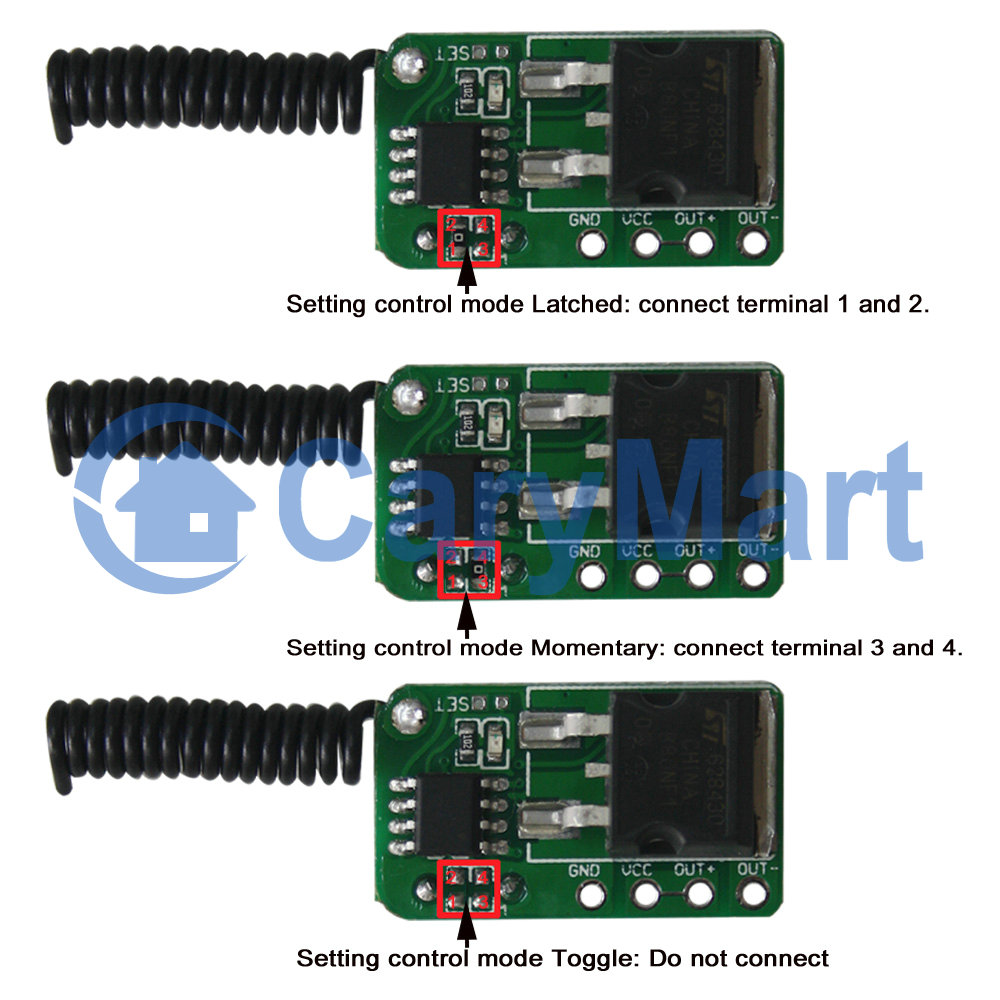

Setting different control modes (We have set the receiver as Interlocking mode before delivery. If you want to use other modes, do as following):

1) Setting control mode Momentary: connect terminal 3 and 4.
Press and hold button A:output DC power.
Release button A:  stop to output.

2) Setting control mode Interlocking: connect terminal 1 and 2.
Press button A: output DC power.
Press button B: stop to output.

3) Setting control mode Self-locking: Do not connect
Press button A: output DC power.
Press button A  again: stop to output.

4) Setting control mode of 10 seconds delay: connect terminal 1 and 2, and connect terminal 3 and 4.
Press button A: output DC power.
After 10 seconds delay, stop to output.

Package Include:

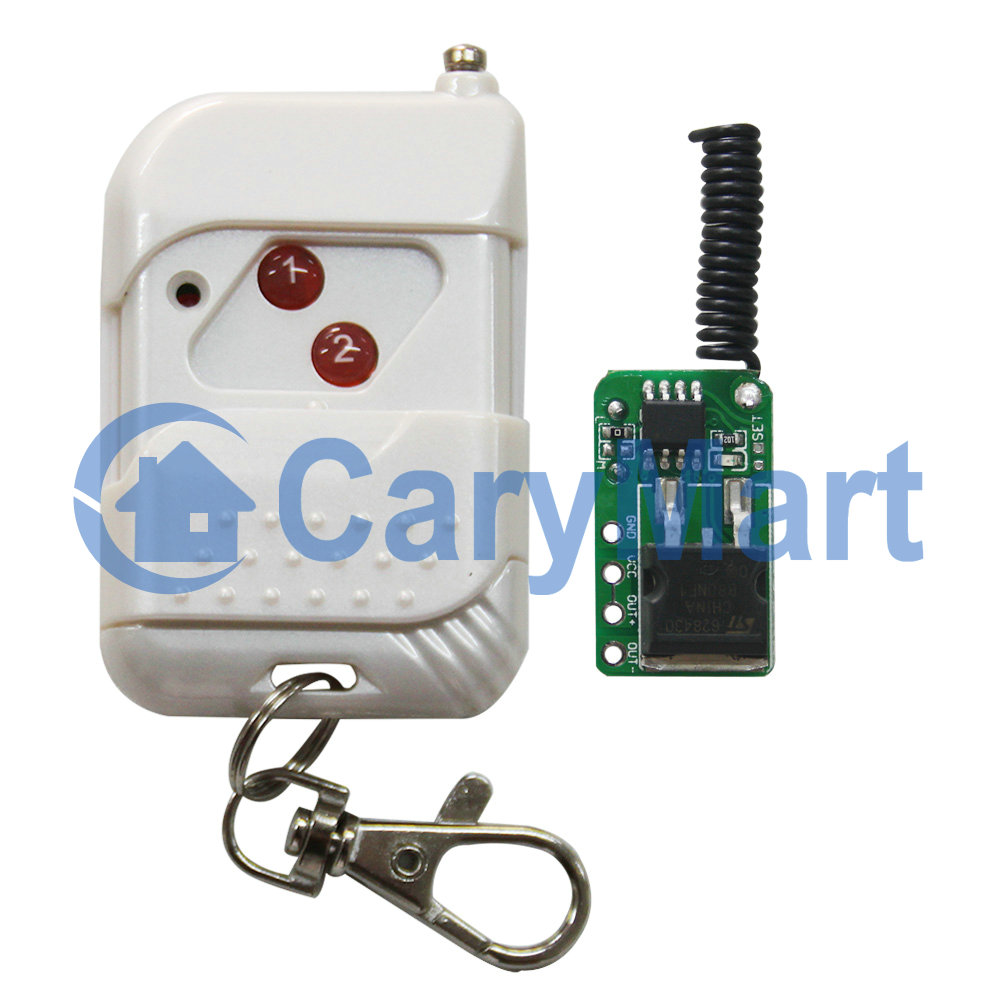

1 x Receiver: S1X2-DC (1 Channel / Three control Modes)
1 x Transmitter: C-2
1 x User manual
