Package Include:

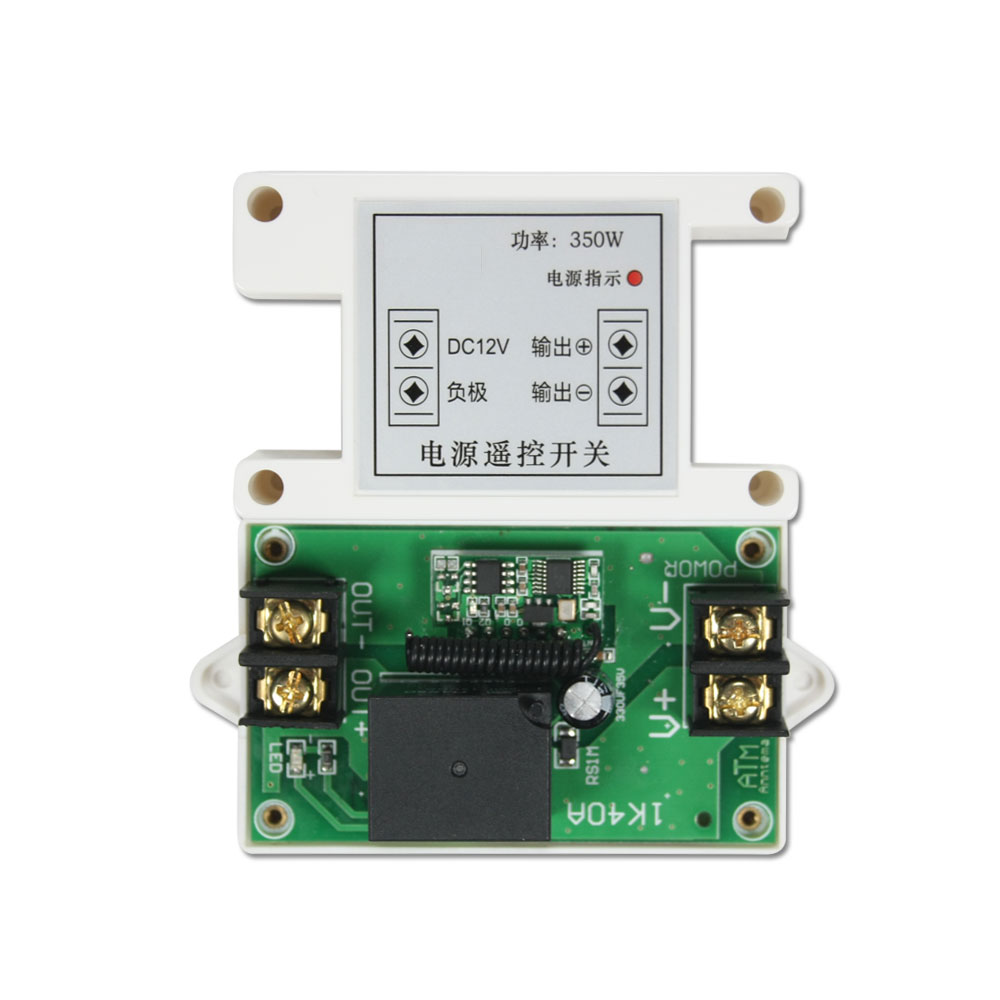

1 x Receiver: S1PXA-DC12
1 x User manual
Feature:
Application: It can be used in industry automation, agriculture automation and
home automation, such as factory, house, farm, pasture, vehicle, ship, offshore
operation, aerial vehicle, field call, etc. It can remote control equipments on
land, water and air, such as remote control lights, sirens, locks, motors, fans,
winches, blinds, linear actuators, doors, windows, electric solenoid valves,
security alarm, business signs and various devices.
Wireless control, easy to install.
Universal Power Supply: DC 8~15V.
DC Power Output: It can control DC equipment with voltage DC 8~15V.
High Power: Each channel can work at maximum current 30A.
You can control the equipments by using the receiver with transmitter (remote
control) from any place within a reliable distance.
Wireless RF signal can pass through walls, floors, doors or windows.
With reverse power protection and over current protection.
Reliable control: The code has thousands of different combinations, and the
receiver only works with the transmitter which use the same code.
One/several transmitters can control one/several receivers simultaneously.
You can use two or more units in the same place.
Receiver Parameters:
Model No.: S1PXA-DC12
Power Supply (Operating Voltage): DC 8~15V
Output: DC 8~15V
Wire range for the terminals: 22-12 AWG
Working Frequency: 433.92MHz
Channel: 1 CH
Control Modes: Self-locking, Momentary, Interlocking, Delay
Static Current: ≤6mA
Maximum Working Current: 30A / each channel
Operating Temperature: -20 ° C to +70 ° C

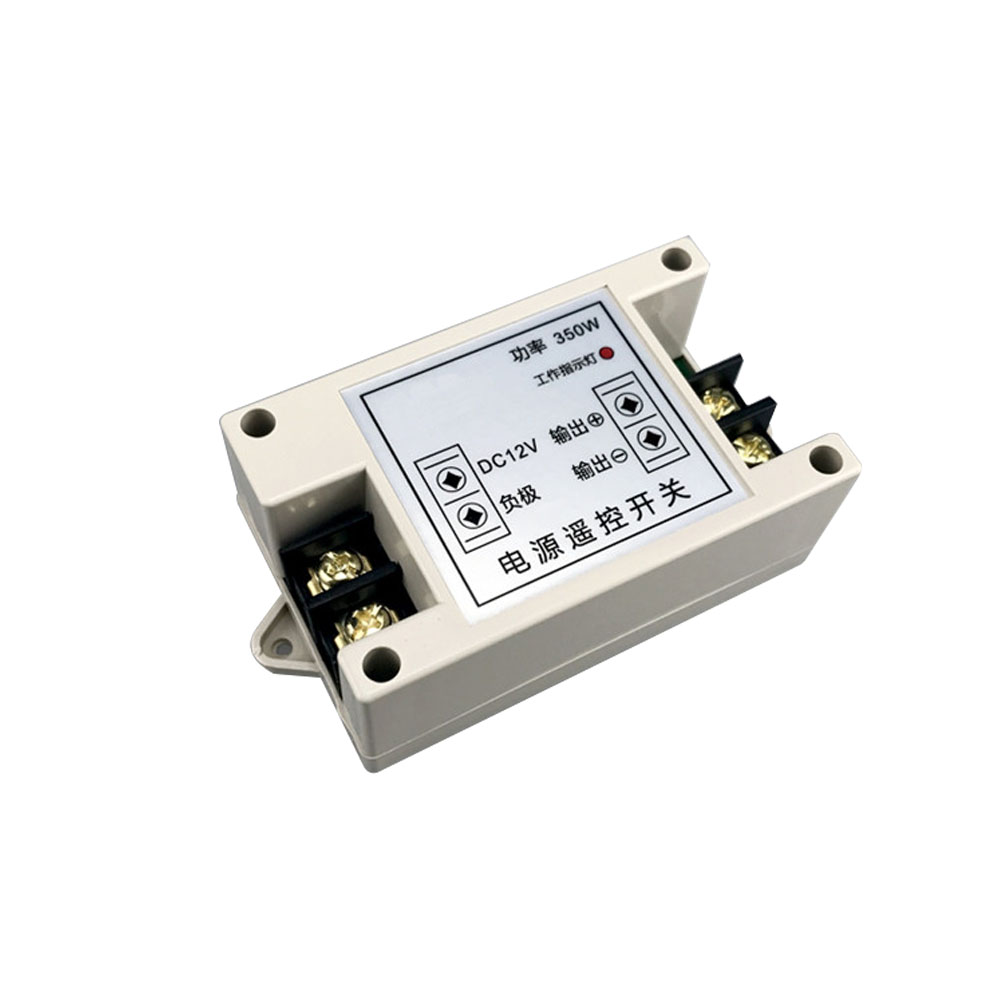

Case size: 96mm x 50mm x 33mm
Matching Transmitters:
The receiver can work with different transmitters, such as model C-1 / C-2
(100M), CWB-1 / CWB-2 (50M, waterproof), CQ-1 / CQ-2 (50M) or CB-1 / CB-2
(1000M) etc.
When you set the receiver in Self-locking, Momentary or Delay mode, it can work
with single button transmitter, such as model C-1 (100M), CWB-1 (50M,
waterproof), CQ-1 (500M), or CB-1 (1000M) etc. When you set the receiver in
Interlocking mode, it should work with two buttons transmitter, such as model
C-2 (100M), CWB-2 (50M, waterproof), CQ-2 (500M), or CB-2 (1000M) etc.
Working Range:
With a transmitter (such as CQ-2) to form a complete set, the maximum working
distance can reach 50M in an open ground.
The maximum working distance is a theoretical data, it shall be operated in an
open ground, no barriers, no any interference. But in the practice, it will be
hindered by trees, walls or other constructions, and will be interfered by other
wireless signals. Therefore, the actual distance may not reach this maximum
working distance.
If you want to have a further working range, you can install an external antenna
to the receiver, and you also can use a powerful transmitter, such as
transmitter CB-2.
Usage (with the transmitter CQ-1 / CQ-2):
The receiver can be used to control DC 8~15V equipments.

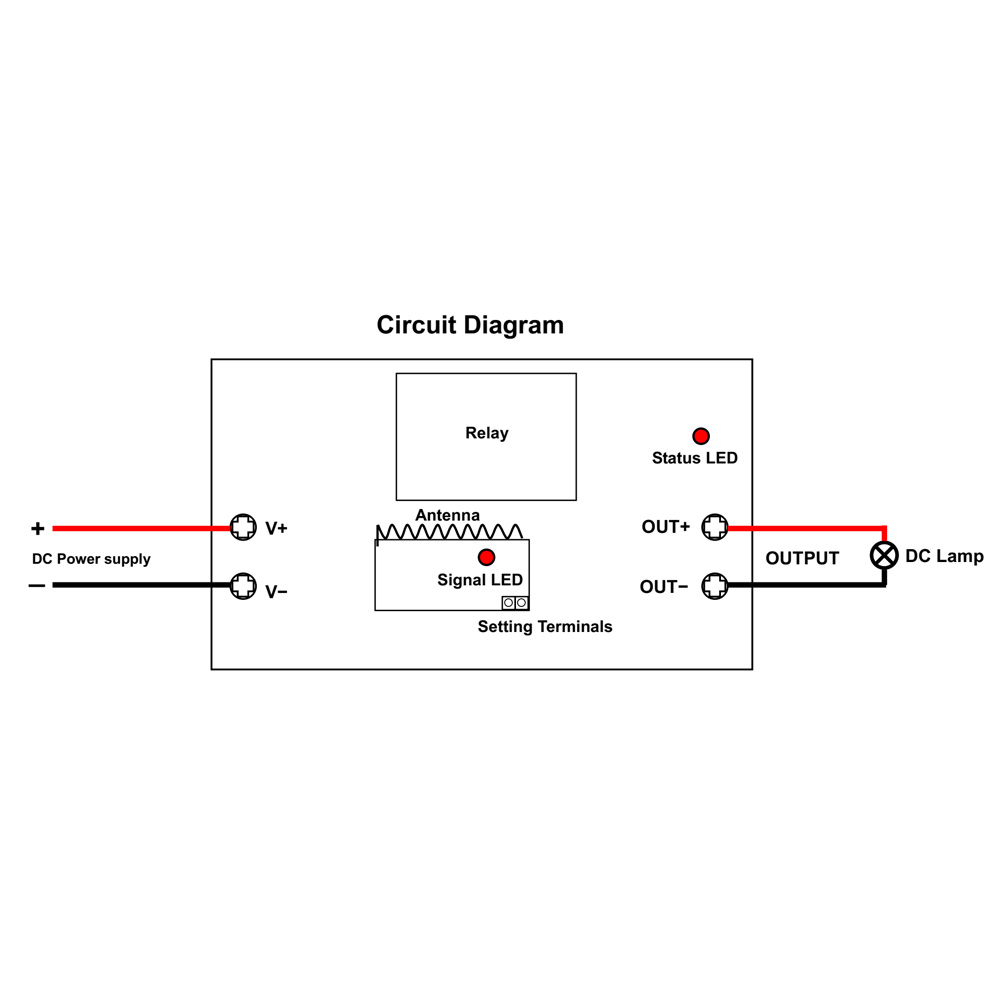

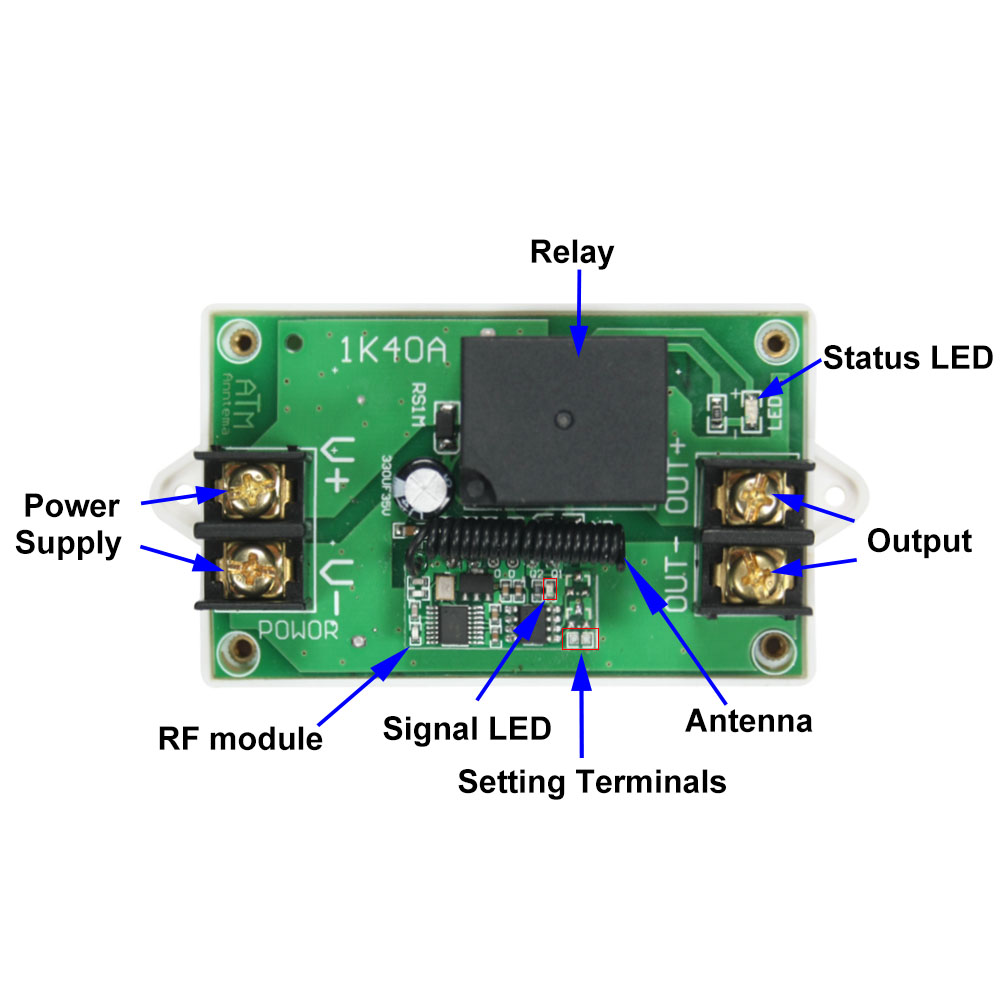

Wiring:
If you want to control a DC 12V lamp, do as following:
1) Connect the positive pole of DC power supply to terminal “V+” of INPUT, and
connect the negative pole of DC power supply to terminal “V−” of INPUT.
2) Connect the positive pole of lamp to terminal “OUT+” of OUTPUT, and connect
the negative pole of lamp to terminal “OUT−” of OUTPUT.
Setting different control modes:
We have set the receiver as Interlocking control mode before delivery. If you
want to use other control modes, do as following operation:
1) Setting Self-locking mode: Connect two setting terminals until signal LED
flashes 3 time, then disconnect.
Control mode Self-locking (working with transmitter CQ-1): Press -> On; Press
again -> Off.
Press button of the transmitter: Output terminals output DC power, the lamp is
turned on.
Press button again: Output terminals stop outputting, the lamp is turned off.
2) Setting Momentary mode: Connect two setting terminals until signal LED
continuously flashes 2 times, then disconnect.
Control mode Momentary (working with transmitter CQ-1): Press and hold -> On;
Release -> Off.
Press and hold button of the transmitter: Output terminals output DC power, the
lamp is turned on.
Release button: Output terminals stop outputting, the lamp is turned off.
3) Setting Interlocking mode: Connect two setting terminals until signal LED
continuously flashes 1 times, then disconnect.
Control mode Interlocking (working with transmitter CQ-2): Press -> On, Press
another button -> Off.
Press button "ON" of the transmitter: Output terminals output DC power, the lamp
is turned on.
Press button "OFF" of the transmitter: Output terminals stop outputting, the
lamp is turned off.
4) Setting Delay mode: Connect two setting terminals until signal LED continuously
flashes 4 times, then disconnect.
Control mode Delay (working with transmitter CQ-1): Press -> ON; Then OFF by
itself after 5 seconds.
Press button of the transmitter: Output terminals output DC power, the lamp is
turned on.
After 5 seconds: Output terminals stop outputting, the lamp is turned off.
