Description:

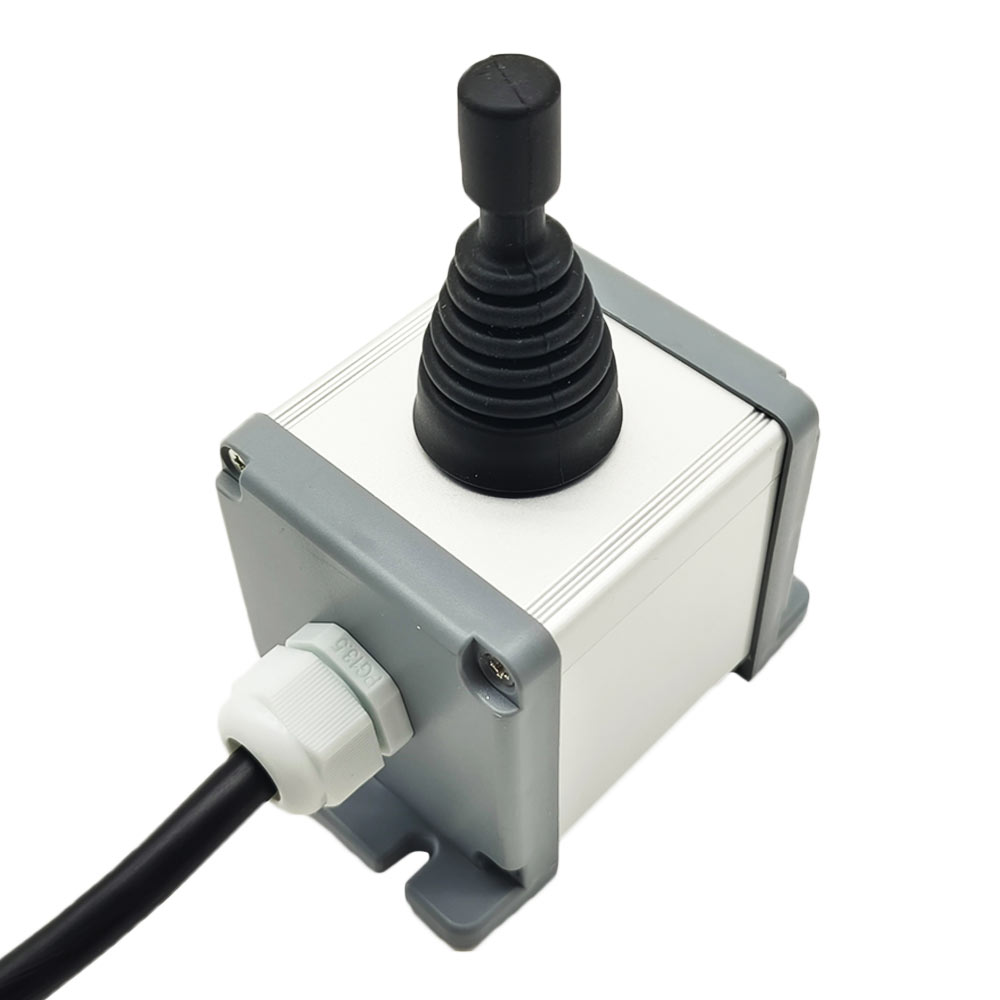

Cross rocker switch for motor CW-CCW rotation.
Suitable for controlling the forward and reverse rotation of DC motors.
Suitable for controlling the extension and retraction of DC linear
actuators.
Operating voltage range: DC 3V ~ 48V
Maximum Load current: 30A at 12V / 24V
Control method: Rocker
Switch Type: 2 Position, Self-reset
Main Function: Front (Forward) – Center (Stop) – Back (Reverse)

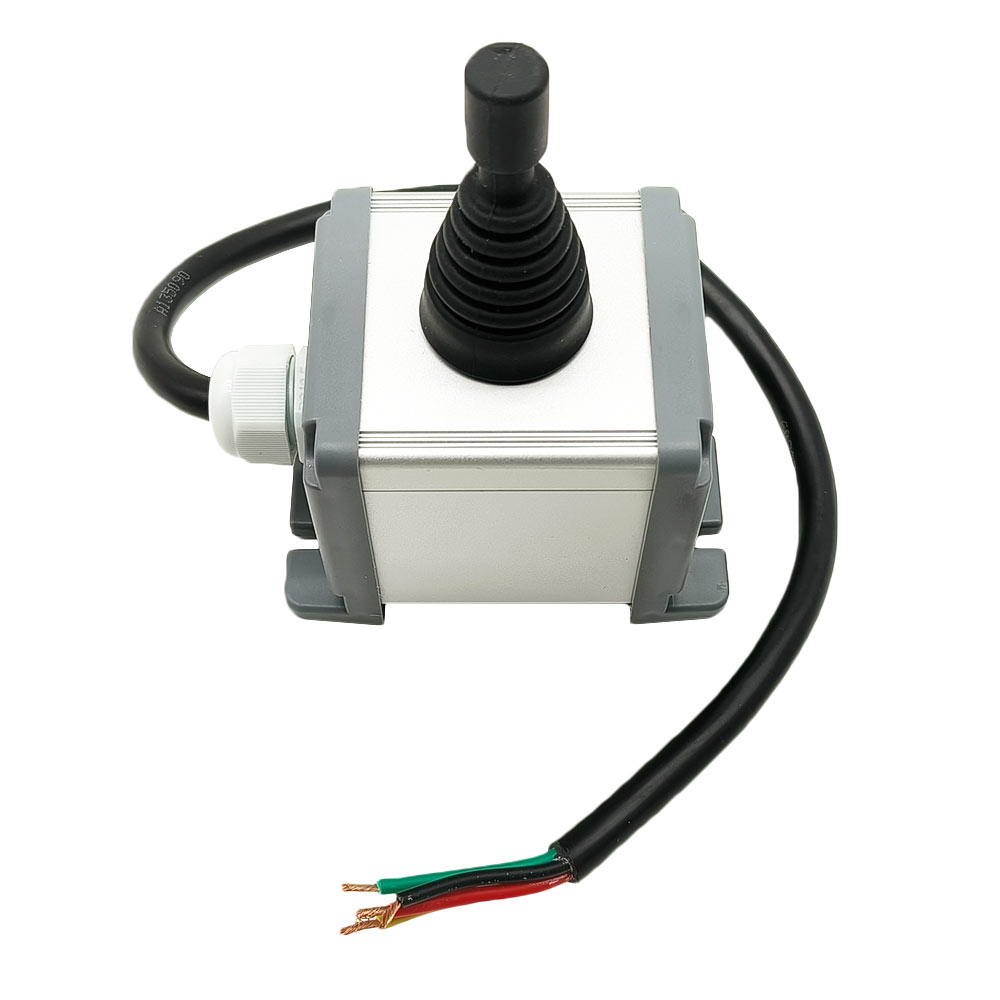

With a 50CM 0.75 square millimeters four-core cable

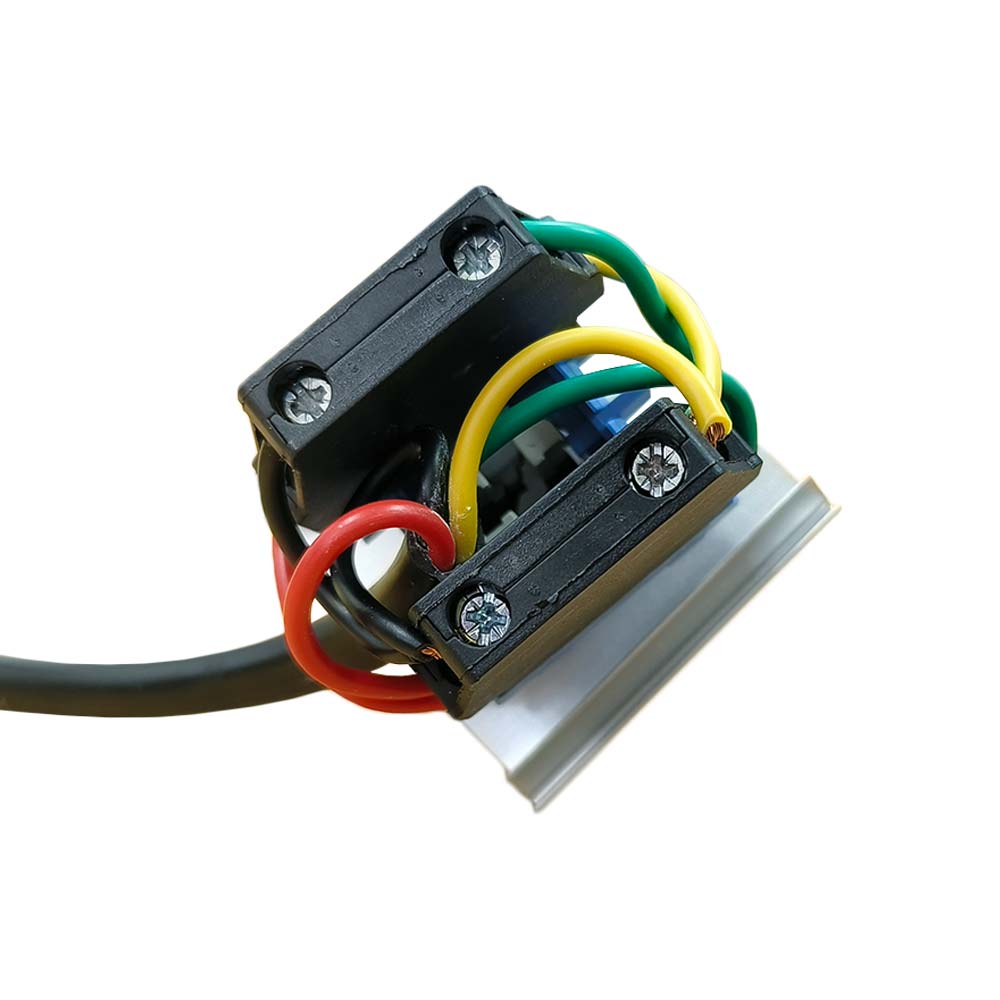

Internal cables are pre-wired
Operating Temperature: -25°C to +85°C
Shell material: Aluminum alloy housing, Flame retardant ABS cover
Protection class: IP54

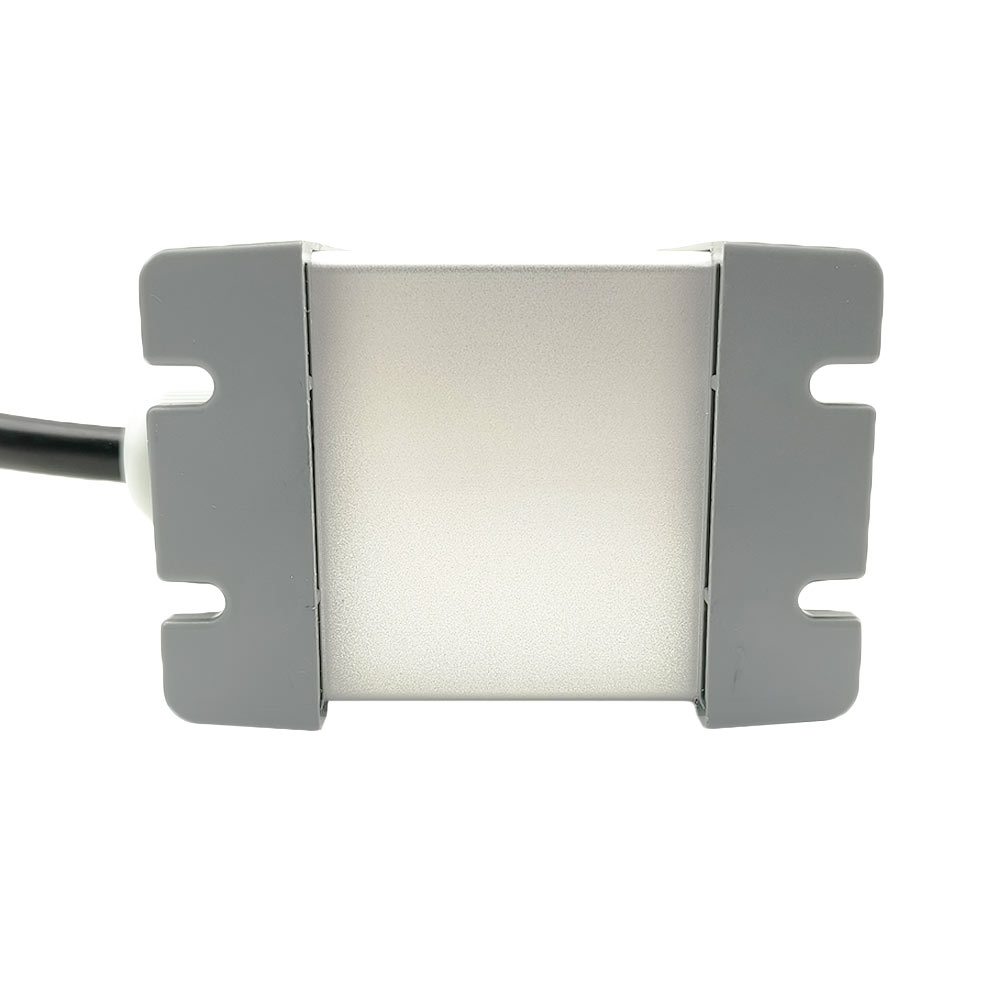

Case size: 140 x 98 x 66 mm (5.5 x 3.9 x 2.6 inches)

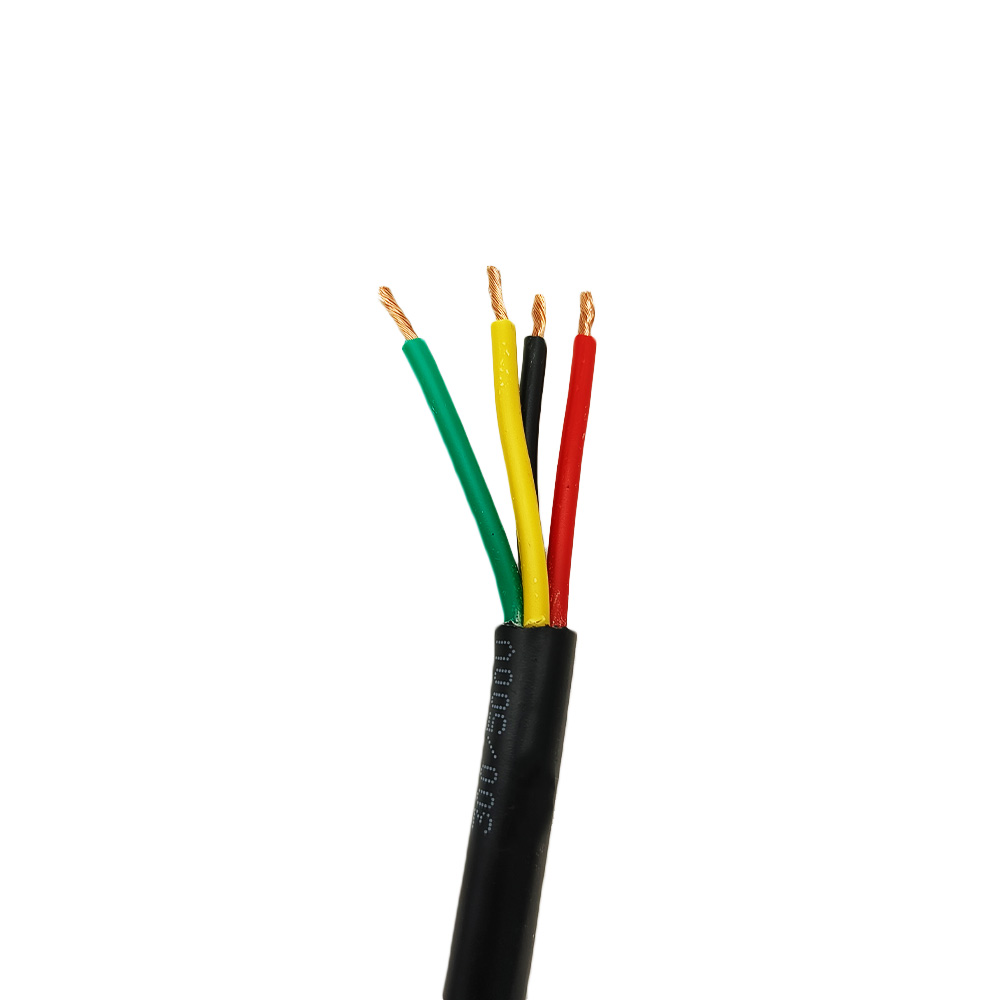

Wiring:
1) Connect DC power supply to red and black wires of rocker switch.
2) Connect linear actuator or DC motor to green and yellow wires of rocker
switch.
Operation for linear actuator:
1) Push the handle forward, the linear actuator extends outward.
2) Release the handle and it automatically returns to the center position,
the linear actuator stops.
3) Push the handle backward, the linear actuator retracts inward.
Operation for DC motor:
1) Push the handle forward, the motor rotates in positive direction.
2) Release the handle and it automatically returns to the center position,
the motor stops.
3) Push the handle backward, the motor rotates in reversal direction.
