Application:
This receiver is an electric device with 1 channel DC power output that can
be used in one-transmitter-many-receivers system. For example, you can use a
1 button transmitter to control 1 receiver, or use a 2 buttons transmitter
to control 2 receivers, or use a 4 buttons transmitter to control 4
receivers, or use a 6 buttons transmitter to control 6 receivers, or use an
8 buttons transmitter to control 8 receivers, or use a 12 buttons
transmitter to control 12 receivers. The transmitter and receiver form a
wireless remote-control system. This system may be used in all types of
industry automation, agriculture, business, home, factory, house, farm,
garage, vehicle, ship, aerial vehicle, etc. It can remote control different
DC equipment on land, water, and air, such as lights, doors, windows, lamps,
sockets, locks, sirens, outlets, heaters, motors, fans, winches, curtains,
blinds, linear actuators, electric solenoid valves, and security alarm
systems. The applications are endless.
Feature:
Wireless control, easy to install.

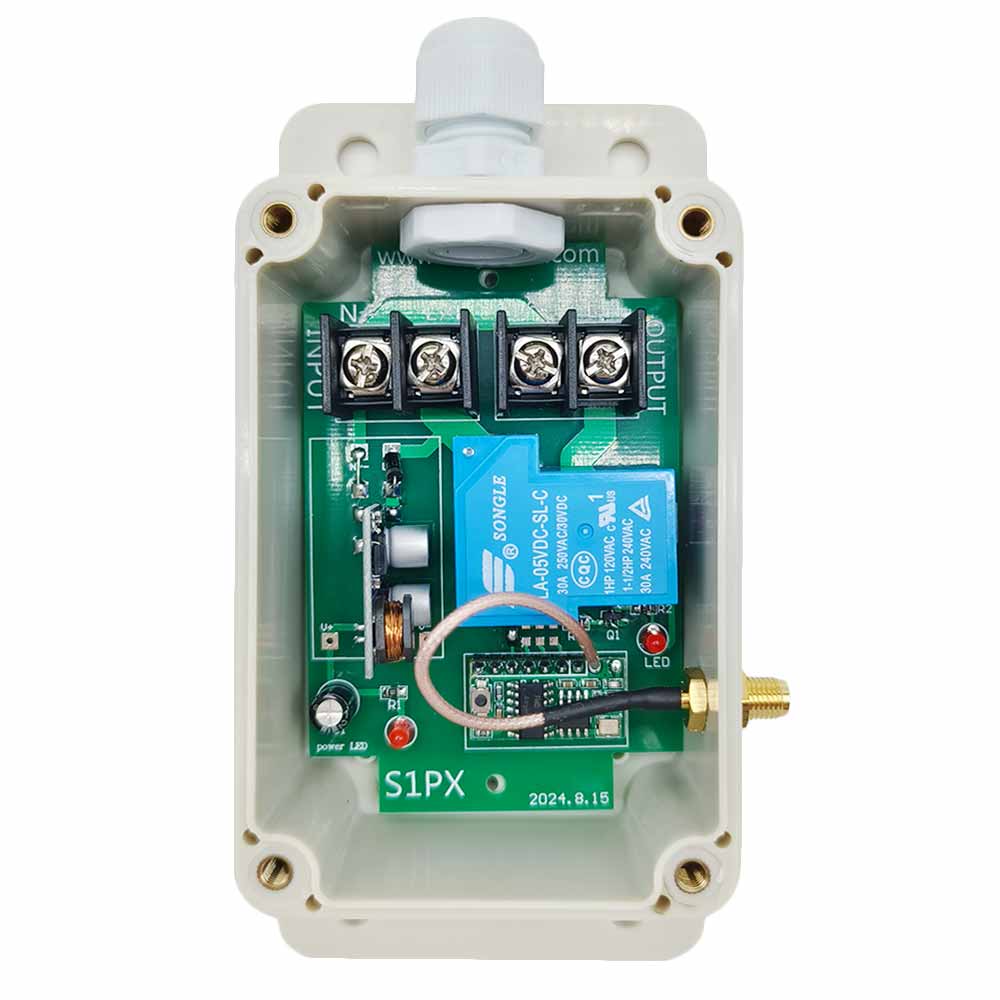

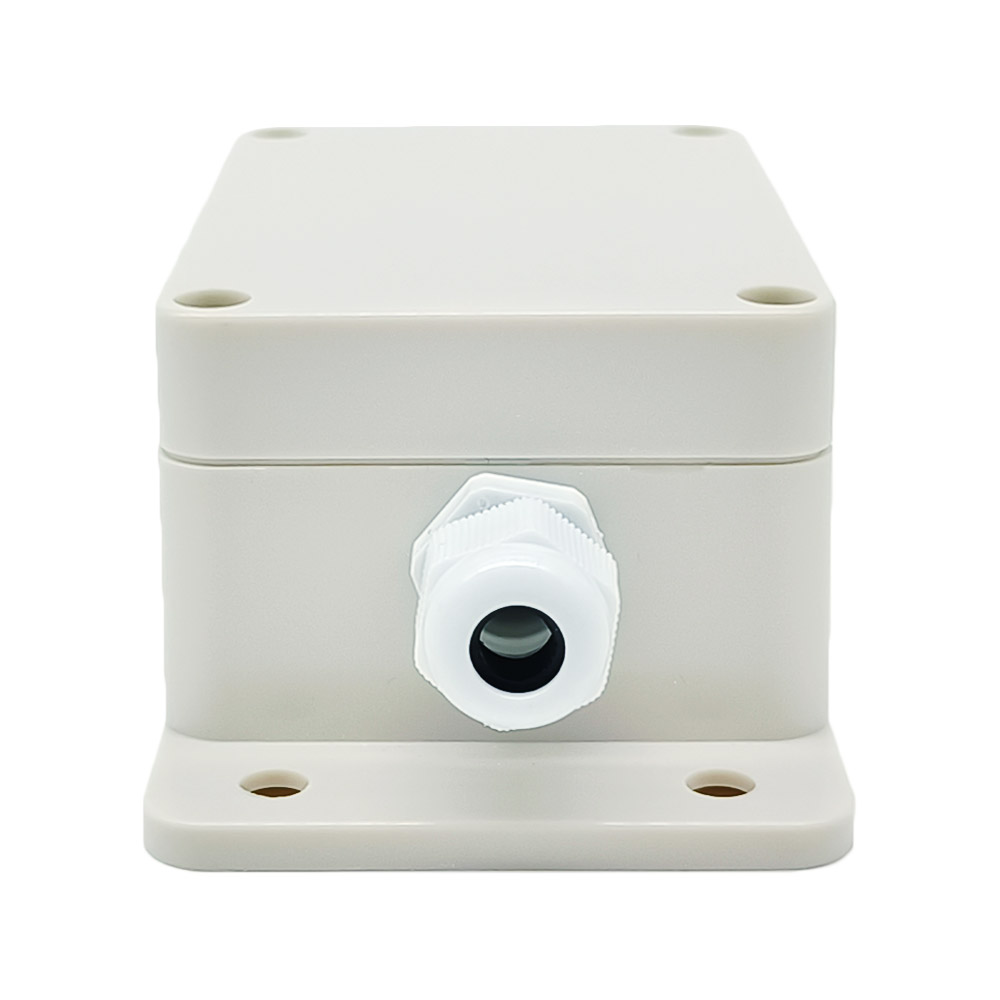

Waterproof: The receiver has waterproof case and waterproof connector, it
can be installed outdoors.
DC 8~80V operating voltage range.
DC Power Output: It can control DC equipment with a voltage in the range of
8~80 VDC.
High Power: Each channel can work at maximum current 30A.

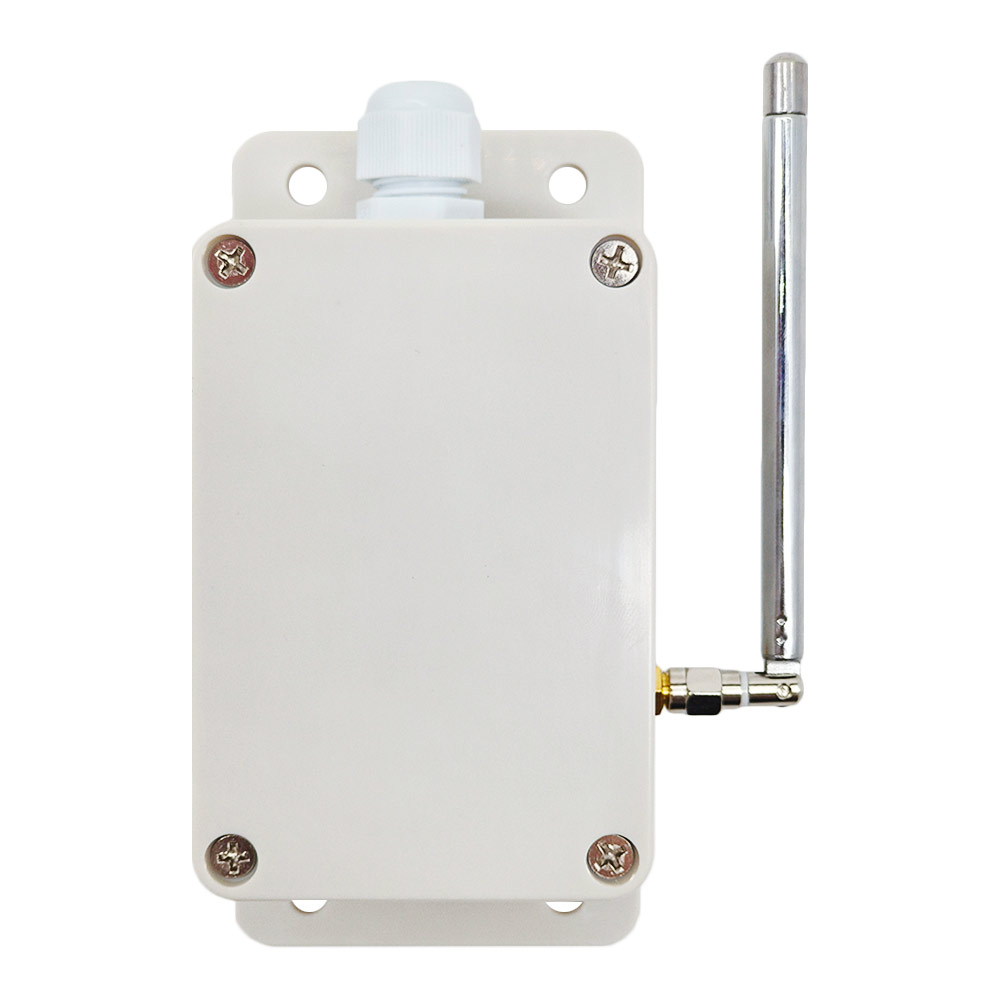

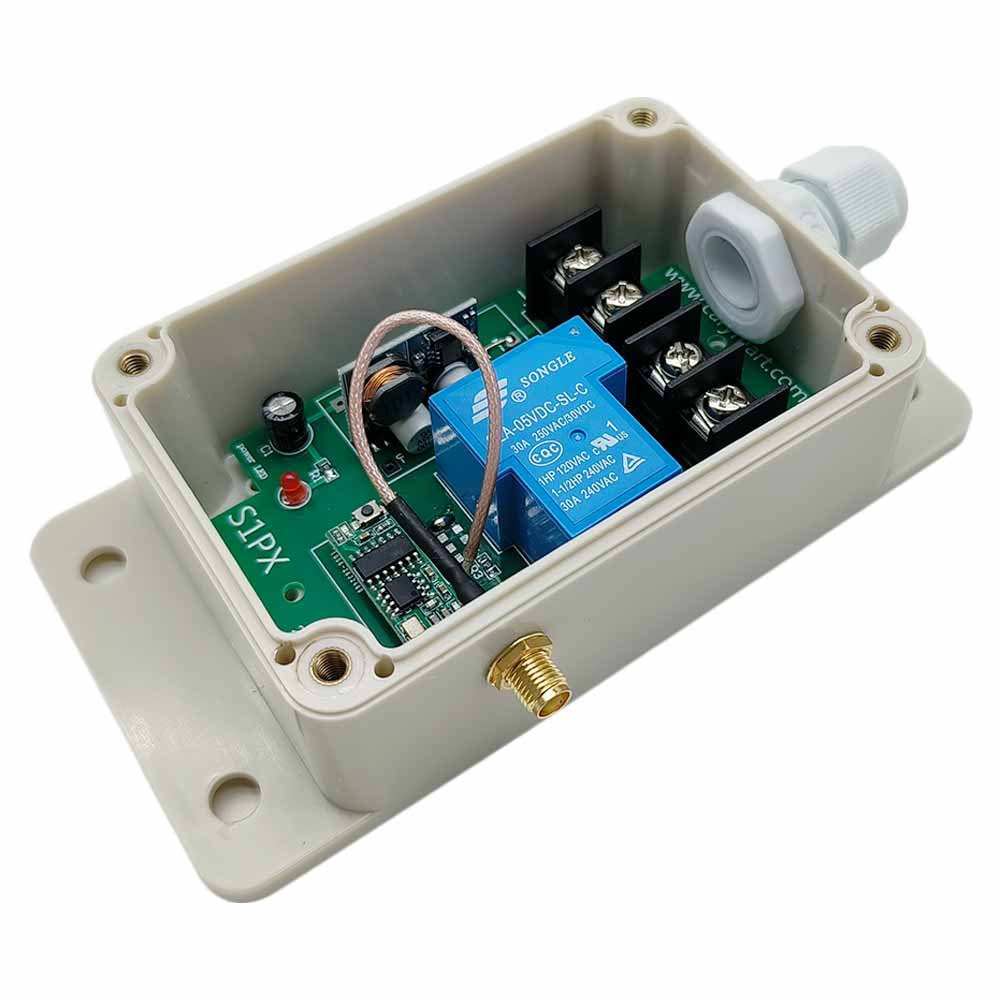

With external antenna, the receiver has a farther working range.
The transmitter / remote can control the receiver from any place within a
reliable working distance.
Wireless RF signal from the transmitter can pass through walls, floors,
doors, or windows, but it will lose some operating range.
The receiver has reverse voltage protection and overcurrent protection.
The receiver can only be triggered by paired transmitters.
Two or more receivers may be used in the same area.
One or more transmitters / remotes can control one or several receivers
simultaneously.
You can use one transmitter to control multiple receivers, and each
transmitter button controlling one receiver. For example, you can use a 1
button transmitter to control 1 receiver, or use a 2 buttons transmitter to
control 2 receivers, or use a 4 buttons transmitter to control 4 receivers,
or use a 6 buttons transmitter to control 6 receivers, or use an 8 buttons
transmitter to control 8 receivers, or use a 12 buttons transmitter to
control 12 receivers,

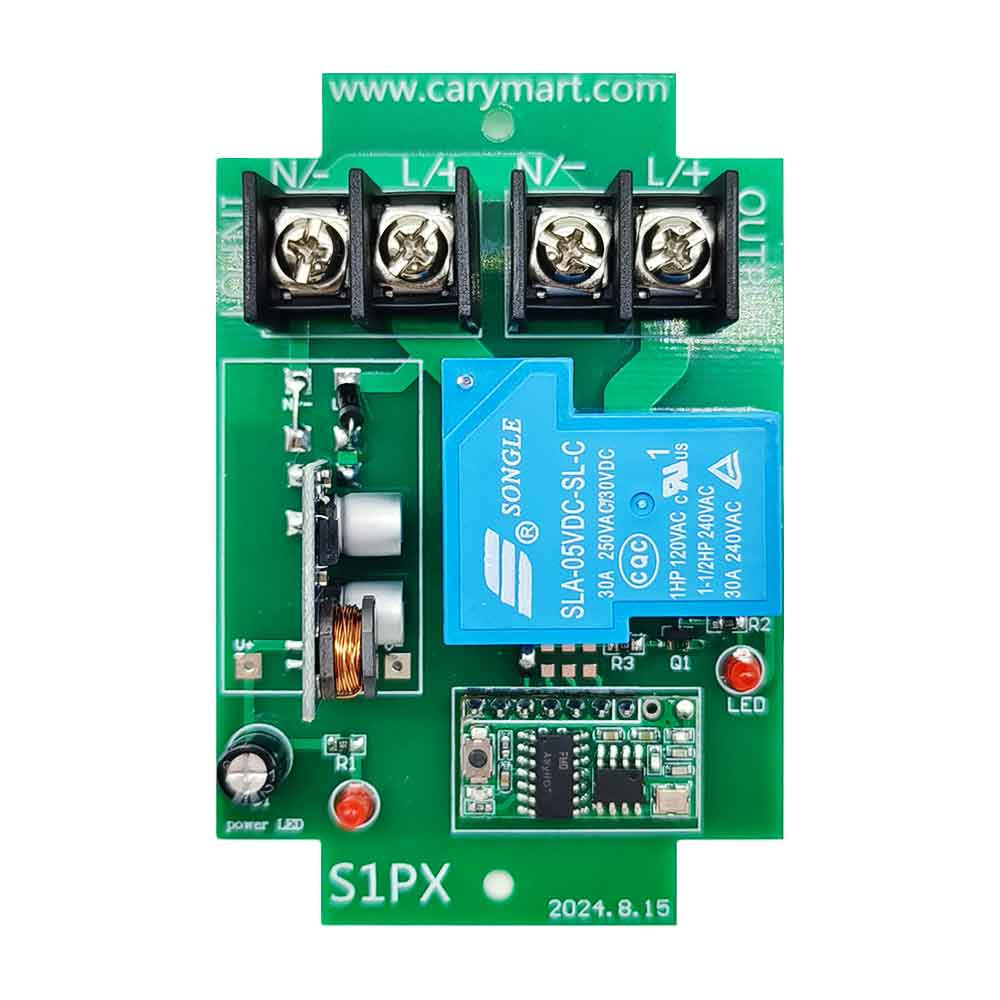

Receiver Parameters:
Model: S1PX-DC-ANT3
Operating Voltage: 8~80 VDC
Working Frequency: 433.92 MHz
Quiescent Current: ≤6mA
Channel: 1 CH
Output Type: 8~80 VDC same as input voltage
Maximum Load Current of Relay: 30A / channel
Suitable Wires for Connecting Terminals: 22-12 AWG
3 Selectable Working Modes: Self-locking, Momentary, Interlocking
Operating Temperature: -20 °C ~ +70 °C
PCB size: 90 x 59 x 18 mm (3.5 x 2.3 x 0.7 inches)
Case size: 138 x 68 x 50 mm (5.4 x 2.7 x 2.0 inches)

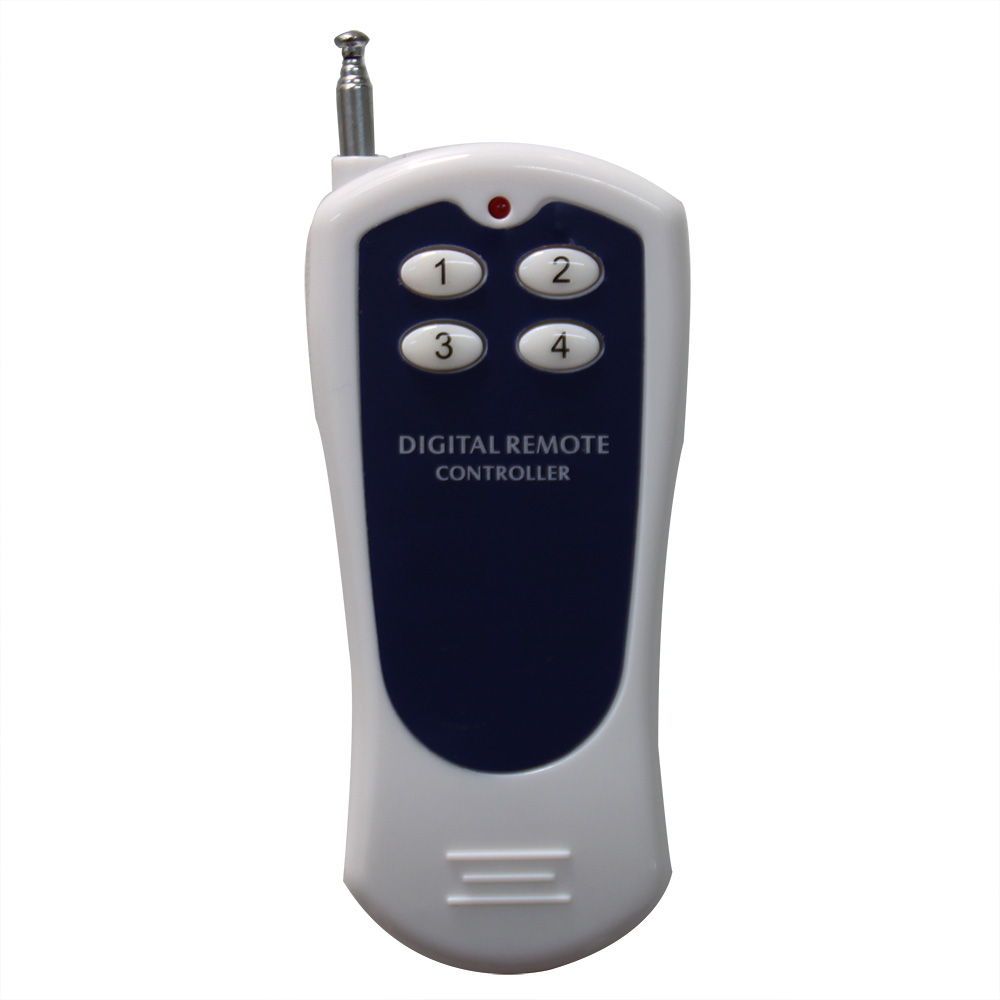

Transmitter Parameters:
Model: 0021018 (CV-4)
Channel / Button: 4
Button Symbol: 1, 2, 3, 4

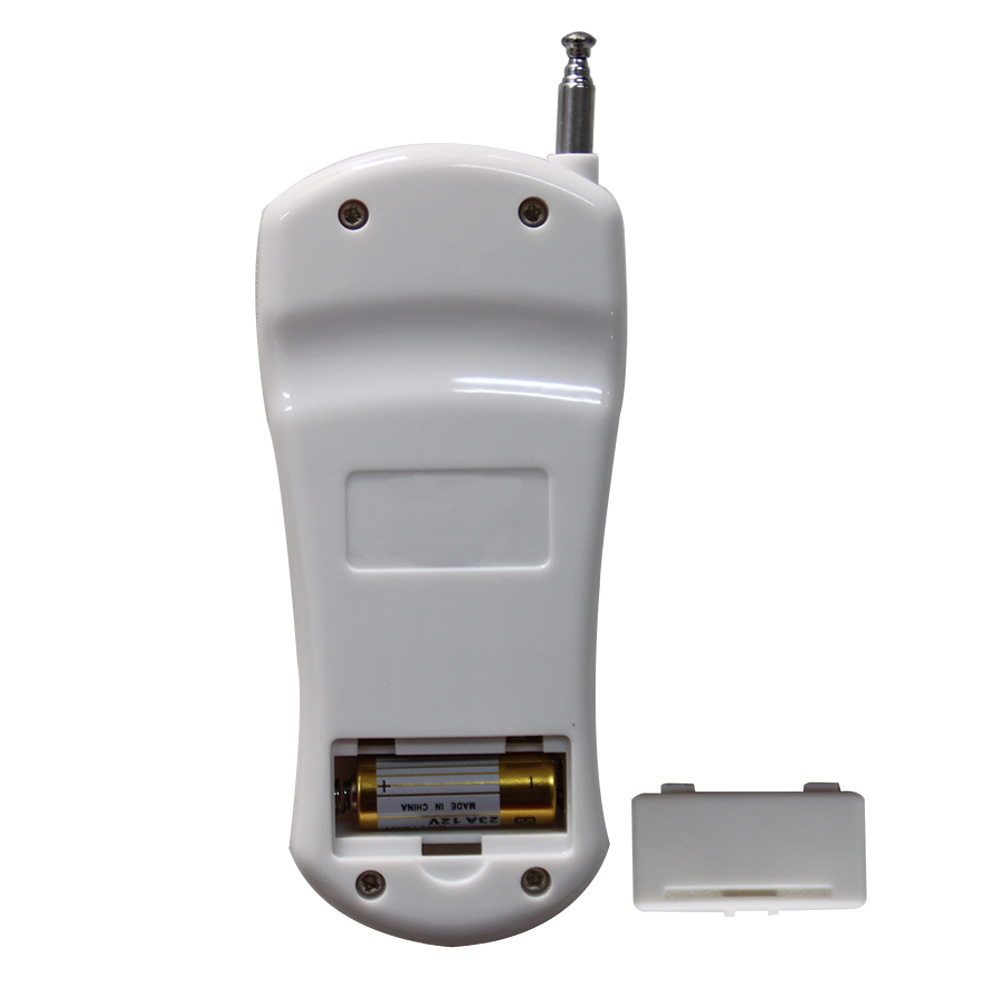

Operating Voltage: 12V (1 x 23A -12V battery, can be used for 12 months)
Operating Current: 15mA
Encoding Chip:PT2264/PT2262/SC2262
Transmitting Distance: 500m / 1500ft (theoretically)
Modulation Mode: ASK
Operating Temperature: -20 ° C to +70 ° C
Unit Size: 110 x 50 x 18 mm
Matching Transmitters:
The receiver can work with different transmitters, such as model
C-4
(100M),
CWB-4
(50M, waterproof),
CP-4
/
CV-4
(500M) and
CB-4
(1000M) etc.
Working Range:
With a transmitter (such as CV-4) to form a complete set, the maximum working
distance can reach 1500 feet or 500 meters in an open area.
The maximum working distance is a theoretical data, it shall be operated in
an open ground, no barriers, no interference. But in the practice, it will
be hindered by trees, walls, or other construction, and will be interfered
by other wireless signals. Therefore, the actual working distance may not
reach this maximum distance.
If you need a longer working distance, you can replace the antenna on the
receiver, or use an RF signal repeater, or use a powerful transmitter, such
as a CB-4 transmitter.
Usage:
The receiver can be used to control DC equipment with a voltage in the range
of 8~80 VDC.

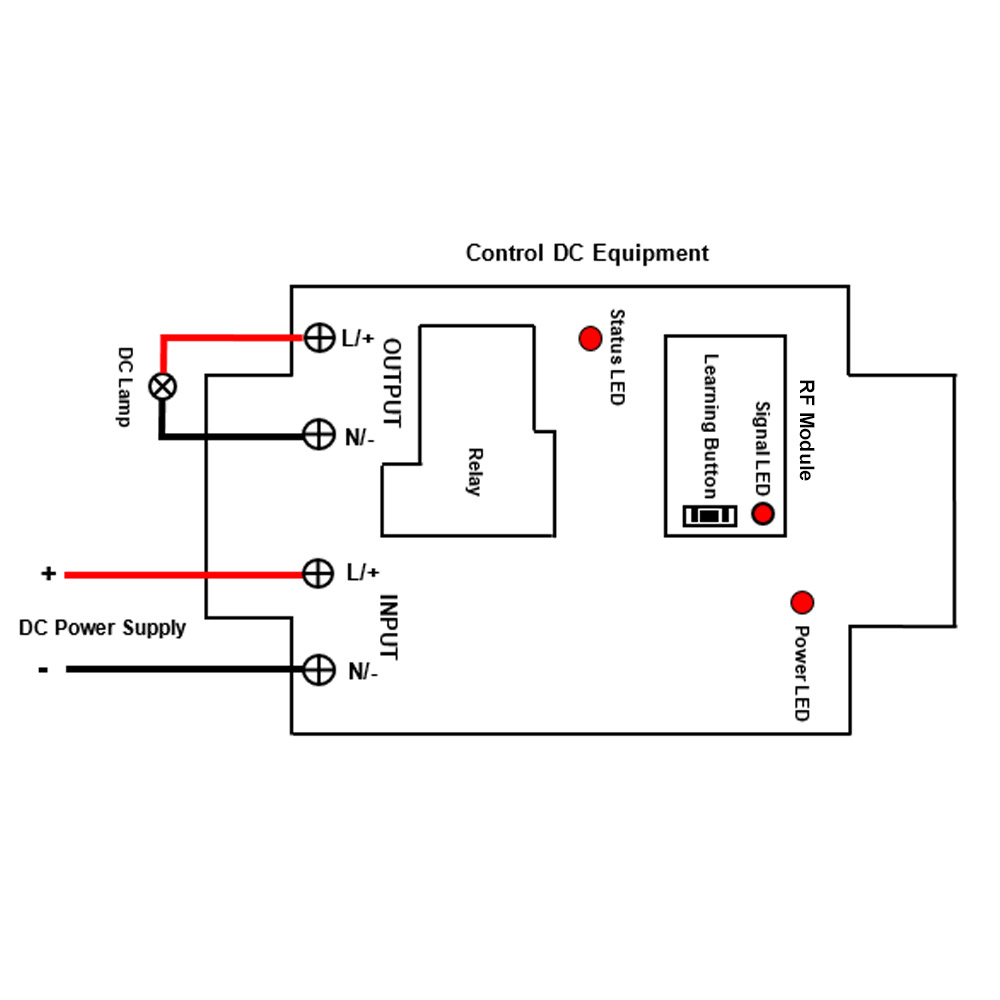

Wiring:
If you want to control a DC 12V lamp, do as following:
1) Connect the positive pole of DC power supply to terminal L/+ of INPUT,
and connect the negative pole of DC power supply to terminal N/- of INPUT.
2) Connect terminal L/+ of OUTPUT to the positive pole of DC lamp, and
connect terminal N/- of OUTPUT to the negative pole of DC lamp.
Setting different control modes:
The receiver will be set in Self-locking mode before leaving the factory, if
you want to use another mode, please follow the following steps.
Setting different control modes:
The receiver will be set in Self-locking mode before leaving the factory, if
you want to use another mode, please follow the following steps.
1) Setting Momentary mode: Press the learning button in the receiver 2
times, signal LED continuously flashes 2 times and then goes off.
The operation of Momentary mode with the transmitter CV-4:
Press the button 1 on the transmitter: The terminal OUTPUT of the receiver 1
outputs DC power, and the connected lamp 1 is turned on.
Press the button 1 again: The terminal OUTPUT of the receiver 1 stops
outputting, and the connected lamp 1 is turned off.
......
Press the button 4 on the transmitter: The terminal OUTPUT of the receiver 4
outputs DC power, and the connected lamp 4 is turned on.
Press the button 4 again: The terminal OUTPUT of the receiver 4 stops
outputting, and the connected lamp 4 is turned off.
2) Setting Self-locking mode: Press the learning button in the receiver 3
times, signal LED continuously flashes 3 times and then goes off.
The operation of Self-locking mode with the transmitter CV-4:
Press the button 1 on the transmitter: The terminal OUTPUT of the receiver 1
outputs DC power, and the connected lamp 1 is turned on.
Press the button 1 again: The terminal OUTPUT of the receiver 1 stops
outputting, and the connected lamp 1 is turned off.
......
Press the button 4 on the transmitter: The terminal OUTPUT of the receiver 4
outputs DC power, and the connected lamp 4 is turned on.
Press the button 4 again: The terminal OUTPUT of the receiver 4 stops
outputting, and the connected lamp 4 is turned off.
3) Setting Interlocking mode: Press the learning button in the receiver 4
times, signal LED continuously flashes 4 times and then goes off.
The operation of Interlocking mode with the transmitter CV-4:
Press the button 1 on the transmitter: The terminal OUTPUT of the receiver 1
outputs DC power, and the connected lamp 1 is turned on. The OUTPUT
terminals of the other 3 receivers stop outputting, and the 3 connected
lamps are turned off.
......
Press the button 4 on the transmitter: The terminal OUTPUT of the receiver 4
outputs DC power, and the connected lamp 4 is turned on. The OUTPUT
terminals of the other 3 receivers stop outputting, and the 3 connected
lamps are turned off.

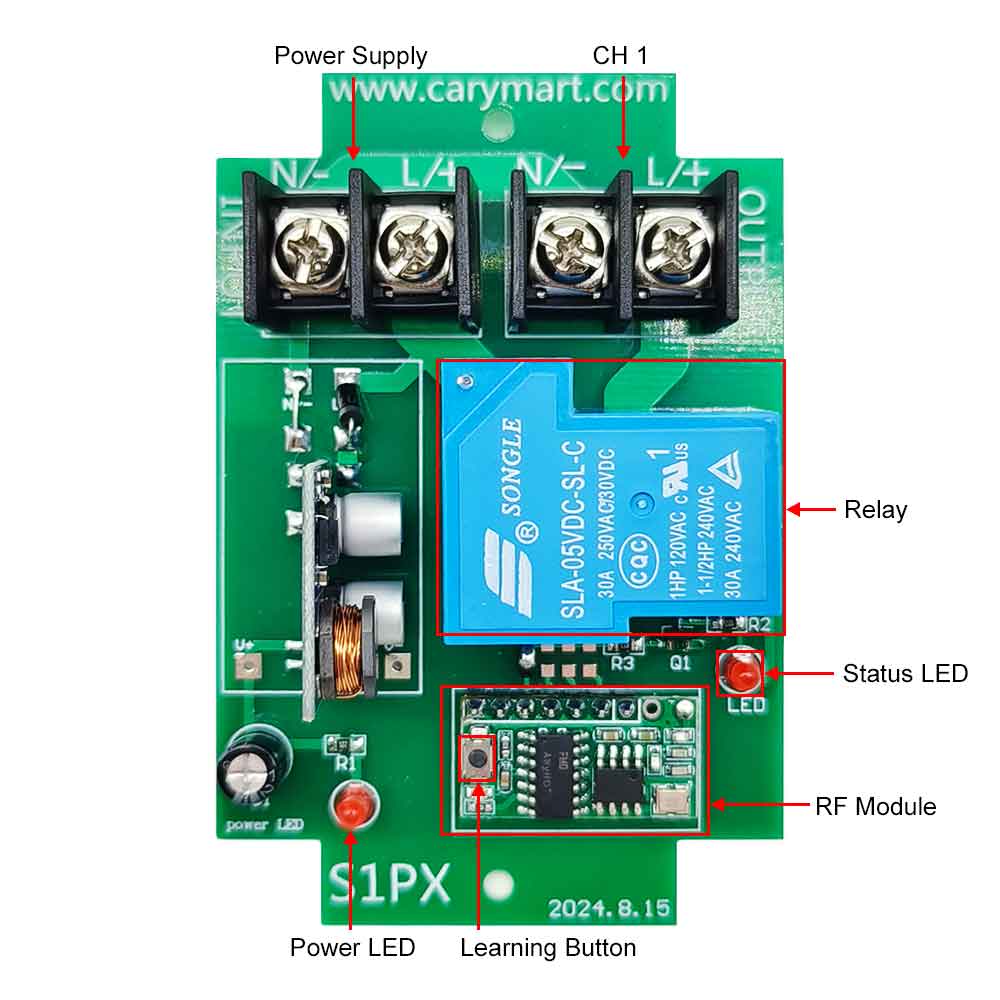

How to pair the transmitter to the receiver:
Notice: We have paired the transmitter to the receiver before leaving the
factory.
You can freely pair any button on the transmitter with the receiver you want
to control.
1) Select the receiver to be controlled and press the learning button in the
receiver once, the signal LED on the receiver flashes once and then stays
on, it means the receiver enters the learning state.
2) Press the button you want to use on the transmitter, if the signal LED
flashes for 1 time, it means this button pairing is successful.
3) Press the learning button of receiver again for 1-2 seconds, the LED
signal turns off, it means the receiver exits the learning state.
4) The receiver can learn multiple transmitters with different codes.
How to delete all transmitters codes stored in the receiver:
Notice: We have paired the transmitter to the receiver, if you don’t want
the receiver to work with the transmitter, you can delete all transmitters
codes stored in the receiver.
Operation: Press the learning button in the receiver 10 times and then
release the learning button, signal LED flashes 10 times quickly and then
goes off, this indicates that all stored codes have been deleted
successfully.

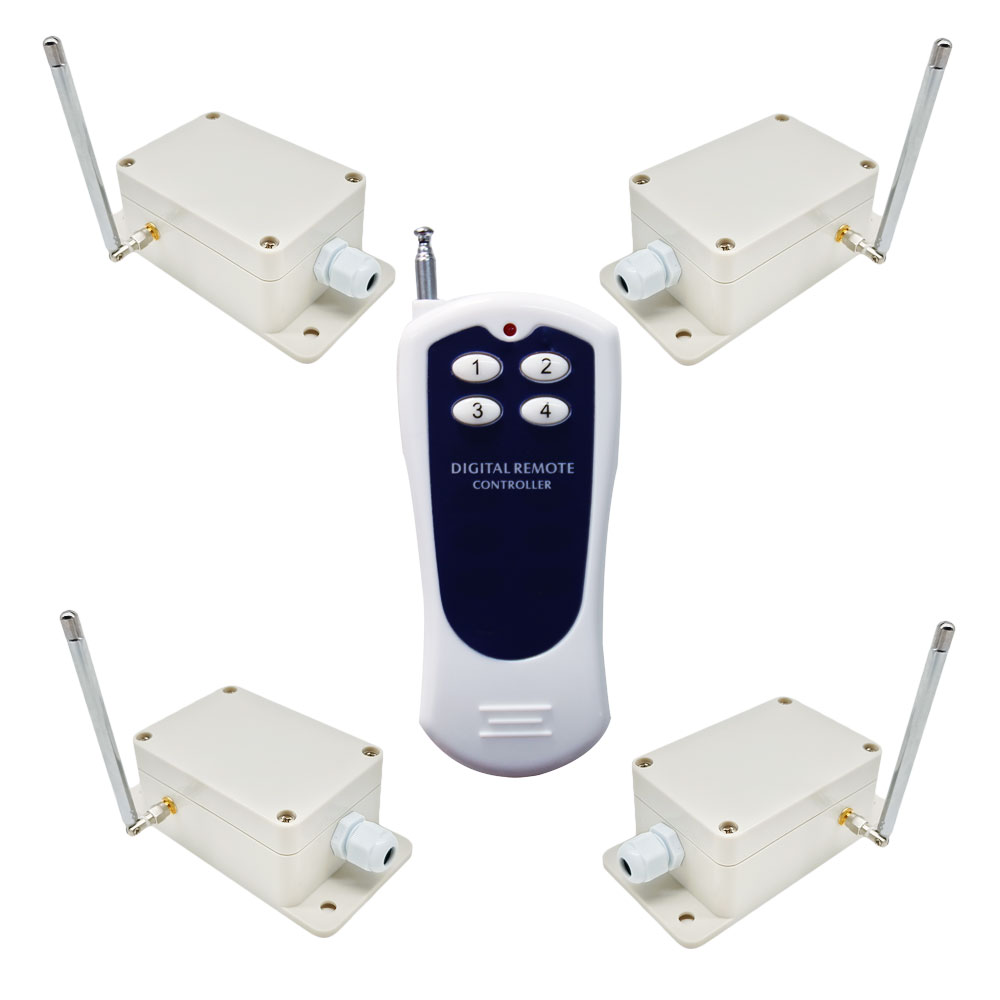

Package Include:
4 x Receiver: S1PX-DC-ANT3
1 x Transmitter: CV-4
1 x User manual
