Digital Screen DC 6V~30V 6A Motor Speed Adjustment Switch Governor


 Manual

Video: wireless remote control DC motor speed

            DC motor speed controlller

Feature:

• Model: 0044001
• Voltage: DC6V~30V
• Rated current: 6A
• The maximum operating current: 8A

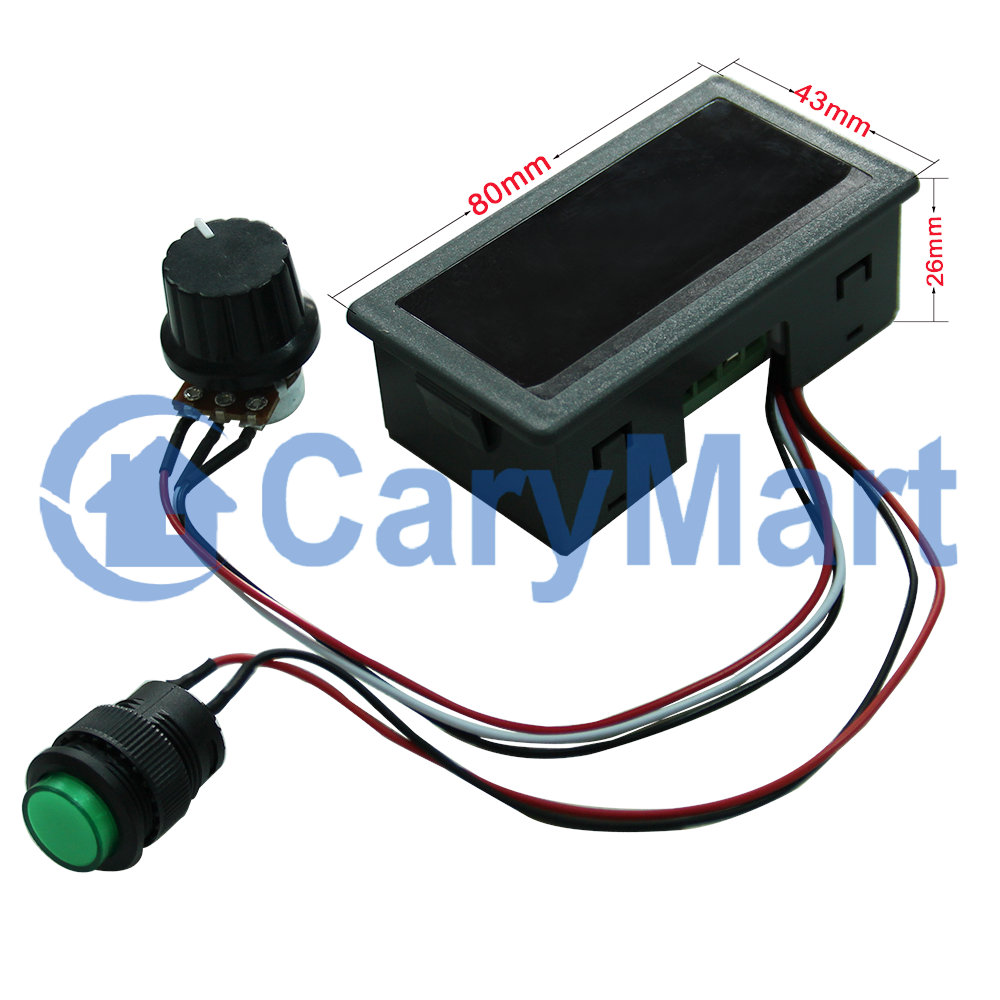

• Unit Size: 80mm x 43mm x 26mm
• Speed Adjustment Range: 0%~100%.

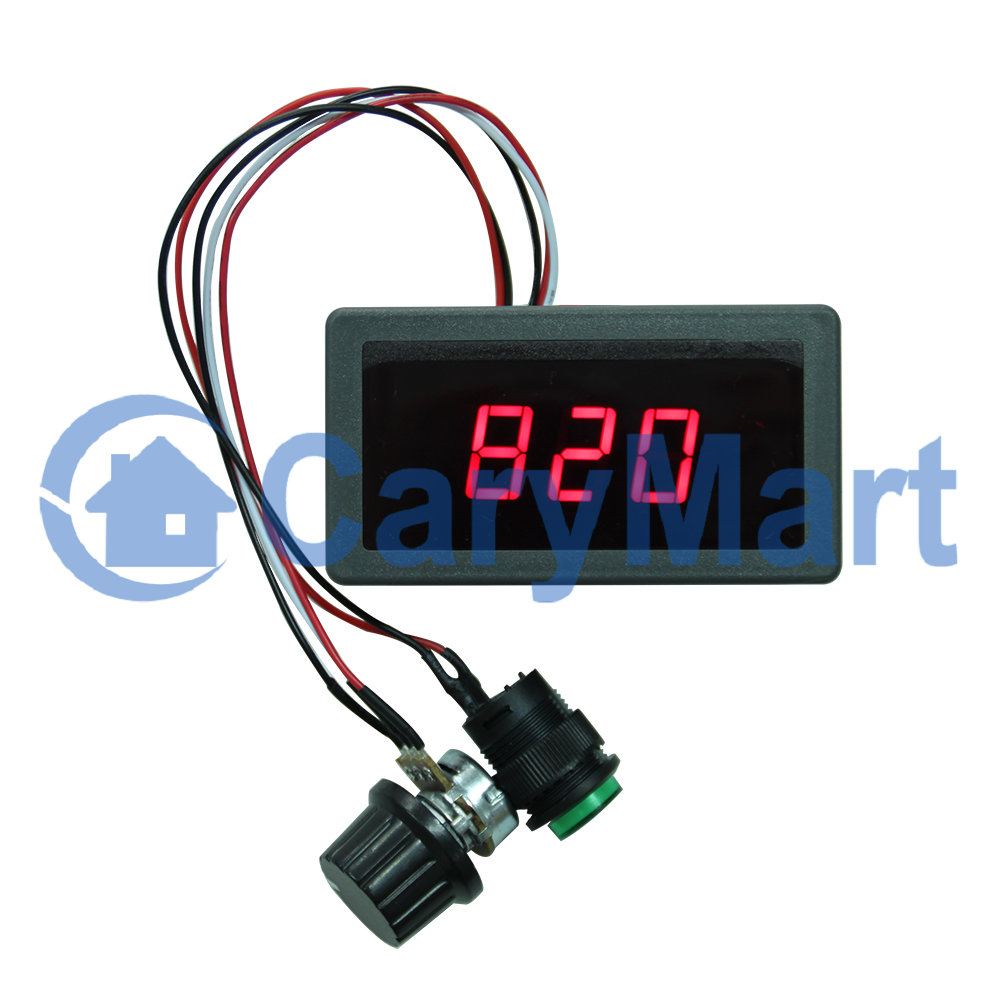

• The speed of motor rotation can be adjusted according to 0~100% through twisting the “Adjustable potentiometer”, and the screen will display digital 0~100. That means when the screen display digital “0”, the motor stop rotating; when the screen display digital “1 ~100”, the motor rotating. The higher the number, the faster rotation. When the screen display digital “100”, that means the speed of motor rotation is fastest.

Usage:

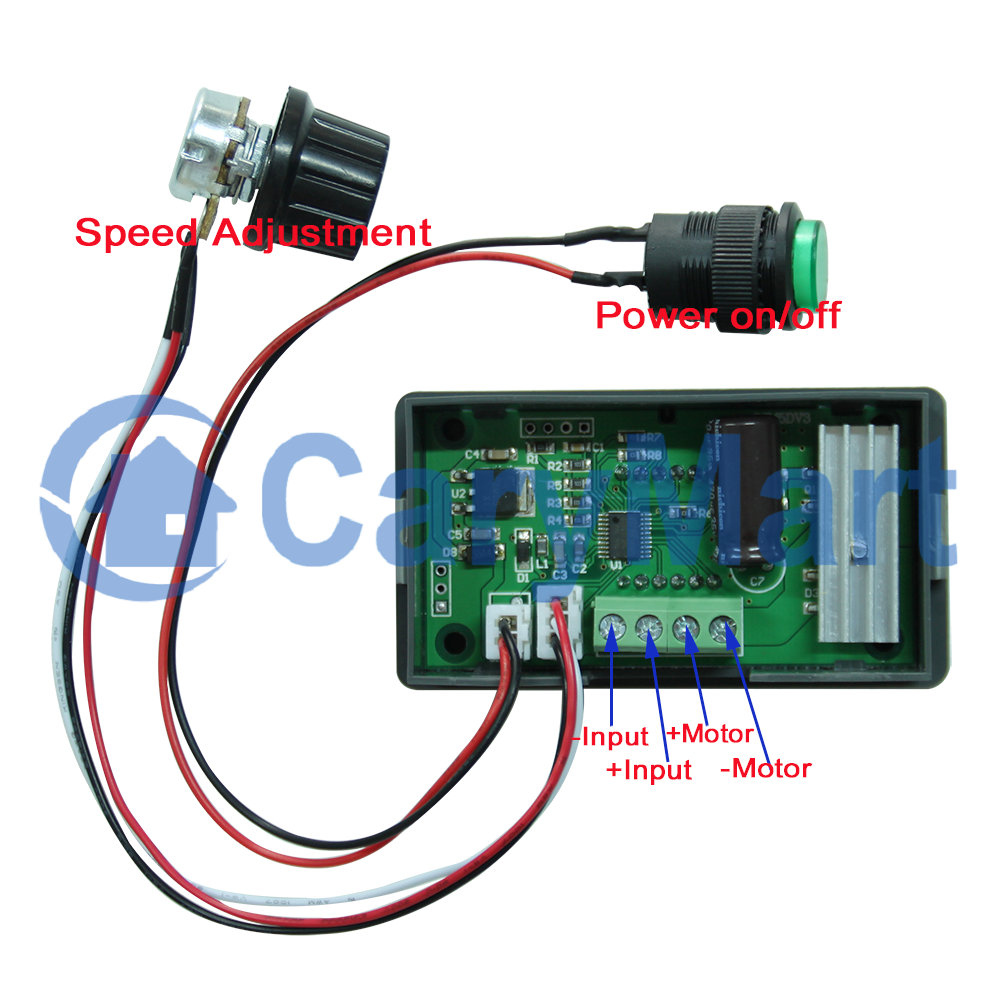

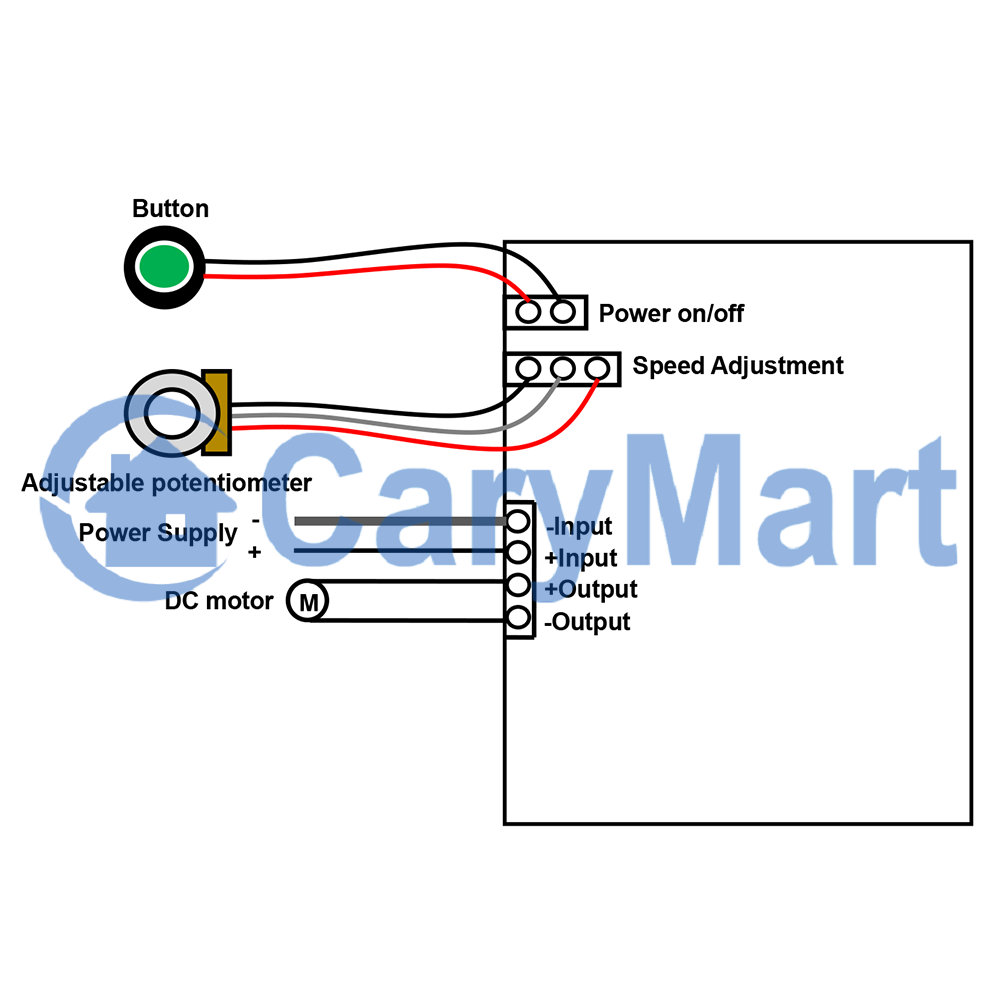

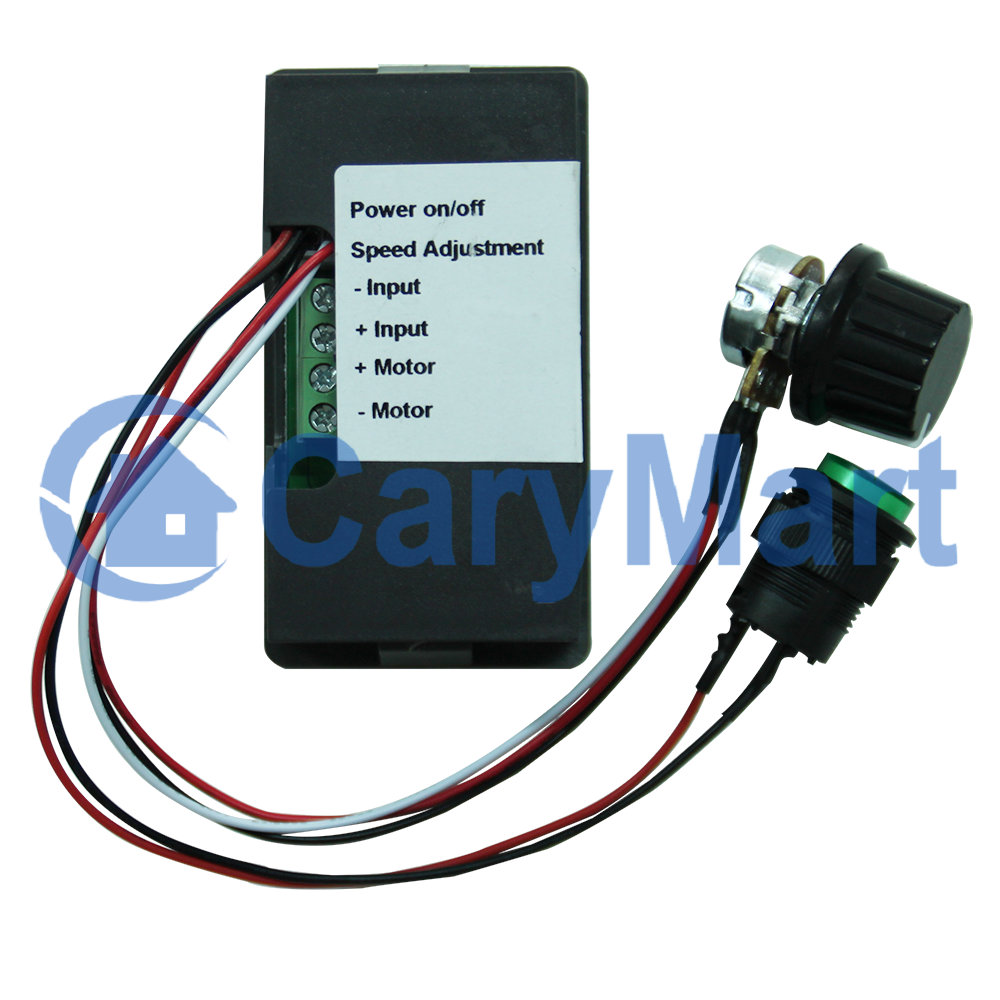

• Connect power wire to the terminal “Input”. Connect the DC motor to the terminal “Output”.
• Press the button: motor rotating
• Twist the “Adjustable potentiometer” to adjust the speed of motor rotation. Twist clockwise, motor rotation will speed up; Twist anti-clockwise, motor rotation will slow down.
• Press the button again: motor stop rotating.
