Dry Contact Input Transmitter Remote Control Receiver With Relay Output


Price: US $80.00

  • Model: 0020524 (S1PU-DC-ANT3 & CB-2N)

Please Choose:








Qty:



Application:
This type of wireless remote control device can use a normally open output device to wirelessly control another AC or DC device, and it can be used for synchronous wireless control of various home, industrial or agricultural equipments, such as wireless control of the warning host and the warning horn, wireless control of the lights, wireless synchronization control of the equipments and so on.

Feature:
Wireless control, easy to install.

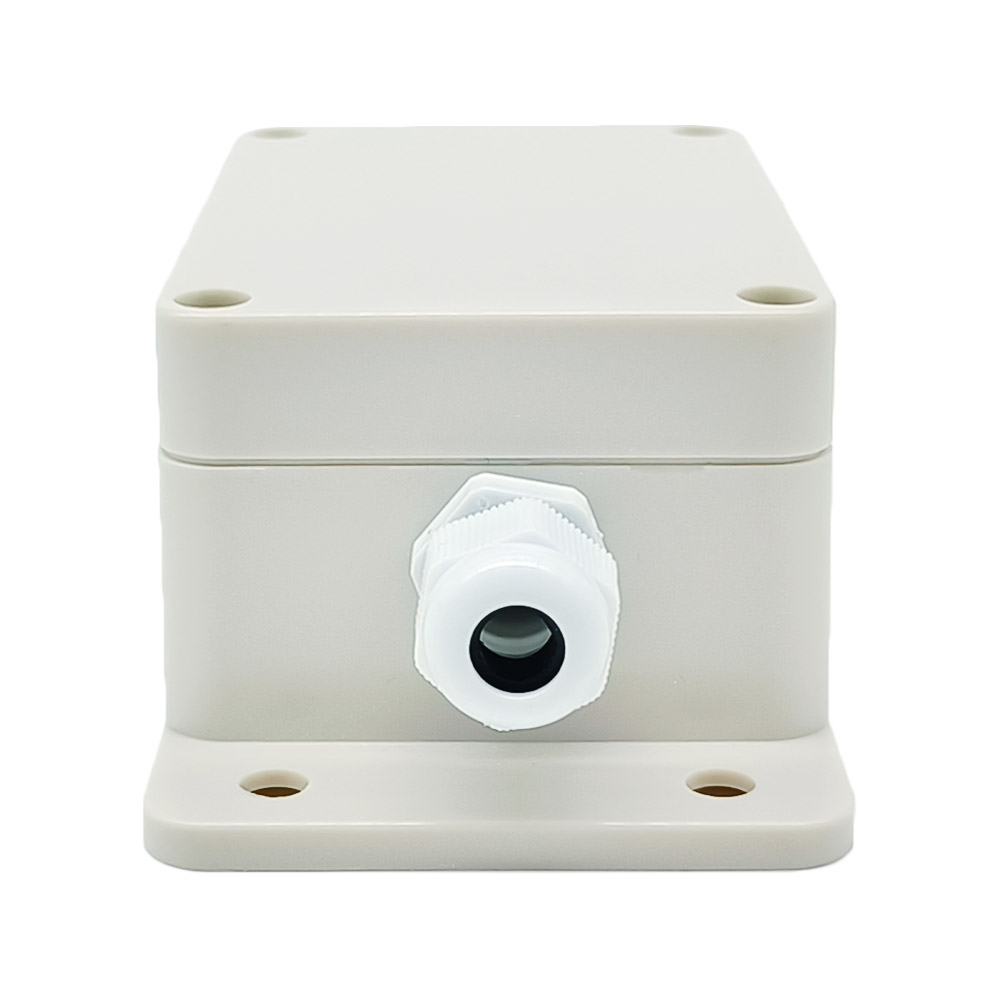

Waterproof: The receiver has waterproof case and waterproof connector, it can be installed outdoors.
DC 8~80V operating voltage range.
Relay Output: This receiver is dry relay output; it can be used to operate both DC and AC equipment. The output terminals are NO / NC (normally open / normally closed), serving as a switch. That means you should also connect a separate power supply to equipment.
High Power: Each channel can work at maximum current 30A.
With external antenna, the receiver has a farther working range.
The transmitter / remote can control the receiver from any place within a reliable working distance.
Wireless RF signal from the transmitter can pass through walls, floors, doors, or windows, but it will lose some operating range.
The receiver has reverse voltage protection and overcurrent protection.
The receiver can only be triggered by paired transmitters.
Two or more receivers may be used in the same area.
One or more transmitters / remotes can control one or several receivers simultaneously.
You can use one transmitter to control multiple receivers, and each transmitter button controlling one receiver. For example, you can use a 1 button transmitter to control 1 receiver, or use a 2 buttons transmitter to control 2 receivers, or use a 4 buttons transmitter to control 4 receivers, or use a 6 buttons transmitter to control 6 receivers, or use an 8 buttons transmitter to control 8 receivers, or use a 12 buttons transmitter to control 12 receivers, etc.

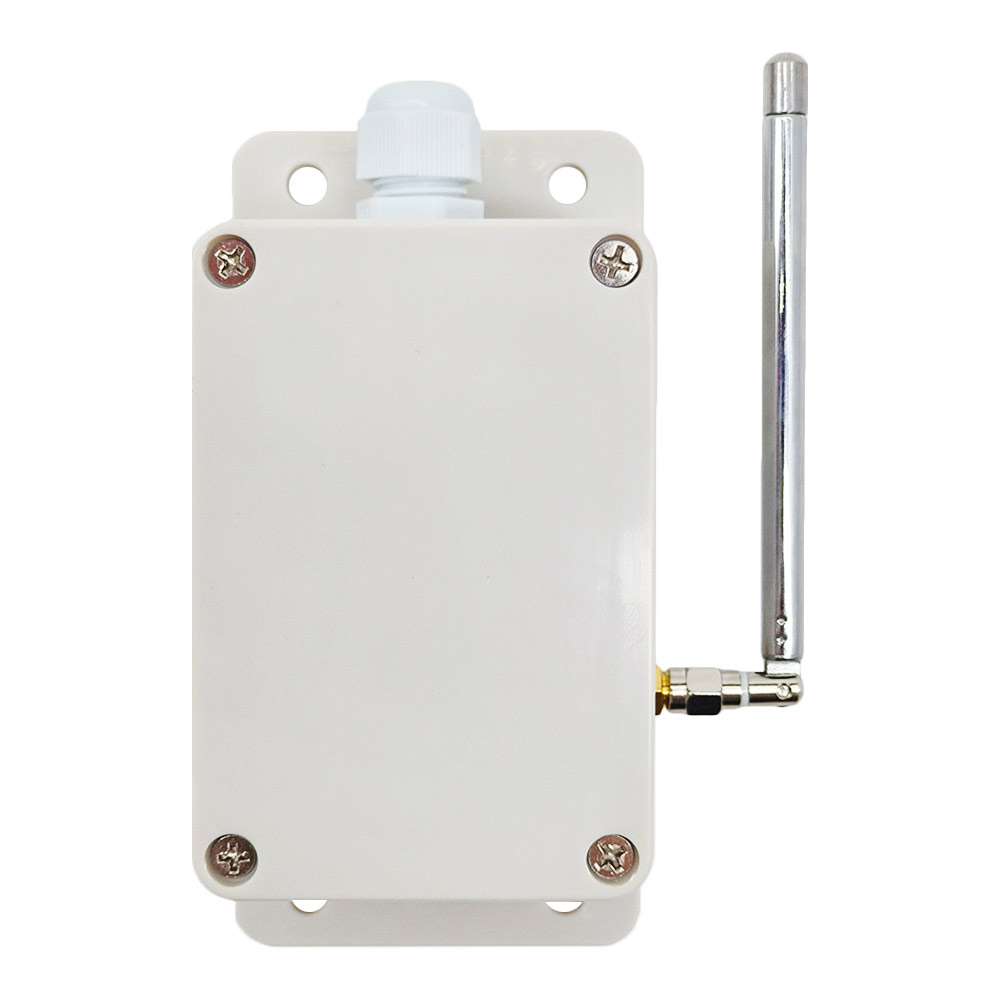

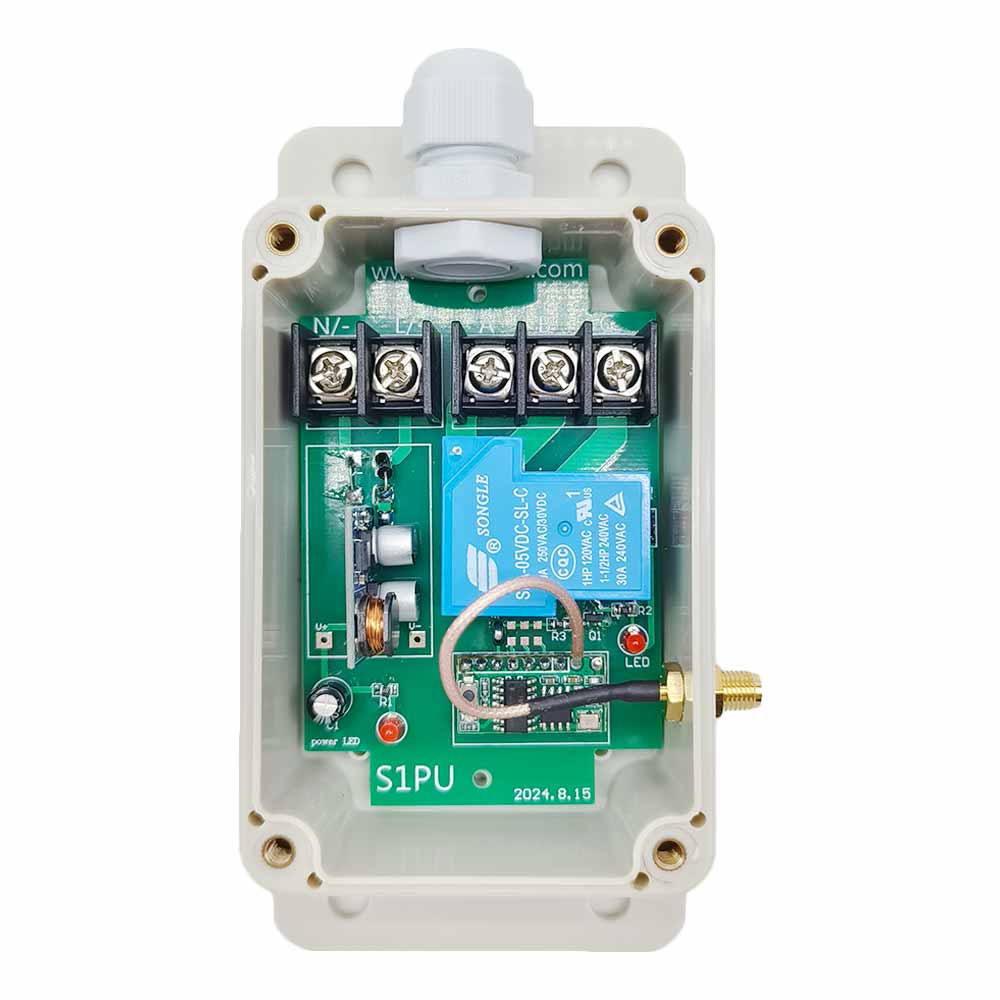

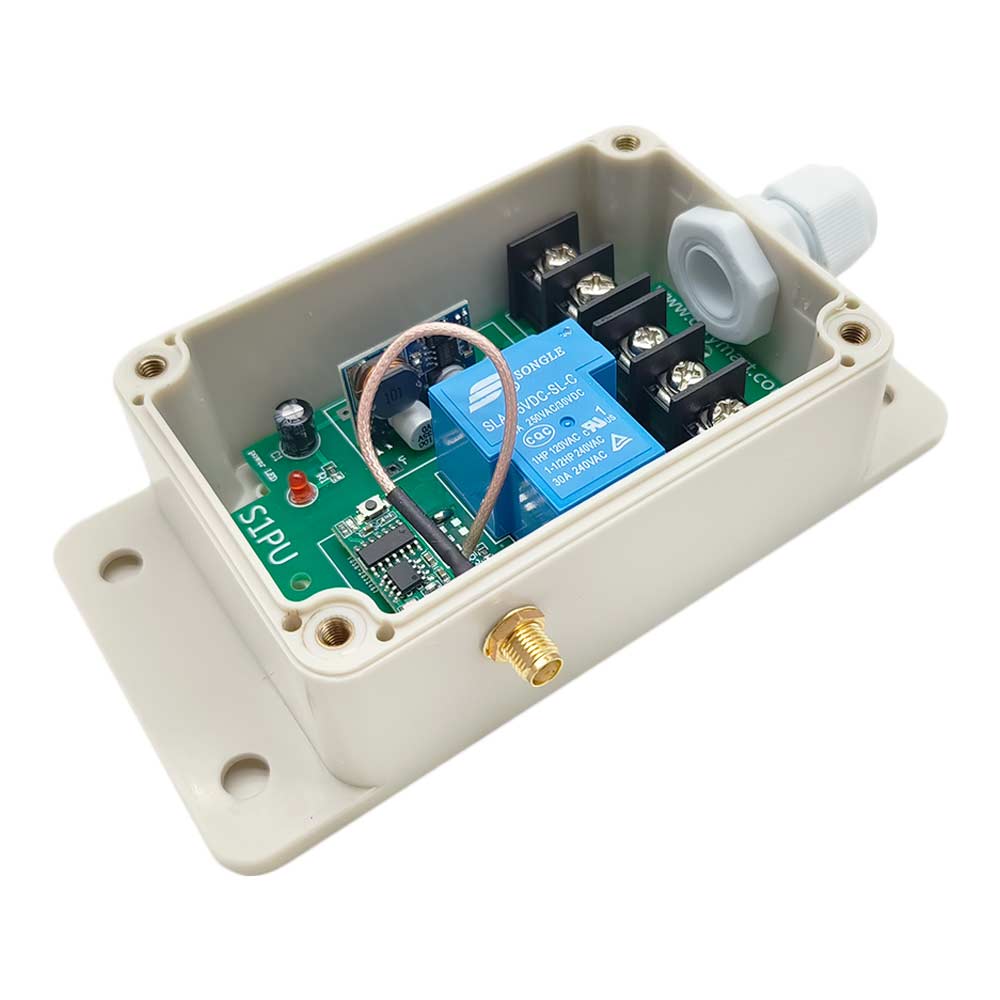

Receiver Parameters:
Model: S1PU-DC-ANT3
Operating Voltage: 8~80 VDC
Working Frequency: 315MHz
Quiescent Current: ≤6mA
Channel: 1 CH
Output Type: Relay Output (With Normally Open and Normally Closed Terminals)
Maximum Load Voltage of Relay: 240VAC or 28VDC
Maximum Load Current of Relay: 30A / channel
Suitable Wires for Connecting Terminals: 22-12 AWG
Working Mode: Interlocking
Operating Temperature: -20 °C ~ +70 °C
PCB size: 90 x 59 x 18 mm (3.5 x 2.3 x 0.7 inches)
Case size: 138 x 68 x 50 mm (5.4 x 2.7 x 2.0 inches)

Transmitter Parameters:
Model: CB-2N
With Two Input Wires
Triggering method: connection and disconnection two input wires.
Channel/Button: 2
Button Symbol: A, B

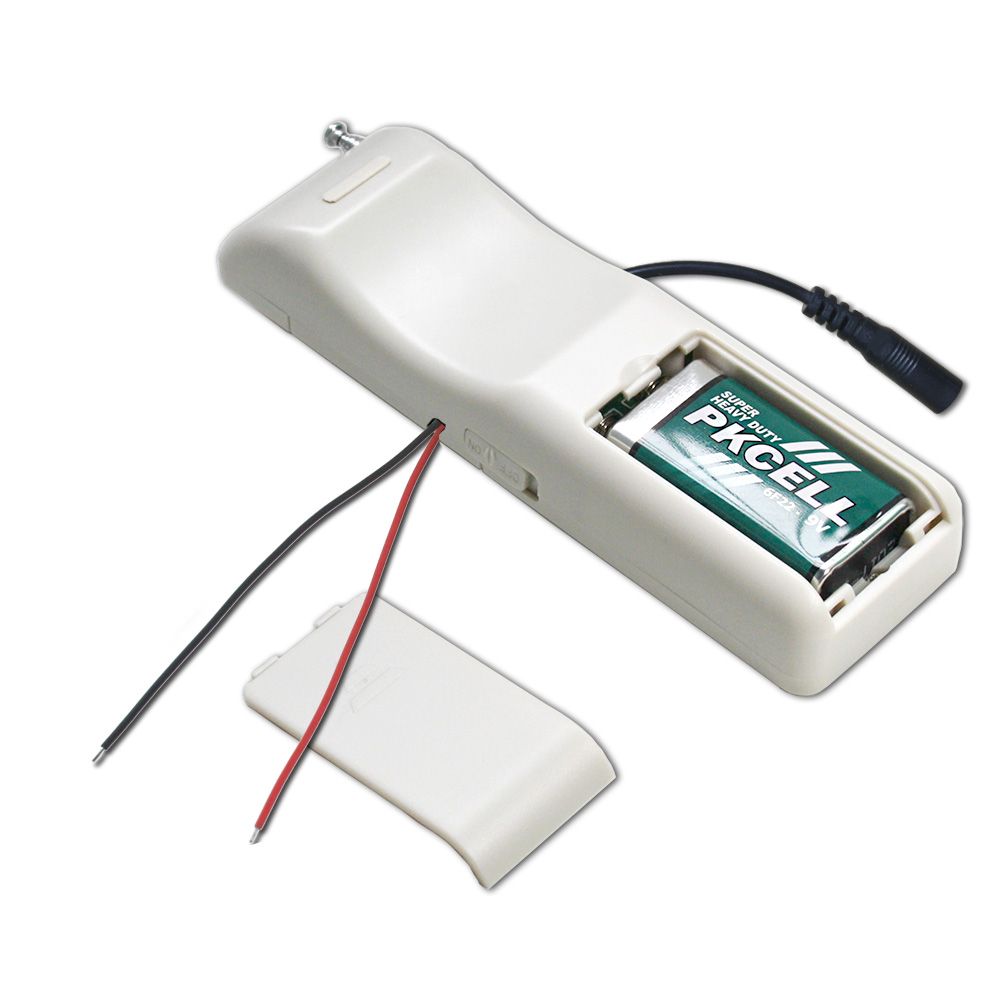

Operating Voltage: 9V (1 x 6F22 -9V battery, can be used for a week, if you want a longer working time, please use a 9V power adapter.)
Operating Current: 10mA
Operating Frequency: 315MHz
Encoding Chip: PT2262 / PT2264 / SC2262
Encoding Type: Fixed code by soldering, up to 6561 codes.
It has an on / off button on the side.
Modulation Mode: ASK
Operating Temperature: -20 ° C to +70 ° C
Unit Size: 135 x 42 x 25 mm

The Working Principle:
Transmitter CB-2N is a special remote control with normally open contact trigger. It has 2 input lines for connecting a variety of devices with normally open contact output, such as warning host, cable detectors, various sensors, manual switches, limit switches, Programmable Logic Controllers and so on. The transmitter can be combined with different types of receivers to form a wireless control system that can be used to wirelessly control another AC or DC device through a device that has a normally open contact output.

Working Process:
1. Connect a device A which with normally open output to the two input lines of the transmitter; connect the other device B to the receiver.
2. When the transmitter's two input lines are connected, it automatically emits an "ON" wireless signal, which is equivalent to the function of the button "ON" on the transmitter. When the receiver receives the wireless signal, it will activate its relay to turn on the connected device B.
3. When the transmitter's two input lines are disconnected, it automatically emits an "OFF" wireless signal, which is equivalent to the function of the button "OFF" on the transmitter. When the receiver receives the wireless signal, it will deactivate its relay to turn off the connected device B.

Working Range:
Super long range, with a transmitter (such as CB-2N) to form a complete set, the maximum working distance can reach 1000M in an open ground.
The maximum working distance is a theoretical data, it shall be operated in an open ground, no barriers, no any interference. But in the practice, it will be hindered by trees, walls or other constructions, and will be interfered by other wireless signals. Therefore, the actual distance may not reach this maximum working distance.

Usage:
The receiver can be used to control both 0~28VDC and 110~240VAC devices.

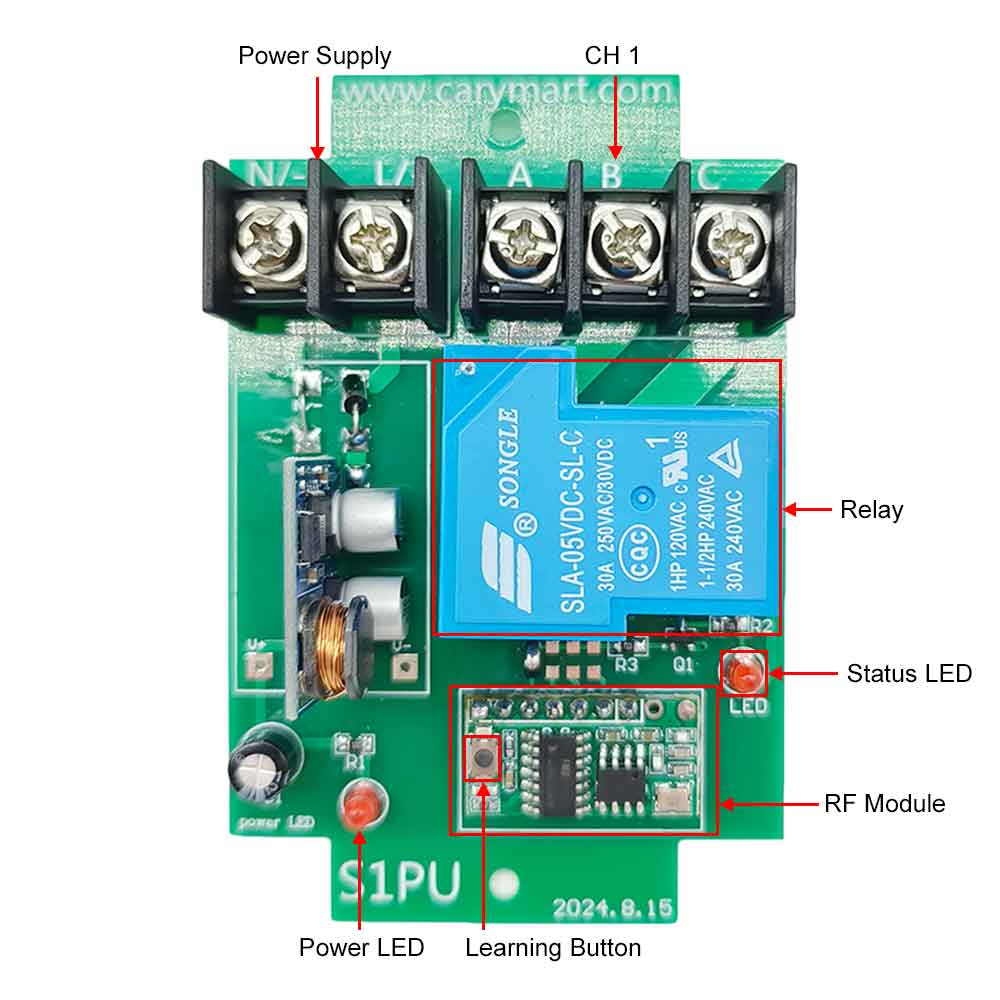

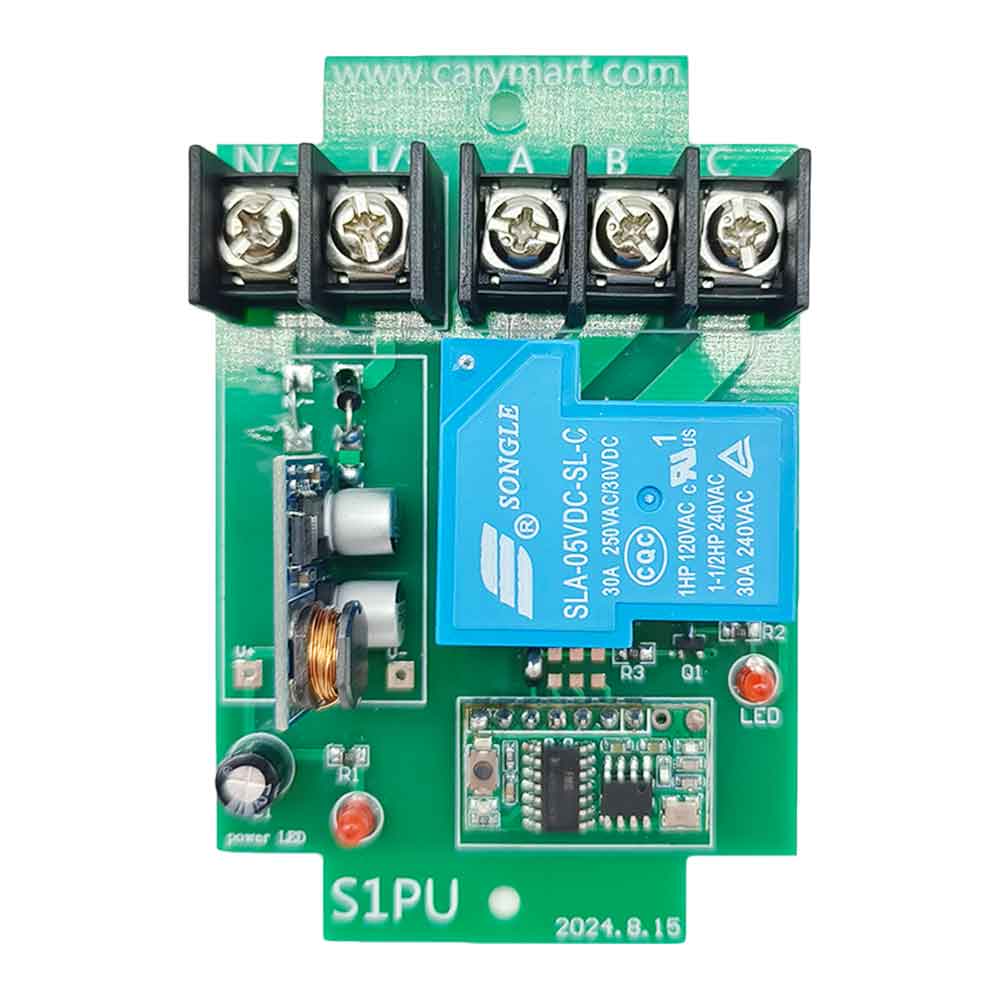

Notice: The receiver is relay output, not DC/AC power output. Initial state of relay output terminals: Terminals B and C are Normally Open; Terminals A and C are Normally Closed.

Wiring:

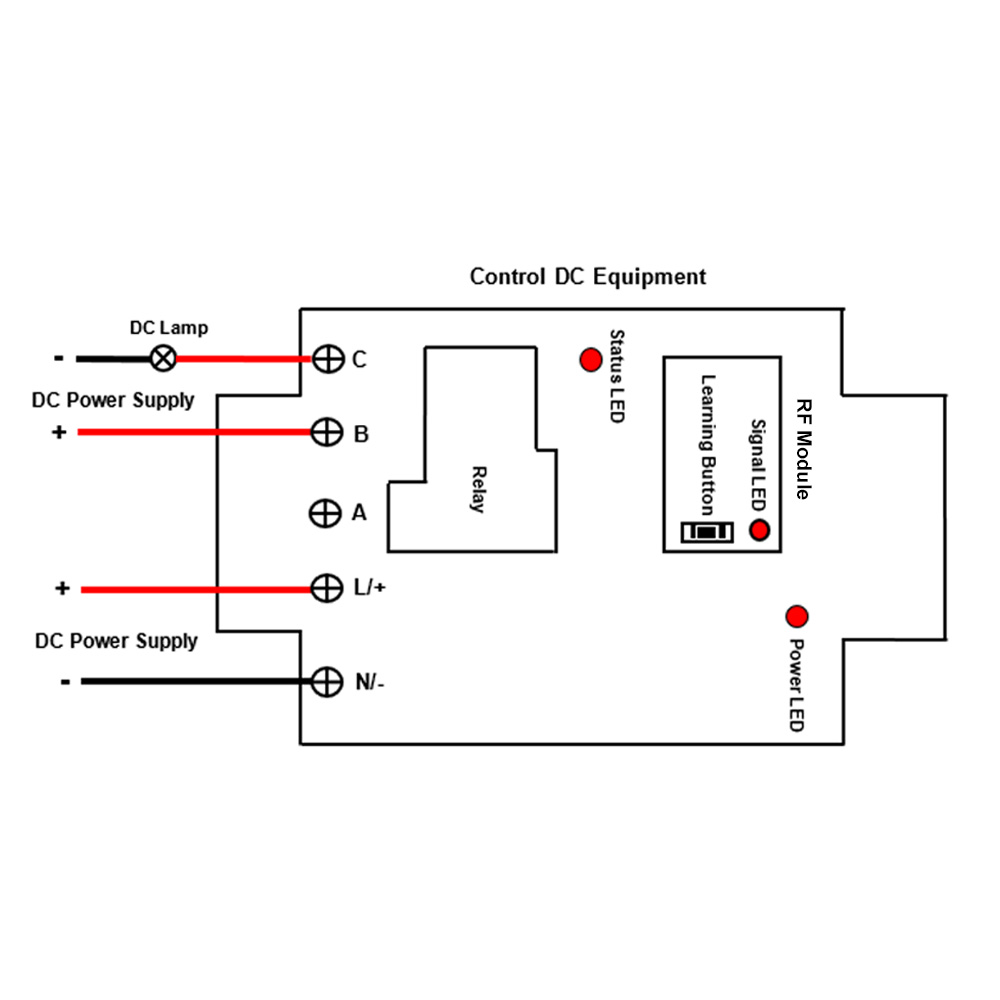

1) If you want to control a DC 12V lamp, do as following:
1.1 Connect the positive pole of DC power supply to terminal L/+, and connect the negative pole of DC power supply to terminal N/-.
1.2 Connect terminal B to the positive pole of DC power supply, connect terminal C to the positive pole of DC lamp, and connect the negative pole of DC lamp to the negative pole of DC power supply.

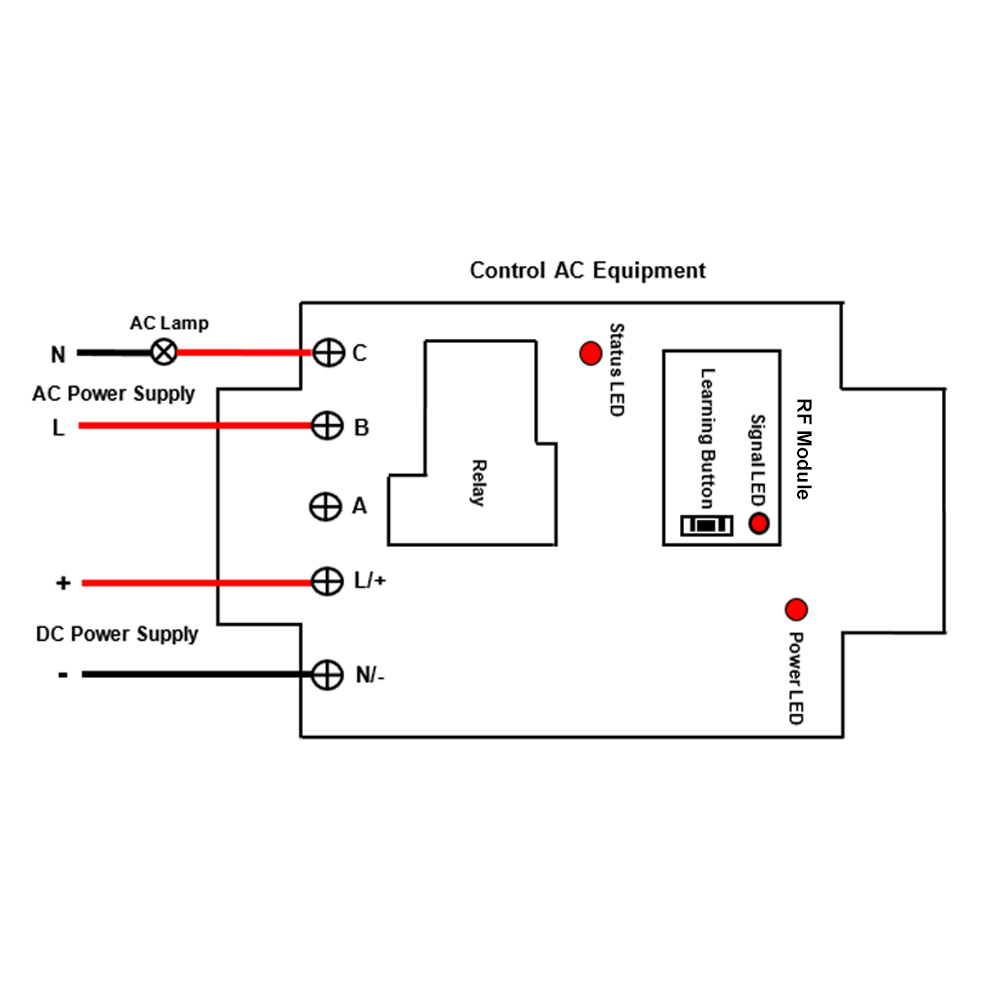

2) If you want to control an AC 220V lamp, do as following:
2.1 Connect the positive pole of DC power supply to terminal L/+, and connect the negative pole of DC power supply to terminal N/-.
2.2 Connect terminal B to the live wire of AC power supply, connect terminal C to one side of AC lamp, and connect another side of AC lamp to the neutral wire of AC power supply.

The receiver paired to this transmitter can be turned on / off by pressing buttons on the transmitter, connecting the red wire and black wire of the transmitter or connecting the red wire and black wire to a switch/sensor.

Controlling the receiver by pressing buttons on the transmitter:
Press button A on the transmitter -> On, the device controlled by the receiver starts to work;
Press button B on the transmitter -> Off, the device controlled by the receiver stops working.

Controlling the receiver by connecting red wire and black wire of the transmitter:
When connecting the red wire and black wire of this transmitter, the transmitter will be triggered and then it will send an RF signal of "ON" to turn on the receiver, the device controlled by the receiver will starts to work.
When disconnecting the red wire and black wire of this transmitter, the transmitter will be triggered and then it will send an RF signal of "OFF" to turn off the receiver, the device controlled by the receiver will stops working.

The transmitter can also be triggered by connecting a switch or a sensor, but the switch or sensor must be normally open (NO).

How to pair the transmitter to the receiver:
Notice: We have paired the transmitter to the receiver before leaving the factory.
1) Press the learning button once in the receiver, signal LED on the receiver flashes one time and then stays on, this indicates that the receiver enters the learning status.
2) Press button A on transmitter, if the signal LED flashes one time, this indicates that the pairing with button A is successful. Then press button B on transmitter, if the signal LED flashes one time, this indicates that the pairing with button B is successful.
3) Press the learning button in the receiver again for 1-2 seconds, signal LED turns off, this indicates that the receiver exits the learning status.
4) The receiver can learn several transmitters with different codes.

How to delete all transmitters codes stored in the receiver:
Notice: We have paired the transmitter to the receiver, if you don’t want the receiver to work with the transmitter, you can delete all transmitters codes stored in the receiver.
Operation: Press the learning button in the receiver 10 times and then release the learning button, signal LED flashes 10 times quickly and then goes off, this indicates that all stored codes have been deleted successfully.

Package Include:

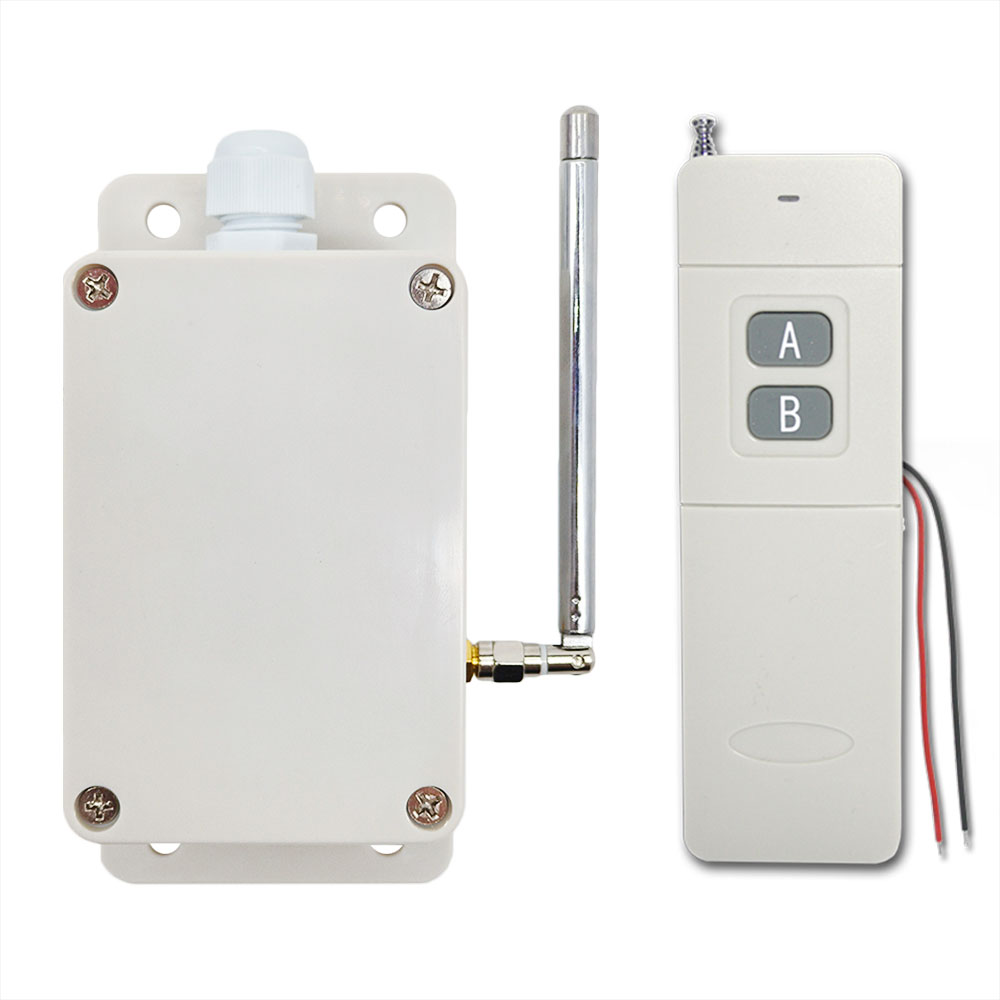

1 x Receiver: S1PU-DC-ANT3
1 x Transmitter: CB-2N
1 x User manual
