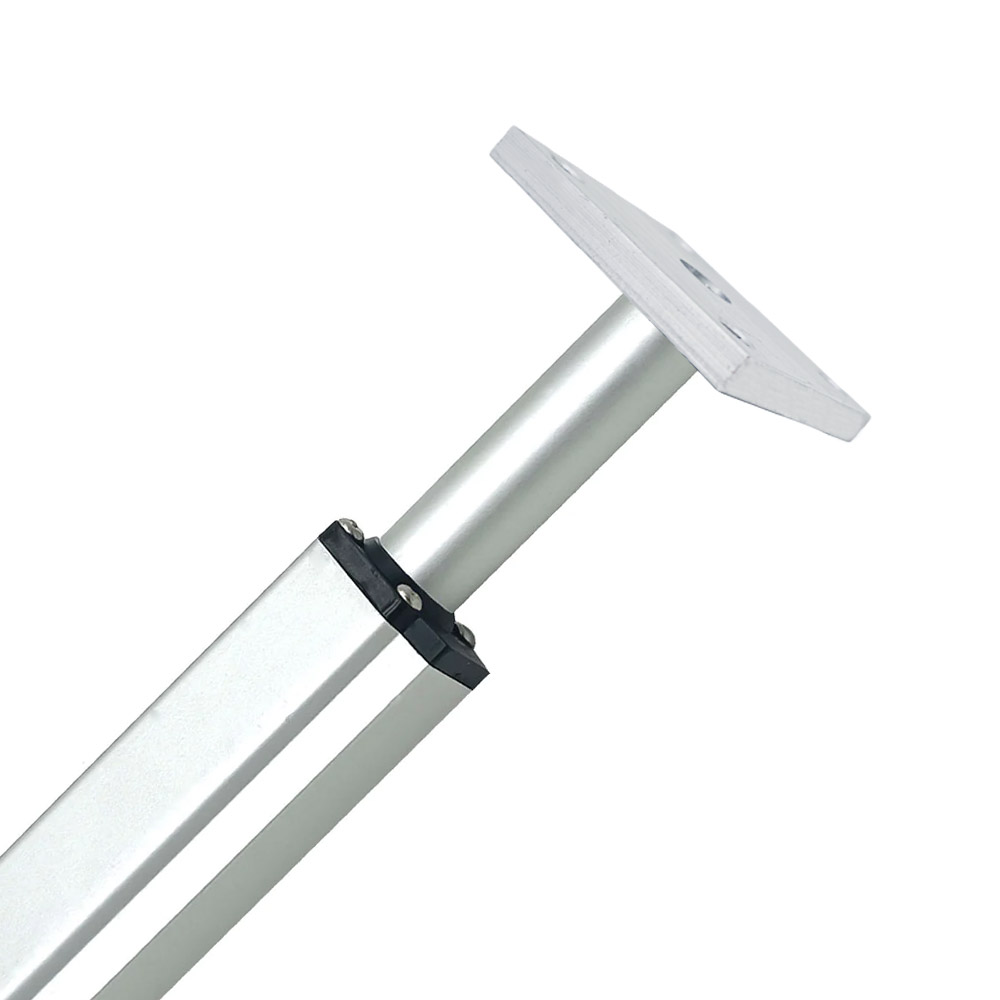

Each linear actuator would require two mounting brackets, one to fix the head of linear actuator and another to fix the bottom of linear actuator.. This flat plate bracket is used to mount vertically on the head of thelinear actuator A
.

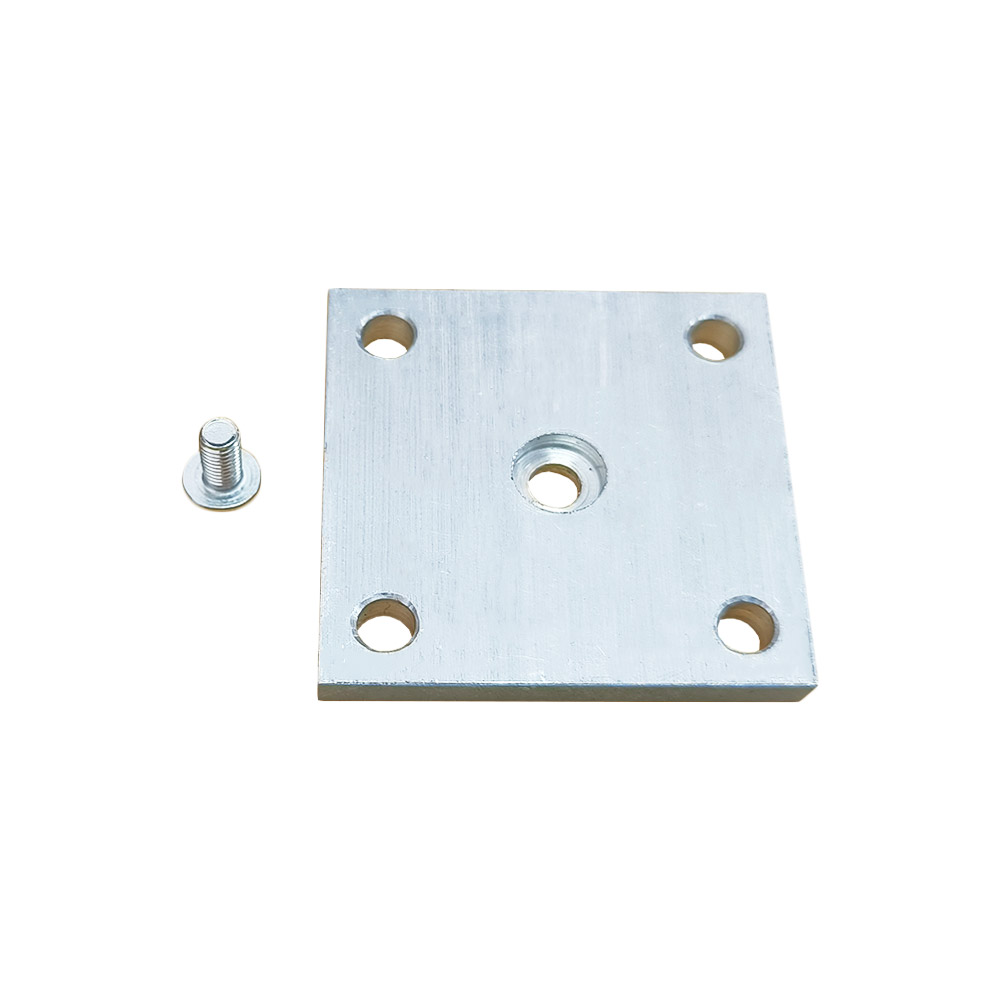

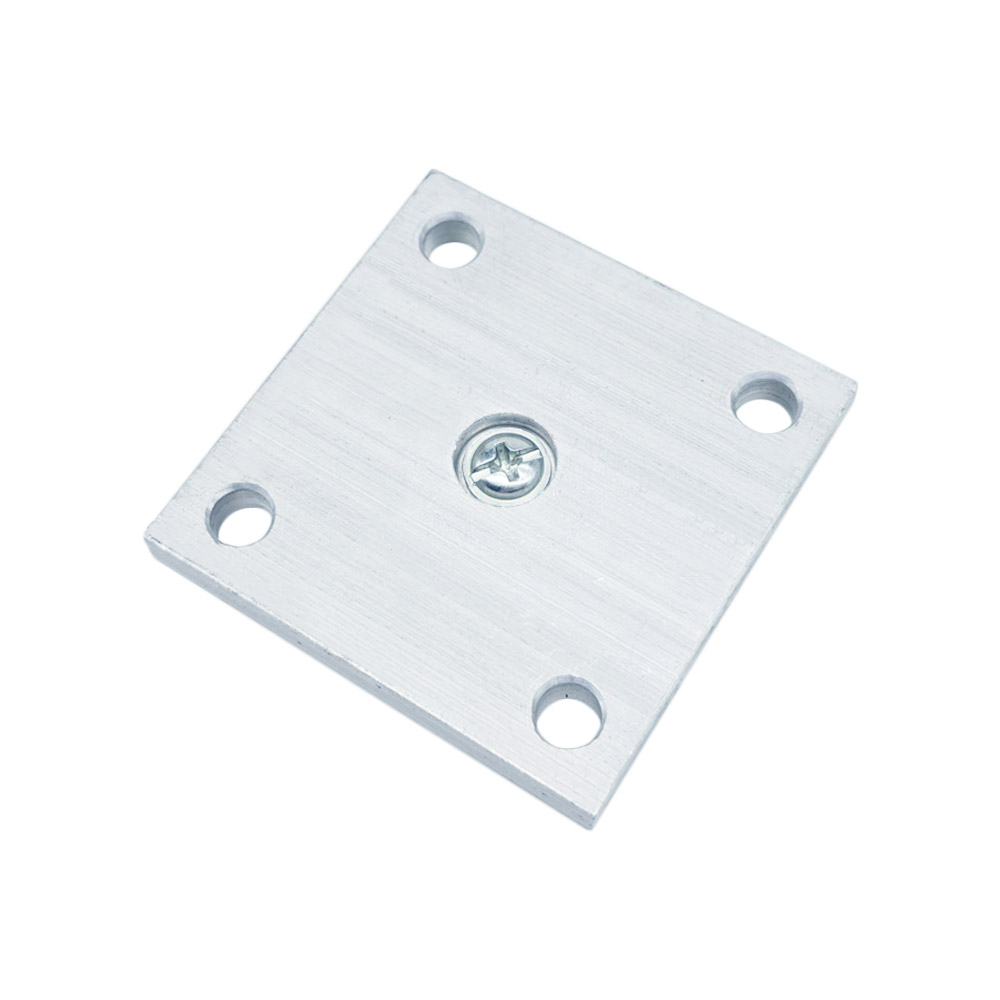

Includes a flat plate bracket and a M6 screw.
Aluminum material.

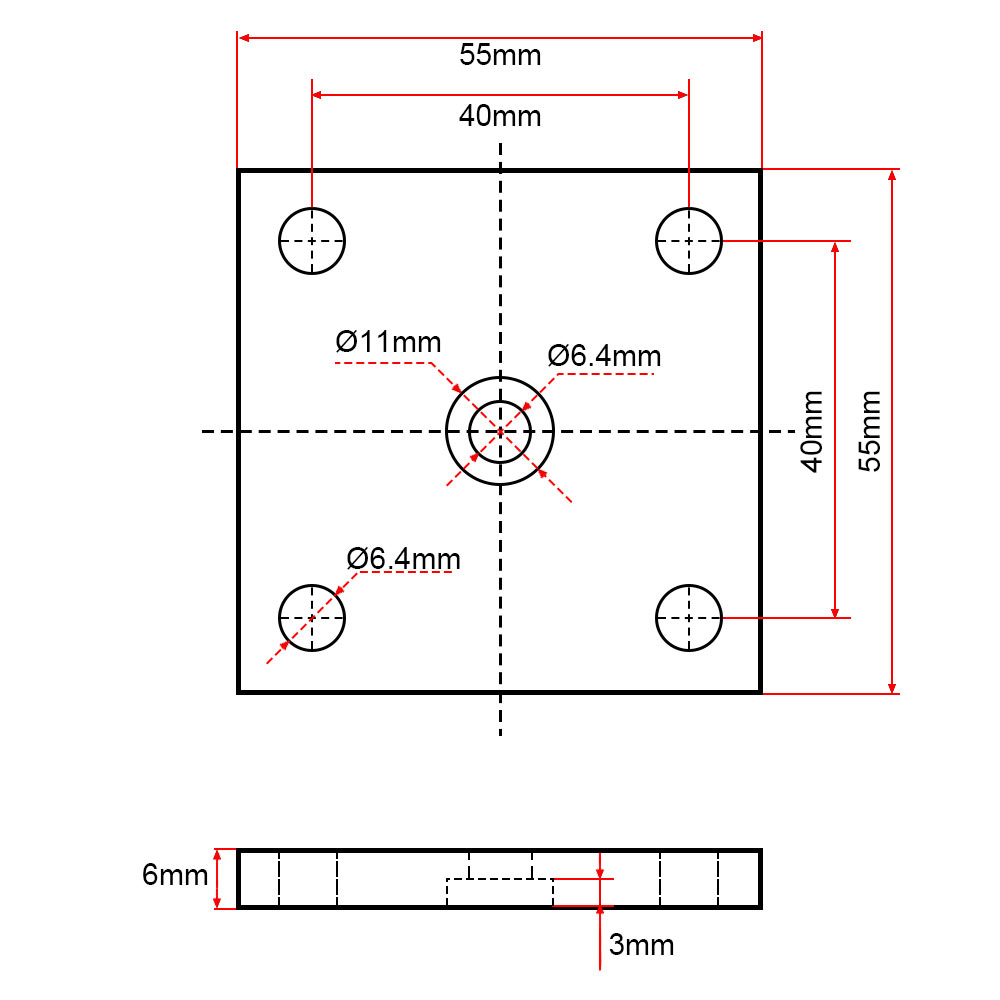

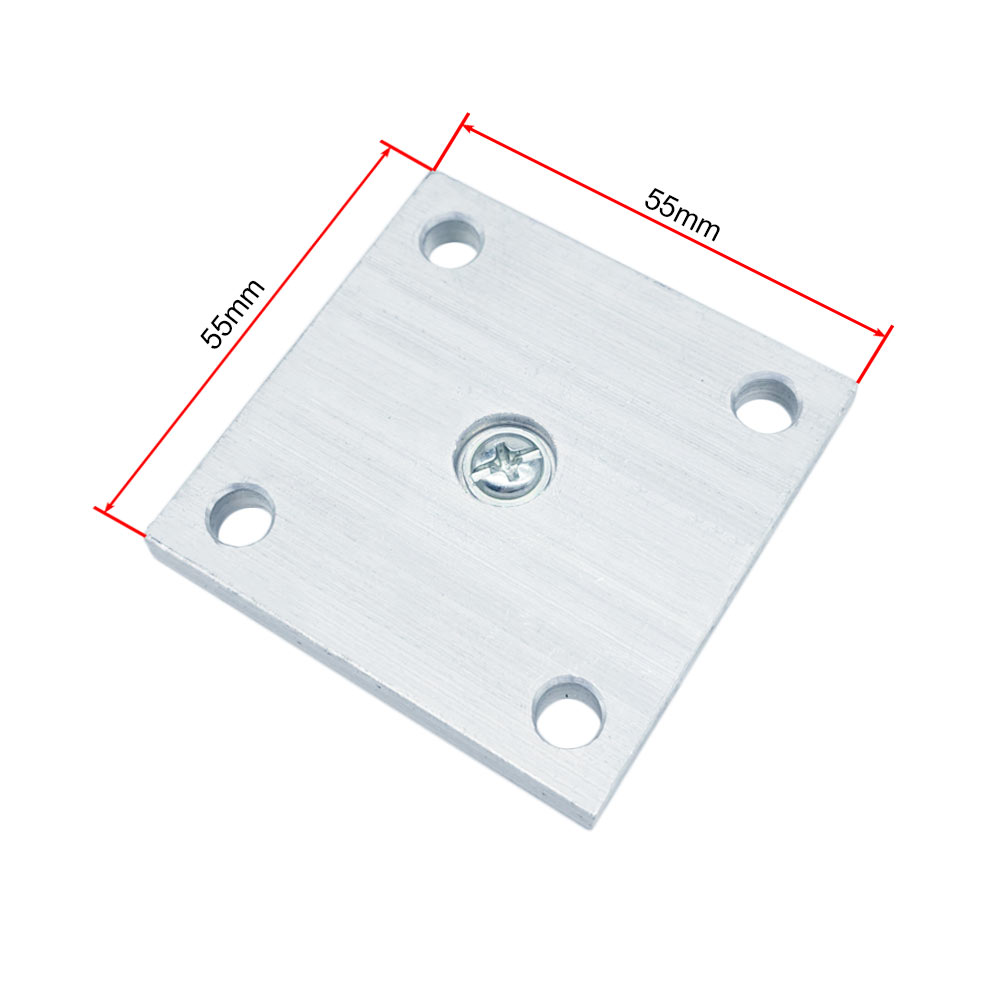

Size: 55 x 55 x 6 mm (2.2 x 2.2 x 0.24 inches)
Diameter of the four outer mounting holes: 6.4mm [0.252 in]
Diameter of the middle mounting hole: 6.4mm [0.252 in]
Weight: 60g
Note:
This flat plate bracket needs to be ordered together with the linear
actuator A.
If you order them together, we will customize the front connector of the
linear actuator A into the style with a threaded hole, and then fix this
flat plate bracket to the front connector with an M6 screw.
The customization of the front connector with a threaded hole can only be
done by our factory, so customers cannot install it by themselves.
