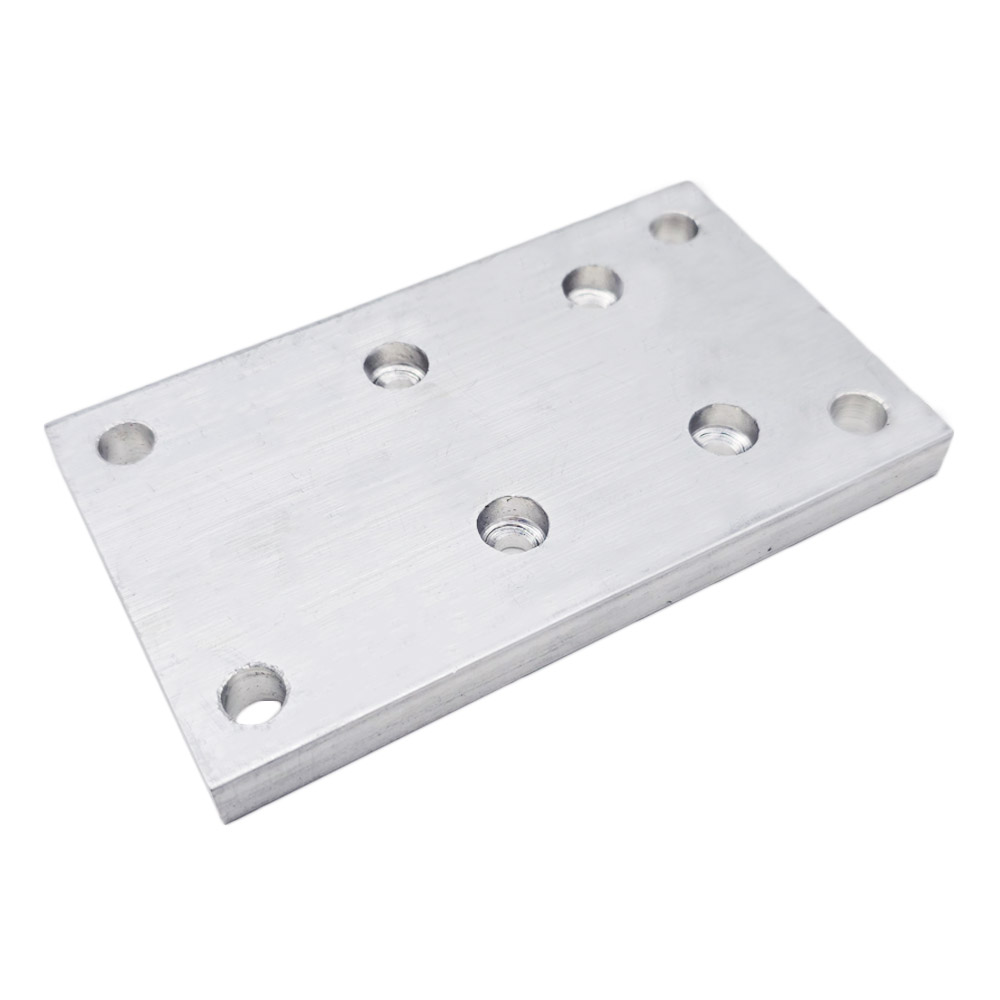

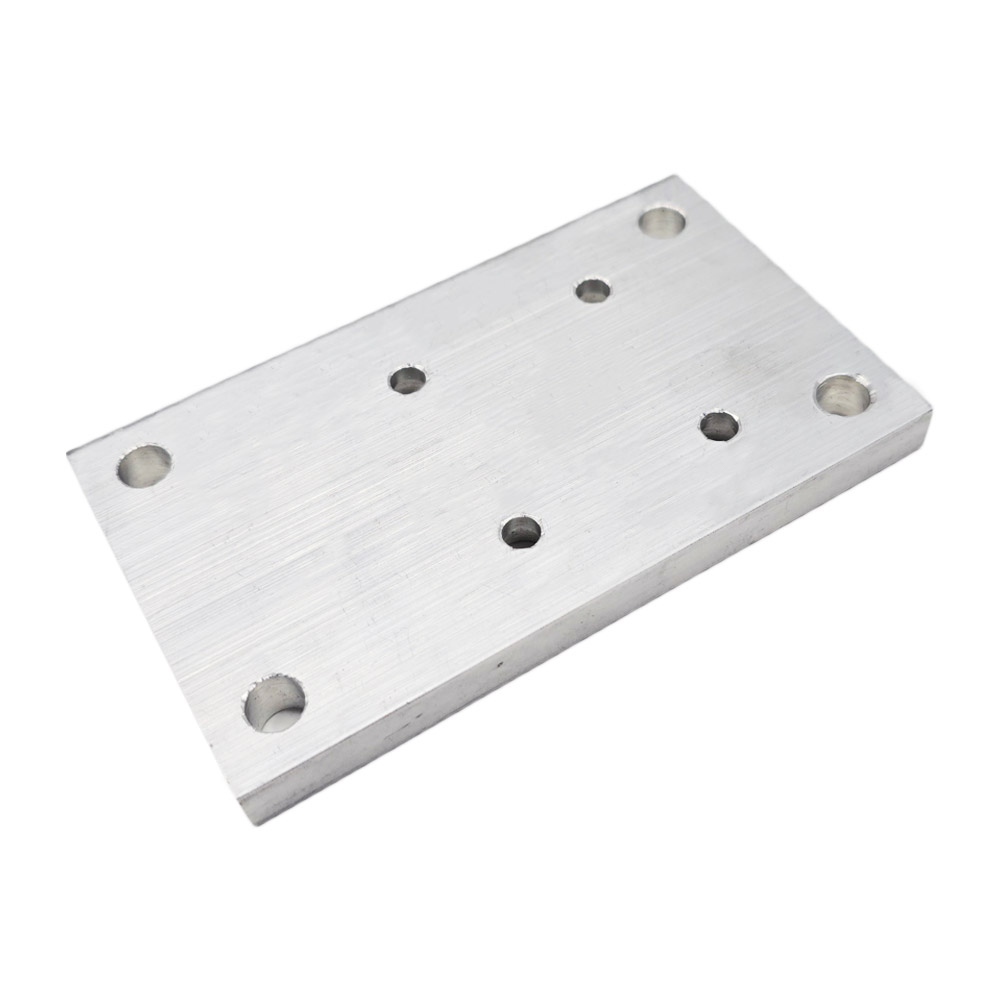

Each linear actuator would require two mounting brackets, one to fix the head of linear actuator and
another to fix the bottom of linear actuator. This flat plate bracket is used to mount vertically on the bottom of the linear actuator B
.

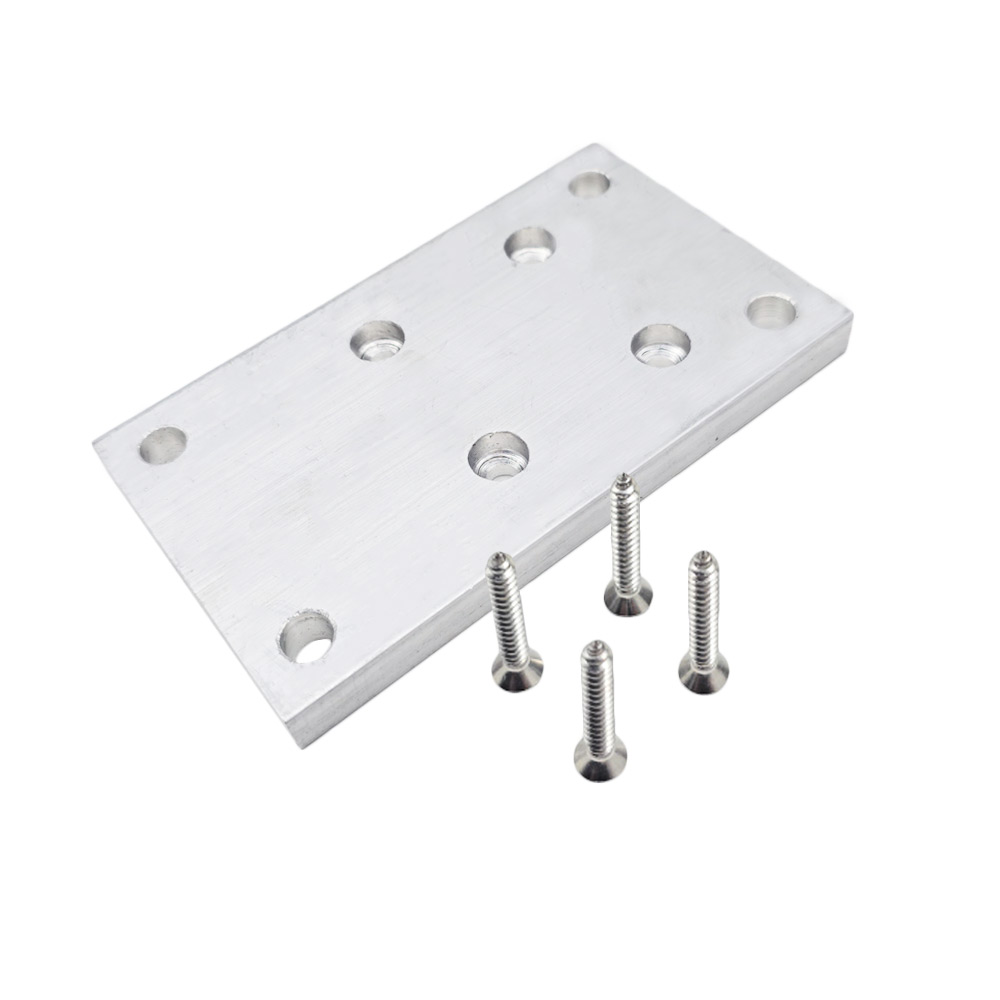

Includes a flat plate bracket and four M5 screws.
Aluminum material.

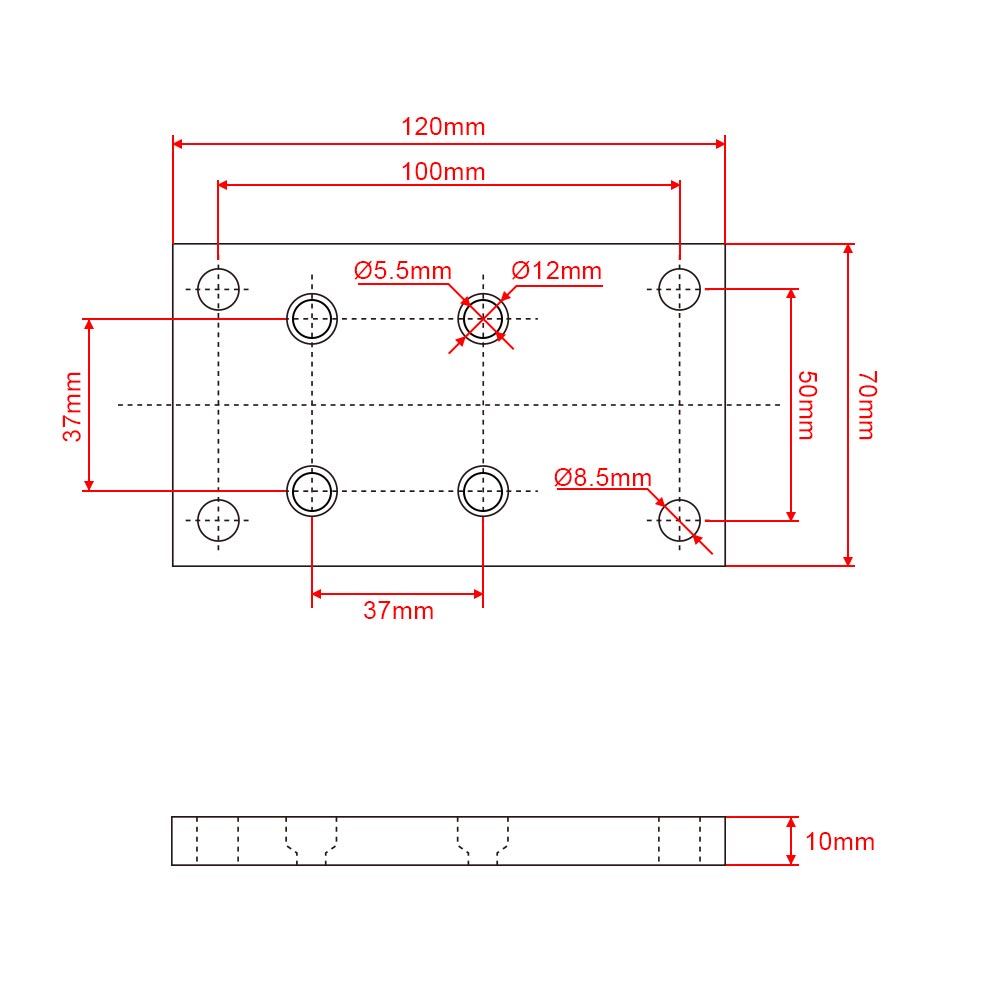

Size: 120 x 70 x 10 mm (4.7 x 2.8 x 0.4 inches)
Diameter of the four outer mounting holes: 8.5mm [0.335 in]
Diameter of the four inner mounting holes: 5.5mm [0.217 in]
weight: 210g
Note:

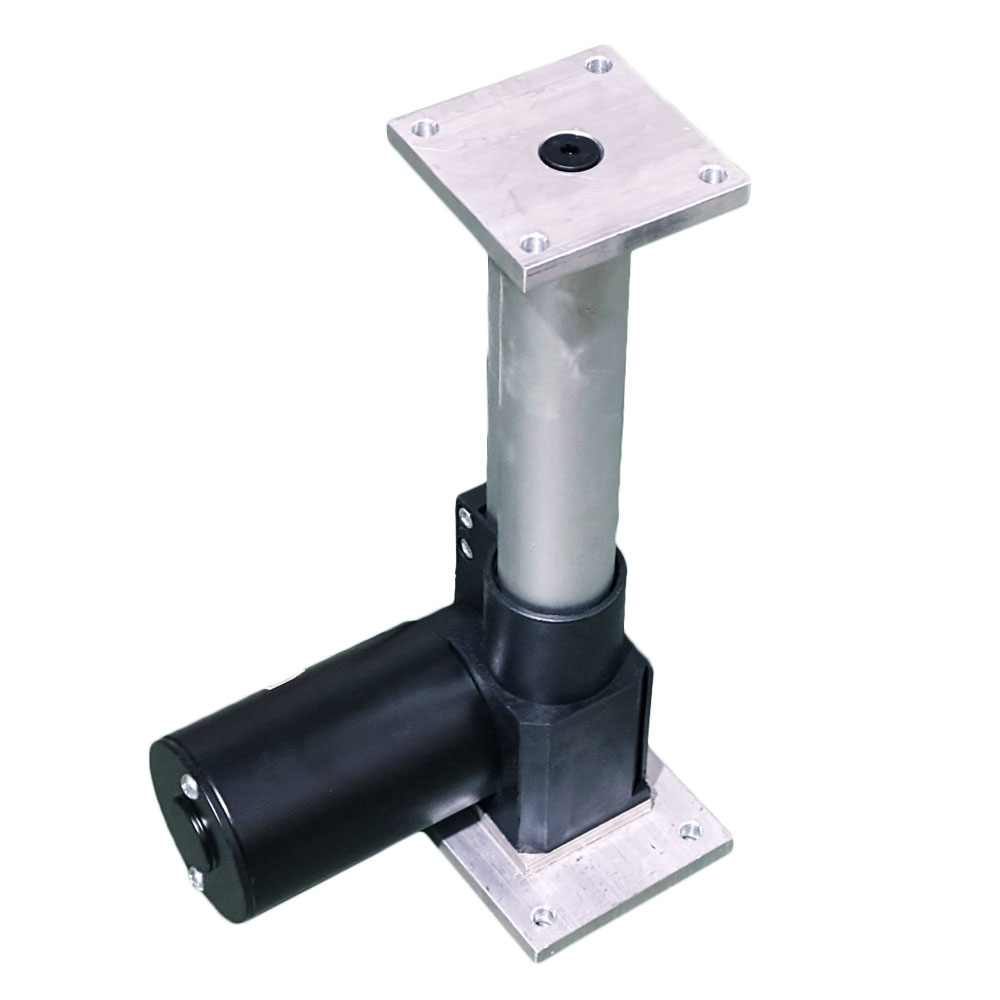

When you purchase this flat plate bracket together with the linear actuator
B, we will flatten the mounting hole part on the original base of linear
actuator B by using the milling machine, and then fix this flat plate
bracket to the bottom of linear actuator by four M5 screws.
If you previously ordered the linear actuator B, but later want to install
this flat plate bracket, you need to mill down the mounting hole part on the
original base yourself, and then install this flat plate bracket.

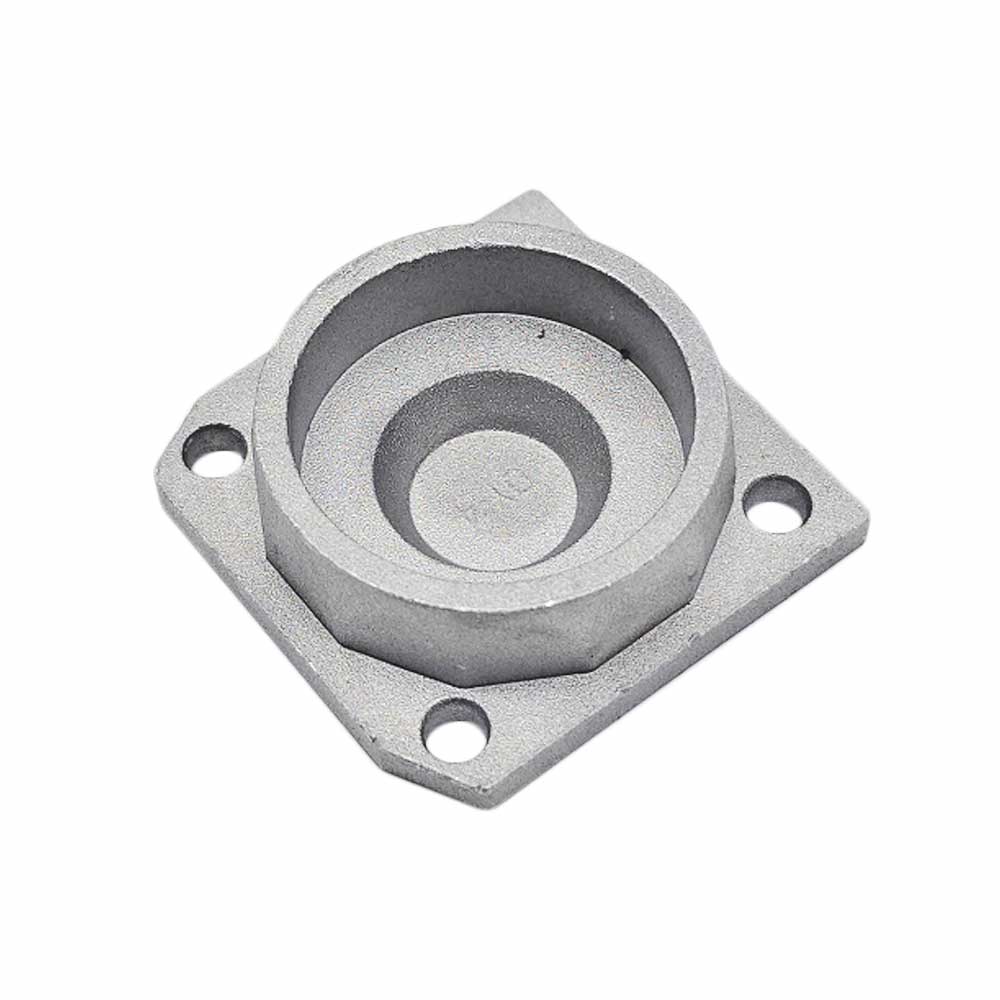

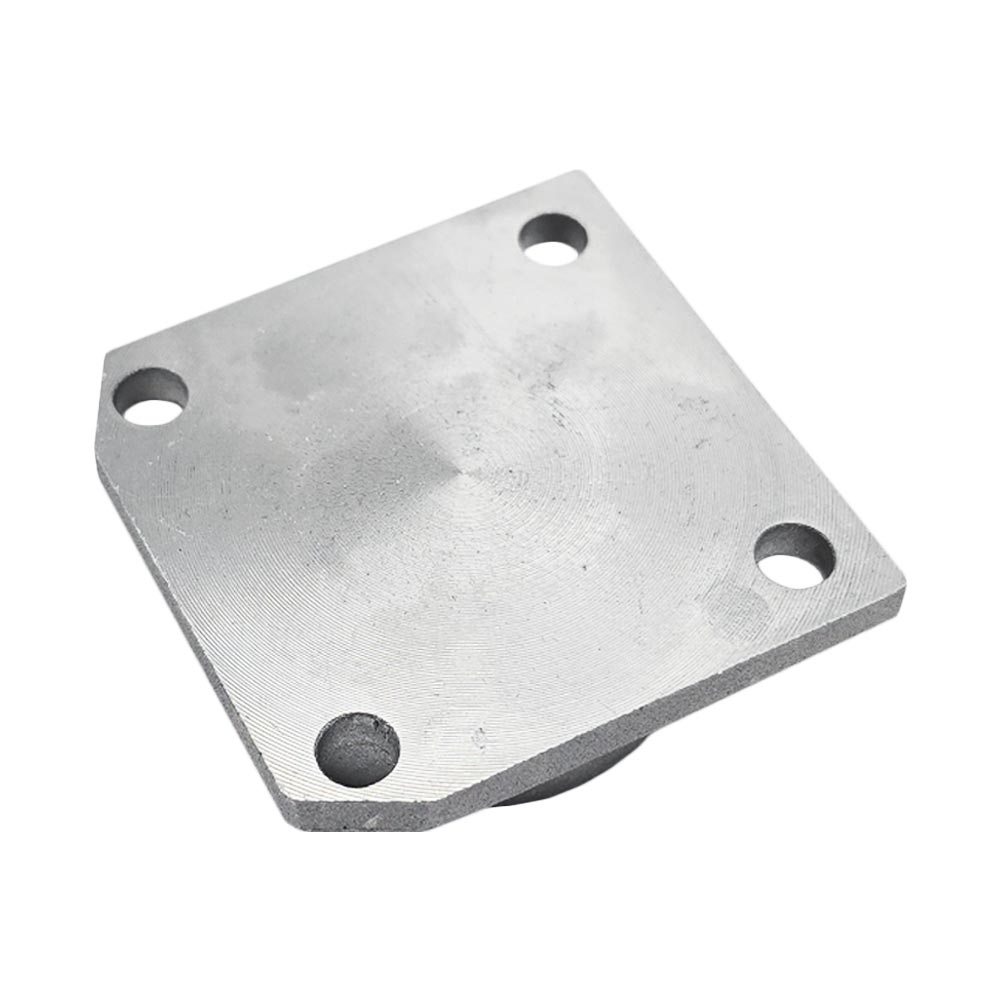

In addition, we can also supply the original base directly with the mounting
hole part milled down.
