Each linear actuator would require two mounting brackets, one to fix the
head of linear actuator and another to fix the bottom of linear actuator.

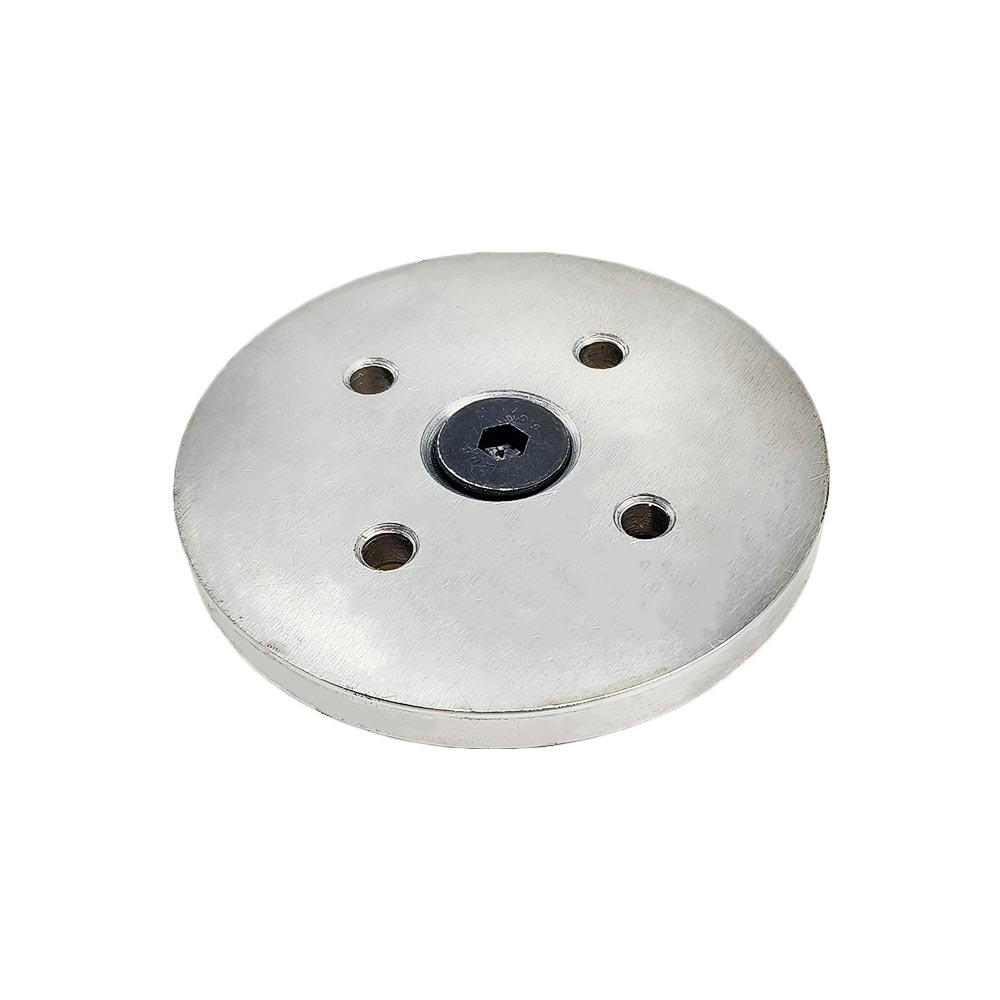

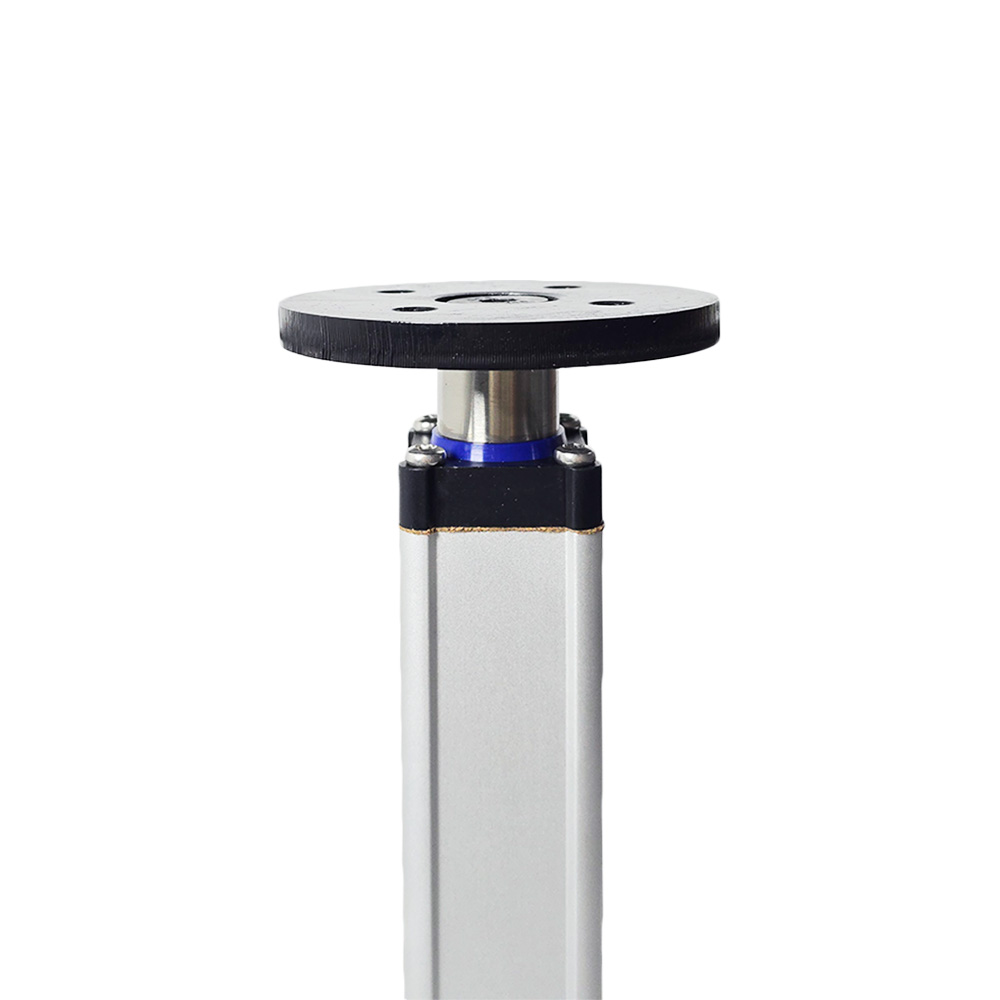

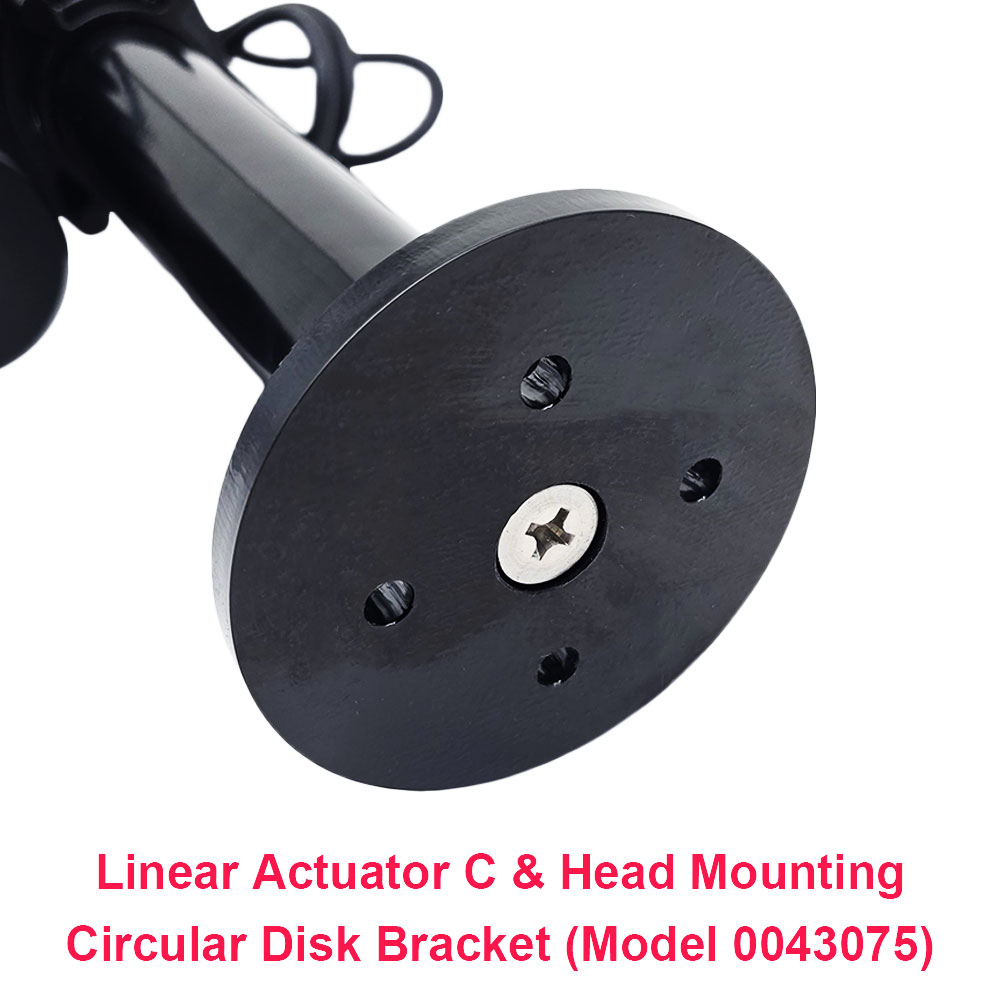

This circular disk bracket is used to mount vertically on the head of the
linear actuator C
.

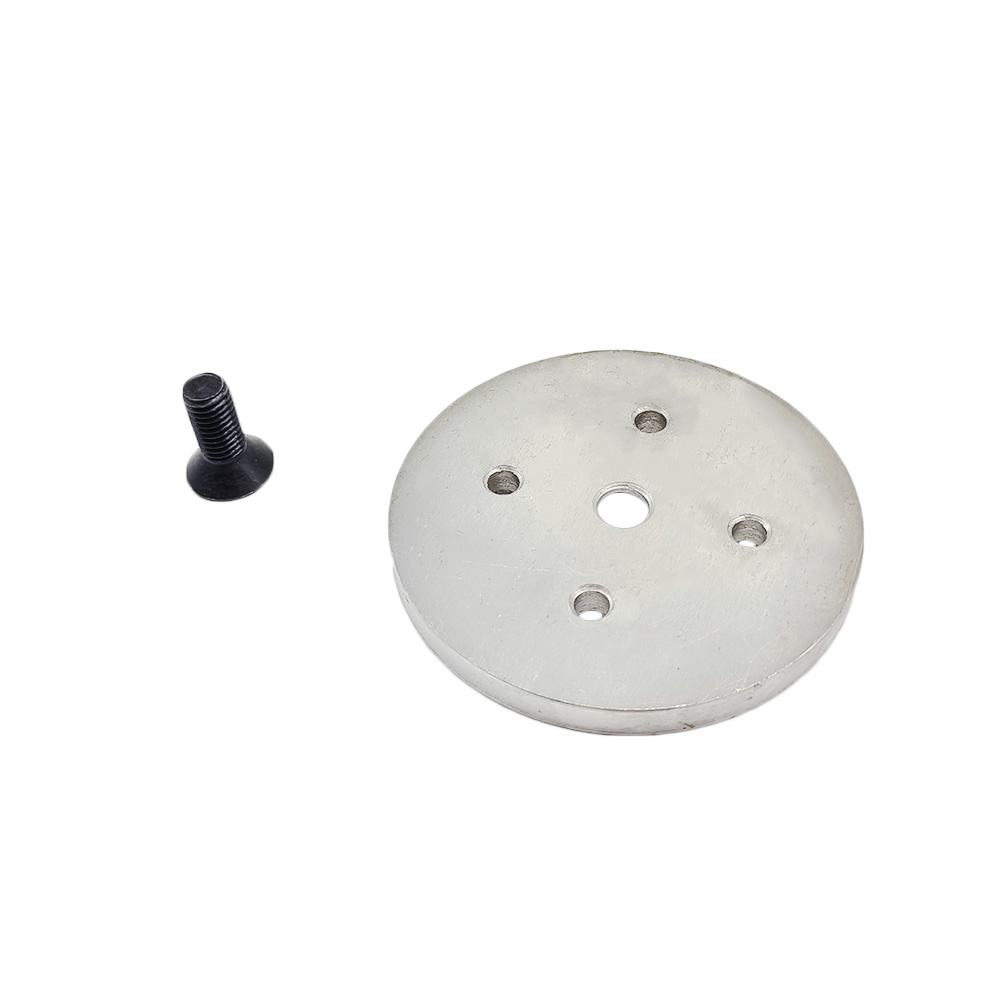

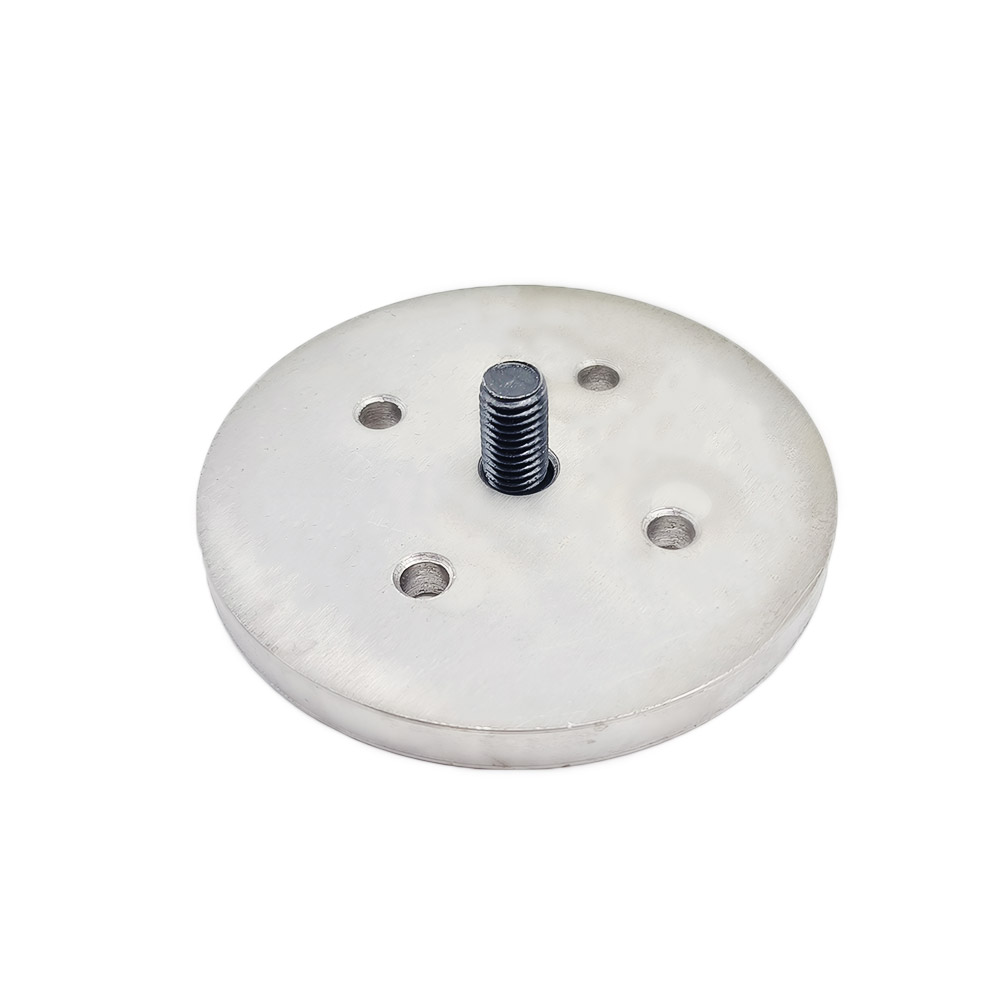

Includes a circular disk bracket and a M12 / M16 screw. M12 screws are used
for smaller loads, and M16 screws are used for larger loads
Iron material.

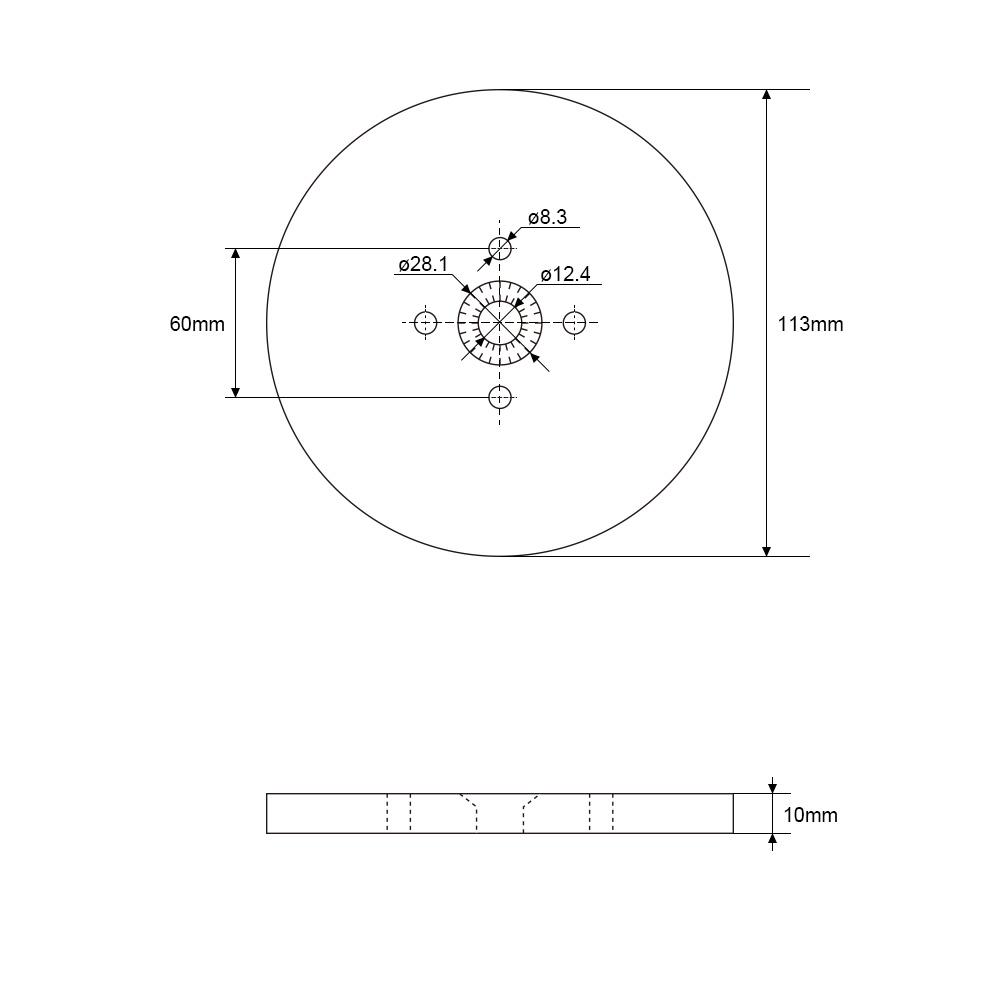

Size: 100 x 10 mm (3.9 x 0.4 inches)
Diameter of the four outer mounting holes: 8.5mm [0.335 in]
Diameter of the middle mounting hole: 12.5mm [0.492 in] / 16.5mm [0.650 in]
Weight: 770g
Note:
This circular disk bracket needs to be ordered together with the linear
actuator C.

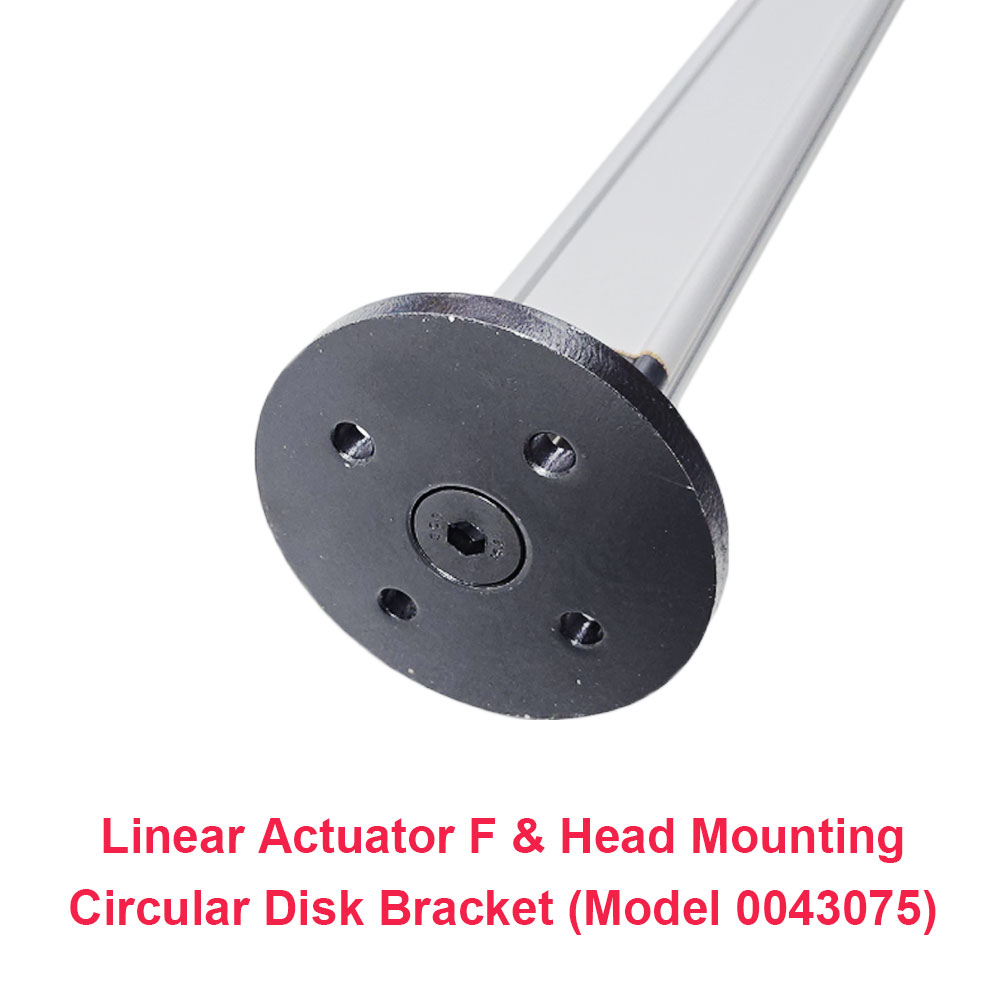

If you order them together, we will customize the front connector of the
linear actuator F into the style with a threaded hole, and then fix this
circular disk bracket to the front connector with an M12 / M16 screw.
The front connector with threaded hole can only be customized by our
factory, so if you purchase this circular disk bracket separately, you will
not be able to complete the installation.
