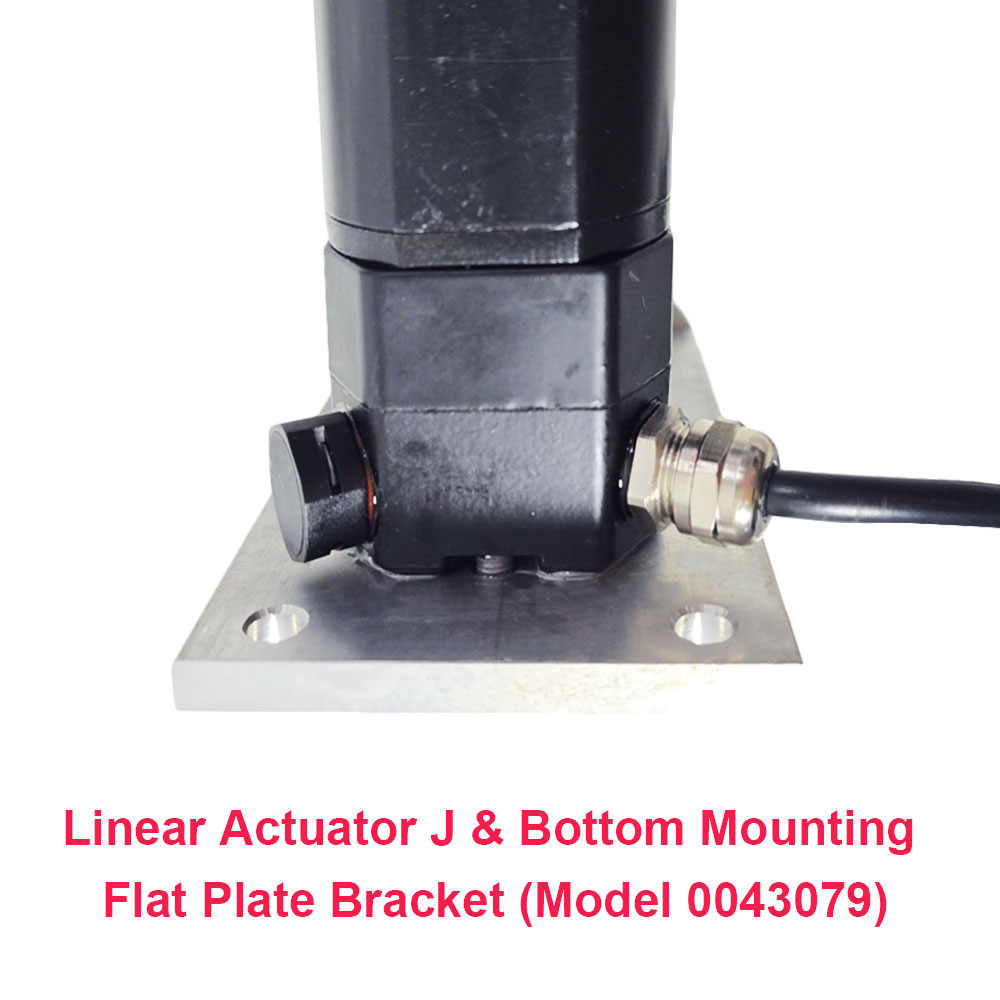

Each linear actuator would require two mounting brackets, one to fix the
head of linear actuator and another to fix the bottom of linear actuator. This flat plate bracket is used to mount vertically on the bottom of thewaterproof linear actuator J
.

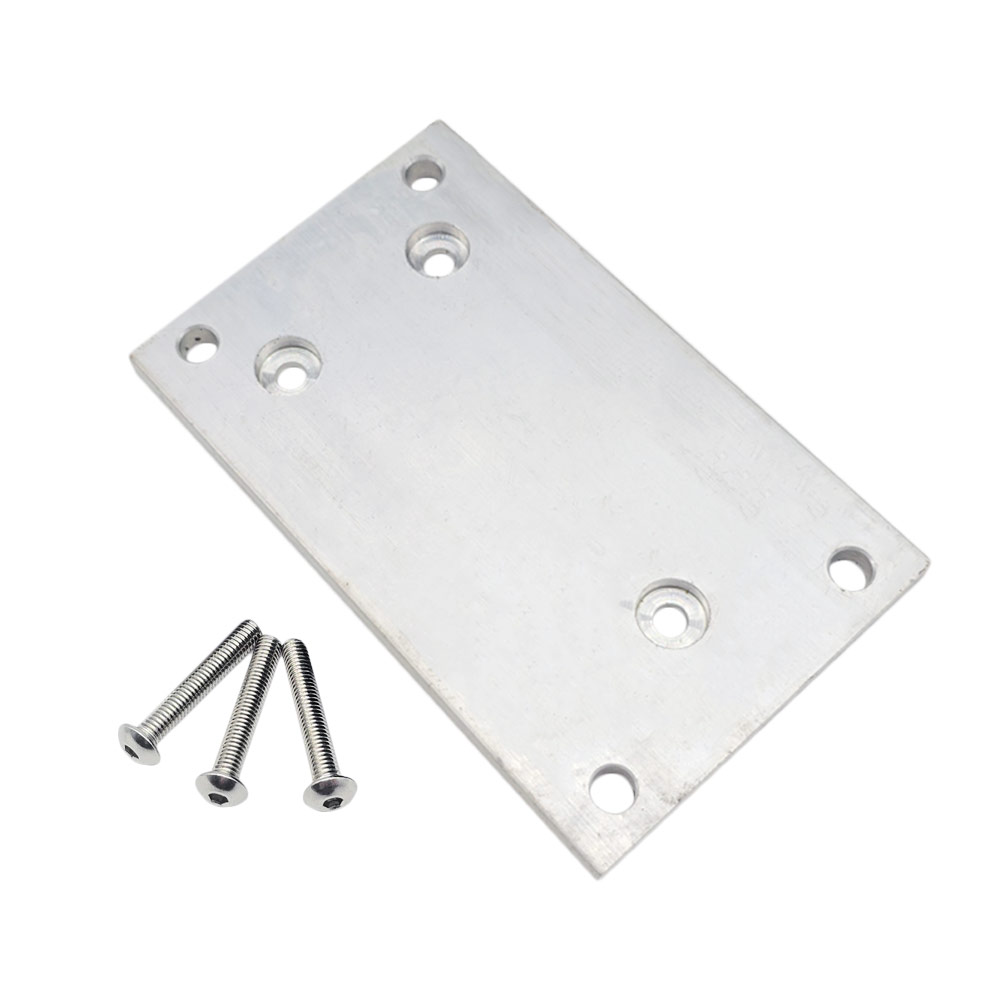

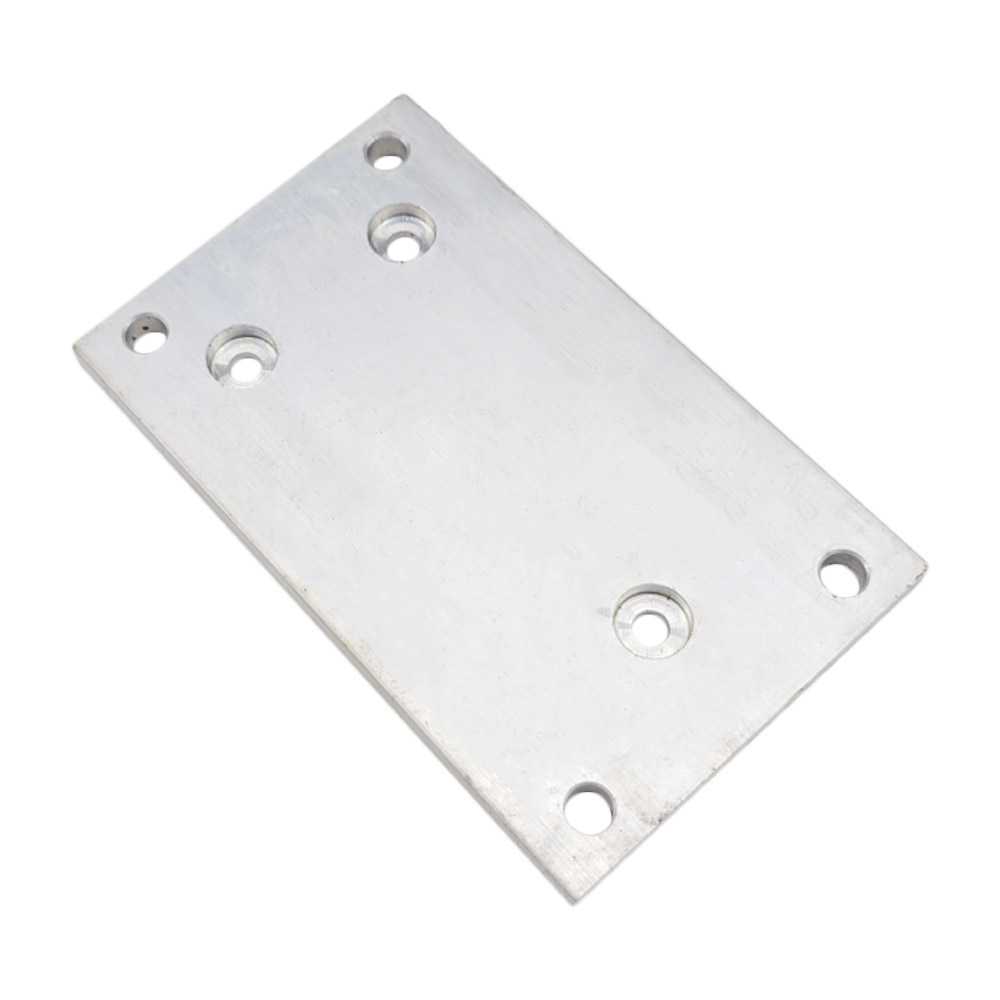

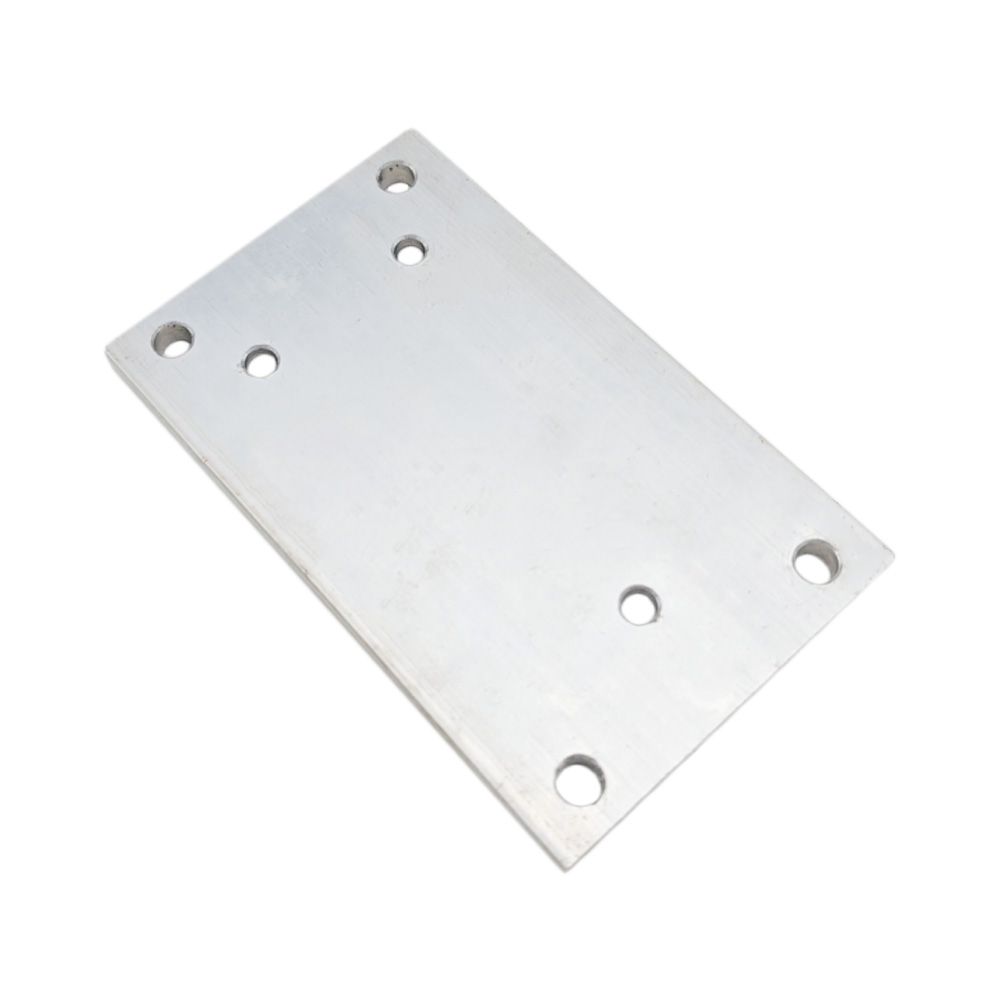

Includes a flat plate bracket and three M5 screws.
Aluminum material.

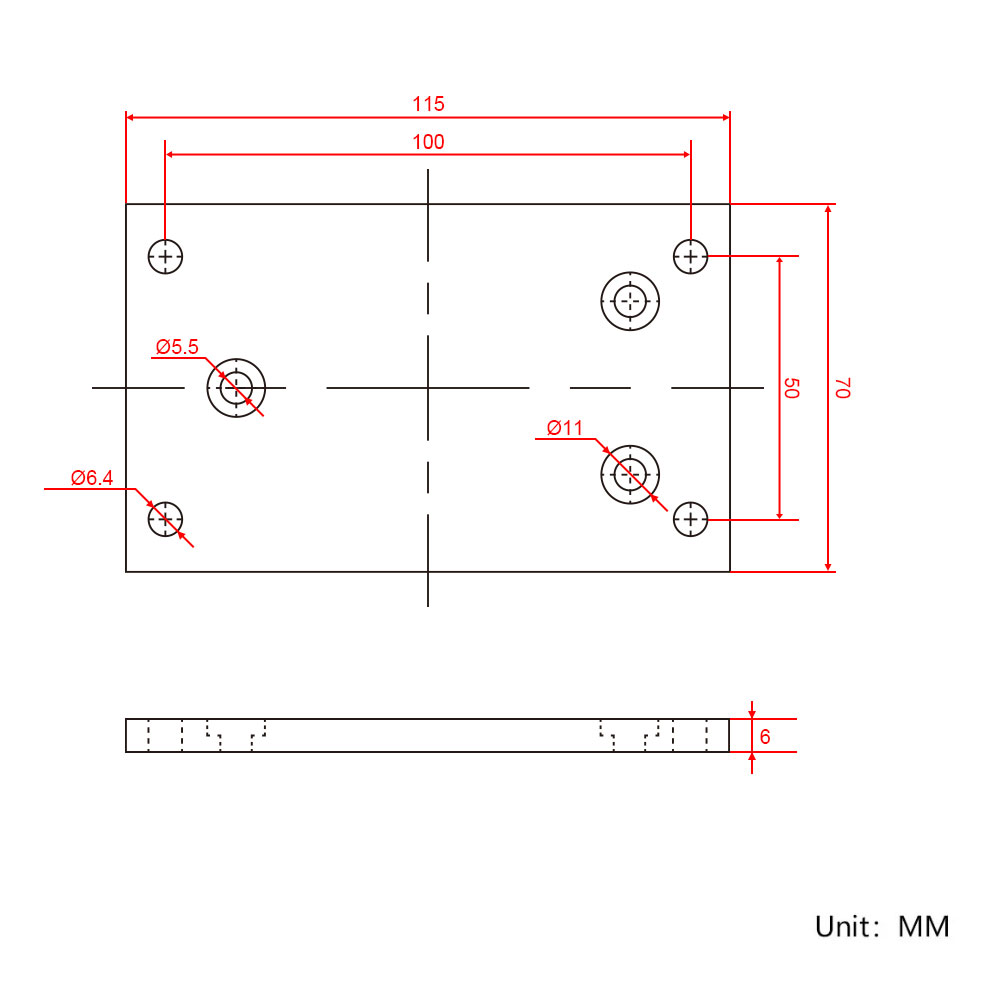

Size: 115 x 70 x 6 mm (4.5 x 2.8 x 0.24 inches)
Diameter of the four outer mounting holes: 6.4mm [0.252 in]
Diameter of the four inner mounting holes: 5.5mm [0.217 in]
weight: 150g
Note: This flat plate bracket needs to be ordered together with the linear
actuator J.
If you order them together, we will flatten the mounting hole part on the
original base of linear actuator J by using the milling machine, and then
fix this flat plate bracket to the bottom of linear actuator by three M5
screws.
In addition, we will move the positions of the waterproof breather valve and
the power cable to the side of the linear actuator.
This installation process can only be completed by our factory, so if you
purchase this flat plate bracket separately, you will not be able to
complete the installation.
