This controller is compatible with a variety of operating modes, each mode can work independently or together. It use LED digital tube to display. It features in controlling relay by temperature control function, time control function and voltage control function, applies to automatic control field, product testing, DIY etc.
Technical Parameter:
Working Voltage: DC 10~15V
Standby Current: ≤10mA

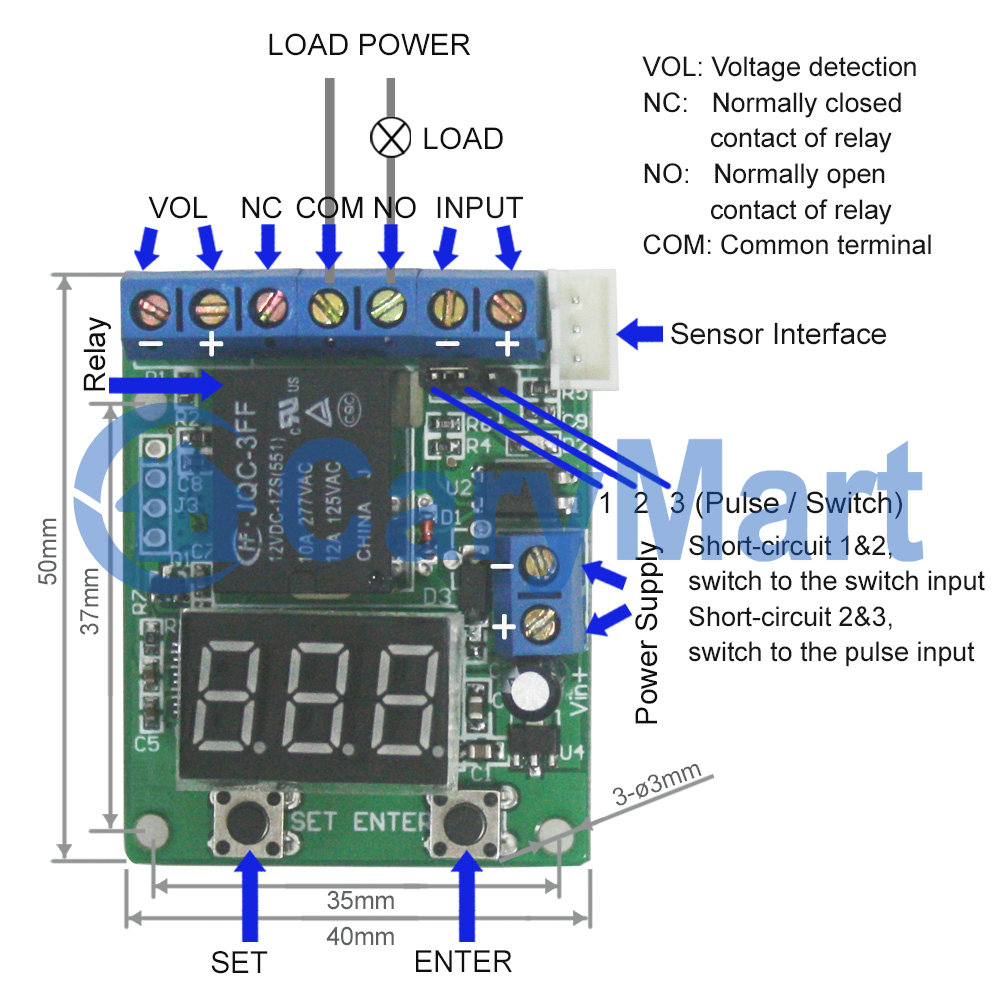

Dimension: 50mm x 40mm
Relay contact Mode: normally open and normally closed
Relay contact Current: 10A
Operating Temperature: -30 ~ +85°C

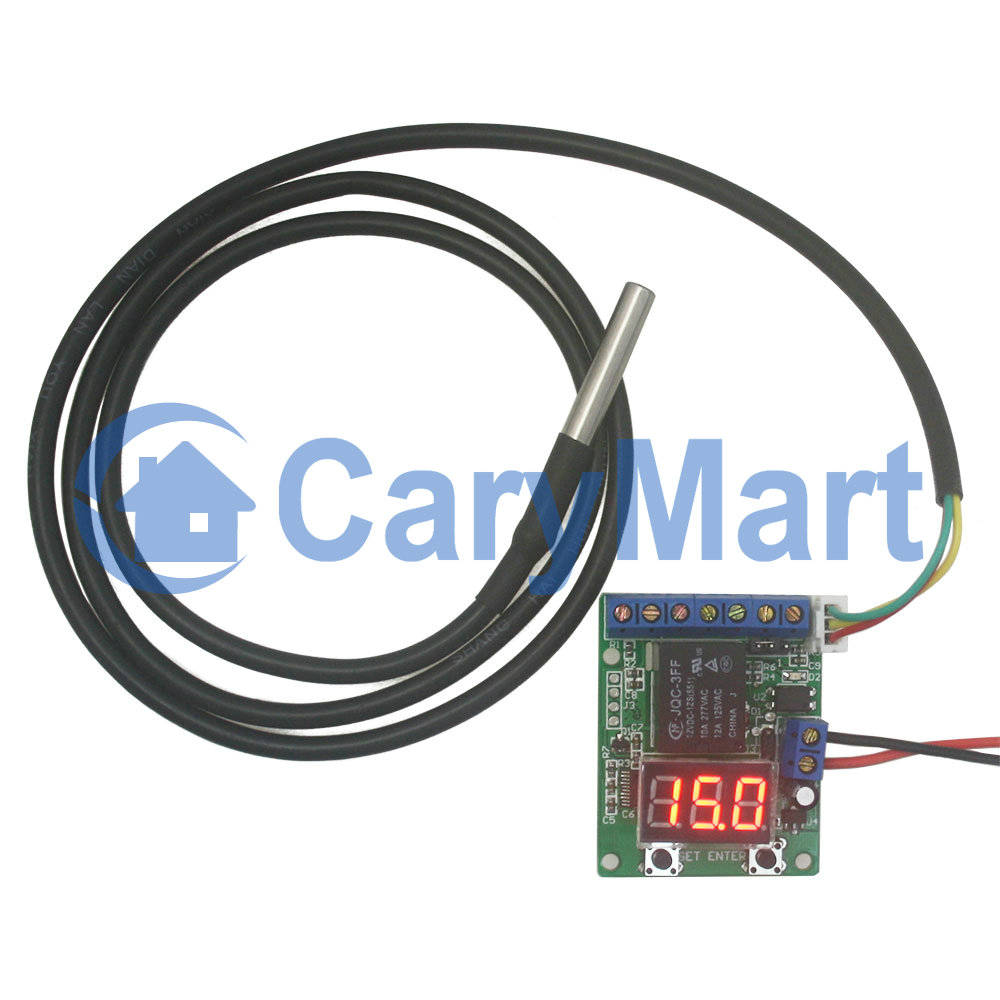

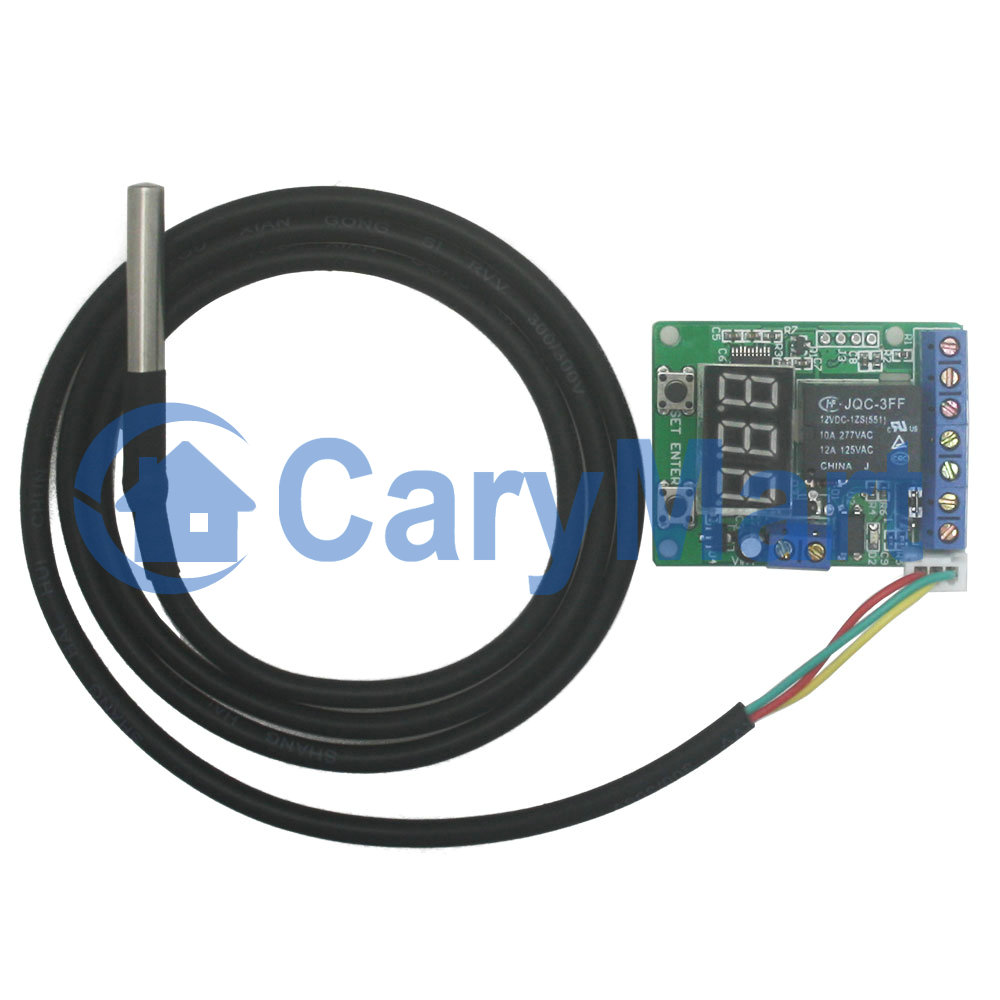

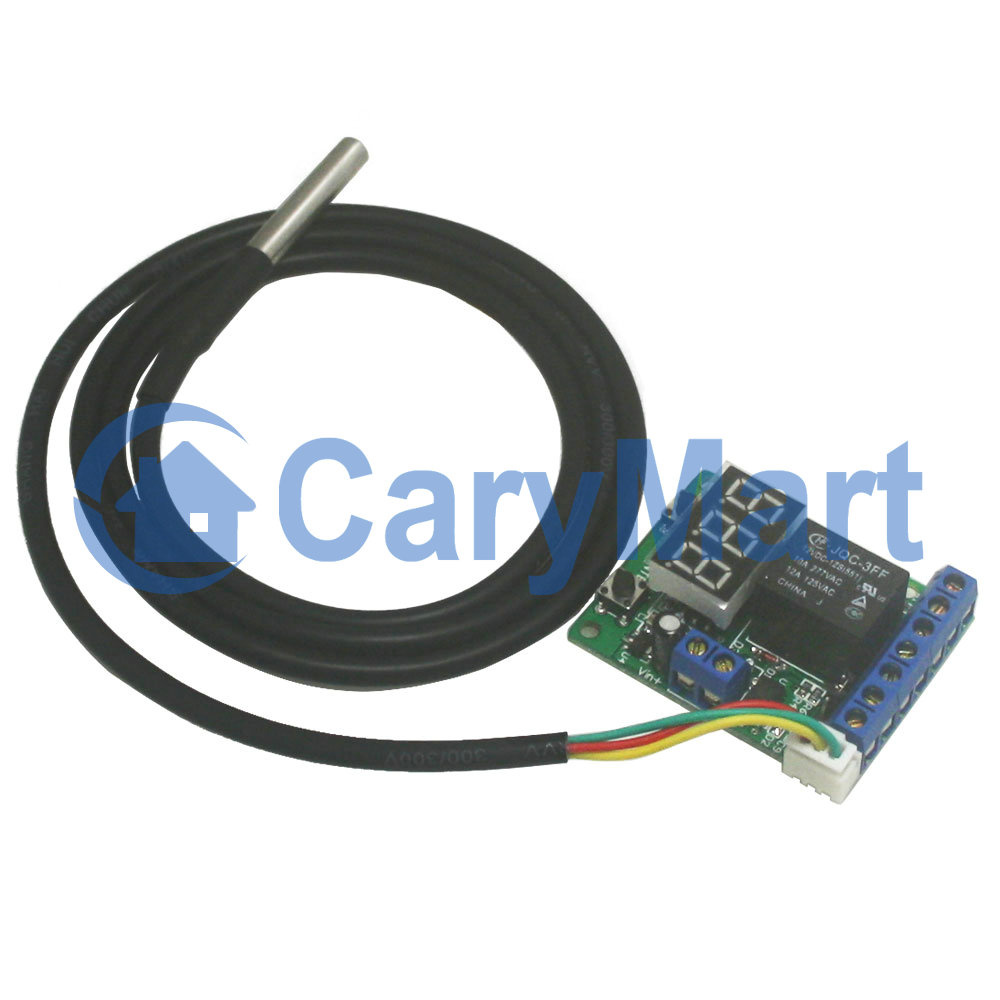

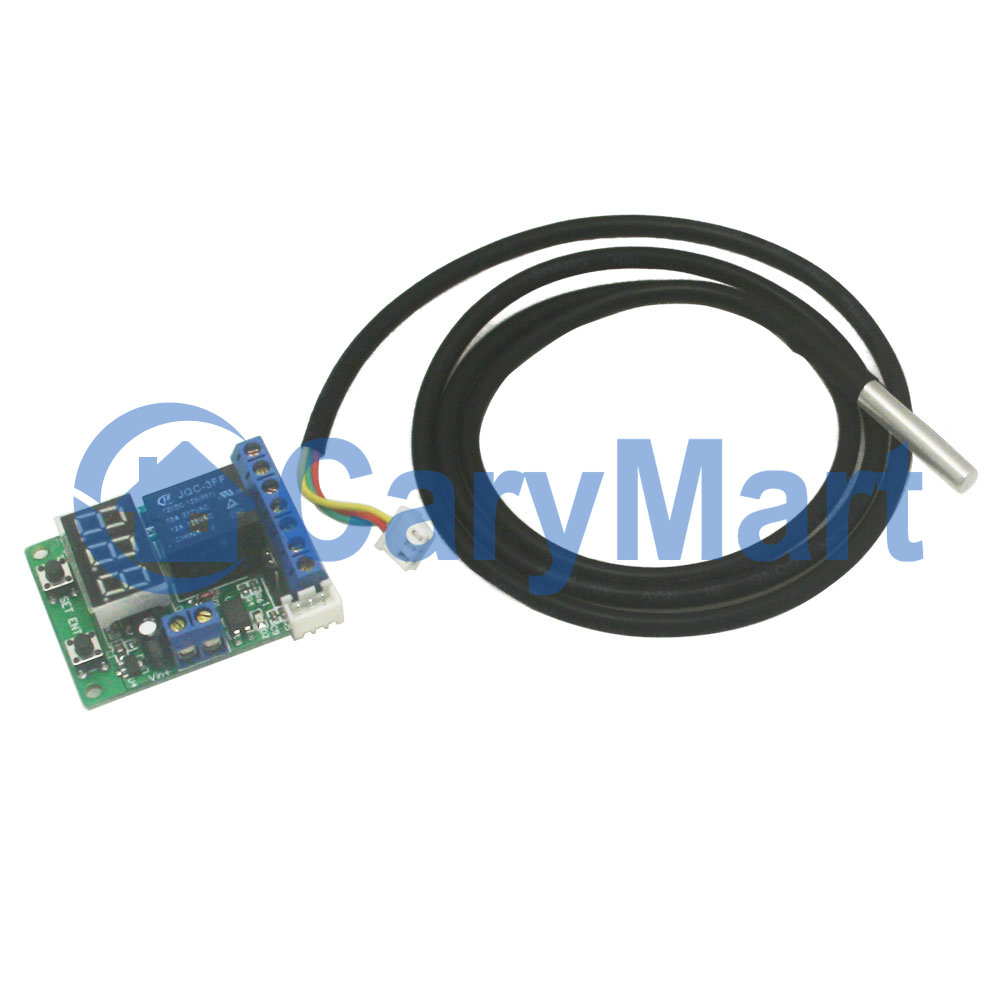

Waterproof temperature sensor (with 1M wire)
Temperature Measuring Range: -55 ~ +99.9°C
Temperature Measuring Accuracy: ±0.5°C
Temperature Display Resolution: 0.1°C
Timing Range: 0-999 seconds or 0-999 minutes
Voltage Detection Range: DC 0~99.9 V (±0.1V)
In time control mode, can set the relay contact on and off time
In voltage control mode, can preset upper and lower limit of voltage value
In Temperature control mode, can preset upper and lower limit of Temperature value
The pre-set parameters can be saved after power cut down

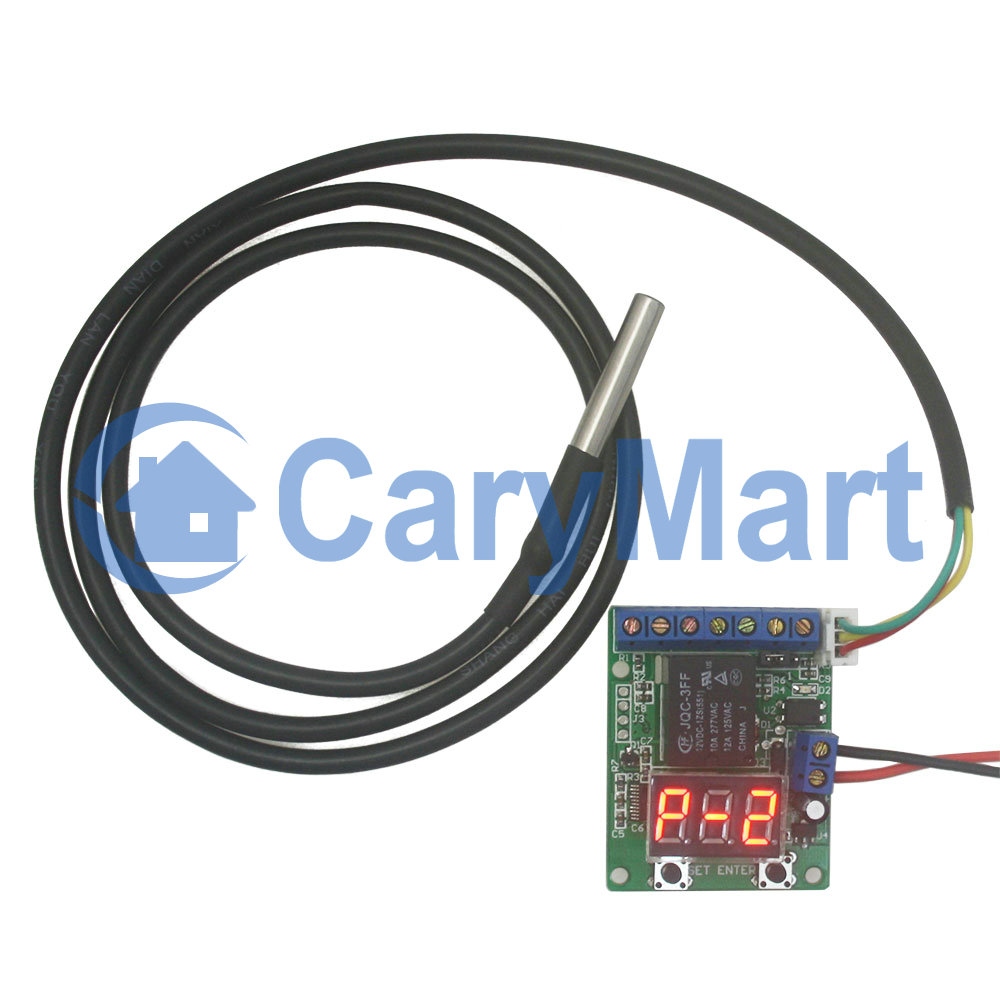

Working modes:
P-1: Time control mode (1-999 S / 1-999 Min)
P-2: Voltage control mode (pre-set upper / lower limit of voltage detection, control relay open / close)
P-3 Mixed mode: Voltage control and Time control mode
P-4: Temperature control mode (pre-set upper / lower limit of temperature, control relay open / close)
P-5 Mixed mode: Temperature control and Time control mode
P-6 Mixed mode: Temperature control and Voltage control mode
P-7 Mixed mode: Temperature control, Voltage control and Time control mode
