Application:
We can connect one or two external limit switches to the linear actuator and
use them to flexibly adjust the travel range of the linear actuator. For
example, the normal stroke of this linear actuator is 500MM, we can connect
one or two limit switches according to actual needs, so that we can set
different motion ranges within the 500MM row and range, such as 0-300MM or
100-400MM and so on in different ranges.
Parameters:

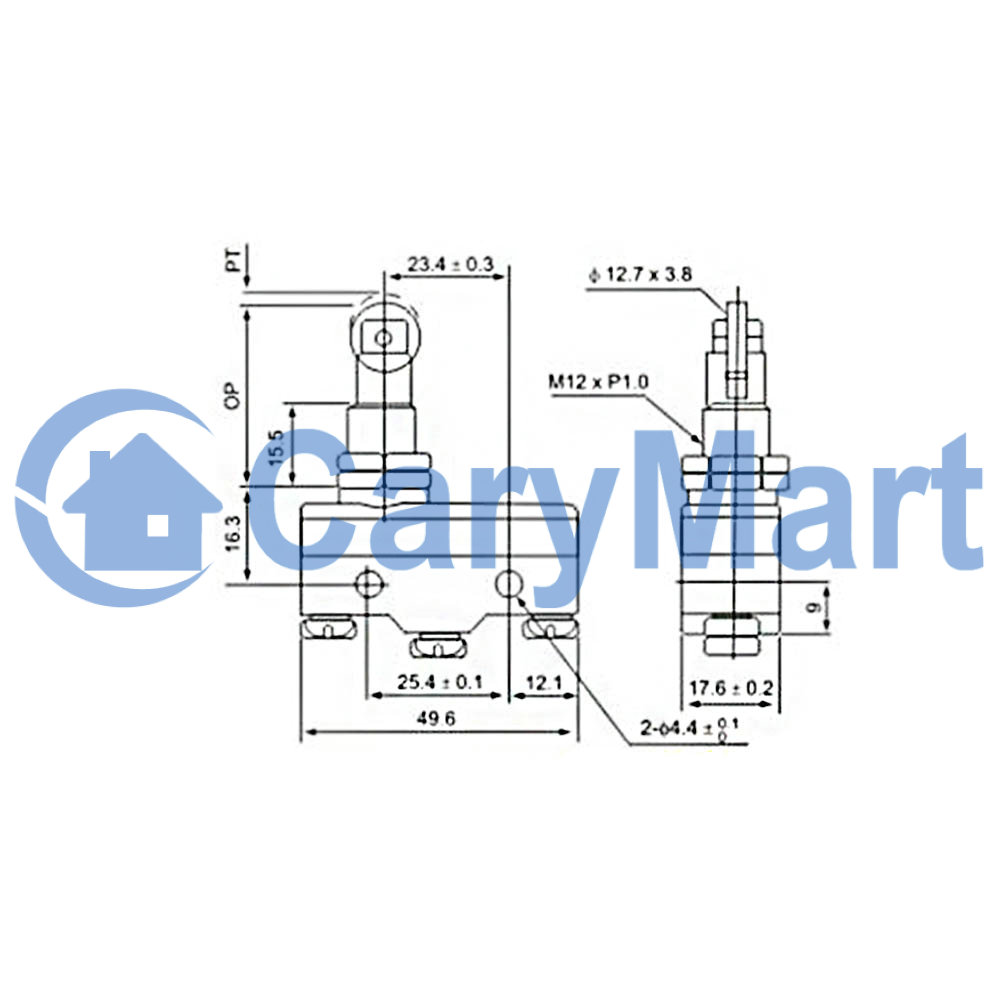

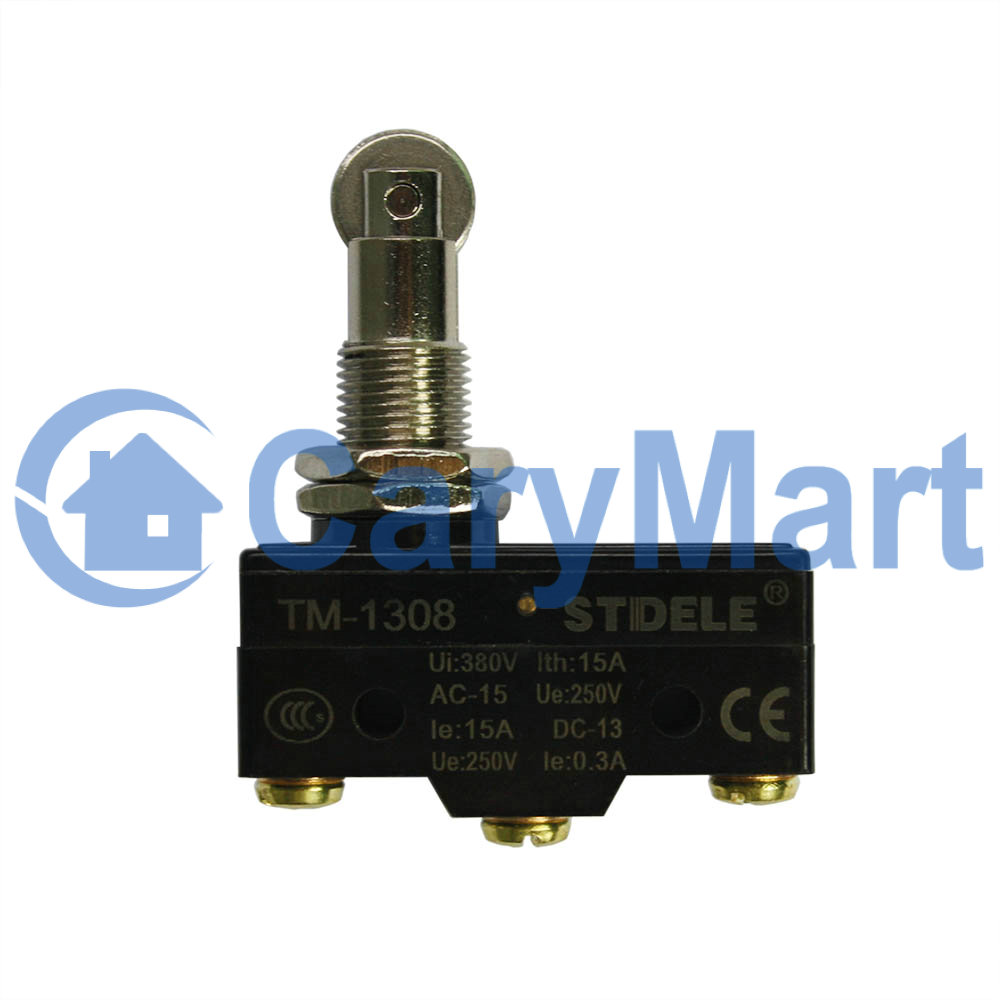

Model: 0010010
Rated Current: 15A

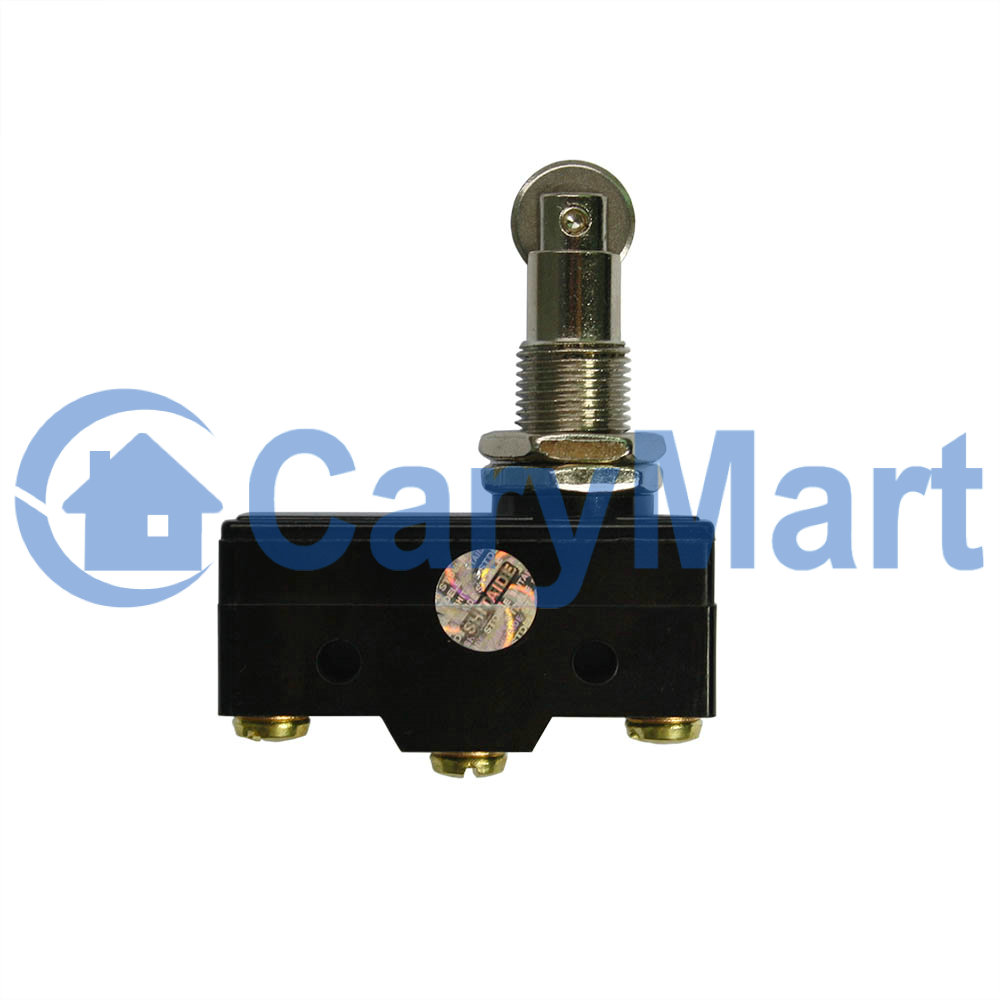

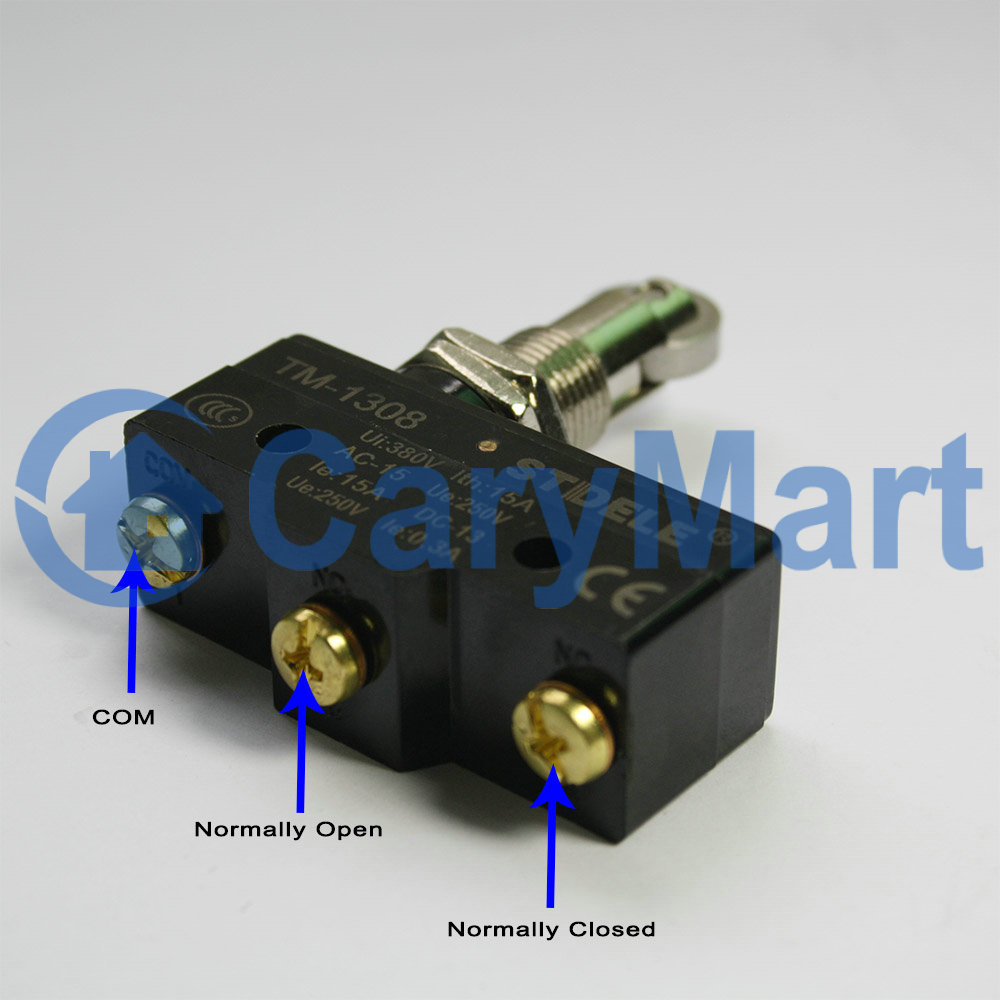

Three terminals: COM, Normally Open and Normally Closed.
Can be used with manual switch or remote switch to control linear actuator.
Wiring for manual switch:
If use a manual switch to control the linear actuator, do as following:
1. Connect two wires of DC power supply to two power terminals of the manual
switch, and you can exchange these two wires to change the moving direction
of linear actuator.

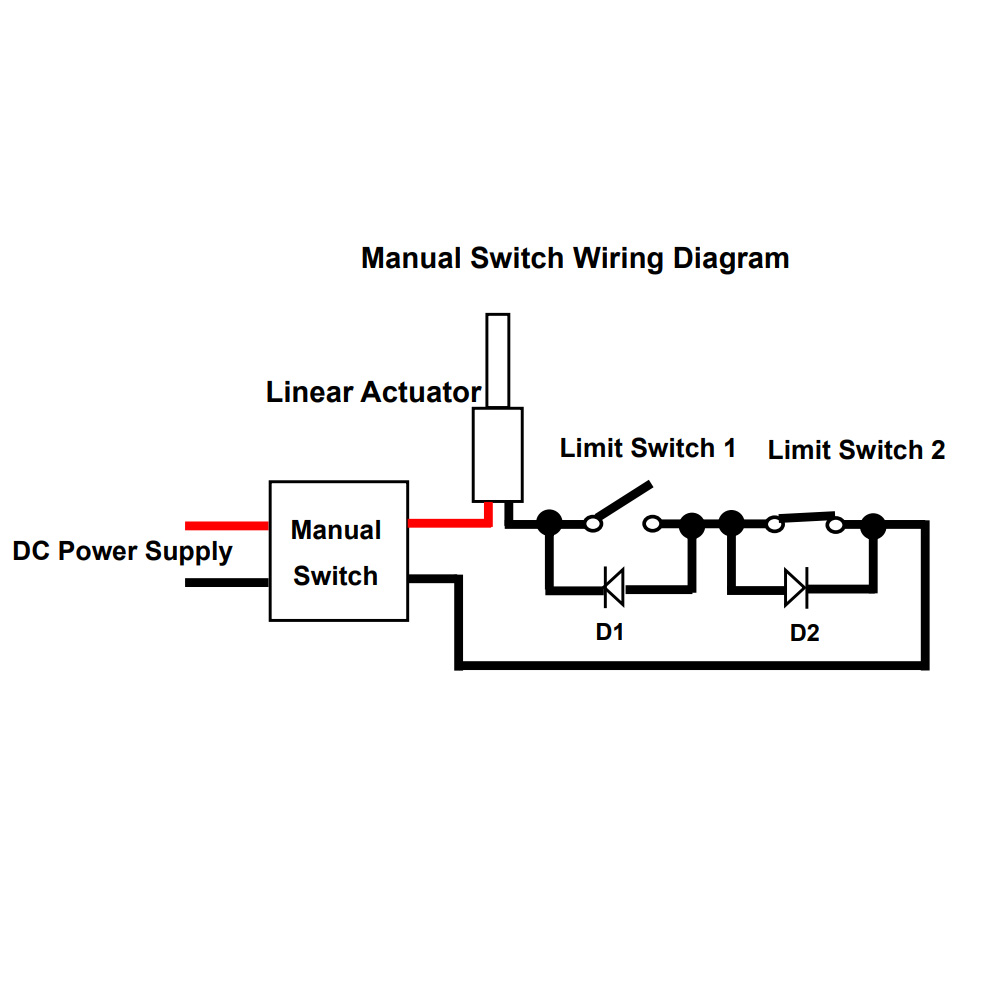

2. Connect the linear actuator, two limit switches and the two diodes to the
manual switch, please follow the connection diagram below for specific
wiring.
Operation by manual switch:
1. Press and hold the button <UP> on the manual switch: linear actuator
extends outward, when it moves to the position of a limit switch, the linear
actuator will automatically stop.
2. Press and hold the button <DOWN> on the manual switch: linear actuator
inward retracts, when it moves to the position of another limit switch, the
linear actuator will automatically stop.
Wiring for remote switch:
If use a remote switch to control the linear actuator, do as following:
1. Connect two wires of DC power supply to two terminals of the remote
switch input.
2. Connect two wires of linear actuator to two terminals <Motor> of the
controller, and you can exchange these two wires to change the moving
direction of linear actuator.

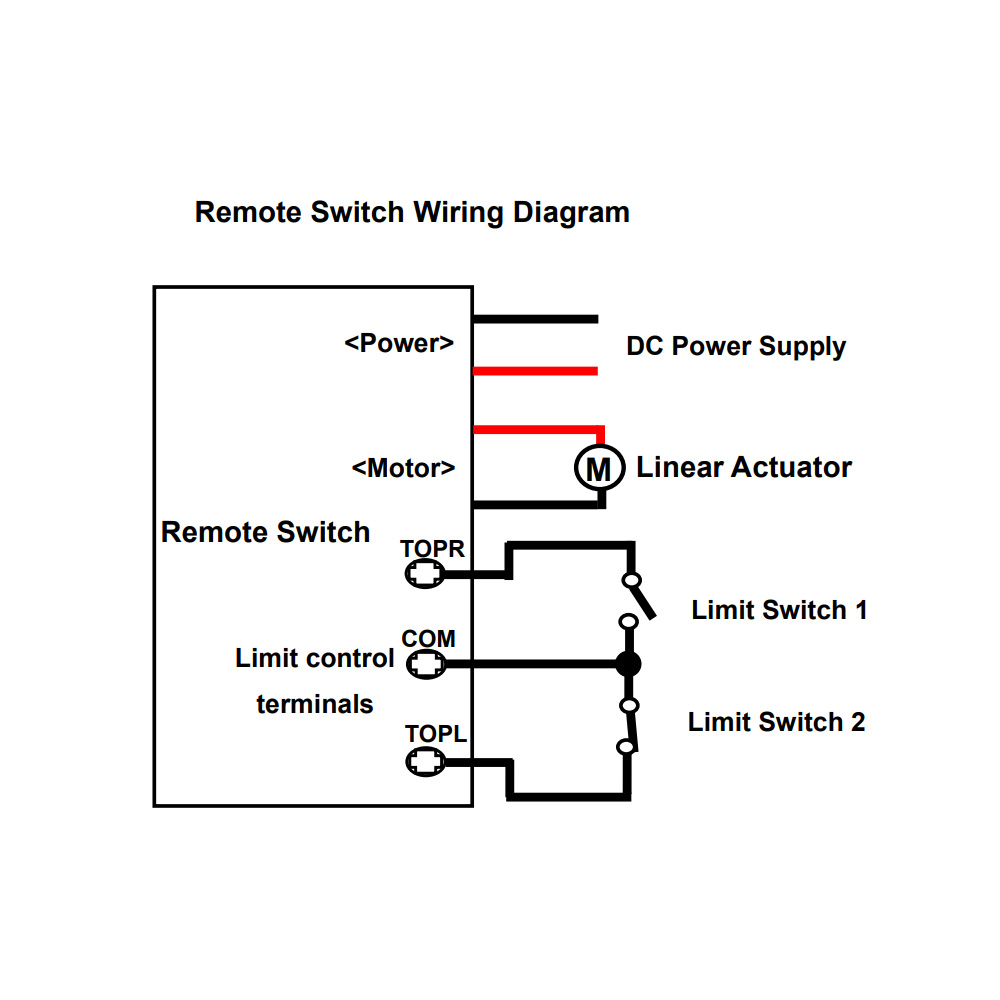

3. Connect two limit switches to the limit control terminals of the remote
switch, please follow the connection diagram below for specific wiring.
Operation by remote switch:
1. Press and hold the button ▲ on the remote: linear actuator extends
outward, when it moves to the position of a limit switch, the linear
actuator will automatically stop.
2. Press and hold the button ▼ on the remote: linear actuator inward
retracts, when it moves to the position of another limit switch, the linear
actuator will automatically stop.
