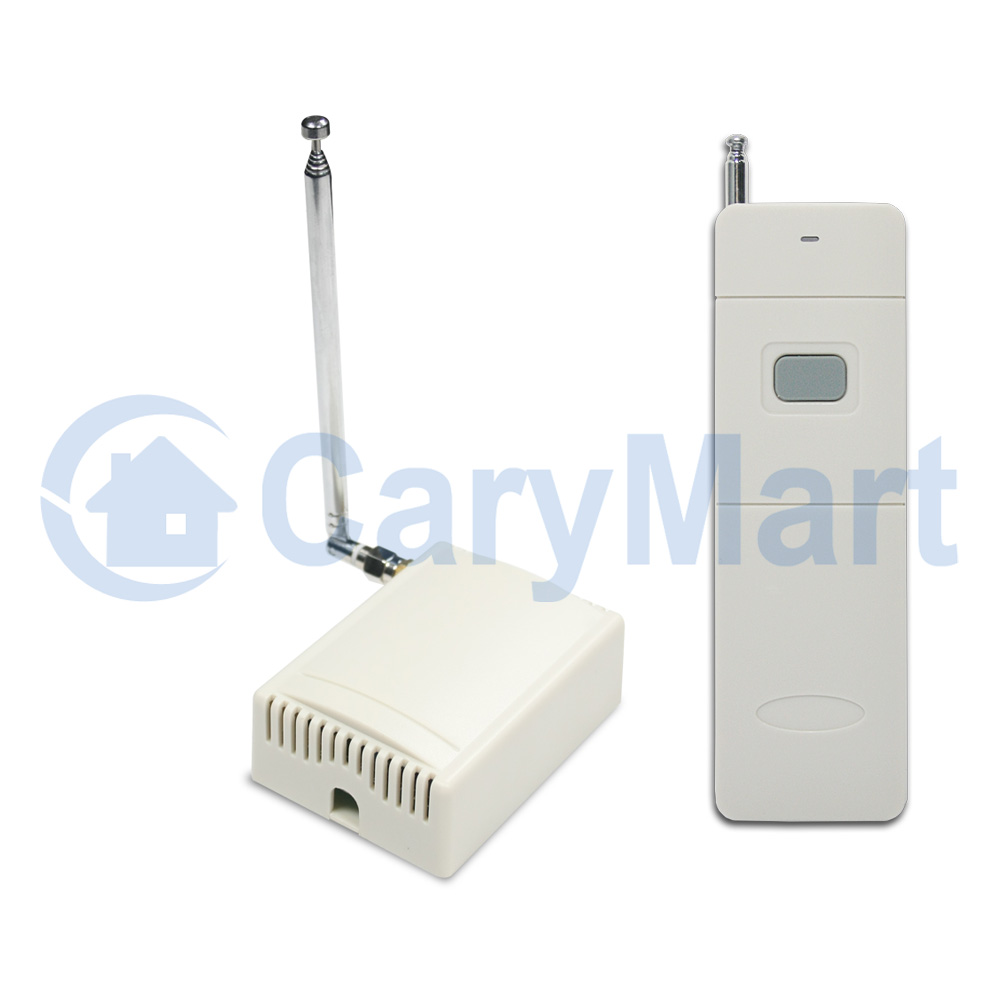

This 1 channel dc rf remote control system operates in 433MHz frequency, voltage of AC110~240V or DC0~28V. It is great for hard to reach lights or other DC/AC electrical devices, remote distance is up to 2000m. Applications include light remote control, electric gate remote control, electric window / blind remote control, etc.
Package Include:

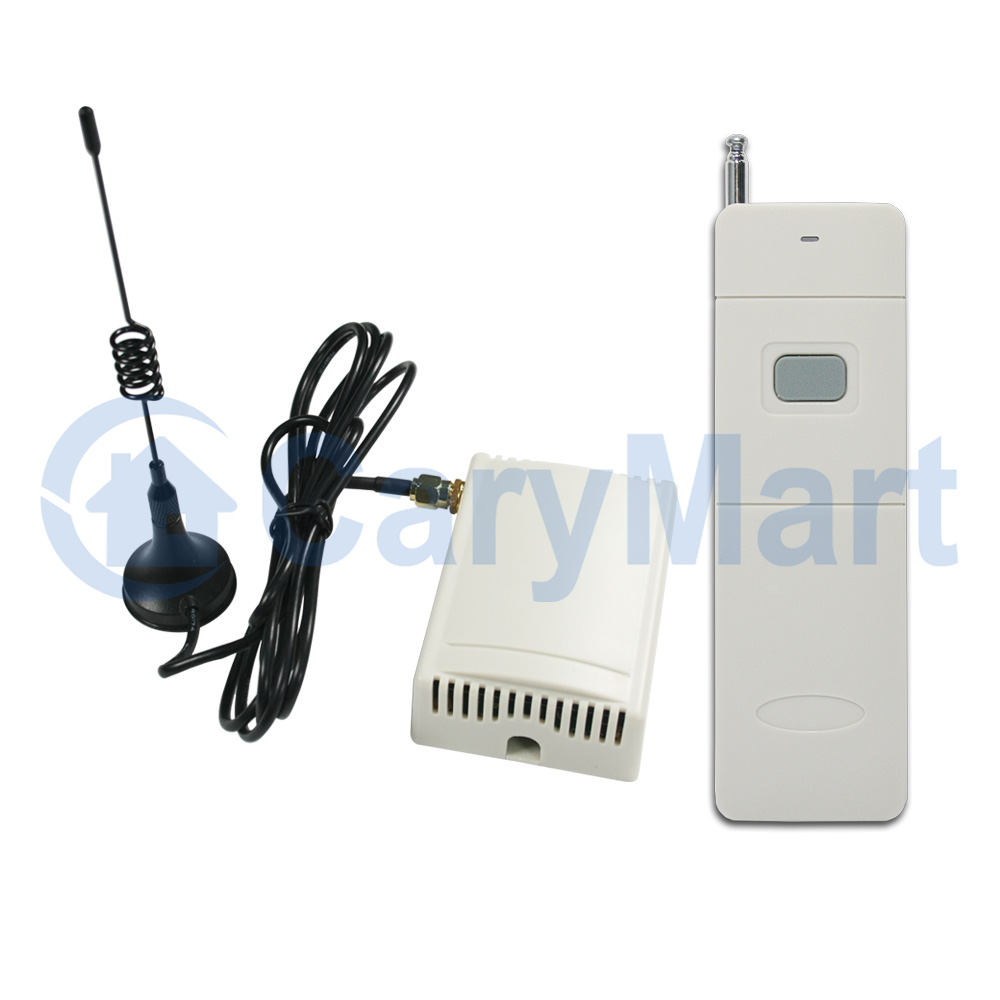

1 x Receiver: S1M-DC-ANT3
1 x Transmitter: CB-1
1 x User manual
Feature:
Application: It can be used in industry automation, agriculture automation
and home automation, such as factory, house, farm, pasture, vehicle, ship,
offshore operation, aerial vehicle, field call, etc. It can remote control
equipments on land, water and air, such as remote control lights, sirens,
locks, motors, fans, winches, blinds, linear actuators, doors, windows,
electric solenoid valves, security alarm, business signs and various
devices.
Wireless control, easy to install.
Power Supply: Four working voltage versions, DC 6V, 9V, 12V, 24V.
Relay Output: This receiver is dry relay output, it can be used to operate
both DC and AC equipments. The output terminals are NO / NC (normally open /
normally closed), which serves as a switch. That means you should also
connect a separate power supply to equipments.
Each channel can work at maximum current 10A, such as 120W/12V, 60W/6V,
90W/9V, 240W/24V, 1100W/110V, 2200W/220V.

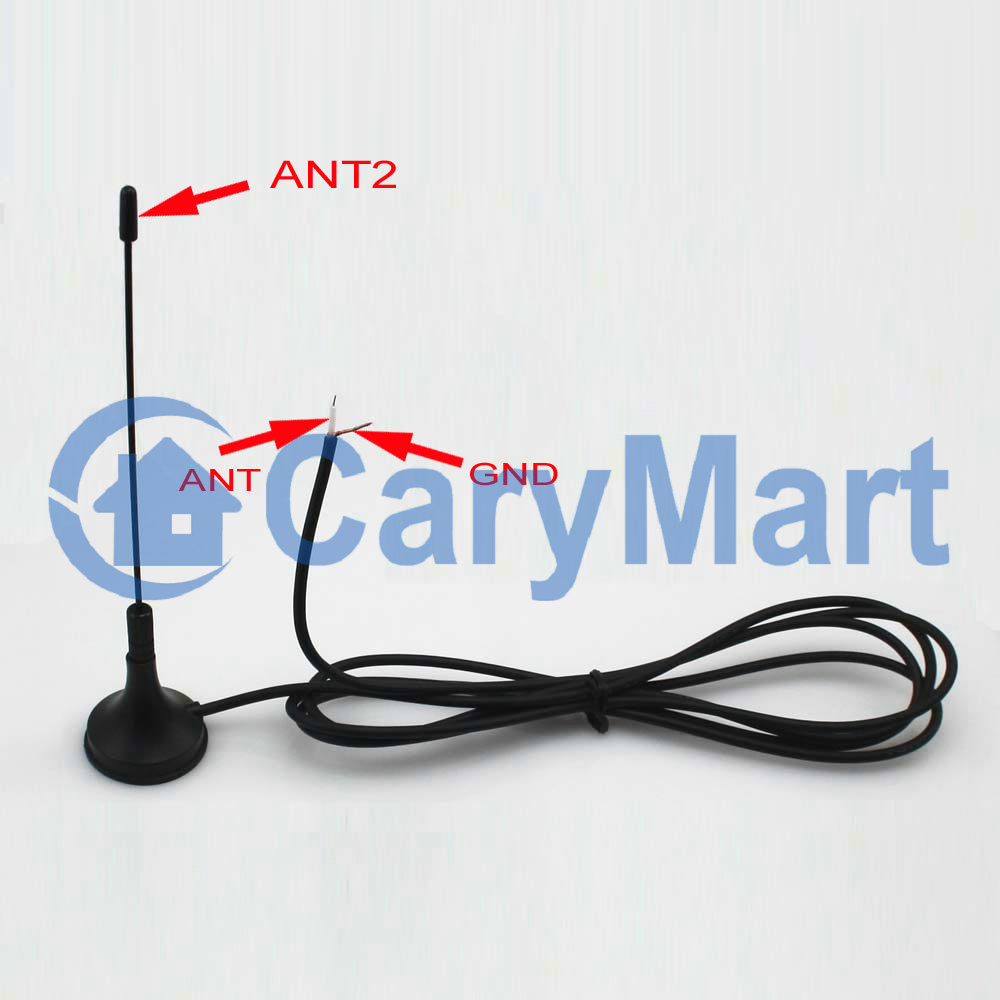

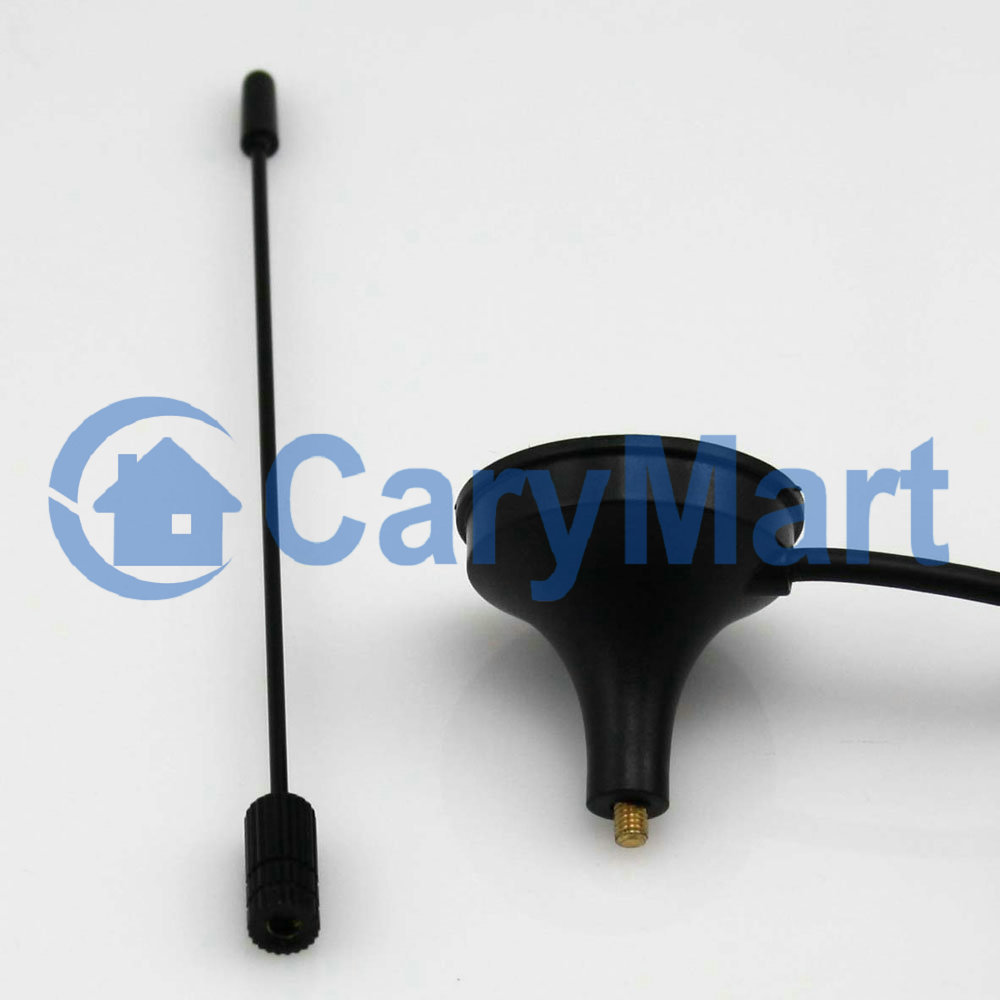

With external telescopic antenna, the receiver have a farther working range.
You can control the equipments by using the receiver with transmitter
(remote control) from any place within a reliable distance.
Wireless RF signal can pass through walls, floors, doors or windows.
With reverse power protection and over current protection.
Reliable control: The code has thousands of different combinations, and the
receiver only works with the transmitter which use same code.
One/several transmitters can control one/several receivers simultaneously.
You can use two or more units in the same place.
Receiver Parameters:
Model No.: S1M-DC06 / S1M-DC09 / S1M-DC12 / S1M-DC24
Power Supply (Operating Voltage): DC6V (S1M-DC06), DC12V±1V (S1M-DC12),
DC9V±1V (S1M-DC09), DC24V±2V (S1M-DC24)
Output: Relay output (Normally open and normally closed)
Working Voltage Range of Relay: AC110~240V or DC0~28V
Wire range for the terminals: 22-14 AWG
Working Frequency: 433.92MHz
Channel: 1 CH
Control Modes: Momentary (Press and hold-> On; Release-> Off)
Static Current: ≤6mA
Maximum Working Current: 10A / each channel
Operating Temperature: -20 ° C to +70 ° C
PCB size: 67mm x 50mm x 18mm
Case size: 75mm x 54mm x 27mm
Transmitter Parameters:
Model No.: 0021023 (CB-1)
Shell Color: Grey
Channel/Button: 1
Button Symbol: no symbol
Operating Voltage:

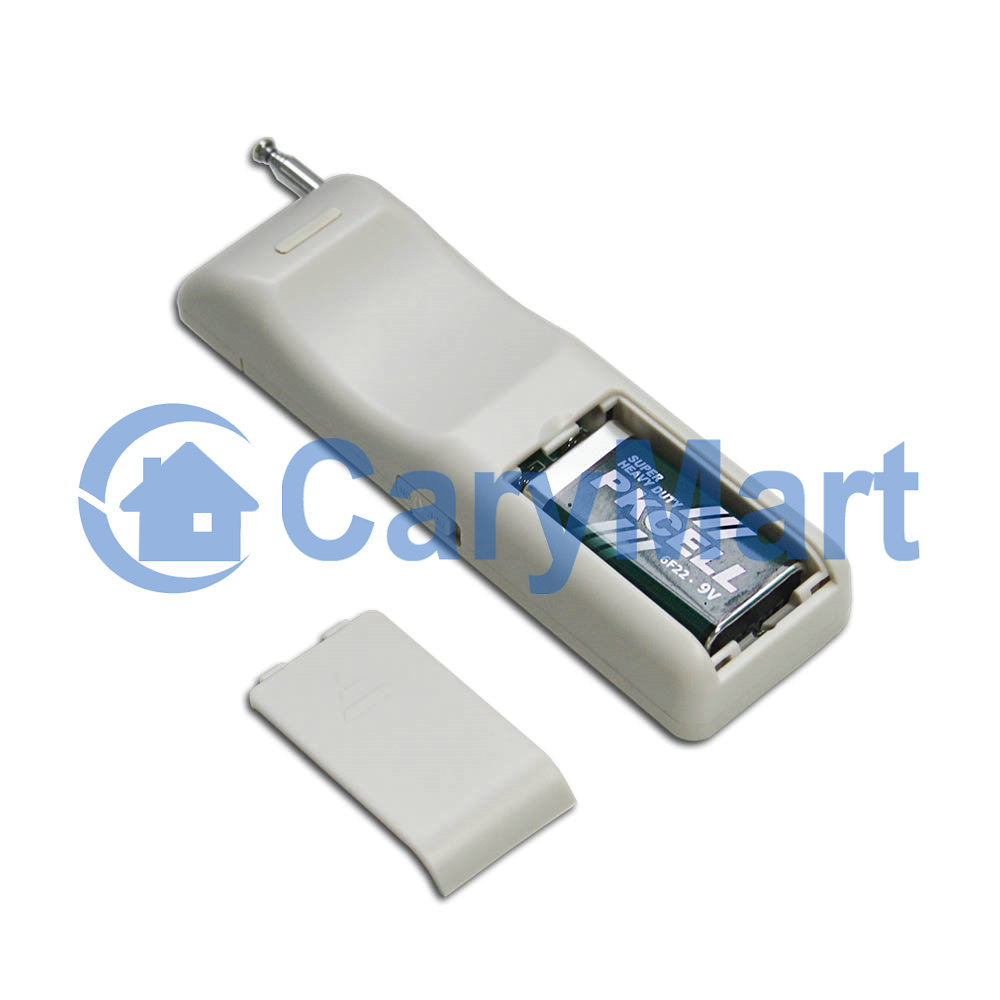

9V (1 x 6F22 -9V battery, can be used for 12 months)
Operating Current: 30mA
Operating Frequency: 433.92Mhz
Encoding Chip: PT2262 / PT2264 / SC2262
Encoding Type: Fixed code by soldering, up to 6561 codes
Transmitting Distance: 1000m / 3000ft (theoretically)
Modulation Mode: ASK
Unit Size: 135mm x 42mm x 25mm
Matching Transmitters:
The receiver can work with different transmitters, such as model C-1 (100M),
CWB-1 (50M, waterproof), or CB-1 (1000M) etc.
Working Range:
With a transmitter (such as CB-1) to form a complete set, the maximum
working distance can reach 2000M in an open ground.
The maximum working distance is a theoretical data, it shall be operated in
an open ground, no barriers, no any interference. But in the practice, it
will be hindered by trees, walls or other constructions, and will be
interfered by other wireless signals. Therefore, the actual distance may not
reach this maximum working distance.
If you want to have a further working range, you can use a powerful
transmitter, such as CB-1 transmitter.
Usage (with the
transmitter CB-1):
The receiver can be used to control both DC 0~28V and AC 110~240V
equipments.

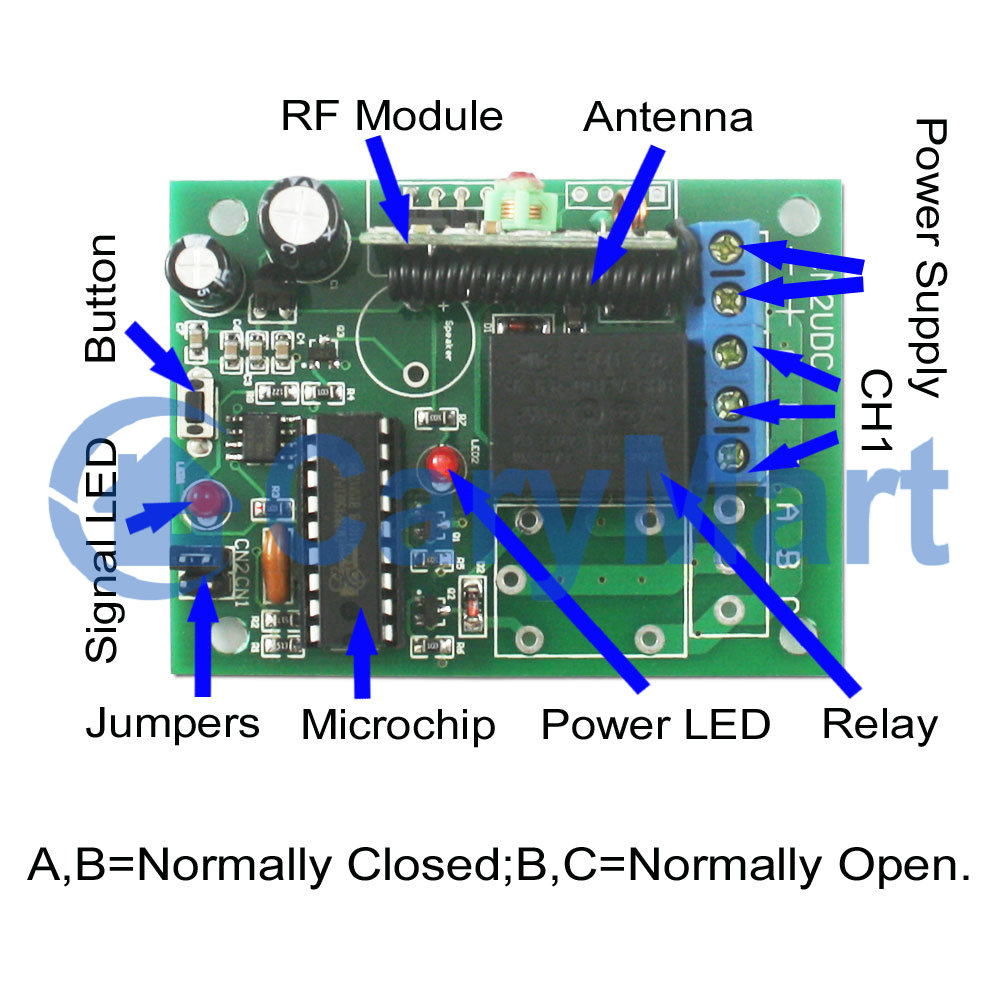

Notice: The receiver is relay output, not DC/AC power output. Initial
state of relay output terminals: Terminals B and C are Normally Open;
Terminals A and B are Normally Closed.

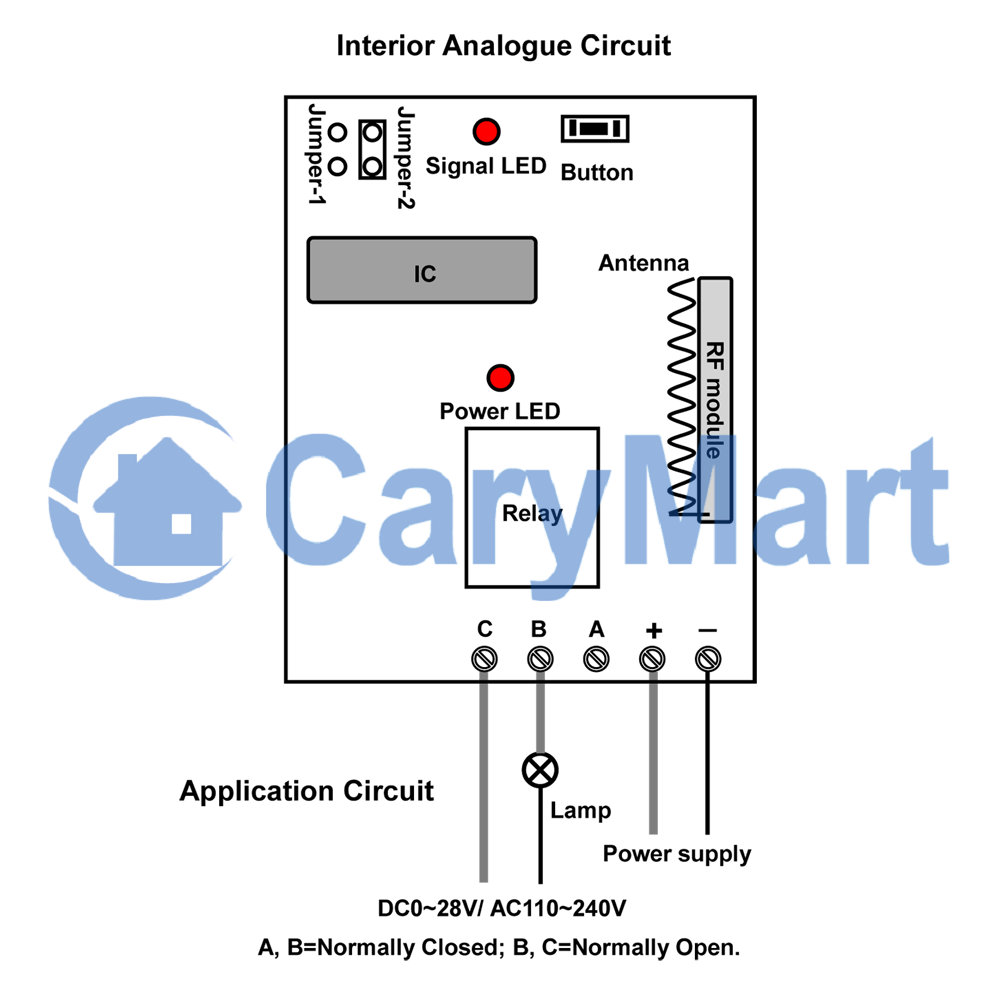

Wiring:
If you want to control a DC 12V lamp, do as following:
1) Connect the positive pole of DC power supply to terminal “L / +” of
INPUT, and connect the negative pole of DC power supply to terminal “N /
-” of INPUT.
2) Connect terminal C to the positive pole of DC power supply, connect
terminal B to the positive pole of DC lamp, and connect the negative
pole of DC lamp to the negative pole of DC power supply.
If you want to control an AC 220V lamp, do as following:
1) Connect the positive pole of DC power supply to terminal “L / +” of
INPUT, and connect the negative pole of DC power supply to terminal “N /
-” of INPUT.
2) Connect terminal C to the live wire of AC power supply, connect
terminal B to one side of AC lamp, and connect another side of AC lamp
to the neutral wire of AC power supply.
Operation:
Press and hold the button of the transmitter: The relay is activated
(connect the terminals B and C, disconnect the terminals A and B), and
the lamp is turned on.
Release the button: The relay is deactivated (disconnect the terminals B
and C, connect the terminals A and B, and the lamp is turned off.
