Package Include:
1 x Receiver: S1U-DC-ANT3
1 x Transmitter: CB-1/CB-2
1 x User manual
Application:
This receiver is an electric device with relay output, it and the
transmitter form a wireless remote-control system. This system may be used
in all types of industry automation, agriculture, business, home, factory,
house, farm, garage, vehicle, ship, aerial vehicle, etc. It can remote
control different DC or AC equipment on land, water, and air, such as
lights, doors, windows, lamps, sockets, locks, sirens, outlets, heaters,
motors, fans, winches, curtains, blinds, linear actuators, electric solenoid
valves, and security alarm systems. The applications are endless.
Feature:
Wireless control, easy to install.
Waterproof: The receiver has waterproof case and waterproof connector, it
can be installed outdoors.
Four operating voltage versions: DC 6V, 9V, 12V, 24V optional.
Relay Output: This receiver is dry relay output; it can be used to operate
both DC and AC equipment. The output terminals are NO / NC (normally open /
normally closed), serving as a switch. That means you should also connect a
separate power supply to equipment.
Each channel can work at maximum current 10A, such as 120W/12V, 60W/6V,
90W/9V, 240W/24V, 1100W/110V, 2200W/220V.

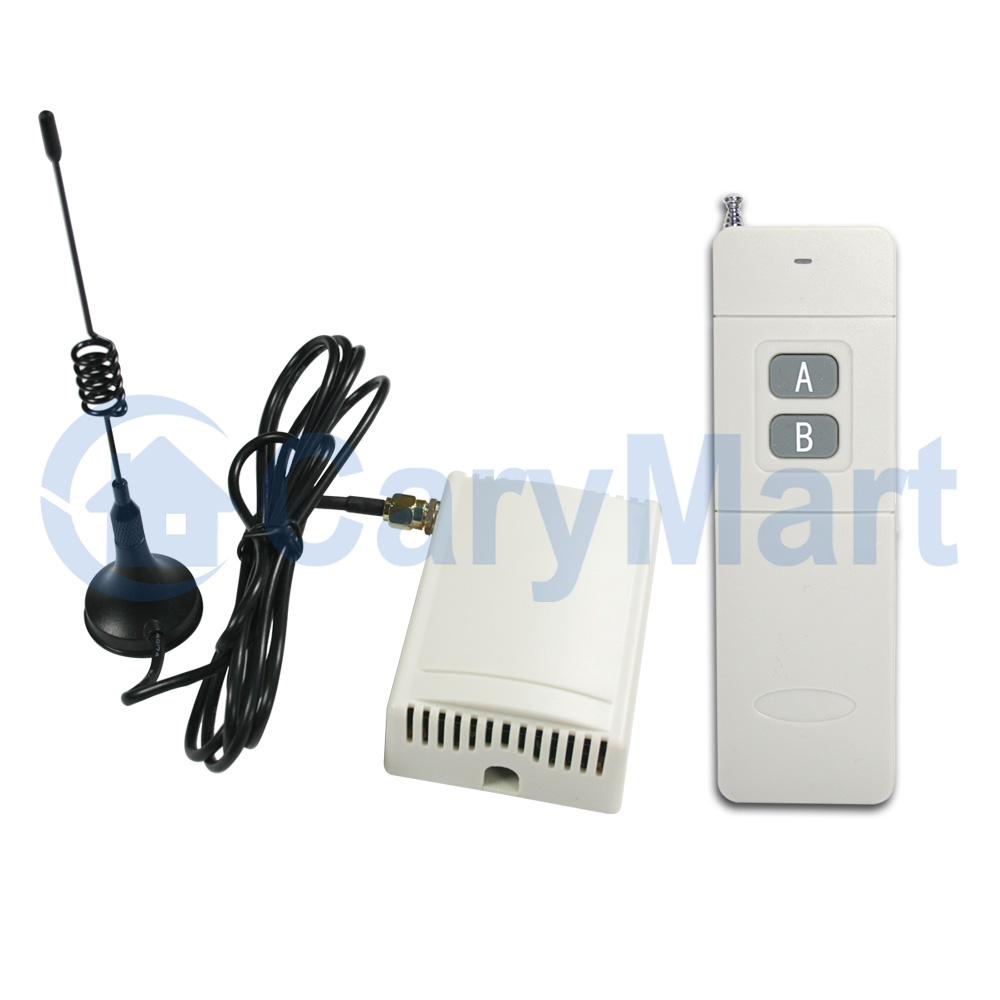

With external antenna, the receiver has a farther working range.
The transmitter / remote can control the receiver from any place within a
reliable working distance.
Wireless RF signal from the transmitter can pass through walls, floors,
doors, or windows, but it will lose some operating range.
The receiver has reverse voltage protection and overcurrent protection.
The receiver can only be triggered by paired transmitters.
One or more transmitters / remotes can control one or several receivers
simultaneously.
Two or more receivers may be used in the same area.

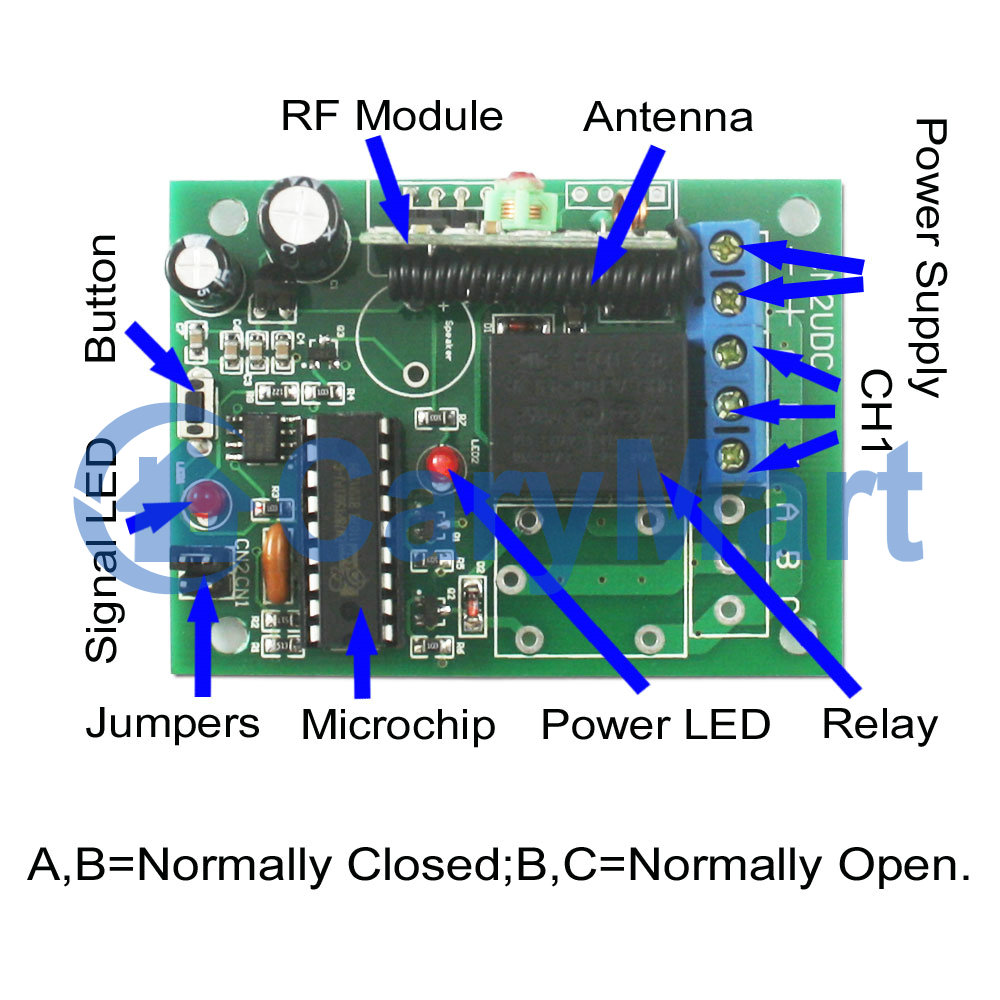

Receiver Parameters:
Model: S1U-DC-ANT3
Operating Voltage: 6VDC (model S1U-DC06), or 9±1VDC (model S1U-DC09), or
12±1VDC (model S1U-DC12), or 24±2VDC (model S1U-DC24), the operating voltage
must be specified when ordering.
Working Frequency: 433.92 MHz
Quiescent Current: ≤6mA
Channel: 1 CH
Output Type: Relay Output (With Normally Open and Normally Closed Terminals)
Maximum Load Voltage of Relay: 240VAC or 28VDC
Maximum Load Current of Relay: 10A / channel
Suitable Wires for Connecting Terminals: 22-12 AWG
3 Selectable Working Modes: Self-locking, Momentary, Interlocking
Operating Temperature: -20 °C ~ +70 °C
PCB size: 67 x 50 x 18 mm
Case size: 75 x 54 x 27 mm

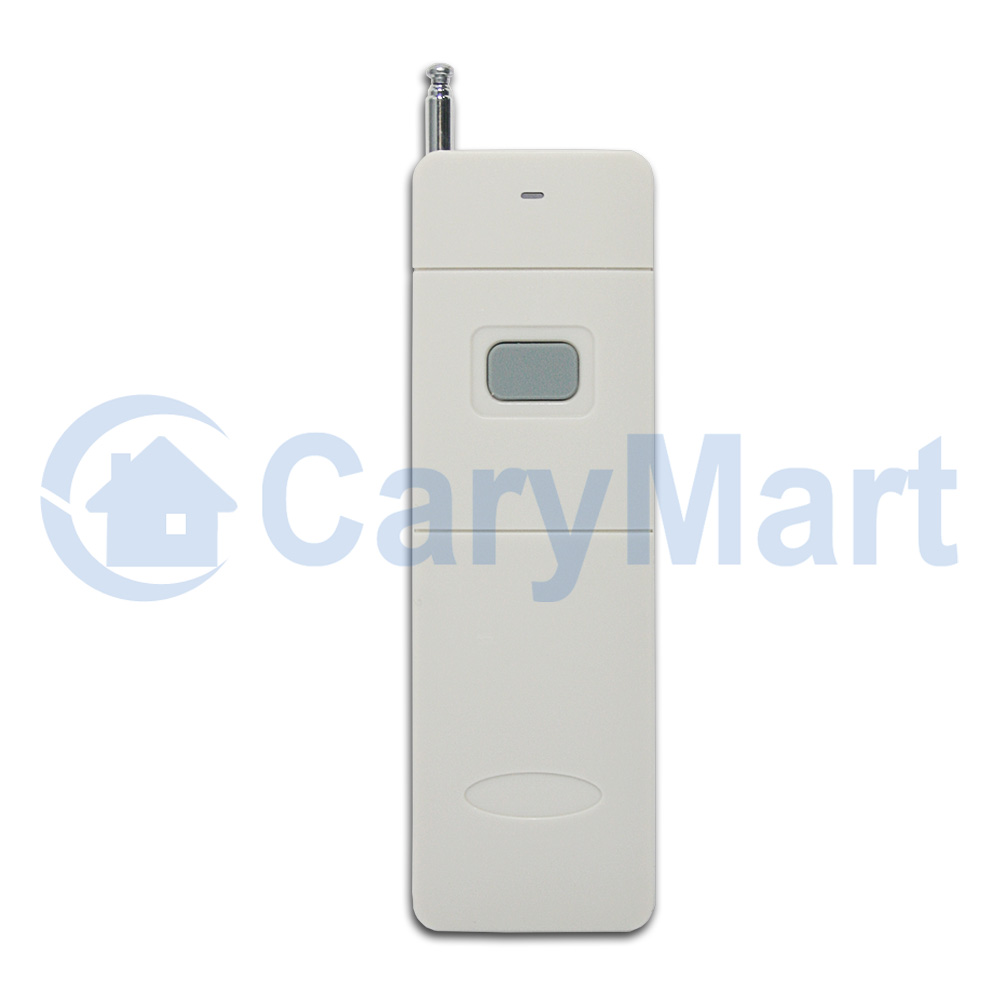

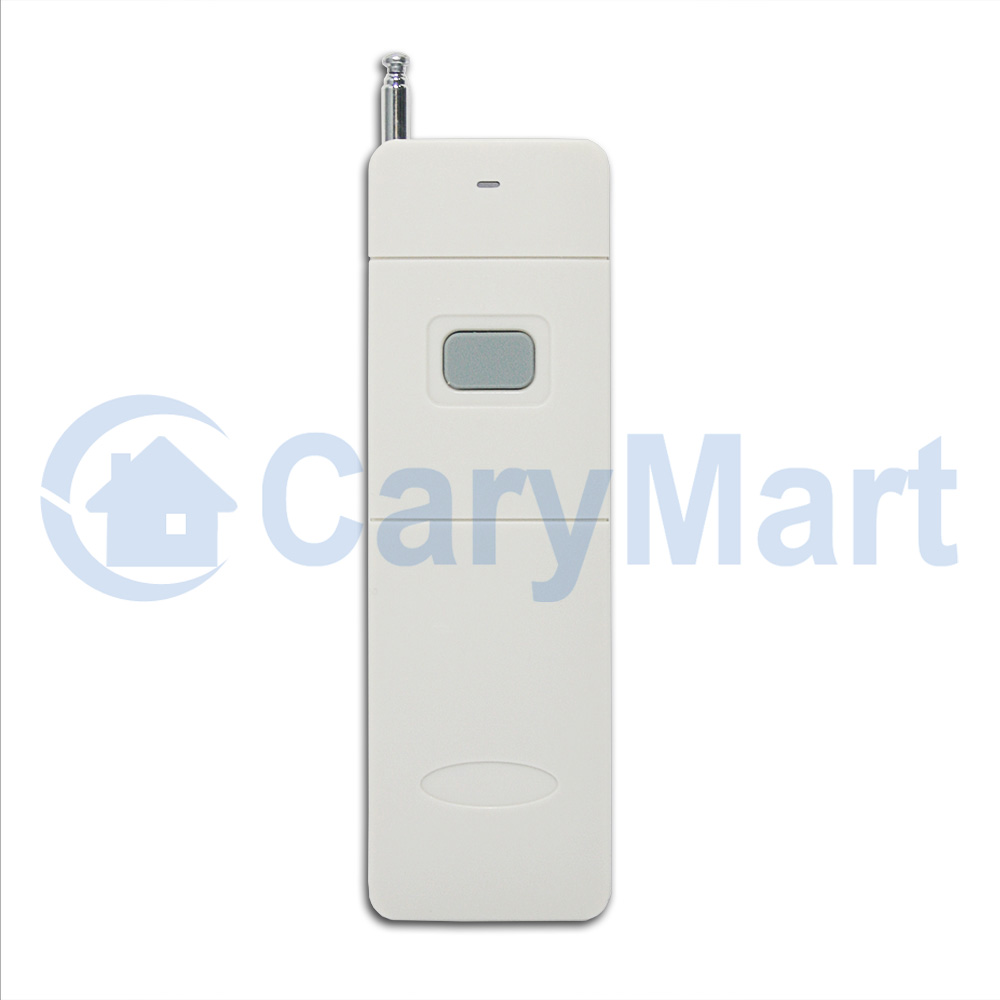

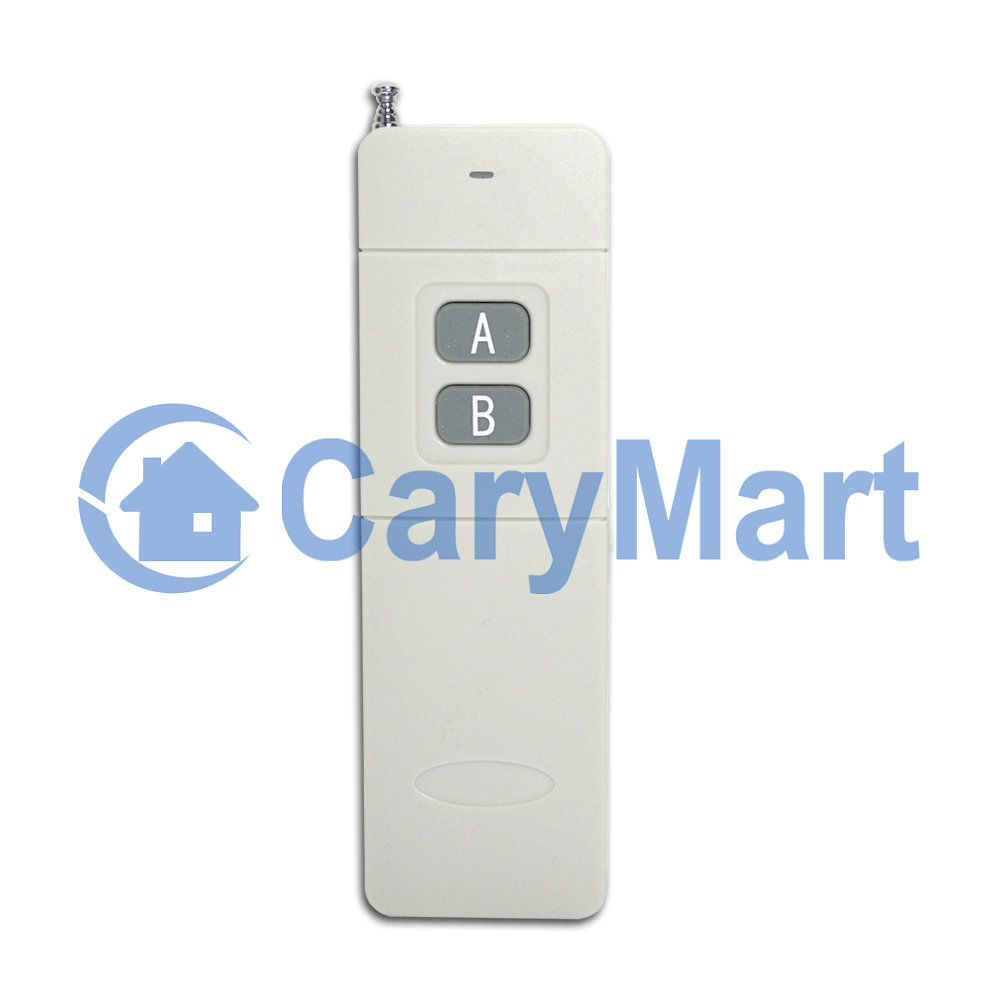

Transmitter Parameters:
Model: 0021023 (CB-1) / 0021024 (CB-2)
Shell Color: Grey
Channel/Button: 1 (CB-1) / 2 (CB-2)
Button Symbol: No symbol (CB-1) / A, B (CB-2)

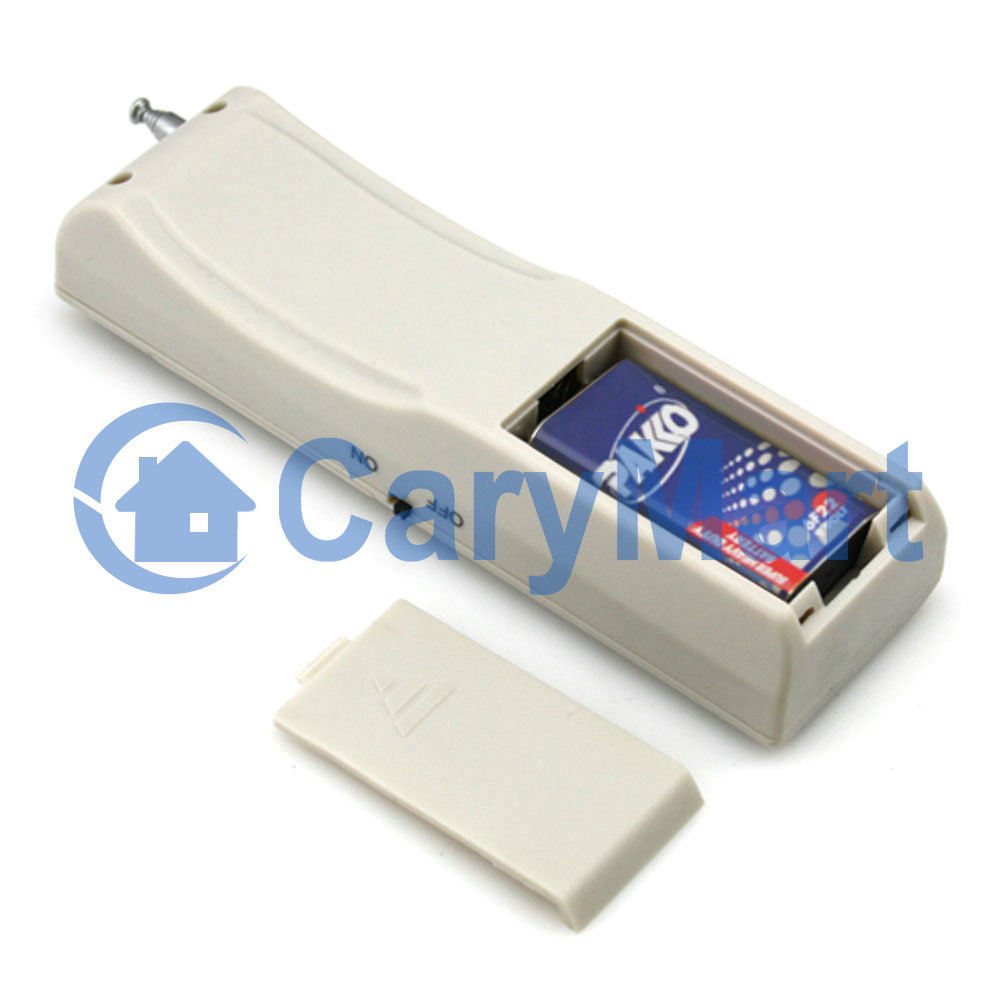

Operating Voltage: 9V (1 x 6F22 -9V battery, can be used for 12 months)
Operating Current: 30mA
Operating Frequency: 433.92Mhz
Encoding Chip: PT2262 / PT2264 / SC2262
Encoding Type: Fixed code by soldering, up to 6561 codes
Transmitting Distance: 1000m / 3000ft (theoretically)
Modulation Mode: ASK
Unit Size: 135 x 42 x 25 mm
Matching Transmitters:
The receiver can work with different transmitters, such as model
C-1
/
C-2
(100M),
CWB-1
/
CWB-2
(50M, waterproof) and
CB-1
/
CB-2
(1000M) etc.
When you set the receiver in Self-locking or Momentary mode, it should work
with single button transmitter, such as model C-1 (100M), CWB-1 (50M,
waterproof), or CB-1 (1000M) etc. When you set the receiver in Interlocking
mode, it should work with two buttons transmitter, such as model C-2 (100M),
CWB-2 (50M, waterproof), or CB-2 (1000M) etc.
Working Range:

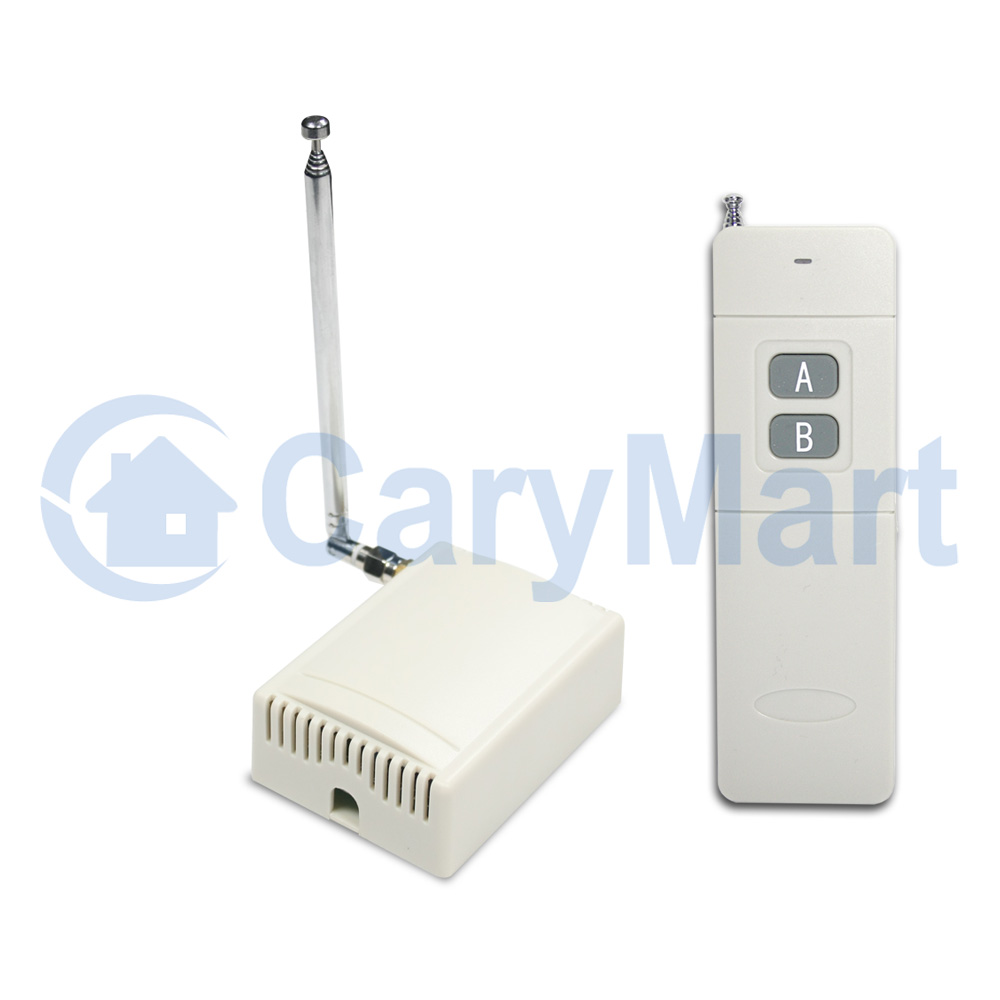

With a transmitter (such as CB-2) to form a complete set, the maximum
working distance can reach 3000 feet or 1000 meters in an open area.
The maximum working distance is a theoretical data, it shall be operated in
an open ground, no barriers, no interference. But in the practice, it will
be hindered by trees, walls, or other construction, and will be interfered
by other wireless signals. Therefore, the actual working distance may not
reach this maximum distance.
Usage:
The receiver can be used to control both 0~28VDC and 110~240VAC devices.
Notice: The receiver is relay output, not DC/AC power output. Initial state
of relay output terminals: Terminals B and C are Normally Open; Terminals A
and B are Normally Closed.

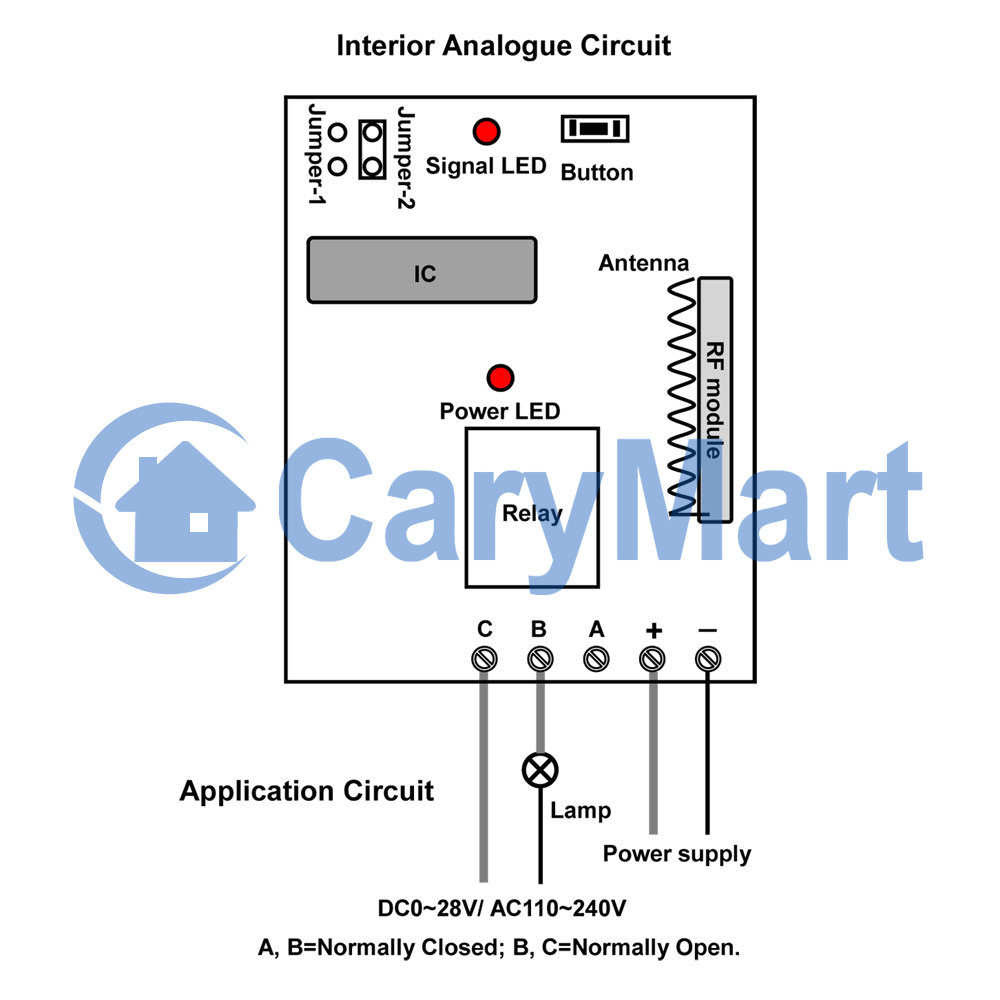

Wiring:
1.If you want to control a DC 12V lamp, do as following:
1) Connect the positive pole of DC power supply to terminal <L/+> of INPUT,
and connect the negative pole of DC power supply to terminal <N/-> of INPUT.
2) Connect terminal C to the positive pole of DC power supply, connect
terminal B to the positive pole of DC lamp, and connect the negative pole of
DC lamp to the negative pole of DC power supply.
2.If you want to control an AC 220V lamp, do as following:
1) Connect the positive pole of DC power supply to terminal <L/+> of INPUT,
and connect the negative pole of DC power supply to terminal <N/-> of INPUT.
2) Connect terminal C to the live wire of AC power supply, connect terminal
B to one side of AC lamp, and connect another side of AC lamp to the neutral
wire of AC power supply.
Setting different control modes:
The receiver will be set in Self-locking mode before leaving the factory, if
you want to use another mode, please follow the following steps.
1) Setting Self-locking mode: Only connect Jumper-2.
Mode Self-locking (working with transmitter CB-1): Press -> On; Press again
-> Off.
Press the button of the transmitter: The relay is activated (connect the
terminals B and C, disconnect the terminals A and B), and the lamp is turned
on.
Press the button again: The relay is deactivated (disconnect the terminals B
and C, connect the terminals A and B, and the lamp is turned off.
2) Setting Momentary mode: Only connect Jumper-1.
Mode Momentary (working with transmitter CB-1): Press and hold -> On; Release
-> Off.
Press and hold the button of the transmitter: The relay is activated
(connect the terminals B and C, disconnect the terminals A and B), and the
lamp is turned on.
Release the button: The relay is deactivated (disconnect the terminals B and
C, connect the terminals A and B, and the lamp is turned off.
3) Setting Interlocking mode: Disconnect Jumper-1 and Jumper-2.
Mode Interlocking (working with transmitter CB-2): Press -> On; Press another
button -> Off.
Press the button 1 of the transmitter: The relay is activated (connect the
terminals B and C, disconnect the terminals A and B), and the lamp is turned
on.
Press the button 2 of the transmitter: The relay is deactivated (disconnect
the terminals B and C, connect the terminals A and B, and the lamp is turned
off.
How to pair the transmitter to the receiver:
Notice: We have paired the transmitter to the receiver before leaving the
factory.
1) Press the learning button of receiver for 1- 2 seconds; signal LED on the
receiver is on. The receiver enters into status of LEARNING.
2) Press any one button on transmitter. If signal LED flashes quickly 15
times and turns off, it means learning is successful.
3) When receiver is in the status of LEARNING, press again the button of
receiver, signal LED turns off, learning process will be discontinued.
4) The receiver can learn several transmitters with different codes.
How to delete all transmitters codes stored in the receiver:
Notice: We have paired the transmitter to the receiver, if you don’t want
the receiver to work with the transmitter, you can delete all transmitters
codes stored in the receiver.
Operation: Press and hold the button of receiver until signal LED flashes
slowly; release the button, LED keeps slow flash. That means all stored
codes have been deleted successfully.
