Direct power output; control Lights, Motors, Fans, electrically operated Doors/Locks/Windows/Blinds/Cars or Other Appliances.
You can turn on/off the receiver with transmitter (remote control) from any place within a reliable distance; the wireless RF signal can pass through walls, floors and doors.
With characteristics of reverse power protection and over current protection
Audible / visual indication
Use an 8-bit microcontroller with low-power and high-speed CMOS technology.
Reliable control: The transmitter (Encoding) and the receiver (Decoding) use an 8-bit code.
One/ several transmitters can control one/ several receivers simultaneously.
If you use two or more receivers in the same place, you can set them with different codes.
Transmitting Frequency: 433.92MHz

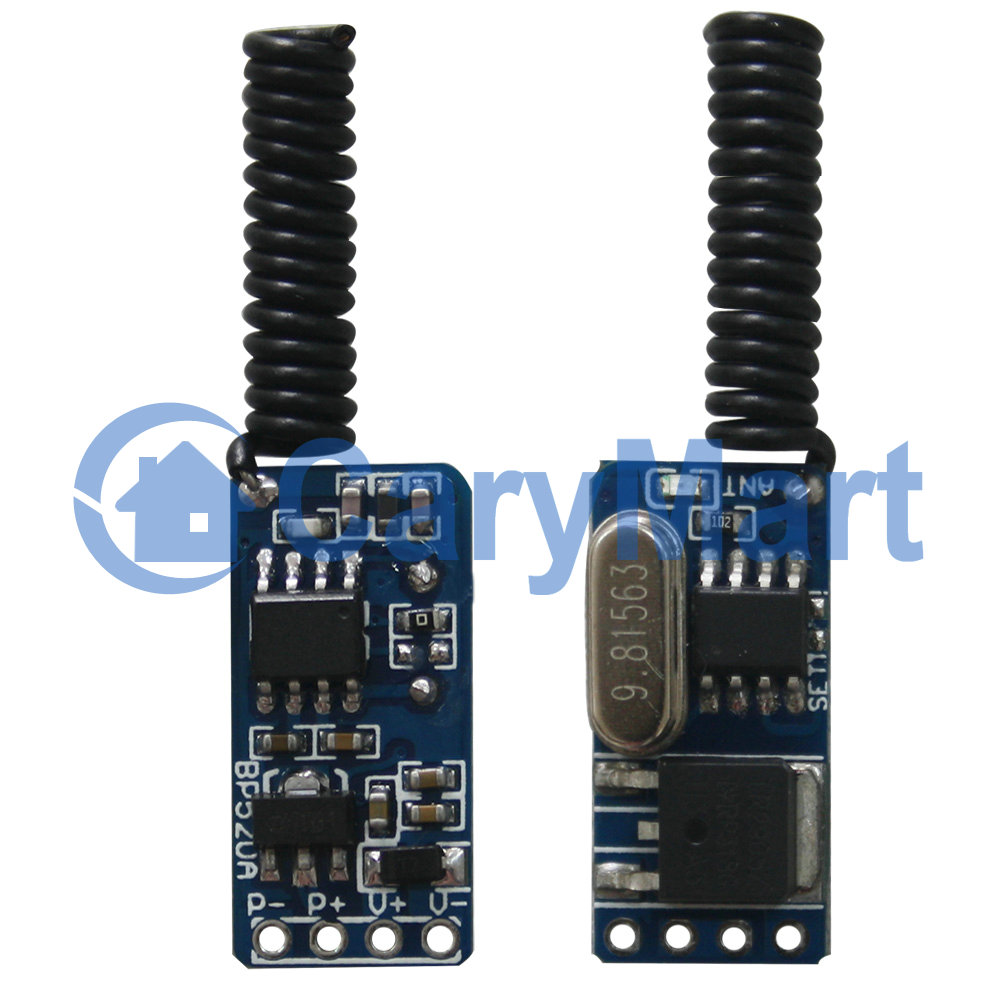

Receiver:
Model No.: S1X1-DC
Channel: 1 CH
Control Modes: Self-locking, Momentary, Interlocking
Coding Type: Fixed code

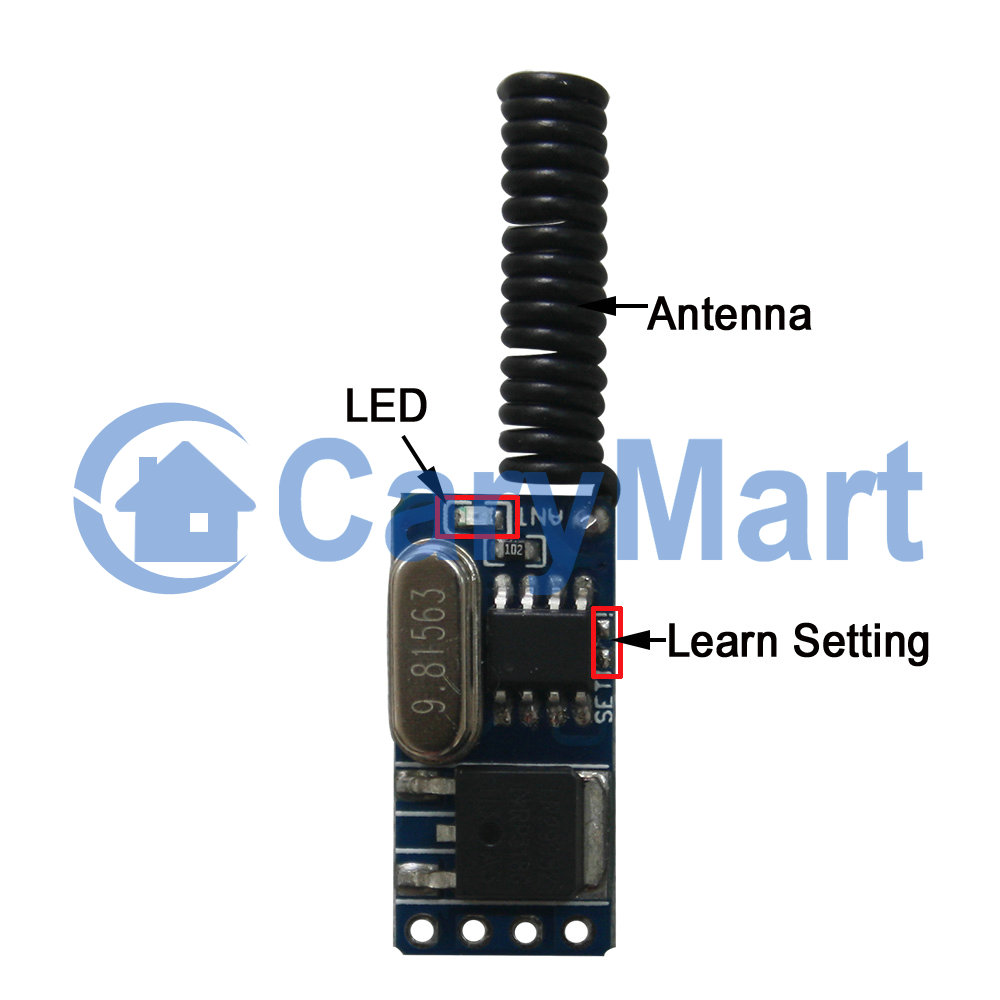

Coding Setting: By learning

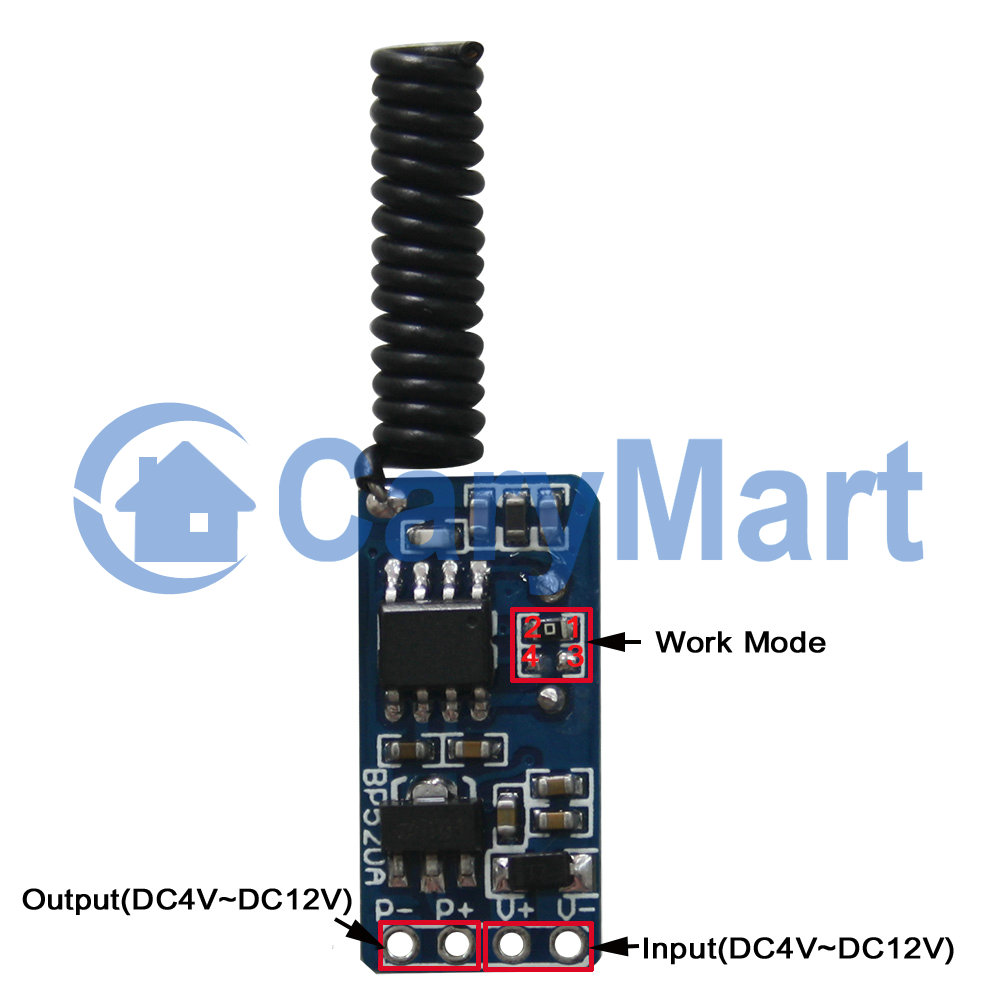

Power Supply (Operating Voltage): DC 4~12V
Output: DC 4~12V
PCB Size: 22mm x 11mm x 5mm
Maximum Power: 10W
Static Current: ≤6mA
Maximum Working Current: 1A

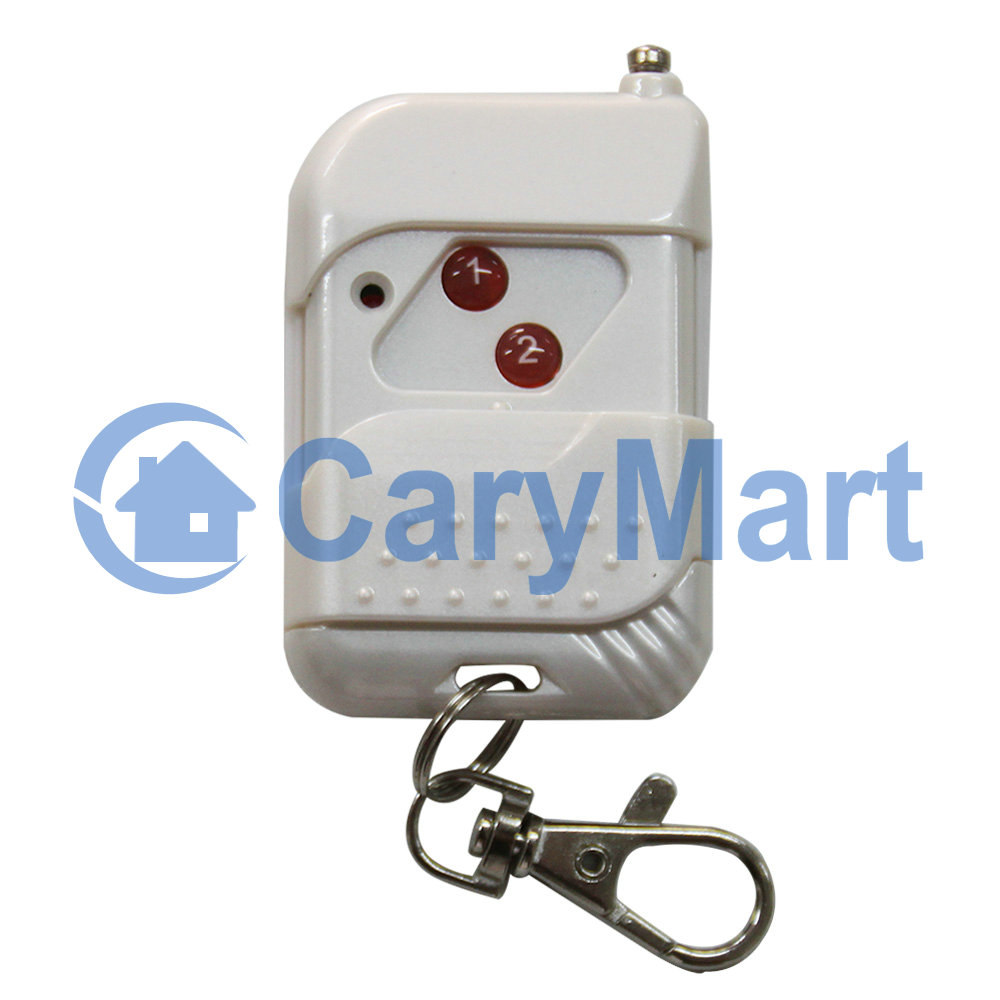

Transmitter:
Model No.: C-2
Channel: 2 CH
Remote Control Distance: 50m / 150ft (theoretically)
Encode: Fixed code by Soldering
Unit size: 58mm x 39mm x 16mm
Power Supply: 1 x 23A -12V battery (included, can be used for 12 months)

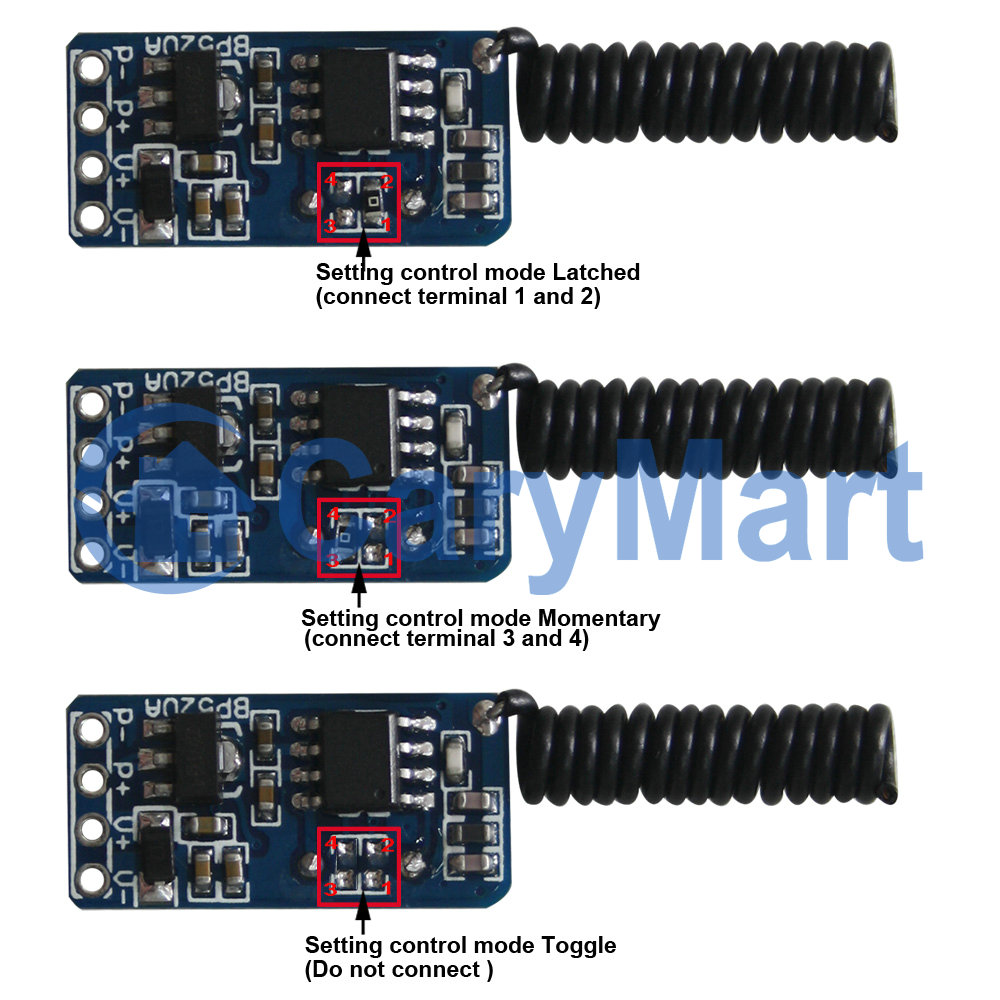

Usage: Setting different control modes (We have set the receiver as Interlocking mode before delivery. If you want to use other modes, do as following):
1) Setting control mode Momentary: connect terminal 3 and 4
Press and hold button 1: output DC power. Release button 1: no output.
2) Setting control mode Interlocking: connect terminal 1 and 2.
Press button 1: output DC power. Press button 2: no output.
3) Setting control mode Self-locking: Do not connect
Press button 1: output DC power. Press button 1 again: no output.

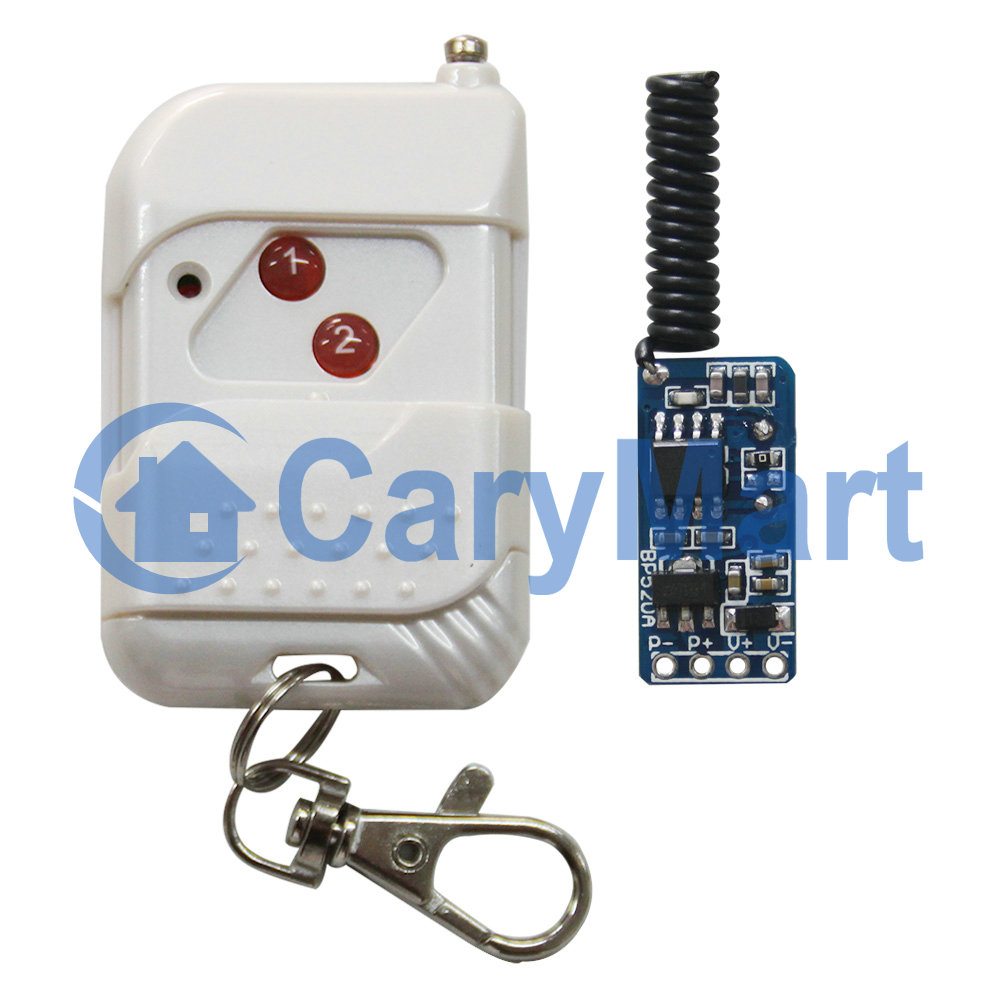

Package Include:
1 x Receiver: S1X1-DC (1 Channel / Three control Modes)
