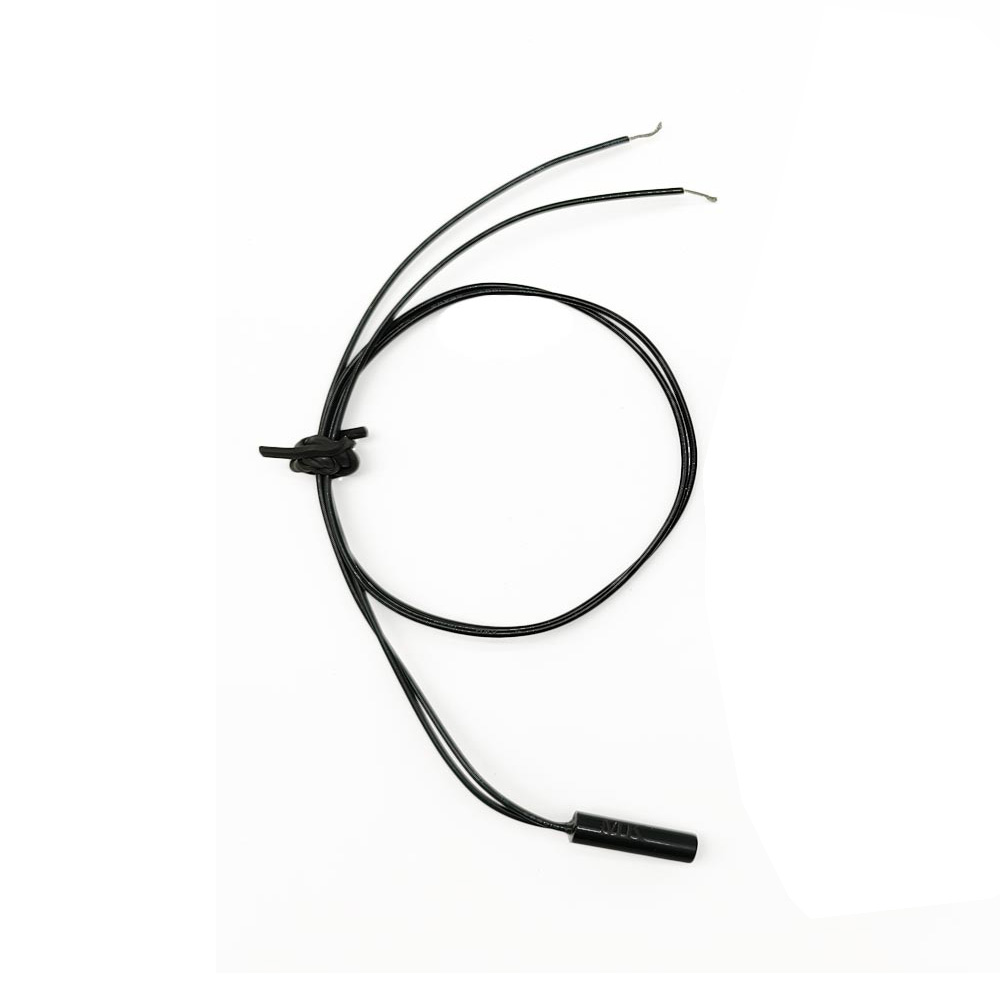

Normally Closed Magnetic Reed Switch For Linear Actuator A4

Price: US $5.00

Model: 0043202

Please Choose:

Choose Operating Voltage:

Qty:

Details
Reviews

Product Parameters:
Model: 0043202
Maximum Working Voltage: 100V AC or DC
Maximum Working Current: 0.5A
Rated Power: 10W
Life Cycle: More than 10 million times
Material: ABS
Certifications: CE
Line Length: 350MM
Size: 5 x 20mm
Normally Closed Type (NC): The magnetic reed switch is normally closed. When a magnet approaches, the switch opens. On the contrary, when the magnet moves away, the switch closes.

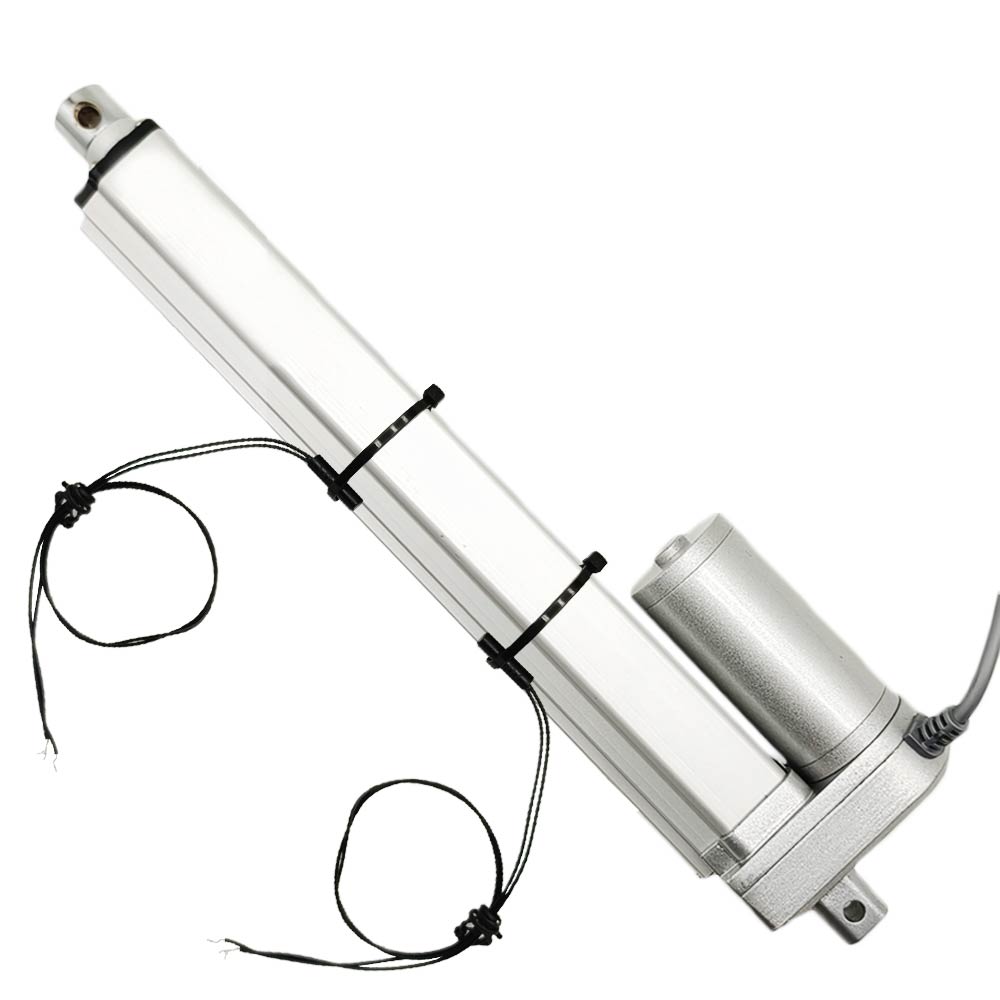

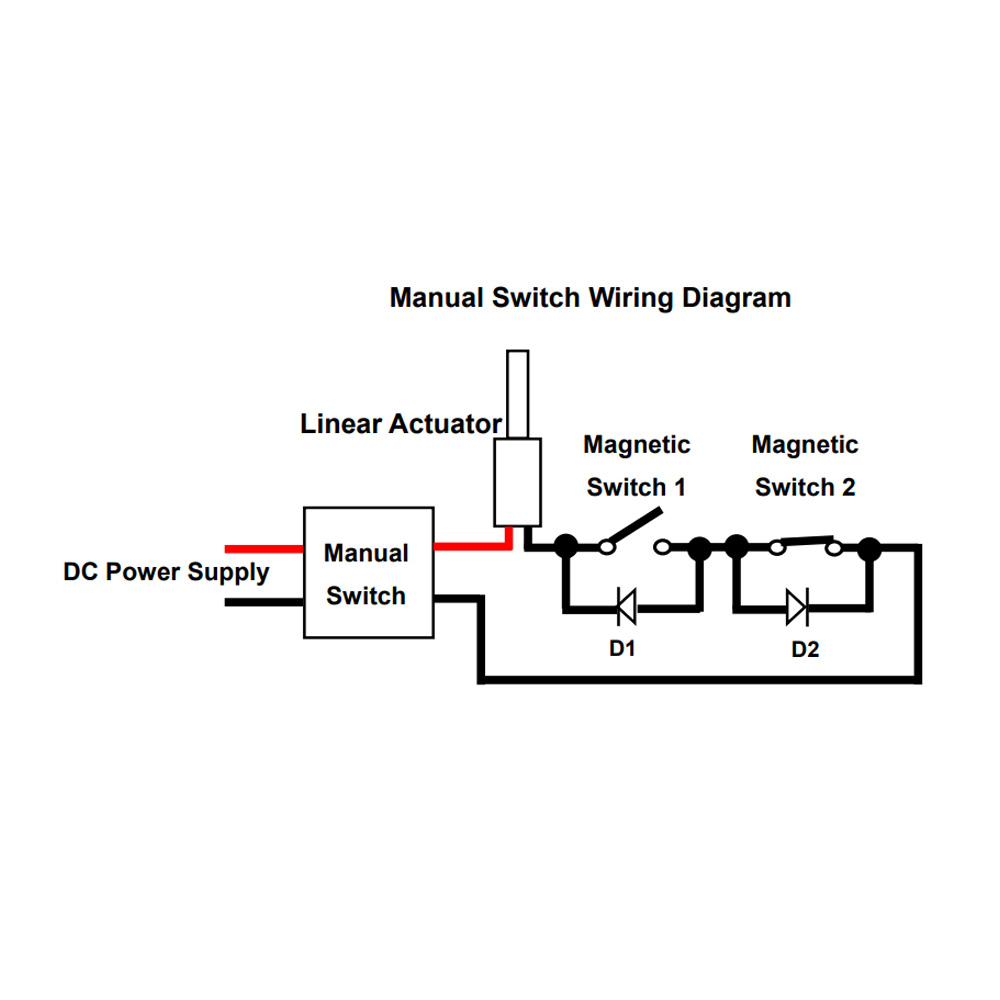

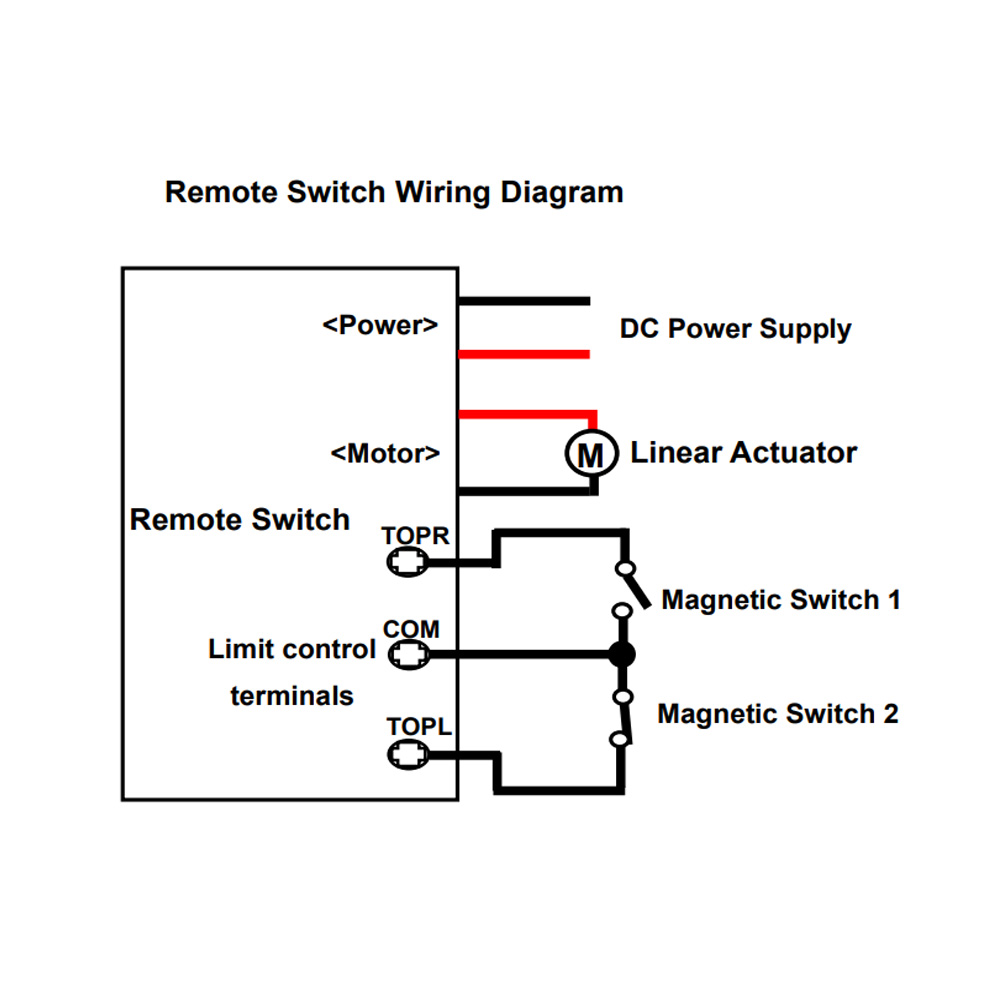

Each A4 linear actuator normally needs to be equipped with two normally closed magnetic reed switches, one to control the retracted position and one to control the extended position.
