Control Lights, Motors, Fans, electrically operated Doors/Locks/Windows/Blinds/Cars or Other Appliances with voltage AC110~240V or DC0~28V.
You can turn on/off the receiver with transmitter (remote control) from any place within a reliable distance; the wireless RF signal can pass through walls, floors and doors.
With characteristics of reverse power protection and over current protection
Audible / visual indication
Use an 8-bit microcontroller with low-power and high-speed CMOS technology.
Reliable control: The transmitter (Encoding) and the receiver (Decoding) use an 8-bit code.
One/ several transmitters can control one/ several receivers simultaneously.
If you use one or more receivers in the same place, you can set them with different codes.
Transmitting Frequency: 315MHz
Receiver:
Model No.: S1US-DC(4~12V)
Channel: 1 CH
Control Modes: Self-locking, Momentary, Interlocking
Coding Type: Fixed code

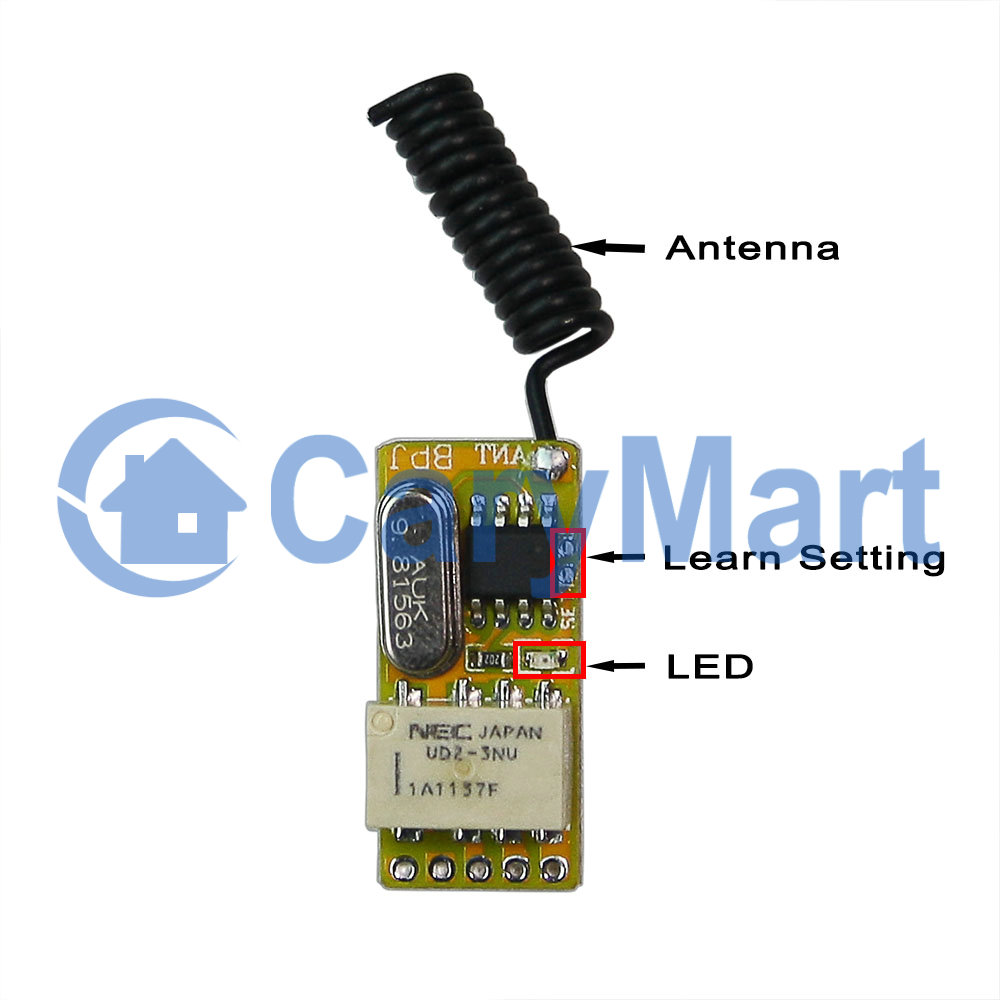

Coding Setting: By learning
Power Supply (Operating Voltage): DC 4~12V
Output: Relay output (Normally open and normally closed)
Working Voltage Range of Relay: AC110~240V or DC0~28V

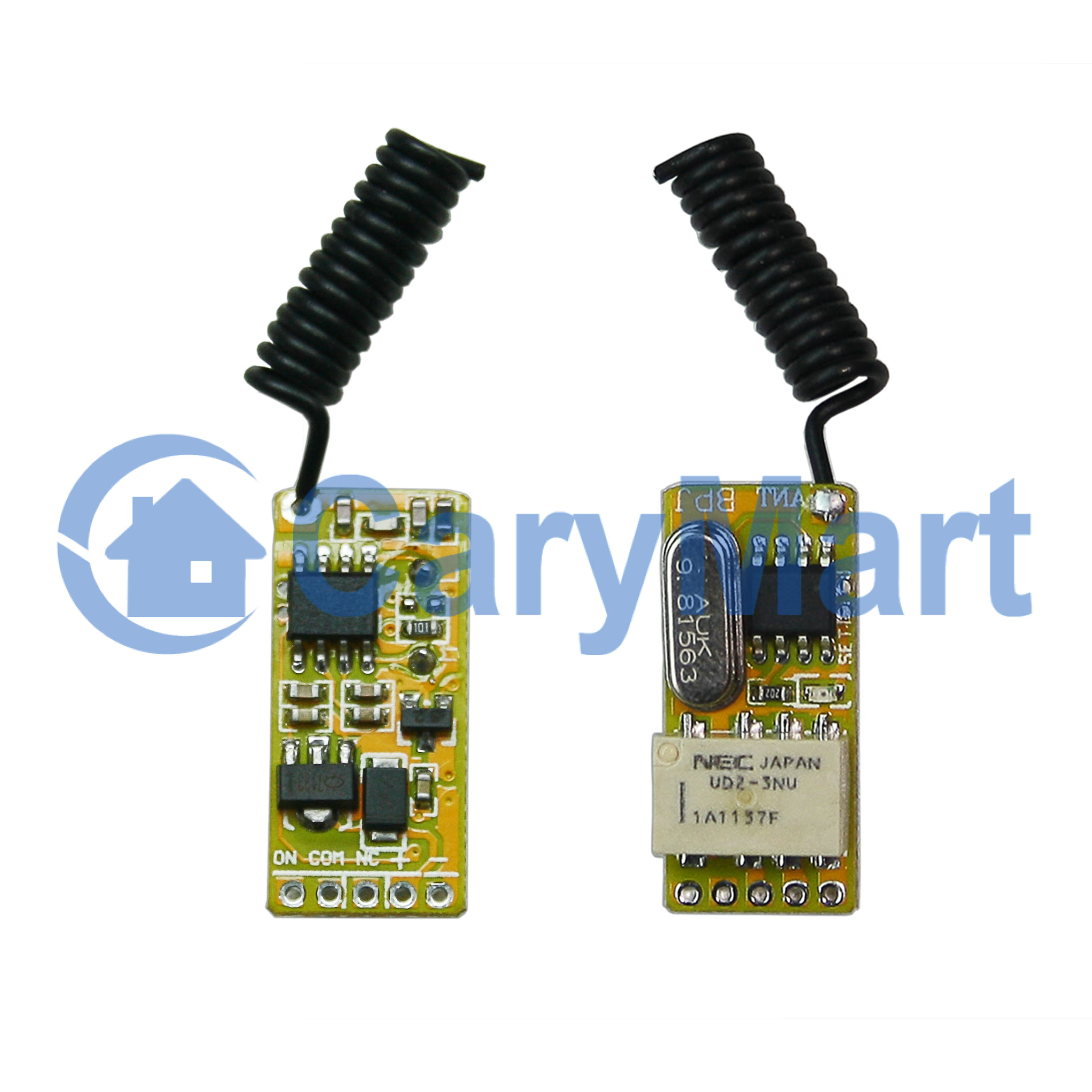

PCB Size: 25mm x 11mm x 7mm
Static Current: ≤7mA
Maximum Working Current of Relay: 2A
Receiver Working Current: 30mA
Usage:
Setting different control modes (We have set the receiver as Interlocking control mode before delivery. If you want to use other control modes, do as following operation):
Setting control mode Self-locking: Do not connect
Control mode Self-locking: Press -> On; Press again -> Off.
Press button 1: Turn on the relay (connect B and C, disconnect A and B)
Press button 1 again: Turn off the relay (disconnect B and C, connect A and B)

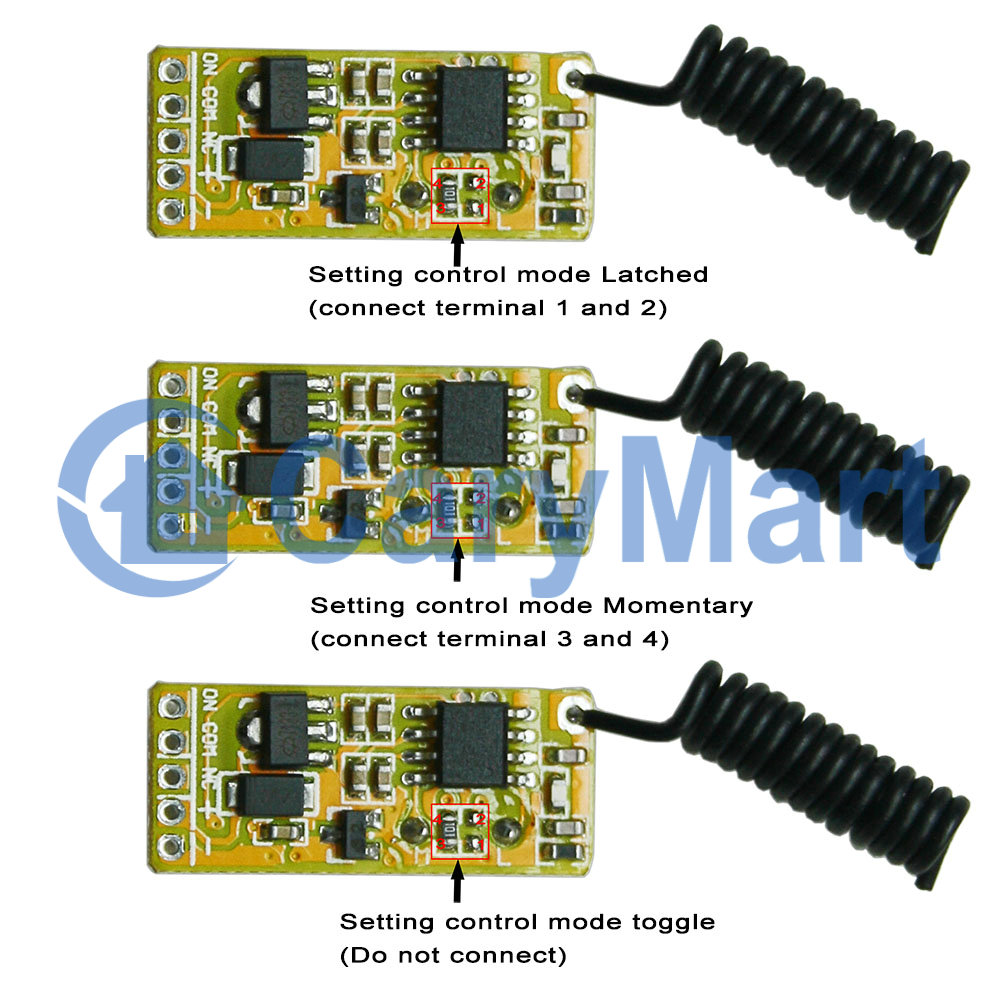

Setting control mode Momentary: Connect terminal 1 and 2
Control mode Momentary: Press and hold -> On; Release -> Off.
Press and hold button 1: Turn on the relay (connect B and C, disconnect A and B)
Release button 1: Turn off the relay (disconnect B and C, connect A and B)

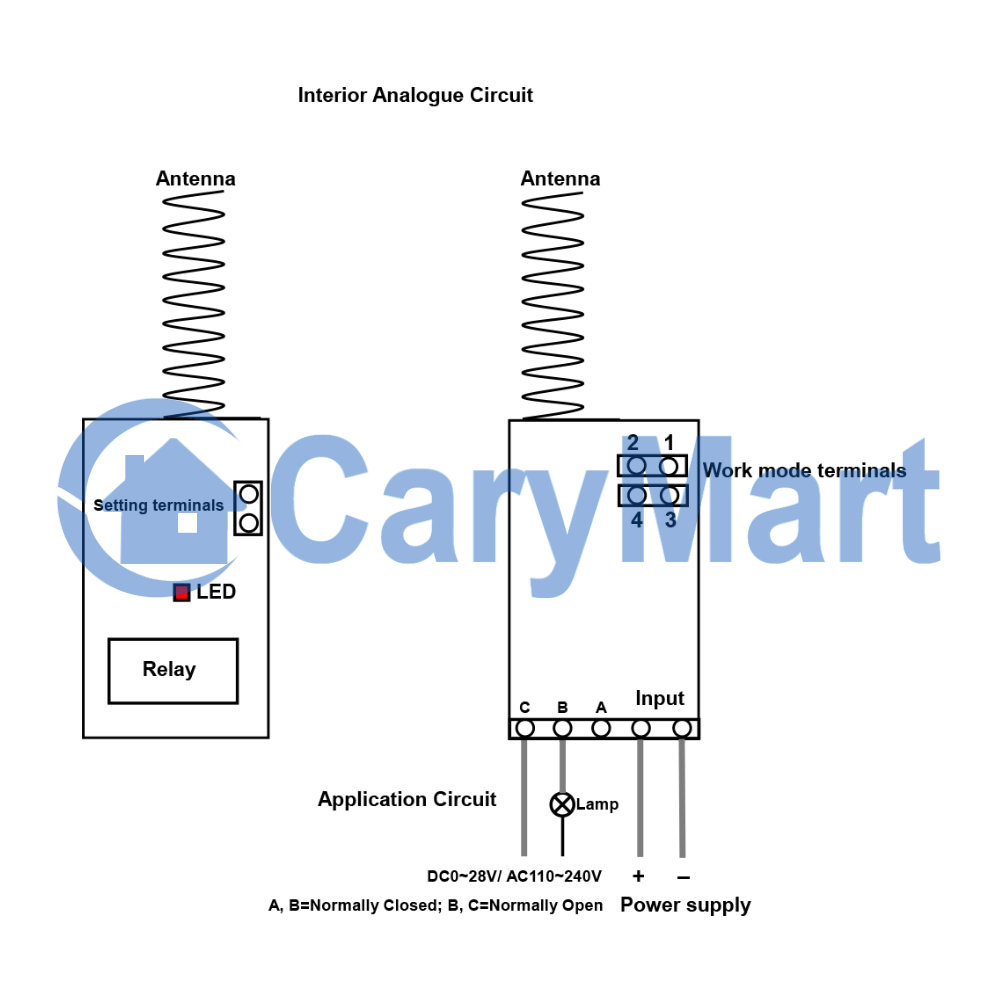

Setting control mode Interlocking: Connect terminal 3 and 4
Control mode Interlocking: Press -> On, other relays Off; Press another button -> Off.
Press button 1: Turn on the relay (connect B and C, disconnect A and B)
Press button 2: Turn off the relay (disconnect B and C, connect A and B)
Package Include:
1
x Receiver: S1US-DC(4~12V) (1 Channel / Two Control Modes)
