Control Lights, Motors, Fans, electrically operated Doors/Locks/Windows/Blinds/Cars or Other Appliances with voltage AC110~240V or DC0~28V.
You can turn on/off the receiver with transmitter (remote control) from any place within a reliable distance; the wireless RF signal can pass through walls, floors and doors.
With characteristics of reverse power protection and over current protection
One/ several transmitters can control one/ several receivers simultaneously.
If you use one or more receivers in the same place, you can set them with different codes.
Transmitting Frequency: 315MHz

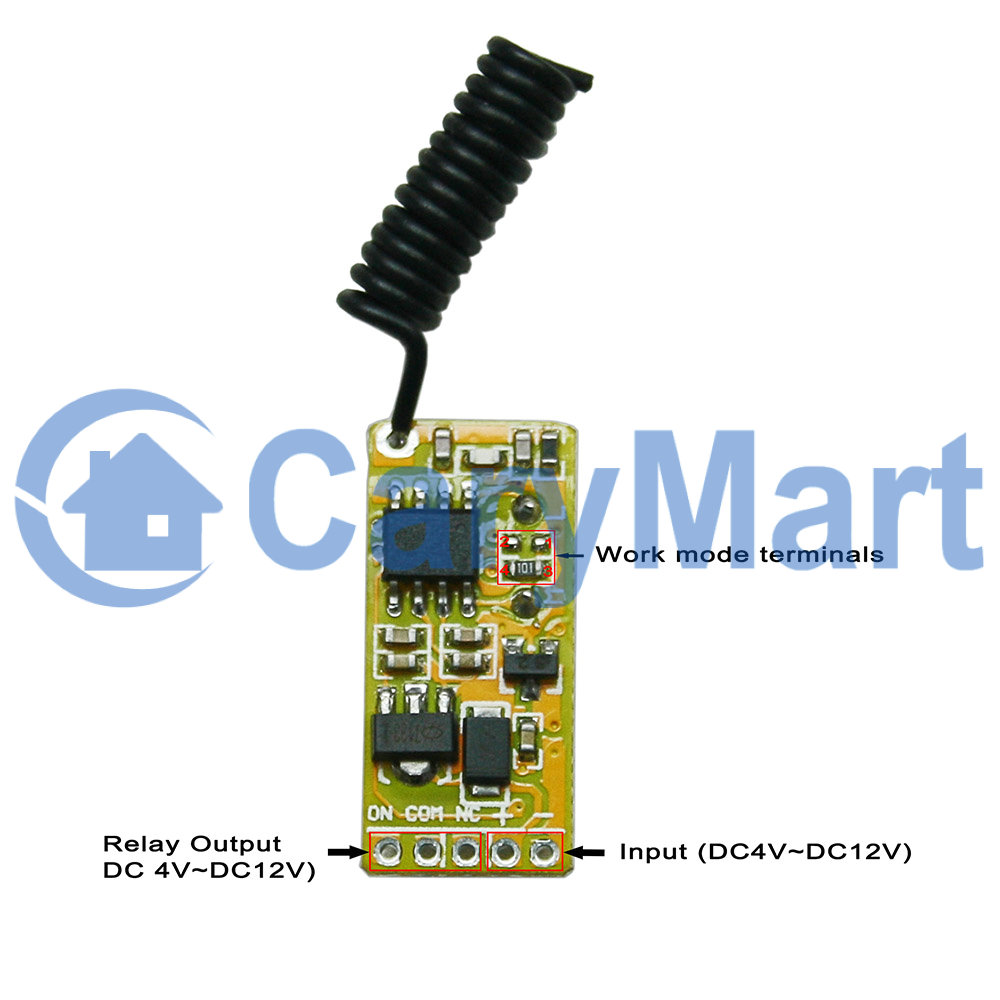

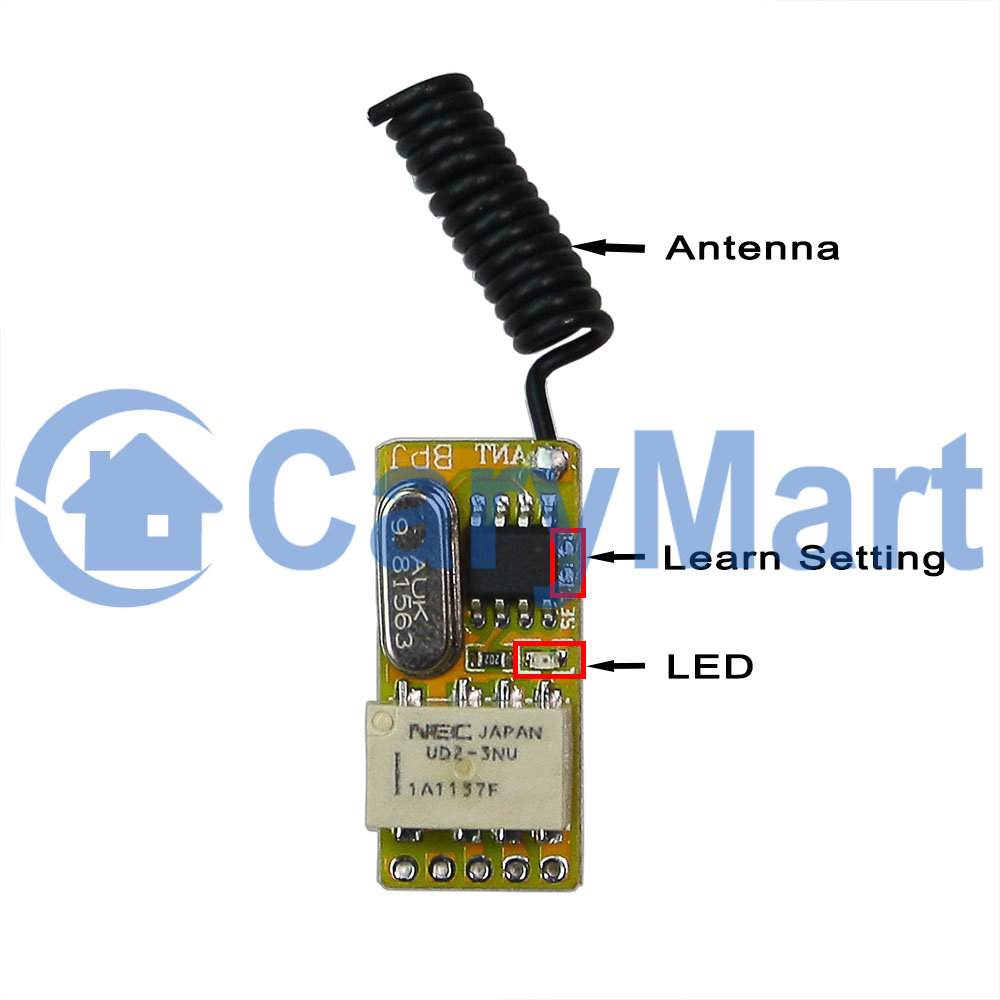

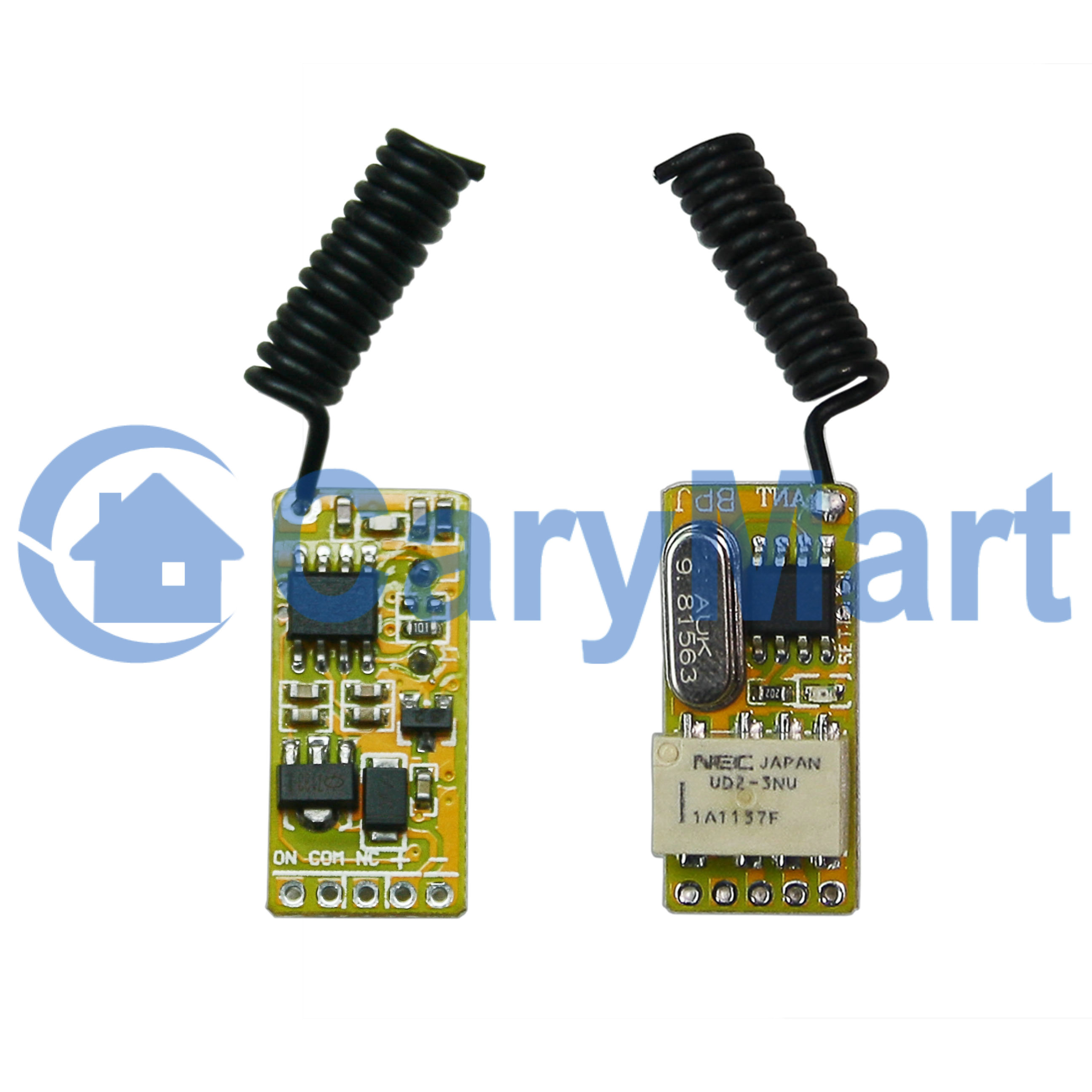

Receiver:
Model No.: S1US-DC(4~12V)
Channel: 1 CH
Control Modes: Self-locking, Momentary, Interlocking
Coding Type: Fixed code
Coding Setting: By learning
Power Supply (Operating Voltage): DC 4~12V
Output: Relay output (Normally open and normally closed)
Working Voltage Range of Relay: AC110~240V or DC0~28V
PCB Size: 25mm x 11mm x 7mm
Static Current: ≤7mA
Maximum Working Current of Relay: 2A
Receiver Working Current: 30mA

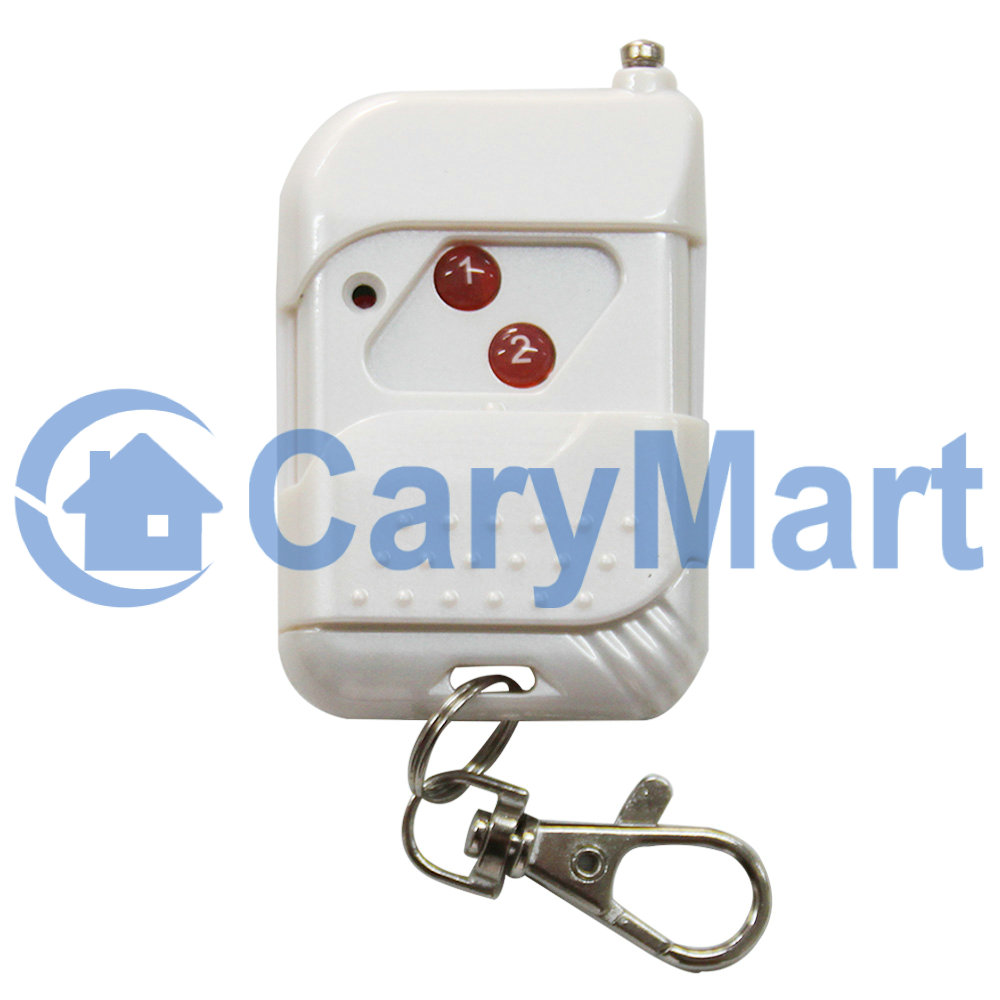

Transmitter:
Model No.: C-2
Channel: 2 CH
Remote Control Distance: 50m / 150ft (theoretically)
Encode: Fixed code by soldering
Unit Size: 58mm x 39mm x 16mm
Power Supply: 1 x 23A -12V battery (included, can be used for 12 months)

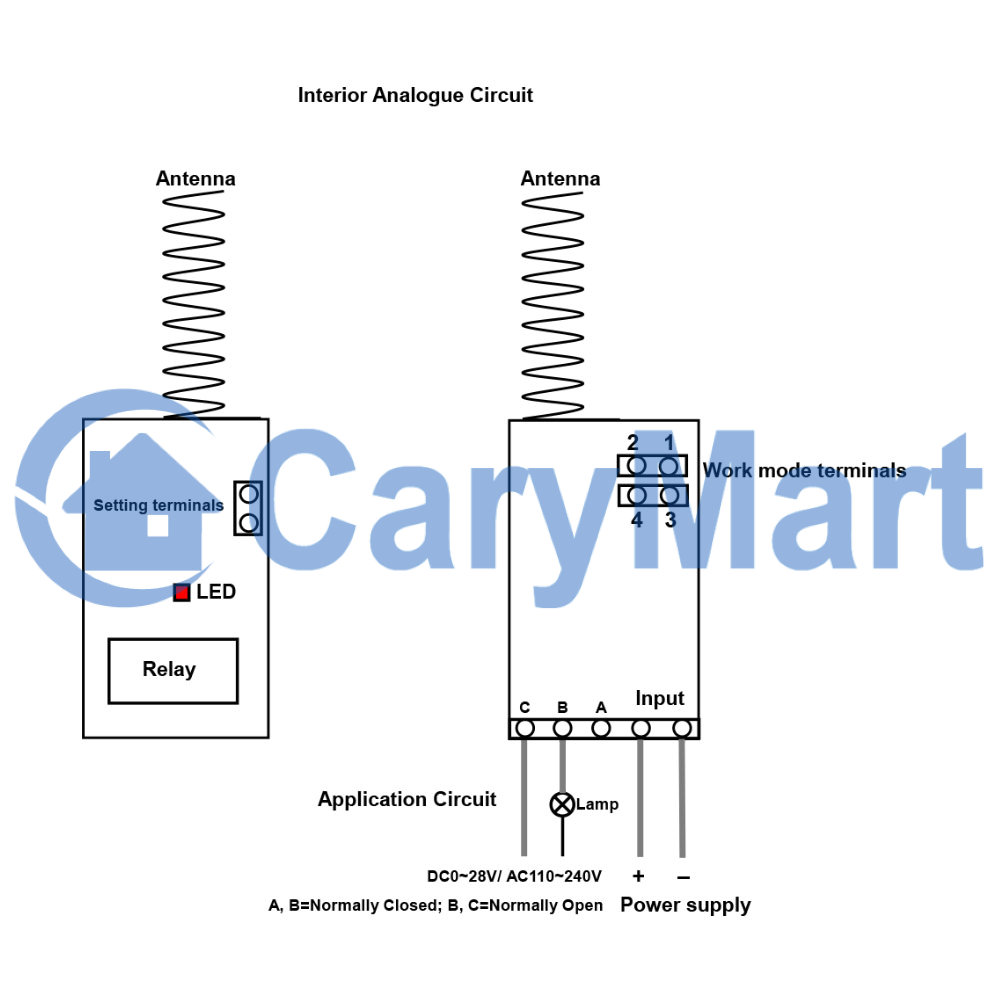

Usage:
Control mode Self-locking: Press -> On; Press again -> Off.
Press button 1: Turn on the relay (connect B and C, disconnect A and B)
Press button 1 again: Turn off the relay (disconnect B and C, connect A and B)
Control mode Momentary: Press and hold -> On; Release -> Off.
Press and hold button 1: Turn on the relay (connect B and C, disconnect A and B)
Release button 1: Turn off the relay (disconnect B and C, connect A and B)
Control mode Interlocking: Press -> On, other relays Off; Press another button -> Off.
Press button 1: Turn on the relay (connect B and C, disconnect A and B)
Press button 2: Turn off the relay (disconnect B and C, connect A and B)
