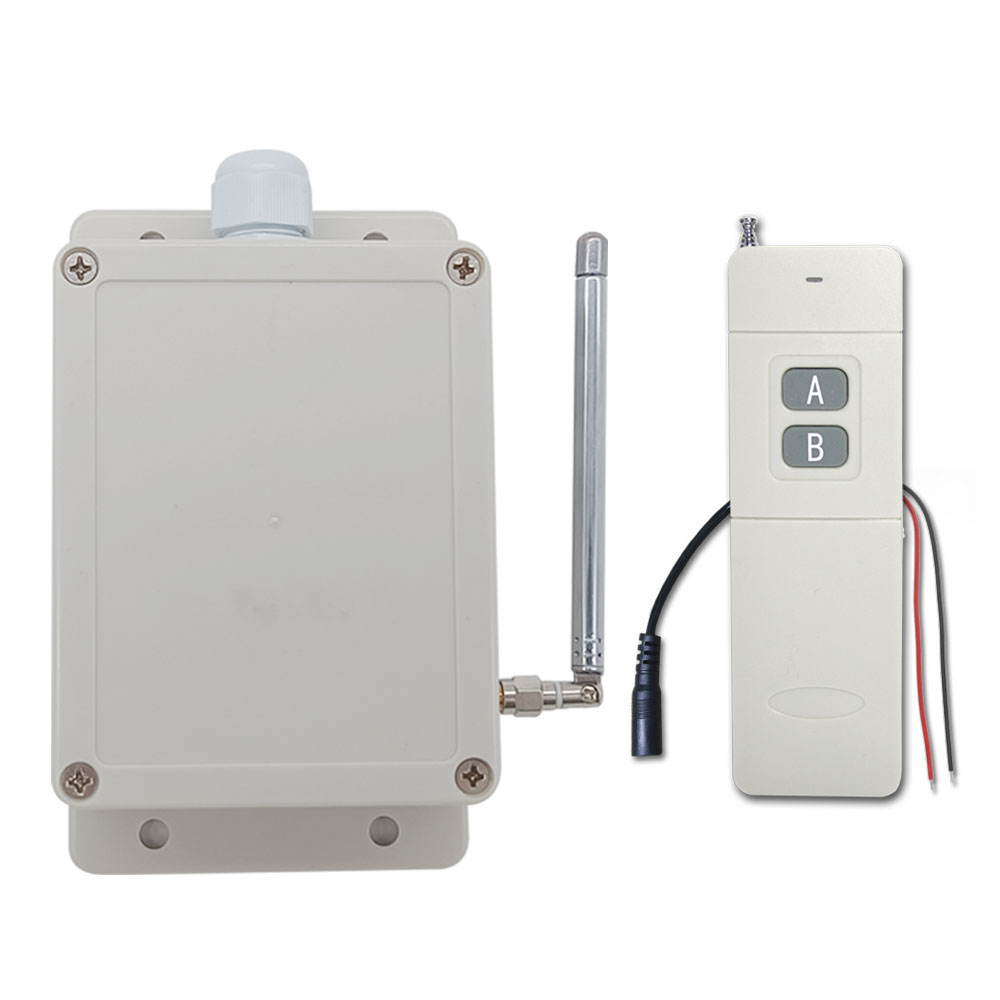

1 x Receiver: S1UA-DC-ANT3
1 x Transmitter: CB-2N
1 x User manual
Application:
This type of wireless remote control device can use a normally open output
device to wirelessly control another AC or DC device, and it can be used for
synchronous wireless control of various home, industrial or agricultural
equipments, such as wireless control of the warning host and the warning
horn, wireless control of the lights, wireless synchronization control of
the equipments and so on.
Feature:
Wireless control, easy to install.
Waterproof: The receiver has waterproof case and waterproof connector, it
can be installed outdoors.
Four operating voltage versions: DC 6V, 9V, 12V, 24V optional.
Relay Output: This receiver is dry relay output; it can be used to operate
both DC and AC equipment. The output terminals are NO / NC (normally open /
normally closed), serving as a switch. That means you should also connect a
separate power supply to equipment.
Each channel can work at maximum current 10A, such as 120W/12V, 60W/6V,
90W/9V, 240W/24V, 1100W/110V, 2200W/220V.
With external antenna, the receiver has a farther working range.
The transmitter / remote can control the receiver from any place within a
reliable working distance.
Wireless RF signal from the transmitter can pass through walls, floors,
doors, or windows, but it will lose some operating range.
The receiver has reverse voltage protection and overcurrent protection.
The receiver can only be triggered by paired transmitters.
One or more transmitters / remotes can control one or several receivers
simultaneously.
Two or more receivers may be used in the same area.

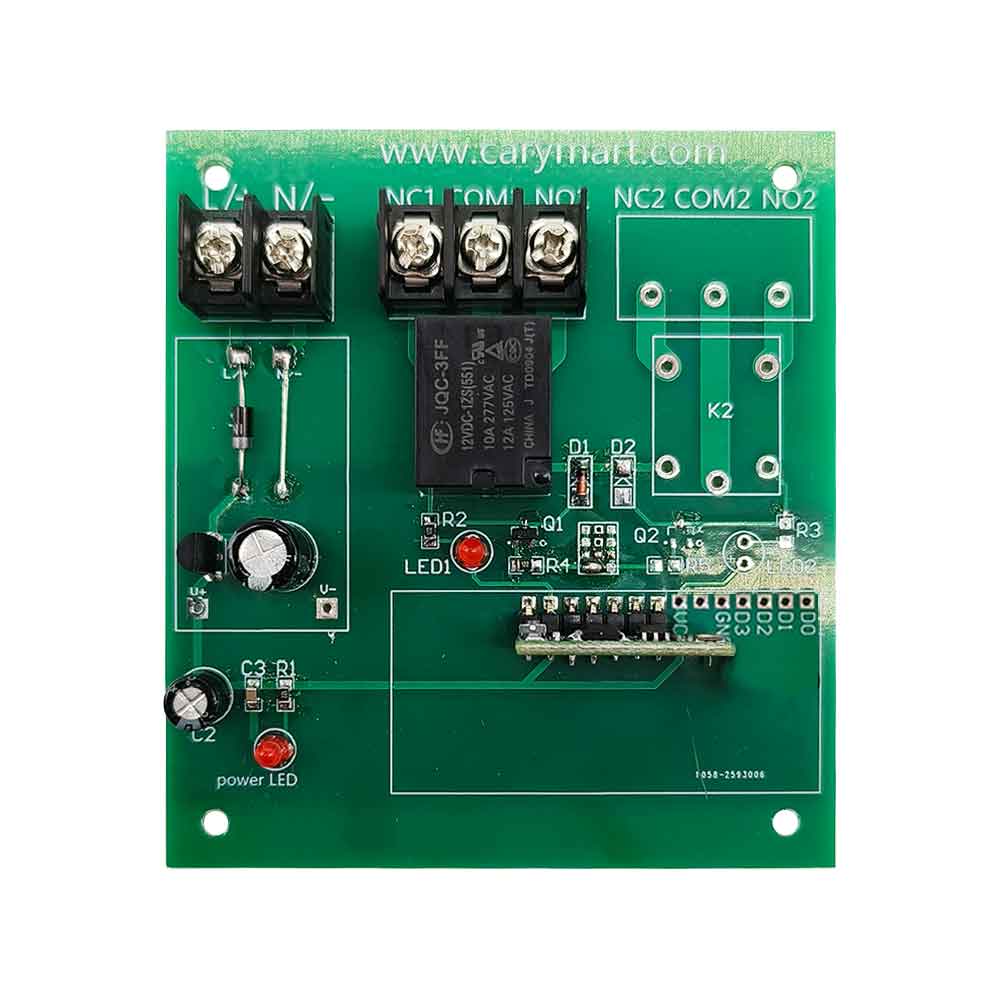

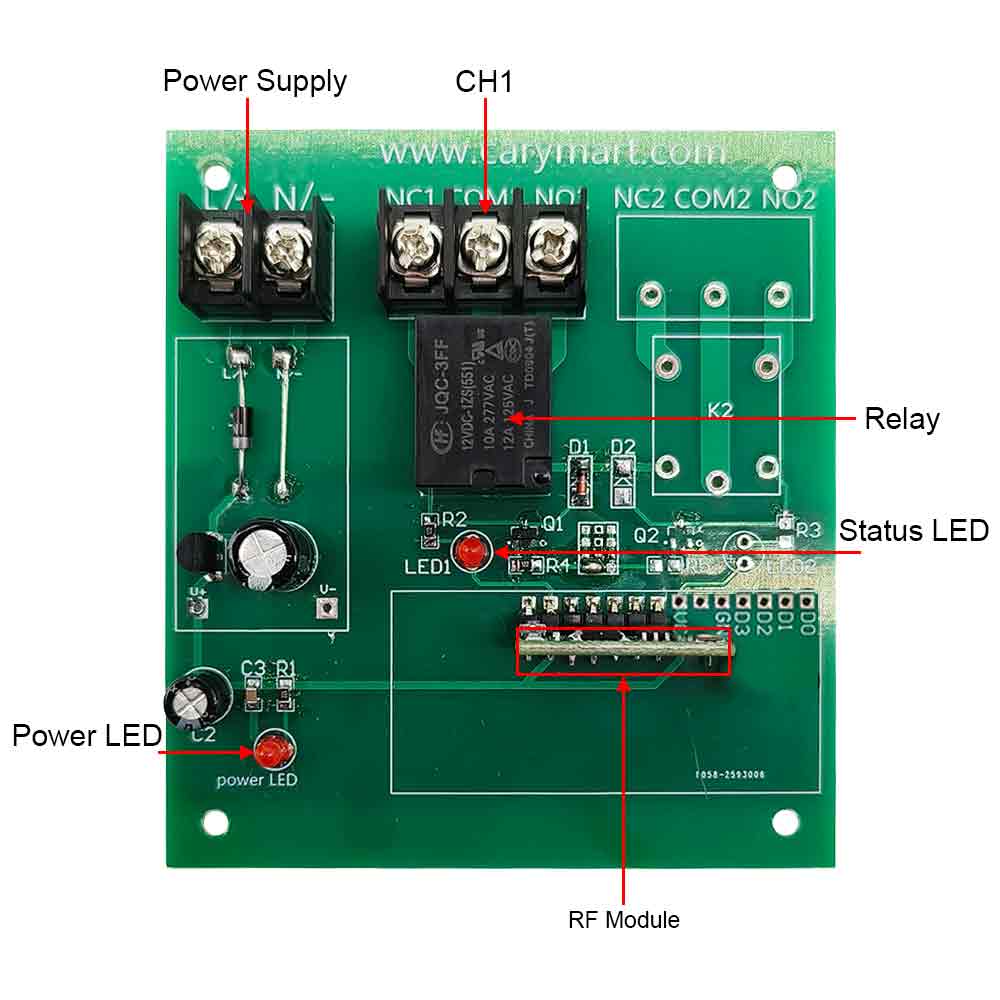

Receiver Parameters:
Model: S1UA-DC-ANT3
Operating Voltage: 6VDC (model S1UA-DC06), or 9±1VDC (model S1UA-DC09), or
12±1VDC (model S1UA-DC12), or 24±2VDC (model S1UA-DC24), the operating voltage
must be specified when ordering.
Working Frequency: 315 MHz
Quiescent Current: ≤6mA
Channel: 1 CH
Output Type: Relay Output (With Normally Open and Normally Closed Terminals)
Maximum Load Voltage of Relay: 240VAC or 28VDC
Maximum Load Current of Relay: 10A / channel
Suitable Wires for Connecting Terminals: 22-12 AWG
Working Modes: Interlocking
Operating Temperature: -20 °C ~ +70 °C
PCB size: 88 x 80 x 18 mm (3.5 x 3.1 x 0.7 inches)
Case size: 115 x 90 x 55 mm (4.5 x 3.6 x 2.2 inches)

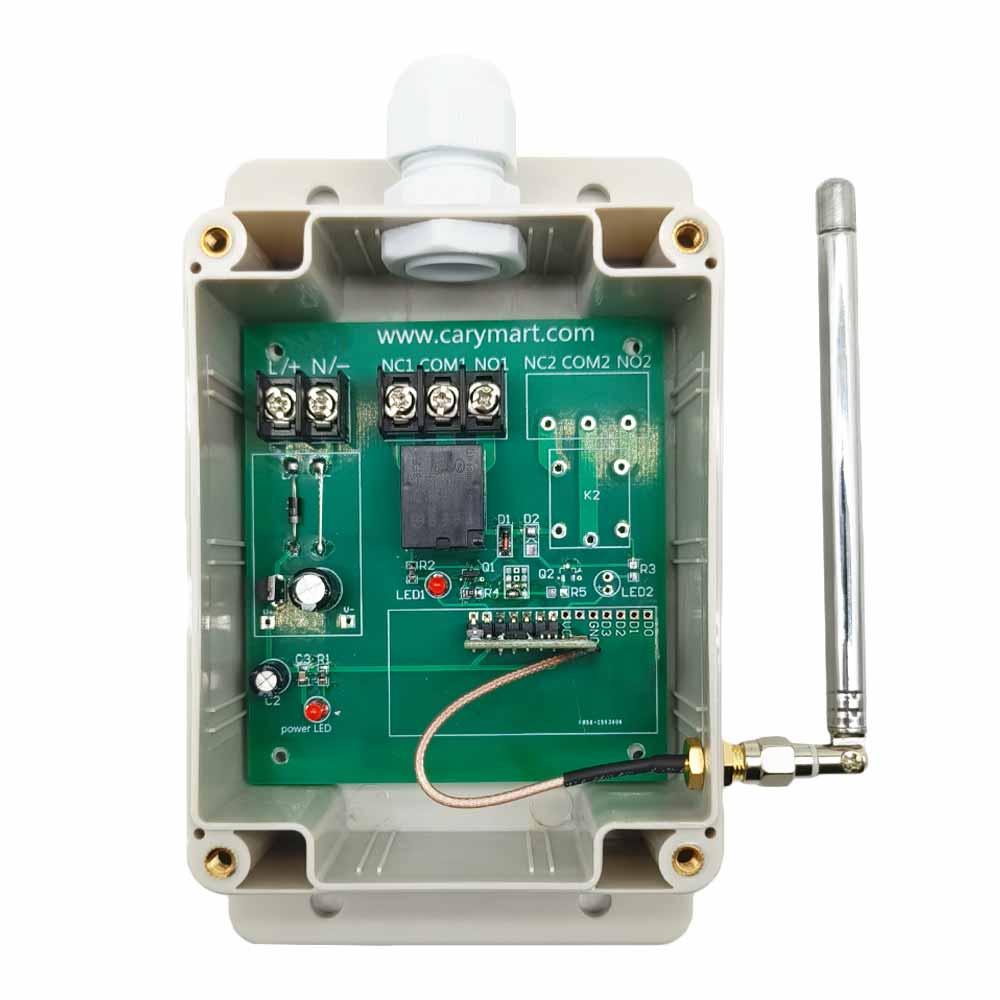

External Telescopic Antenna ANT3 For Receiver:
Length of external telescopic antenna: 108mm / 445mm (stretch)
With SMA connector.
If you stretches the external telescopic antenna, it can have a further
working range.
Transmitter Parameters:
Model: 0021045 (CB-2N)
With Extended Control Wires
Triggering method: connection and disconnection of two wires.
Channel/Button: 2
Button Symbol: A, B

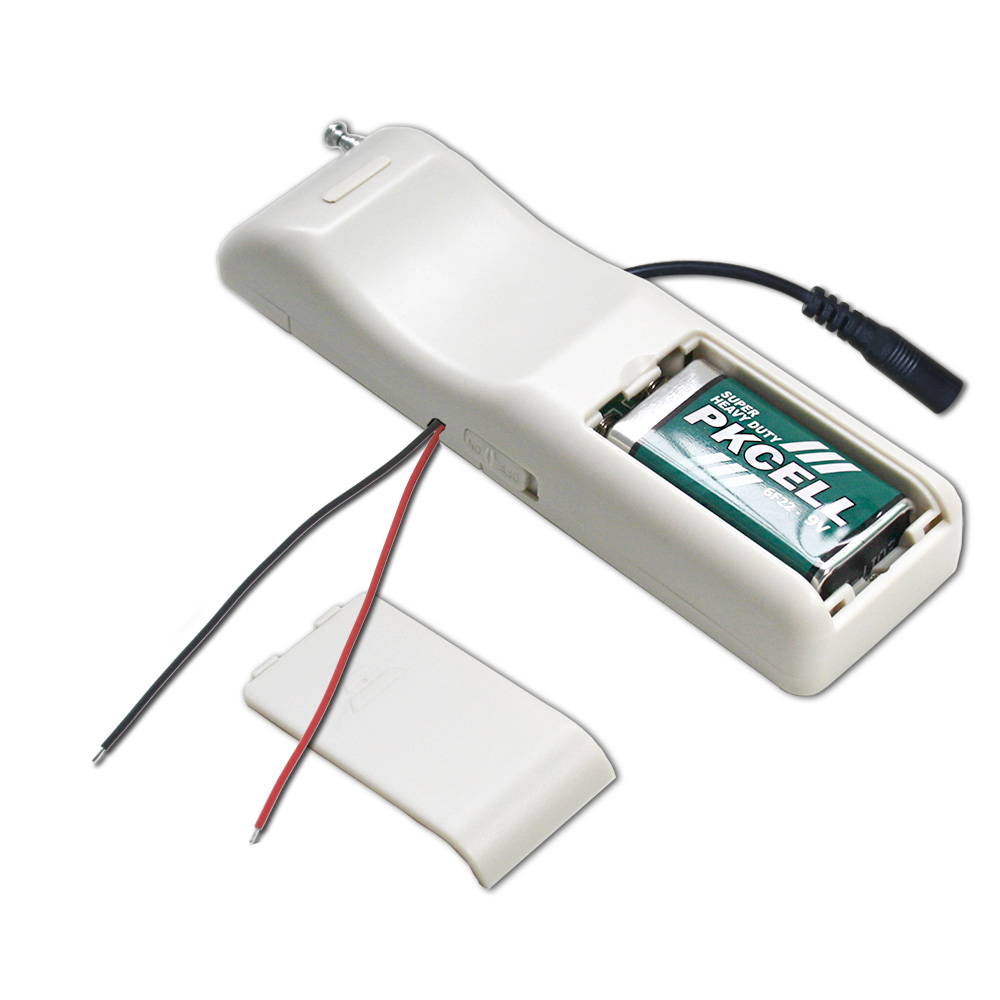

Operating Voltage: 9V (1 x 6F22 -9V battery, can be used for a week, if you
want a longer working time, please use 9V Rechargeable Lithium Battery or 9V
power adapter.)
Operating Current: 30mA
Operating Frequency: 315 MHz
Transmitting Distance: 1000m / 3000ft (theoretically)
Modulation Mode: ASK
Operating Temperature: -20 ° C to +70 ° C
Unit Size: 135 x 42 x 25 mm
Matching Transmitters for Receiver:
The receiver can work with different transmitters, such as model
C-2
(100M),
CWB-2
(50M, waterproof),
CP-2
(500M), and
CB-2
(1000M) etc.
The working principle:

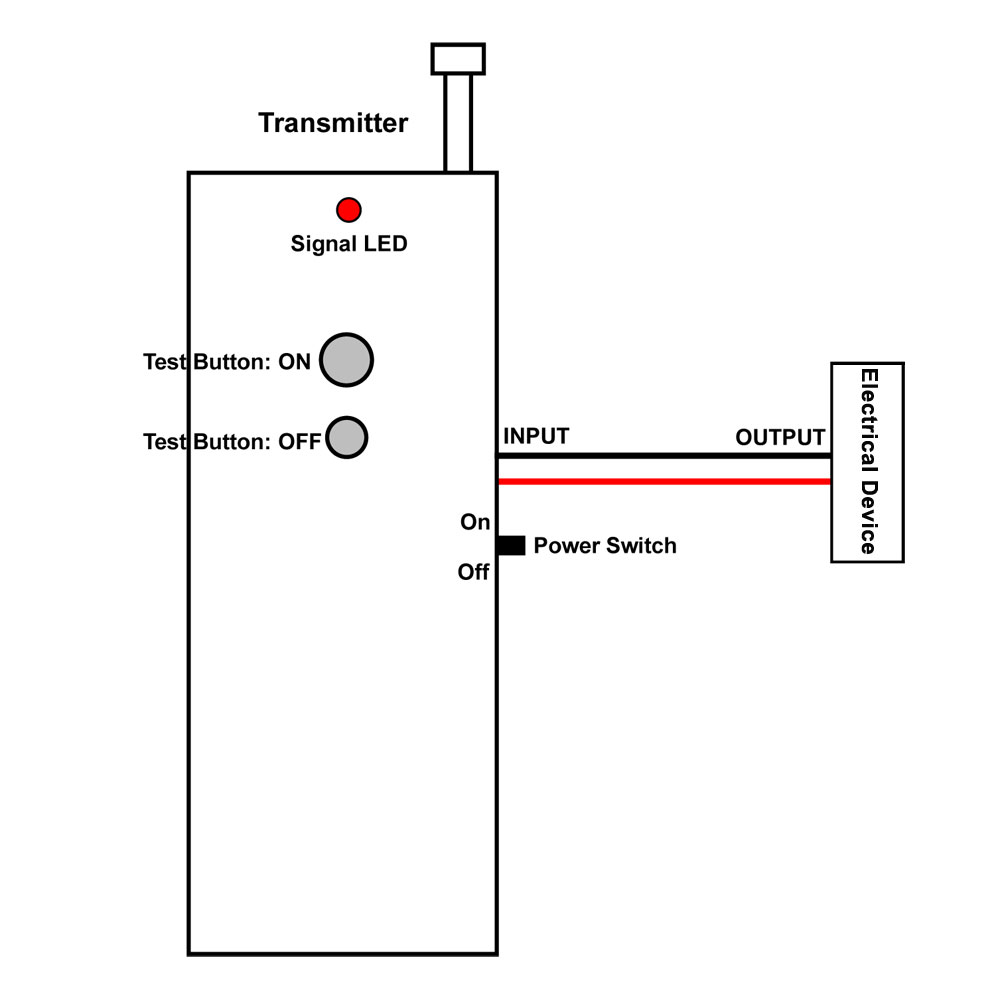

Transmitter CB-2N is a special remote control with normally open contact
trigger. It has 2 input lines for connecting a variety of devices with
normally open contact output, such as warning host, cable detectors, various
sensors, manual switches, limit switches, Programmable Logic Controllers and
so on. The transmitter can be combined with different types of receivers to
form a wireless control system that can be used to wirelessly control
another AC or DC device through a device that has a normally open contact
output.
Working process:
1. Connect a device A which with normally open output to the two input lines
of the transmitter; connect the other device B to the receiver.
2. When the transmitter's two input lines are connected, it automatically
emits an "ON" wireless signal, which is equivalent to the function of the
button "ON" on the transmitter. When the receiver receives the wireless
signal, it will activate its relay to turn on the connected device B.
3. When the transmitter's two input lines are disconnected, it automatically
emits an "OFF" wireless signal, which is equivalent to the function of the
button "OFF" on the transmitter. When the receiver receives the wireless
signal, it will deactivate its relay to turn off the connected device B.
Working Range:
Super long range, with a transmitter (such as CB-2N) to form a complete set,
the maximum working distance can reach 1000M in an open ground.
The maximum working distance is a theoretical data, it shall be operated in
an open ground, no barriers, no any interference. But in the practice, it
will be hindered by trees, walls or other constructions, and will be
interfered by other wireless signals. Therefore, the actual distance may not
reach this maximum working distance.
Usage:
The receiver can be used to control both 0~28VDC and 110~240VAC devices.
Notice: The receiver is relay output, not DC/AC power output. Initial state
of relay output terminals: Terminals <COM> and <NO> are Normally Open;
Terminals <COM> and <NC> are Normally Closed.
Wiring:

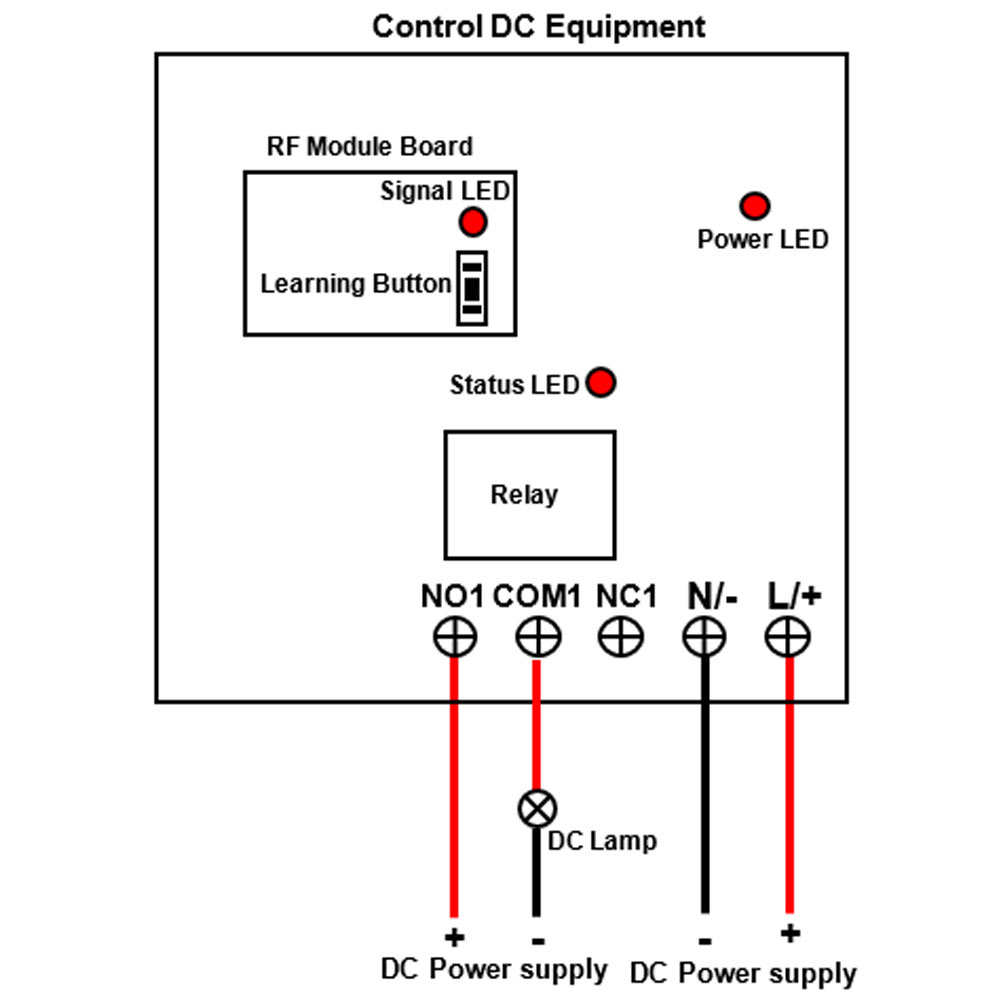

1) If you want to control a DC 12V lamp, do as following:
1.1 Connect the positive pole of DC power supply to terminal <L/+>, and
connect the negative pole of DC power supply to terminal <N/->.
1.2 Connect terminal <NO> to the positive pole of DC power supply, connect
terminal <COM> to the positive pole of DC lamp, and connect the negative
pole of DC lamp to the negative pole of DC power supply.

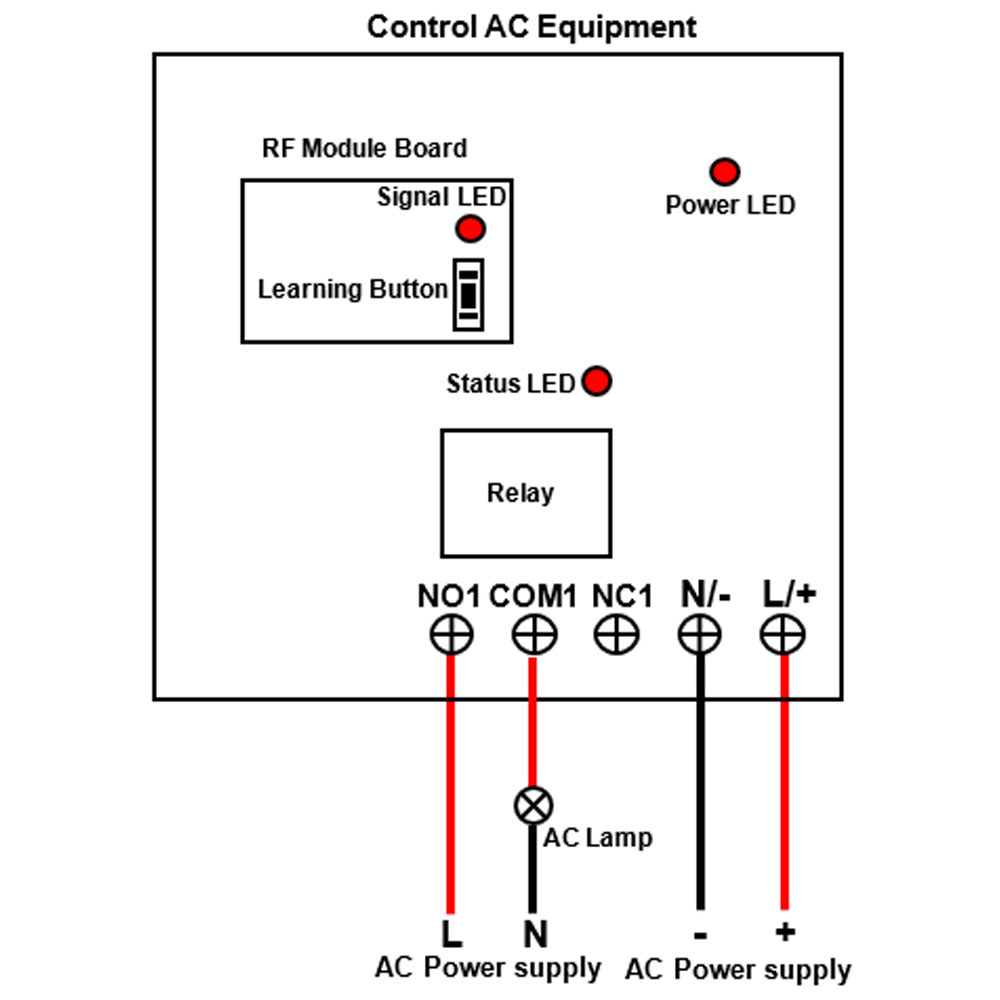

2) If you want to control an AC 220V lamp, do as following:
2.1 Connect the positive pole of DC power supply to terminal <L/+>, and
connect the negative pole of DC power supply to terminal <N/->.
2.2 Connect terminal <NO> to the live wire of AC power supply, connect
terminal <COM> to one side of AC lamp, and connect another side of AC lamp
to the neutral wire of AC power supply.
Operation:
1) Controlling the device by the buttons on the transmitter (CB-2N):
Press button A of the transmitter: the relay is activated (connect <COM> and
<NO>, disconnect <NC> and <COM>), and the device is turned on.
Press button B of the transmitter: the relay is deactivated (disconnect
<COM> and <NO>, connect <NC> and <COM>), and the device is turned off.
2) Controlling the device by connecting red wire and black wire of the
transmitter:
When connecting the red wire and black wire of this transmitter, the
transmitter will be triggered and then it will send an RF signal of "ON" to
trigger the receiver, the relay is activated (connect <COM> and <NO>,
disconnect <NC> and <COM>), and the device is turned on.
When disconnecting the red wire and black wire of this transmitter, the
transmitter will be triggered and then it will send an RF signal of "OFF" to
trigger the receiver, turn off the relay (disconnect <COM> and <NO>, connect
<NC> and <COM>), and the device is turned off.
How to pair the transmitter to the receiver:
Notice: We have paired the transmitter to the receiver before leaving the
factory.
1) Press the learning button once in the receiver, signal LED on the
receiver flashes one time and then stays on, this indicates that the
receiver enters the learning status.
2) Press button A on transmitter, if the signal LED
flashes one time, this indicates that the pairing with button A is
successful. Then press button B on transmitter, if the signal LED flashes
one time, this indicates that the pairing with button B is successful.
3) Press the learning button in the receiver again for 1-2 seconds, signal
LED turns off, this indicates that the receiver exits the learning status.
4) The receiver can learn several transmitters with different codes.
How to delete all transmitters codes stored in the receiver:
Notice: We have paired the transmitter to the receiver, if you don’t want
the receiver to work with the transmitter, you can delete all transmitters
codes stored in the receiver.
Operation: Press the learning button in the receiver 10 times and then
release the learning button, signal LED flashes 10 times quickly and then
goes off, this indicates that all stored codes have been deleted
successfully.
