Package Include:
1 x Receiver: S1PXB-DC06 / S1PXB-DC09
/ S1PXB-DC12 / S1PXB-DC24
1 x User manual
Feature:
Application:
It can be used in industry automation, agriculture automation and home
automation, such as factory, house, farm, pasture, vehicle, ship, offshore
operation, aerial vehicle, field call, etc. It can remote control equipments on
land, water and air, such as remote control lights, sirens, locks, motors,
fans, winches, blinds, linear actuators, doors, windows, electric solenoid
valves, security alarm, business signs and various devices.
Wireless control, easy
to install.
Waterproof:

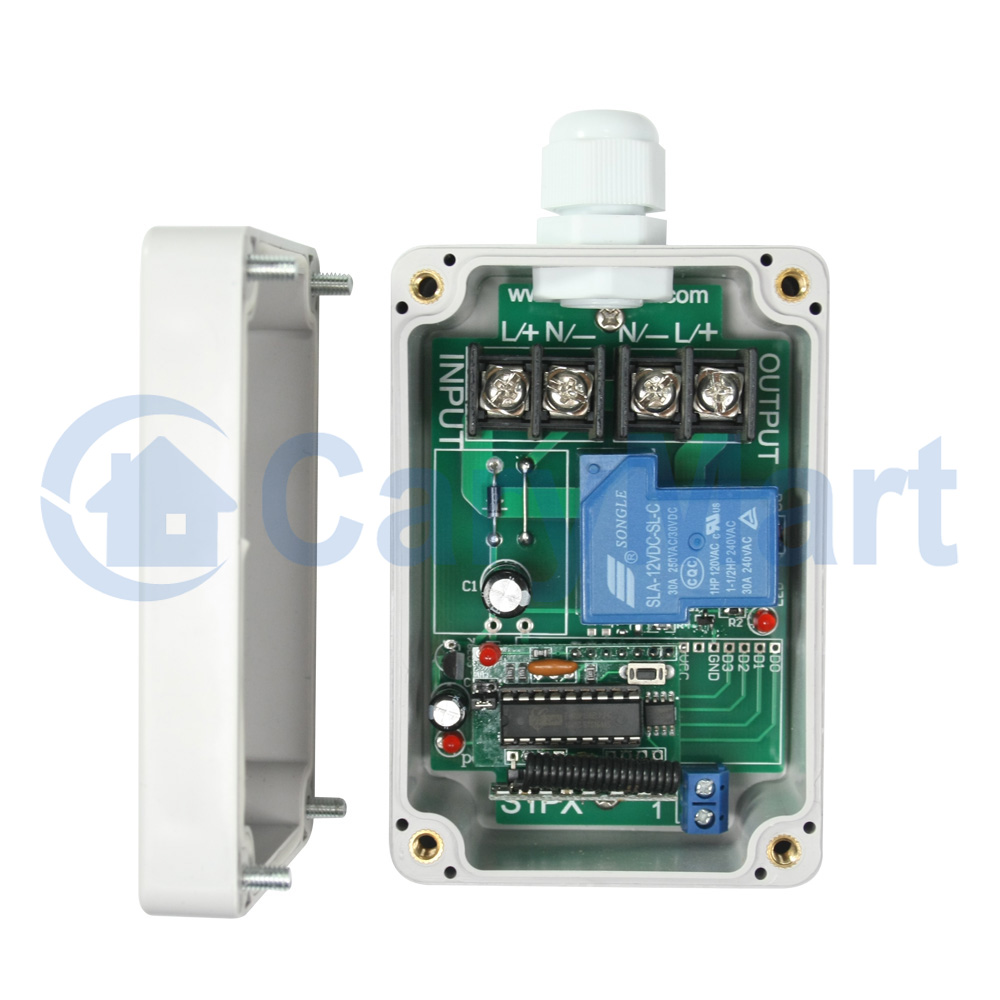

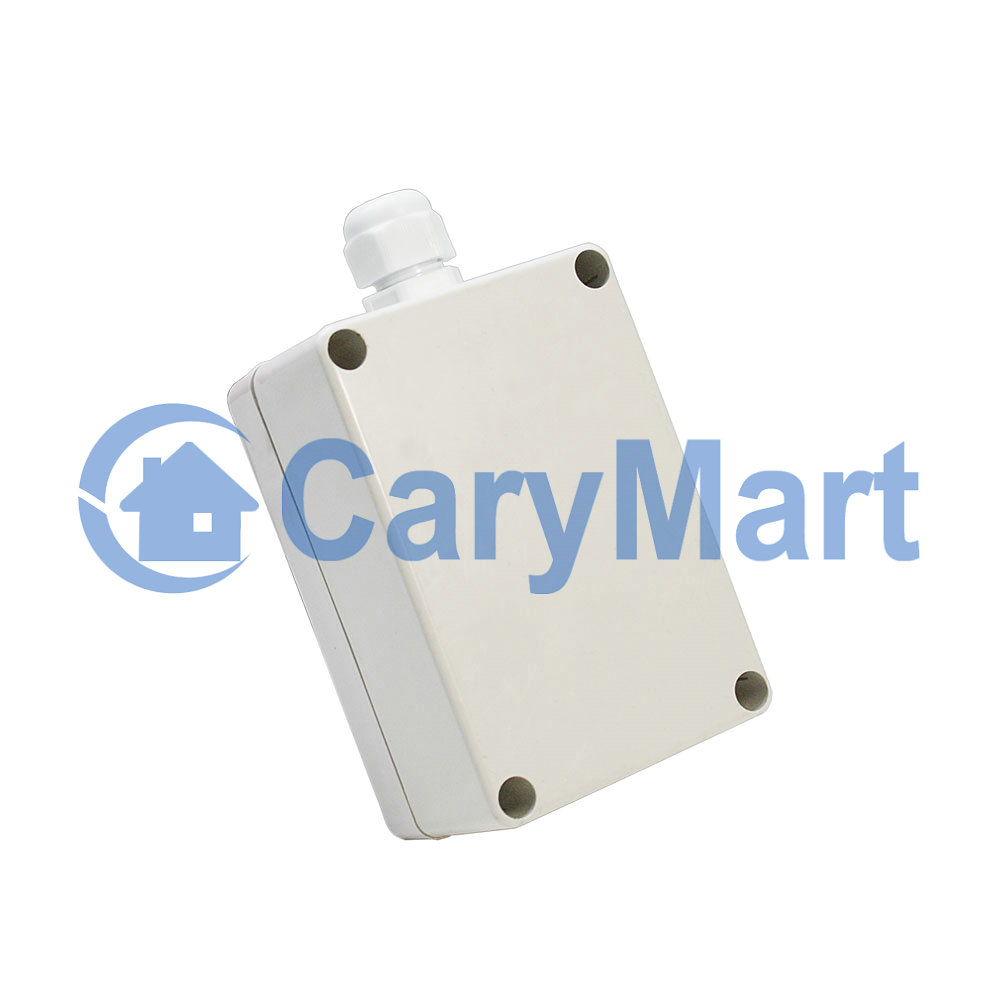

The receiver has waterproof case and waterproof connector, it can be installed
outdoors.
DC Power
Output: It can control DC equipment with voltage DC 6V / 9V / 12V / 24V.
High
Power: Each channel can work at maximum current 30A, such as 360W/12V, 180W/6V,
270W/9V, 720W/24V.
With wired control terminals:
You can connect sensors, limit switches,
manual switches or external devices to control the receiver.
Design with low-power
and high-speed CMOS technology.
You can
turn on/ off the receiver with transmitter (remote control) from any place
within a reliable distance.
Wireless RF
signal can pass through walls, floors, doors or windows.
With
reverse power protection and over current protection.
Reliable
control: The receiver only works with the transmitter which use same code.
One/several
transmitters can control one/several receivers simultaneously.
You can use
two or more units in the same place.
Receiver Parameters:
Model No.: S1PXB-DC06
/ S1PXB-DC09 / S1PXB-DC12 / S1PXB-DC24
Power Supply
(Operating Voltage): DC6V (S1PXB-DC06), DC9V±1V (S1PXB-DC09), DC12V±1V (S1PXB-DC12),
DC24V±2V (S1PXB-DC24)
Output: DC6V (S1PXB-DC06),
DC9V (S1PXB-DC09), DC12V (S1PXB-DC12), DC24V (S1PXB-DC24)
Working Frequency: 433MHz
Channel: 1CH
Control Modes: Self-locking, Momentary, Interlocking
Static Current: ≤6mA
Maximum Working
Current: 30A / each channel

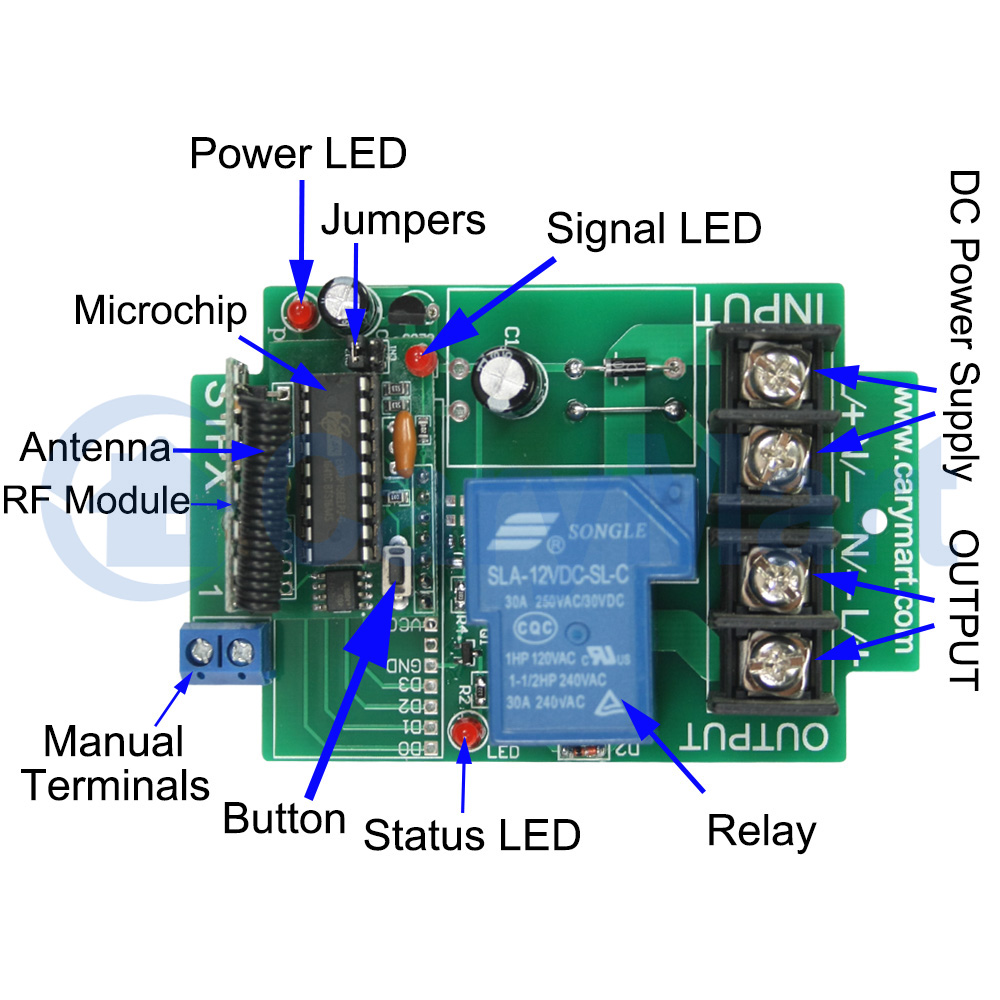

PCB size: 90mm x 59mm
x 18mm

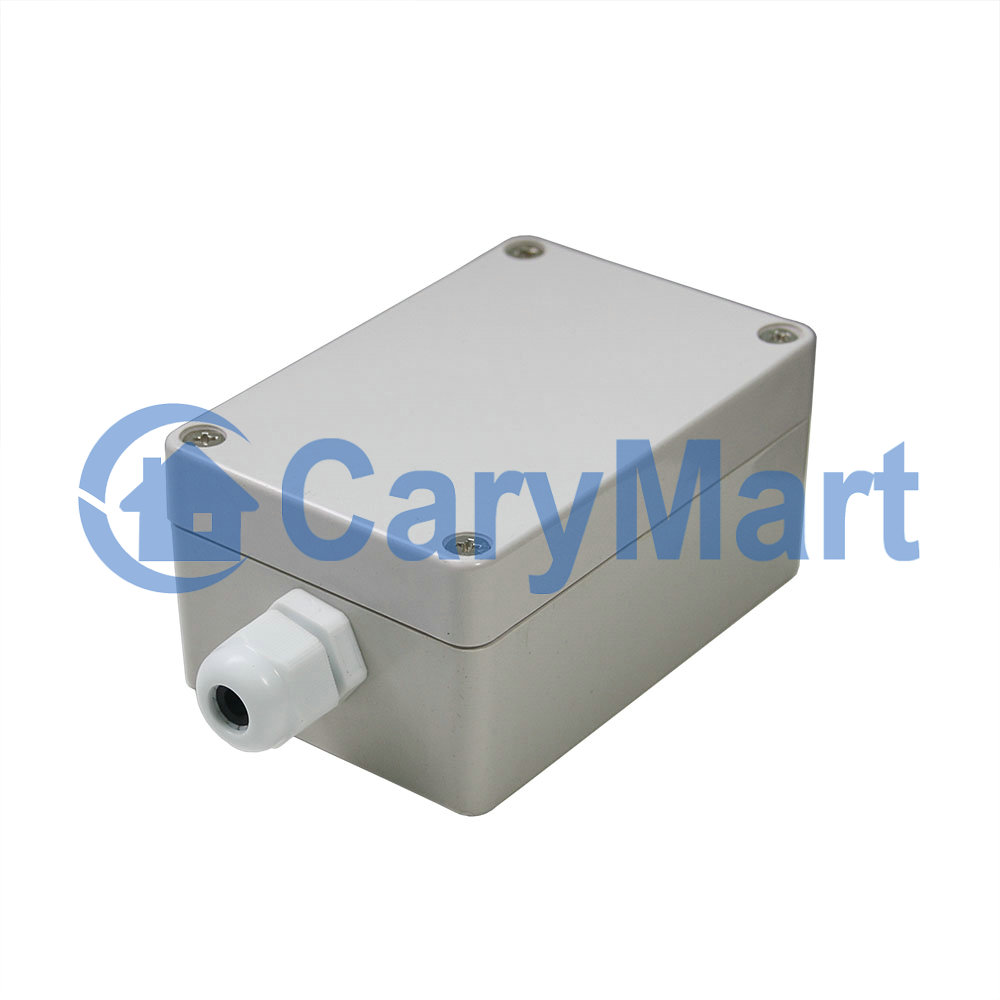

Case size: 100mm x 68mm
x 50mm
Work with Fixed code transmitters

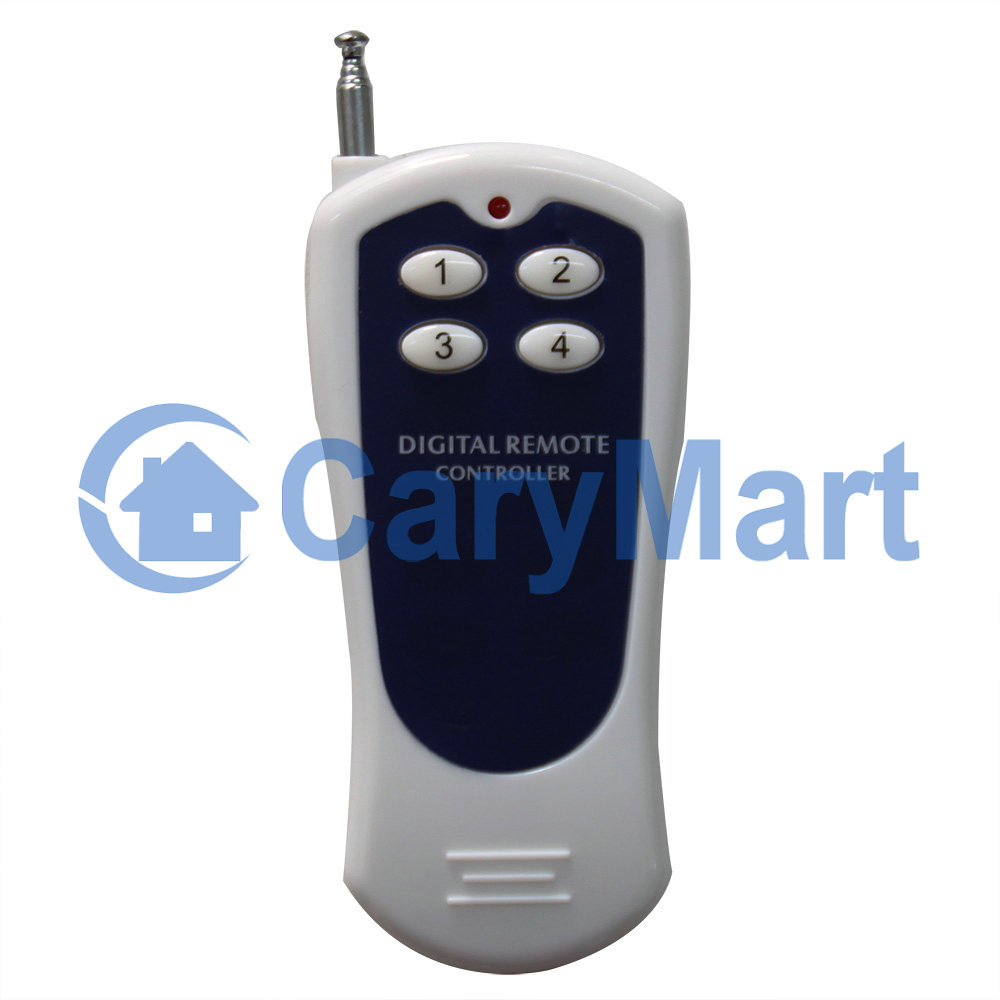

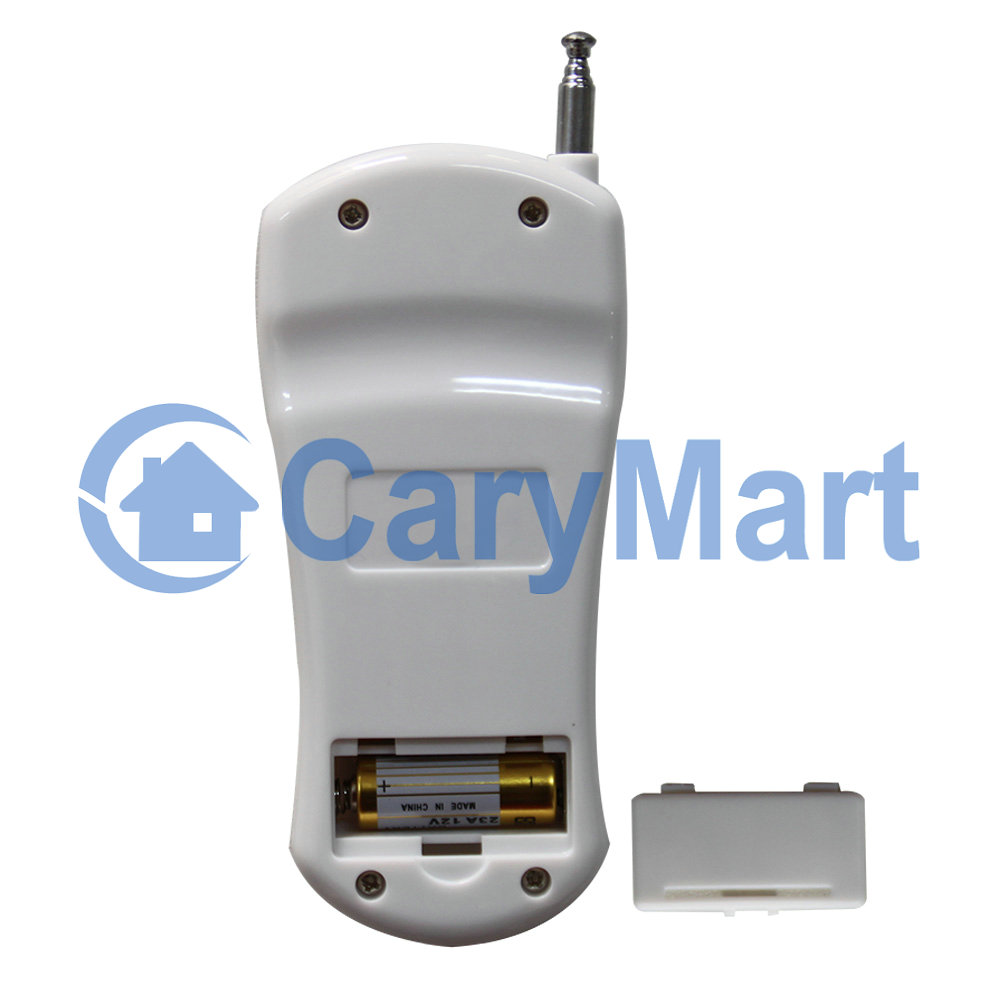

Matching Transmitters:
The receiver can work
with different transmitters, such as model C-4 (100M), CWB-4 (50M, waterproof),
CP-4 / CP-6 / CP-8 / CV-4 / CV-6 / CV-8 / CV-12 (500M), or CB-4 / CB-6
/ CB-8 / CB-12 (1000M) etc.
Working
Range:
With a transmitter (such as CV-12) to form a complete set,
the maximum working distance can reach 500M in an open ground.
The maximum working
distance is a theoretical data, it shall be operated in an open ground, no
barriers, no any interference. But in the practice, it will be hindered by
trees, walls or other constructions, and will be interfered by other wireless signals.
Therefore, the actual distance may not reach this maximum
working distance.
If you
want to have a further working range, you can install an external antenna to
the receiver, and you also can use a powerful
transmitter, such as CB series transmitters.
Usage:
The receiver can be used to control DC 6V / 9V /
12V / 24V equipments. If the power
supply of those equipments is DC 12V, you should choose the receiver with same
DC 12V version; and if the power supply of those equipments is DC 24V, you
should choose the receiver with same DC 24V version.

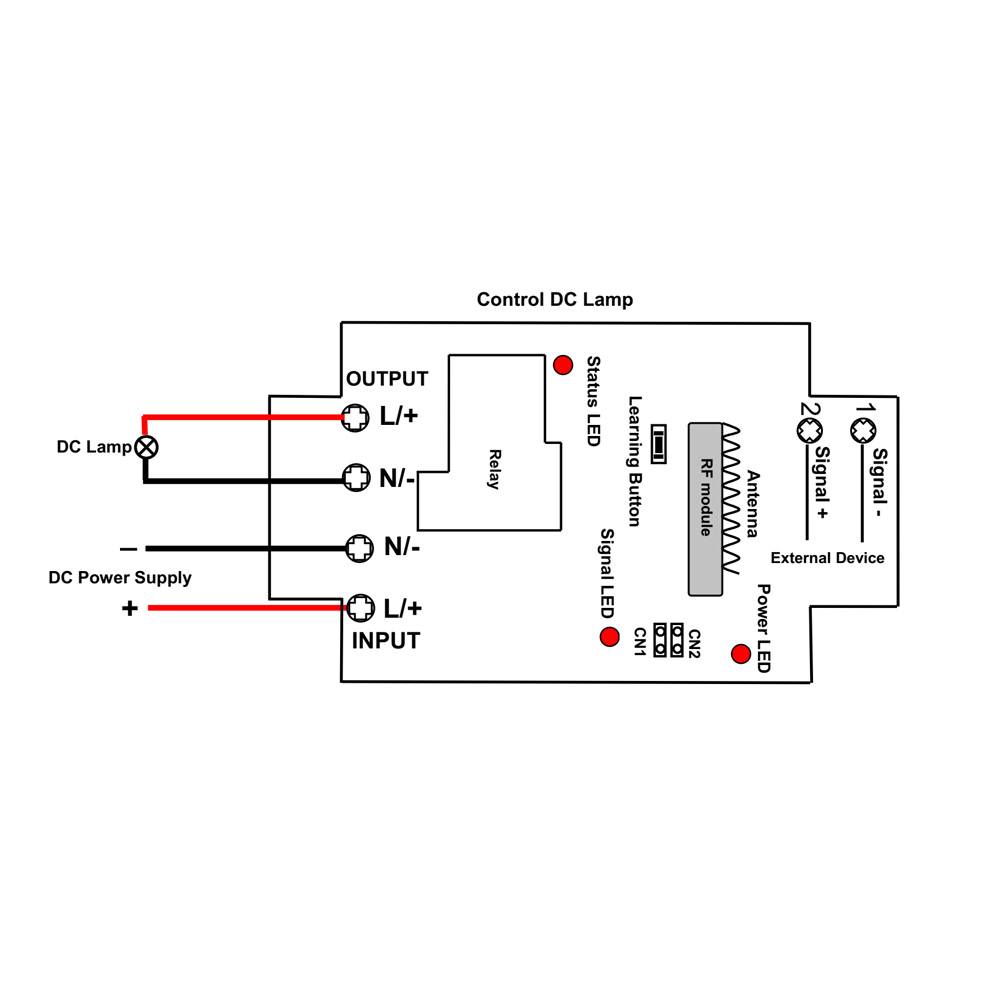

Wiring:
If you want to control a DC 12V lamp, do as following:
1) Connect the positive pole of DC power supply to terminal “L / +” of
INPUT, and connect the negative pole of DC power supply to terminal “N / -” of
INPUT.
2) Connect the
positive pole of lamp to
terminal "L / +" of
OUTPUT, and connect the negative pole of
lamp to terminal "N / -"
of OUTPUT.
Setting different control modes：
Setting
different control modes (We have set the receiver as Self-locking control mode before
delivery. If you want to use other control modes, do as following operation):
Setting
control mode Self-locking: Only connect Jumper-2.
Control
mode Self-locking (with transmitter CV-12): Press -> On; Press again -> Off.
Press button
1 of the transmitter: Output terminal of the receiver 1 outputs DC power, the
lamp 1 is on.
Press button
1 again: Output terminal of the receiver 1 stops outputting, the lamp 1 is off.
…
Press button
12 of the transmitter: Output terminal of the receiver 12 outputs DC power, the
lamp 12 is on.
Press button
12 again: Output terminal of the receiver 12 stops outputting, the lamp 12 is
off.
Setting
control mode Momentary: Only connect Jumper-1.
Control
mode Momentary (with transmitter
CV-12): Press and hold -> On; Release -> Off.
Press and
hold button 1 of the transmitter: Output terminal of the receiver 1 outputs DC
power, the lamp 1 is on.
Release
button 1 of the transmitter: Output terminal of the receiver 1 stops
outputting, the lamp 1 is off.
…
Press and
hold button 12 of the transmitter: Output terminal of the receiver 12 outputs
DC power, the lamp 12 is on.
Release
button 12 of the transmitter: Output terminal of the receiver 12 stops
outputting, the lamp 12 is off.
Setting
control mode Interlocking: Do not connect Jumper-1 and Jumper-2.
Control
mode Interlocking (with transmitter CV-12): Press -> On, Press another button
-> Off.
Press button
1 of the transmitter: Output terminal of the receiver 1 outputs DC power, the
lamp 1 is on.
Press other
button of the transmitter: Output terminal of the receiver 1 stops outputting,
the lamp 1 is off.
…
Press button
12 of the transmitter: Output terminal of the receiver 12 outputs DC power, the
lamp 12 is on.
Press other
button of the transmitter: Output terminal of the receiver 12 stops outputting,
the lamp 12 is off.
Wired control terminals:
The
receiver has manual control terminals, you can connect external devices,
sensors, or manual switches to control the receiver.
1) Signal
input:
You
can connect external devices (with low level output signal) to manual terminals
1 (Signal -) and terminal 2 (Signal +), then the external device’s output
signal can control the receiver.
When
the external device outputs low level signal to manual terminal 1 and terminal
2, turn
on the relay. Output terminal outputs DC power, the lamp is on.
When the external device stops to output signal, turn off the relay. Output terminal stops outputting,
the lamp is off.
2) The
manual switches:
You
can connect manual switch to terminals 1 and 2, and then you can use this
manual switch to control the receiver.
When
connect terminals 1 and 2, turn on the relay. Output
terminal outputs DC power, the lamp is on.
And when
disconnect terminals 1 and 2, turn off the
relay. Output terminal stops outputting, the lamp is off.
