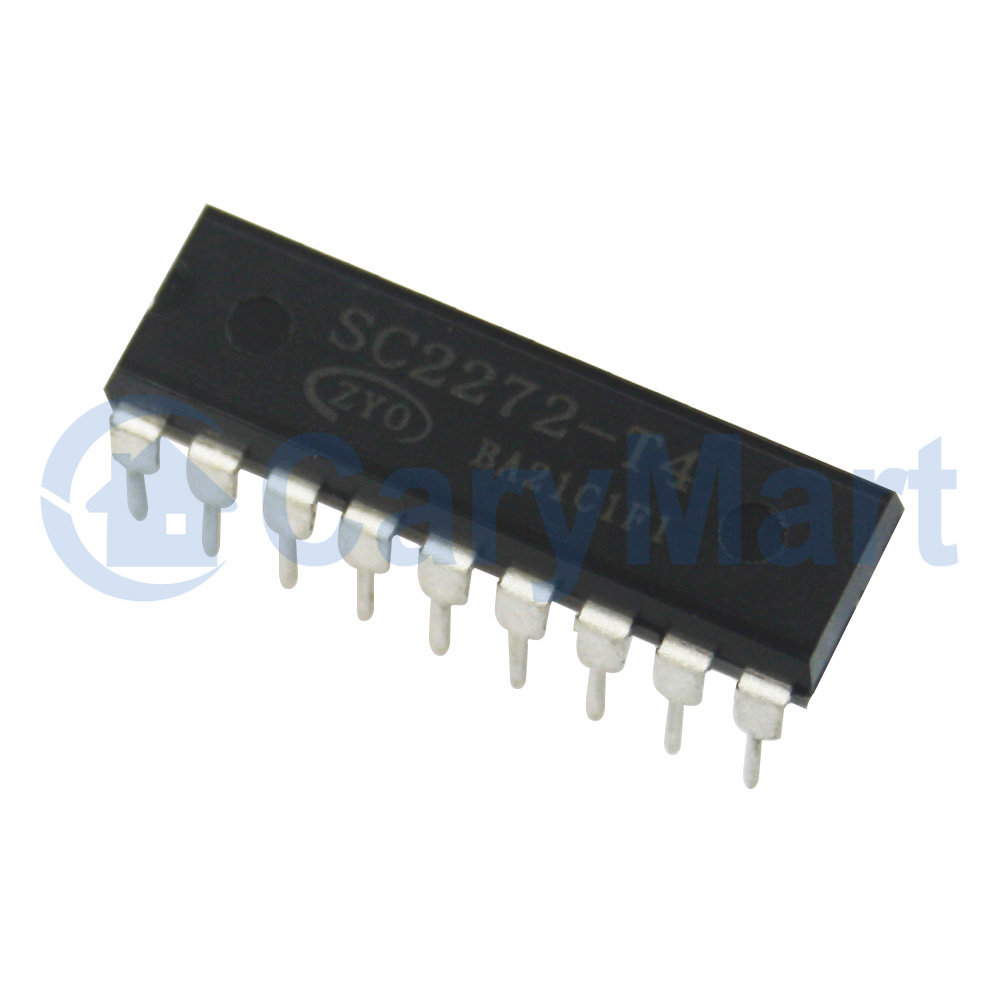

Remote Control Decoder IC: SC2272-T4

Price: US $2.00

Model: 0040017 (SC2272-T4)

Please Choose:

Qty:

Feature:

Model No.: 0040017 (SC2272-T4)
Size: 24mm x 8mm x 7.5mm
Operating voltage: DC 4~6V
Up to 12 tri-state code address pins
Up to 6 data pins
Toggle control mode
Can be used for wireless remote control receivers

Note:

A0~A7 is address pin; used for address code and can be set three states: 0, 1, 2. D0~D3 is data pin
Vcc: positive power supply
Vss: negative power supply
VT: effective recognition of decoding output
DIN: data signal input
OSC1: timing resister input
OSC2: timing resister output
