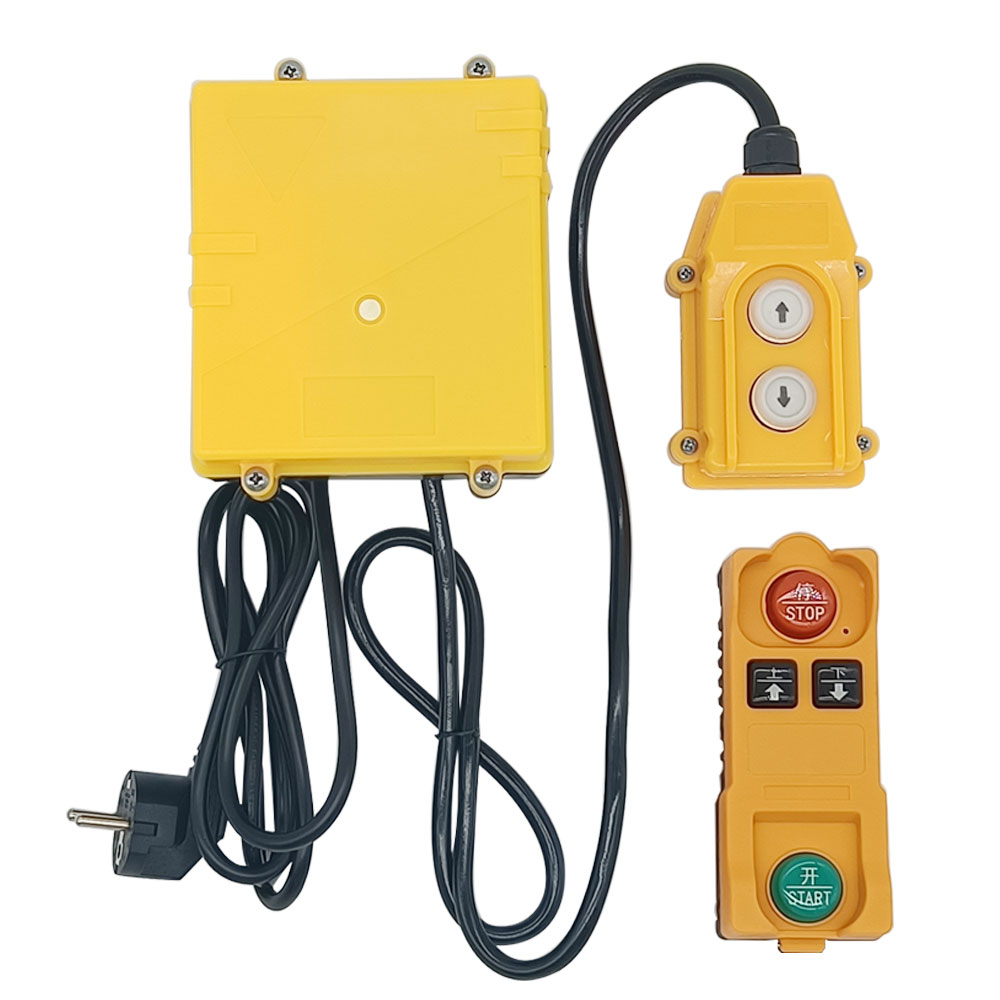

Package Include:
1 x Control box

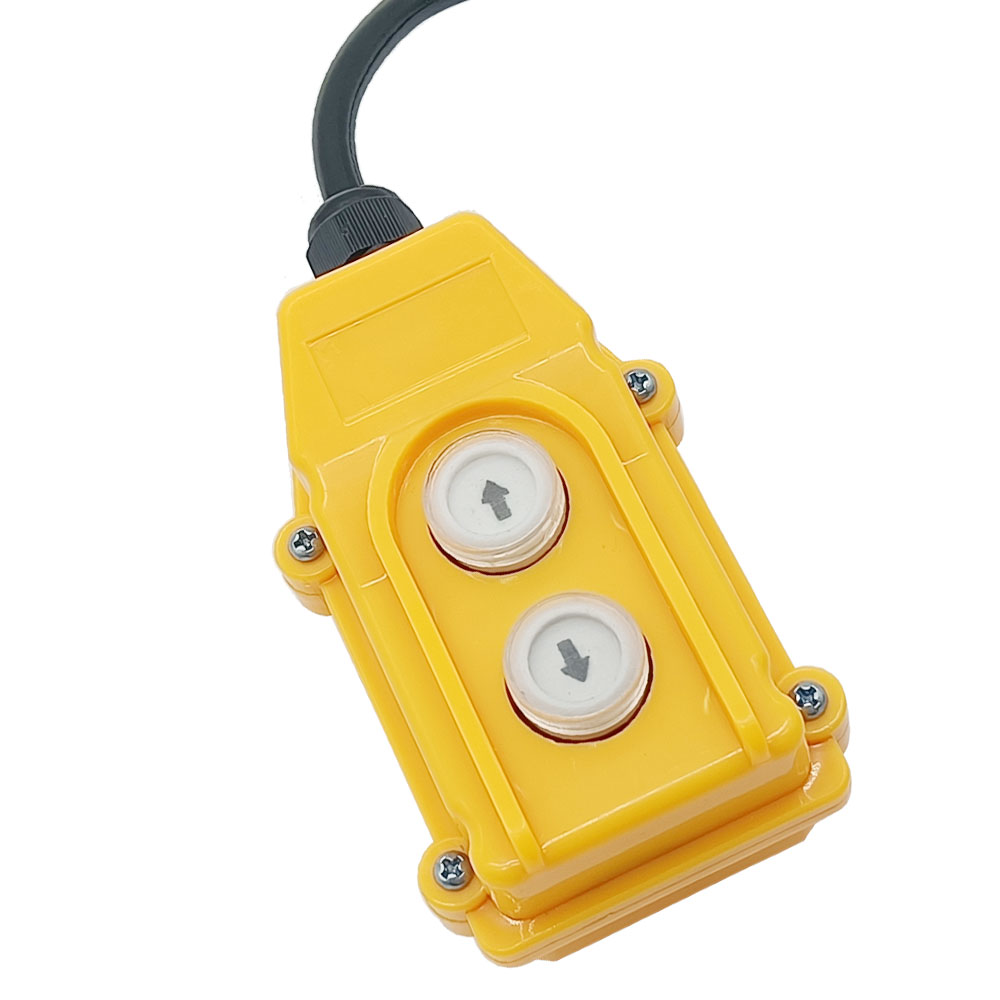

1 x Wired handle
1 x Remote control
1 x User manual
Application:

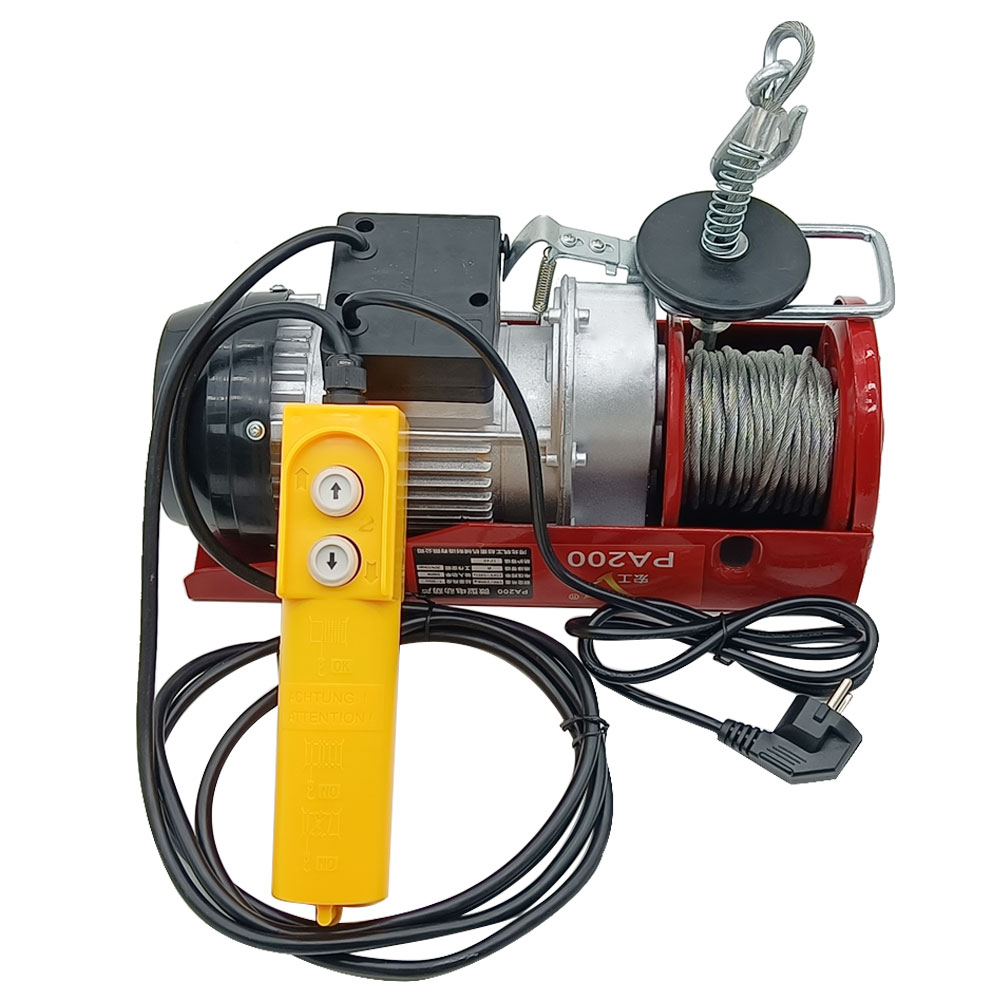

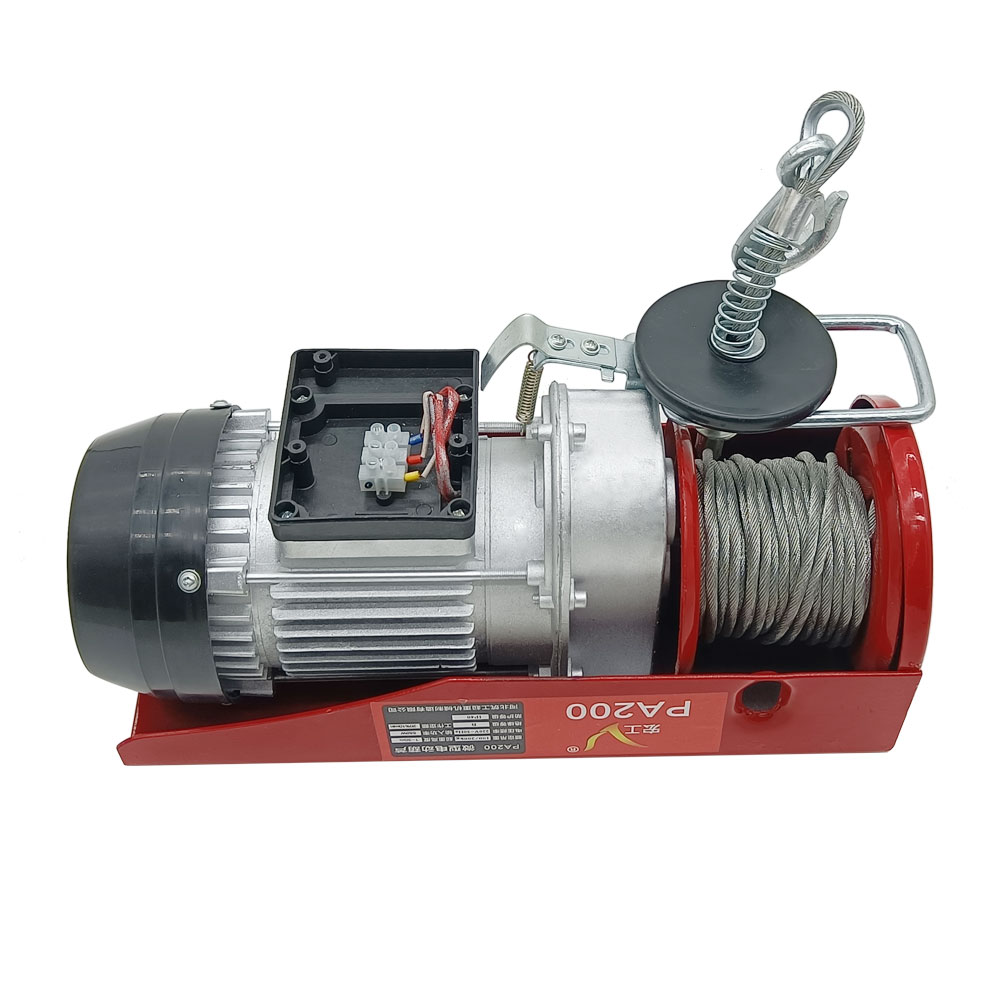

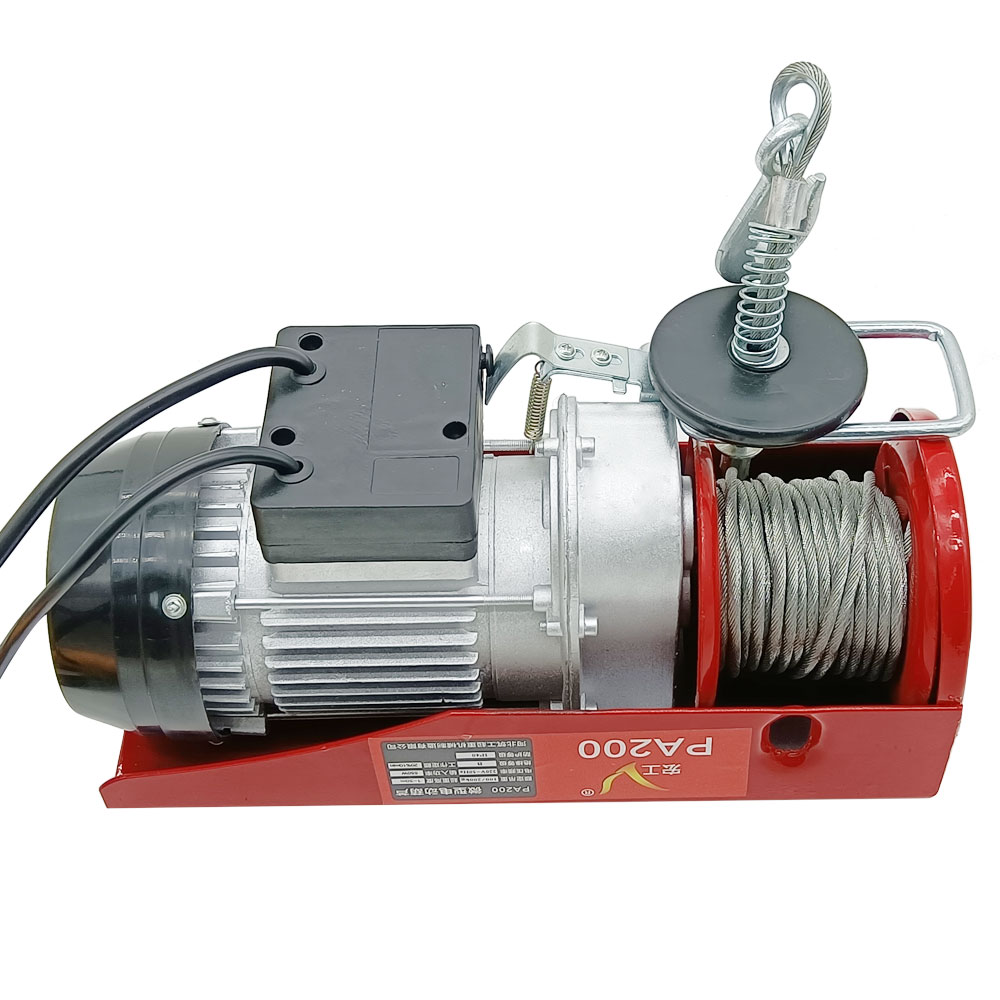

Electric hoist is a light and small lifting equipment, usually used to lift
heavy objects. The electric hoist consists of an AC motor, a transmission
mechanism, a control handle, a reel, a wire rope and a hook, and is usually
operated by a person using a wired handle on the ground. It has the
characteristics of small size, light weight, simple operation and convenient
use, and is used in households, industrial and mining enterprises, storage,
docks and other places.

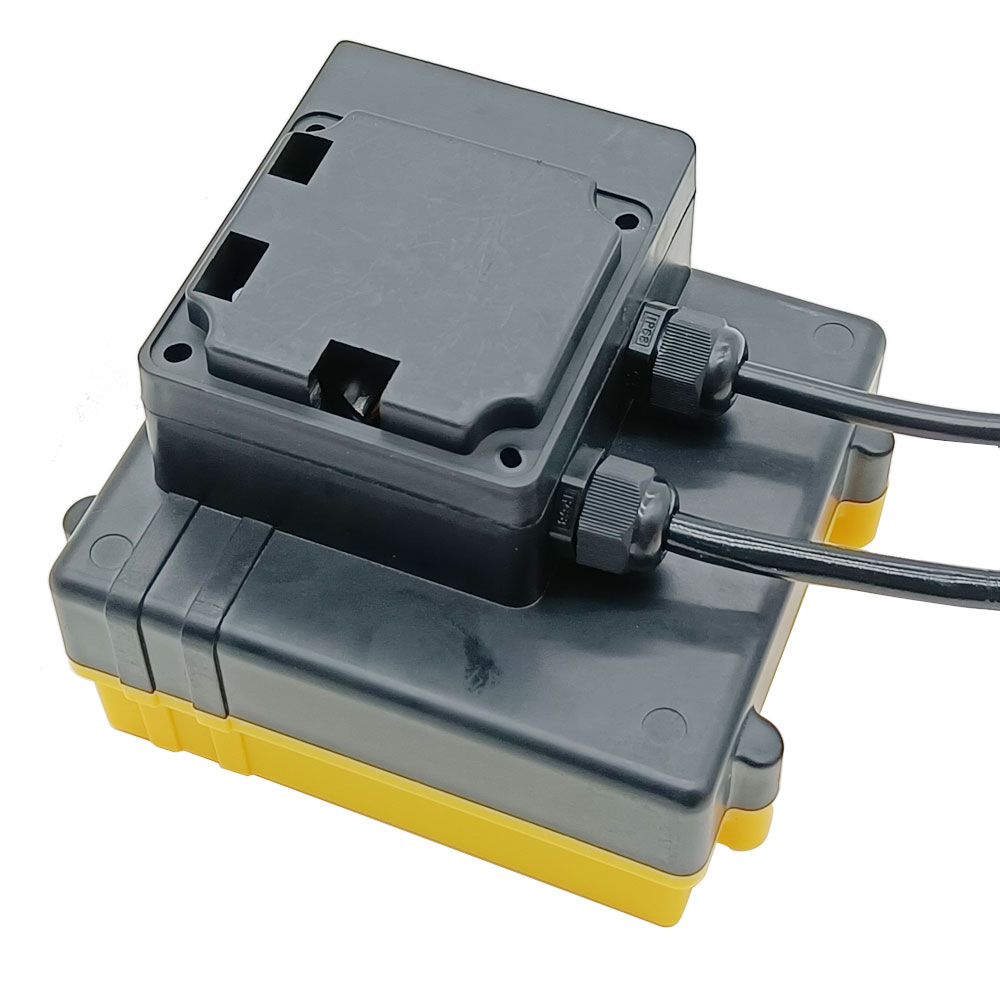

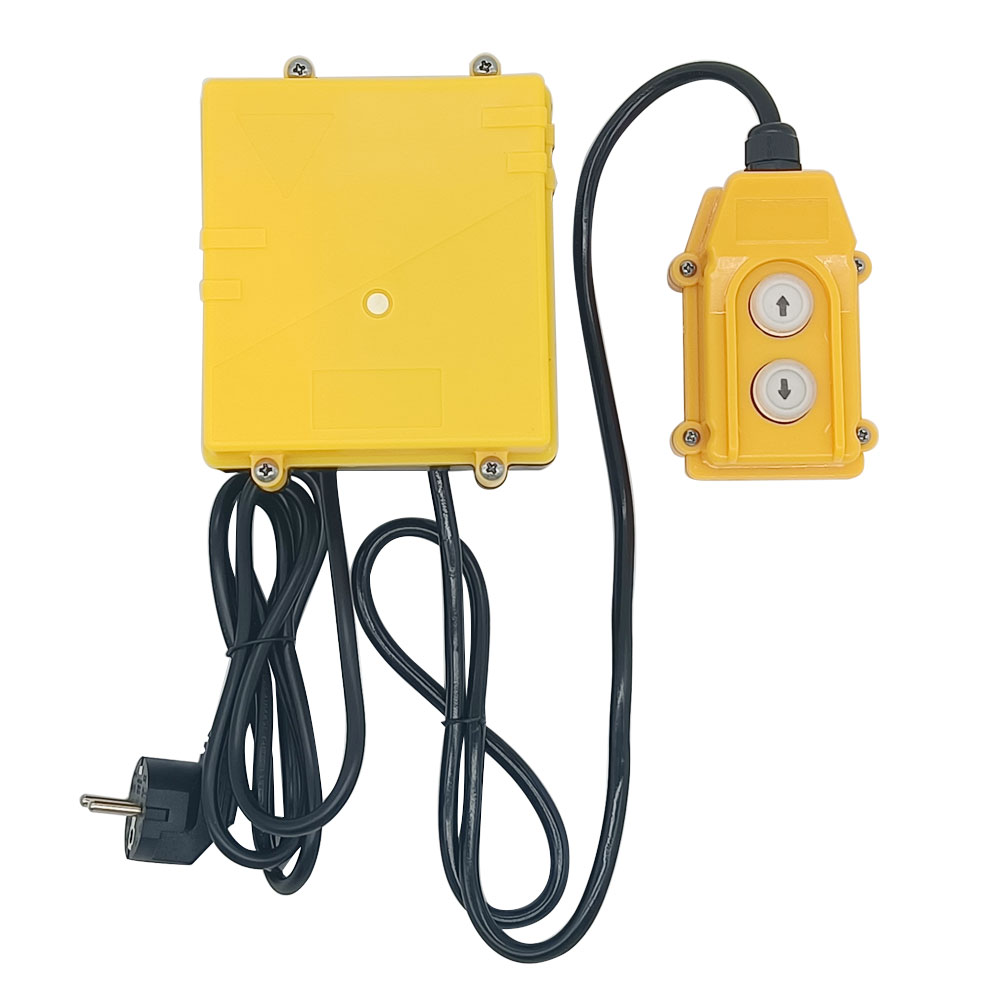

This retrofit kit consists of a control box with a wired control handle and

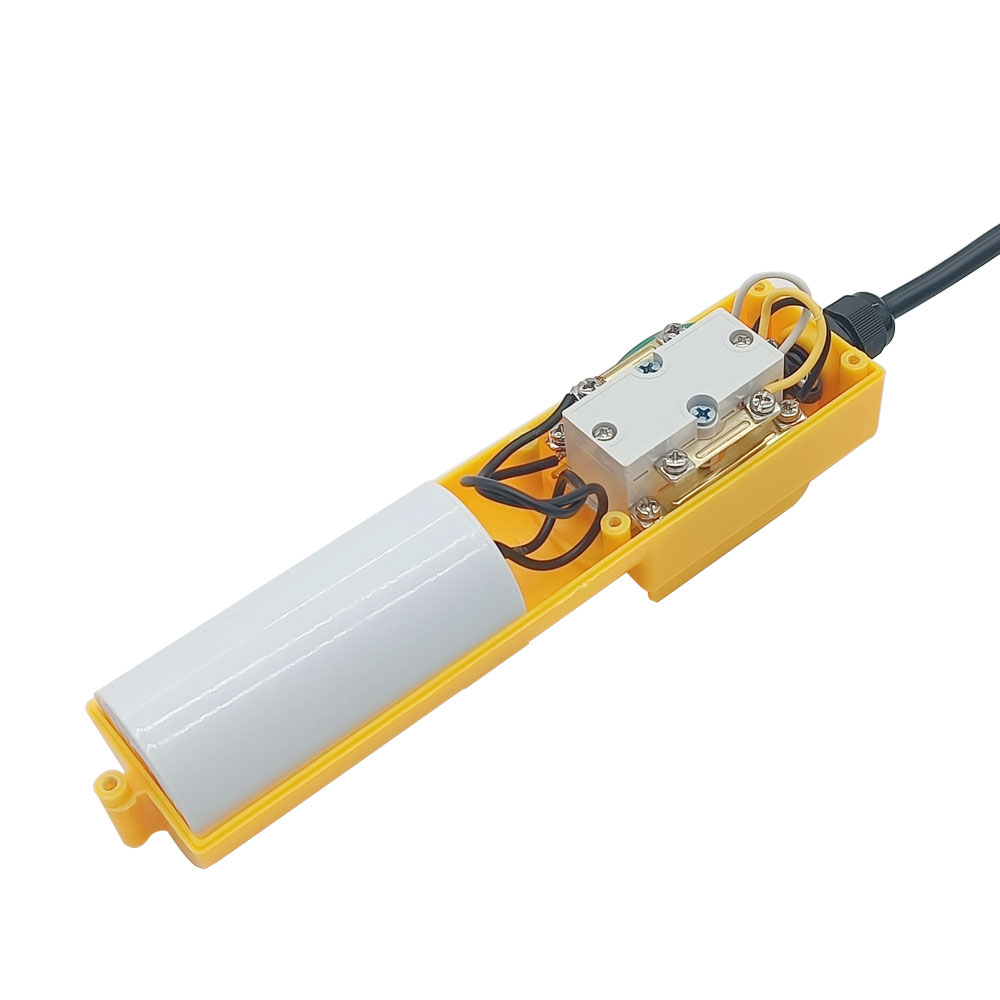

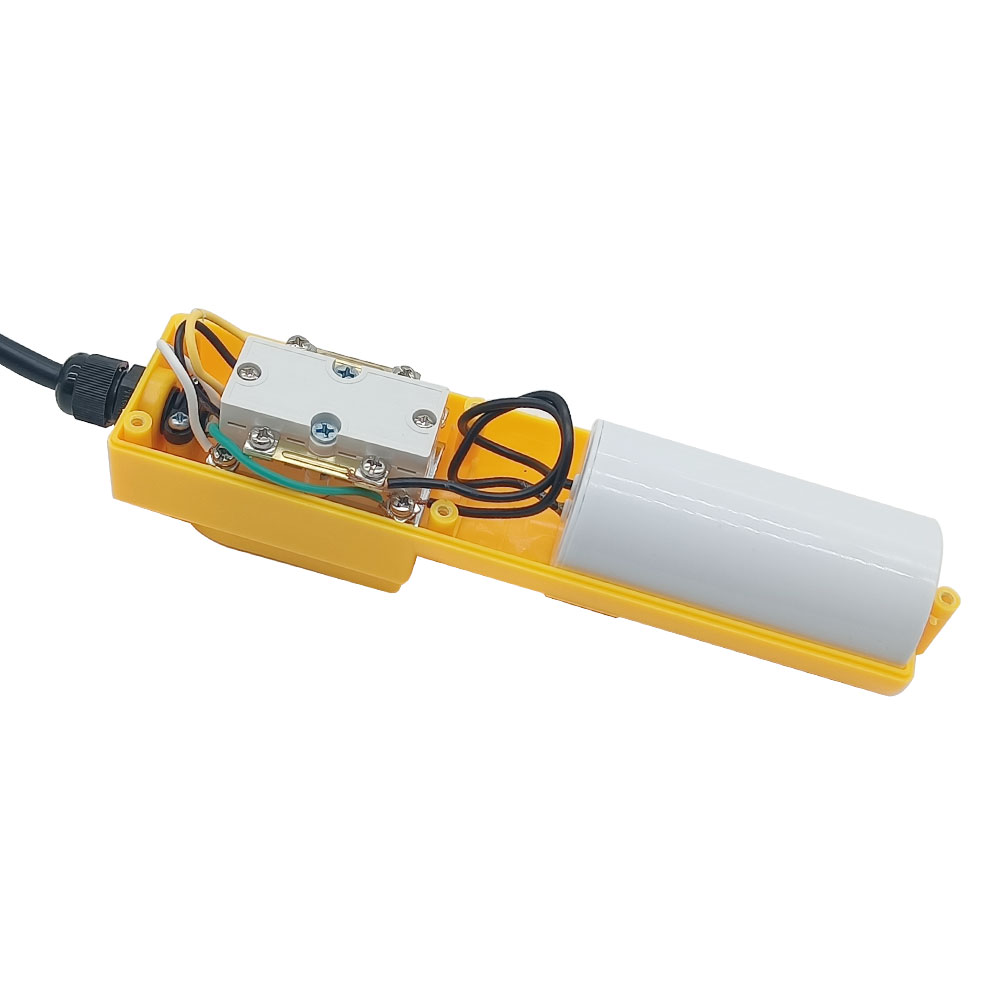

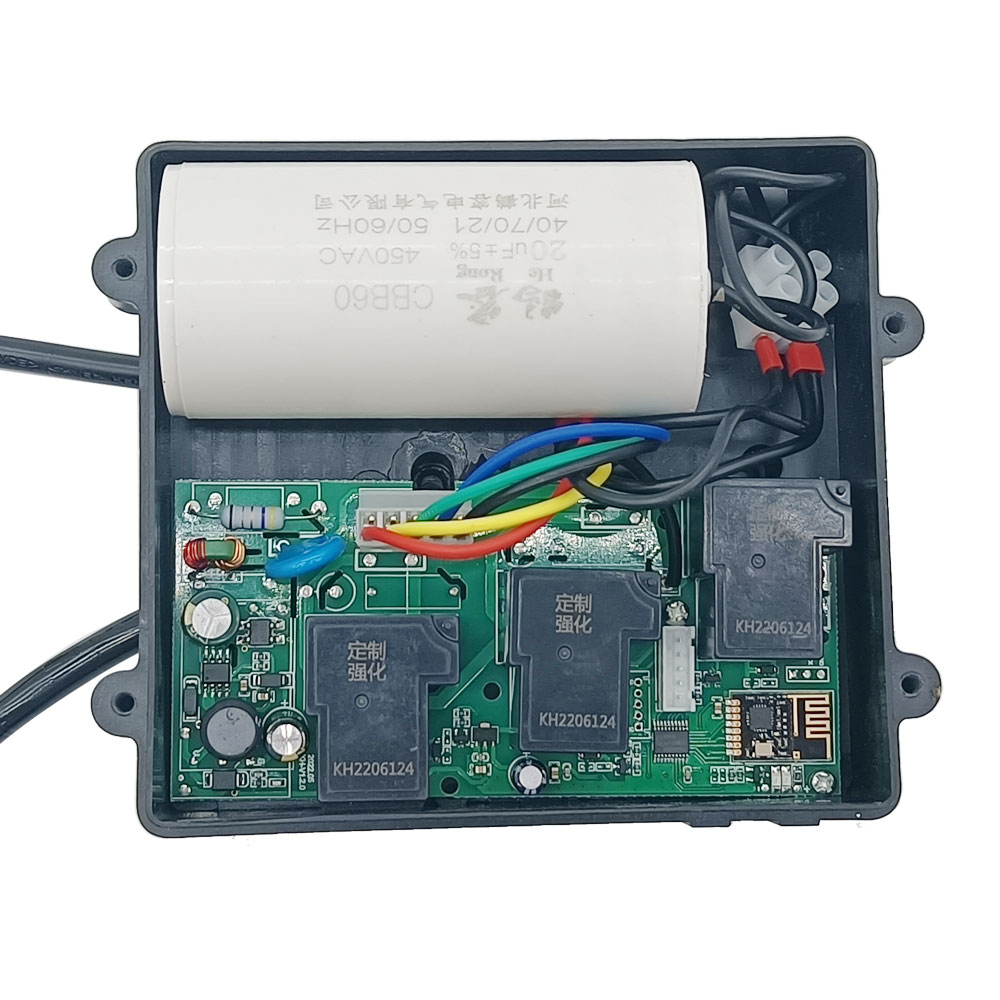

a remote. The capacitor is placed in the control box, which is also fitted
with a limit switch.

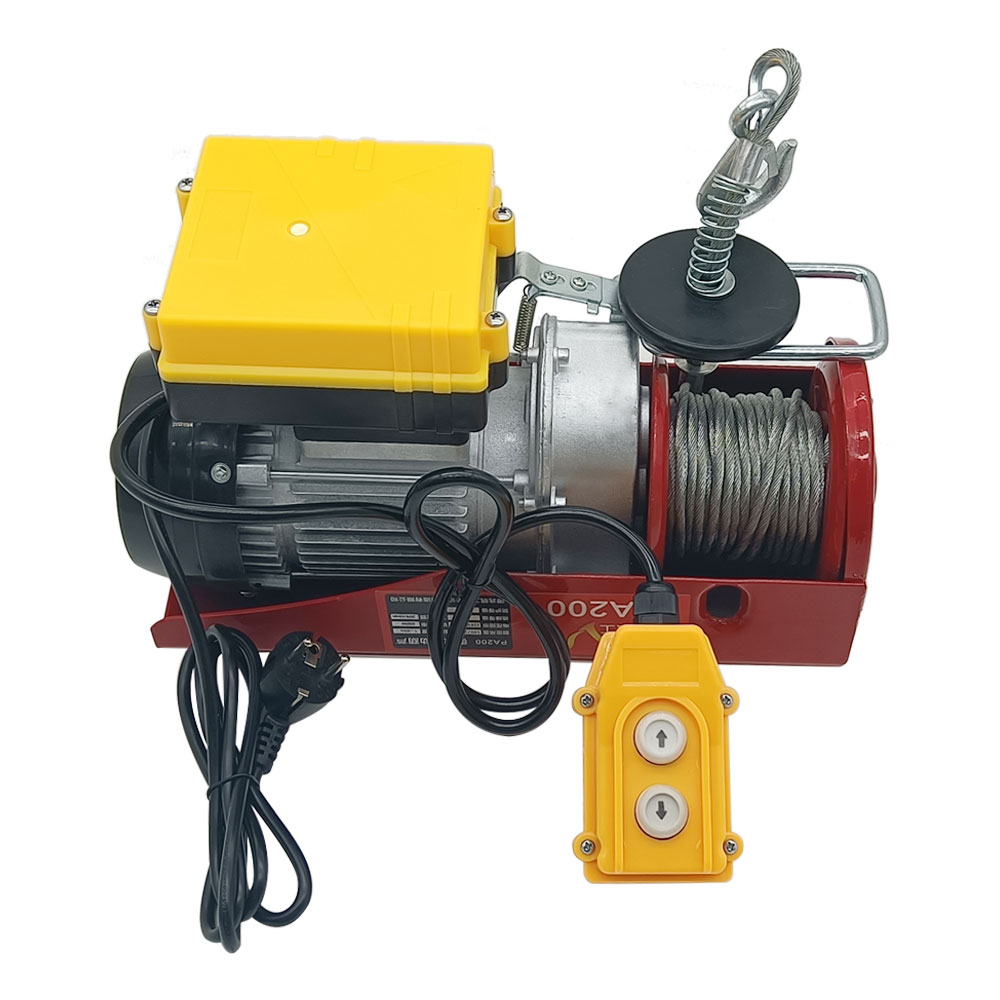

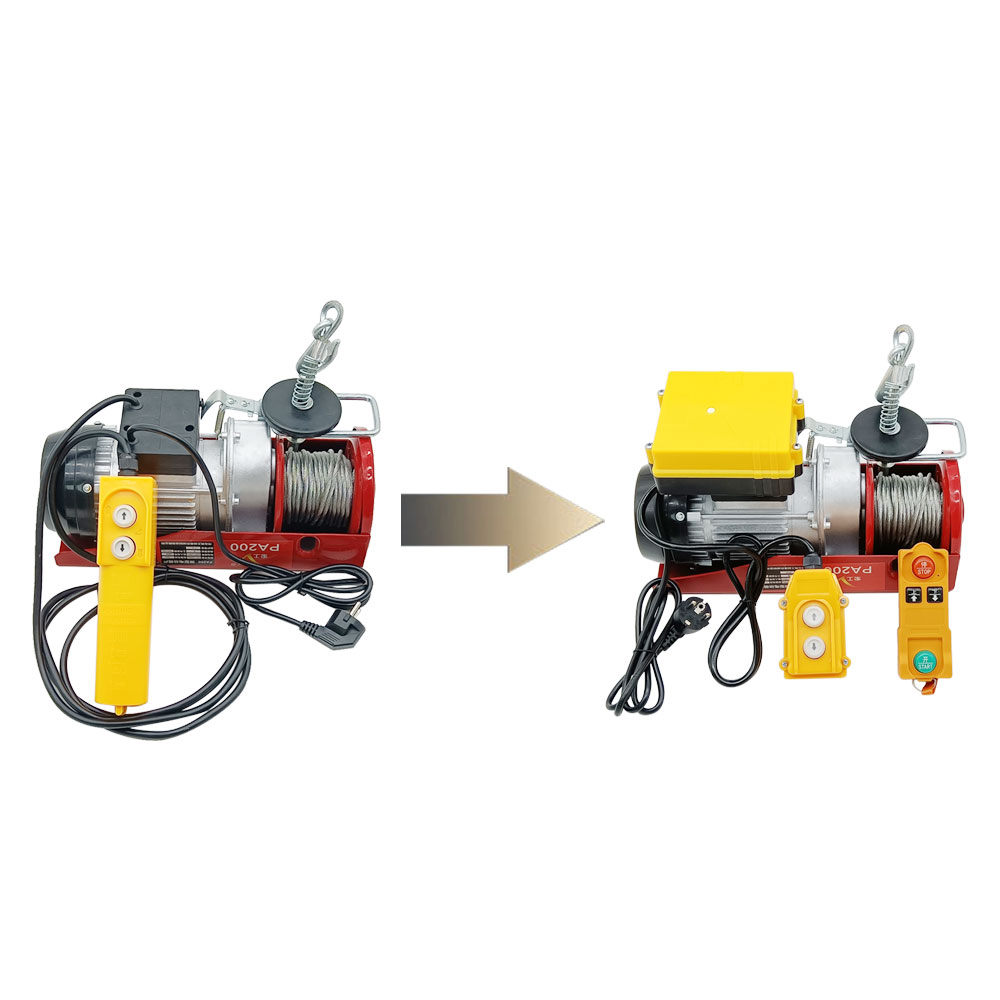

Using this wireless kit, we can retrofit the electric hoist to remote
control. In this way, we can use both the remote control and the wired
handle to operate the electric hoist, which is more convenient to use.
Feature:
Wireless control, simple wiring, easy installation.
Universal power: Support 110V AC (110V~120V) used in US, Canada, etc, and
220V AC (220V~240V) used in Germany, UK, France, etc.
Up and down dual control.
Built-in capacitors in the control box.
Stable signal, no fear of interference, strong signal can pass through the
wall, can realize 100 meters long-distance all-round remote control.
The remote uses waterproof rubber pads and IP65 grade shell, which greatly
increases the waterproof, dust-proof and drop-proof performance.
High-quality imported chips, long service life.
There is a limit switch on the control box. When the electric hoist rises to
a certain dangerous height, it will automatically stop working to improve
safety.

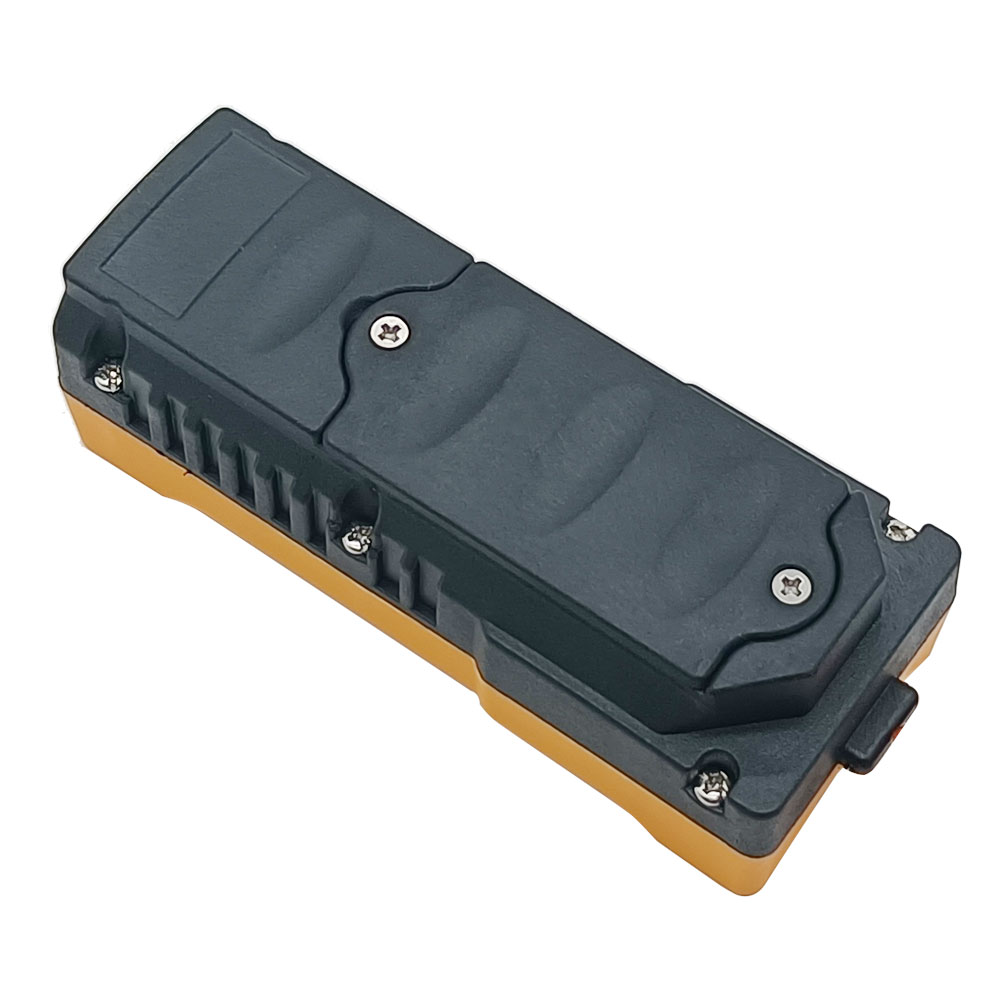

Remote control parameters:
Model: 0020802
Channel / Button: 4
Button Symbol: <START>, <STOP>, <UP>, <DOWN>
Shell: Glass fiber reinforced nylon
Control distance: 100 meters
Security code: 32 digits (4.2 billion groups), never repeat
Protection class: IP65
Transmitter power supply: 2 x AA batteries
Temperature range: -40°C~ +85°C
Weight: 200g

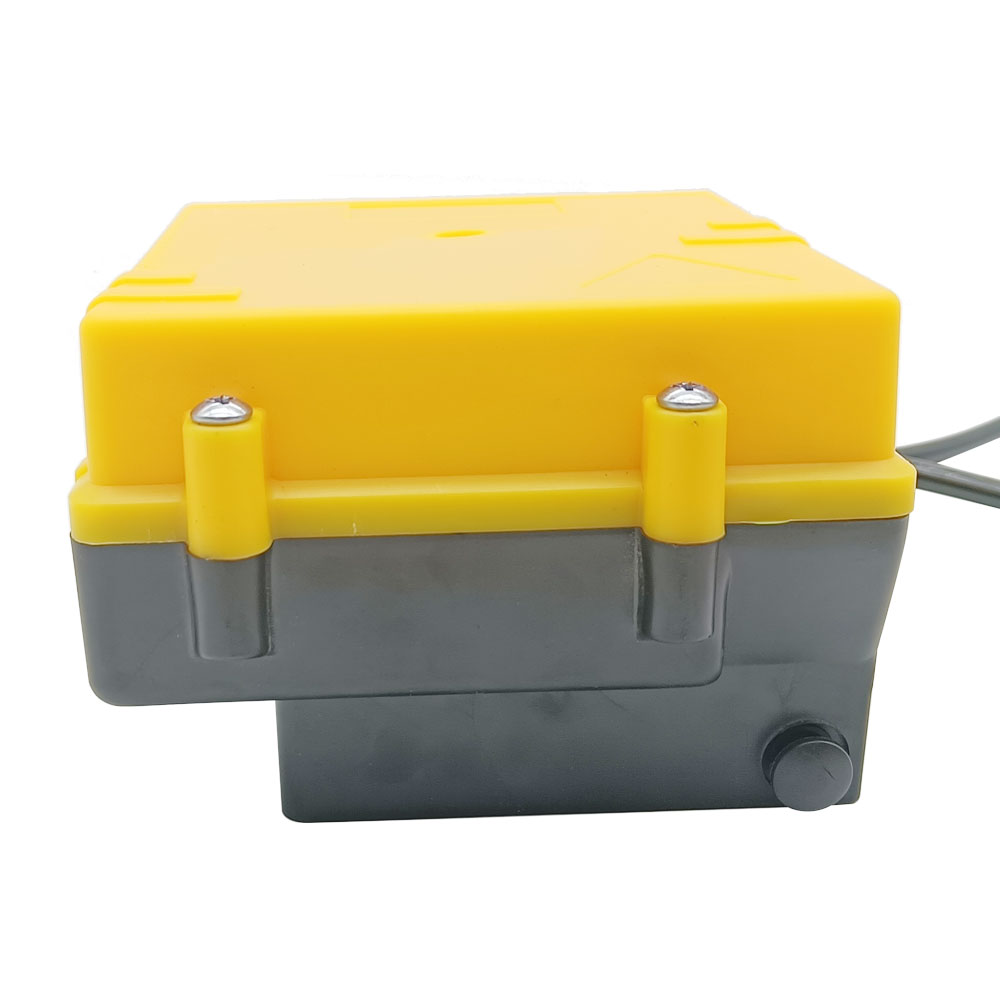

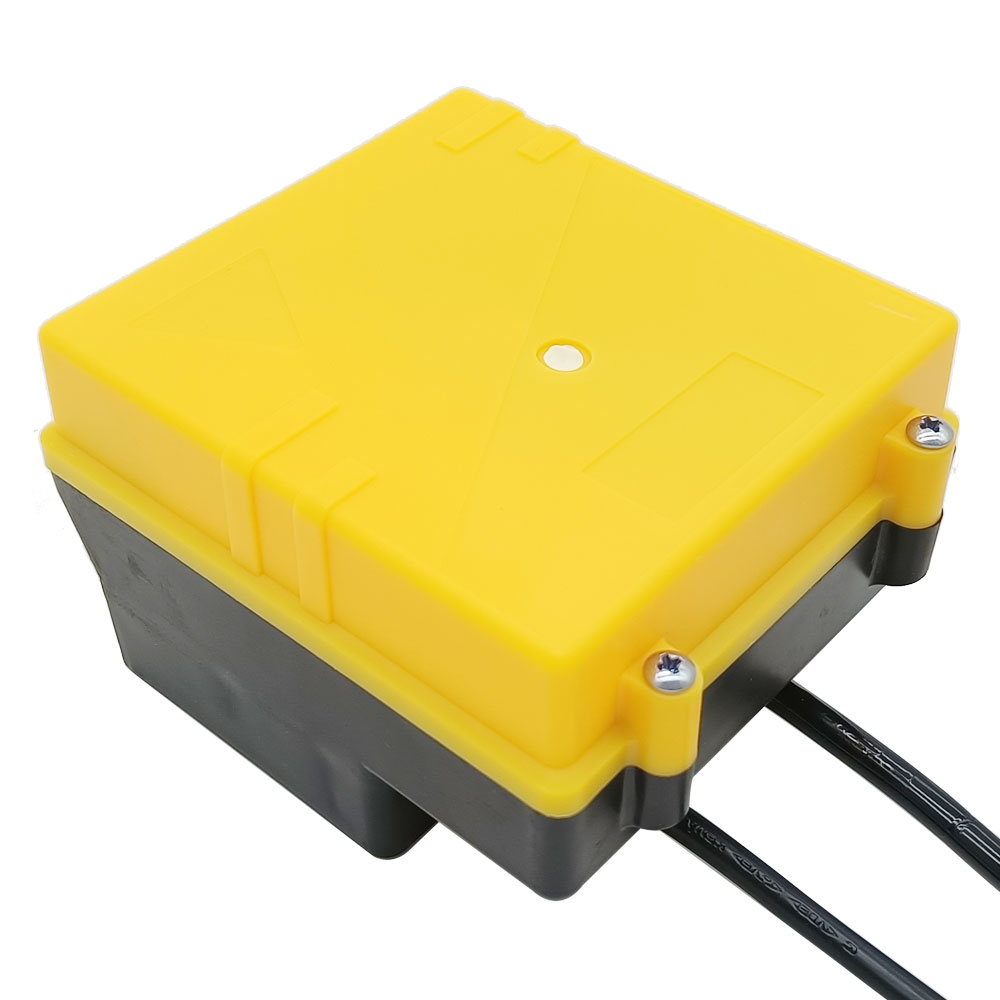

Control box parameters:
Shell: Glass fiber reinforced nylon
Frequency range: Uhf: 310-331mhz: Uhf: 446mhz
Channels: 128 (can automatically change channels to avoid co-channel
interference)
Security code: 32 digits (4.2 billion groups), never repeat
Protection class: IP65
Operating Voltage: 110~240V AC (110V/120V/220V/240V)
Temperature range: -40°C ~ +85°C
Pure copper anti-jamming antenna: stronger signal reception and superior
anti-jamming ability.
High-power 40A relay, long service life.
How to install the new control box on electric hoist:
1) Remove the cover with the connecting wire and the handle from original
junction box of the electric hoist.

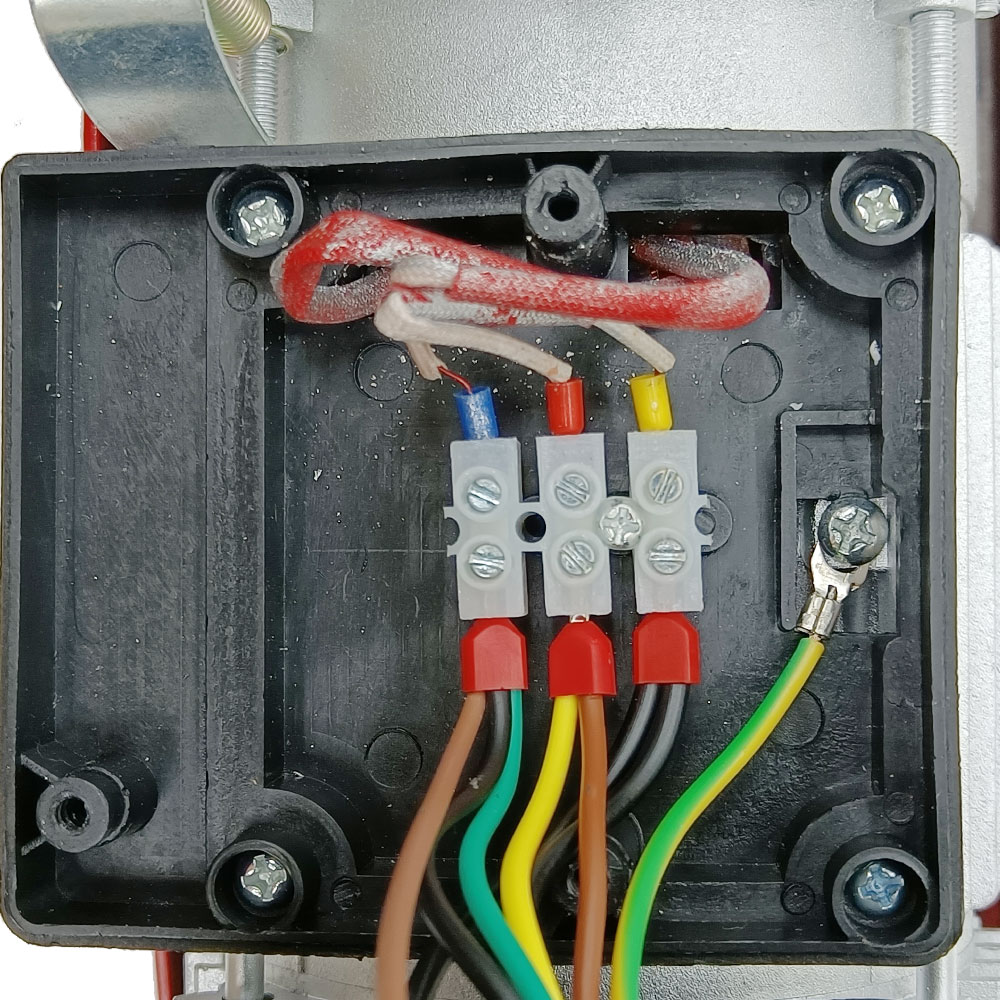

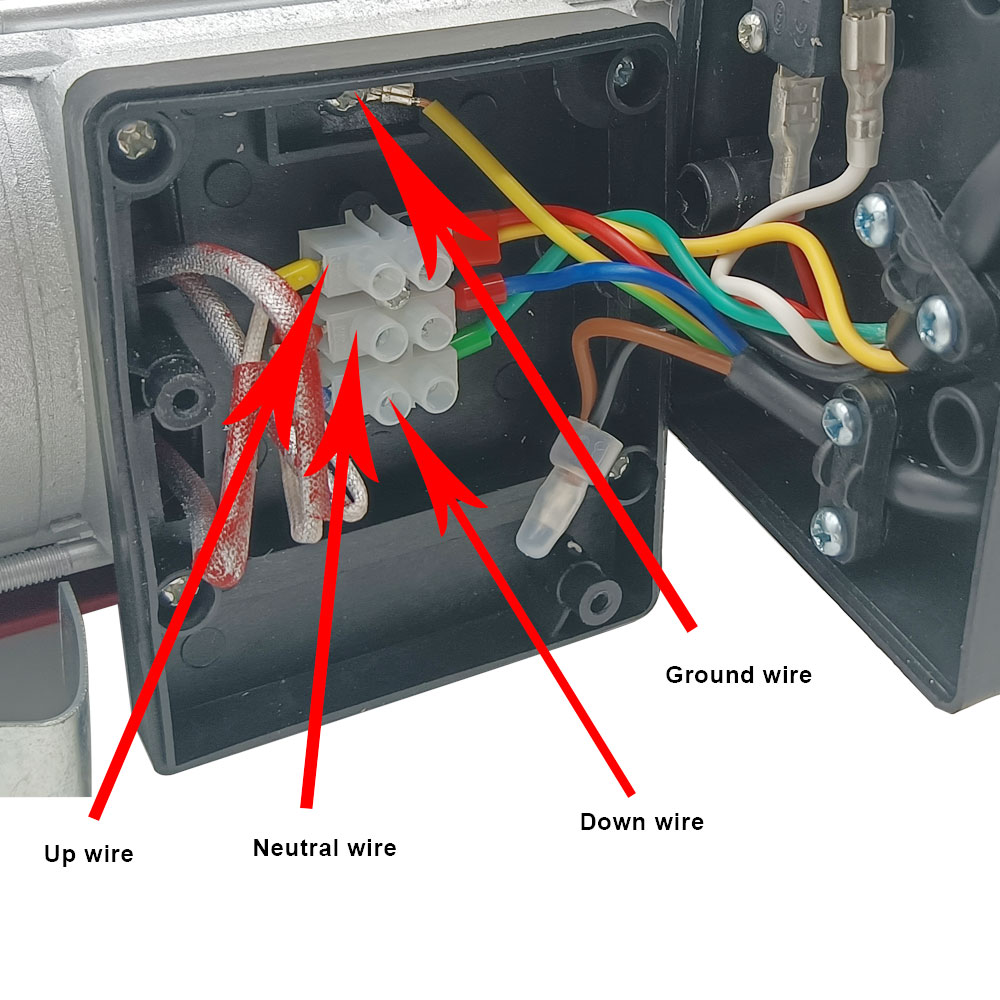

The electric hoist has a junction box, we opened the cover to see various
connecting wires and a limit switch. Three wires are connected to the motor
through a wire connector, and the other ground wire is connected to the
metal housing.
2) Install the new control box to electric hoist:

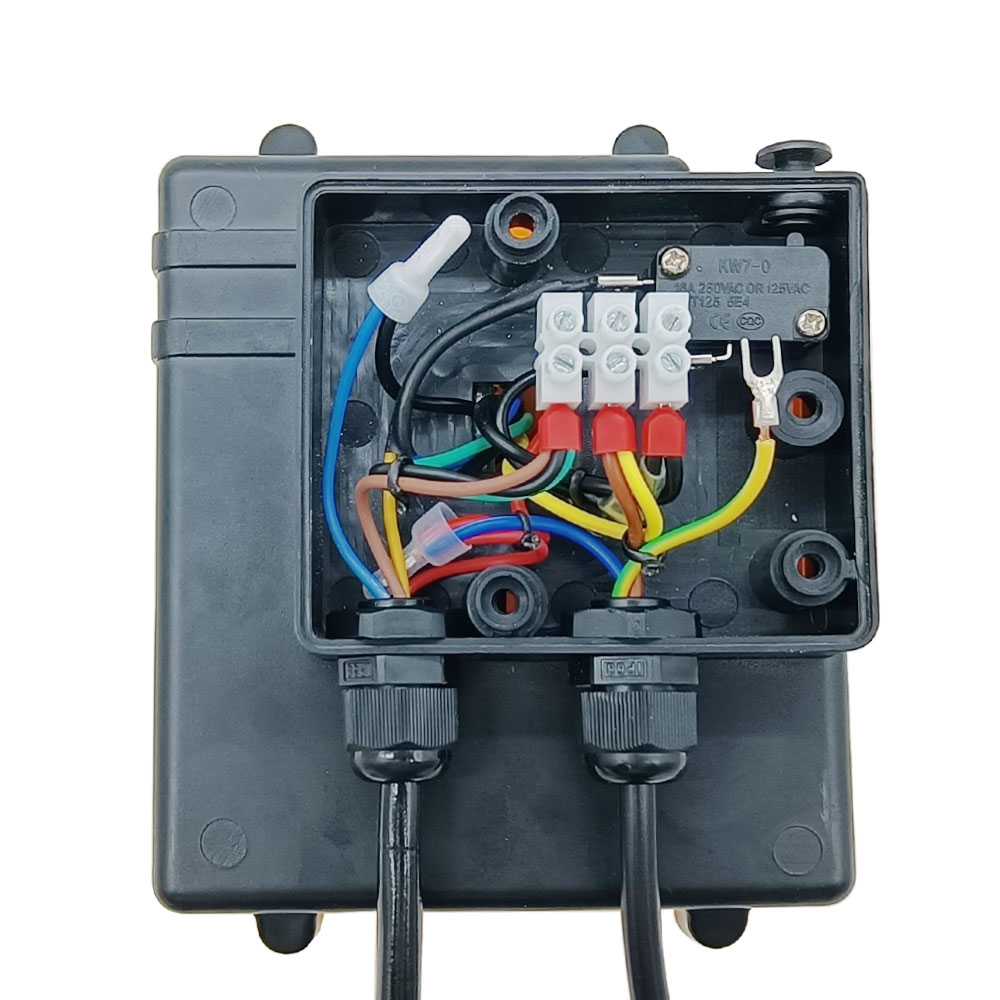

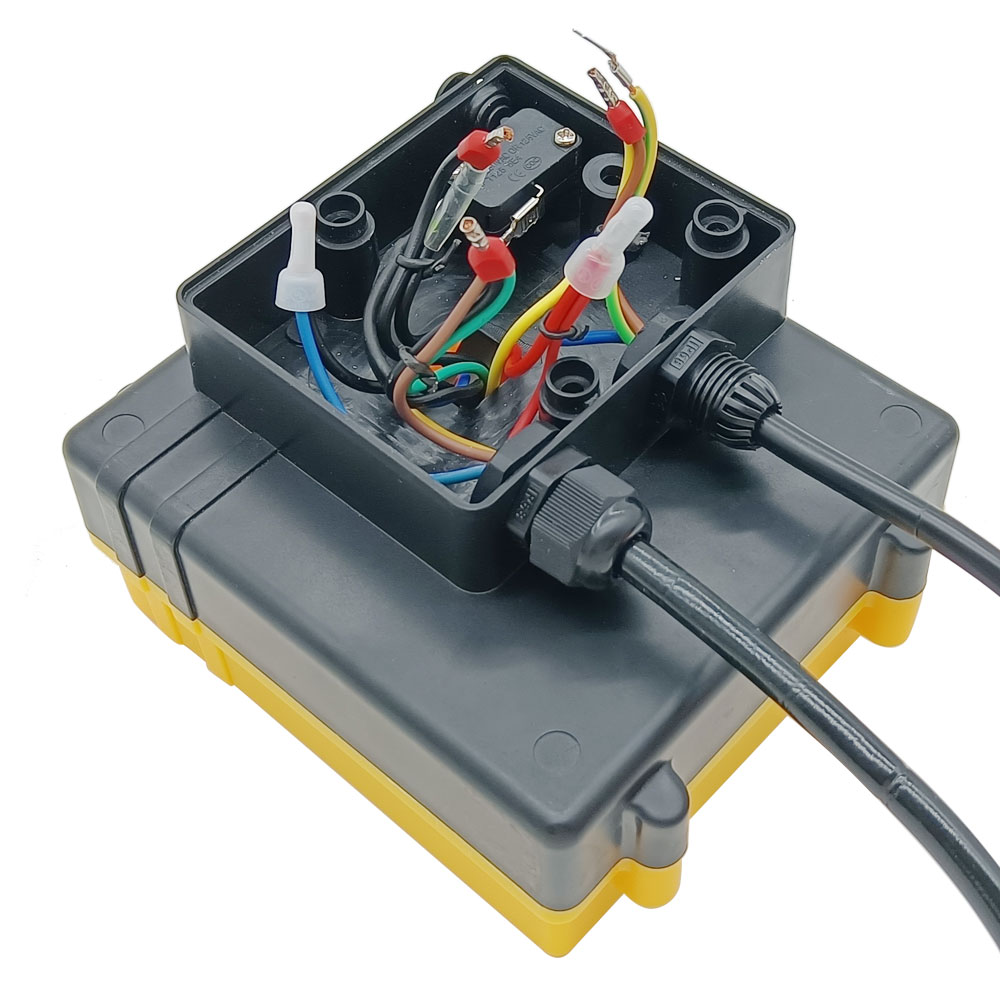

Remove the black cover of the control box, you can see some wires and a wire
connector, and you also can see a same limit switch.

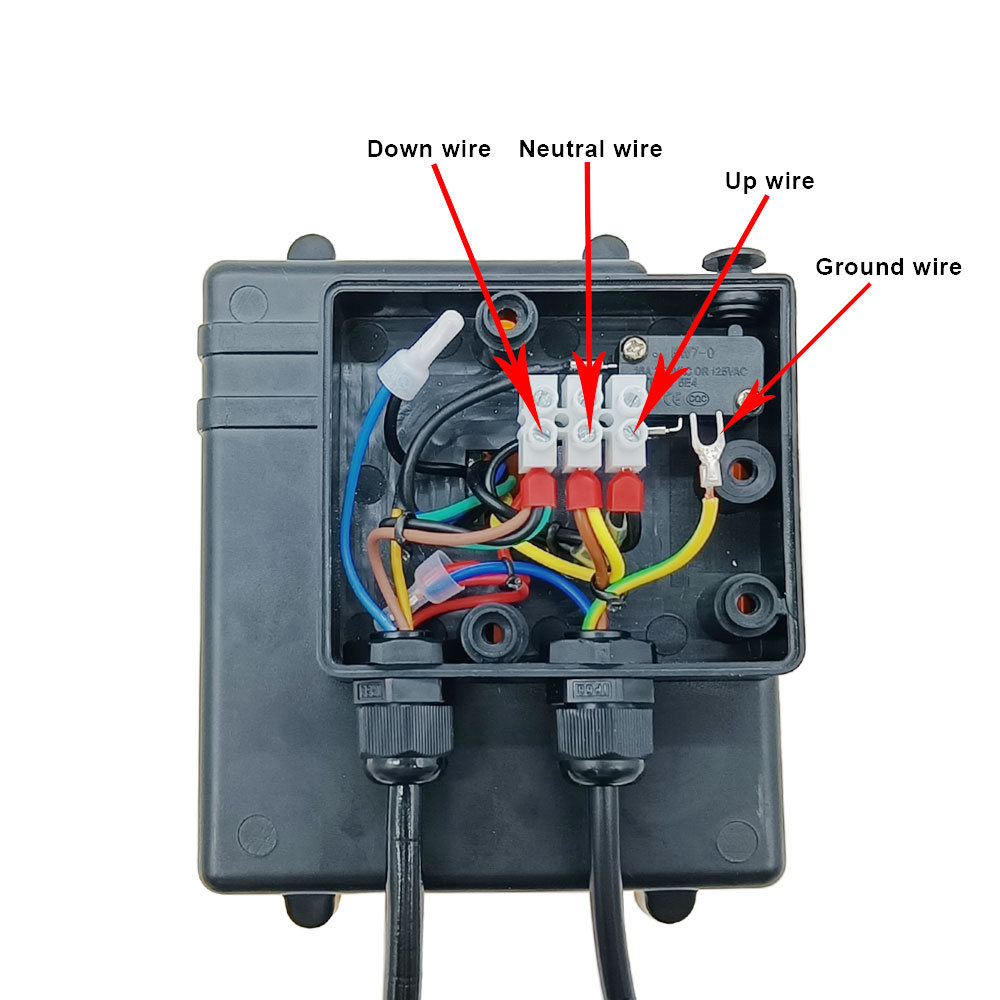

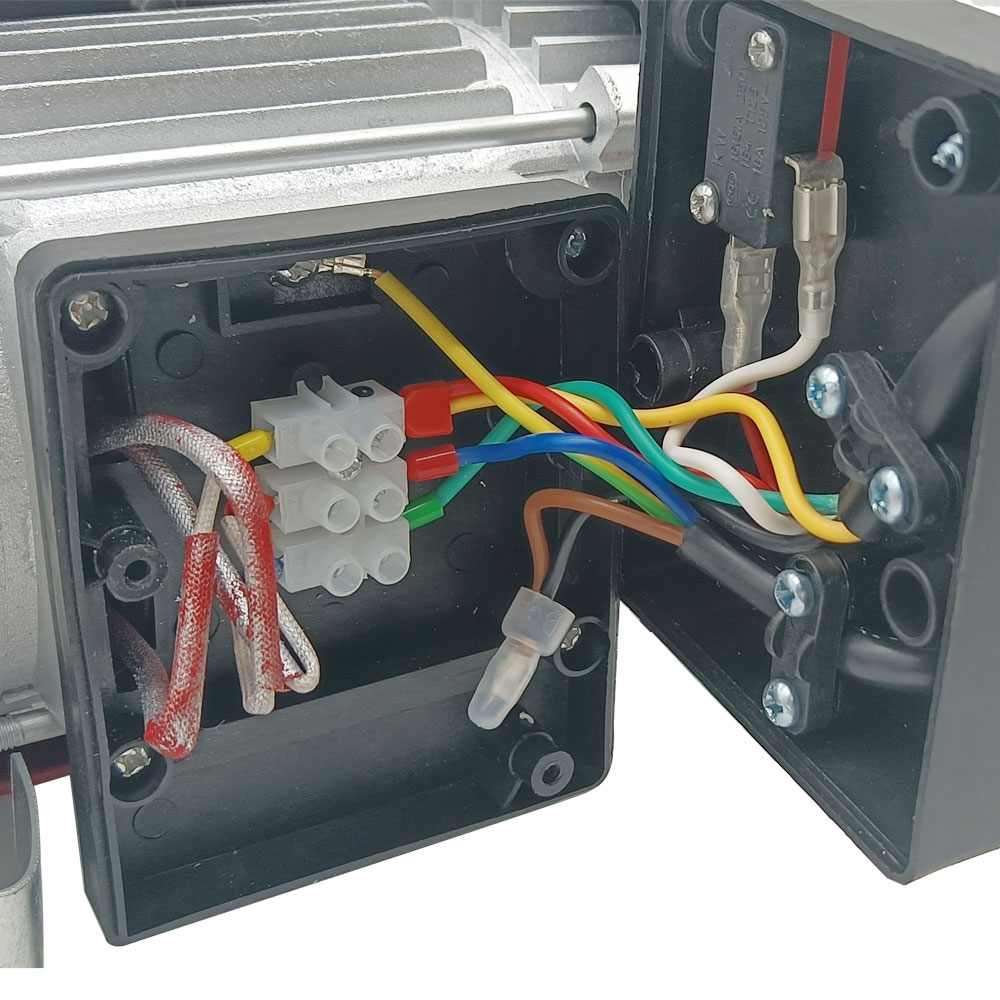

Connect the ground wire, neutral wire, up wire and down wire of this new
control box to the ground wire, neutral wire, up wire and down wire of the
electric hoist respectively. Connect this new control box as shown:
How to operate the electric hoist with this new control box:
The electric hoist can be operated by the remote control and wired handle at

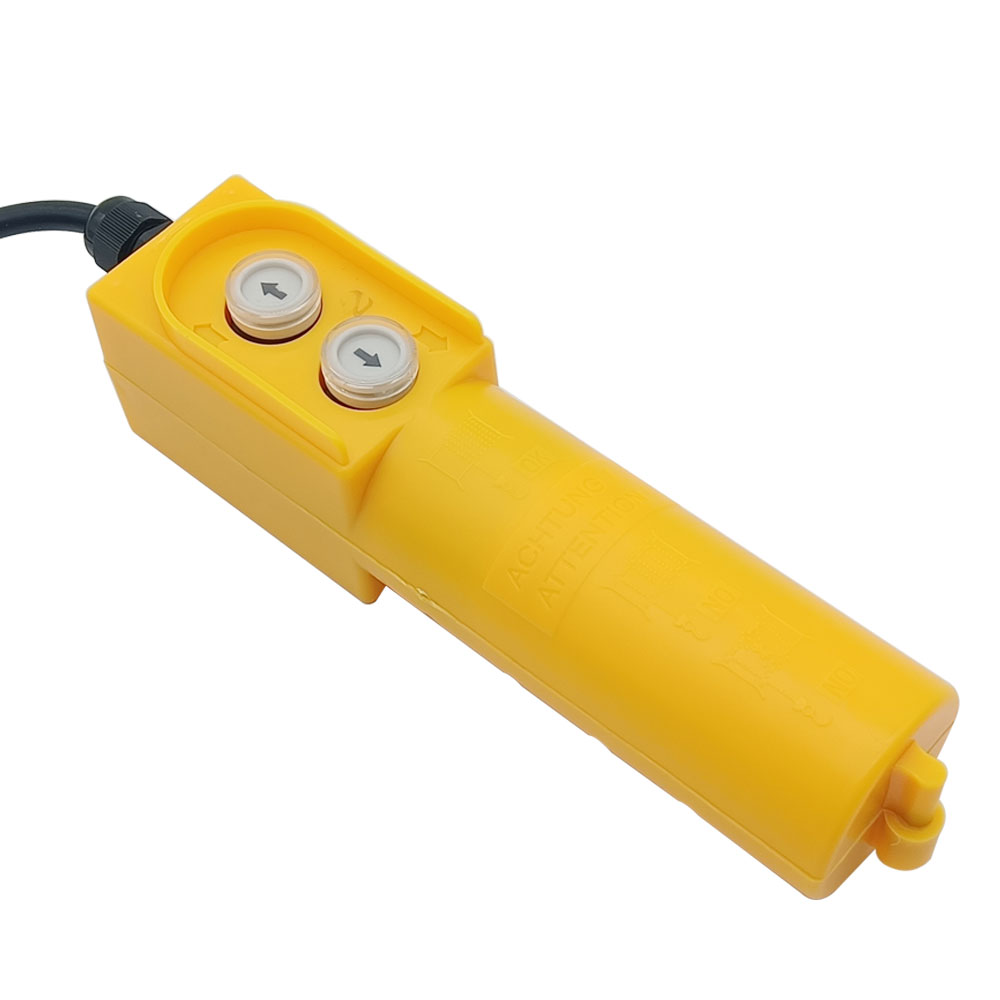

the same time. 1) By control handle:

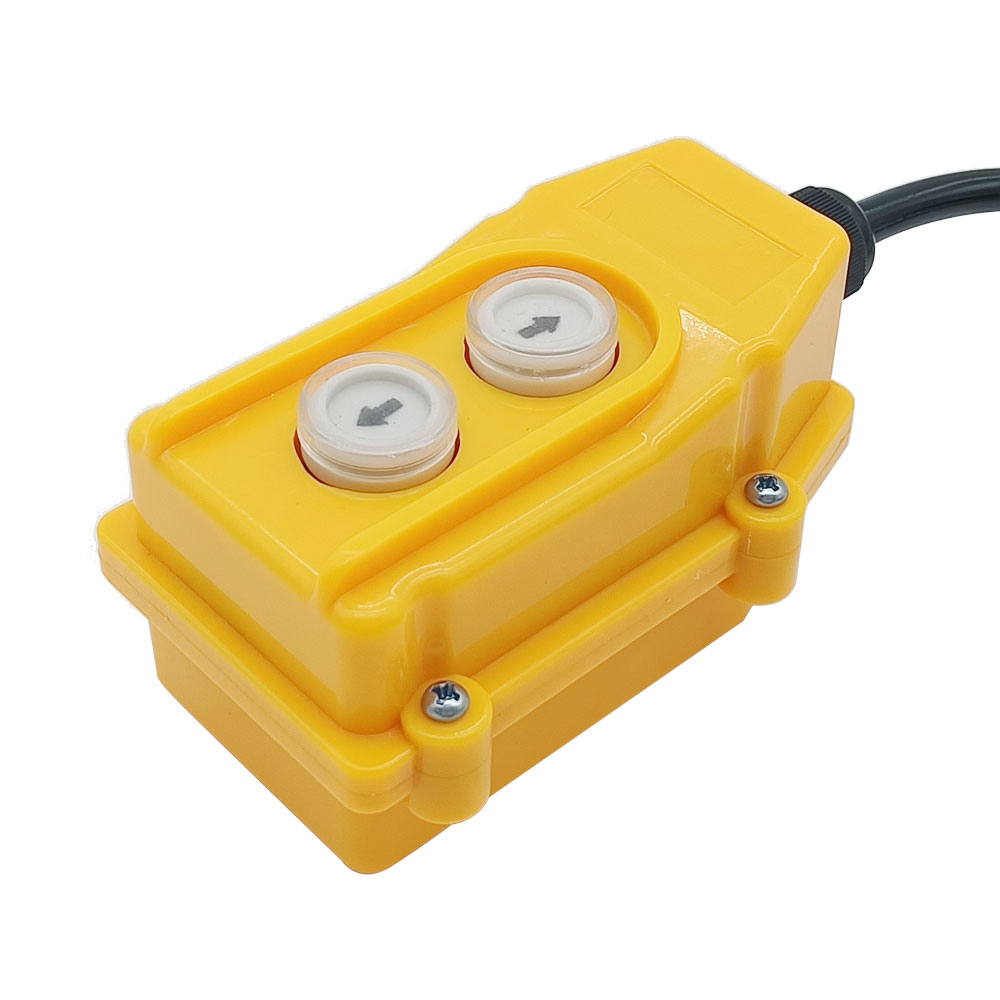

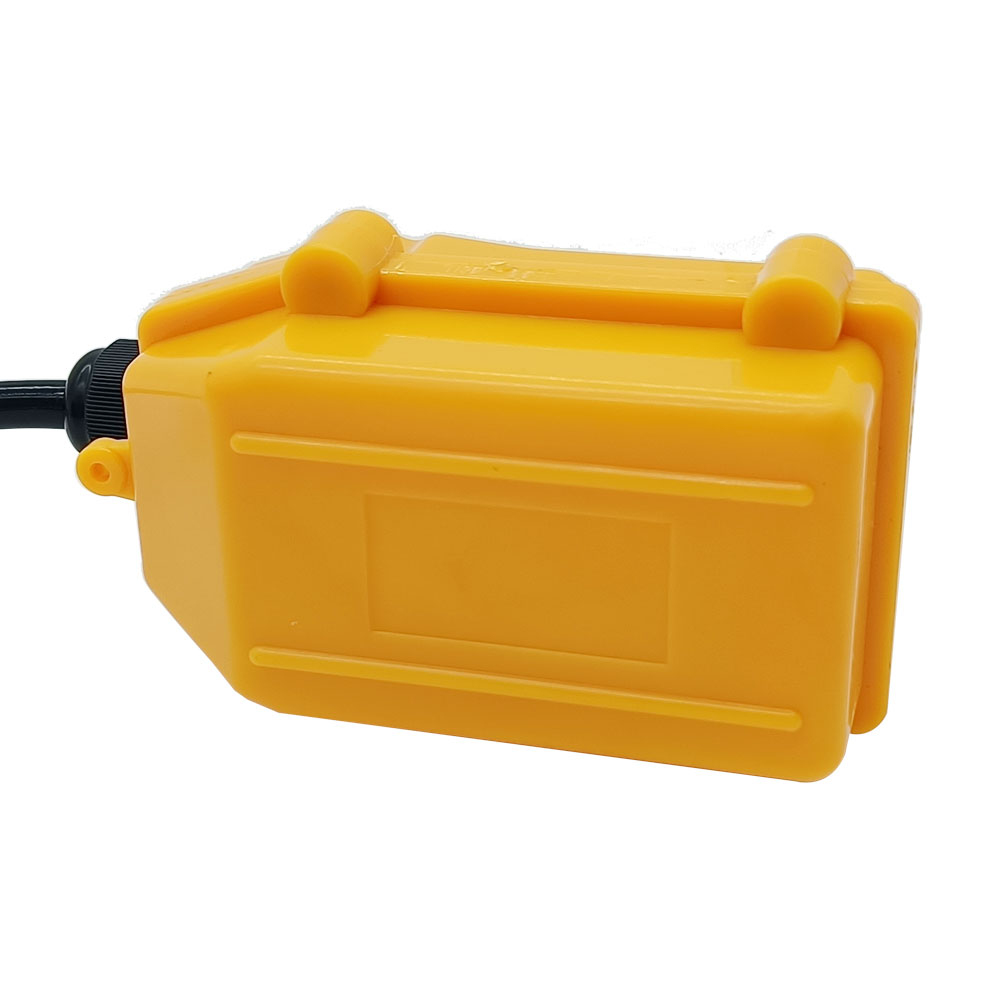

The control handle has two buttons.
Press and hold the <UP> button of the handle, the hook will rise.
Press and hold the <DOWN> button of the handle, the hook will drop.
2) By wireless remote control:

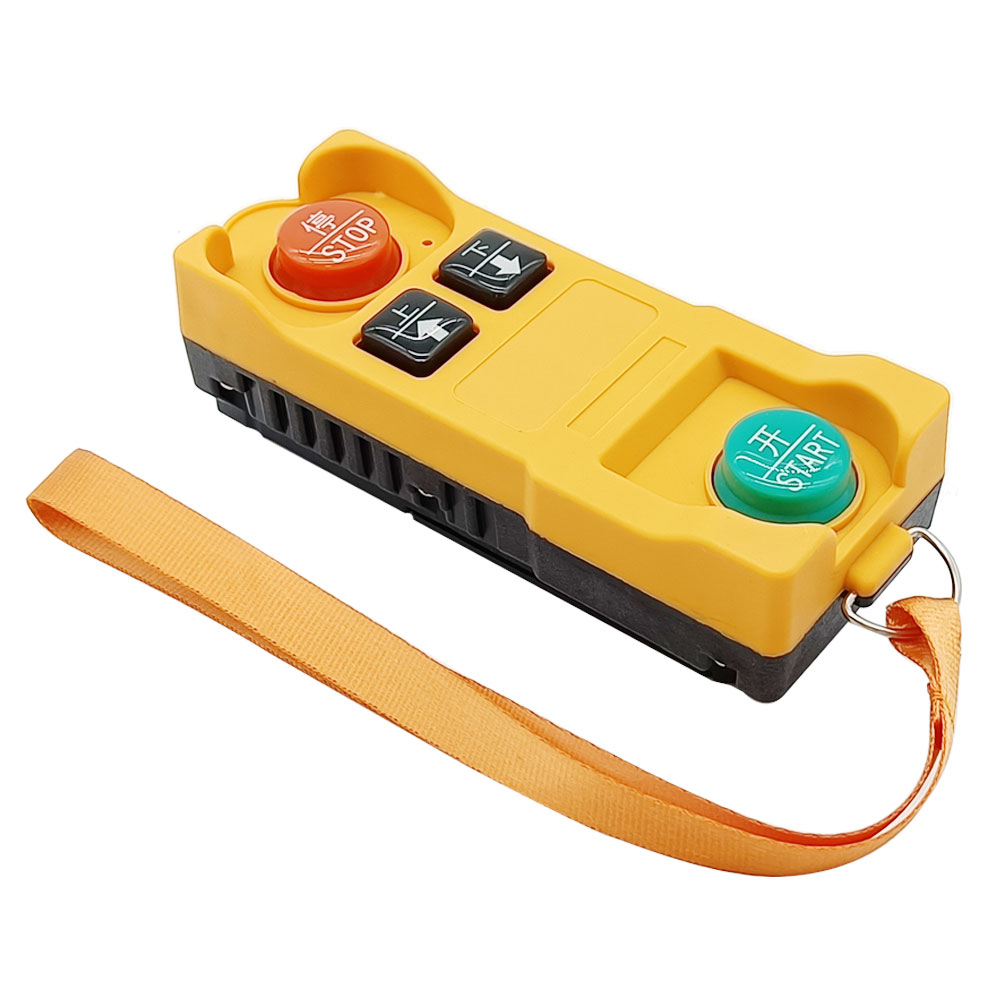

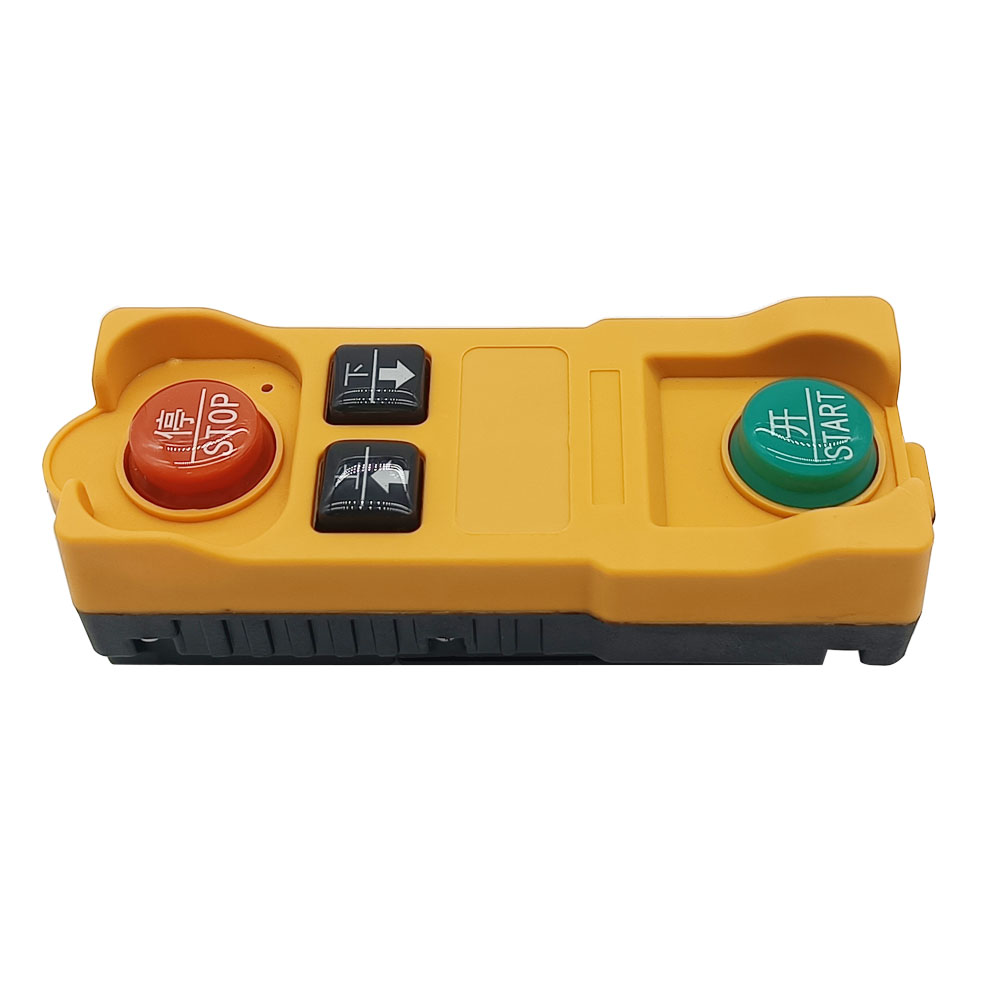

The wireless remote control has four buttons: <START>, <STOP>, <UP>, <DOWN>.
First press the button <START>, then you can use the button <UP> or the
button <DOWN> to operate the electric hoist.
Press and hold the button <UP>, the hook will rise.
Press and hold the button <DOWN>, the hook will drop.
Note: Once we have pressed the button <STOP>, we can no longer use the
button <UP> or the button <DOWN> to operate the electric hoist, thus
preventing false triggering.
How to pair the remote control with the controller: Note: We have paired the remote to the controller before leaving the
factory, so you don't need to do this process again.
1) Disconnect the power of the controller.
2) Press and hold the <STOP> and <DOWN> buttons of the remote at the same
time until the red and green indicator lights on the remote flash
alternately.
3) Turn on the power to the controller immediately at this time, and the
indicator light on the remote will go out immediately. Then you can release
the <STOP> and <DOWN> buttons.
4) Press the <START> button of the remote, then you can use the <UP> and
<DOWN> buttons of the remote to operate the electric hoist. Note: The <STOP> and <DOWN> buttons should always be pressed during the
pairing process.
