Feature: Application: It
can be used in industry automation, agriculture automation and home
automation, such as factory, house, farm, pasture, vehicle, ship, offshore
operation, aerial vehicle, field call, etc. It can remote control equipments
on land, water and air, such as remote control lights, sirens, locks,
motors, fans, winches, blinds, linear actuators, doors, windows, electric
solenoid valves, security alarm, business signs and various devices.
Wireless control, easy to install.
Power Supply: Four working voltage versions, DC 6V, 9V, 12V, 24V.
Relay Output: This receiver is dry relay output, it can be used to operate
both DC and AC equipments. The terminals are NO / NC (normally open /
normally closed), which serves as a switch. That means you should also
connect a separate power supply to equipments.
Each channel can work at maximum current 10A, such as 120W/12V, 60W/6V,
90W/9V, 240W/24V, 1100W/110V, 2200W/220V.

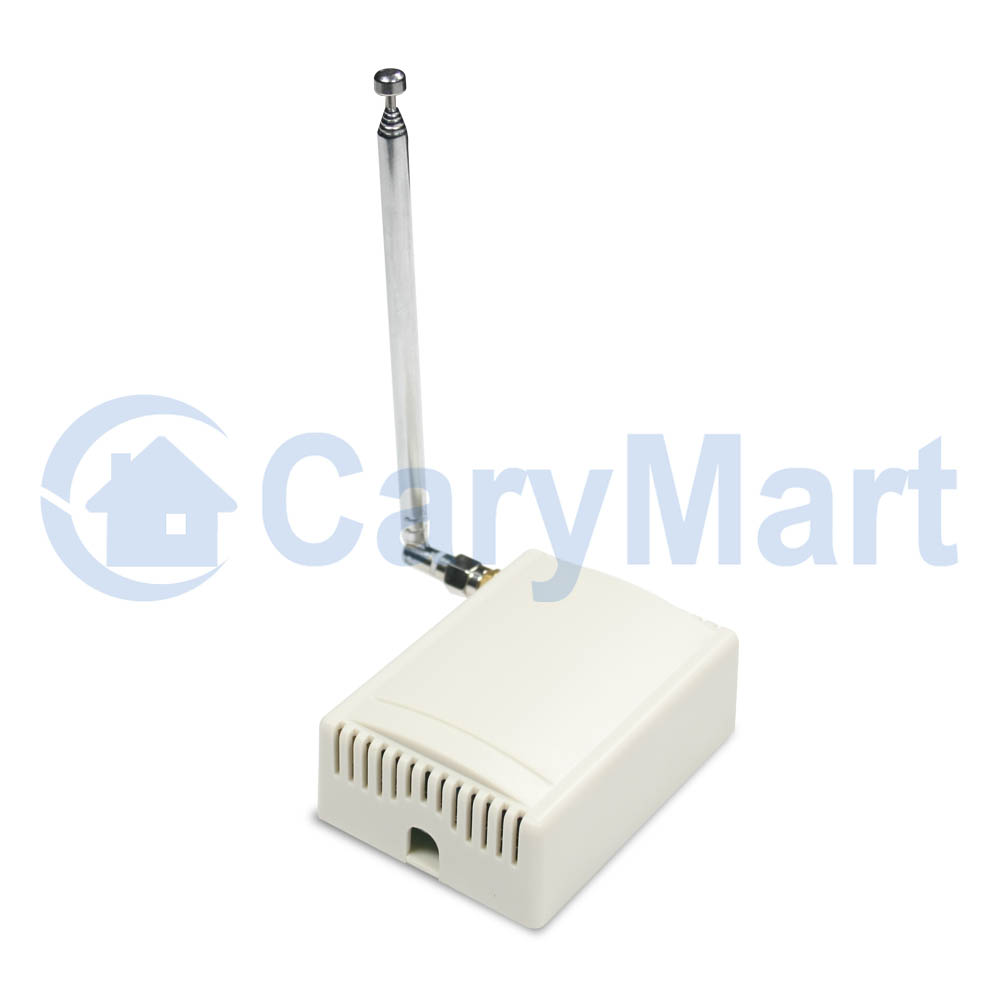

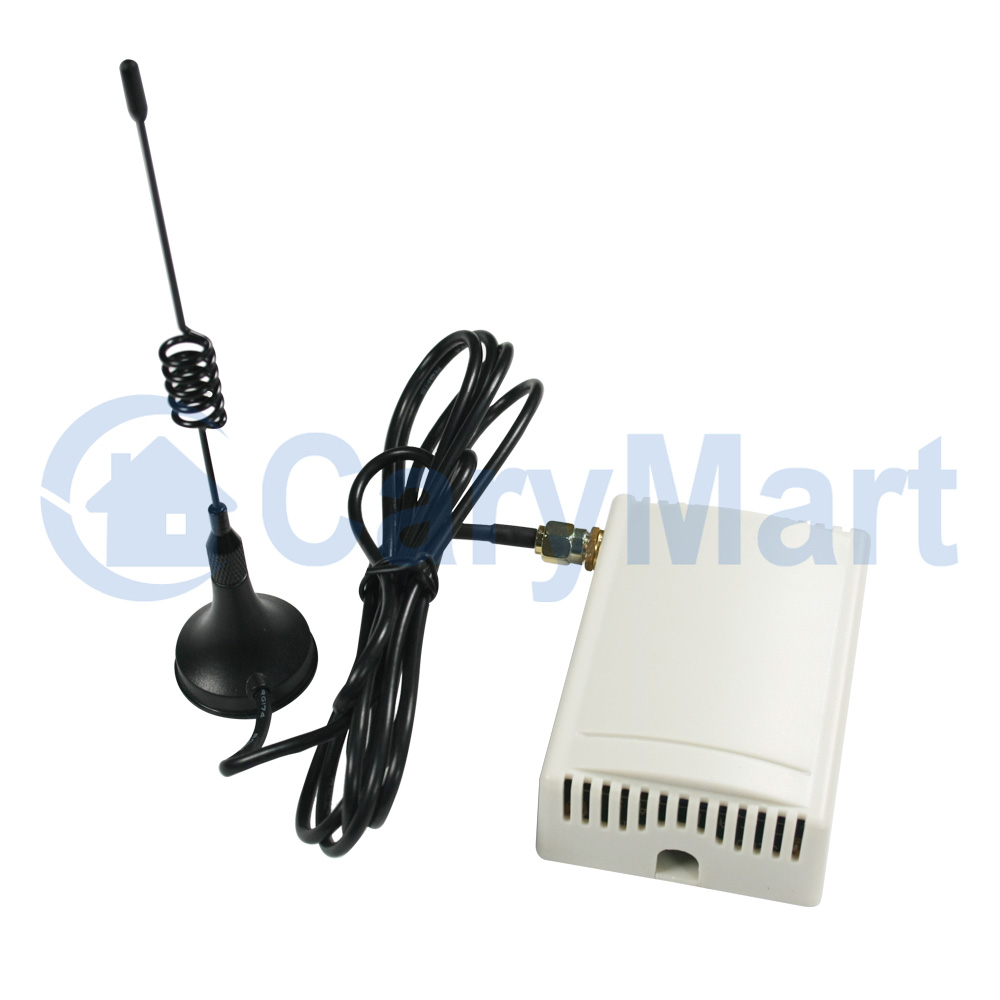

With external telescopic antenna, the receiver have a farther working range.
You can control the equipments by using the receiver with transmitter
(remote control) from any place within a reliable distance.
Wireless RF signal can pass through walls, floors, doors or windows.
With reverse power protection and over current protection.
Reliable control: The code has thousands of different combinations, and the
receiver only works with the transmitter which use same code.
One/several transmitters can control one/several receivers simultaneously.
You can use two or more units in the same place.
Receiver Parameters:
Model No.: S1T-DC06 / S1T-DC09 / S1T-DC12 / S1T-DC24
Power Supply (Operating Voltage): DC6V (S1T-DC06), DC12V±1V (S1T-DC12),
DC9V±1V (S1T-DC09), DC24V±2V (S1T-DC24)
Output: Relay output (Normally open and normally closed)
Working Voltage Range of Relay: AC110~240V or DC0~28V
Wire range for the terminals: 22-14 AWG
Working Frequency: 433.92MHz
Channel: 1 CH
Control Modes: Self-locking (Press -> On; Press again -> Off)
Static Current: ≤6mA
Maximum Working Current: 10A / each channel

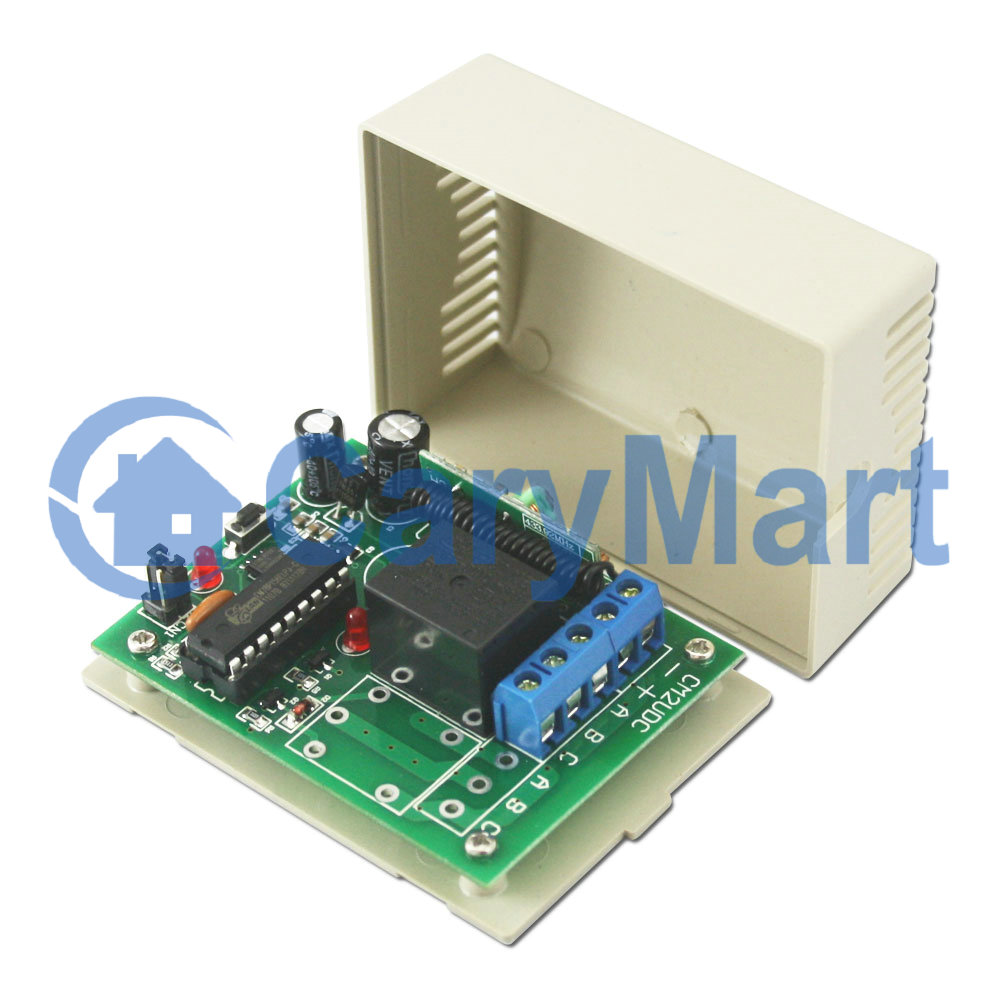

PCB size: 67mm x 50mm x 18mm

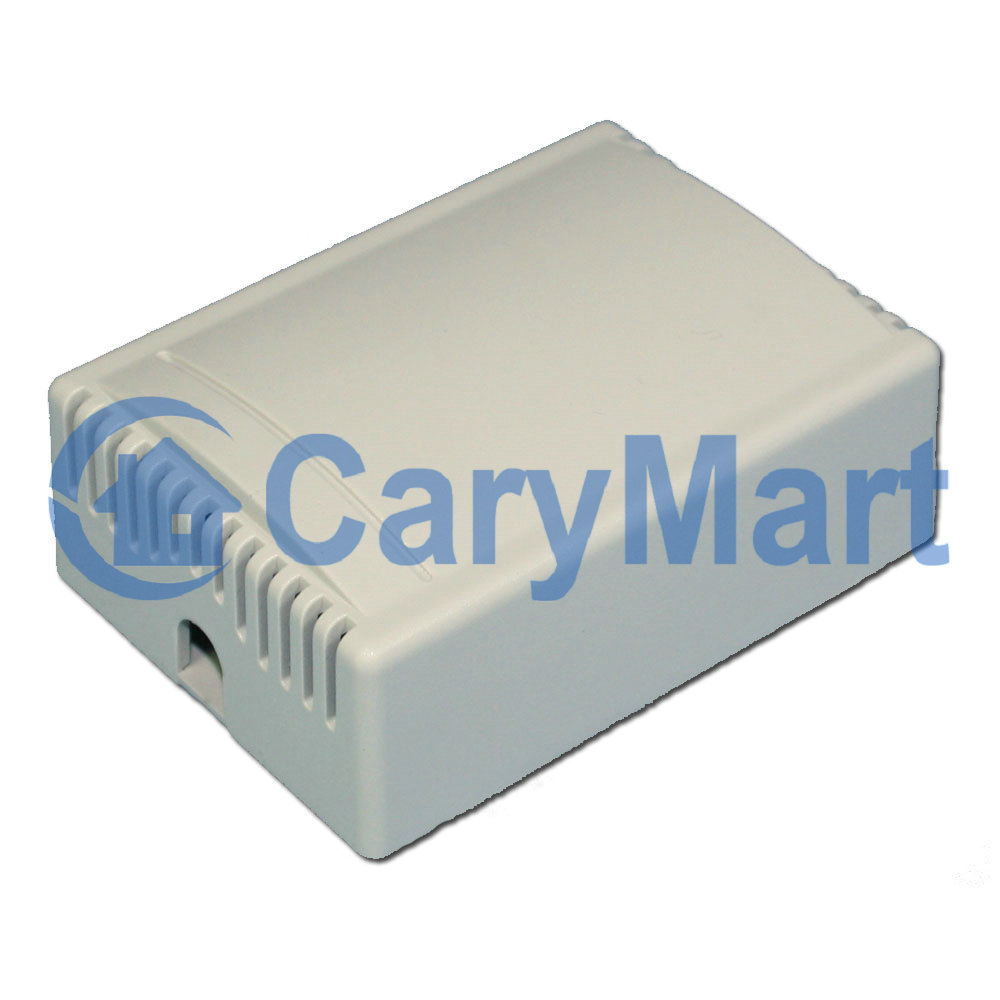

Case size: 75mm x 54mm x 27mm
Matching Transmitters:
The receiver can work with different transmitters, such as model C-1 (100M),
CWB-1 (50M, waterproof), or CB-1 (1000M) etc.
Working Range:
With a transmitter (such as C-1) to form a complete set, the maximum working
distance can reach 100M in an open ground.
The maximum working distance is a theoretical data, it shall be operated in
an open ground, no barriers, no any interference. But in the practice, it
will be hindered by trees, walls or other constructions, and will be
interfered by other wireless signals. Therefore, the actual distance may not
reach this maximum working distance.
If you want to have a further working range, you can use a powerful
transmitter, such as CB-1 transmitter.
Usage (with the transmitter C-1):
The receiver can be used to control both DC 0~28V and AC 110~240V
equipments.

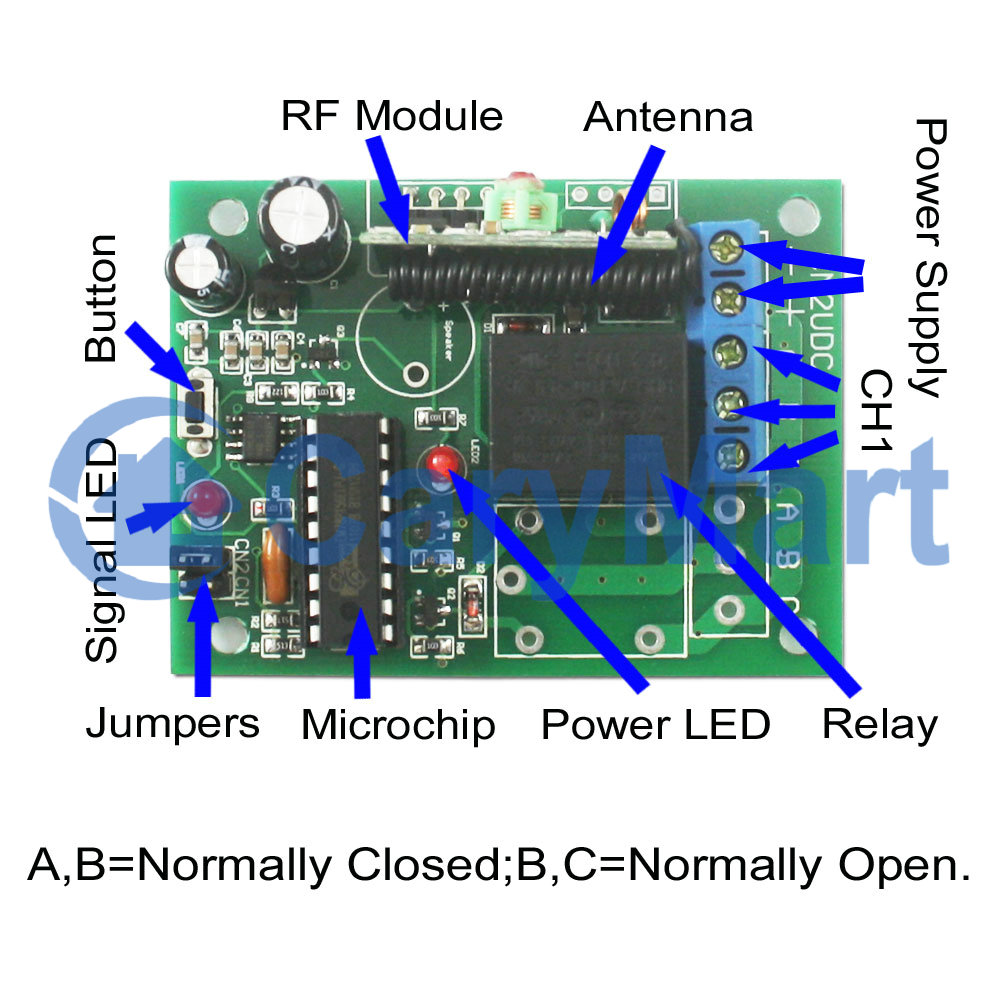

Notice: The receiver is relay output, not DC/AC power output. Initial state
of relay output terminals: Terminals B and C are Normally Open; Terminals A
and B are Normally Closed.

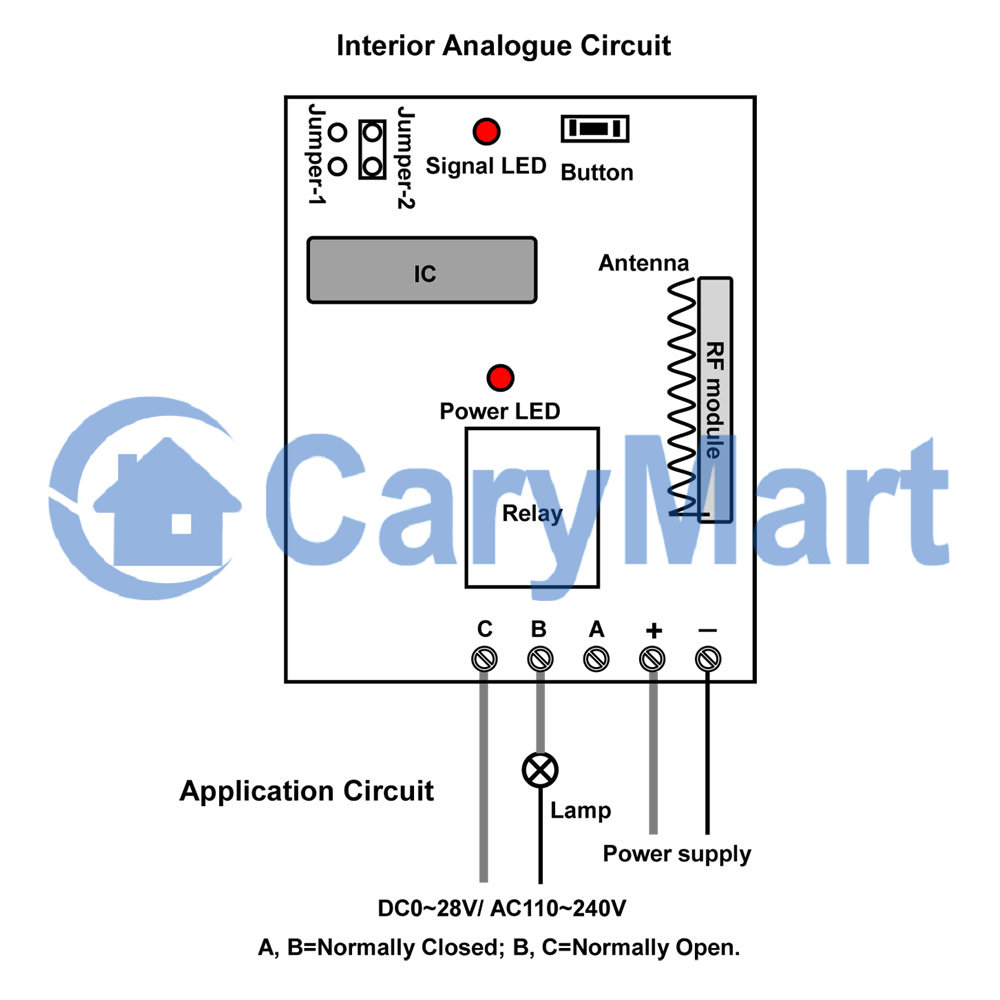

Wiring:
If you want to control a DC 12V lamp, do as following:
1) Connect the positive pole of DC power supply to terminal “L / +” of
INPUT, and connect the negative pole of DC power supply to terminal “N / -”
of INPUT.
2) Connect terminal C to the positive pole of DC power supply, connect
terminal B to the positive pole of DC lamp, and connect the negative pole of
DC lamp to the negative pole of DC power supply.
If you want to control an AC 220V lamp, do as following:
1) Connect the positive pole of DC power supply to terminal “L / +” of
INPUT, and connect the negative pole of DC power supply to terminal “N / -”
of INPUT.
2) Connect terminal C to the live wire of AC power supply, connect terminal
B to one side of AC lamp, and connect another side of AC lamp to the neutral
wire of AC power supply.
Operation:
Press the button of the transmitter: The relay is activated (connect the
terminals B and C, disconnect the terminals A and B), and the lamp is turned
on.
Press the button again: The relay is deactivated (disconnect the terminals B
and C, connect the terminals A and B, and the lamp is turned off.
