Feature:
Model: 0043090
Operating Voltage: 12V DC or 24V DC, please use a power supply of 12V/5A or
24V/3A or more to power it.
Output Voltage: 12V DC or 24V DC
Rated current: 10A

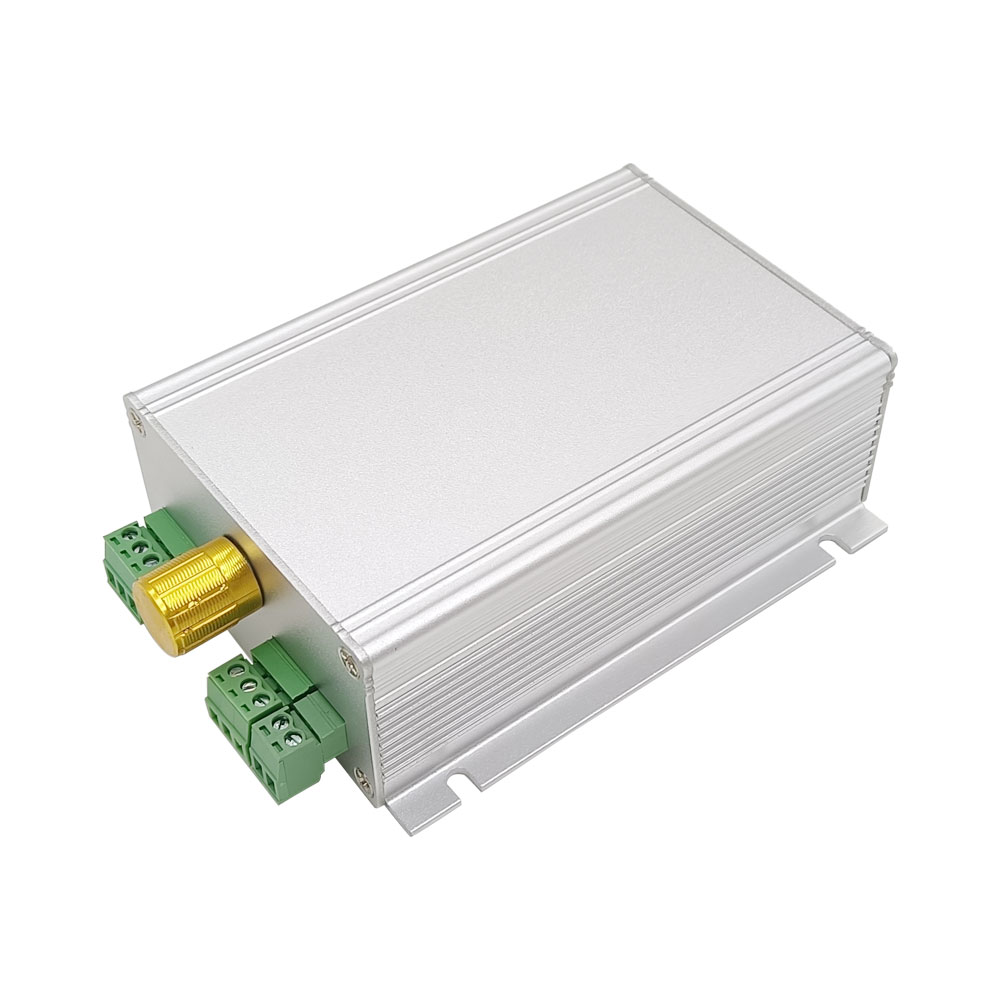

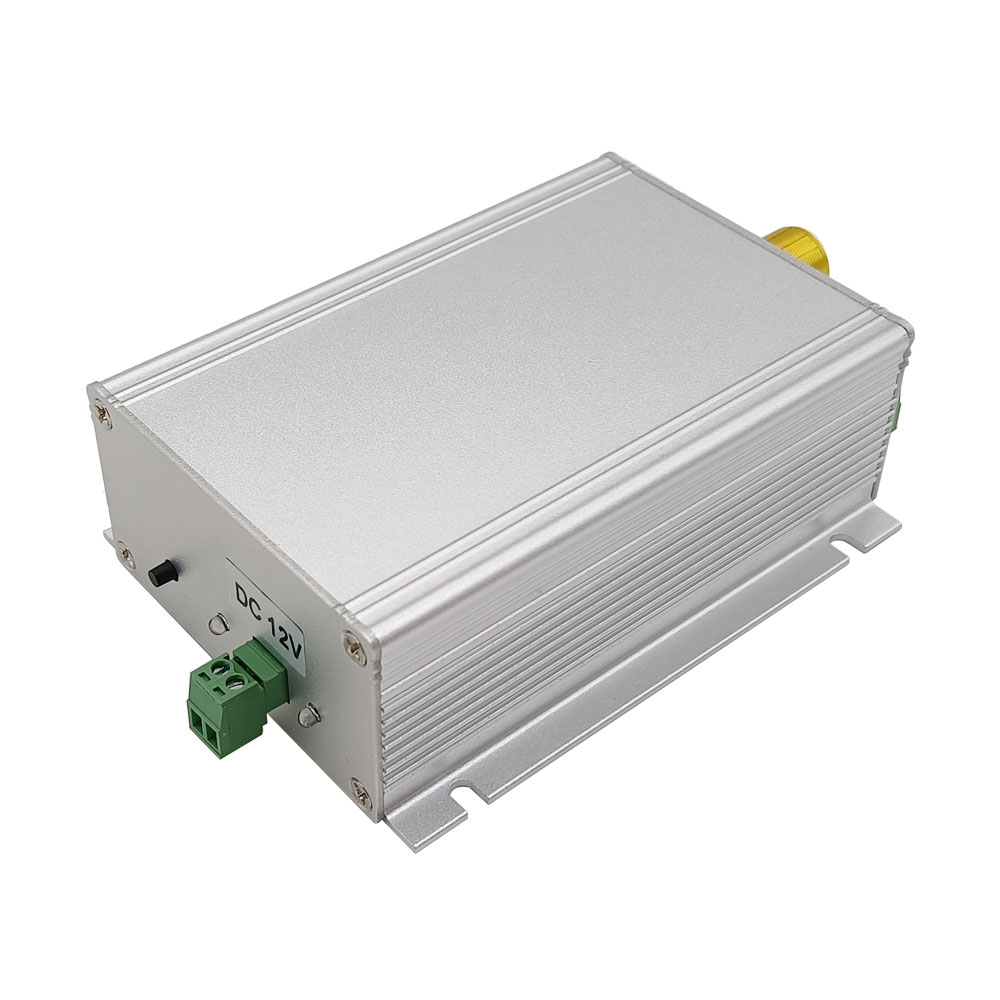

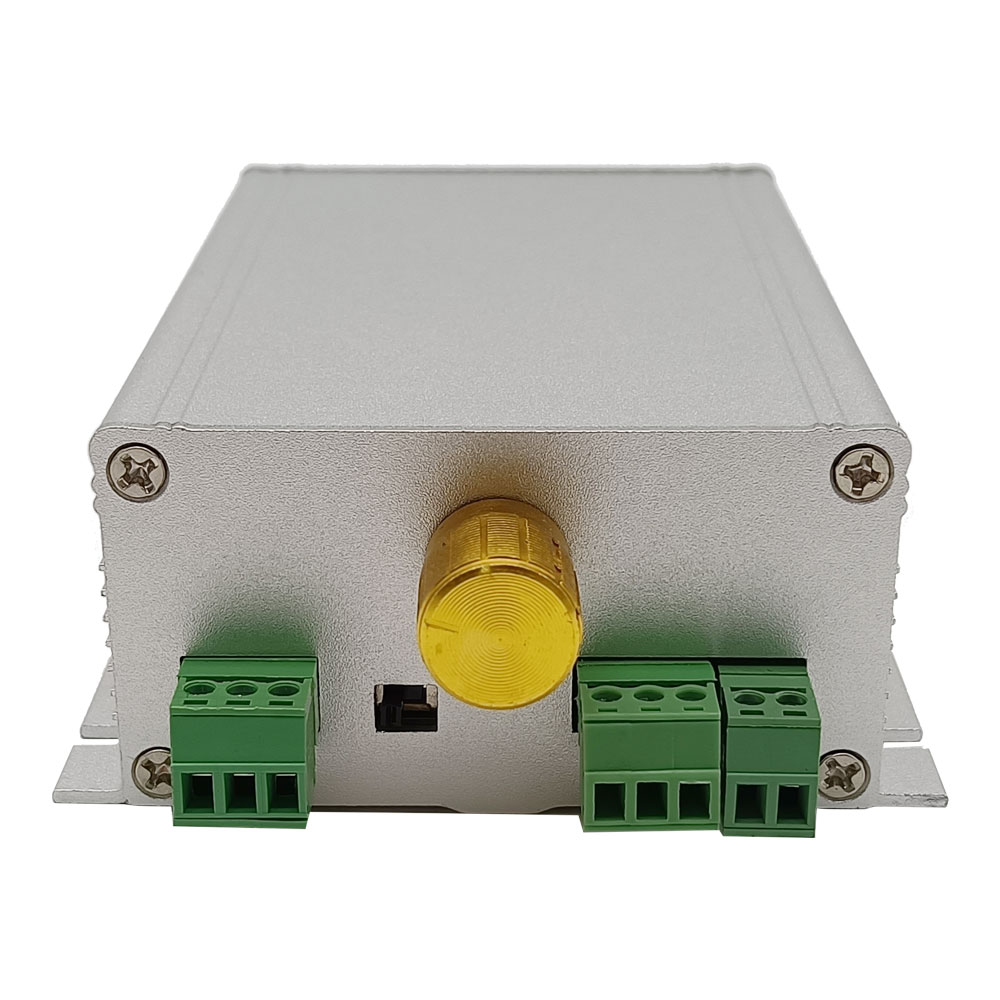

Size of controller: 113 x 88 x 39 mm (4.5 x 3.5 x 1.5 inches)

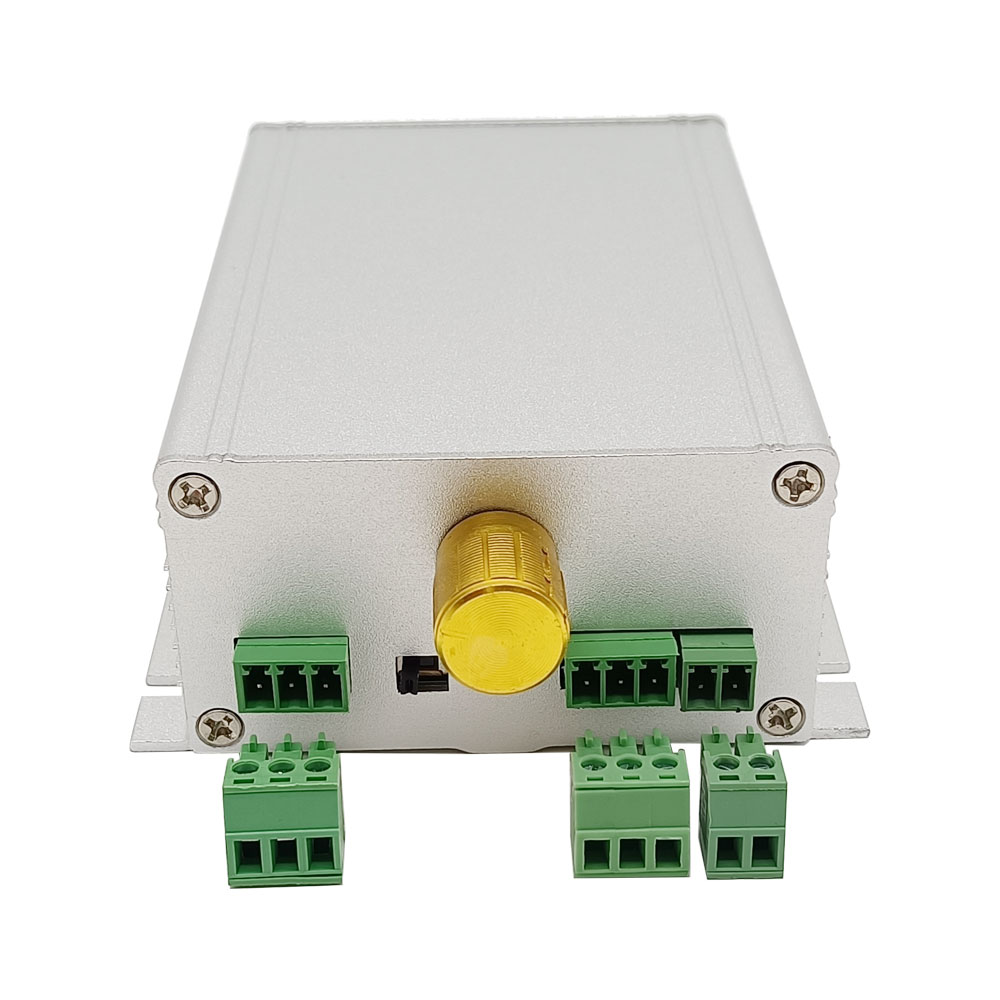

With a stroke control knob switch and a learning button

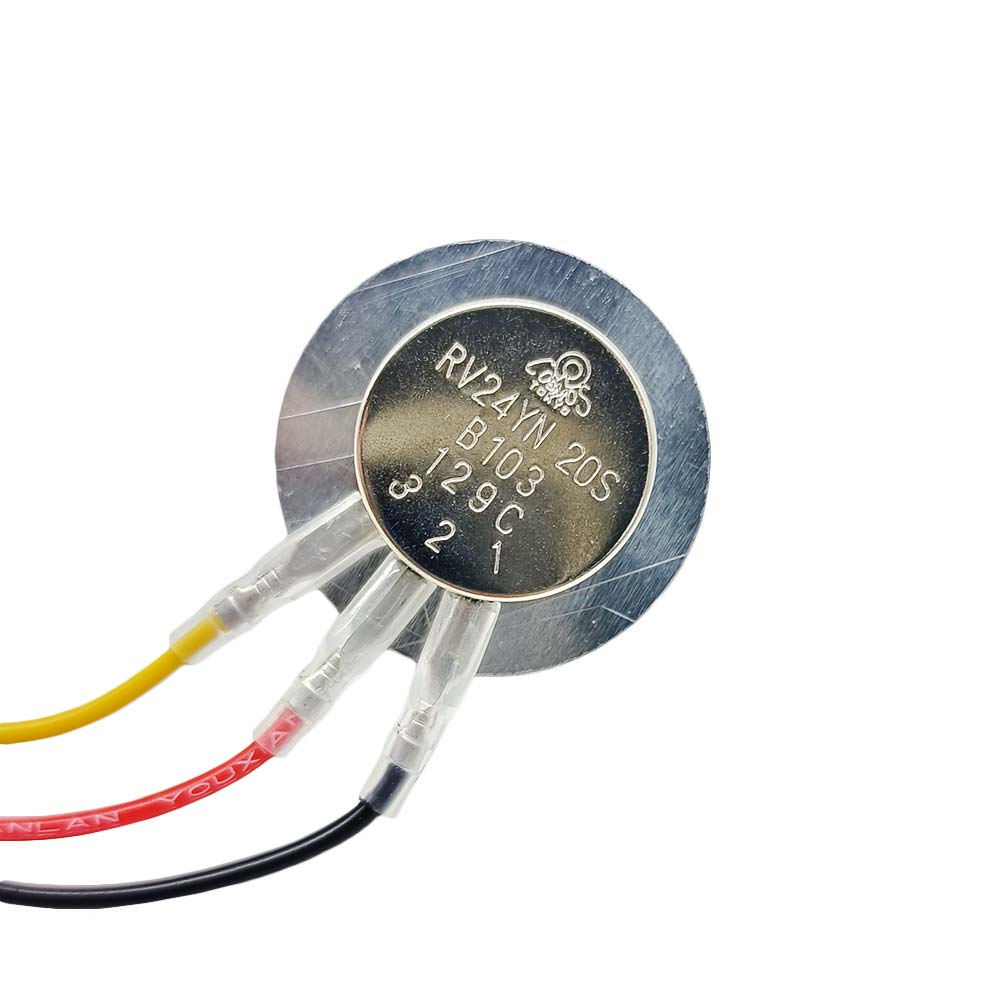

With an externally connected 10K potentiometer
Multiple speed options: 5mm/s, 10mm/s, 15mm/s, 20mm/s, 30mm/s, 50mm/s,
100mm/s, 160mm/s

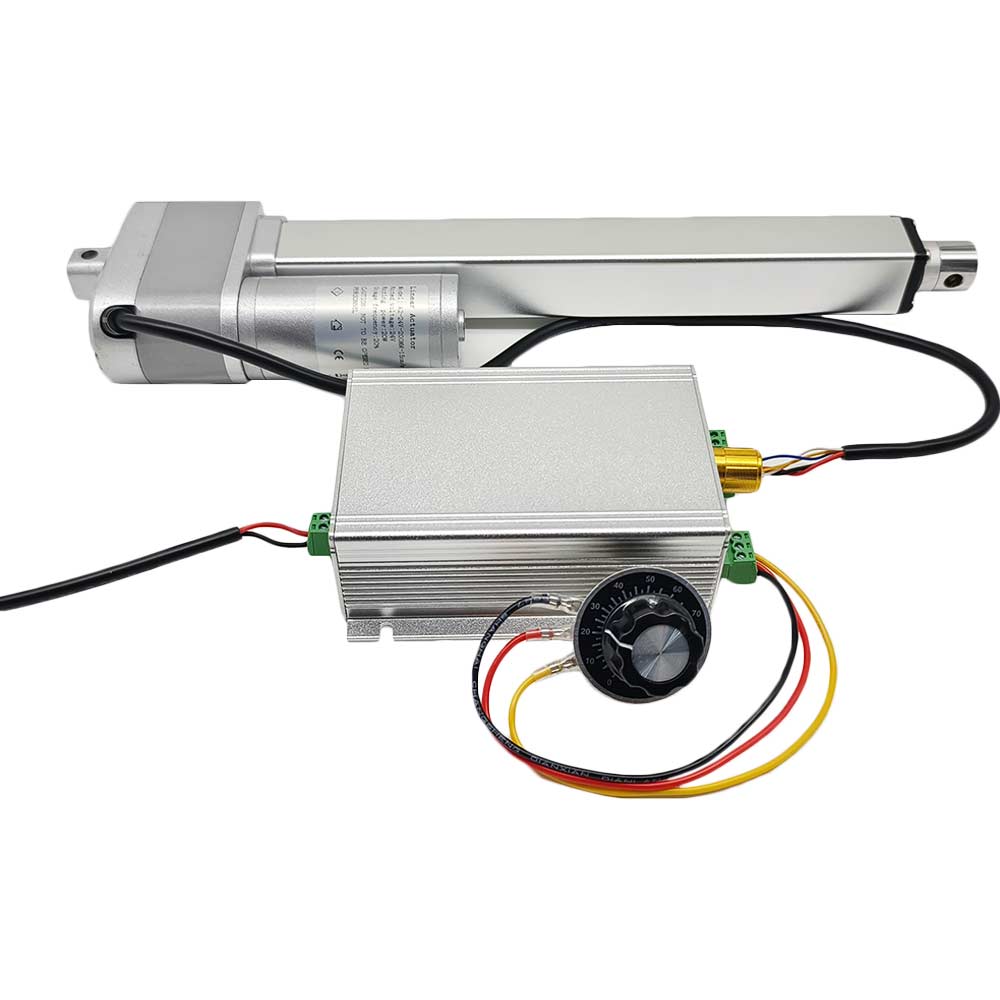

Suitable for
linear actuators type A2 with internal potentiometer
The stroke of linear actuator A2 can be controlled by rotating the knob on
the controller, or by operating the sliding potentiometer or rotary
potentiometer connected to the controller.

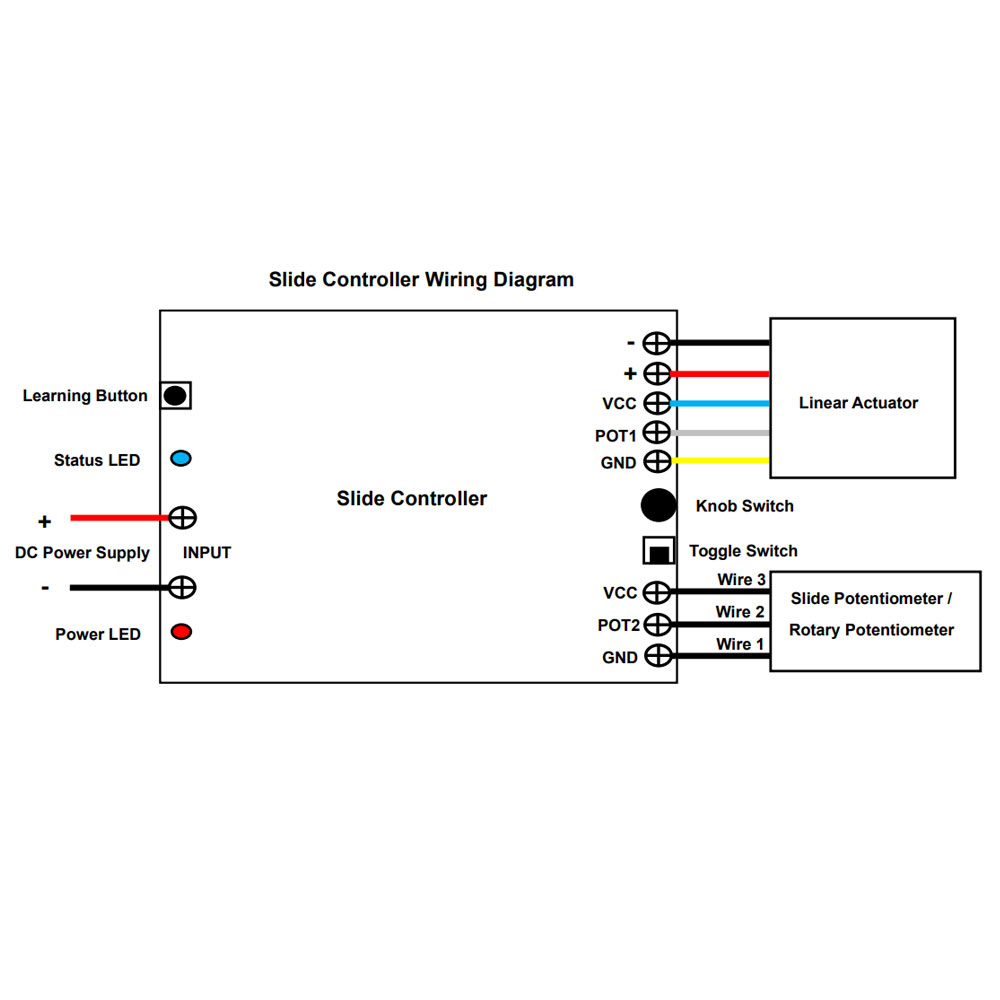

Wiring:
If you want to control a 24V DC linear actuator, do as follows:

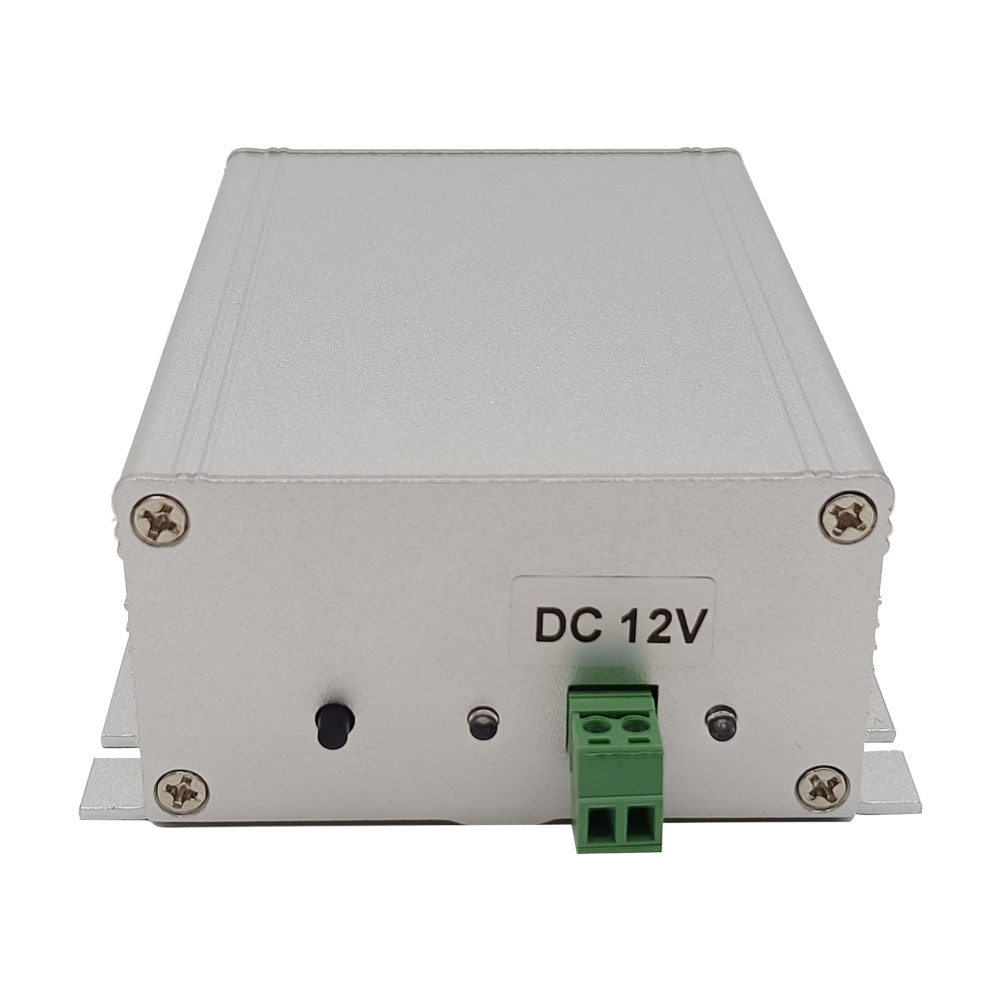

1) Connect the positive pole of DC power supply to the input terminal <+> of
the controller, and connect the negative pole of DC power supply to the
input terminal <-> of the controller.
2) Connect the five wires of the linear actuator to the controller in the
order of black, red, blue, white, and yellow, and you can exchange the black
and red wires of the linear actuator to change the moving direction of
linear actuator.

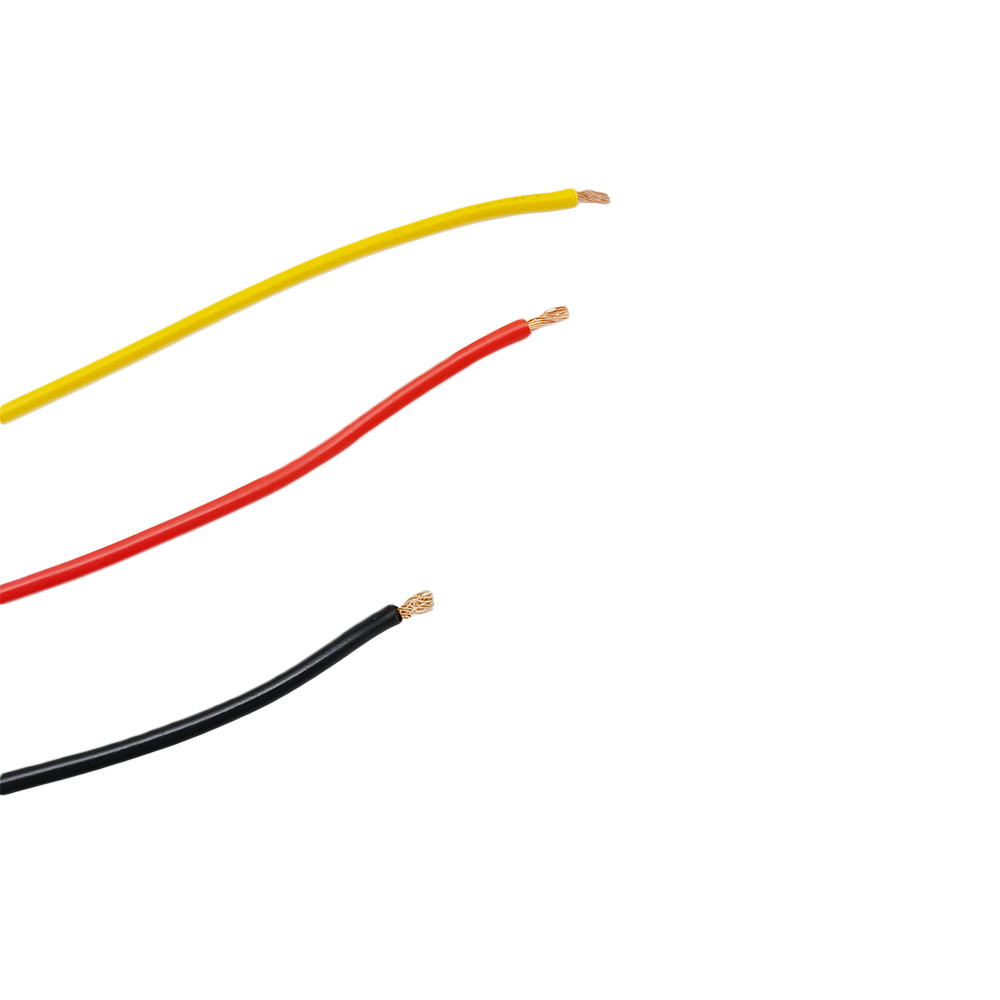

3) Connect three wires of the potentiometer to the controller according to
the connection diagram.
Notice: When you purchase the linear actuator and the slide controller
together, we have already paired the slide controller to the linear
actuator, and you can directly operate the slide controller and the
potentiometer to control the extension and retraction of the linear
actuator.
Operation:
Toggle the toggle switch to the right, which means the linear actuator is
controlled by the knob switch.
Toggle the toggle switch to the left, which means the linear actuator is
controlled by the slide potentiometer.
1) The operation by the knob switch:
Turn the knob switch to a position in its travel, the linear actuator will
extend or retract to the corresponding position in its travel accordingly.

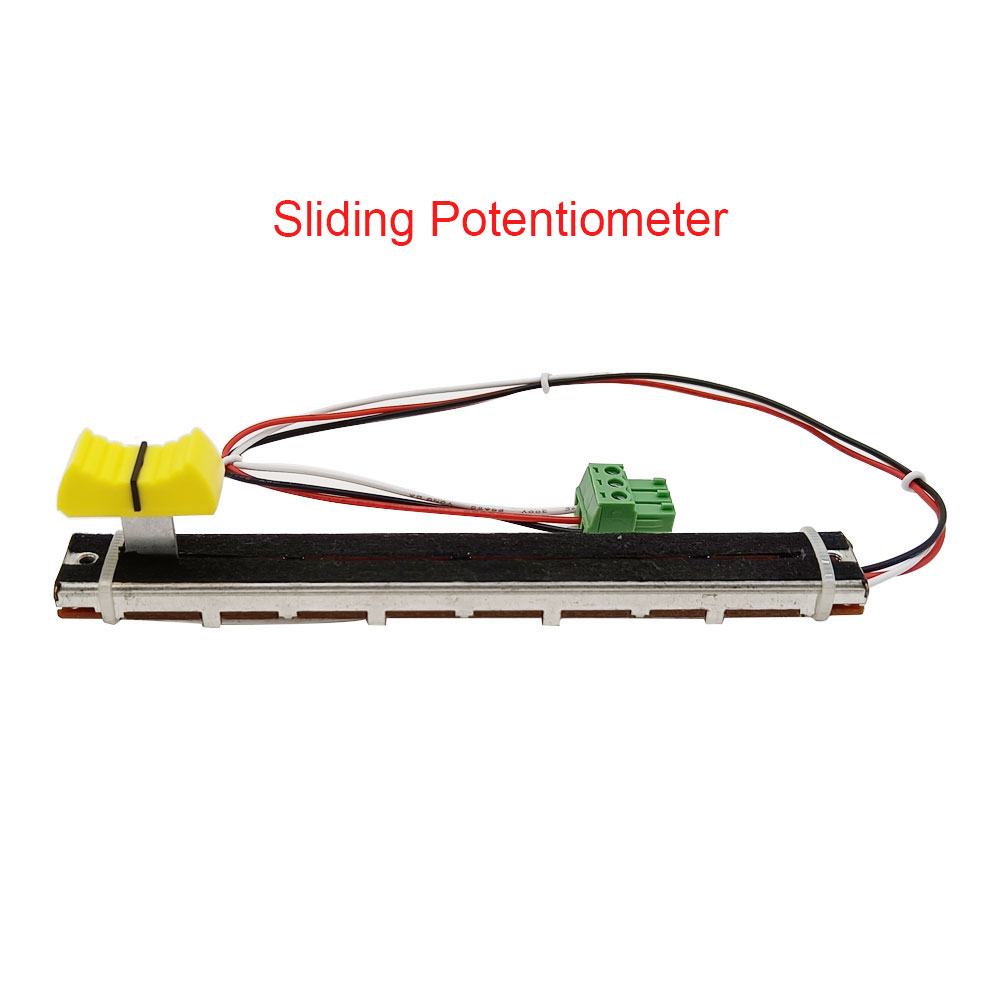

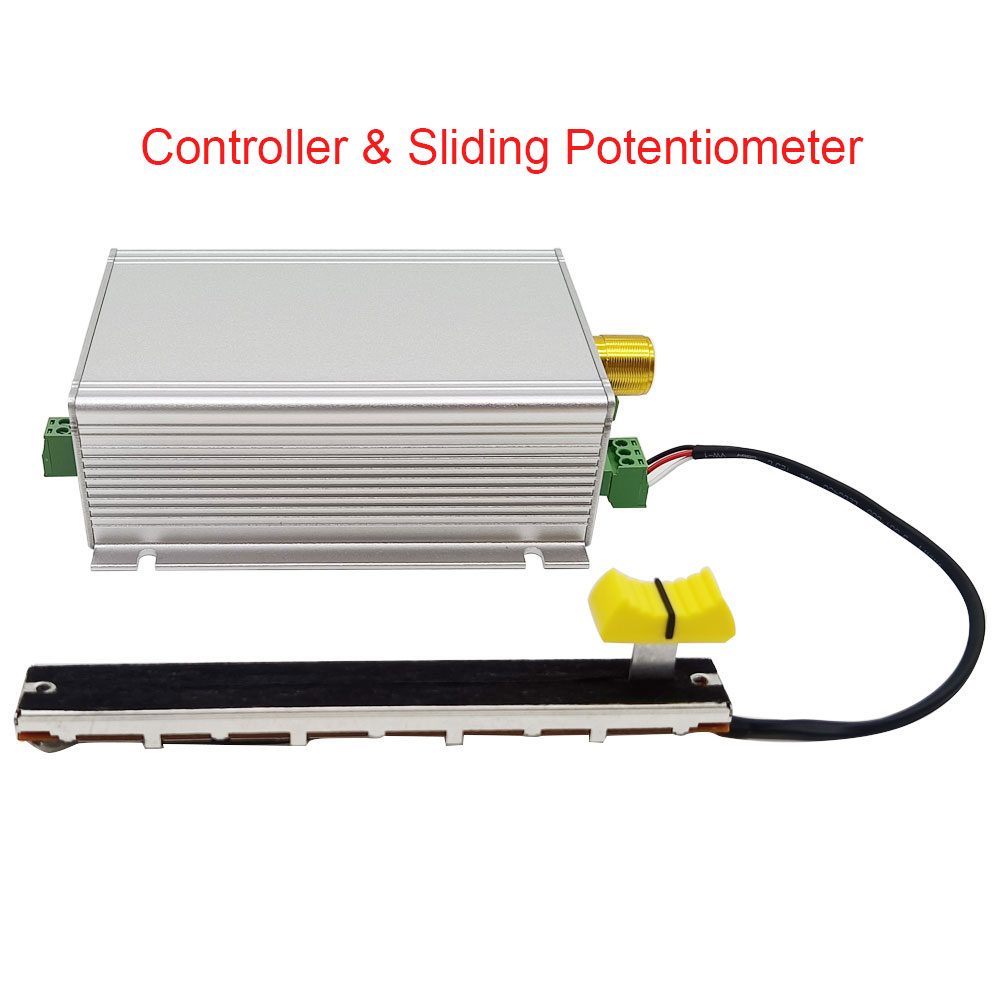

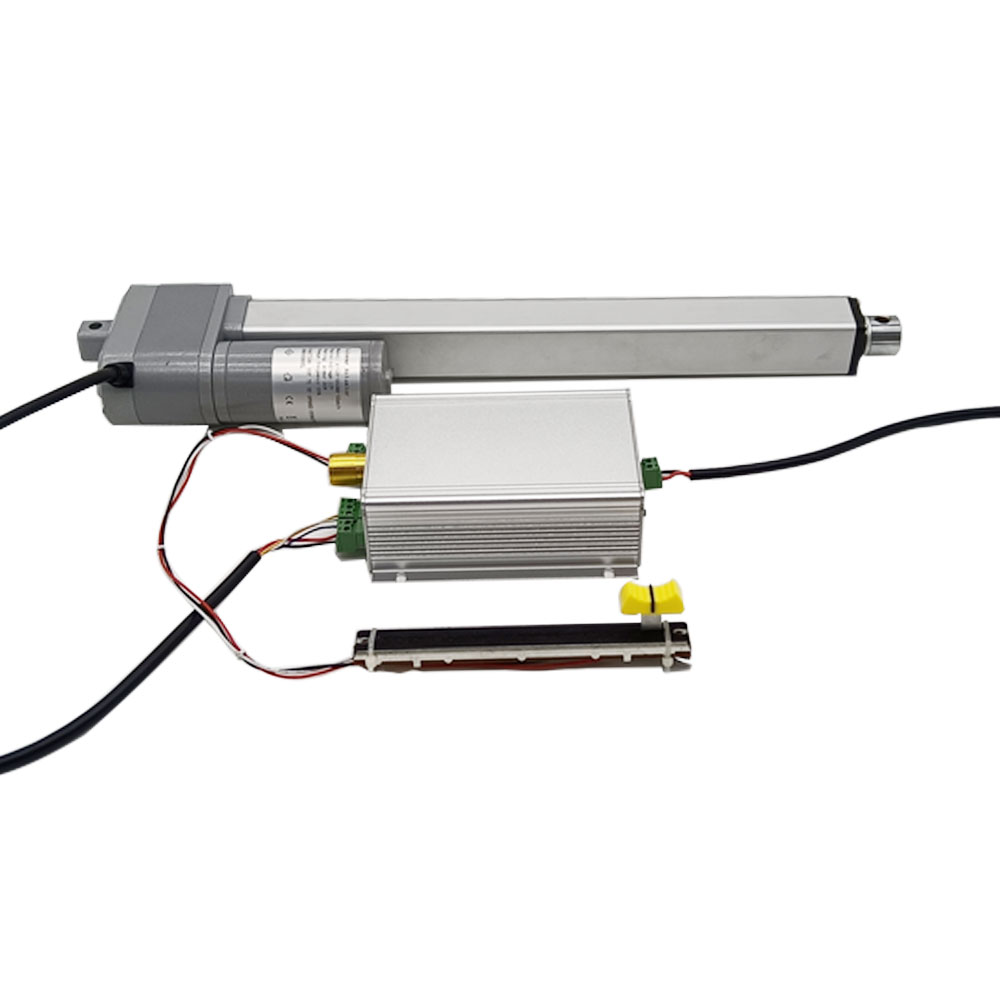

2) The operation by the slide potentiometer:
Slide the handle of the slide potentiometer to a position in its travel, the
linear actuator will extend or retract to the corresponding position in its
travel accordingly.

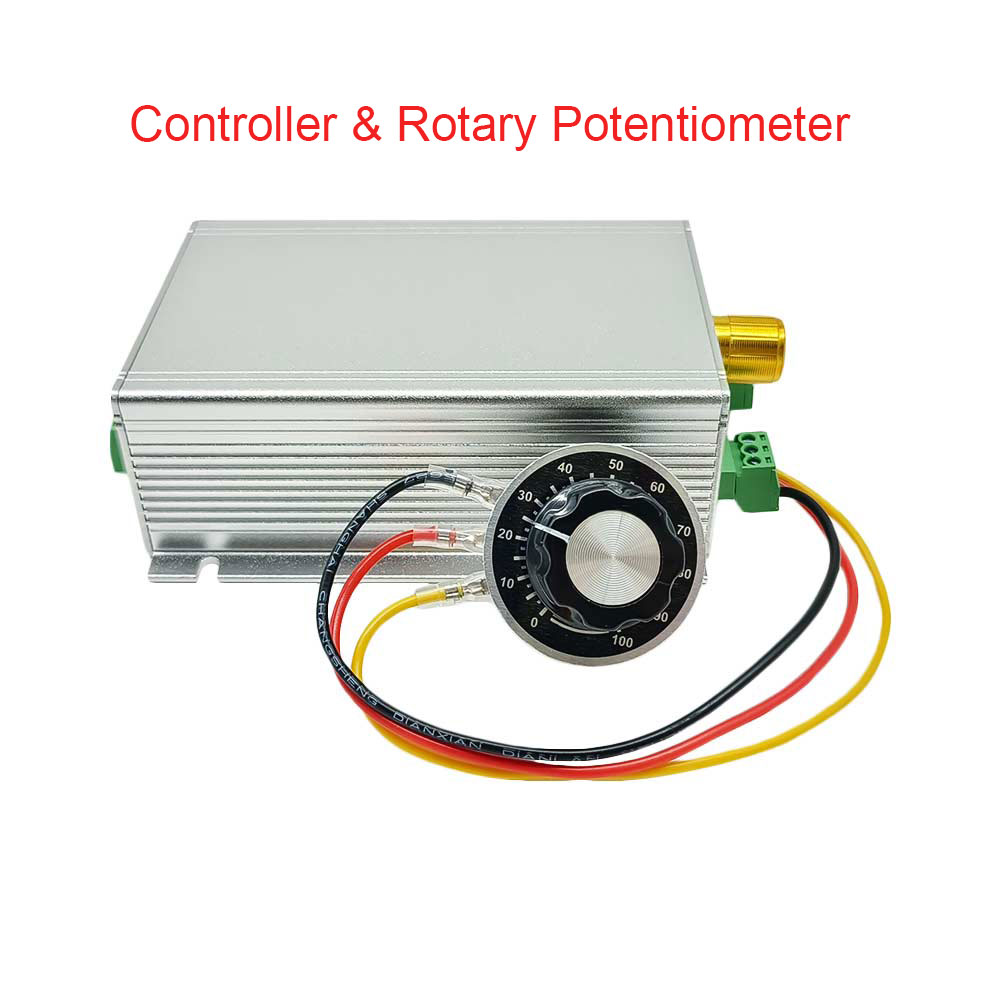

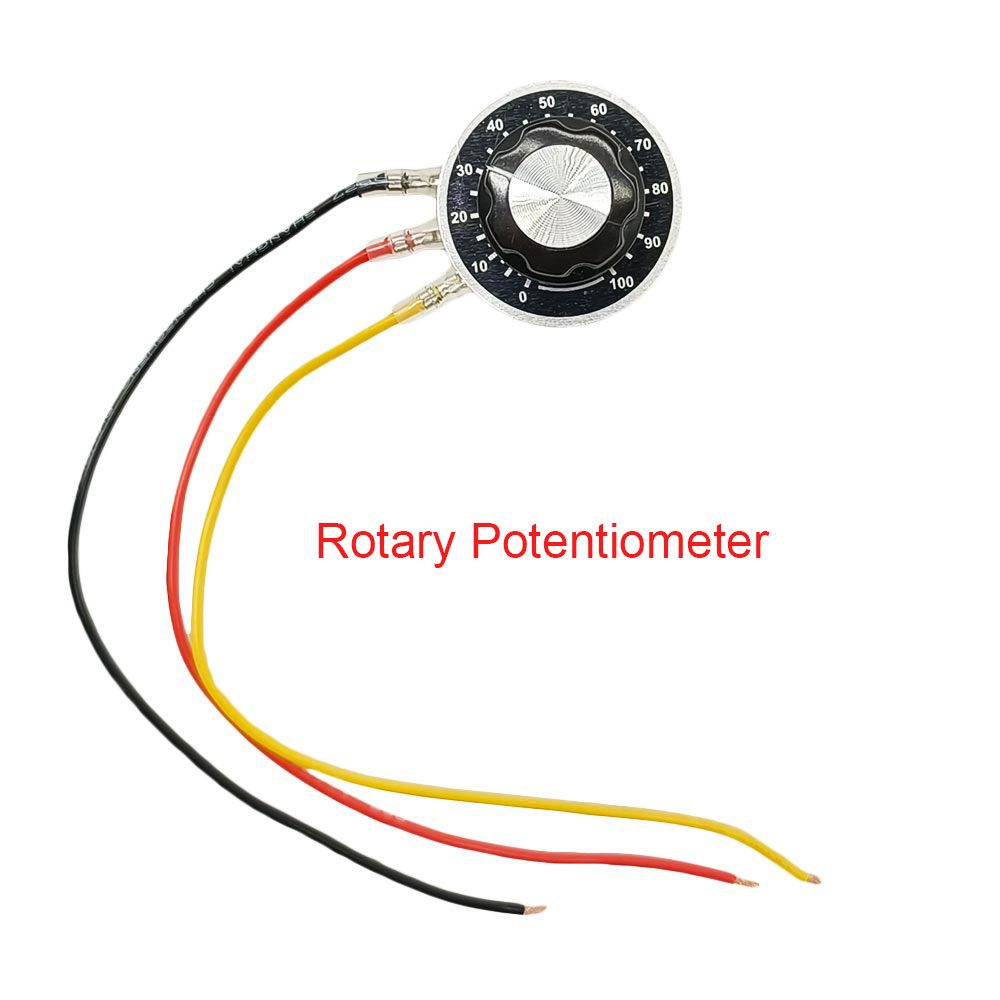

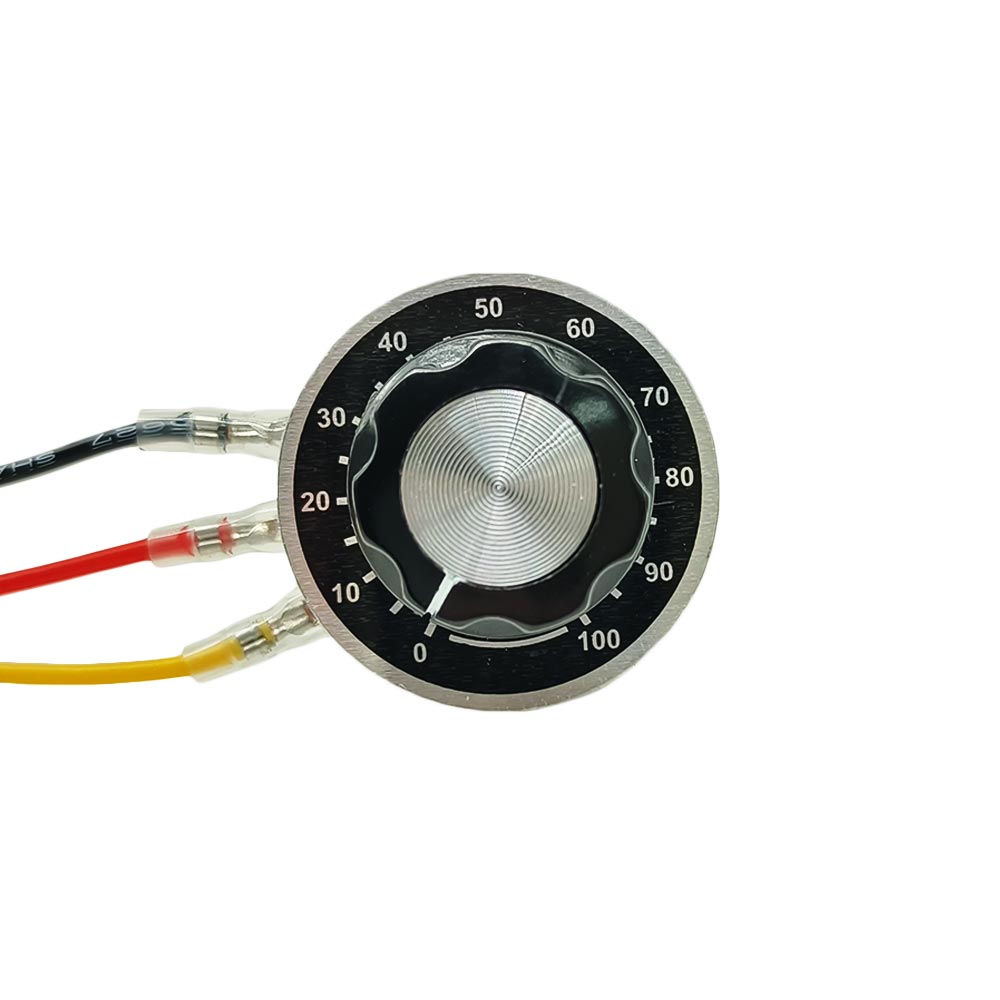

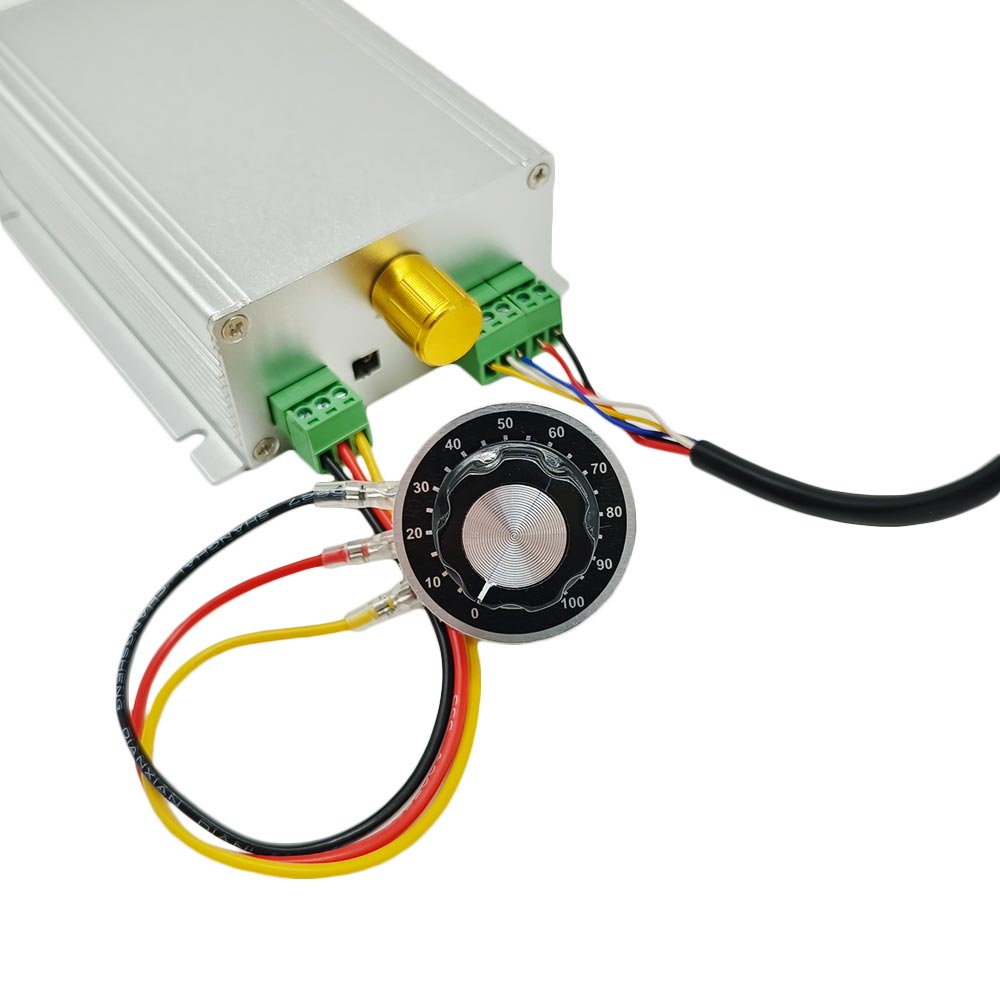

3) The operation by the rotary potentiometer:
The rotary potentiometer has a scale range from 0 to 100, which corresponds
to the percentage of the corresponding travel of the linear actuator.
Turn the rotary potentiometer to a position in the scale, the linear
actuator will extend or retract to the corresponding position in its travel
accordingly.
When the linear actuator is stopped, the status LED flashes slowly; When the
linear actuator is extended or retracted, the status LED flashes rapidly.
Package Include:
1 x Slide controller

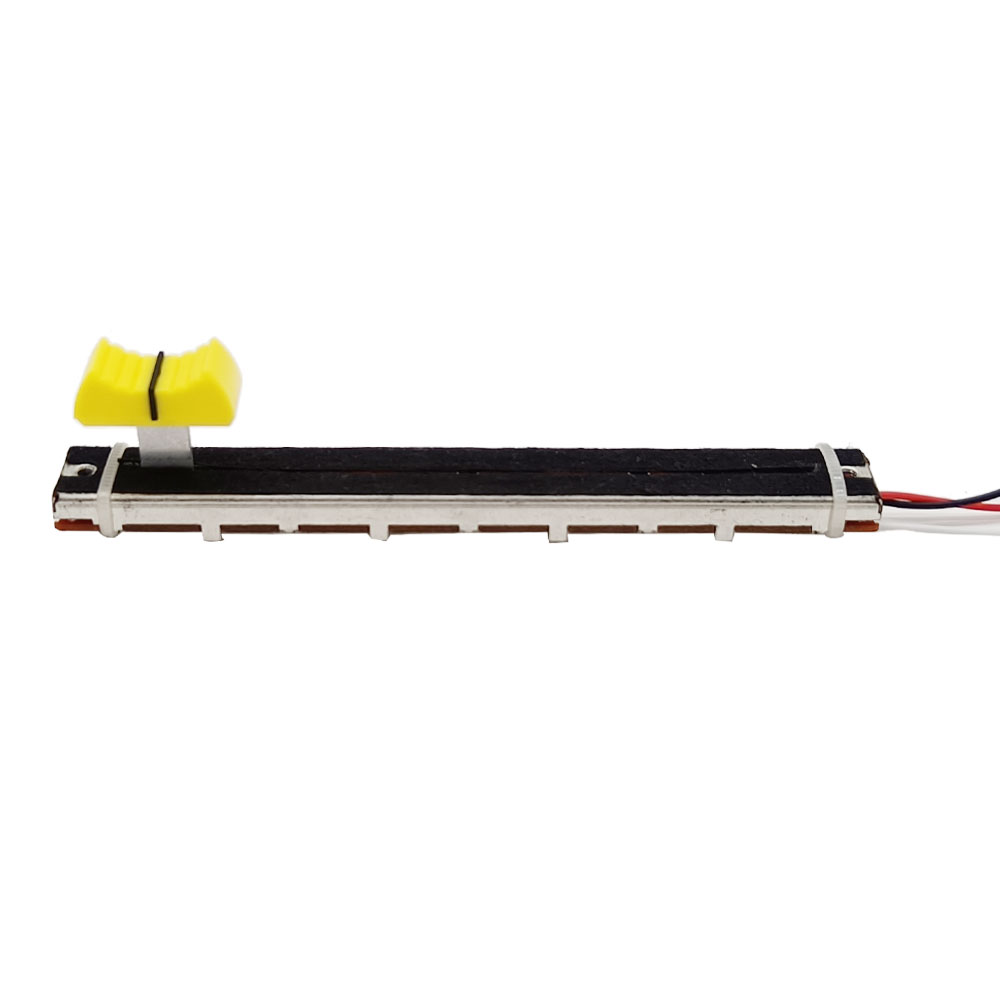

1 x 10K Potentiometer (Sliding potentiometer or Rotary potentiometer
optional)
1 x User manual
