Package Include:
1 x Manual Switch
1 x User Manual
Introduction:
This manual switch has three pushbuttons UP-STOP-DOWN. Each button has two
normally open contacts. You also can connect this manual switch to the
receiver and use them to control the motor or the linear actuator.
Product Description:

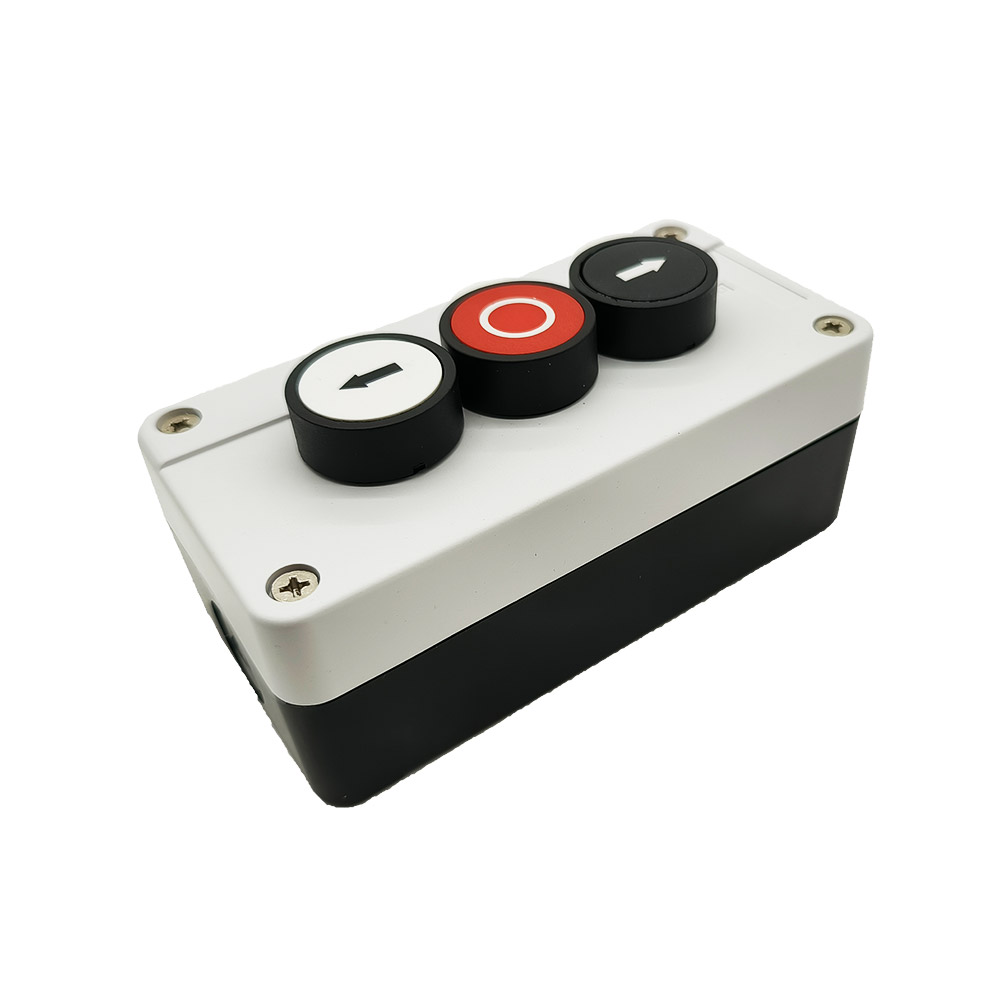

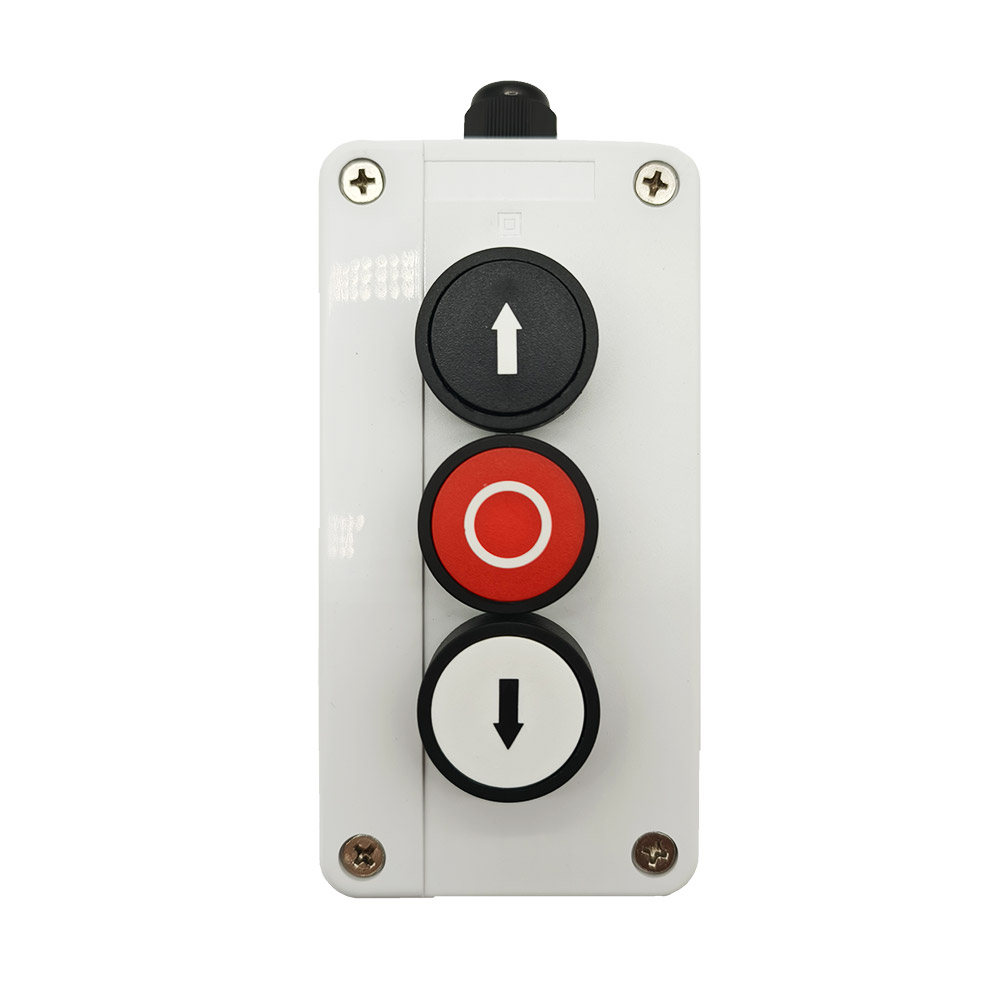

Three buttons: UP, STOP, DOWN
Button type: momentary
Button diameter: 30 MM
Hole diameter: 22 MM

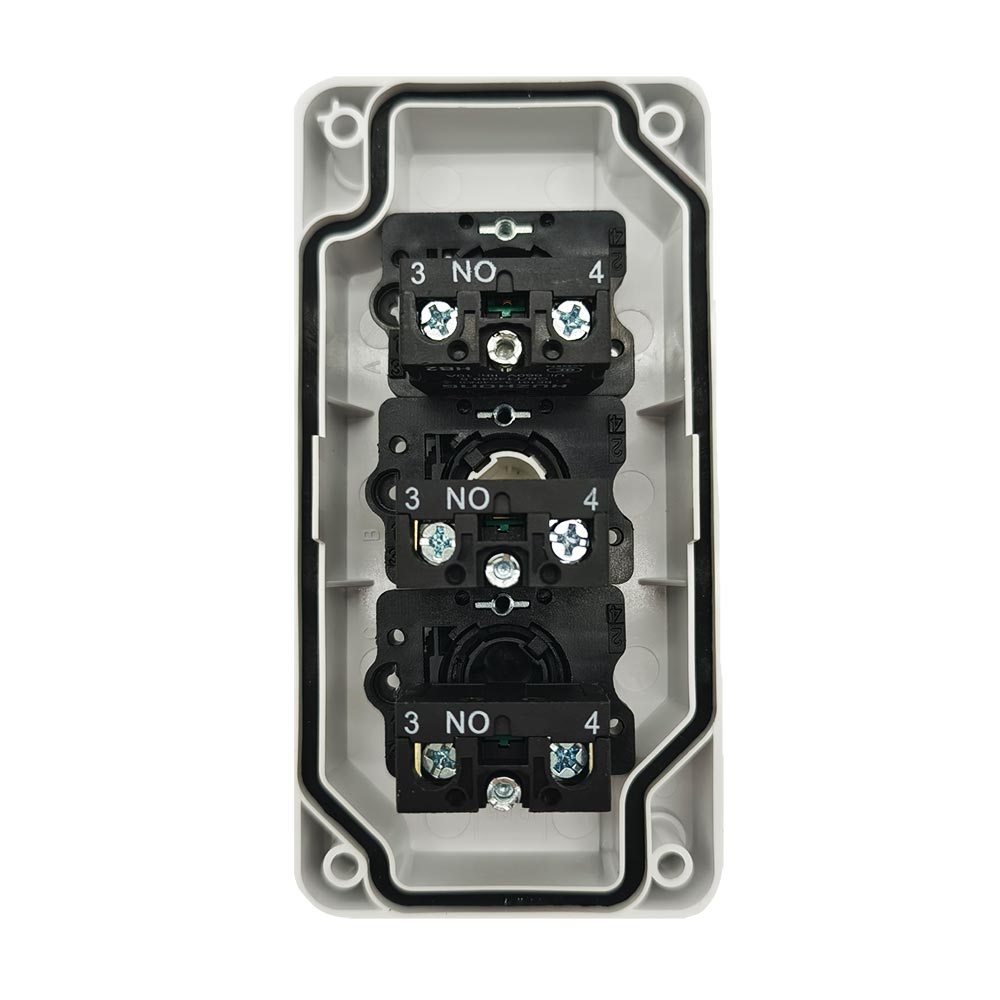

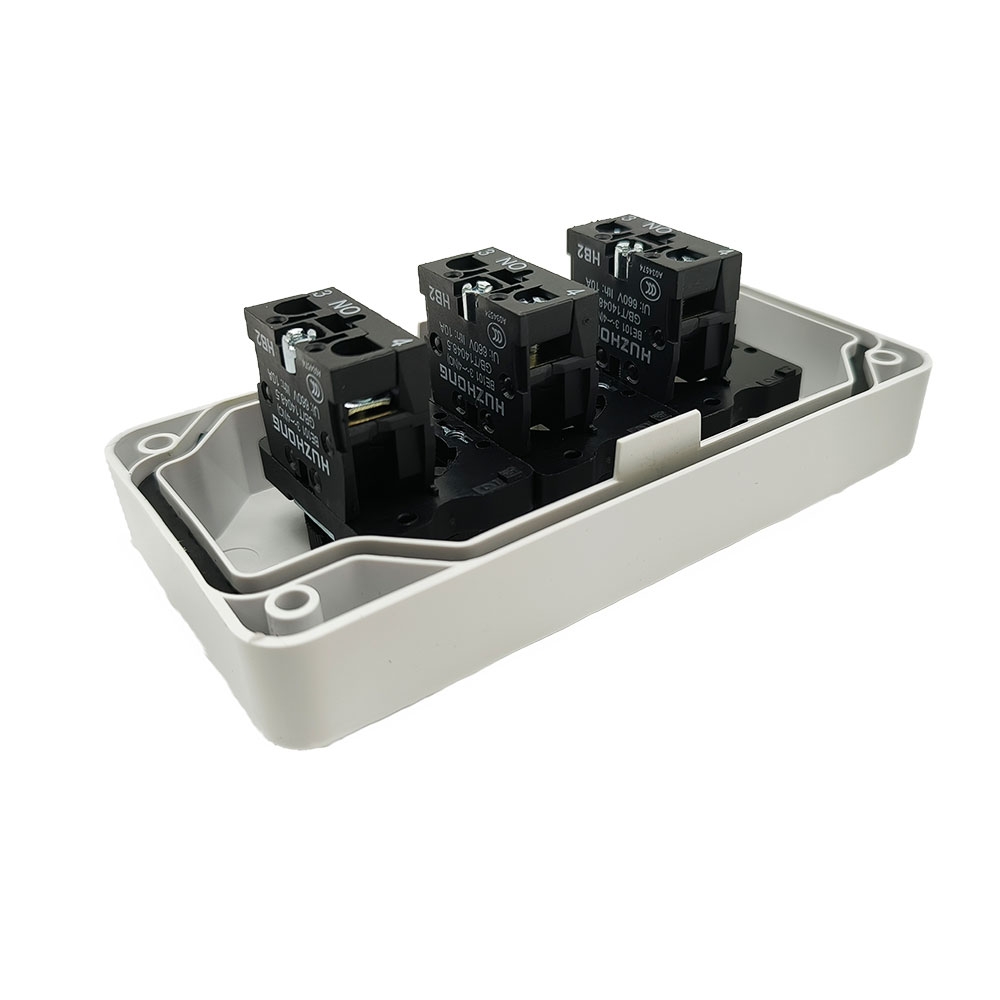

Each button is equipped with a NO contact
Contact material: silver contacts
Contact rated current: 10A
Operating Temperature: -20°C to +70°C

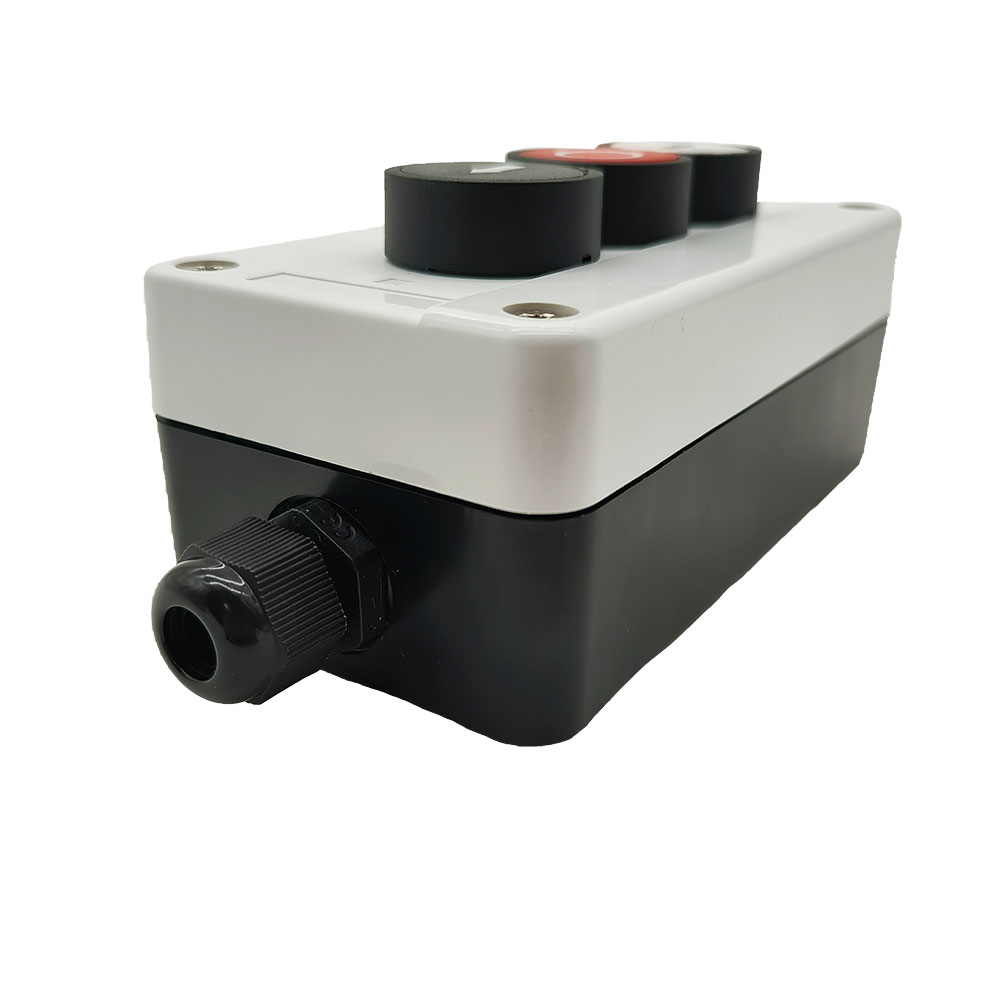

Waterproof case and waterproof connector
Impact-resistant plastic case
IP rating: IP65
Case size: 134 x 68 x 50 mm (5.3 x 2.7 x 2.0 inches)
Suitable for the following receivers: S1FC-DC, S1F2-DC, S1PF-DC, S1PF3-DC,
S1FC-AC, S1F2-AC.
