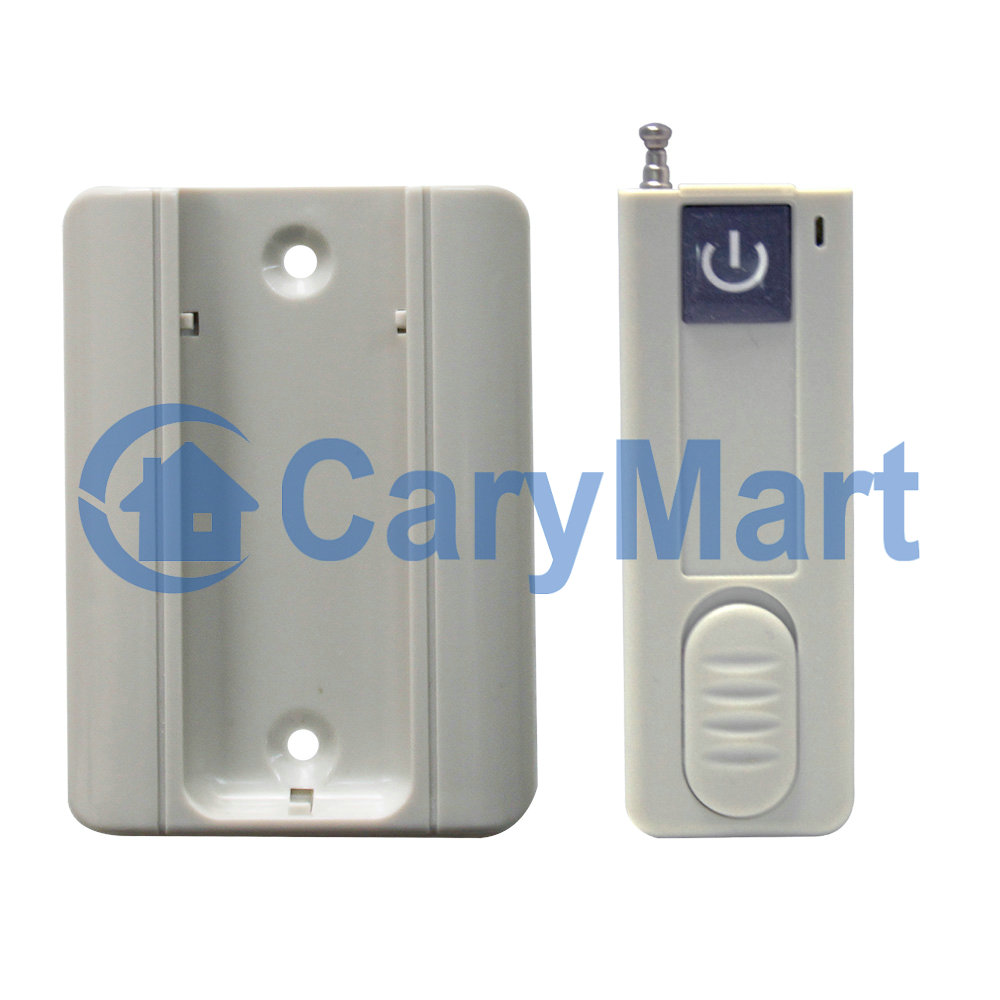

Product Description: Model No.:
0021041 (CG-1) With Wall
Mounted Support Shell
Color: Grey Channel/Button:
1 Operating

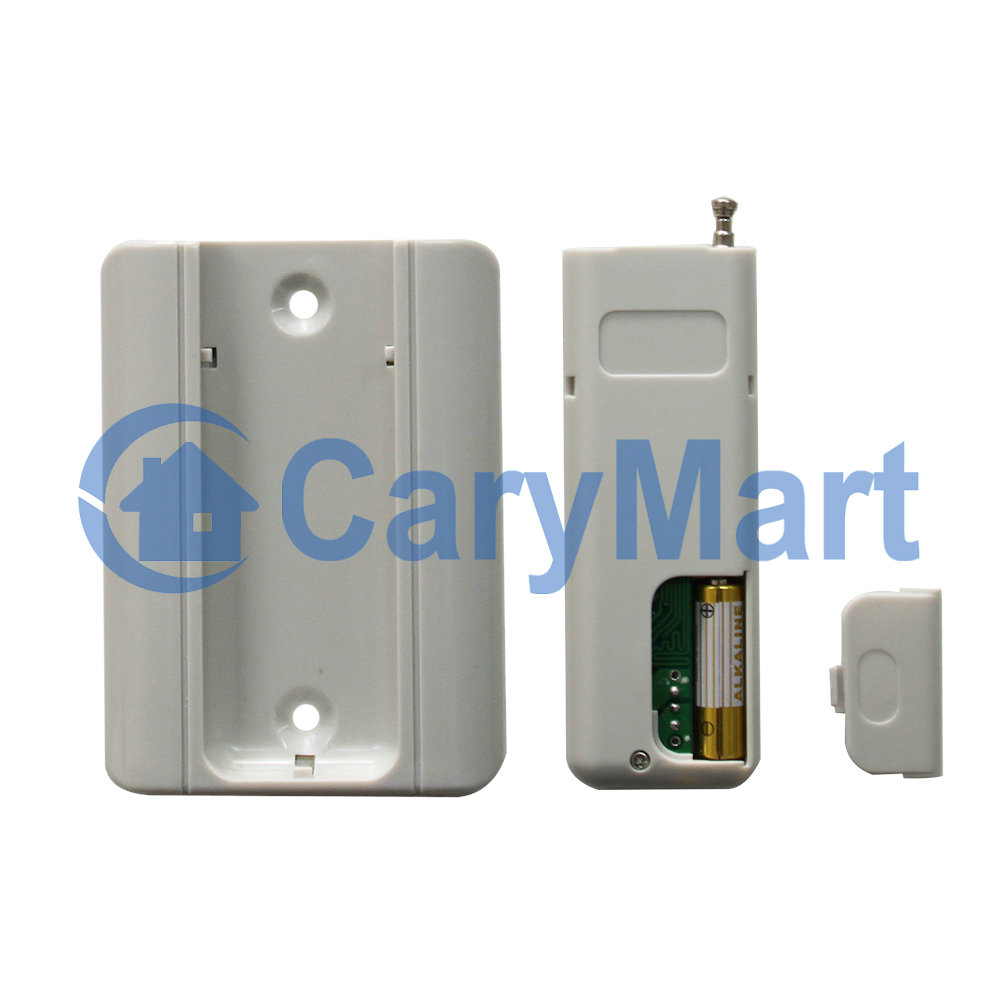

Voltage: 12V (1
x 27A -12V battery, can be used for 12 months) Operating
Current: 13mA Operating
Frequency: 433Mhz Encoding
Chip: SC2262 Encoding
Type: Fixed

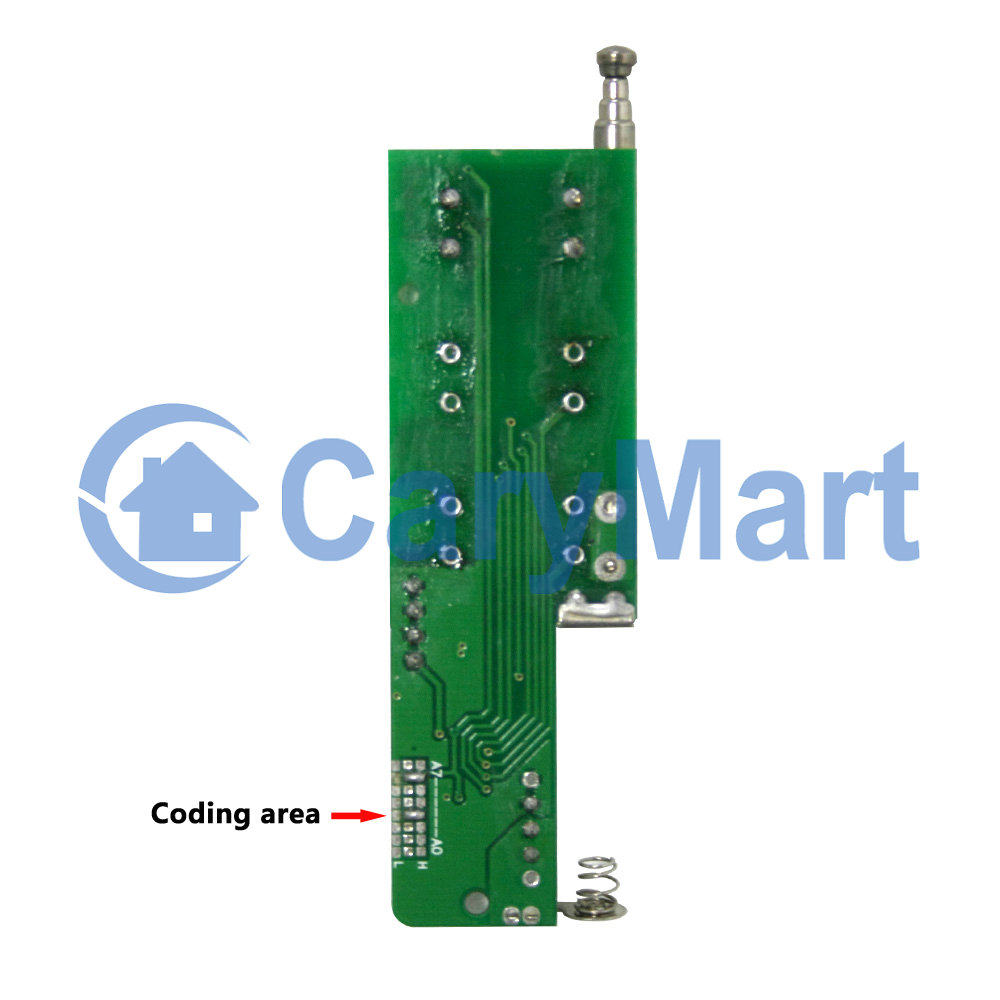

code by soldering, up to 6561 codes Transmitting
Distance: 500m / 1500ft (theoretically) The
distance of 500m is a theoretical data, it shall be operated in an open ground,
no barriers, no any interference. But in the practice, it will be hindered by
trees, walls or other constructions, and will be exposed to some interference
by other signals. Therefore, the actual distance may or may not reach 500m. If
you stretches the telescopic antenna, it can have a further working range,
which is twice as much as it used to be. It
has an on / off button on the front side. Modulation
Mode: ASK Operating
Temperature: -20 ° C to +70 ° C Unit Size: 84mm
x 30mm x 10mm Fixing
Bracket size: 87mm x 63mm x 10mm Weight:
45g Uses:
garage doors, motorcycles, car alarm products, home security products, wireless
remote control products, industrial control products.
