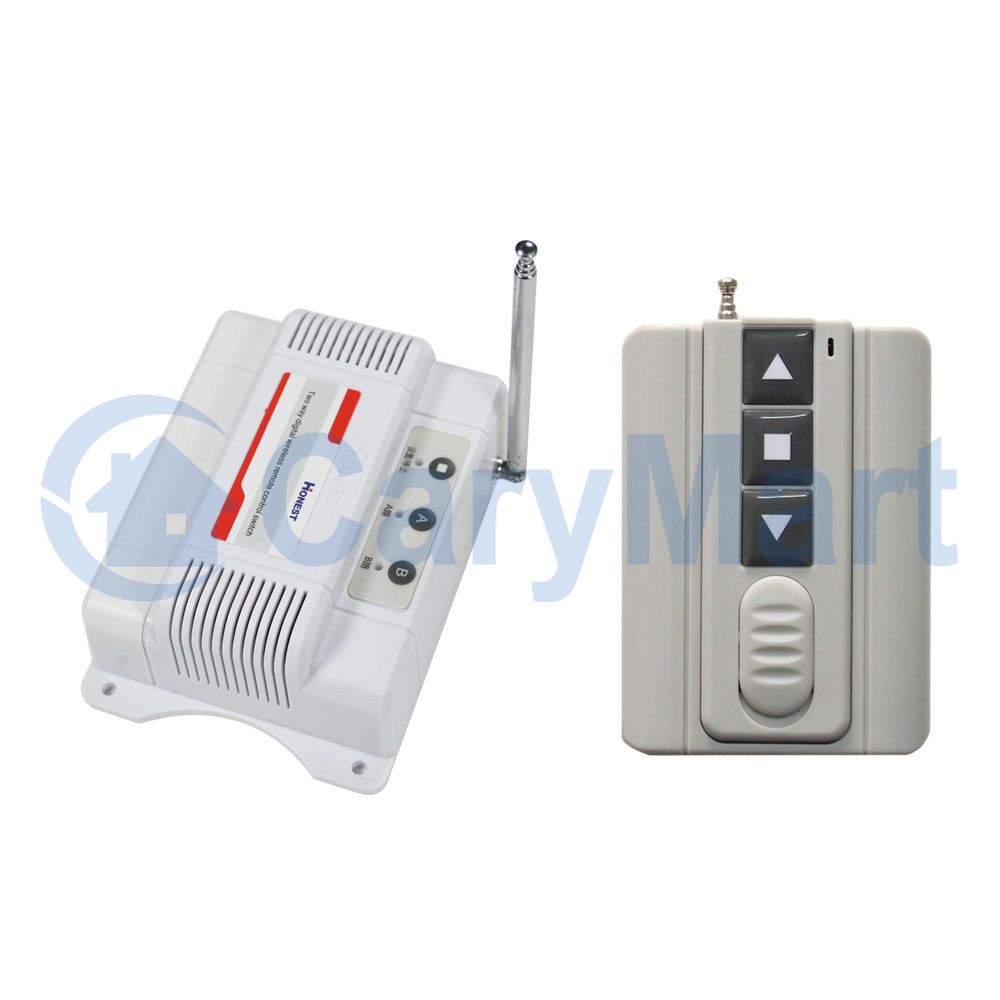

Manual Package Include:
1 x Receiver: S2U-AC380-ANT3
1 x Transmitter: CG-3
1 x User manual Feature:
Application: It can be used in rolling blinds, rolling doors, projection
screens, awnings, pumps, winches, conveyors or other equipments with AC motor.
It can remotely control the AC motor to rotate in the forward or reverse
direction.
Wireless control, easy to install.
Universal Power Supply: AC 75~400V, support AC 110V, AC 120V, AC 220V, AC 240V,
AC 380V.
With 3 manual buttons: You can press the manual buttons to control the
equipments.

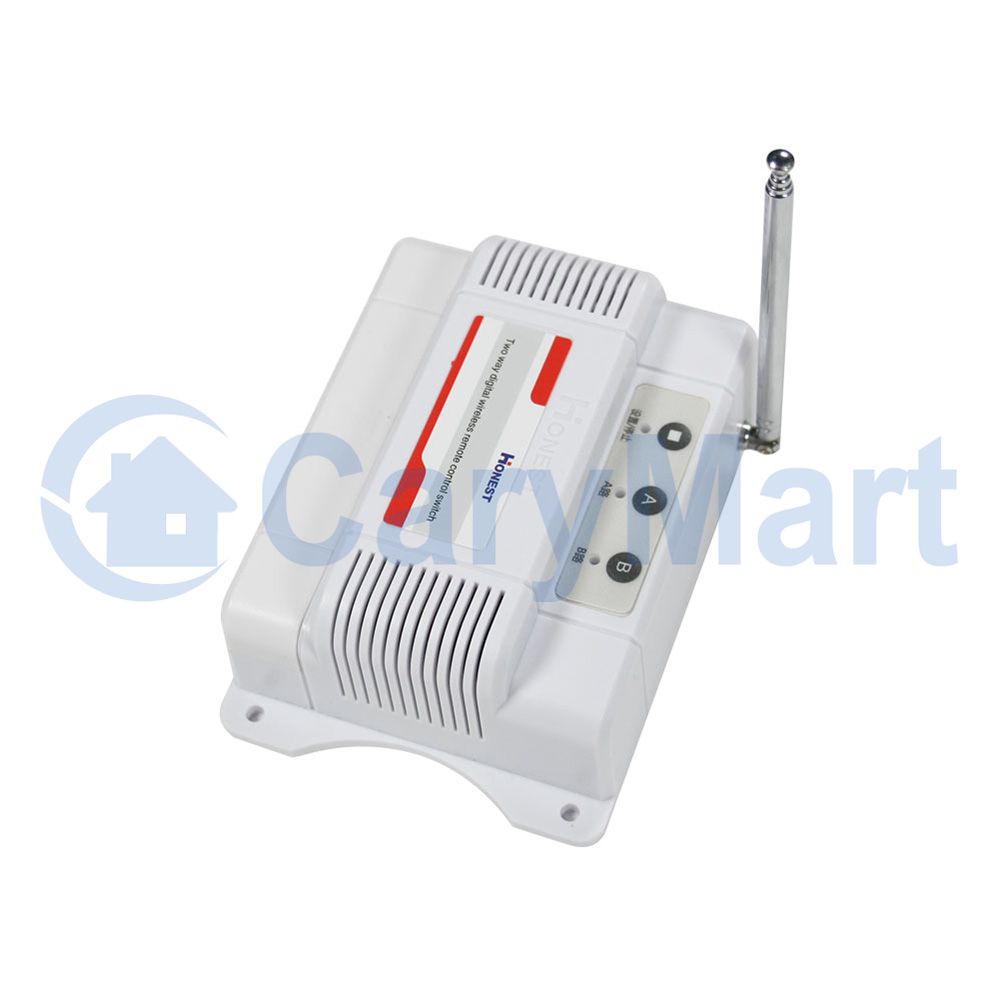

With external telescopic antenna, the receiver have a farther working range.
You can rotate the motor in the positive or reversal direction with the
transmitter (remote control) from any place within a reliable distance.
Wireless RF signal can pass through walls, floors, doors or windows.
With characteristics of reverse power protection and over current protection.
Reliable control: The code has thousands of different combinations, and the
receiver only works with the transmitter which use the same code.
One/several transmitters can control one/several receivers simultaneously.
You can use two or more units in the same place.

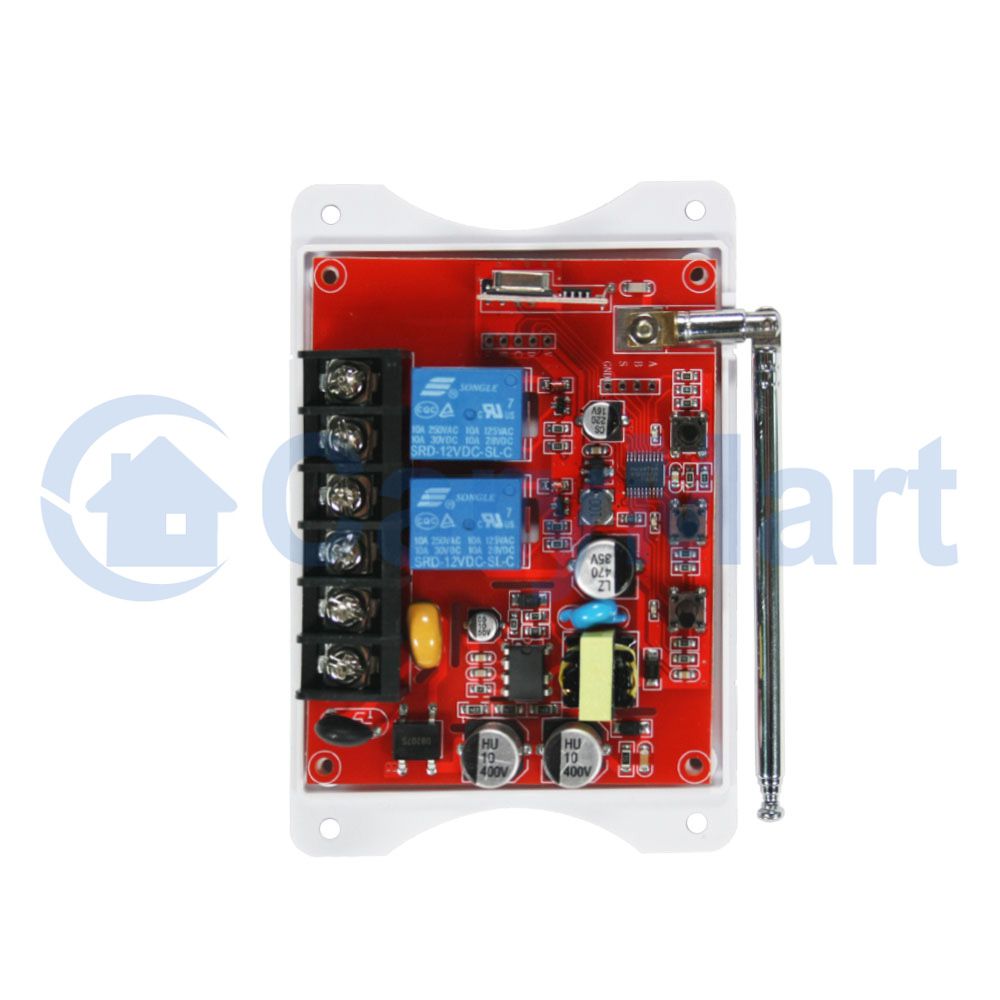

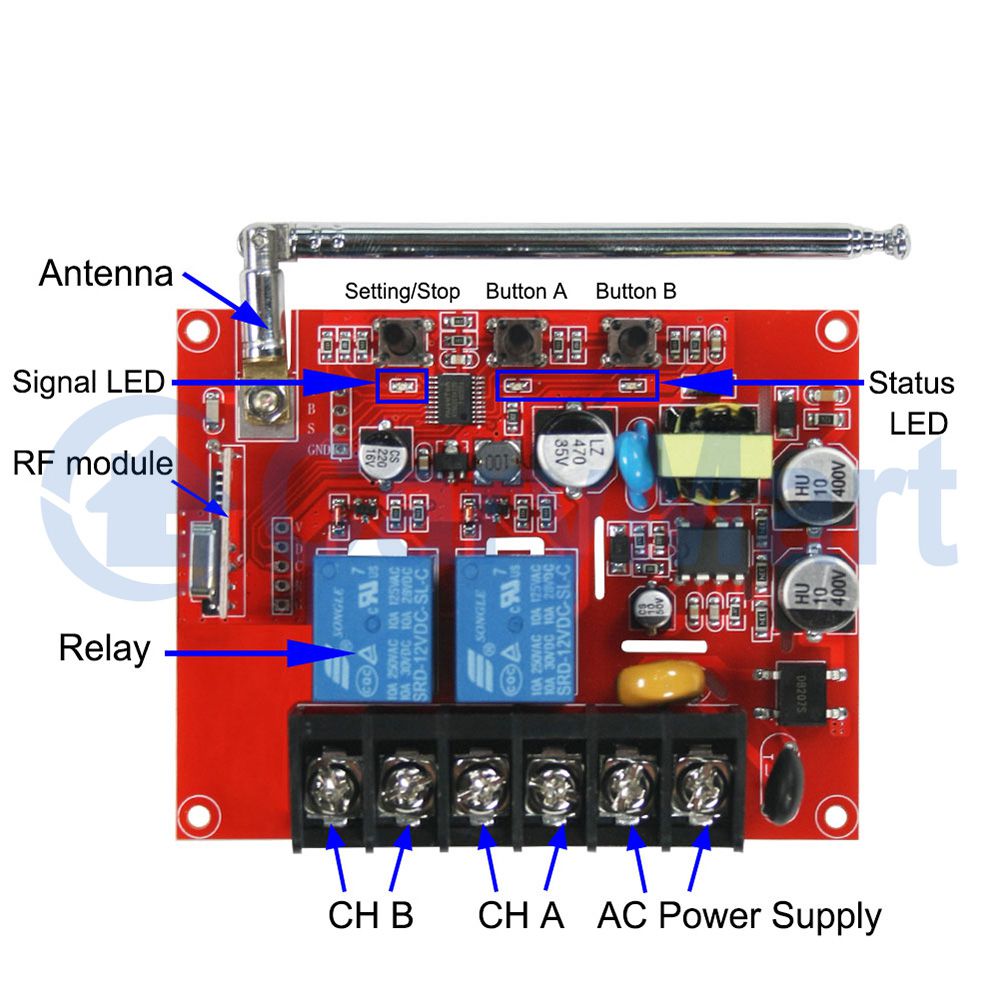

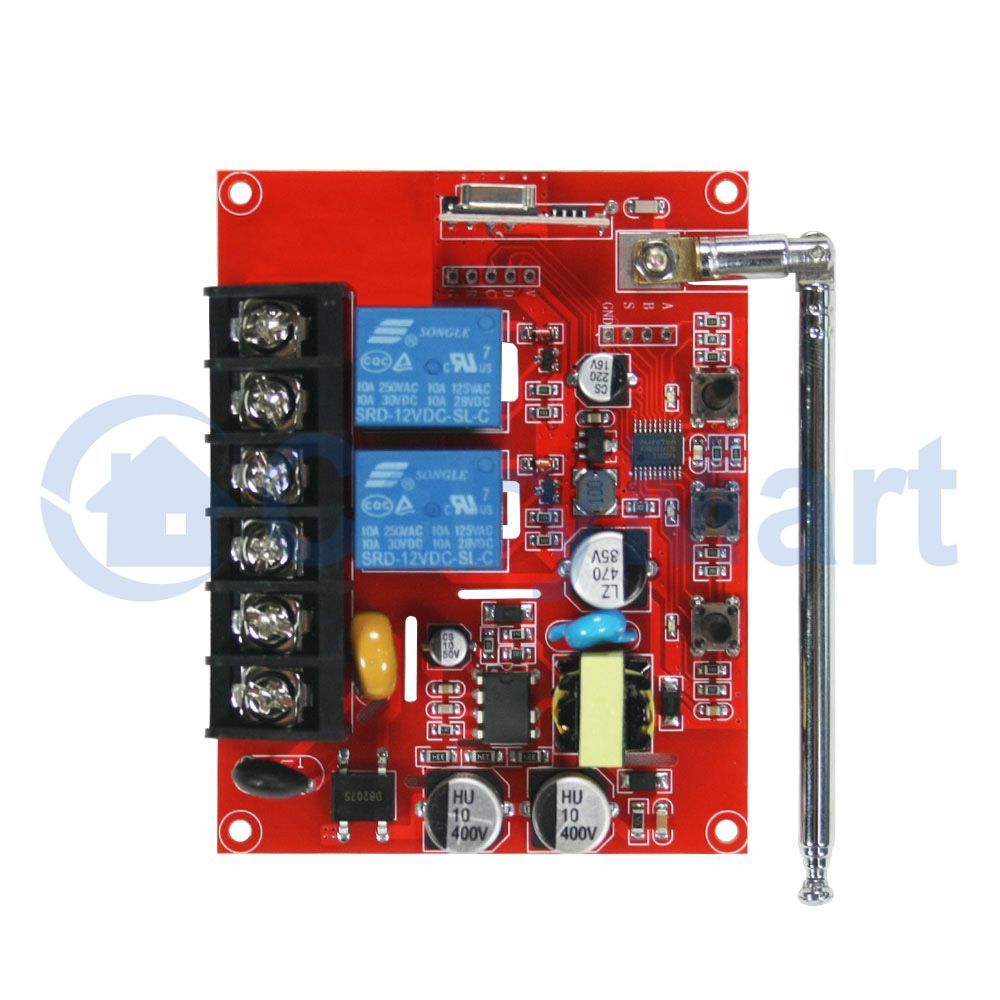

Receiver Parameters:
Model No.: S2U-AC380-ANT3
Power Supply (Operating Voltage): AC 75~400V (110V/120V/220V/240V/380V)

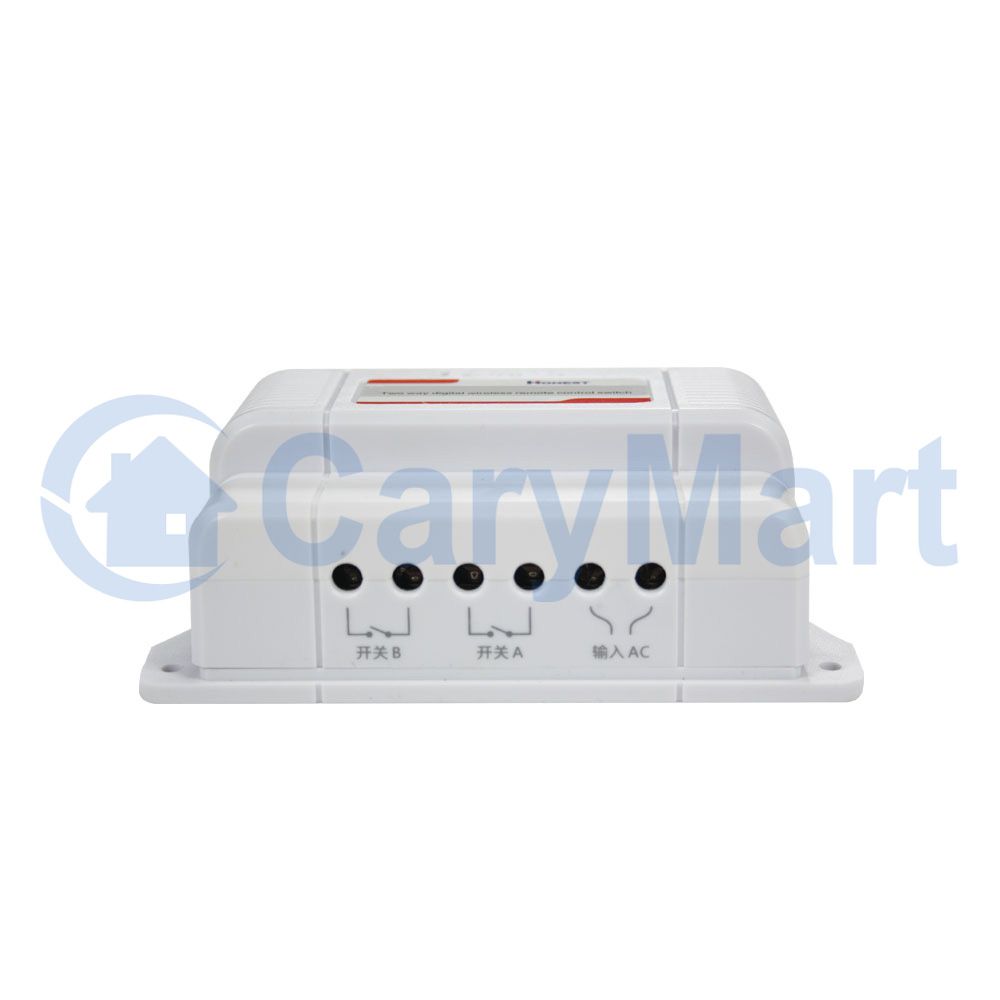

Output: Relay output (Normally open)
Wire range for the terminals: 22-12 AWG
Working Frequency: 433.92MHz
Channel: 2 CH
Control Modes: Self-locking, Momentary, Interlocking
Static Current: ≤6mA
Maximum Load Current: 10 A / each channel
Operating Temperature: -20 ° C to +70 ° C
Case size: 115mm x 78mm x 40mm

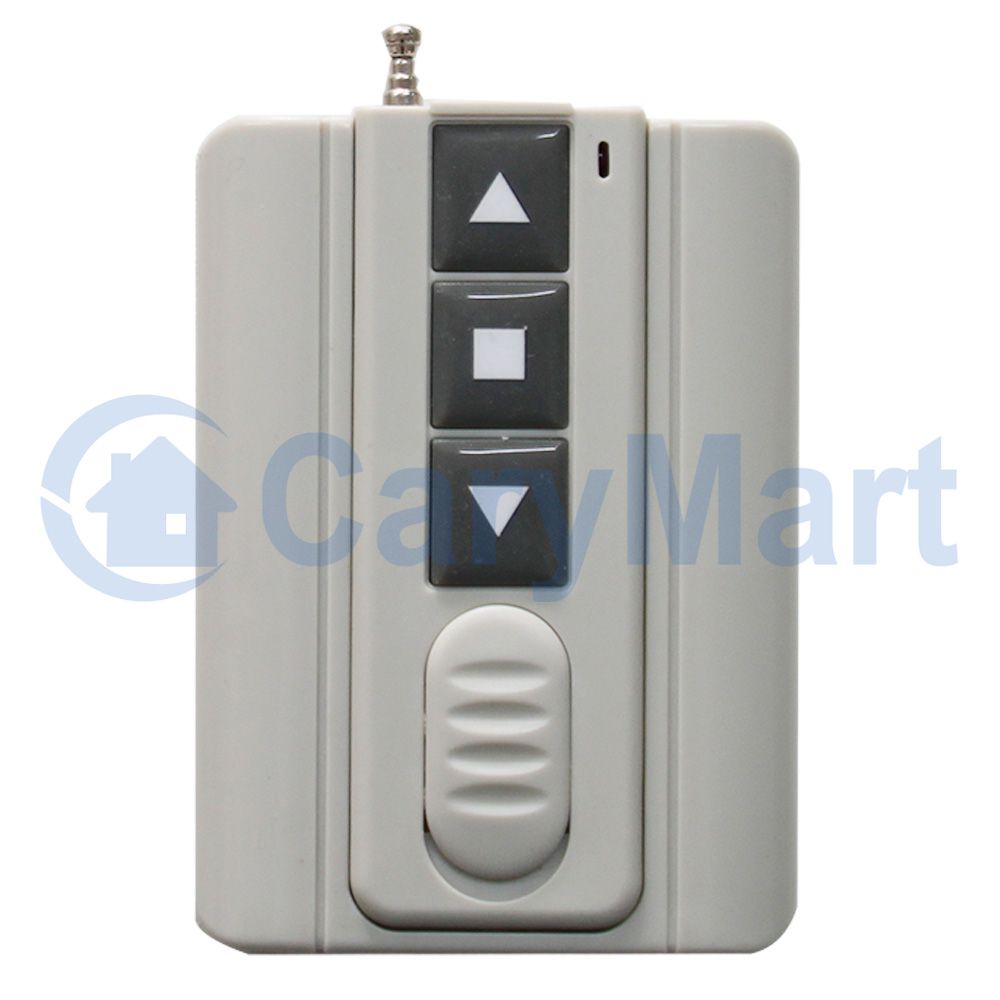

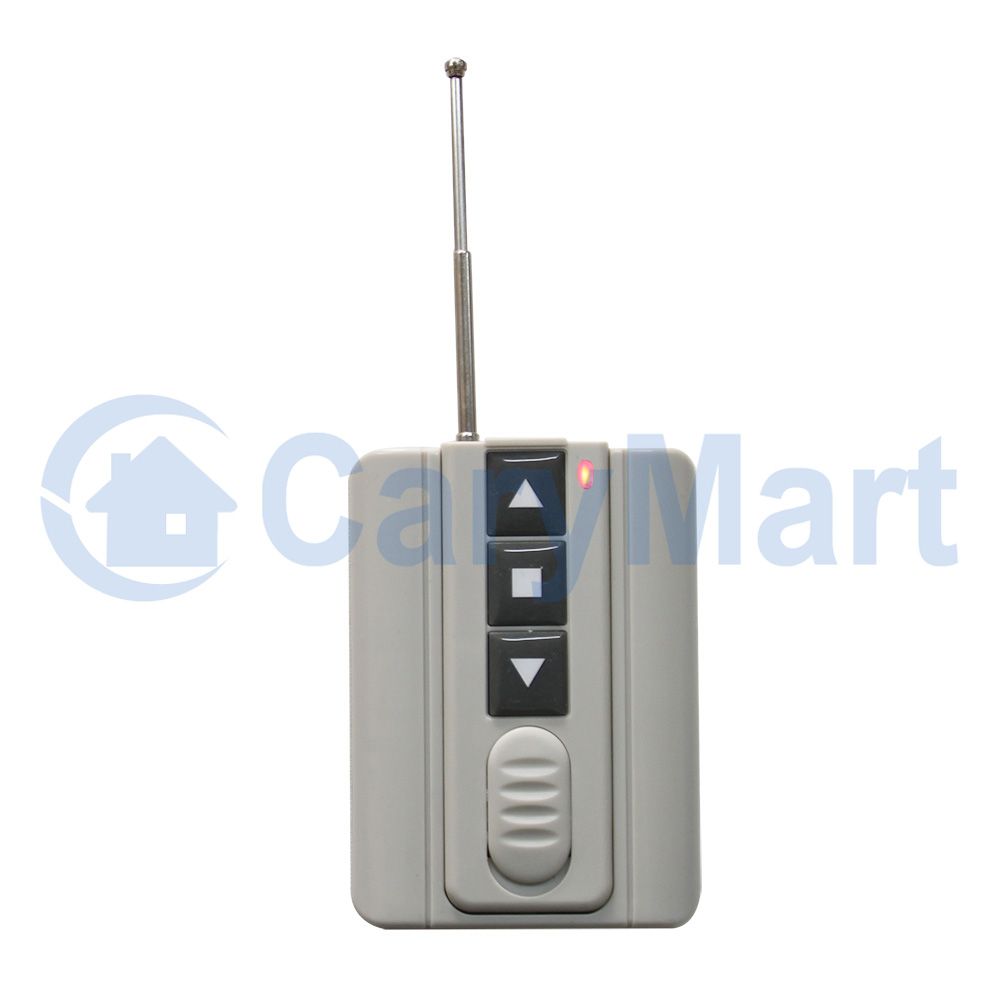

Transmitter Parameters:
Model No.: 0021057 (CG-3)

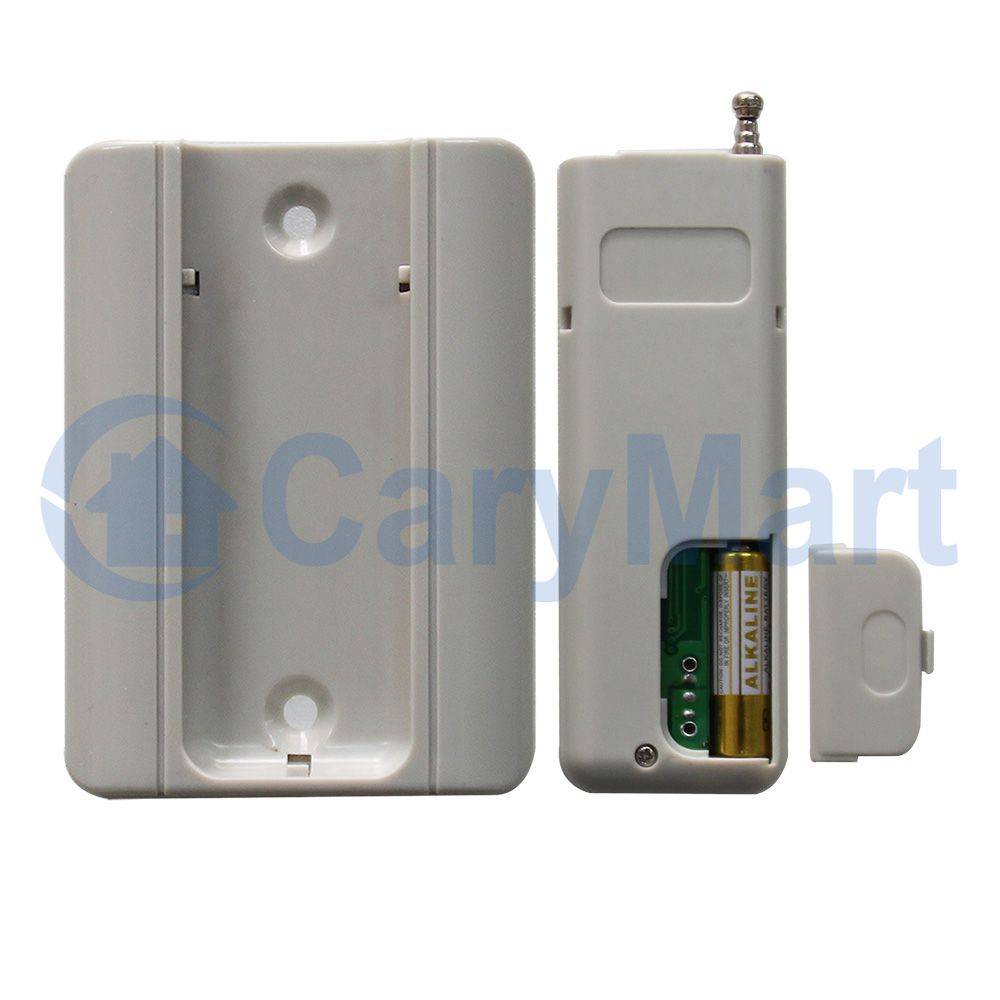

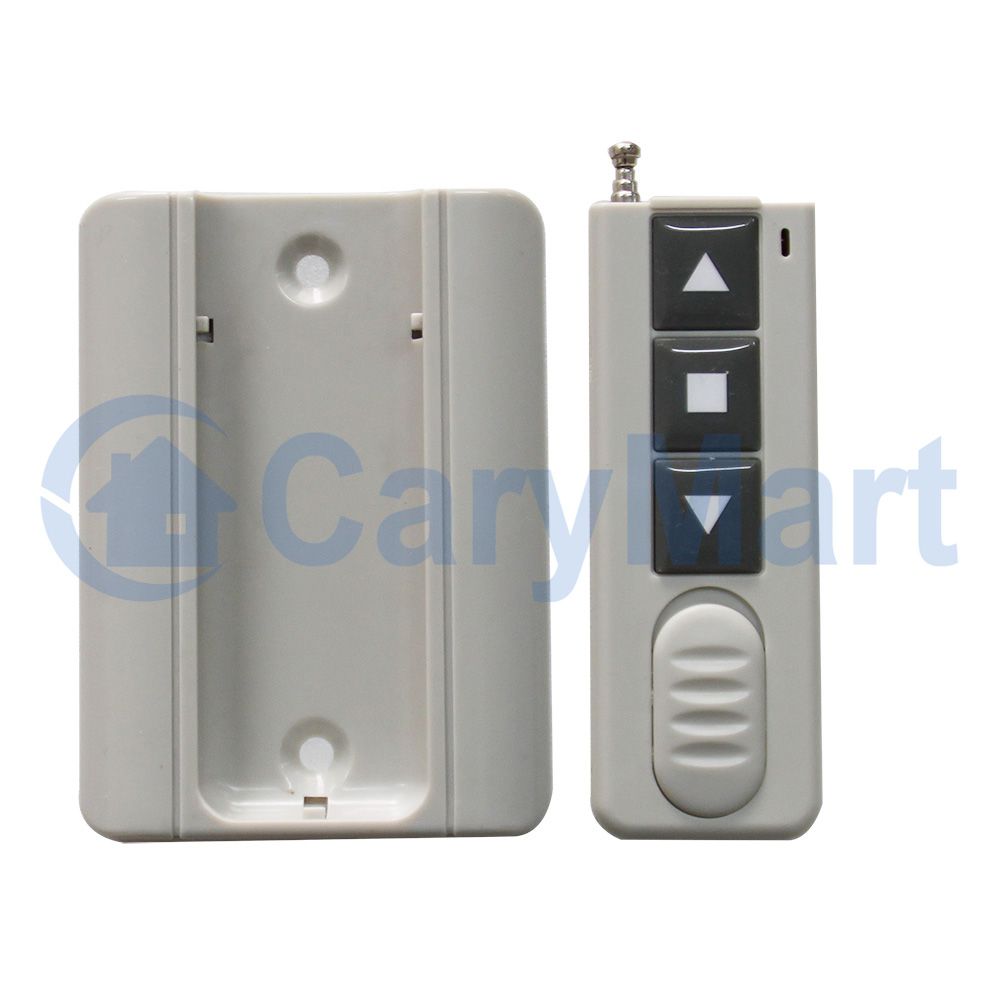

With Wall Mounted Support
Channel/Button: 3
Button Symbol: ▲, ■, ▼
Operating Voltage: 12V (1 x 27A -12V battery, can be used for 12 months)
Operating Current: 8mA
Operating Frequency: 433.92MHz
Encoding Chip: SC2262
Encoding Type: Fixed code by soldering, up to 6561 codes
Transmitting Distance: 500m / 1500ft (theoretically)
Modulation Mode: ASK
Unit Size: 84mm x 30mm x 10mm
Fixing Bracket size: 87mm x 63mm x 10mm
Matching Transmitters:
The receiver can work with different transmitters, such as model CG-3 (500M),
C-3-2 (100M) or CB-3-2 (1000M) etc.
Working Range:
With a transmitter (such as CG-3) to form a complete set, the maximum working
distance can reach 500M in an open ground.
The maximum working distance is a theoretical data, it shall be operated in an
open ground, no barriers, no any interference. But in the practice, it will be
hindered by trees, walls or other constructions, and will be interfered by other
wireless signals. Therefore, the actual distance may not reach this maximum
working distance.
If you want to have a further working range, you can use a powerful transmitter,
such as CB-3-2 transmitter.
Usage (with the transmitter CG-3):
The receiver can be used to control AC 380V pumps, motors and other equipments
by the 380V contactors, and it can’t directly connected to the 380V equipments.
Notice: The receiver is relay output, not DC/AC power output. Initial state of
relay output terminals: Two terminals are Normally Open.
Wiring:

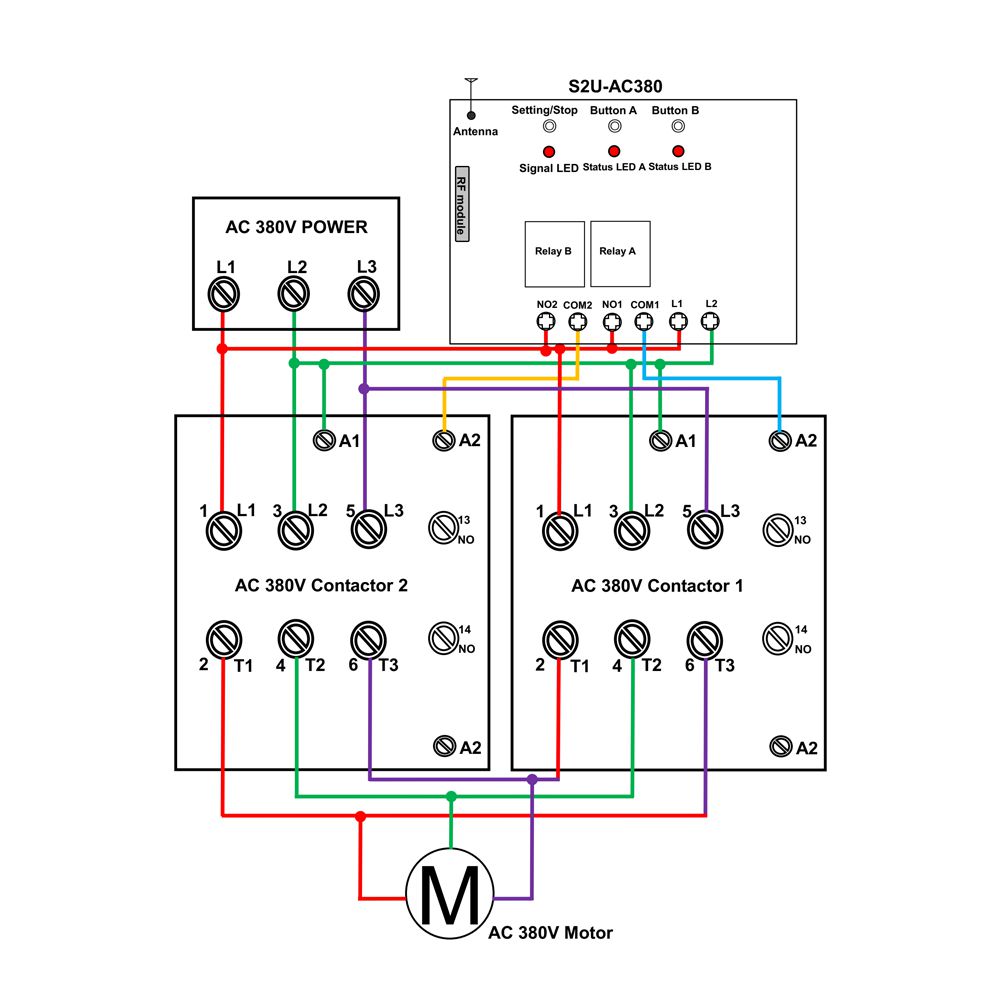

If you want to control a AC 380V motor, you can connect the receiver, the 380V
contactor, the 380V motor and the 380V power according following circuit
diagram, then you use the transmitter to control the AC 380V motor.
Setting different control modes:
We have set the receiver as Interlocking control mode before delivery. If you
want to use other control modes, do as following operation:
1) Setting Interlocking mode: When the receiver is in the status of LEARNING,
press button ■ of the transmitter.
Mode Interlocking (working with transmitter CG-3): Press -> On; Press another
button -> Off.
Press button ▲ of the transmitter or button A of the receiver: The relay 1 is
deactivated, and the contactor 1 is connected, the 380V motor rotates in the
positive direction.
Press button ■ of the transmitter or button Stop of the receiver: The relay 1 is
deactivated, and the contactor 1 is disconnected, the 380V motor stops.
Press button ▼ of the transmitter or button B of the receiver: The relay 2 is
activated, and the contactor 2 is connected, the 380V motor rotates in the
reversal direction.
Press button ■ of the transmitter or button Stop of the receiver: The relay 2 is
deactivated, and the contactor 2 is disconnected, the 380V motor stops.
2) Setting Momentary mode: When the receiver is in the status of LEARNING, press
button ▼ of the transmitter.
Mode Momentary (working with transmitter CG-3): Press and hold -> On; Release ->
Off.
Press and hold button ▲ of the transmitter or button A of the receiver: The
relay 1 is deactivated, and the contactor 1 is connected, the 380V motor rotates
in the positive direction.
Release button ▲ or button A: The relay 1 is deactivated, and the contactor 1 is
disconnected, the 380V motor stops.
Press and hold button ▼ of the transmitter or button B of the receiver: The
relay 2 is activated, and the contactor 2 is connected, the 380V motor rotates
in the reversal direction.
Release button ▼ or button B: The relay 2 is deactivated, and the contactor 2 is
disconnected, the 380V motor stops.
