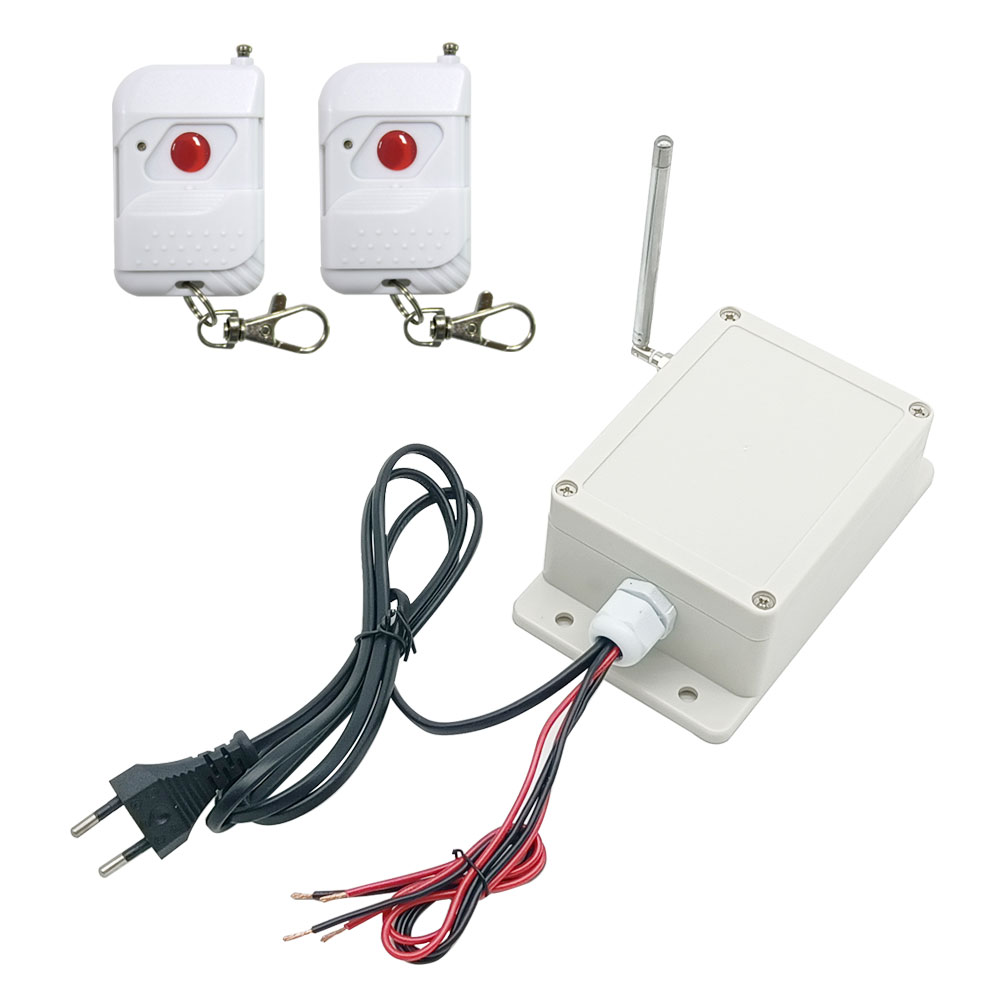

Wireless Remote Control Switch for Dual Control Lamp Circuit

Feature:
Application: Used in situations where two dual-control switches are used to control the same lamp, such as upstairs and downstairs, indoors and outdoors. You may install this remote control switch so that you can use the remote control and two dual-control switches to control the lamp at the same time.
Wireless control, easy to install.
Waterproof: The receiver has waterproof case and waterproof connector, it can be installed outdoors.
Universal input: Support voltage of AC110V (100V~120V), widely used in US, Canada... and voltage of AC220V (200V~240V), used in UK, France...

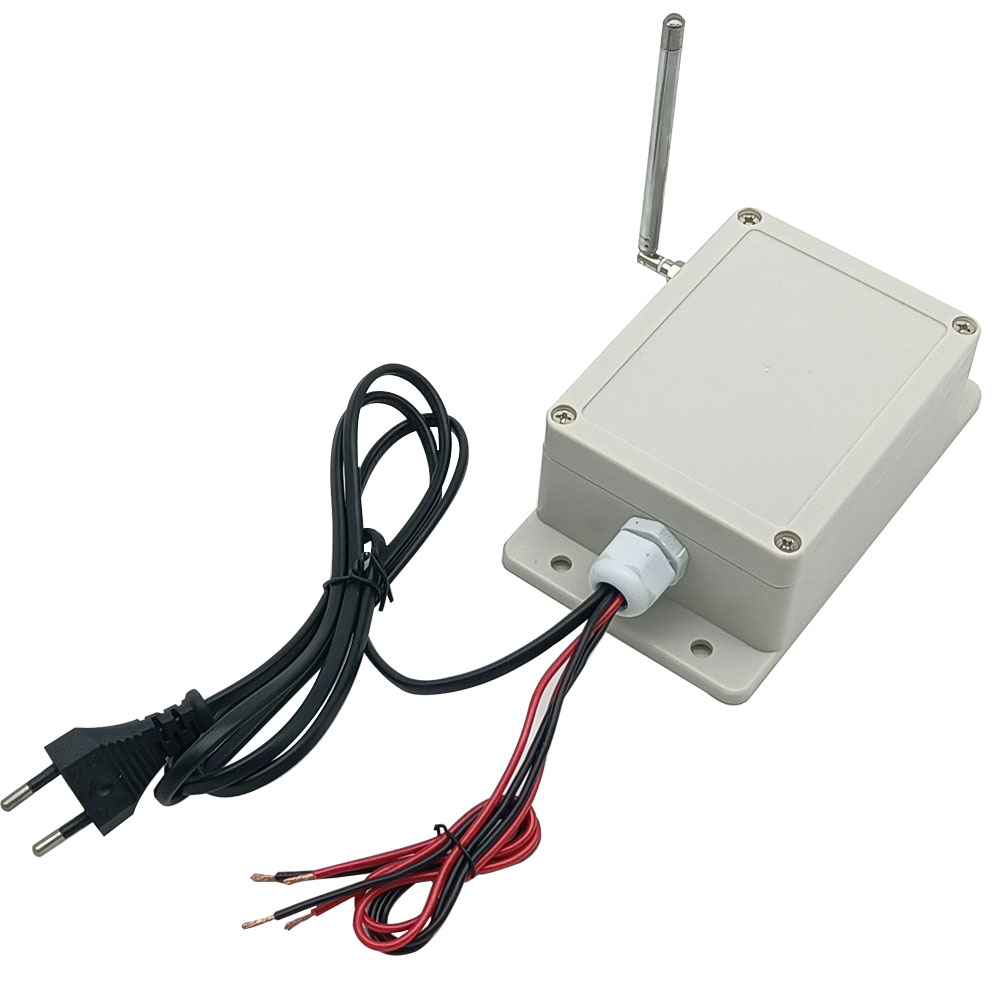

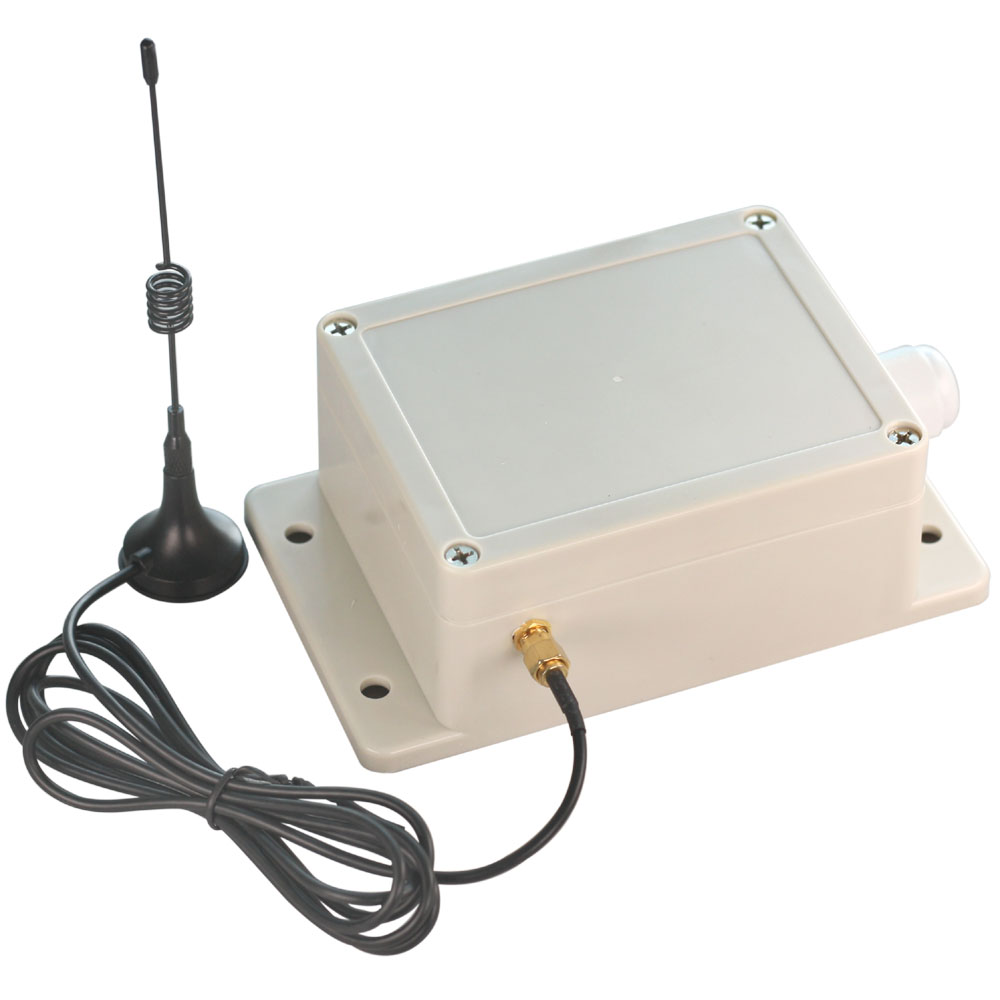

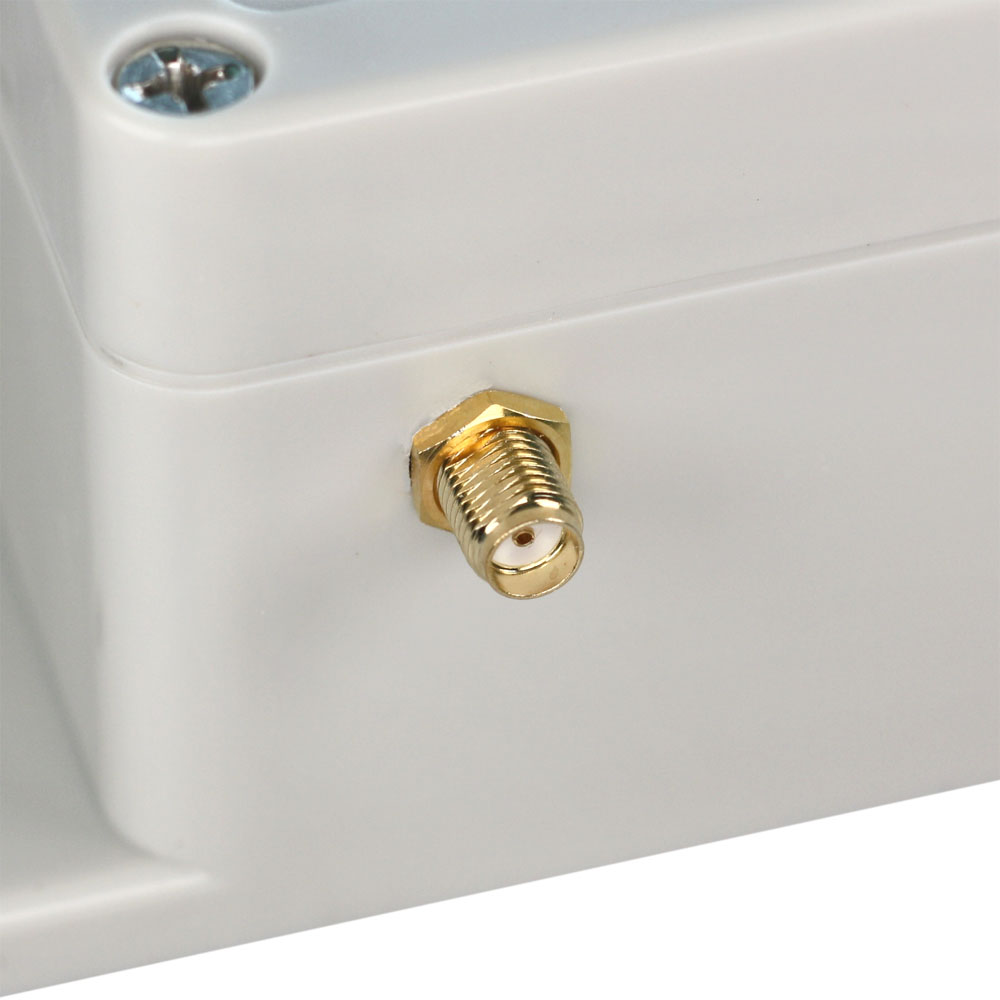

With external telescopic antenna, the receiver have a farther working range.
You can control the lamp by using the receiver with transmitter (remote control) from any place within a reliable distance.
Wireless RF signal can pass through walls, floors, doors or windows.
Reliable control: The code has thousands of different combinations, and the receiver only works with the transmitter which use the same code.

Receiver Parameters:
Model No.: S2US-AC-ANT3
Power Supply (Operating Voltage): AC100~240V (110V/120V/220V/240V)
Working Frequency: 433.92MHz
Static Current: ≤6mA
Maximum Load Current: 10A
Operating Temperature: -20 ° C to +70 ° C

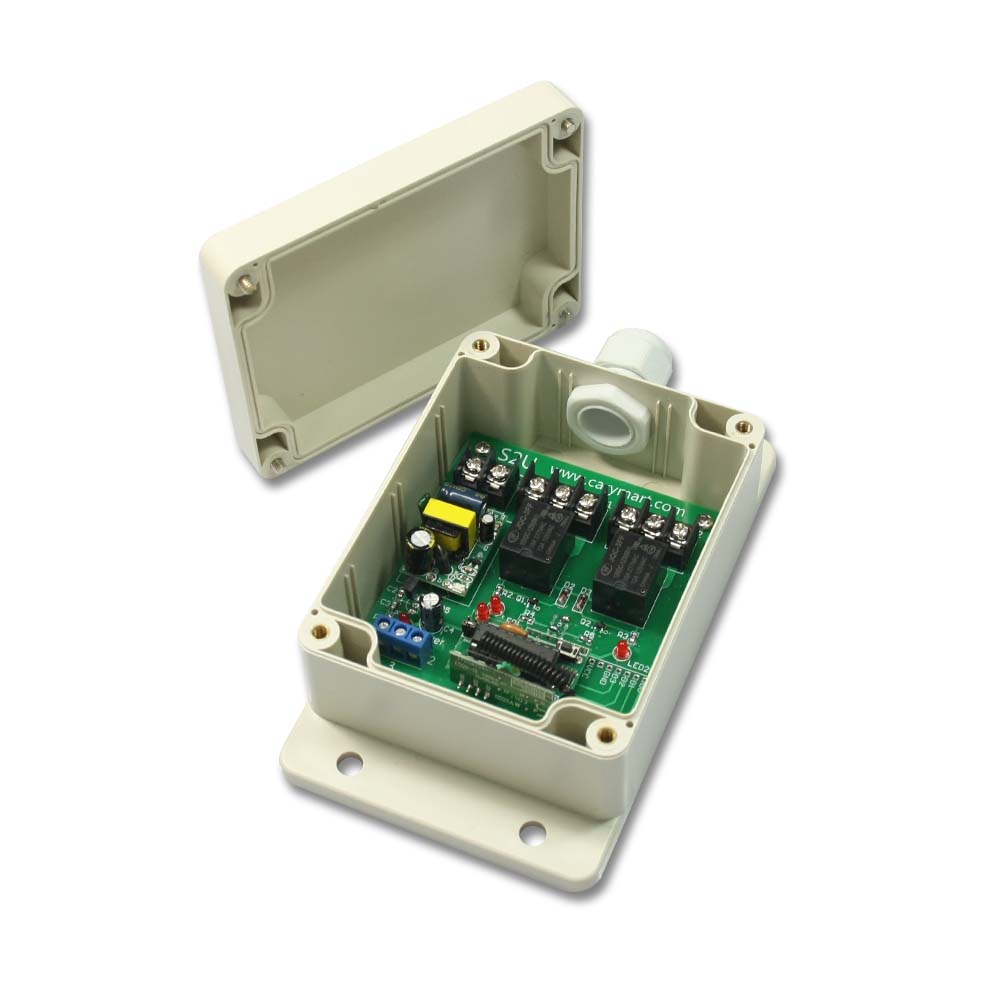

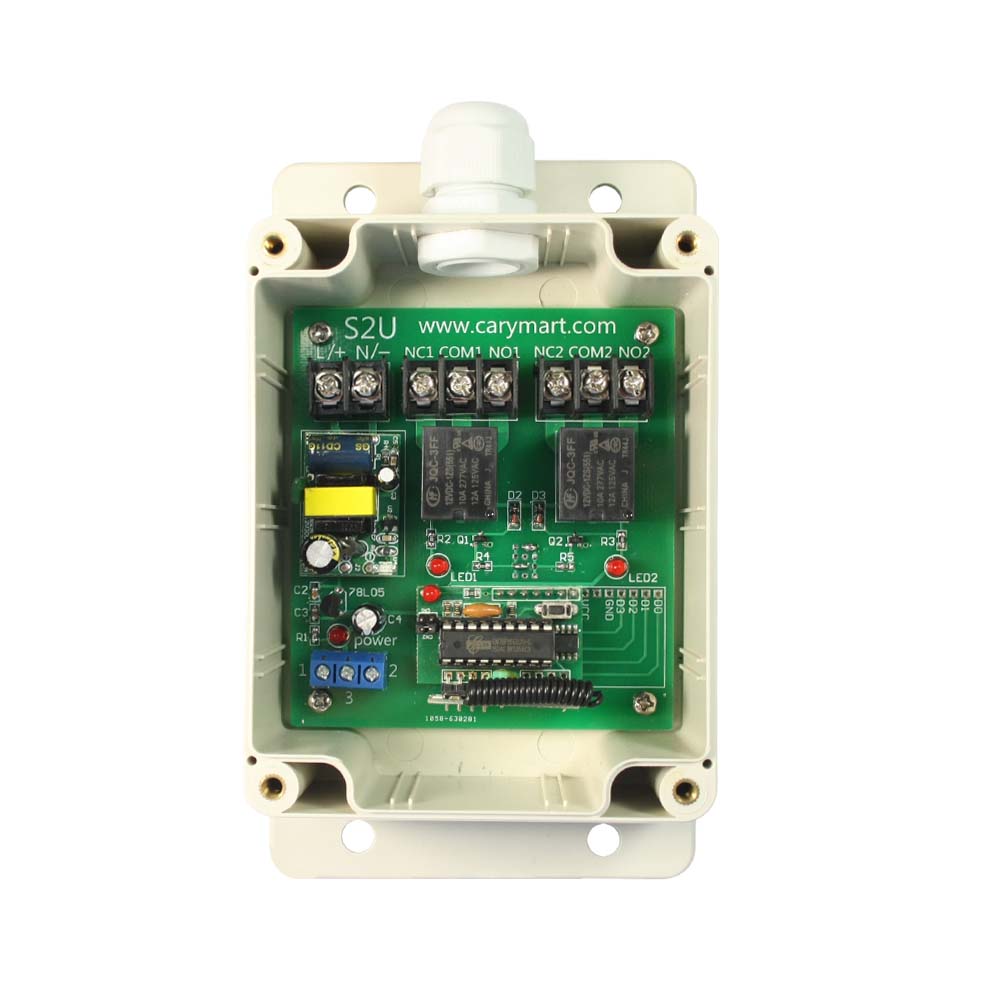

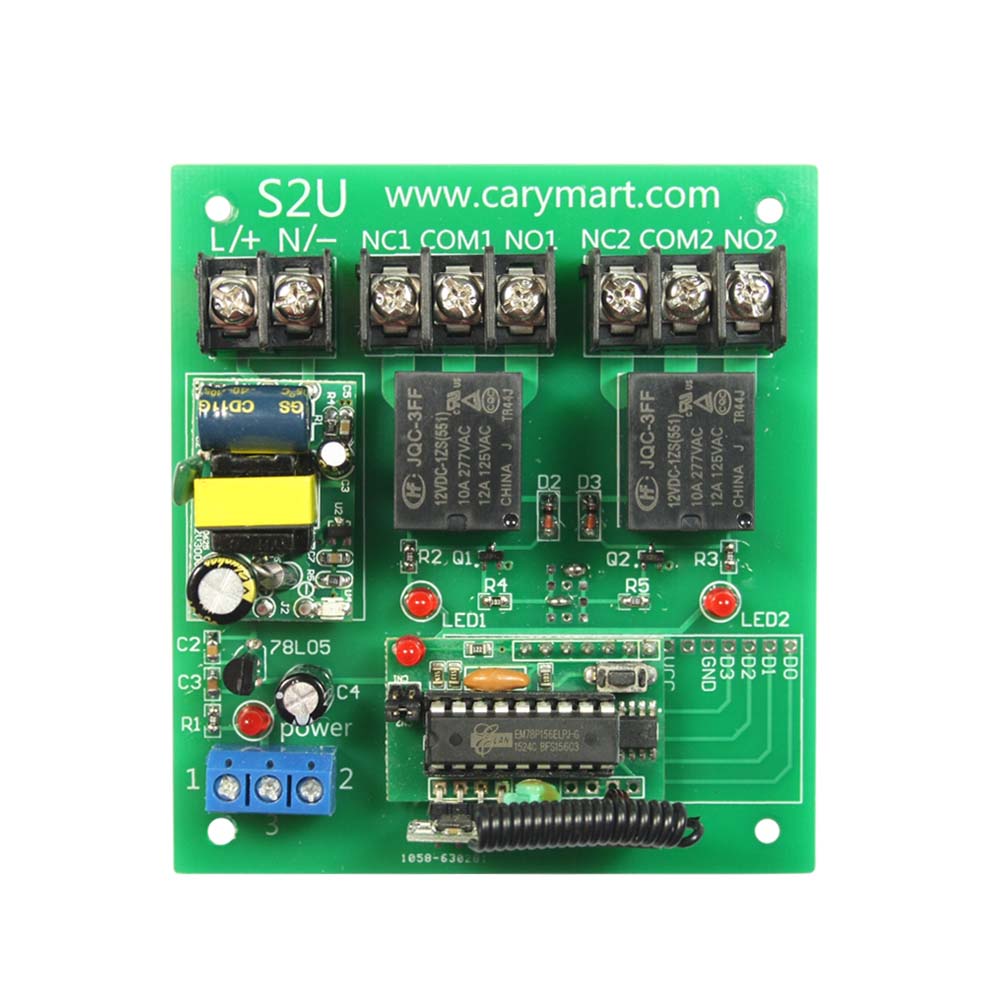

PCB size: 88mm x 80mm x 18mm

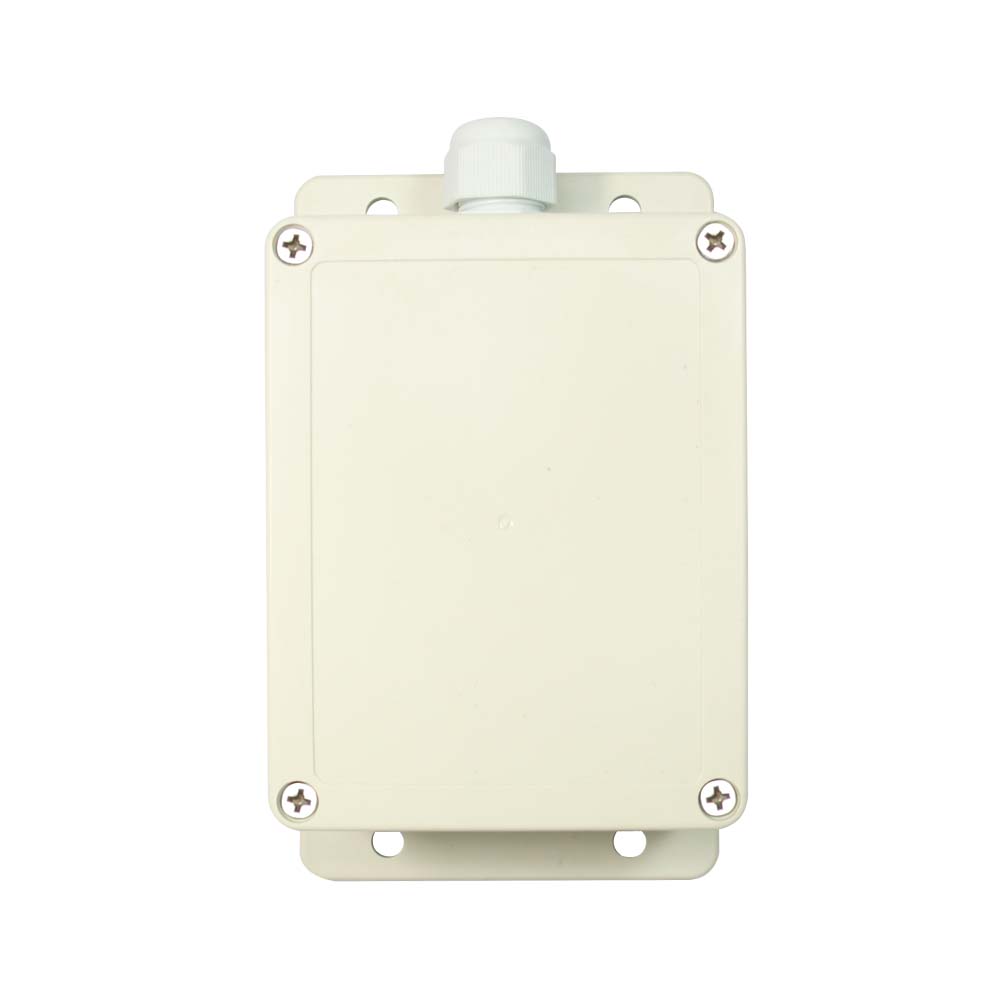

Case size: 115mm x 90mm x 55mm

Transmitter Parameters:
Model No.: 0021000 (C-1)
With Sliding Cover: Slide up when it doesn’t work (to protect the button). Slide down the button will appear.
Channel/Button: 1
Operating Voltage: 12V (1 x 23A -12V battery, can be used for 12 months)
Operating Current: 6mA
Transmitting Distance: 100m / 300ft (theoretically)
Modulation Mode: ASK
Unit Size: 58mm x 39mm x 16mm

Working Range:
With a transmitter (such as C-1) to form a complete set, the maximum working distance can reach 100M in an open ground.
The maximum working distance is a theoretical data, it shall be operated in an open ground, no barriers, no any interference. But in the practice, it will be hindered by trees, walls or other constructions, and will be interfered by other wireless signals. Therefore, the actual distance may not reach this maximum working distance.
If you want to have a further working range, you can use a powerful transmitter, such as CB-1 transmitter.

Usage:
The receiver can be used to control AC 110~240V lamp or other equipments.
Disconnect two connecting wires between two dual-control switches, then connect two red wires of the receiver to a switch, and connect two black wires of the receiver to another switch.
Press the button on the transmitter, the lamp is turned on.
Press the button again, the lamp is turned off.
You can also use two dual-control switches at the same time to control this lamp at the same time.
